Neonatal and infantile fistulas: spectrum of findings on conventional contrast imaging with surgical correlation

Article metrics

  • 83 Accesses

Abstract

Background

Neonatal and infantile fistulas are diverse and include many types. Conventional contrast images are used to delineate the fistulous tracts. The aim of this study is to illustrate the conventional radiological spectrum of neonatal and infantile fistula with surgical correlation.

Methods

Neonates and infants with suspected fistulas were included in this study. The patients may be presented by cutaneous fistula with discharge, profuse oral secretion and cyanosis on feeding, or imperforate anus. After full clinical data were taken, plain X-ray, contrast imaging, and abdominal sonography were done to the patients. Treatment was tailored according to the case.

Results

Our study included 34 patients (25 boys and 9 girls): one case of branchial fistula; 2 cases with thyroglossal fistula; 10 cases of tracheo-esophageal, esophago-cutaneous, and esophago-pleural fistulas; 3 cases with vitello-intestinal fistula; one case with urachal fistula; 12 cases with recto-urinary, recto-vaginal, and recto-perineal fistula; 4 cases with peri-anal fistulas; and finally one case with iatrogenic urethra-cutaneous fistula. Radiological findings were well correlated with the surgical data.

Conclusion

Many types of neonatal and infantile fistulas were shown in this series including tracheo-esophageal, recto-urinary, and other neonatal fistulas. Radiological and surgical data were well matched.

Background

Neonatal and infantile fistulas are not so rare identity to be encountered. Many types of neonatal and infantile fistulas are illustrated in the literature. Fistulas associated with ano-rectal malformation and tracheo-esophageal atresia are the most famous ones [1, 2]. However, there are also many other variants of neonatal and infantile fistula. Omphalo-mesenteric, iatrogenic, and urachal fistulas are also seen. There are very rare types observed and reported in the literature such as gastrocolic and vascular fistula [3,4,5].

Neonates with fistula may be presented very early by profuse oral discharge and signs of suffocation in esophageal atresia and non-passage of meconium such as ano-rectal malformations. Also, it may be presented late such as umbilical or cutaneous discharge in iatrogenic or urachal fistula [6,7,8]. Diagnosis depends upon the clinical and radiological assessment and confirmed at surgery. Palin X-ray is the first modality of choice, then contrast study to determine the exact site of the fistula. Abdominal ultrasonography is done as a routine examination to detect associated congenital anomalies [9,10,11,12].

The aim of this work is to illustrate the spectrum of neonatal fistula founded in routine neonatal radiology workup with clinical and surgical correlation.

Material and methods

Patients with neonatal fistula especially of gastro-intestinal (GIT) and urinary tract were included and retrospectively reviewed. All clinical, radiological, and surgical data of those patients were thoroughly investigated. The patients were referred to the Diagnostic Radiology Department at Sohag University Hospital and private sectors from December 2015 to February 2019. The exclusion criteria were patients with vascular fistula. The neonates presented with increase oral secretion, cyanosis on feeding, cutaneous discharge, or inability to pass meconium.

Meticulous care and warming were followed during handling to do a radiological examination. Those neonates were subjected at first to erect abdominal and chest X-ray. The GIT air in this X-ray was analyzed as regards the presence of proximal esophageal pouch with a coiled Ryle catheter, presence or absence of gastric and intestinal air, chest infection and air-fluid levels, air under the diaphragm, and associated skeletal and heart congenital anomalies.

The second examination was a contrast study. This technique was tailored according to the state of the patient. Contrast esophagogram was done to patients suspected to have tracheo-esophageal fistula. The technique was done by injection of minimal contrast (Ultravist; 1–2 cm) in a Ryle catheter. Lateral or oblique view was taken from the patients to visualize any tracheo-esophageal fistula. As regards patients with ano-rectal malformations especially with imperforate anus, augmented pressure colostogram was done after colostomy. This was done by injection of 10–15 cm of saline diluted contrast (Ultravist) in a Foley catheter inserted in distal colostomy opening after balloon filling. Lateral view was done to detect any fistulous tract and detect its exact site of connection. Ascending and voiding urethrogram was also done to patients suspected of ano-rectal malformation fistula. Conventional fistulography was done to patient with cutaneous fistula, and appropriate filming was taken.

All neonates were subjected to routine abdominal ultrasonography to detect any associated abdominal congenital anomalies or any abdominal abnormalities such as fluid collection. All radiological examinations were done by one radiologist with 25 years of conventional radiology experience.

All neonates were operated upon in the Pediatric Surgery Unit at Sohag University Hospitals and private sectors. Final diagnosis was done at surgery and correlates with the radiological data. Highly qualified preoperative care was achieved in the intensive care unit.

Results

Our study included 34 patients (25 boys and 9 girls). Their age ranged from few hours to 3 years as shown in Table 1. All radiological findings correlated well with the surgical data with an accuracy of 100%. This work included one case with branchial fistula. A fistulous tract was seen ascending from the lateral neck upwards with distal cavity (Fig. 1). There were also two cases with thyroglossal fistula. A long tract was illustrated on a conventional fistulogram with oro-pharangeal opacification, and even opacification of the esophagus is noted (Figs. 2 and 3). These cases were treated surgically by fistulectomy.

Table 1 Types, numbers, and radiological and surgical data of neonatal and infantile fistulas
Fig. 1
figure1

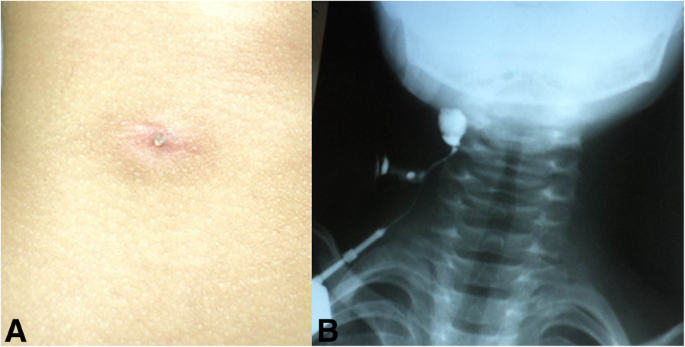

Branchial fistula. a A photograph of the fistulous opening. b Fistulography; the image shows a tract in the right side of the neck with distal cavity

Fig. 2
figure2

Thyroglossal fistula. a Fistulography; the image shows a tract in the right side of the neck extending to the base of the tongue. Spill on contrast into the pharynx with esophageal opacification (arrow) is observed. b A photograph of the fistulous tract on surgery (arrow)

Fig. 3
figure3

Thyroglossal fistula. a Fistulography; the image illustrates a tract in the right side of the neck (arrow). b A photograph of the fistulous tract on surgery (arrow)

Eight cases were tracheo-esophageal fistula in this study. Tracheo-esophageal atresia with distal tracheo-esophageal fistula was found in 6 neonates. On plain X-ray, dilated proximal esophageal pouch, coiled Ryle tube, and the presence of gastric and intestinal air were observed (Fig. 4). Over spill of contrast from the esophagus to trachea then to the fistula with distal esophagogram was observed in one newborn (Fig. 5). One case with proximal tracheo-esophageal fistula with gasless abdomen was encountered. Another case with H-type fistula was seen. All these cases were treated surgically by surgical repair and fistula ligation.

Fig. 4
figure4

Esophageal atresia without fistula in a neonate. a Plain X-ray demonstrating faint lucent pouch at the neck and upper chest (arrow) with gasless abdomen. b Lateral esophagogram shows the proximal esophageal pouch (arrow). c AP esophagogram well delineates the proximal esophageal pouch (arrow)

Fig. 5
figure5

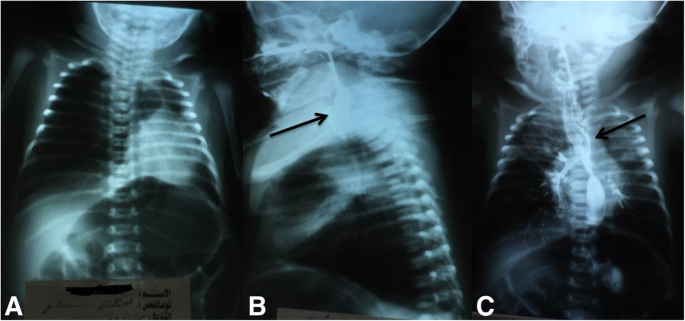

Esophageal atresia with distal fistula in a neonate. a Plain X-ray shows a distended stomach with gases. b Lateral esophagogram illustrates the proximal esophageal pouch (arrow). c AP esophagogram accidentally detecting the fistula (arrow) with opacification of the distal esophagus (due to spill over of contrast to the trachea to the fistula then to the esophagus)

Esophago-cutaneous fistula was noted in one patient. This patient was operated previously to esophageal atresia with distal tracheo-esophageal fistula. The postoperative leakage was observed. A tract between the esophagus and skin was observed on esophagogram (Fig. 6). Another case of iatrogenic esophageal fistula was resulted after aggressive Ryle maneuvering with pleural fistula. These cases were treated by Ryle tube feeding for 3 weeks.

Fig. 6
figure6

Esophago-cutaneous fistula in a neonate after the repair of esophageal atresia. a, b Serial images of esophagogram showing the fistulous tract (arrows) and esophageal stricture. c Esophagogram after 1 month demonstrating occlusion of the fistula with persistence of the esophageal stricture (arrow)

Three patients with vitello-intestinal fistula were seen. They presented with an umbilical discharge of fecal matter. On fistulogram, a tract is seen between the umbilicus and small intestine (Figs. 7 and 8). These findings were confirmed at the surgery with excision of the fistulous tract. Another case with an umbilical discharge of urine is demonstrated in our study. A fistulous tract is seen between the umbilicus and urinary bladder on fistulogram. The urachal fistula was treated with excision (Fig. 9).

Fig. 7
figure7

An infant with vitello-intestinal fistula. a A photo showing the fistulous opening (arrow) at the umbilicus (*). b An initial fistulogram demonstrating the patent vitello-intestinal duct (arrow) behind the umbilicus (*). c The contrast image illustrates the opcified small intestinal loops distal to the patent vitello-intestinal duct. d Surgical image showing the site of the vitello-intestinal duct close to the umbilicus (*)

Fig. 8
figure8

Vitello-intestinal fistula in two infants. a, b Fistulogram images showing the fistulous tracts (arrows) behind the umbilicus (*)

Fig. 9
figure9

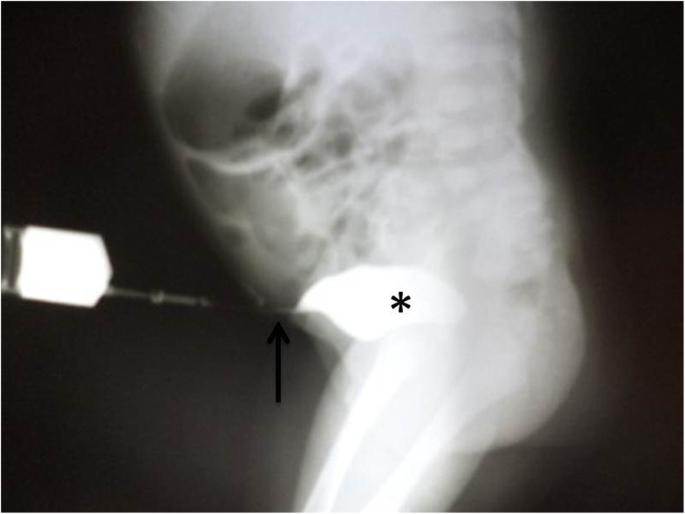

Urachal fistula in an infant. Fistulogram image showing the fistulous tract (arrow) leading to the urinary bladder (*)

Our study illustrated different types of rectal urinary fistula, especially at newborn with imperforate anus. They include one patient with a recto-vesical fistula (Fig. 10), one case with a recto-urethral fistula at the prostatic urethra (Fig. 11), 6 cases with a recto-urethral fistula at the bulbar urethra (Fig. 12), and one case with a recto-urethral fistula at the distal urethra (Fig. 13). These cases were treated surgically during second-stage repair of imperforate anus.

Fig. 10
figure10

Recto-vesical fistula in an infant. Voiding cysto-urethrogram showing the rectum could not be separated from the UB

Fig. 11
figure11

Recto-urethral (prostatic) fistula in an infant. Ascending cysto-urethrogram showing the fistulous tract (arrow) between the rectum and the prostatic urethra

Fig. 12
figure12

Recto-urethral (bulbar) fistula. af Contrast images showing the fistulous tracts (arrows) between the rectum and the bulbar urethra in 6 different cases

Fig. 13
figure13

Recto-urethral (distal) fistula in an infant. Ascending cysto-urethrogram (lateral view) showing the fistulous tract (arrow) between the rectum and the distal urethra. The image also shows vesico-ureteric reflux with markedly dilated and tortuous ureters

Two recto-vaginal fistulas were reported in our series with imperforate anus (Fig. 14). The recto-perineal fistula was also seen in one case with imperforate anus (Fig. 15). These fistulas appear on colostogram. Surgical repair was done during the second-stage treatment of imperforate anus.

Fig. 14
figure14

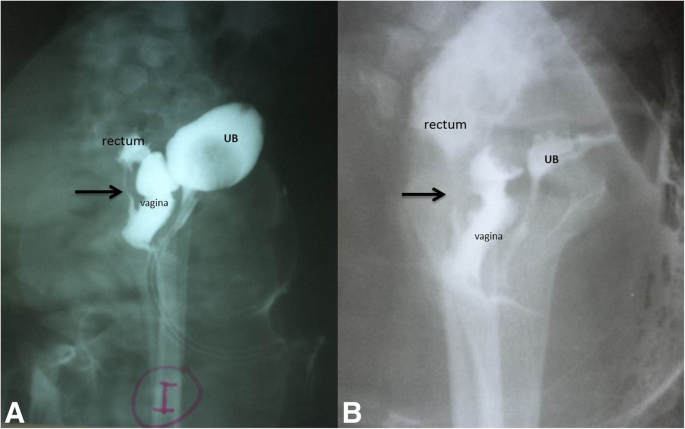

Recto-vaginal fistula in an infant. a, b Ascending and voiding cysto-urethrogram images showing the fistulous tract (arrows) between the rectum and the vagina

Fig. 15
figure15

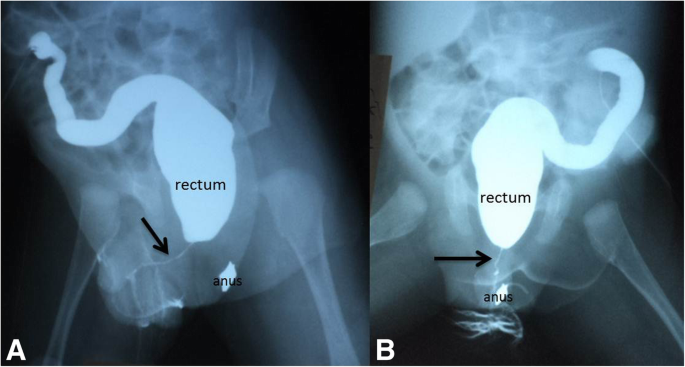

Recto-perineal fistula in an infant. a, b AP and oblique colostogram images showing the fistulous tract (arrow) between the rectum and the perineum. The mark denoting the anus

Cloacal cystic lesion anomalies and vesico-ureteric reflux are associated with ano-rectal malformation in this study (Fig. 16). Cloacal anomalies were seen in our study in 2 cases and vesico-ureteric reflux in 3 cases (Fig. 17).

Fig. 16
figure16

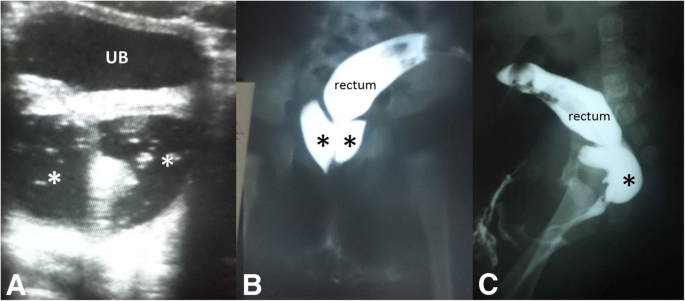

Cloacal anomalies in a neonate. a US image illustrating two cystic lesions (*) behind the urinary bladder (UB). b, c AP and lateral colostogram images showing the rectum and cloacal cystic lesions (*)

Fig. 17
figure17

Vesico-ureteric reflux in a neonate. A voiding cysto-urethrogram image showing bilateral vesico-ureteric reflux, more on the left side

Infantile peri-anal fistula was observed in 4 cases in our work (Fig. 18). They were acquired and low fistula. They were well demonstrated on the peri-anal fistulogram. They were treated by fistulectomy. The last case was acquired distal infantile urethra-cutaneous fistula. This fistula was illustrated obviously on ascending urethrography (Fig. 19). It is treated by a surgical repair.

Fig. 18
figure18

Peri-anal fistula in an infant. Peri-anal fistulogram showing the short fistulous tract

Fig. 19
figure19

Iatrogenic urethro-cutaneous fistula in an infant. Ascending cysto-urethrogram showing leakage of contrast at the site of the bulbar urethra

Postoperative care was done in an intensive care unit. Body temperature and fluid are especially having the upper hand of care.

Discussion

Fistulas at neonatal and infantile period are frequently encountered at this age group. Our study included 34 cases of neonatal and infantile fistula. To our knowledge, no previous literature reported a diverse collection of neonatal and infantile fistula. Most of the reported literatures concentrated upon a single type of them [13,14,15]. GIT and urinary fistulas are the most common fistulas enrolled in this series.

Tracheo-esophageal fistulas (distal, proximal, or H shape) were found in our study in 8 cases. These results were seen in another report [16]. Esophageal atresia with distal tracheo-esophageal fistula was the most common type. Iatrogenic esophago-cutaneous fistula or esophago-pleural fistula was encountered in 2 cases in our study. Esophago-cutaneous fistula may occur after the repair of esophageal atresia as a leakage at the site of incision. This complication was reported in another German report covering a big population [17]. Esophago-pleural fistula is reported in 2 cases in pediatric age group [18].

Branchial fistula was seen in one case in our work. On fistulogram, the tract ended in a cavity. Two cases of infantile thyroglossal fistula were found in our study. These fistulas were observed in other studies [19, 20].

Vitello-intestinal fistula is a non-atretic congenital duct between the umbilicus and the small intestine. It was found in 3 cases in this work. It was reported in many literatures [21]. Urachal fistula is a patent urachus with dripping of urine from the umbilicus. It was found in one case in our series. It was reported in other literatures [22, 23].

Ano-rectal malformations are frequently associated with neonatal fistula especially with imperforate anus. Congenital neonatal recto-urinary fistulas were found in 9 cases in our study. It may be recto-vesical (one case), recto-urethral at the prostatic level (one case), recto-urethral at the bulbar level (6cases), and recto-urethral at the distal urethra (one case). Moreover, congenital recto-vaginal (one case) and recto-cutaneous (one case) fistulas were also observed in this work. Augmented pressure colostogram and/or voiding cysto-urethrogram had delineated the fistulous tract well. Karsten et al. [24] reported 16 recto-urethral fistulas and 4 cases with recto-vesical fistula by using the voiding cysto-urethrogram. Thomeer et al. [25] examine neonates with ano-rectal malformations, and they found 9 cases with recto-bulbar urethral fistula, 6 cases with recto-prostatic urethral fistula, one case with bladder neck fistula, and one neonate with recto-perineal.

Cloacal cystic anomalies were associated with ano-rectal malformations in our study in 2 cases [26, 27]. Vesico-ureteric reflux was found in 3 cases. Cloacal anomalies and vesico-ureteric reflux are frequently associated with ano-rectal malformations [26,27,28]. Acquired perineal fistula was reported in 4 cases in this study. Usually, perineal fistula presented in the older age group after perineal suppuration. All perineal fistulas were low and treated by fistulectomy as seen in the literature [29].

This work included another case of iatrogenic infantile fistula which is urethro-cutaneous fistula. Iatrogenic urethro-cutaneous fistulas were reported as congenital fistula [30] or as a complication after the repair of hypospadias [31].

This study has limitations in the form of a small number of patients, not including other fistulas such as GIT or vascular fistula, and only conventional X-ray and fistulogram are used, not computed tomography (CT) nor magnetic resonance (MR).

Conclusion

This study illustrated the radiological spectrum of different types of neonatal and infantile fistula on conventional contrast imaging with surgical correlation. Our work included branchial, thyroglossal, tracheo-esophageal, recto-urinary, vitello-intestinal, urachal, and few iatrogenic neonatal and infantile fistulas. Further studies on a large number of patients and other imaging modalities including CT and MRI are recommended.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author.

Abbreviations

GIT:

Gastro-intestinal tract

CT:

Computed tomography

MR:

Magnetic resonance

References

  1. 1.

    Trobs RB, Finke W, Bahr M et al (2017) Isolated tracheoesophageal fistula versus esophageal atresia-early morbidity and short-term outcome. A single institution series. Int J Pediatr Otorhinolaryngol 94:104–111

  2. 2.

    Currarino G (1996) The various types of anorectal fistula in male imperforate anus. Pediatr Radiol 26(8):512–522

  3. 3.

    Handa N (2016) Vitellointestinal fistula and urachal remnant. In: Taguchi T, Iwanaka T, Okamatsu T (eds) Operative general surgery in neonates and infants. Springer, Tokyo, pp 163–168

  4. 4.

    Hager J, Gassner I (1994) Gastrocolic fistula in a 7 week old: a rare complication after gastric perforation. J Pediatr Surg 29(12):1597–1598

  5. 5.

    Andrew M, Lewis M, Aquino NM (1992) Congenital portohepatic vein fistula that resolved spontaneously in a neonate. AJR 159:837–838

  6. 6.

    Kovesi T, Steven Rubin S (2004) Long-term complications of congenital esophageal atresia and/or tracheoesophageal fistula. Chest J 126(3):915–925

  7. 7.

    Keily EM, Pen˜a A. Imperforate anus. In: O’Neill JA Jr, Rowe MI, Grosfeld JL, Fonkalsrud EW, Coran AG, eds. Pediatric Surgery. 5th ed. St Louis, MO: Mosby Yearbook; 1998:1425–1448.

  8. 8.

    Isaacs GS, Singh B (2010) The micturating umbilicus. SAMJ 100(1):22–23

  9. 9.

    Beasley SW, SW MNA (1988) The diagnosis of congenital tracheoesophageal fistula. J Pediatr Surg 23(5):415–417

  10. 10.

    Gross GW, Wolfson PJ, Pena A (1991) Augmented-pressure colostogram in imperforate anus with fistula. Pediatr Radiol 21(8):560–562

  11. 11.

    Choi YH, Kim IO, Cheon JE, Kim WS, Yeon KM (2009) Imperforate anus: determination of type using transperineal ultrasonography. Korean J Radiol 10:355–360

  12. 12.

    Abdulkadir AY, Abdur-Rahman LO, Adesiyun OM (2009) Nonfluoroscopic pressure colostography in the evaluation of genitourinary fistula of anorectal malformations: experience in a resource-poor environment. Pediatr Radiol 39(2):132–136

  13. 13.

    Choi YJ, Kim JM, Ahn SY, Oh J-T, Han SW, Lee JS (2006) Urachal anomalies in children: a single center experience. Yonsei Med J 47(6):782–786

  14. 14.

    Ciongradi I, Aprodu G, Olaru C et al (2016) Anorectal malformations in a tertiary pediatric surgery center from Romania: 20 years of experience. J Surg 12(2):55–59

  15. 15.

    Kavalcova L, Skaba R, KynclM RB, Prochazka A (2013) The diagnostic value of MRI fistulogram and MRI distal colostogram in patients with anorectal malformations. J Pediatr Surg 48:1806–1809

  16. 16.

    Hamad NA, Kak-Ahmed HA, Allaquli NI (2018) Early outcome of surgical intervention of esophageal atresia and tracheo-esophageal fistula in Erbil Pediatric Surgical Center. Med J Babylon 5(2):129–134

  17. 17.

    Dingemann C, Dietrich J, Zeidler J et al (2016) Early complications after esophageal atresia repair: analysis of a German health insurance database covering a population of 8 million. Dis Esophagus 29(7):780–786

  18. 18.

    Cui Y, Ren Y, Shan Y et al (2017) Pediatric esophagopleural fistula: two case reports and a literature review. Med (Baltimore) 96(19):e6695

  19. 19.

    Sahu S, Kumar A, Ramakrishnan TS (2011) Branchial fistula: an imaging perspective. Med J Armed Forces India. 67(3):262–264

  20. 20.

    Alnaimy T, Sieda BM, Baiomy T (2016) Thyroglossal cyst and fistula: surgical pitfalls and causes of recurrence. Egypt J Surg 35(1):49–53

  21. 21.

    Kadian YS, Verma A, Rattan KN, Kajal P (2016) Vitellointestinal duct anomalies in infancy. J Neonatal Surg 5(3):30

  22. 22.

    Sisodiya N, Shukla RM, Mukhopadhyay B, Mandal KC (2015) Patent urachus in a neonate: a rarity. Indian J Surg 77(Suppl2):722–723

  23. 23.

    Keshava Murthy M, Naveen S, Hanumanthaiah AE, Sunil B (2014) Patent urachus in a neonate presenting with severe umbilical bleeding: a case report. JIMSA 27(1):27

  24. 24.

    Karsten K, Rothe K, Märzheuser S (2016) Voiding cystourethrography in the diagnosis of anorectal malformations. Eur J Pediatr Surg 26(6):494–499

  25. 25.

    Thomeer MG, Devos A, Lequin M et al (2015) High resolution MRI for preoperative work-up of neonates with an anorectal malformation: a direct comparison with distal pressure colostography/fistulography. Eur Radiol 25:3472–3479

  26. 26.

    Rios LT, Araujo Júnior E, Nardozza LM et al (2012) Prenatal diagnosis and postnatal ultrasound findings of cloacal anomaly: a case report. Case Rep Pediatr. 2012:969860

  27. 27.

    Winkler NS, Kennedy AM, Woodward PJ (2012) Cloacal malformation: embryology, anatomy, and prenatal imaging features. J Ultrasound Med 31:1843–1855

  28. 28.

    Sanchez S, Ricca R, Joyner B, Waldhausen JHT (2014) Vesicoureteral reflux and febrile urinary tract infections in anorectal malformations: a retrospective review. Journal of Pediatric Surgery 49(1):91–94

  29. 29.

    Ali Gafar AMA (2013) Fistulotomy versus fistulectomy as a treatment for low anal fistula in infants: a comparative study. Annals of Pediatric Surgery 9(3):103–107

  30. 30.

    Bhatnagar A, Upadhyaya VD, Kumar B (2012) Congenital urethrocutaneous fistula: case report with review of literature. Indian J Plast Surg. 45(3):563–565

  31. 31.

    Agrawal K, Misra A (2013) Unfavourable results in hypospadias. Indian J Plast Surg. 46(2):419–427
