Role of quantitative diffusion-weighted imaging in differentiation between red and infiltrated marrow in pediatric patients with hematologic malignancy

Egyptian Journal of Radiology and Nuclear Medicine volume 50, Article number: 13 (2019) Cite this article

Abstract

Background

To evaluate the role of DWI with ADC value measurement in the differentiation between bone marrow infiltration and normal red marrow in pediatric patients with hematologic malignancies

Results

Significant results were obtained between ADC values of normal red and infiltrated marrow (p < 0.005). ADC values were significantly lower in infiltrative marrow lesions. The cutoff ADC value for benign and malignant lesions was 0.612 × 10−3 mm2/s.

Conclusion

DWI with ADC value has an additive role in differentiation between infiltrative lesions from foci of red marrow in patients with hematological malignancies.

Background

Hematologic malignancies can affect the pediatric and the adult age groups. The commonest are leukemia and lymphoma [1]. These account for 50% of childhood malignancies and originate from hassling cell lines with overlapping imaging manifestations; however, the clinical picture, radiological findings, and treatment plans differ considerably according to the specific subtype [2].

Leukemia is the commonest malignancy in pediatrics. Acute lymphoblastic leukemia (ALL) is the commonest diagnosed type [3].

Lymphomas are broadly classified into: Hodgkin lymphoma (HL) and non-Hodgkin lymphoma (NHL). The latter is approximately 8 times more common [4].

Hematological malignancies are mainly diagnosed by complete blood picture (CBC) and bone marrow (BM) biopsy. However, magnetic resonance imaging (MRI) can give worthy information in the detection of the bone marrow and soft tissue infiltration [4]. It has the advantage of assessing the whole marrow cavity compared to the limited sample of the marrow obtained from one location at biopsy/aspiration. However, MRI assessment of BM in infancy and early childhood remains challenging [5].

Diffusion-weighted imaging (DWI) is a recent addition to the conventional MRI sequences used to assess the bone marrow. It gives both quantitative and qualitative functional data concerning the water motions at a cellular level [6].

On DWI, malignant BM lesions appear hyper-intense, while benign lesions appear hypo-intense or iso-intense. In addition, benign lesions demonstrate increased apparent diffusion coefficient (ADC) value as compared to malignant lesions [4]. These data can be utilized to differentiate leukemic infiltrates from foci of red marrow especially post therapy regenerated red marrow, which usually appear as multifocal small focal areas of low signal intensity on T1-weighted images (T1WI) and high signal intensity on T2- or STIR (short TI inversion recovery) images within the fatty converted marrow, hence causing diagnostic dilemma.

The objective of this study is to assess the role of diffusion-weighted imaging with ADC value calculation in the discrimination between bone marrow infiltration and normal red marrow in pediatric patients with hematologic malignancies.

Patients and methods

The study was approved by the local institutional review board and was conducted over a period of 1 year.

Patients

The study involved 63 patients with known hematological malignancy (leukemia or lymphoma) and bone marrow infiltration. Forty-eight (76.2%) of them had leukemia (42 had ALL and 6 had AML). Fifteen (23.8%) patients had lymphoma. All were diagnosed by bone marrow biopsy. They were 26 (41%) females and 37 (59%) males. Their age ranged from 1.5 years to 16 years, with a mean age of 9 years. All cases were referred to the MRI unit for head, spine, or extremity imaging to delineate the extent of marrow infiltration that was detected on plain X-ray. Sedation was used in uncooperative young patients below 7 years of age.

Exclusion criteria

  • Patients age > 18 years.

  • Patients who have contraindications to MRI (e.g., cochlear implant).

Control subjects

An age- and sex-matched control group was selected from our PACS station. They were pediatric patients referred for brain MRI. Indications for MRI in these children were convulsion, headache or dizziness. They were a total of 20 controls: 12 males and 8 females, with a mean age of 6.5 years (range: 19 months to 14 years). The exclusion criteria for control subjects were:

  • History of preterm delivery or low birth weight.

  • Musculoskeletal, metabolic, or systemic diseases.

  • Children with a history of any medications which may affect the bone marrow.

MR imaging sequences, processing, and interpretation

The MRI examinations were performed on a superconducting 1.5 T unit (Siemens, MAGNETOM® scanner).

Sequences

All subjects were scanned using standard protocol with a dedicated coil. The pulse sequences included:

  • T1-weighted (T1W) images (fast spin-echo sequence): repetition time (TR) = 595 ms, echo time (TE) = 11 ms, number of excitations (NEX) 2, flip angle 90, matrix 150 × 236 with a field of view (FOV) as small as possible, slice thickness 4–5 mm, and gap 0.5 mm.

  • T2-weighted (T2W) images (fast spin-echo sequence): TR = 3670 ms, TE = 92 ms, NEX = 3, flip angle 90,matrix 150 × 236 with a FOV as small as possible, slice thickness 4–5 mm, and gap 0.5 mm.

  • STIR: TR = 3670 ms, TE = 92 ms, NEX = 3, flip angle 110, matrix 150 × 236 with a FOV as small as possible, slice thickness 4–5 mm, and gap 0.5 mm.

  • Post contrast fat-suppressed T1WI in at least two planes.

  • DWI: Fat-suppressed single-shot echo-planar DW imaging was acquired in the axial/sagittal plane with three directional diffusion gradients by using b values 0, 400, and 800 s/mm2 in the spine and extremity imaging while using b values of 0 and 1000 s/mm2 in the head imaging. Parameters were as follows: TR = 6090 ms, TE = 83 ms, NEX = 3, matrix 150 × 236, slice thickness 4–5 mm, and gap 0.5 mm.

Image evaluation

-A marrow lesion was considered to be infiltrative lesion if it shows:

  1. 1)

    Increase bone girth (Fig. 1)

  2. 2)

    Abnormal signal (low T1WI and high T2WI and STIR signal) concerning marrow conversion pattern of the affected bone (Figs. 1 and 2).

  3. 3)

    Heterogeneous contrast enhancement (Fig. 1c).

Fig. 1
figure1

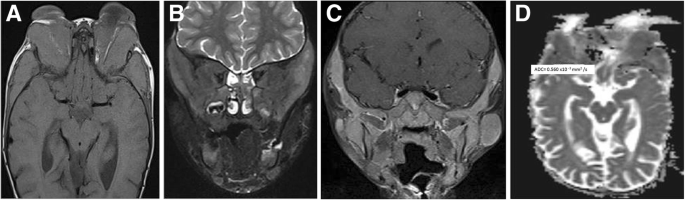

A 6-year-old boy presented with facial swelling, laboratory investigation, and bone marrow biopsy revealed acute myeloid leukemia. Head MRI showed bilateral rather symmetrical abnormal marrow signal and expansion of both temporal bones. These show low signal on T1WI (a) and high signal on STIR (b) with appreciable post contrast enhancement (c) and diffusion restriction with low ADC value (d) that is calculated to be 0.560 × 10−3 mm2/s. The picture is of diffuse marrow infiltration of both temporal bones

Full size image
Fig. 2
figure2

A 12-year-old male with known ALL. MRI of the pelvis showed diffuse marrow infiltration of the pelvic bones and upper femora. The lesion appeared as diffuse abnormal marrow signal eliciting low T1 (a, b), intermediate T2 and STIR signal (c and d, respectively) with low signal on ADC map (e). ADC values were 0.206 × 10−3 mm2/s and 0.379 × 10−3 mm2/s in the right and left femur, respectively

Full size image

ADC calculation

Patients: The mean ADC value of the detected marrow lesion was calculated by drawing an ROI (region of interest) over the whole lesion. The ROIs might be drawn directly on the ADC map or copied from those drawn on the DW-MR images onto the map (Figs. 1d and 2e).

Controls: ROIs were placed on 6 points as follows: The frontal bone, the right and left parietal bones, the right and left greater wings of sphenoid, and the occipital bone (Fig. 3). Then, the mean ADC value was calculated for the six measurements.

Fig. 3
figure3

DWI images of a 12-year-old control child showing the location of the different regions of interest used for ADC calculation. a ROIs placed in the right and left greater wing of sphenoid bone (ROI 1 and 2) and the occipital bone ROI 3). b ROI placed in the frontal bone (ROI 4) and both parietal bones (ROI 5 and 6).

Full size image

Statistical analysis

Mann-Whitney U test was used to compare ADC values of normal red marrow versus infiltrative marrow lesions. A p value of less than 0.05 was considered statistically significant.

Receiver operating characteristic (ROC) curve analyses were performed to assess the diagnostic performance of the ADC values and to determine suitable ADC cutoff points to separate red marrow from infiltrated marrow. A p value of less than 0.05 was considered statistically significant.

All analyses were performed using IBM SPSS statistical software (V. 24.0, IBM Corp., USA, 2016).

Results

The ADC of marrow infiltrative lesions was ranging from 0.36 to 0.529 × 10−3 mm2/s with a mean value of 0.502 × 10−3 mm2/s.

In normal control subjects, the mean ADC values obtained at the different skull areas are summarized in Table 1.

Table 1 The mean ADC value calculated in different skull regions
Full size table

The normal marrow ADC value ranged from 0.902 to 1.34 × 10−3 mm2/s with a mean value of 1.2 × 10−3 mm2/s.

Table 2 demonstrates the ADC mean and range among patients versus controls.

Table 2 The ADC value calculated in the patients versus controls
Full size table

We found no significant correlation between ADC value and patient age (p = 0.161)

ADC values were significantly lower in infiltrative marrow lesions compared to normal red marrow (p = 0.005) which is considered highly significant. The best ADC cutoff level derived from the ROC analysis (Fig. 4) to differentiate marrow infiltration from red marrow was 0.612 × 10−3 mm2/s, giving 100% sensitivity and 94.4% specificity with the positive and negative predictive value of 97% and 100%, respectively.

Fig. 4
figure4

ROC curve analysis showing the diagnostic performance of ADC for discriminating red from infiltrated marrow

Full size image

Discussion

Since the relaxation rates and MR signal patterns of highly cellular hematopoietic marrow and highly cellular infiltrated marrow are similar, the discrimination between reconverted highly cellular normal red marrow and recurrent malignancy after chemotherapy is not possible with conventional MR techniques. In addition, an infiltration with less than 20% neoplastic cells cannot be distinguished from normal marrow with standard MR pulse sequences [7].

During the last years, the primary target for DWI was processes involving the bone marrow. The application of DWI in BM is currently an established technique that offers a unique contrast which helps in the detection of bone-marrow pathologies and differentiation of benign from malignant bone-marrow lesions [8].

Most experience has been gained for differentiating pathologic from benign compression fractures of the vertebrae, which can be reliably done with quantitative diffusion measurements [9].

Malignant tumors tend to have low ADC values due to increased cellularity.

In our study, patients with bone marrow infiltration showed ADC values ranged from 0.36 to 0.529 × 10−3 mm2/s. These results agreed with the study of Dietrich et al. [10] who found untreated patients to have ADC values of 0.48 ± 0.13 × 10−3 mm2/s. However, our results disagreed with that of Coa et al. [11] whose patients showed ADC values of 0.81 ± 0.43 × 10−3 mm2/s. This could be attributed to the different age group as they studied adult patients.

In this study, subjects with normal red marrow showed ADC values ranged from 0.902 to 1.34 × 10−3 mm2/s which agreed with Dietrich et al. [10] and Coa et al. [11] where control patients showed ADC values of 1.29 ± 0.591 × 10−3 and 1.5 ± 0.48 × 10−3 mm2/s, respectively.

Concerning the relation between growing age and ADC value, we found no correlation between ADC value of normal marrow and growing age which agreed with Herrmann et al. [12] who reached the same conclusion in 2012. Whereas Manupolos and Koutoulidis [13] have stated that there is a correlation between growing age and ADC value of the normal marrow. Such discrepancy could be attributed to the fact that they have included adult subjects in their study unlike Herrmann et al. whose studied age group was similar to ours.

According to our result, the best ADC cutoff value for discrimination between infiltrated and normal marrow was 0.594 × 10−3 mm2/s, giving 100% sensitivity and 94.4% specificity. This disagrees with Padhani et al. [14] who stated that the best cutoff value for differentiating neoplastic marrow infiltration from normal marrow is 0.77 × 10−3 mm2/s with a sensitivity of 85% and a specificity of 90%. This difference could be attributed to the fact that Padhani et al. have included adult cases with hematological malignancy i.e., multiple myeloma.

Conclusion

Conventional MRI sequences including T1 and T2WI are not usually reliable to discriminate red marrow from infiltrated marrow. DWI with ADC value has an additive role in differentiation between infiltrative lesions from red marrow reconversion in patients with hematological malignancies.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

ADC:

Apparent diffusion coefficient

ALL:

Acute lymphoblastic leukemia

BM:

Bone marrow

CBC:

Complete blood picture

DWI:

Diffusion-weighted imaging

HL:

Hodgkin lymphoma

MRI:

Magnetic resonance imaging

NHL:

Non-Hodgkin lymphoma

STIR:

Short TI inversion recovery

T1WI:

T1-weighted imaging
