Abstract

Background

The accurate determination of resectability in patients with pancreatic cancer is a main goal of preoperative imaging after diagnosis. With advances in surgical techniques, the definition of resectability is in evolution, and it is crucial for radiologists to have an understanding of findings that are relevant to the determination of resectability. The parallel advancements in imaging technology are aiming to improve the ability of imaging modalities to predict resectability. Fifty patients with pancreatic ductal adenocarcinoma (PDAC) were analyzed for capability of apparent diffusion coefficient (ADC) values to predict possible tumor resectability. The patients were classified into resectable and unresectable groups based on magnetic resonance (MR) imaging criteria. Logistic regression analysis was used. Receiver operator characteristic (ROC) curve was reconstructed.

Results

Out of different prognostic variables, tumor size was the only significant predictor of tumor resectability. ROC curve analysis showed that ADC value is not a discriminator of tumor resectability (area under the curve (AUC) = 0.5, P value = 0.452).

Conclusions

In patients with pancreatic adenocarcinoma, ADC values might be unreliable for prediction of tumor resectability in clinical practice. Low ADC value in such tumors is more attributed to fibrotic nature rather than grade of the tumor.

Background

Ductal adenocarcinomas account for most pancreatic malignancies. Despite recent advances in imaging and management strategies, pancreatic adenocarcinoma continues to be one of the most common causes of cancer-related mortality worldwide [1, 2]. Due to the lack of early specific symptoms and tendency of pancreatic adenocarcinoma to invade adjacent structures or to metastasize at an early stage, many patients with pancreatic cancer already have advanced disease at the time of diagnosis resulting in a high mortality rate [3].

Surgical resection is the only potentially curative technique for managing pancreatic cancer. However, > 80% of patients present with disease that cannot be cured with surgical resection [4]. High-quality multiphase imaging can help to preoperatively distinguish between patients eligible for curative resection and those with an unresectable disease [4].

MRI is a well-established reliable imaging modality for evaluation of patients with pancreatic neoplasms that has a great advantage of excellent soft-tissue contrast for focal lesion detection. It allows a comprehensive analysis of the morphological changes of pancreatic parenchyma and pancreatic duct. However; due to adverse effects and contraindications of contrast media, there is a great need for another imaging modality that can give the same valuable information [3].

Diffusion-weighted (DW) MRI is a recently introduced abdominal MR sequence that expanded MRI capabilities, bringing functional aspects into conventional morphologic MRI evaluation. Modifications of water diffusion induced by different factors acting on the extracellular and intracellular spaces, such as increased cell density, edema, fibrosis, or altered functionality of cell membranes, can be detected using DWI sequence. Diffusion restriction can be also quantified through calculation of ADC values within specific regions of interest [5].

In this study, we attempted to justify whether ADC of pancreatic adenocarcinomas can predict the status of tumor resectability which will be ultimately reflected upon the plan of patient management.

Methods

This is a retrospective study that was conducted upon 50 patients with pathologically proven pancreatic adenocarcinoma during the period from January 2016 to December 2018. Patients who received CTH or RTH before the MRI study time were excluded from the study.

MRI examination

The patients were examined on a 1.5 Tesla MRI scanner (Philips Achieva, Philips Medical Systems, the Netherlands). Phased array body coil was used. The following pulse sequences were obtained for all patients: T1WI: axial plane, TR/TE 992/10 ms, slice thickness 7 mm with inter-slice gap of 1 mm and 248 × 384 matrix; T2WI: axial or coronal plane, TR/TE 1448/100 ms, slice thickness 7 mm with inter-slice gap of 1 mm and 128 × 384 matrix; T2 SPIR (fat sat): axial or coronal plane, TR/TE460/80, slice thickness 5 mm with inter-slice gap of 1 mm and 128 × 288 matrix; DWI: free-breathing single-shot spin-echo-based diffusion-weighted images in axial plane, TR/TE 2500/123 ms, slice thickness 7 mm with inter-slice gap of 1 mm and 182 × 192 matrix: at b values (0, 500, 1000) followed by computer-generated ADC mapping of the pancreas.

Image interpretation

In the beginning, qualitative assessment for conventional and diffusion-weighted MR images was done. Images were assessed for the presence of abnormalities of pancreatic contour and abnormal signal intensity mass at different parts within pancreatic tissue. The site, size, and signal intensity were assessed for each identified pancreatic mass, as well as associated biliary obstruction, regional lymph nodes, vascular invasion, and distant metastasis. When the lesions with no vascular encasement (< 50%), separable from the duodenum, spleen, or left kidney, or having no distal metastasis, it is said to be resectable lesion.

This was followed by quantitative assessment: pixel-based ADC maps were generated on a dedicated workstation (PAXERA, Ultima), for precise placement of circular region of interest (ROI); ROIs were placed on the exact cut of the lesions on DWI (at b value 1000), thus pointing to the exact corresponding area on ADC map. Mean ADC values for pancreatic masses were measured.

Operative technique and details

In the resectable lesions of the pancreatic head, Whipple’s operation was done (6 cases) allowing the safe removal of the pancreatic head, distal stomach, duodenum, bile duct, and gall bladder. In cases of pancreatic body and tail lesions, distal or sub-total pancreatectomy was done (3 cases). Segmental venous resection was done and the splenic vein is preserved. An interposition graft was used to repair the removed venous segment (3 cases). When the venous patch was needed, it was taken from the saphenous vein of the leg (2 cases). Also, the interposition of the venous graft was needed and taken from the left-sided internal jugular vein of the neck (one case). In unresectable lesions, palliative procedures were done. Only the resectable lesions (15 cases) were proved by surgery, while the unresectable lesions (35 cases) were proved by biopsy (either surgical 24/35 or needle biopsy 11/35).

Statistical analysis

Descriptive data were shown as mean ± SD. Two-tail Student’s t test was used for comparison between different groups of the study. Logistic regression analyses were performed for prognostic factors of resectability. Receiver operator characteristic (ROC) curve was constructed for diagnostic performance of ADC value to discriminate between resectable and unresectable groups. The statistical analyses were performed using SPSS software. P value (< 0.05) was considered statistically significant.

Results

This study included 50 patients with histopathologically proved pancreatic adenocarcinoma. The majority of patients were males (60 %). The mean age of patients was 62 years (± 10). The most common clinical presentation was obstructive jaundice (33 %).

They all underwent dedicated pancreatic MRI examination for detection and characterization. The most common site for involvement was pancreatic head, representing 82 % of cases, followed by pancreatic body and tail. The maximum diameter of lesions ranged between 2 and 7 cm in diameter (4.3 cm ± 1.3). Most of the lesions were solid (73%), whereas 27% of the lesions had complex mixed solid and cystic components (Table 1).

Table 1 Descriptive and imaging characteristics of studied patients

There were 13/50 lesions that could not be detected by conventional MRI sequences (their size is from 2 to 3 cm), but could be clearly identified upon adding DW-MRI, raising the detection rate from 74% for conventional MRI to 100% after adding the DWI (Table 2).

Table 2 Comparison between detection of the lesion at conventional and DWI

By DWI, 37/50 lesions (74%) showed restricted diffusion, while 13/50 (26%) lesions had mixed restricted and facilitated diffusion components. The ADC values for studied lesions ranged between 0.9 and 1.4 × 10−3 mm2/s (1.2 ± 0.07).

The lesions were classified into two groups according to their possible respectability, based on DW-MR imaging findings:

Resectable lesions. This included 15/50 (30%) patients who had clear fat planes around SMV and SMA with no encasement (< 180°) or infiltration to surrounding structures (spleen, left kidney, and duodenum).

Unresectable lesions. This included 35/50 (70%) patients, most of which (26/35) (74%) had an MRI evidence of vascular (mainly SMA/celiac trunk) encasement of > 180°. Meanwhile, 8/35 (23%) patients had distant (bone/liver) metastasis, and 3/35 (8.5%) patients had pancreatic mass lesion infiltrating the left kidney and duodenum.

There were many associated MRI findings on studied non-resectable lesions; the most common of them were biliary obstruction (27/35), followed by vascular encasement (26/35), representing 77.1% and 74.3% respectively while the least common associated finding was infiltration to surrounding organs (3/35) representing 8.5% (Table 3).

Table 3 The associated MRI findings of unresectable lesions

Regression analyses of different variables of resectable/unresectable groups revealed that:

  • Tumor size was the only significant predictor for detection of unresectable lesions (P value = 0.0001 and R2 = 0.5) as shown in Table 4.

  • ADC values could not discriminate between resectable and unresectable lesions as shown by the ROC curve analysis (P value = 0.452) (Fig. 1). Selected cases were illustrated on Figs. 2, 3, 4, 5, and 6

Table 4 Regression analyses for different prognostic variables
Fig. 1
figure1

ROC analysis of ADC values for predicting resectability. ADC values could not discriminate between resectable and unresectable lesions (P value 0.452)

Fig. 2
figure2

A 67-year-old male patient comes complaining from left hypochondrial pain and swelling. ac DWI and ADC maps showed truly restricted pancreatic tail lesion extending extra-pancreatic and inseparable from the left kidney. The average ADC value from this lesion was 1.2–1.5 × 10−3 mm2/s) (non-resectable lesion)

Fig. 3
figure3

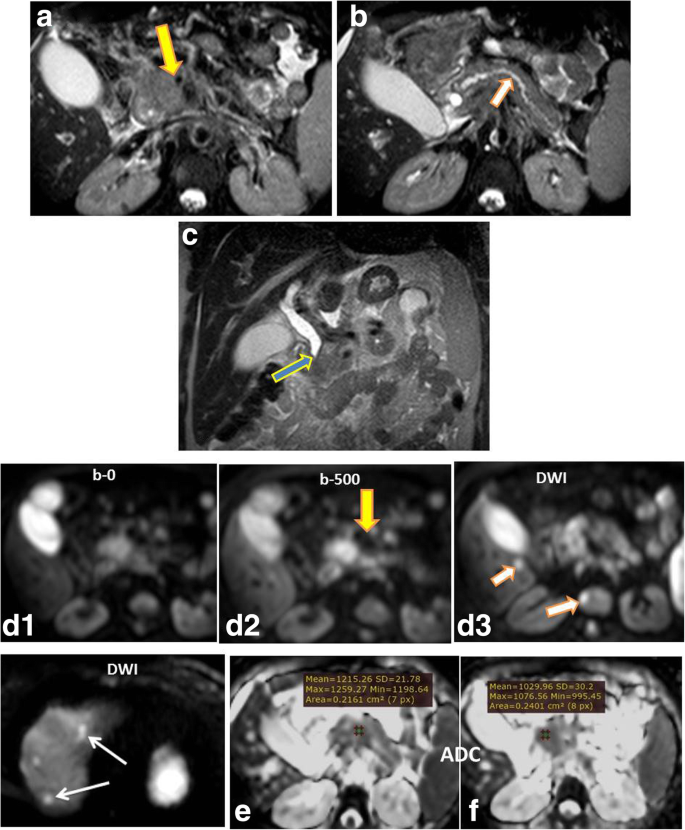

A 73-year-old female patient presented by obstructive jaundice. ac Conventional images (axial and coronal T2WI) showed isointense signal intensity lesion involving the pancreatic head with encasement of the mesenteric vessels > 180° (yellow arrow). Dilated CBD down to its lower end (arrow in c). df) DWI and ADC maps revealed truly restricted pancreatic head mass with increased brightness with increasing of the b value denoting its malignant nature. The vascular encasement here appeared to be < 180° (resectable lesion). Multiple hepatic (d4) and bone (d3) deposits are detected rendering the lesion unresectable. The ADC value of the lesion ranged from 1.0 to 1.2 × 10−3 mm2/s

Fig. 4
figure4

A 55-year-old male patient comes by epigastric pain and discomfort. ac Axial and coronal T2 fat saturation sequence showed diffusely enlarged swollen pancreas (head, body, and tail) with heterogeneous signals and relatively preserved peri-pancreatic fat planes. The pancreatic vessels are totally encased inside the lesion. d1d3 DWI at multiple b values (0, 500, and 1000 s/mm2) demonstrates the increase of degree of lesion restriction by the increased b value denoting the malignant nature of the lesion apart from the facilitated cystic degenerated part of the lesion in which the signal was progressively reduced (colored arrow head). e, f ADC map of the pancreas showed low signal of the lesion and the measured ROI reflected the low ADC value (0.9–1.0 × 10−3 mm2/s). Also, the mesenteric vessels are noted near totally encased within the lesion (yellow arrow at d2 and e) (non-resectable lesion)

Fig. 5
figure5

A 70-year-old male patient presented with abdominal discomfort and pain. a, b Axial T2 fat saturation revealed just deformed contour of pancreatic body with no detectable abnormal signal lesions. c1c3 DWI at multiple b values (0, 500, and 1000 s/mm2). The lesion appeared with increased restriction by elevating the b value (yellow arrow at c3). d, e The pancreatic lesion showed low signal at ADC map with low ADC value (1.1 × 10−3 mm2). The lesion abuts the superior surface of the mesenteric vessels but not encase them (resectable lesion)

Fig. 6
figure6

A 63-year-old female patient presented by obstructive jaundice. a Axial T2WI revealed bulky pancreatic head with ill-defined iso-intense signal lesion (arrow). b1b3 DWI at different b values (0, 500, and 1000 s/mm2) showed a well-defined restricted pancreatic head lesion with increased restriction by increasing the b value (yellow arrow at b3). c ADC map of the pancreas showed low ADC signal from the lesion with intermediate ADC value (1.3 × 10−3 mm2/s). The pancreatic vessels are preserved and not encased by the lesion (resectable lesion)

Discussion

Radiology can have a major role to play not only in baseline assessment of pancreatic adenocarcinoma, but also it can potentially give more details that may be prognostically important, including prediction of surgical resection [6].

Both DWI visual analysis and ADC measurement can reliably distinguish PDAC from background pancreatic parenchyma. Pancreatic tumors, even if small in size, almost invariably show diffusion restriction, presenting as a focal high signal area on high b value DW images with low signal on ADC mapping [7].

In this study, we found that the pancreatic head is the most common site for pancreatic adenocarcinoma presented. In 41/50 cases, 11/15 are resectable lesions (73%), and in 30/35, non-resectable lesions (85%). This is also established in the study done by Greenlee. et al. [8], who found that 65% of pancreatic adenocarcinomas involved the pancreatic head and uncinate process and 15% in the body and tail. The remaining lesions were detected diffusely involving the pancreas.

In our study, males are more affected than females presented in 10/15 (67%) resectable and 22/35 (63) non-resectable lesions. Artinyan et al. 2008 [9] stated that the anatomic location of pancreatic cancer was a prognostic factor for survival. The age of resectable lesions was lower than the age of the patients having unresectable lesions.

In this study, the addition of DWI to the conventional MRI sequence increased significantly the tumor detection rate. Thirteen of fifty lesions could not be detected by conventional MRI and could clearly be detected by the addition of DWI, and their sizes ranged between 2 and 3 cm. So, the accuracy of detection raised from 74 to 100%. Park et al. [10] demonstrated that the addition of DW-MR imaging to conventional MR sequences helps increase significantly the sensitivity of MR imaging for the detection of small pancreatic adenocarcinoma with sensitivity values rising from 75–76% to 96–98%.

In this research, we have many associated findings with the non-resectable lesions such as biliary obstruction in 27/35 (77.1%), vascular encasement in 26/36 (74.3%), distant metastasis in 8/35 (22.8%), infiltration to adjacent structures in 3/35 (8.5%), and infiltrating spleen, duodenum, and left kidney. Jun et al. [11] stated that the most frequent sites of metastasis form carcinoma of the pancreas are the lymph nodes, lung, liver, adrenal glands, kidney, and bone.

Elsayes et al. [12] found that associated lesions should be described and can affect surgical decision-making. Peritoneal nodules or the presence of ascites suggest disseminated disease that would render the patient unsuitable for a curative resection. Also, the presence of enlarged lymph nodes can also affect surgical resectability and indicate a need for additional therapy.

In our study, 15/50 (30%) lesions are resectable and 35/50 (70%) lesions are non-resectable. Whipple’s operation was done in 6 cases, subtotal pancreatectomy in 3 cases, venous graft taken from the great saphenous vein in 2 cases, and from the internal jugular vein in 1 case. In non-resectable lesions, palliative procedures were done. Chen et al. [13], on a study done on 38 patients, found that 31 lesions were in the head or uncinate process, 5 in the body, and 2 in the tail. Twenty-four lesions were resectable and underwent Whipple’s (3 cases), child operation (13 cases), pylorus-preserving pancreaticoduodenectomy (7 cases), and distal pancreatectomy with splenectomy (7 cases). The lesion size is less than 2 cm in 10 patients and more than 2 cm in 14 patients (2–6 cm). Unresectable lesions underwent palliative procedures like choledechojejunostomy, gastrojejunostomy, and external biliary drainage.

In our study, the ADC value of both resectable and non-resectable lesions are seen with great overlap with a wide range and insignificant P value of 0.452. The ADC value from examined lesions ranged between 09 and 1.4 × 10−3 mm2/s.

Also, in this research, there is no significant difference between the ADC values of different grades of the pancreatic adenocarcinomas.

The mean ADC values of pancreatic adenocarcinoma extracted from published studies are 1.3 × 10−3 mm2/s (range 0.78 × 10−3 mm2/s to 2.32 × 10−3 mm2/s). In general, most of the studies reported that the mean ADC values of malignant pancreatic tumors were lower than those of normal pancreatic tissues and benign lesions [14].

Barral et al. [15] and Lee et al. [16], instead, did not report significant differences in ADC values between PDACs and other solid pancreatic tumors.

In addition, a considerable overlap of ADC values in the range of malignant lesions might be present. Moreover, benign pancreatic lesions such as pseudocysts can show some degree of diffusion restriction which is thought to be due to the high viscosity of its content [17]. Thus, quantitative ADC analysis alone may be not so accurate for characterization of pancreatic lesions [18].

Rosenkrantz et al. [19] did not report a significant difference in the mean ADC between poorly and well/moderately differentiated tumors. However, some authors postulated that the cell density is proportional to tumor aggressiveness as ADC values were lower in higher than lower-grade tumors in their studies. Also, other studies suggested a relation between tumors hyper-cellularity and increased metastatic capacity [18].

In this study, tumor size was a significant predictor for tumor resectability. This is logical as large tumors become more in contact with blood vessels and lymphatics, and therefore, more chance of tumor spread. Phoa et al. reported that a tumor diameter of > 3 cm showed poor survival after resection [20].

In fact, tumor size is a particularly important prognostic factor to examine as it is included in the American Joint Committee on Cancer (AJCC) staging of pancreatic adenocarcinoma [21].

However, it should be kept in mind that the effect of tumor size on prognosis is largely mediated through other biologic factors such as lymph node status and histologic differentiation rather than merely tumor size, especially when tumor size is < 5 cm [22].

This study had some limitations such as its retrospective design and the relatively small number of patients within each patient group. It is recommended to focus on clear classification of the groups, criteria of resectability, and ADC values and their relations to each other.

Conclusion

ADC values of PADCs might be unreliable for the prediction of tumor resectability in routine clinical practice. Low ADC value in such tumors is more attributed to fibrotic nature rather than grade of the tumor.

Availability of data and materials

The data sets generated and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

ADC:

Apparent diffusion coefficient

DWI:

Diffusion-weighted image

DW-MRI:

Diffusion-weighted-magnetic resonance imaging

MR:

Magnetic resonance

MRI:

Magnetic resonance imaging

PDAC:

Pancreatic ductal adenocarcinoma

ROC:

Receiving operator characteristic

SMA:

Superior mesenteric artery

SMV:

Superior mesenteric vein

SPIR:

Selective partial inversion recovery

TE:

Time to echo

TR:

Time of repetition

References

  1. 1.

    Mohammed S, Van Buren G, Fisher WE (2014) Pancreatic cancer: advances in treatment. World J Gastroenterol. 20:9354–9360

  2. 2.

    Karakas Y, Lacin S, Yalcin S (2018) Recent advances in the management of pancreatic adenocarcinoma. Expert Rev Anticancer Ther. 18:51–62

  3. 3.

    Lee ES, Lee JM (2014) Imaging diagnosis of pancreatic cancer: a state-of-the-art review. World J Gastroentrol. 20:7864–7877

  4. 4.

    Tempero MA, Malafa MP, Al-Hawary M, Asbun H, Bain A, Behrman SW et al (2017) Pancreatic adenocarcinoma, Version 2.2017, NCCN Clinical Practice Guidelines in Oncology. J Natl Compr Canc Netw 15:1028–1061

  5. 5.

    De Robertis R, Tinazzi MP, Demozzi E, Dal Corso F, Bassi C, Pederzoli P et al (2015) Diffusion-weighted imaging of pancreatic cancer. World J Radiol 7(10):319–328

  6. 6.

    Henrik F, Katrin P, Michael W, Hans K (2012) Tumor size as measured at initial X-ray examination, not length of bile duct stricture, predicts survival in patients with unresectable pancreatic cancer. BMC Cancer 12:429 http://www.biomedcentral.com/1471-2407/12/429

  7. 7.

    Riccardo De R, Paolo TM, Emanuele D, Flavia DC, Claudio B, Paolo P et al (2015) Diffusion-weighted imaging of pancreatic cancer. World J Radiol 7(10):319–328

  8. 8.

    Greenlee RT, Murray T, Bolden S, Wingo PA (2000) Cancer statistics, 2000. CA Cancer J Clin. 50:7–33

  9. 9.

    Artinyan A, Soriano PA, Prendergast C, Low T, Ellenhorn JD, Kim J (2008) The anatomic location of pancreatic cancer is a prognostic factor for survival. HPB (Oxford) 10(5):371–376

  10. 10.

    Park MJ, Kim YK, Choi SY, Rhim H, Lee WJ, Choi D (2014) Preoperative detection of small pancreatic adenocarcinoma: value of adding diffusion-weighted imaging to conventional MR imaging for improving confidence level. Radiology 273(2):433–443

  11. 11.

    Jun DW, Young Lee O, Park CK, Ho SC, Yoon BC, Lee MH, Lee DH et al (2005) Cutaneous metastases of pancreatic carcinoma as a first clinical manifestation. Korean J Intern Med 20(3):260–263

  12. 12.

    Khaled M. Elsayes, Mahmoud M. Al-Hawary, Joel F. Platt (2010). Pancreatic ductal adenocarcinoma radiology reporting template: consensus statement of the Society of Abdominal Radiology and the American Pancreatic Association. RadioGraphics, Volume 30, Issue 7Nov 1 2010

  13. 13.

    Chen F-M, Jian-Ming NI, Zhang Z-Y, Zhang L (2016) Evaluation of pancreatic cancer: a comprehensive imaging comparison of CT versus MRI. AJR. 206:526–535

  14. 14.

    Yao X-Z, Yun H, Zeng M-S, Wang H, Sun F, Rao S-X et al (2013) Evaluation of ADC measurements among solid pancreatic masses by respiratory-triggered diffusion-weighted MR imaging with inversion-recovery fat-suppression technique at 3.0T. Magn Reson Imaging 31:524–528

  15. 15.

    Barral M, Sebbag-Sfez D, Hoeffel C, Chaput U, Dohan A, Eveno C et al (2013) Characterization of focal pancreatic lesions using normalized apparent diffusion coefficient at 1.5-Tesla: preliminary experience. Diagn Interv Imaging 94:619–627

  16. 16.

    Lee SS, Byun JH, Park BJ, Park SH, Kim N, Park B et al (2008) Quantitative analysis of diffusion-weighted magnetic resonance imaging of the pancreas: usefulness in characterizing solid pancreatic masses. J Magn Reson Imaging 28:928–936

  17. 17.

    Barral M, Taouli B, Guiu B, Koh D-M, Luciani A, Manfredi R et al (2015) Diffusion-weighted MR imaging of the pancreas: current status and recommendations. Radiology 274:45–63

  18. 18.

    Abdallah ESM, Ali MIM, Awadallah MY, El Ghawabi HSH (2016) Role of diffusion weighted imaging in characterization of pancreatic pathology. Egypt J Radiol Nucl Med. 47:723–727

  19. 19.

    Rosenkrantz AB, Matza BW, Sabach A, Hajdu CH, Hindman N (2013) Pancreatic cancer: lack of association between apparent diffusion coefficient values and adverse pathological features. Clin Radiol 68:191–197

  20. 20.

    Phoa SSKS, Tilleman EHBM, Van Delden OM, Bossuyt PMM, Gouma DJ, Laméris JS (2005) Value of CT criteria in predicting survival in patients with potentially resectable pancreatic head carcinoma. J Surg Oncol. 91:33–40

  21. 21.

    Li X, Gou S, Liu Z, Ye Z, Wang C (2018) Assessment of the American Joint Commission on Cancer 8th Edition Staging System for Patients with Pancreatic Neuroendocrine Tumors: a surveillance, epidemiology, and end results analysis. Cancer Med. 7:626–634

  22. 22.

    De Jong MC, Li F, Cameron JL, Wolfgang CL, Edil BH, Herman JM et al (2011) Re-evaluating the impact of tumor size on survival following pancreaticoduodenectomy for pancreatic adenocarcinoma. J Surg Oncol 103:656–662
