Study of role of digital breast tomosynthesis over digital mammography in the assessment of BIRADS 3 breast lesions

Engy A. Ali; Lamiaa Adel

doi:10.1186/s43055-019-0052-5

Research
Open Access
Published: 13 November 2019

Study of role of digital breast tomosynthesis over digital mammography in the assessment of BIRADS 3 breast lesions

Egyptian Journal of Radiology and Nuclear Medicine volume 50, Article number: 48 (2019) Cite this article

589 Accesses
Metrics details

Abstract

Background

Breast cancer is the most common malignancy in women and thus, screening has become an important health issue. Although mammography remains the standard of care for breast cancer screening and diagnosis (with biopsy), tomosynthesis (3D DBT) allows the separation of overlapping structures seen on 2D mammography and thus enables better depiction of masses or asymmetries.

Results

A prospective study for mammographic cases referred to our radiology unit included 60 lesions detected in 59 patients that were performed during the period from January 2016 to September 2017. Patients’ ages ranged from 26 to 72 years with mean age 51 ± 12 SD. Sixty percent of breast imaging-reporting and data system (BIRADS) 3 lesions detected by 2D digital mammography (36/60) changed their category after 3D DBT, 40% (24/60) digital mammography noticed lesions did not change their BIRADS after 3D DBT. Twenty-nine BIRADS 3 lesions out of the 60 were downgraded to BIRADS 1and 2, while 7 BIRADS 3 lesions out of the 60 were upgraded to BIRADS 4 and 5 which were all biopsied. Six out of the 7 lesions were pathologically proven ducal carcinoma and 1 out of 7 pathologically proven to be atypical ductal hyperplasia.

Conclusion

3D DBT significantly reduced the need for additional mammographic views and frequent follow-up studies as it gave better characterization for all BIRADS 3 lesions.

Background

Breast cancer is the most common cancer in ladies throughout the world, with nearly about 1.7 million new cases detected in 2012 representing about 12% of all new cancer cases and 25% of all cancers in female patients [1].

Accurate diagnosis is a must for efficient treatment and for better prognosis. Mammography is still the first breast imaging investigation despite its well-known limitations. However, the known lack of sensitivity is due to the misinterpretation of both architectural distortion and asymmetrical density as well as the cancer overlapped by fibro-glandular tissue resulting in hiding the cancer margins [2].

Despite technical advances, the sensitivity of mammography is significantly reduced by high breast density. So in patients with breast density c or d, mammographic sensitivity is just 30% and the interval cancer odds ratio (OR) was 6.14 [3].

Digital breast tomosynthesis (DBT) is a new imaging modality for improving the detection of breast cancer as it provided better detection of the abnormalities especially in females with dense breast and diagnosis of benign lesions resulted in reduction of the recalled cases and negative biopsies as well as assessing efficacy of therapy [4], as well as it enabled visualization of cancers not visualized by conventional mammography [5].

Digital breast tomosynthesis (DBT) has been heralded as an advancement of mammography by virtue of its significant improvements on performance outcomes. It is distinct from supplemental screening tools such as ultrasound and magnetic resonance imaging (MRI) as its use significantly increases cancer detection while simultaneously reducing recall rates. Single-site and multi-site studies have validated DBT’s potential to benefit all women, regardless of age or breast density. In addition, long-term studies are beginning to reflect that the improvements seen with DBT are not bound to prevalent screening but persist on incident screening. All this has made DBT increasingly requisite at many institutions, both community and academic [6].

Digital breast tomosynthesis (DBT) has improved conventional mammography by increasing cancer detection while reducing recall rates. However, these benefits come at the cost of increased radiation dose. Synthesized mammography (s2D) has been developed to provide the advantages of DBT with nearly half the radiation dose. Since its F.D.A. approval, multiple studies have evaluated the clinical performance of s2D. In clinical practice, s2D images are not identical to conventional 2D images and are designed for interpretation with DBT as a complement [6].

The 2011 F.D.A. approval of DBT specified its performance in conjunction with 2D full-field digital mammography (FFDM): a 2D+DBT combined exam. While still below federal radiation safety limits of 3 mGy per view, a two-view combined exam is, however, approximately double the dose of the 2D FFDM exam alone. Furthermore, this precludes women with implants or large breasts requiring tiling, from receiving DBT, as their screening exams already include additional views. In addition, though the patient may remain in the same compression, the DBT and conventional 2D exams are acquired sequentially, with the addition of DBT adding 3.7–25 s onto the conventional 2D exam, depending on vendor [6].

Synthesized mammography (s2D) was created in response to these challenges, with the goal of affording patients the benefits of tomosynthesis, minus the additional radiation and acquisition time, and which first gained US Food and Drug Administration (FDA) approval in 2013. To evaluate s2D+DBT as a valid clinical tool, the synthesized mammography literature is reviewed here and appraised in accordance with known screening criteria. Implementation suggestions and case examples are also provided herein to ease transition for radiologists considering s2D+DBT as a replacement for 2D+DBT [6].

Aim of the work

The purpose of this study is to assess the role of 3-dimensional breast tomosynthesis in diagnosis and consequently management of breast imaging-reporting and data system (BIRADS) 3 breast lesions.

Methods

Patients

A prospective study, done in New kasr El Aini Teaching Hospital including 59 cases, all underwent digital mammography with 2D and 3D mammography acquisitions, with the use of software that allowed synthetic 2d mammographic images to be reconstructed from 3D acquisitions.

Mammography reading was done in two parallel double reading conducted sequentially for 2D acquisitions followed by integrated acquisitions.

The study was performed in 59 cases, detecting 60 BIRADS 3 lesions. All mammograms were classified as BIRADS1–5 category after 3D DBT (Table 1). A complementary ultrasound examination was performed for all cases to confirm or exclude mammography identified abnormalities using high frequency probe. All breast lesions that were upgraded by 3D DBT were either aspirated, biopsied, or surgically removed, and followed-up.

Table 1 BIRADS assessment categories according to BIRADS atlas 2013

Full size table

All patients were subjected to demographic and clinical data which includes patient’s name, age, marital status and number of offsprings, lactating history, residence and phone number, diagnosis, past history, and family history.

Inclusion criteria

Women presenting with abnormal findings by conventional mammography and assigned BIRADS 3 lesions

Equipments

Mammographic examination was performed using Senographe Essential, GE healthcare full-field digital mammography machine with 3D digital breast tomosynthesis, with the use if software that allowed synthetic 2D mammographic images to be reconstructed from 3D acquisitions.

Technique of full field digital mammography

Standard views medio-lateral-oblique and cranio-caudal views were taken for all patients.

Technique of 3D tomosynthesis

For 3D digital tomosynthesis, two views (MLO and CC) were obtained. Three-dimensional DBT involved the acquisition of 12 to 15 2D projection exposures by a digital detector from a mammographic x-ray source which moves over a limited arc angle, with the use of software that allowed synthetic 2d mammographic images to be reconstructed from 3D acquisitions.

Mammography reading was done in two parallel double reading conducted sequentially for 2D acquisitions followed by integrated acquisitions.

Image analysis and interpretation of mammography and 3D digital tomosynthesis

1.
Breast density was assessed for each patient.
2.
Each lesion was evaluated regarding site and type (mass, focal asymmetry ± calcifications and size).
3.
Lesions were classified as benign or malignant according to the mammography BIRADS lexicon morphology descriptors:

(a)
Mass lesions: shape, margin, density, and size
(b)
Asymmetry: simple, focal, global, or developing
(c)
Calcifications: morphology and distribution.

4.
Two readers independently read synthetic 2DM and 3DBT. As a part of the diagnostic procedure, we determined the BIRADS category of the lesions in each of the imaging modalities individually according to the BIRADS lexicon 2013 classification (Fig. 1).

Results

A prospective study for mammographic cases referred to our radiology unit included 60 lesions detected in 59 patients that were performed during the period from January 2016 to September 2017.

Age

Patients’ ages ranged from 26 to 72 years with mean age 51 ± 12 SD (Table 2).

Table 2 Age distribution of the patients participating in the study

Full size table

Breast density ACR scoring

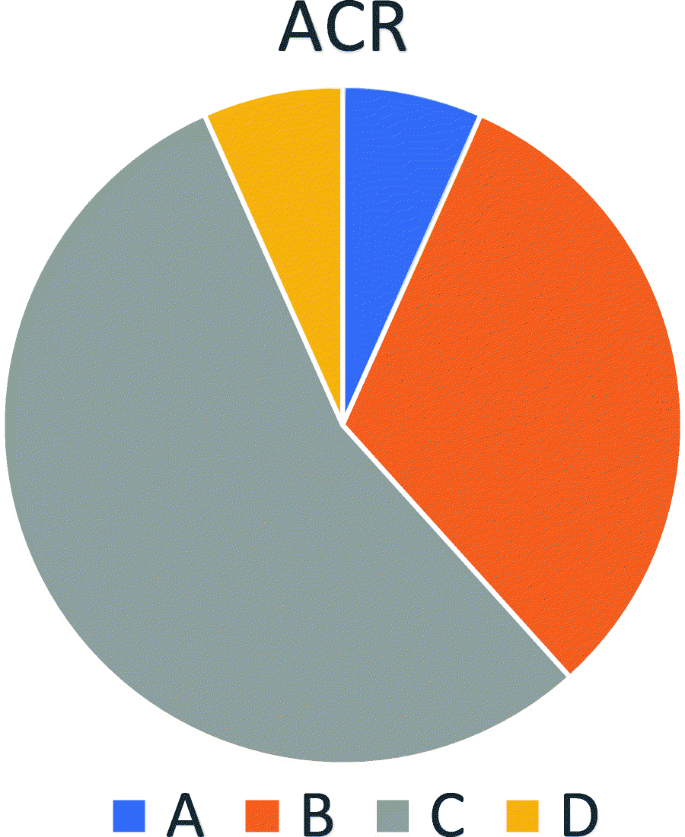

According to the 2013 American College of Radiology BIRADS lexicon classification of breast density ACR “a” indicates that the breasts are almost entirely fatty, ACR “b” indicates that there are scattered areas of fibro-glandular density, ACR “c” indicates that the breasts are heterogeneously dense, and ACR “d” indicates that the breast is extremely dense (Table 3).

Table 3 Distribution of cases according to the ACR BIRADS lexicon breast density classification

Full size table

According to the ACR BIRADS lexicon breast density classification:

4/60 (6.78%) lesions were assigned an ACR score of “a”.
19/60 (32.20%) lesions were assigned an ACR score of “b”.
33/60 (55.93%) lesions were assigned an ACR score of “c”.
4/60 (6.78%) were assigned an ACR score of “d”.

Lesion character

Seventy-five percent of the cases had a dense lesion and 25% had focal asymmetry by digital mammography (Fig. 2).

BIRADS classification

Sixty percent of BIRADS 3 lesions detected by 2D digital mammography (36/60) changed their category after 3D DBT and 40% (24/60) of digital mammography noticed lesions did not change after 3D DBT. Sixty percent of the lesions changed their BIRADS system classification following DBT (Fig. 3):

1.
3D DBT down staged to BIRADS 1 and 2 in 29 lesions representing 48.33% of the cases.
2.
3D DBT upstaged to BIRADS 4 (or more) in 7 lesions representing 11.7% of the cases.

Forty percent of the lesions did not change their BIRADS classification after 3D DBT.

We performed a biopsy in all suspected findings on tomosynthesis. 3D DBT detected 6 cancers in 7 lesions BIRADS 4 category, that were proved to be ductal carcinoma by biopsy, and one lesion was proved to be atypical ductal hyperplasia.

The following tables show the BIRADS grade for breast lesions by the technique used (mammography, tomosynthesis) (Tables 4, 5, and 6).

Table 4 BIRADS 3 lesions following DBT

Full size table

Table 5 BIRADS 3 lesions following DBT and breast cancer cases

Full size table

Table 6 BIRADS classification by DBT percentage change

Full size table

Case presentation

Discussion

Mammography was still the best screening imaging modality for the women worldwide. The decision of starting screening should be the result of personalized discussion between the female patient and her provider, including both the benefits and risks of routine screening [7].

3D digital breast tomosynthesis (3D DBT) was a new screening and diagnostic technique in breast evaluations with a high promising role in increasing the sensitivity and specificity of digital mammography (DM) [8].

Women with dense breast were usually at high risk of developing breast cancer as the increase density might mask the radiological signs of cancer, while on the other hand cancers were clearly visible in fatty breasts on mammogram. So the detection of breast carcinoma might be complex and in need of multiple imaging modalities [2].

3D DBT was one technology being developed to improve both the detection and characterization of the breast lesions mainly in females with non-fatty breasts as it was expected to overcome the limitations of mammography caused by overlapping of both normal and pathological tissues during the standard two-dimensional (2D) imaging projections [7].

The known benefits of 3D DBT improved in both screening sensitivity and detection of lesion size as well as lesion characterization, which in turn resulted in decreasing the recall rates [5].

Our aim of study was to detect and prove the role of 3D digital tomosynthesis in evaluation of BIRADS 3 breast lesions.

Bunovic et al. performed a prospective study in which 3D DBT was performed in 360 DM-detected BIRADS3 lesions. The radiologist independently reads DM and 3D DBT. Only 22.8% of BIRADS 3 lesions (82/360) did not change their BIRADS after tomosynthesis, while 77.2% (278/360) were re-classified according to the BIRADS system. TS “down-staged” BIRADS 3 lesions to BIRADS 1 or 2 categories in most of the cases (263/360) and “upstaged” 15 cases to BIRADS 4 and 5 [8].

Helyie subjectively compared 3D DBT when characterizing known masses, architectural distortions, or asymmetries. The study included the mammography of 25 women with known masses. After review of the examinations, radiologists rated their relative preference in terms of classifying the finding in question twice; one time when aided by the additional views and another when aided by 3D DBT. The diagnostic BIRADS rating of both examinations were correlated. They found that DM and 3D DBT (combined) were perceived to be better for diagnosis in 50% of cases. They concluded that 3D DBT might be an effective alternative to the additional mammographic views in most cases mostly if the presentation of the concerned lesion was not calcification [5].

Skaane verified that DBT added more in defining the shape and margins of breast lesions by decreasing the overlapping tissue, and as a result the ability to differentiate between superimposed tissue and breast lesions would be improved [9].

STORM-2 demonstrated a significant increase in cancer detection rate (CDR) when DBT was added to 2D FFDM (8.5 per 1000 2D+DBT, 6.3 per 1000 2D FFDM). This improvement was maintained and actually slightly increased with s2D+DBT (8.8 per 1000). Incremental CDRs over 2D alone were also similar between s2D+DBT (+ 2.5 per 1000) and 2D+DBT (+ 2.2 per 1000). The most significant improvements in cancer detection were seen in women < 60 years of age and women with dense breasts. As biennial screening is the standard in European screening programs, the CDRs reported in STORM-2 are higher than typical North American practices [10].

Aujero et al.’s results showed a slight increase in cancer detection from 2D FFDM (5.3 per 1000) to 2D+DBT (6.4 per 1000), which was maintained with s2D+DBT (6.1 per 1000). Notably, the percentage of invasive cancers detected with s2D+DBT was significantly higher than 2D and 2D+DBT (s2D+DBT 76.5%, 2D 61%, 2D+DBT 61.3%; p < 0.01), without a loss in in situ cancer detection. This was thought to reflect a learning curve of using DBT, as the s2D+DBT studies were interpreted after some years of experience with DBT [11].

In our study, 60% of the BIRADS 3 lesions changed their BIRADS by 3D DBT 48.3% were down staged to BIRADS 1 and 2, and 11.7% were “upstaged” to a higher BIRADS. Forty percent of the BIRADS 3 lesions did not change their BIRADS. So 3D DBT significantly reduced the need for additional mammographic views and as well the frequent follow-up studies as it gave better characterization for all BIRADS 3 lesions and reduced the stress levels in women. DBT did not show any false-negative results in our study and it did not miss any cancers.

So the ability to scroll through the three-dimensional data set for a particular view helps in eliminating the overlap of tissues seen in two-dimensional images and better resolution of the internal contents leading to better diagnostic capabilities.

Though the primary role of screening mammography was early detection of breast cancer, tomosynthesis came in with numerous advantages that included the high specificity in benign breast lesions detection and as well as categorization of benign versus malignant lesions. This in turn would reduce the need for additional time-consuming imaging such as special mammographic views or sono-mammography thereby increasing the efficacy of the test by reducing the additional radiation dose, time, and money. At the same time, it reduced the patient’s anxiety by avoiding unnecessary recalls.

Therefore, according to our study results, we highly recommend tomosynthesis as a diagnostic algorithm tool in patients with mammography-detected BIRADS 3 lesions (Figs. 4, 5, 6, 7, and 8).

Conclusion

3D DBT significantly reduced the need for additional mammographic views and frequent follow-up studies as it gave better characterization for all BIRADS 3 lesions. 3D DBT did not show any false-negative results in this study and it did not miss any cancers. In addition, reduction of numerous mammographic controls examination reduced the stress levels in women. Therefore, 3D digital breast tomosynthesis should be applied in the diagnostic algorithm in patients with mammography-detected BIRADS 3 lesions.

Availability of data and materials

The datasets used and analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

BIRADS:: Breast imaging-reporting and data system
DBT:: Digital breast tomosynthesis
DM:: Digital mammography
