Multiple b values of diffusion-weighted magnetic resonance imaging in evaluation of solid head and neck masses

Abstract

Background

Differentiation between malignant and benign masses is essential for treatment planning and helps in improving the prognosis of malignant tumors; the aim of this work is to determine the role of diffusion-weighted magnetic resonance imaging (DW-MRI) and the apparent diffusion coefficient (ADC) in the differentiation between benign and malignant solid head and neck masses by comparing diagnostic performance of low b values (0.50 and 400 s/mm²) versus high b values (800 and 1000 s/mm²) and comparing the result with histopathological finding.

Results

The study included 60 patients (34 male and 26 female) with solid head and neck masses > 1 cm who referred to radiodiagnosis department for MRI evaluation. Multiple b values were used 50, 400, 800, and 1000 s/mm² (at least 2 b values). DWI and ADC value of all 60 patients were acquired. Mean ADC values of both malignant and benign masses were statistically measured and compared, and cut off value was determined. Solid head and neck masses in our study DWI with the use of high b value 800 and 1000 s/mm² were of higher significance (P value 0.001*). There was a significant difference in the mean ADC value between benign and malignant masses (P < 0.01); solid masses were divided into 2 categories: (a) malignant lesions 46.7% (n = 28) with mean ADC value (0.82 ± 0.19) × 10⁻³ s/mm² and (b) benign lesions 53.3% (n = 32) with mean ADC value (2.05 ± 0.46) × 10⁻³ s/mm²) with ADC cutoff value of 1.0 × 10⁻³ s/mm² and 94% sensitivity, 93% specificity, negative predictive value (NPV) = 94%, positive predictive value (PPV) 93%, and an accuracy of 93.5%.

Conclusion

The DWI with ADC mapping were valuable as non-invasive tools in differentiating between benign and malignant solid head and neck masses. The use of high b value 800 and 1000 s/mm² was of higher significance (P value 0.001*) in differentiation between benign and malignant lesion than that with low b values 0, 50, and 400 s/mm² (0.01). The mean ADC values were significantly lower in malignant solid masses. Attention had to be paid to the choice of b values in MRI-DWI in the head and neck region.

Background

The head and neck regions were constituted to have high anatomical and functional difficulties, making the accurate diagnosis and staging of regional tumors a challenging task. Many lesions are detected at clinical examination, but imaging techniques are also necessary for accurate characterization of biological aggressiveness and better staging and management [1].

MRI sequences provided us with very accurate data about tumor size, site, and morphological criteria of tumors in the head and neck areas. However, it was not enough for the evaluation of biological behavior of tumors. Functional MRI imaging techniques were newly developed which can provide us with information on biological and functional aspects of tumor vascularization and internal microarchitecture [2].

Diffusion-weighted imaging (DWI) was an emerging non-invasive functional MRI technique made without administration of intravenous contrast agent and had reliable ability in discrimination between benign and malignant tissues [3].

The diffusion gradient strength named as b value [s/mm²] which was dependent on duration, amplitude, and the time between applications of the sensitizing gradient; therefore, to increase the b value during DW-MRI, a greater amplitude of the diffusion-sensitizing gradient is typically applied [4].

With increasing b values, image sensitivity to the detection of restricted diffusion became high; signal loss resulting from the dephasing due to the movement of the water molecules between the different opposing gradients was proportional to the degree of movement of water molecules and the b value [5].

Although DW-MRI in diagnosis of head and neck masses had been well analyzed in previous studies, the choice of suitable b value for imaging is still a diagnostic dilemma as factors causing passive diffusion, such as capillary perfusion, can contribute to decreased signal-to-noise ratio (SNR) in low b value DW-MRI. So low b value DW-MRI became less qualitative and more quantitative, since it must be based on complex ADC calculations [6].

DWI was used to evaluate microscopic water diffusion within tissues which measured by means of apparent diffusion coefficient (ADC), areas of low ADC values within tumors of different regions correlate with areas of increased cellularity within tumors. Moreover, DWI had been used as a powerful imaging biomarker of cancer [7].

Many studies tried to evaluate the role of DW-MRI in head and neck masses with trials to put technical standardization, as results obtained depend on selection of b values. Image quality could be impeded due to different factors as magnetic field inhomogeneity and improper placement of receiver coils; this reflected on the interpretation of DWI in the head and neck masses [8].

Herein, we tried to focus on solid head and neck masses only and tried to determine whether the low or high b values as technical point were suitable enough for better quantitative and qualitative characterization.

Methods

Our prospective study includes 60 patients (28 female and 34 male) with mean age 57.34 ± 17.77 years; they were referred to MRI unit in our institution, for evaluation of solid head and neck masses in the period of May 2018 to May 2019; written informed consent was taken from all patients, and ethical committee approval was taken.

Patient population

Inclusion criteria: Patients with both totally and partially solid masses diagnosed either clinically or by US. Exclusion criteria: Patients with a pure cystic lesion, small masses less than 1 cm; patients with previous surgical or medical intervention by radio- or chemotherapy; patients with any metallic prosthesis; and patients known to have claustrophobia. All patients were questioned in details about the course and duration of the swelling growth, presence of pain, and history of previous intervention, when patient had multiple masses with the same histopathology, the largest one only used for ADC calculation. General examinations were done especially for signs of thyrotoxicosis and generalized lymphadenopathy and local examination for site, size, shape, borders, tenderness, and consistency of the swelling. For the previous available laboratory studies, all the collected data were documented. A final diagnosis of all patients was based on conventional histopathological studies; the specimen was achieved either by imaging-guided fine needle biopsy and cytology (FNAC) in deep lesions (n = 37, 61.6%), or using the total surgical mass dissection (n = 23, 39.3%). Non-conclusive results of FNAC were obtained in 7 cases (2 malignant thyroid cancer, 2 metastatic anaplastic carcinomas to cervical lymph nodes, 3 squamous cell carcinoma); finally, core needle biopsy was done in this cases, and the pathology was confirmed. Only one case showed post core needle biopsy hematoma.

MRI imaging technique

Patients were examined using closed MRI (1.5 Tesla, MR Systems GE). Routine MRI examinations pre- and post-contrast were done with slice thickness 4 mm, interslice gap of 2–3 mm; the matrix used for all sequences was 512 × 256 except the DWI which was 128 × 64 with following parameters FSE (fast spin-echo): Axial T1 weighted (TR: 315–515 ms, TE 8.5–32.5 ms, field of view 20–25 cm). Axial T2 weighted (TR 3500–5500 ms, TE 100–130 ms, field of view 20–25 cm). Diffusion WI using (b values) of 0, 50, 400, 800, and 1000 s/mm² with apparent diffusion coefficient (ADC) map before contrast administration and acquired in the axial plane (at least 2 b values). Contrast media administration: at least two orthogonal planes were obtained using gadolinium D.T.P.A with a calculated dose of 0.1 mmol/kg body weight. The imaging data were reviewed by two radiologists (one had 10 years and the other 7 years of experience in DWI-MRI reading and reporting); both qualitative and quantitative analyses were made as the lesions that retained signal on b value 1000 s/mm² and were hypointense on ADC maps were characterized as having restricted diffusion. The ADC is a numerical value calculated by manually placing a region of interest (ROI) over the solid portion of the tumor, taking care to avoid the cystic or necrotic parts. The two radiologists reached a consensus opinion before reviewing the pathology results. Re-evaluation of imaging after 1 month was done reaching the same previous diagnosis. The lesion contour, size, intensity, extensions, and pattern of enhancement were recorded.

Statistical analysis

Data were designed statistically as mean ± standard deviation (±SD), range or frequencies (number of cases), and percentages when appropriate. Comparison of numerical variables between the study groups was done using the Student t test for independent samples. For comparing categorical data, chi-square (v2) test was performed. Accuracy was represented using the terms sensitivity and specificity. Receiver operator characteristic (ROC) analysis was used to determine the optimum cut-off value for differentiation between malignant and benign masses; P values less than 0.05 were considered statistically significant. All statistical calculations were done using computer programs SPSS (Statistical Package for the Social Science; SPSS Inc., Chicago, IL, USA) version 26.

Results

Our study included 60 patients with solid head and neck masses, 34 males (56.7%) and 26 females (43.3%). Their age ranged from 3 days to 82 years, mean age 57.34 ± 17.77 years.

The solid masses were tabulated according to the different anatomical sites as lymphadenopathy (n = 24, 40%), larynx (n = 8, 13.3%), thyroid (n = 6, 10%), pharynx (n = 6, 10%), nasal cavity and paranasal sinus (n = 6, 10%), tongue (n = 4, 6.7%), zygomatic arch (n = 2, 3.3%), submandibular gland (n = 2, 3.3%), and mandible (n = 2, 3.3%).

Histopathological analysis was done dividing the examined solid masses in our study into 2 categories: (a) malignant lesions (n = 28) 46.7% and (b) benign lesions 53.3% (n = 32) as tabulated in Table 1.

Table 1 Distribution of the studied cases according to pathology (n = 60)

Qualitative analyses of lesions were divided according to b values: in low b values (0, 50, 400 s/mm²), benign lesions displayed low signal intensity (SI) in 37.5% (n = 12) and high SI in 62.5% (n = 20), while malignant lesion displayed high SI in 100.0% (n = 28) (Table 2).

Table 2 Distribution of the studied cases according to diffusion signal intensity % from the total at low b value

In high b values (800, 1000 s/mm²), benign lesions displayed low SI in 87.5% (n = 28) and high SI in 12.5% (n = 4), while malignant lesion display high SI in 100% (n = 28) (Table 3).

Table 3 Distribution of the studied cases according to diffusion signal intensity % from the total at high b value

ADC values of high b values were obtained and recorded for all 60 solid head and neck masses detected at consensus reading. Malignant lesions group (n = 28): ADC values ranged between 0.530–1.290 s/mm². The mean ADC value of malignant lesions was 0.82 ± 0.19 (Figs. 1, 2, and 3). Benign lesions group (n = 32): ADC values ranged between 0.674 and 2.590 s/mm². The mean ADC value of the benign lesions was 2.05 ± 0.46 s/mm². The mean ADC value of malignant lesions was lower than the mean ADC value of benign lesions. The difference between the mean ADC values of benign and malignant lesions was statistically significant (P value < 0.01) (Table 4). The highest mean ADC value was among the benign lesions (Figs. 4 and 5), and ameloblastoma had a low ADC values similar to the malignant group.

Fig. 1

Sixty-four-year-old male with metastatic anaplastic carcinoma to right supraclavicular lymph node. a Axial T1. b Axial T1 + C. c–g Axial diffusion-weighted imaging with b values: 0, 50, 400, 800, and 1000 respectively. h ADC map showed a well-defined right supraclavicular neck mass appeared isointense signal in T1 and definite homogenous enhancement after IV contrast; the mass showed central satellite appearance and outer lobulations and elicited high signal in DWI, in both low and high b values (restricted diffusion), ADC value = 0.69 × 10⁻³ s/mm² (low)

Fig. 2

Thirty- five-year-old female patient with adenoid cystic carcinoma of salivary gland centered upon the left maxillary sinus. a Axial T1. b Axial T1 + C. c–g Axial diffusion-weighted imaging with b values: 50, 400, 800, and 1000 respectively, h) ADC map, it displayed low signal intensity in T1, with homogeneous enhancement after IV contrast, while the cystic parts show no enhancement. The lesion elicited high signal intensity in DWI, in both low and high b values (cystic areas are excluded) with corresponding low signal intensity in ADC map (restricted diffusion), ADC value = 0.77 × 10⁻³ s/mm² (low)

Fig. 3

Sixty-four-year-old male patient with invasive laryngeal squamous cell carcinoma grade 2. a Axial T1. b Axial T1 + C. c–f Axial diffusion-weighted imaging with b values: 50, 400, 800, and 1000 respectively. g ADC map. The mass showed isointense signal in T1 with small areas of necrosis, homogenous enhancement of solid tissue after IV contrast. It elicited high signal in DWI, in both low and high b values with corresponding low signal intensity in ADC map (restricted diffusion), ADC value = 0.607 × 10⁻³ s/mm² (low)

Table 4 ADC range in benign and malignant lesions in our study

Fig. 4

Thirty-three-year-old female patient with right submandibular lymphadenitis. a Axial T1. b Axial T1 + C. c–f Axial diffusion-weighted imaging with b values: 50, 400, 800, and 1000 respectively. g ADC map axial images showed mild enlarged right submandibular gland with no focal lesion; it displays homogeneous isointense signal intensity in T1, homogenous enhancement after IV contrast. The gland elicits high signal intensity in DWI, in both low and high b values, with corresponding intermediate signal intensity in ADC map (partially restricted diffusion), ADC value = 1.67 × 10⁻³ s/mm² (intermediate)

Fig. 5

Twenty-two-year-old female patient with nodular goiter. a Axial T1. b Axial T1 with contrast. d–f Axial diffusion-weighted imaging with b values: 50, 400, 800, and 1000 respectively. g ADC map (gray). h ADC map (colored) showed multiple thyroid nodules detected in both thyroid lobes, the largest at right thyroid. The nodules showed high signal intensity in T1 and peripheral ring enhancement after IV contrast. It elicited high signal in DWI, in low b values, with rapid signal decayed in high b values, showing the same signal intensity of normal thyroid tissue at b value 1000, with corresponding high signal intensity at ADC map (free diffusion), ADC value = 2.21 × 10⁻³ s/mm² (high)

A threshold ADC value for differentiating malignant from benign lesions derived with receiver operating characteristic analysis (ROC Curve) equals = 1.0 × 10⁻³ s/mm² (Fig. 6). The statistical data obtained were yielding 94% sensitivity, 93% specificity, NPV = 94%, and PPV = 93%, accuracy 93.5% (Table 5).

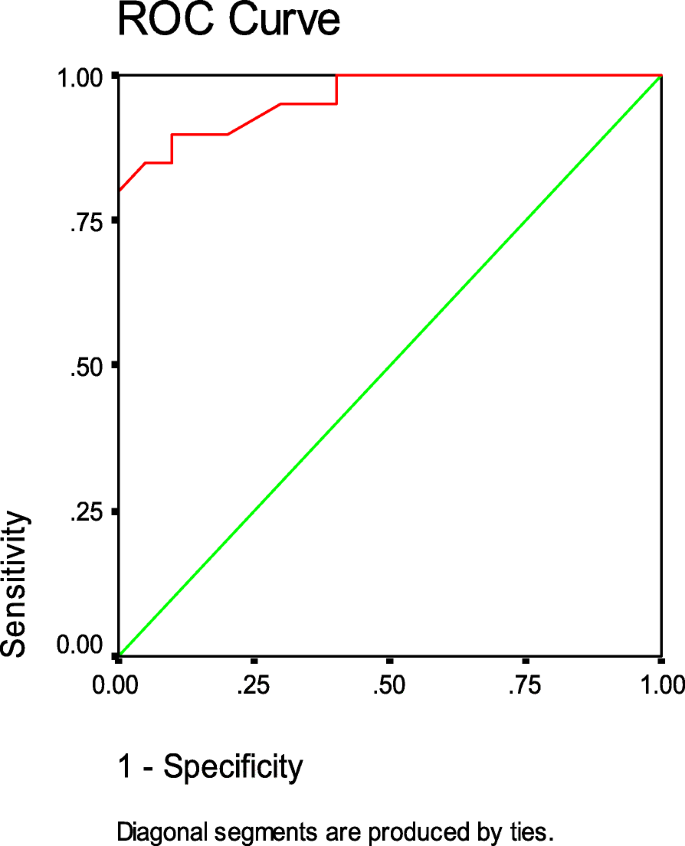

Fig. 6

Receiver operating characteristic (ROC) curve of the ADC values for differentiation between benign and malignant solid neck masses. The area under the curve (AUC) was 0.946

Table 5 A threshold ADC value for differentiating malignant from benign lesions and the statistical data obtained

Discussion

Accurate in vivo diagnosis and characterization of the solid head and neck masses were very important and affected the plane of management; late diagnoses reflected on morbidity and mortality rate. DWI-MRI was a non-enhanced contrast technique in single breath-hold and showed promising results in improving the diagnostic accuracy [9, 10].

Our purpose was to evaluate the value of (DW-MRI) in the characterization of solid head and neck masses with concern to the appropriate b value range; low (0, 50, 400 s/mm²) or high (800 and 1000 s/mm²) was more significant with comparing apparent diffusion coefficient (ADC) values.

A b value of 800–1000 s/mm² would provide an excellent spatial resolution and an adequate signal/noise ratio for lesion evaluation. The use of b values more than 1000 s/mm² would offer better contrast but was more liable to suffer susceptibility artifact. On the other hand, the use of b values lower than 300 s/mm² will lead to overestimated ADC values, due to the effect of perfusion of small blood vessels [11]. This was in agreement with our study that had been conducted on 60 patients with solid masses; DWI with the use of high b value 800 and 1000 s/mm² was of higher significance (P value 0.001*) in differentiation between benign and malignant lesions than that with low b values 0, 50, and 400 s/mm² (P value 0.010*).

In our study, all malignant lesions showed restricted diffusion; this was evidenced by retained high signal on b value 1000 s/mm² and hypointensity on ADC maps, in addition to eight benign lesions (ameloblastoma and submandibular adenitis) which showed restricted diffusion while the lesions that lost signal on b value 1000 s/mm² and were hyperintense on ADC maps were characterized as having free diffusion was 75% of benign lesions (n = 24). The mean ADC value of malignant lesions was lower than the mean ADC value of benign lesions. The difference between the mean ADC values of benign and malignant lesions was statistically significant (P value < 0.01). A threshold ADC value for differentiating malignant from benign lesions equals = 1.0 × 10⁻³ s/mm² with 94% sensitivity, 93% specificity, NPV = 94%, PPV = 93%, and accuracy 93.5%. That was in line with a study including 33 patients (17 benign, 16 malignant lesions) performed on a 3-T MR unit using b values of 0 and 800 s/mm² which was able to differentiate benign and malignant lesions using a threshold value of 1.3 × 10⁻³ s/mm² [12]. These results were confirmed also in a study performed on 78 pediatric patients on a 1.5-T MR unit. In these studies, b values of 0, 500, and 1000 s/mm² were applied, and the ADC value for malignant tumors was 0.93 ± 0.18 × 10⁻³ s/mm², and 1.57 ± 0.26 × 10⁻³ s/mm² for benign solid masses. Using a threshold ADC value of 1.25 × 10⁻³ s/mm², an accuracy of 92.8%, sensitivity of 94.4%, specificity of 91.2%, and positive predictive value of 91% and a negative predictive value of 94.2% were reported [13]. This also was similar to Kanmaz and Karavas [14] that found mean ADC values of benign and malignant neck masses were 1.57 × 10⁻³ s/mm² and 0.90 × 10⁻³ s/mm², respectively. The difference between the mean ADC value of benign and malignant neck masses was statistically significant (p < 0.01).

Eight benign lesions (ameloblastoma and submandibular adenitis) showed restricted diffusion in spite of being benign. Ameloblastoma is the most common benign odontogenic tumors, accounting for approximately 11% of all tumors in the jaw. They usually present as a multilocular lesion with mixed solid and cystic components and marked enhancement of solid components, walls, and septae [15]. ADC value of solid part in ameloblastoma in our study was 0.674 × 10⁻³ s/mm² and shows restricted diffusion which is in agreement with Srinivasan et al. [16], of which in their study, the solid areas of ameloblastoma showed restricted diffusion and low ADC values (1.041 ± 0.41 × 10⁻³ s/mm²), which could be attributed to high tumor cellularity and a greater nucleus to-cytoplasm ratio. Submandibular adenitis in addition to the inflammatory process that caused restriction of diffusion of submandibular gland was one of the normal anatomical structures that gave variable hyper-intensity at high b values and should not be confused with diffusion restriction in tumoral lesions [17].

Characterization and differentiation between neoplastic and reactive lymph nodes were also one of the main purposes of performing DW-MRI in neck cancer studies [18]. Metastatic adenopathies could be detected in imaging studies early before clinical examination even in inaccessible locations such as retropharyngeal or paratracheal lymph chains [19]. SCC (squamous cell carcinoma) is the most common type of cancer in the head and neck, and it usually spread through the lymphatic system to cervical nodes [20].

Our study had revealed that mean ADC values in metastatic node (n = 10) {range (0.530–0.815) × 10⁻³ s/mm²} mean 0.691 × 10⁻³ s/mm² were significantly lower than that of benign nodes (n = 14){range (1.86–2.45) × 10⁻³ s/mm²} mean 2.11 × 10⁻³ s/mm². Li et al. [21] had shown that the mean ADC between metastatic and non-metastatic retropharyngeal nodes were statistically significant differences by DWI (P < 0.001). Holzapfel et al. [22] had also demonstrated that mean ADC values (× 10⁻³ s/mm²) of benign cervical lymph nodes (1.24 ± 0.16) were significantly higher than that of metastatic lymph nodes (0.78 ± 0.09).

Another important diagnostic issue in daily clinical routine MRI examination was an evaluation of incidental thyroid nodules. Lower ADC values were reported in malignant lesions [23]. Erdem et al. in their published study consisting of 52 benign and 9 malignant nodules found that the mean ADC values of malignant thyroid nodules (0.69 ± 0.31 × 10⁻³ s/mm²) were significantly lower than those of benign nodules (2.74 ± 0.60 × 10⁻³ s/mm²) [24], and Seyedmehdi [25] used a 1.5-T scanner with SS EPI acquisition and b values of 0, 250, and 500 s/mm² and showed that mean ADC value of malignant solitary thyroid nodules (0.73 ± 0.19 × 10⁻³ s/mm²) was significantly lower than benign nodules (1.8 ± 0.27 × 10⁻³ s/mm²). This result is similar to our study; two cases of thyroid cancer giving ADC value 0.924 × 10⁻³ s/mm² were significantly lower than those of benign nodules(n = 8 with ADC value ranging between 2.16 and 2.26 (× 10⁻³ s/mm²). Contrary to the previously mentioned study, Schueller-Weidekamm et al.’s study on 35 cold thyroid nodules were investigated by DWI with a b factor of 800 s/mm²; they found median ADC values for carcinoma, adenoma, and Hashimoto thyroiditis as 2.73 × 10⁻³ s/mm², 1.93 × 10⁻³ s/mm², and 3.46 × 10⁻³ s/mm², respectively [26]. They concluded the high ADC value in thyroid cancer, as a result of macrofollicular production of thyroglobulin, diffusion capacity can be unrestricted. Additionally, the presence of microcalcifications affects MR signal intensity [27].

Squamous cell carcinoma (SCC) is the most common malignant pathology in the head and neck region, commonly involving regional lymph nodes [28]. This was evident in our study where 57.14% (n = 16) of malignant cases (n = 28) were SCC; the ADC value of lesions was low ranging between (0.530 and 1.29) × 10⁻³ s/mm².

We conclude that DW-MRI with high b values had higher significance than low b values as low b value DW-MRI became less qualitative and more quantitative, so it must be based on complex ADC calculations.

Limitations of our study include unavoidable image distortion to some degree in DWI due to magnetic susceptibility artifact yet did not hinder adequate ADC calculation and a relatively small sample of cases that may decrease the accuracy of statistical analysis.

Conclusion

Technical point should be put into consideration in DWI-MRI and ADC mapping in head and neck region to use high b values as it had higher significance as a non-invasive tool in differentiating between benign and malignant solid head and neck masses with highly significant difference between ADC values of benign and malignant masses. Qualitative (DW-MRI) and quantitative (ADC) assessment were helpful in resolving many diagnostic problems in imaging head and neck masses when accompanying routine conventional MRI.
