Utility of magnetic resonance proton density fat fraction technique in quantification of liver fat in living donors for liver transplantation



Hepatic steatosis in living donors for liver transplantation causes morbidity of both donor and recipient. This study aims at evaluating magnetic resonance proton density fat fraction technique (MR PDFF) in quantitative evaluation of living donor’s hepatic steatosis compared to histopathology.


The examined potential living liver donors’ liver biopsies revealed hepatic steatosis < 5% (grade 0) in 40 donors and 5–10% (grade 1) in 7 donors. MR PDFF technique with IDEAL sequence showed excellent results for prediction and quantitative evaluation of liver fat with sensitivity, specificity, and accuracy of 85.7%, 97.5%, and 95.7%, respectively, compared to histopathology (95% confidence interval 0.98–1.01). There was an excellent inter-reader agreement between both readers in estimation of MR liver fat fraction (r = 0.969 at 95% confidence interval 0.946–0.983).


Noninvasive hepatic MR PDFF technique with IDEAL sequence is a precise reliable technique for pre-operative quantitative assessment of hepatic steatosis in potential living liver donors.


Living donor liver transplantation has been widely accepted as a routine treatment modality for end-stage liver disease for about 2 decades. Donor’s safety is an important ethical concern, because donors are liable to many surgical and health risks [1].

Hepatic steatosis is characterized by deposition of lipid droplets in hepatocytes [2]. The prevalence was estimated to be 32% in the Middle East and 25% globally (worldwide) [3]. It is a remarkable risk factor in hepatic surgery, and its incidence is nearly 25% in living liver donors. Many authors stated that > 30% hepatic steatosis is a serious risk factor with resultant poor graft function. Even mild steatosis interferes with the recovery of the donor’s remaining liver [4, 5]. Therefore, some medical centers consider 10% steatosis as a safe cutoff value for living donor liver transplantation to conserve donor’s liver. Thus, prompt quantitative evaluation of liver steatosis in potential living liver donors is of a paramount importance for donor selection [6].

Hepatic histopathological assessment is still considered the reference standard in numerous centers of liver transplantation. However, it has many drawbacks, including small sample volumes (sampling error) and inter-observer variability [7]. Moreover, it has many provisional complications like bleeding and infection, and bile leakage is relatively of low incidence in living donors [8], so, it is better to avoid this invasive procedure with availability of reliable noninvasive technique for detection of hepatic steatosis. Nowadays, in many medical centers, liver biopsy is used selectively for hepatic steatosis measurement if it was diagnosed by noninvasive dependable imaging modality [5].

Many noninvasive radiological studies have been increasingly used for evaluation of hepatic steatosis. Ultrasound (US) is a commonly used technique. However, it provides only qualitative assessment by evaluation of liver texture and echogenicity [8]. Computed tomography is more accurate than ultrasound, but it has its own disadvantages, including interference due to iron deposition, fibrosis, and risk of radiation exposure and lower sensitivity than MRI [9].

In some medical centers, MRI is currently used in evaluation of hepatic steatosis, due to its availability and high sensitivity for fat detection and measurement. But, evidence-based studies are limited. Available information declares how correct performance of MRI is important to overcome confounders that interfere with accuracy of conventional MRI [2, 10].

Many MR techniques are available for assessment of hepatic steatosis, such as dual and triple-echo gradient-echo MRI, chemical shift imaging, and hydrogen 1 (1H) MR spectroscopy. In this study, we discussed MR proton density fat fraction (MR PDFF) technique, a newly available technique for measurement of hepatic steatosis. It is characterized by its short acquisition time and simple post-processing [5, 11]. To our knowledge, a limited number of studies discussed this technique. This study aimed at evaluating MRI-PDFF technique in quantitative assessment of hepatic steatosis in potential living donors for liver transplantation compared to liver biopsy.


Study design and population

This was a retrospective study, approved by our institutional ethics committee. It was conducted from August 2016, including 47 potential living liver donors for liver transplantation (37 males and 10 females). Their ages ranged from 19.5 to 37 years with the mean age + SD = 27.01 ± 4.9 years old. Demographic and clinical criteria of studied group were demonstrated in Table 1.

Table 1 Demographic and clinical criteria of studied donors

Exclusion criteria included the existence of contraindications to MRI including claustrophobia and proof of presence of respiratory and motion artifacts in MR images, which evaluated as post-MRI exclusion criteria to prevent bias in MR PDFF assessment [12, 13].

MRI acquisition

All MR PDFF examinations were done. Liver MRI was performed with subjects scanned in supine position on a 1.5T MRI scanner (Explorer, GE Medical Systems, Milwaukee, WI, USA) using an 8-channel phased array receiver coil. A multiecho three-dimensional (3D) IDEAL sequence with fly-back gradients was employed for the evaluation of the liver steatosis (IDEAL IQ, GE Healthcare). The IDEAL IQ sequence is a T1-independent, T2*-corrected estimating R2* (1/T2*), and chemical shift-based fat-water separation method for correction of T2* effects with multi-peak fat spectral modeling creating fat fraction maps in a short-time single breath-hold acquisition [1 14].

Patients were instructed to hold their breath at the end of inspiration during MR sequence acquisition. IDEAL IQ sequence was carried out in axial plane with the following parameters: TR = 10.6 msec, TE = 5 msec, matrix size = 160 × 160, NEX = 0.69, FOV = 44 × 44 cm, flip angle = 7°, slice thickness = 8 mm, 0 inter-slice gap, 125 kHz bandwidth, and total examination time = 14 s. The gradient-echo (GRE) MR images were put out in DICOM format for post-processing.

MR image interpretation and data analysis

Images were analyzed by two independent experienced radiologists on advantage window (GE volume share 7), freehand circular ROIs were placed at segments 8 and 5 of the right liver lobe and segment 2 of the left liver lobe away from visible intrahepatic blood vessels and bile ducts, ranging in size from 3.4 to 5.5 cm2 (Fig. 1) [1, 5, 8]. Each ROI has mean and standard deviation value, and the mean value of these ROIs for each patient was calculated.

Fig. 1

a, b Representative example of ROI measurement on axial MR HFF map. Three approximately 3.4–5.4 mm2 ROIs were drawn in the midplane of the liver

Donor biopsy

Histopathology was performed within 1-month time interval between MR examination and biopsy. Percutaneous tru-cut biopsies were obtained by 18-gauge needles after local anesthesia and US guidance. Histologic fat grading of macrovesicular steatosis was reported by experienced pathologists with quantitation of the percentage of hepatocytes containing fat droplets using hematoxylin-eosin staining [1, 5].

Statistical analysis

The statistical analysis of data proceeded using Statistical Package for Social Science version 22 (SPSS Inc., Chicago, Ill, USA). Descriptive statistics in the form of mean, standard deviation, median, minimum, and maximum were used. Whole-liver PDFF for each studied individual was defined as the mean of the PDFFs of the determined ROIs. Also, MR and pathological grading of liver fat were performed for each measurement according to available grading system in literature [14,15,16,17]. The median and ranges of MR liver PDFFs and MR liver fat grade were estimated for the first and second observers.

Using liver histopathological fat percentage and grades as reference standards, receiver operating characteristic (ROC) curve analysis was used, calculation of sensitivity, specificity, positive, and negative predictive values as well as accuracy of MR liver PDFF technique was done. Interclass correlation was carried out to detect inter-reader agreement of both observers.


A total 47 potential living donors for liver transplantation were studied, their demographic and clinical information were summarized descriptively (Table 1).

The median MR degree of macro-vesicular steatosis for the first observer was 2.5% ranging from 1.1 to 16% and for the second observer was 3.26% ranging from 1.43 to 14.7%. MR liver fat grade 0 were 43 donors for the first observer and 42 donors for the second observer, while MR liver fat grade 1 were 4 donors for the first observer and 5 cases for the second observer. Results of examined donors’ liver biopsies revealed histopathological liver fat content < 5% (grade 0) in 40 donors and 5–10% (grade 1) in 7 donors (Table 2).

Table 2 Median and range of estimated MR and histopathological hepatic fat fractions and grades

The estimated sensitivity and specificity for liver steatosis detection with MR fat fraction technique were 85.7% and 97.5%, respectively, positive predictive value was found to be 85.7%, negative predictive value was 97.5% with a cutoff of point 5.6 with area under the curve 0.98 at 95% confidence interval of 0.98 to 1.01, accuracy of 95.7% (Figs. 2 and 3). There was an excellent inter-reader agreement between both readers in the estimation of MR liver fat fraction (r = 0.969 at 95% confidence interval of 0.946 to 0.983).

Fig. 2

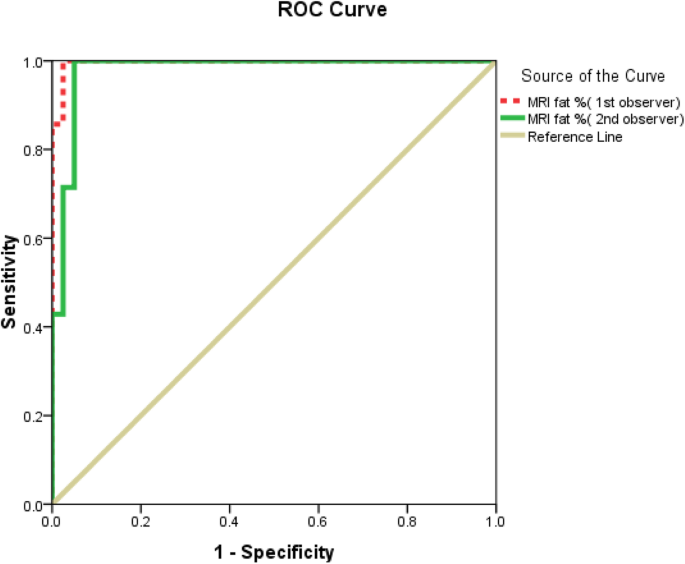

ROC curve demonstrating the diagnostic accuracy of MR hepatic proton density fat fraction technique in estimation of hepatic steatosis

Fig. 3

Bar chart for frequency of MR hepatic fat fraction grades versus histopathological grades of hepatic steatosis


Living donor liver transplantation is one of the present treatment options of end-stage liver diseases. Living donor safety is a remarkable priority in such treatment modality. Hepatic steatosis is a serious risk factor in liver transplantation. A fatty liver of donor is associated with increased morbidity in both donor and recipient [1, 18, 19]. It was stated that hepatic steatosis of > 10% is one of most common causes for donor disqualification [6]. Therefore, accurate quantification of liver fat content is essential for assessment of the eligibility and safety of potential living donors.

There have been many attempts for noninvasive evaluation hepatic steatosis by using different imaging modalities [9, 11, 20]. MR techniques can decompose fat and water signal of the liver, enabling more accurate assessment of the amount of fat in the liver than other imaging modalities [5].

Results of this study revealed that MR hepatic PDFF using IDEAL technique proved to be a valid method for quantitative evaluation of hepatic steatosis in comparison to histopathology. This kept up with many recent previous studies who stated that this supports the potential use of MR PDFF technique as a reliable noninvasive quantitative method for assessment of hepatic steatosis [1, 5, 10, 21].

Other MR techniques have been previously used for assessment of hepatic steatosis such as hydrogen MR spectroscopy. MR HFF technique and MR spectroscopy were declared to be similar in sensitivity and specificity. Despite its validity, MR spectroscopy needs a long acquisition time and sophisticated post-processing and data analysis [5, 22].

In this study, we were satisfied to use MR hepatic PDFF technique as it is easier, simpler, having less time, and can measure fat in any part of the liver, and this choice was in agreement with Bonekamp et al., Awai et al., and Harald et al. who demonstrated that MRI-PDFF technique has a strong correlation with MR spectroscopy (r2 = 0.98) [2, 10, 23].

Multiple-segment hepatic fat fraction measurements can be obtained using IDEAL sequence for proper quantification of hepatic fat, thus reducing sampling error compared to MR spectroscopy which is usually carried out with single voxel technique for assessment of hepatic steatosis and even liver biopsy [1, 5, 8].

The major strengths of this study include the use of adult subjects with liver biopsy-confirmed percentage and grade of hepatic steatosis. The study utilized a well-validated, simple MR PDFF technique (IDEAL sequence) which has overcome drawbacks of previous used MR fat assessment techniques by correcting for T1 bias, T2* decay, and the spectral complexity of fat. Moreover, this technique corrects all of the known confounding factors that interfere with the measurement of hepatic fat fraction with MRI [5]. In addition, all patients underwent the same liver fat mapping with assessment of multiple liver segments. Also, the time interval between biopsy and MRI was short (average 1 month).

However, this study had many limitations, such as relatively small number of donors and using a 1.5-Tesla MR scanner, not higher MR scanner for examination. Lower magnetic field strength systems decrease the chemical shift effect, reducing the separation of fat and water MR signals. However, Kang et al. and Middleton et al. declared that no difference of calculated PDFFs using 1.5-T and 3-T MR scanners showed no difference in their results [24, 25].


In conclusion, noninvasive MR hepatic PDFF technique with IDEAL sequence is a precise reliable technique for quantitative assessment of hepatic steatosis with high sensitivity (85.7%), specificity (97.5%), and accuracy of (95.7%). It is recommended to be a part of preoperative liver evaluation in living donors and selectively performing liver biopsy in donor candidates diagnosed to have substantial steatosis based on MR PDFF findings.
