Egyptian Journal of Radiology and Nuclear Medicine volume 50, Article number: 89 (2019) Cite this article

Abstract

Background

The long-term survival of patients on hemodialysis (HD) is dependent on adequate HD which depends on quality and degree of functionality of vascular access. The aim of our study is to detect the role of color Doppler ultrasonography in evaluation of arteriovenous fistula (AVF).

Materials and methods

Between January 2017 and October 2017, 60 patients had complicated AVF at Qena General Hospital & Qena University Hospital as primary and tertiary centers respectively with the same age group between 18 and 50 years old, had no diabetes mellitus were evaluated using color duplex-Doppler ultrasound (CDUS) after AVF maturation for detection of complications and comparison between primary and tertiary centers of its incidence.

Results

The overall results revealed that 11 patients from 30 patients that had been referred to tertiary centers have complicated AVF (36.7%), and 19 patients had no shunt complication (63.3%). Twenty-two patients from 30 patients that had been referred to primary HD centers had complicated shunts. Thrombosis at tertiary centers represents 13.3%, stenosis 3.3% (1 patient), aneurysmal formation had 6.6% for (2 patients), hematoma 6.6%(2 patients), infection 3.3% (1 patient), venous hypertension 3.3% (1 patient), thrombosis and hematoma at primary centers 16.6% (5 patients for each), aneurysmal formation and infection 13.3% for each, and stenosis 10%.

Conclusions

CDUS is a readily-available, non-invasive, risk-free, bed-side technique that allows precise anatomic knowledge, qualitative, and quantitative data of the upper limb vascular system which greatly help in preoperative planning of AVF creation, assessment of prime time for puncture (maturation), early detection of complications, and choice of appropriate therapeutic procedure for their treatment.

Background

Hemodialysis has an important role in long-term survival of patients with end-stage-renal disease (ESRD). To maintain them on long-term dialysis, vascular access procedures are required [1]. A well-functioning vascular access has a good blood flow, excellent patency, and allows easy and repetitive cannulation with two needles. The arteriovenous fistula (AVF) provides the best access for longevity and lowest morbidity and mortality; however, arteriovenous grafts remain clinically important in elderly patients and whom AVFs are not feasible [2]. After surgical creation, the vein distended to become a successful arteriovenous fistula (AV). Fistula undergoes a remodeling process that is referred to as maturation. Although somewhat variable, these changes occur relatively rapidly, resulting in a fistula that can be repetitively used and which can provide adequate dialysis treatments [3]. Ideal time needed for arteriovenous fistula (AVF) maturation is still controversial. Early detection of access dysfunction, complication allows for subsequent interventions that help to reduce the rate of access failure [4]. Failure of the A-V fistula can be early or late. Early failure of the vascular access for hemodialysis is accounted for the period between creation and the beginning of the work of the fistula, or within the first 3 months of its use. On the other hand, late failure of the A-V fistula is considered if it happens after 3 months of its use for hemodialysis [5]. US can help also to identify other complications associated with fistulas including abscess, aneurysm, steal syndrome, and hematoma scan also be evaluated by color Doppler examination [6]. Color Doppler ultrasonography enables preoperative vascular mapping for AVF creation, assessment of prime time for puncture, early detection of complications, and choice of appropriate therapeutic procedures for correction [7]. The long-term survival and quality of life of patients with ESRD on hemodialysis is dependent on the adequacy of dialysis via an appropriately placed vascular access [8]. Duplex ultrasound is rapidly emerging as an essential investigation, and its widespread introduction in the future will have major resource implications [9].

Methods

The current study is observational prospective randomized controlled trial study of 60 patients of end stage renal disease (ESRD) an observational prospective study conducted at Qena University Hospital during the study period from January 2017 to June 2018.

Patients

The study included 60 patients with ESRD for AVF evaluation, aged from 18 to 50 years.

Inclusion criteria

  • Clinically stable

  • Patients on hemodialysis with late complication of AVF

  • Age group from 18 to 50 years old

  • All AVFs had been done at Qena University Hospital with the same preoperative assessment and operative technique

  • Those with early complications

Exclusion criteria

  • Diabetic patients

  • Patients with peripheral vascular disease

Equipment and supplies

  • Grey scale and color Doppler GE LOGIC P7 ultrasound machine with high frequency transducers (8–10 MHz). Standard supplies for ultrasonic exam: acoustic coupling gel, gloves, and skin wipes

Methodology

The preoperative criteria to be met for vascular access are summarized as follows:

  • Arteries 2.0 mm or larger

  • Veins, 2.5 mm, or larger for AVF

  • Depth of the vein from the skin surface

    < 5 mm

  • Superficial vein continuing to the deep venous system

  • Absence of central venous stenosis

  • Absence of evidence of arterial stenosis segments

  • Patients who undergo upper limb AVFs will be examined with US Doppler after 3 months, 6 months, and 12 month for detection of late complications.

Indications for CDUS examination [10]

  1. A)

    Clinical symptoms and signs of insufficiency of AV access:

  • Poor arterial flow with access collapse

  • Thrill loss

  • Ischemia of the distal limb

  • -Impaired matured fistula

  • Clinical suspicion of infection

  • Perigraft aneurysm or pseudo-aneurysm or mass

  1. B)

    Malfunction of the fistula as evidenced by:

  • Cannulation difficulty

  • Thrombus aspiration

  • Increased venous pressure more than 200 mmHg on a 300 cc/min pump

  • Increased recirculation time ≥ 15%

  • Decreased reduction rate of urea ˂ 60%

Post-procedure ultrasound technique using step-by-step protocol for vascular access assessments [11]

The following will be assessed:

  • The diameter and compressibility of the draining vein is studied routinely in the caudal, mid-, and cranial portions of the forearm, and similarly in the upper arm.

  • The depth of the anterior wall of the AVF from the skin surface is also measured.

  • Blood flow is measured in the AVF in ml/min using the volume flow measurement function of the duplex instrument at a site far enough from the anastomosis. Three measurements will be performed, and the final value used in the study will be the arithmetic mean.

Assessment of AVF complications: sites of examination included

  • The afferent artery

  • Site of anastomosis

  • The draining veins as far as the subclavian vein

  • The arterial tree distal to the AVF in cases suffering from steal syndrome

Doppler parameters and measurements

Each of the following parameters was measured at the site of AV anastomosis, at the afferent artery and finally at the draining vein.

  • PSVcm/sec

  • EDVcm/sec

  • RI

  • Volume of blood flow (ml/min)

  • The distal arterial tree was examined in cases suffering from steal syndrome.

Results

In this study, we started with 60 patients with ESRD candidate for hemodialysis AVF whom have no history of diabetes mellitus, and various types of well-functioning AVFs had been done for them at Vascular Surgery Department-South Valley University Hospitals . 24 patients (40%) had B-C, (18 patients,30%) had B-B fistula (Fig. 1) and (18 patients, 30%) had R-C fistula. Fifty percent of patient populations had been referred to the Hemodialysis Unit of SVU Hospitals as a tertiary hemodialysis center where good nursing, and the other 50% of patient population had been referred to Qena General Hospital as a primary hemodialysis center.

Fig. 1
figure1

Case with B-B fistula on gray scale image shows an infected hematomas forming subcutaneous abscesses

Full size image

Maturation of an AV fistula typically occurs within the first 4 weeks after creation. The mean age of maturation in our study of the fistulae encountered was 4 ± 0.379 weeks.

We found that the mean blood flow rate in adequately functioning AVFs was 816.21 ± 152 ml/min. after creation of fistula.

Our study demonstrates that 22 (73.3%) out of 30 patients who referred from the primary center developed AVF complications as follow: hematoma [5 cases (16.6%)] with same frequency regarding thrombosis, infection [4 cases (13.3%)], stenosis and peudo-aneurysm with the same frequency [3 cases (10%)], venous aneurysm and venous hypertension also having the same frequency [1 case (3.3%)]. While, 11 patients from 30 patients had been referred to tertiary center who have complicated AVF (36.7%), and 19 patients had no shunt complication (63.3%). Thrombosis 13.3% (4 patients), hematoma 6.6% (2 patients), aneurysmal formation had 6.6% for (2 patients) one patient on the venous side and the other on the arterial side, stenosis 3.3% (1 patient), infection 3.3% (1 patient), and venous hypertension 3.3% (1 patient) (Table 1 and Figs. 2, 3, 4, 5, 6, 7).

Table 1 Frequency of AVF complications among the included patients
Full size table
Fig. 2
figure2

Gray scale images show a hematoma at the puncture site, anterior to the venous side of AVF, a sagittal view shows site of puncture (arrowed) and vein lumen reduction by the mass effect of hematoma, b shows the site& dimensions of the hematoma

Full size image
Fig. 3
figure3

Segmental narrowing of the cephalic vein with aliasing of the post-stenotic flow

Full size image
Fig. 4
figure4

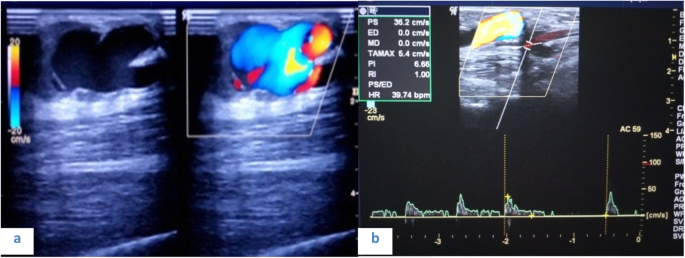

Patient with B-C AVF. a CDUS shows two pulsatile swellings denoting aneurysmal dilatation of the cephalic vein. b Pulsed Doppler show juxta-anastomotic stenosis of the AVF ostia with low PSV proximal to the stenosis

Full size image
Fig. 5
figure5

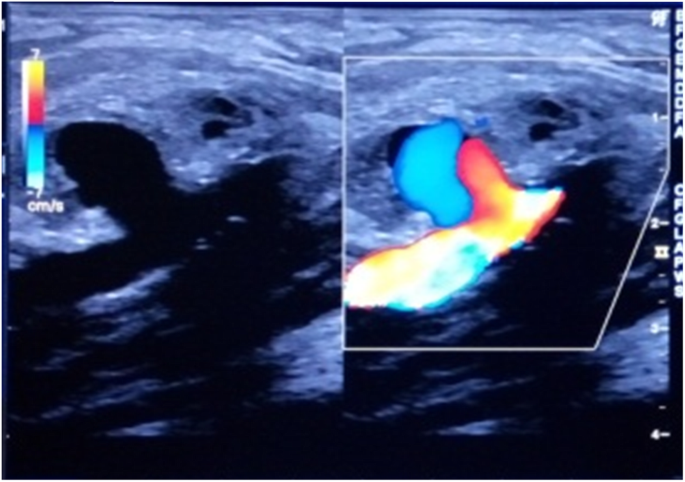

CDUS shows pulsatile swelling at site of puncture of AVF with swirling “yin-yang” pattern of blood flow typically seen in pseudoaneurysms

Full size image
Fig. 6
figure6

CDUS shows central venous thrombosis and venous hypertension

Full size image
Fig. 7
figure7

Frequency of AVF complications among the included patients referred from primary and tertiary centers

Full size image

Discussion

Vascular access problems remain the vulnerable point of modern HD [12]. For evaluation of access dysfunction, the initial, most practical, and cost-effective method is physical examination [13]. US confirm the results of physical examination such as inflow stenosis and outflow stenosis. Moreover, it provides important information about the functional severity like brachial artery flow rates [14, 15]. By combining the findings of US and physical examination, the treatment methods can be determined, such as angioplasty, revision surgery, or conservative management [16]. Moreover, Doppler US shortens angioplasty time, as it gives information on the stenosis site [17]. Thus, by the use of US, more clinical needs are satisfied [16].

The present study demonstrated that, during the first 11 months of newly created AVFs, a great percentage of patients encounter cannulation related complications were significantly higher in primary than tertiary centers of hemodialysis.

In this study, we evaluated the clinical utility of CDUS for early detection of complications in AV dialysis access. We found that the number of female patients exceeded that of males, with 36 female patients and 24 male patients, representing 60 and 40% of all patients, respectively. This correlates with the findings of the previous studies who found that fistulas are less likely to be usable for dialysis in female than in male patients [18].

Among our study population, the most common shunt complication associated with HD was access to thrombosis (n = 5, 16.6% in primary centers and n = 4, 13.3% in tertiary centers). Thrombosis is usually located in the arteriovenous anastomosis of the AVF. In our study, thrombosis was detected at the venous side of the fistula in most cases; diagnosis of thrombosis was established by absence of flow using color or pulsed Doppler together with hypoechoic or echogenic thrombus filling the lumen.

Stenosis of HD vascular access is common and may lead to thrombosis and the loss of the access. Thus, detection of stenosis in AVF before thrombosis could offer a strategy to improve AVF survival by early intervention [19]. Stenosis in AVF develops more frequently in juxta-anastomotic location, up to 4 cm from the anastomosis [20]. Among 4 patients diagnosed with stenosis, one cases had post-fistula stenosis, three cases had stenosis at the anastomotic site. This was in accordance with the finding of Tirinescu et al. [19], who performed a large observational study on 97 patients, and reported juxta-anastomotic localization of stenosis in most cases, in the forearm, and in the upper arm AVF equally.

Clinically pseudoaneurysms are diagnosed by the presence of a pulsatile mass with systolic murmur. However, CDUS is particularly suitable to determine the extent of the aneurysm and to demonstrate thrombotic material within the aneurysmatic sac [21]. Out of the examined cases in our study, 6 patients had pseudoaneurysm (12%), 4 at the venous side of the AVF, 1 at the site of anastomosis, and 1 at the arterial side, which is relatively rare. Puncture of an AVF either as part of standard dialysis needling or from intervention can result in prolonged bleeding and pseudoaneurysm formation. However, the mechanism of formation of true aneurysms in AVFs is less clear. This is may be attributed to also to repeated needling with consequent development of multiple small fibrous scars in the vessel wall that expand with time and result in localized aneurysmal areas [22, 23].

Tenderness and erythema along the access can indicate infection. An untreated access infection may lead to bacteremia, sepsis, hemorrhage, and, if left untreated, possible death. In this study, 4 patients 13.3% in primary centers had an infected AVF, and only one patient had an infected AVF 3.3% in tertiary centers, due to the use of complete antiseptic measures in tertiary centers.

Venous hypertension results from arterialization of the venous system proximal to an arteriovenous fistula with central venous occlusion [24]. Our study included 2 patients with venous hypertension (4%) due to central venous stenosis.

The CDUS findings in this series were helpful to determine further therapeutic management in patients with AV dysfunction.

The limitation of this study is the relatively small number of patients with selection bias including only patients with suspected AV dysfunction on physical examination. A larger study including all patients for surveillance of AVF is recommended.

Conclusions

CDUS is a noninvasive diagnostic tool for early detection of complications of AVFs that allows monitoring of the AVF blood flow and detection of possible causes of vascular access malfunction. Owing to its low cost and availability, it should be used as the first-line imaging modality for dysfunctional AVF. Well-qualified nurses are very important in reduction of AVF complications, and tertiary centers should help primary centers in continuous education of nurses.
