Value of dynamic and DWI MRI in evaluation of HCC viability after TACE via LI-RADS v2018 diagnostic algorithm

Abstract

Background

Detection of the value of DCE (dynamic contrast enhanced) MRI and DWI (diffusion-weighted imaging) in follow-up of treatment response for HCC (hepatocellular carcinoma) lesions post TACE (trans-arterial chemo-embolization) through LI-RADS v2018 algorithmic approach.

Results

A prospective study was performed on 30 patients with 41 treated hepatic focal lesions. The patients underwent DCE MRI with DWI in less than 1-month duration following TACE procedure and were radiologically assessed to observe tumoral post treatment response; then, another follow-up after another 3 months later was done for non-viable, equivocal, and non-evaluable post treatment response categories. Statistical analysis showed that DCE MRI had 100% level of sensitivity, specificity of 95.24%, PPV of 95.00%, and NPV of 100% with an overall agreement of 97.50%. While on the other hand, statistics showed that DWI has 52.63% level of sensitivity, specificity of 90.48%, PPV of 83.33%, PPV of 67.86%, and NPV of 72.50%.

The difference between non-viable and viable groups’ ADC variables was found statistically significant at P value < 0.001, and best cut off value that augments sensitivity and specificity is 1.35. At this ADC value, sensitivity reaches 78.9% and specificity is 85.7%.

Conclusions

Our study showed that DCE MRI has 100% level of sensitivity via application of LI-RADS v2018 diagnostic algorithmic approach while DWI alone has 52.63% level of sensitivity, yet it can enhance the diagnostic confidence of DCE MRI for post treatment response viability detection.

Background

Hepatocellular carcinoma was found to be the 4th leading cause of cancer-related deaths during 2018 and being also considered worldwide as the 6th most common malignancy [1]. In oncology, due to the difficultness and accuracy of liver biopsy (up to 40% false-negative results in lesions ≤ 2 cm), non-invasive diagnosis can be achieved with imaging in high-risk populations [2].

DCE MRI is a well-established liver imaging modality via providing accurate qualitative and quantitative data through its multi-parametric capabilities [3].

Guided by the Barcelona Clinic Liver Cancer (BCLC) classification system, trans-arterial chemoembolization (TACE) is the first line of treatment for HCC patients with intermediate stage and those with sizable or multi-centric HCC [4]. Follow-up for the effectiveness of TACE with imaging is essential in evaluating the outcome of TACE and the next future step along the treatment plan of the patient [5].

It is often hard to assess enhancement of contrast in a treated lesion with partial retention of lipidol droplets through CT studies, due to the inevitable beam hardening imaging artifacts of lipidol droplets. On the other hand, it was found that MRI signals are not degraded by lipidol droplets; therefore, a residual/newly developed lesion is better detected by DCE MRI. In this manner, DCE MRI study for the hepatic lesions is viewed now as the chosen radiological modality [5].

Liver Imaging Reporting and Data Systems (LI-RADS) started introducing the concept of LR-treated in v2014; then, another new treatment response algorithm was made and published in the 2017 update for radiologists’ assistance in different imaging modality interpretation for HCC following loco-regional therapy. In addition to offering imaging criteria for viable and nonviable treated HCC lesions, new categories of non-evaluable lesions as well as lesions with equivocal tumoral viability were introduced through application of major and other ancillary imaging features [6].

Following trans-catheter therapies (TACE, DEB-TACE, or TAE), different forms of post treatment patterns of response emerged. In general, in the LR-TR viable post treatment category response for TACE treatment, dynamic MRI shows APHE in the form of either nodular thick or mass-like area following contrast administration which may be mixed within necrotic regions. The peri-lesional enhancement detected through dynamic MRI is not pathognomonic for the recurrent lesions [7], but also can occur in non-viable conditions due to adjacent inflammatory infiltrate or other non-tumoral arterio-portal shunts as in the case of direct arterio-portal fistula or reduced portal venous flow caused by iatrogenic induced portal tract injuries in the vicinity of the TACE procedure and by later time it resolves [8].

DWI can give data about tumor viability degree. Non-viable treated hepatic lesions show less hyper-intense signals in DWI with corresponding increase in ADC mapping series values as a result of cell membrane damage. On the other hand, viable treated hepatic focal lesions still show diffusion restriction and relatively low ADC values. ADC mapping series give idea about intra- and extracellular water molecule movement in biological tissue and hence gives data about the tumoral micro-environment [7].

Diffusion-weighted imaging has a great value in detection of areas with tumoral viability tumor; however, it does not replace identification of characteristic enhancement patterns of tumoral viability through dynamic study that is why it is currently not included in the LI-RADS v2018 treatment response algorithm as a major feature [9].

Methods

Study population

Inclusion criteria

  • A prospective study performed on patients who underwent TACE referred from the Tropical and Gastroenterology Departments to Radio-diagnosis Department. All patients had cirrhotic liver due to chronic viral hepatitis. All patients signed written consents. The study is IBR (institutional board review) approved.

Exclusion criteria

  • Systemic chemotherapy treatment for HCC

  • Other liver mass lesions other than hepatocellular carcinoma

  • MRI contraindications, e.g., claustrophobia and cardiac pacemakers

  • Contraindications to administration of contrast media

Methods

All cases had been subjected to the following:

  • Full clinical assessment

  • Revision of the patient’s renal function investigations including blood urea and serum creatinine tests

  • Revision of the prior radiological investigations for the patients

All patients come in for follow-up by DCE MRI with diffusion-weighted images in less than 1-month duration following TACE procedure to observe tumoral post treatment response to TACE; then, another follow-up after another 3 months later was done for non-viable, equivocal, and non-evaluable post treatment response categories. While For LR-TR viable lesions, diagnosis was made depending on the 1-month/3-month follow-up MRI findings of major and ancillary feathers or sustained radio-dense iodized oil droplets accumulations in the hyper-vascular lesion/area on the session of hepatic arteriography with next TACE.

Equipment

DCE MRI with DWI was performed using GE 3 Tesla MRI scanner (Discovery 750).

Techniques

  • Examination included pre-contrast axial and coronal T1-weighted out-of-phase (OP) and in-phase (IP) imaging and T2 in addition to axial SPIR-weighted images followed by diffusion MRI then DCE MRI images were obtained following bolus injection of 0.1 mmol/kg body weight of gadolinium-DTPA at injection rate of 2 ml/s; then, flushing with 20 ml of sterile saline solution was done through the ante-cubital vein with a power injector.

  • Diffusion imaging was obtained prior to (DCE)-MRI using respiratory gated fat-suppressed single-shot spin-echo echo-planar sequence. It was performed by applying different b values of 20, 500, and 800 s/mm2.

  • DCE MRI was obtained using axial T1-weighted FSPGR LAVA (liver acquisition with volume acceleration) contrast-enhanced imaging that was performed in triphasic manner; DCE MRI series included one pre contrast series then four successive post contrast series consisting of early arterial, predominant arterial (or late arterial) phase, portal phase, and a delayed (equilibrium) phase with 17–20-s intervals (15–17 s for image acquisition with breath-holding technique and 2–3 s for re-breathing) followed by 3–4-min delayed phase imaging. Imaging of all patients was in end of expiration to diminish the risk of image misregistration

Dynamic analysis

  • Size (longest axial dimension through post contrast enhancing area of treated lesion, not traversing non-enhancing area) of the lesion and its border.

  • The signal pattern in T1 and T2 as well as fat saturated sequences.

  • Enhancement pattern through the DCE MRI and subtracted images where APHE is considered when there is arterial hyper-vascularity (definitely greater than that of background liver) and/or subsequent contrast washout appearance (relative hypo-intensity of the treated lesion in comparison to background liver parenchyma) on the following phases; those were regarded as major features suggestive of LR-TR viable HCC treated lesions depending on the 1-month/3-month follow-up MRI findings of major and ancillary feathers or sustained radio-dense iodized oil droplets accumulations in the hyper-vascular lesion/area on the session of hepatic arteriography with next TACE. On the other hand, LR-TR non-viable post treatment response category was considered when absence of treated lesion enhancement or expected treatment-specific enhancement like thin smooth marginal enhancement or an ill-defined geographic regional enhancement along the vicinity of the treated tumor which may be valued as a transient post-procedural perfusion alteration on dynamic images. Yet there is still a fact that radiologic signs of treated lesion non-viability are not equivalent with pathologic complete ablation response, because imaging modalities are not sensitive to small residual tumor foci.

Diffusion sequence interpretation

  • Signal intensity on DWI and ADC mapping series with ADC values calculation using a commercially windows workstation (GE) were categorized according to three scales grading:

    1. 1.

      Any treated hepatic lesion was categorized as restricted if it showed frank obvious higher signals than background hepatic parenchyma on DWI and/or frank obvious hypo-intense signals than background the liver in ADC.

    2. 2.

      Uncertainty is considered if faint sustained hyper-intensity is noticed on DWI and no corresponding hypo-intensity on ADC maps.

    3. 3.

      Finally, facilitated diffusion is considered if treated lesion showed iso-intense signals in DWI and ADC series or if it lost its pre-procedural restriction or showing T2 shine-through effect.

  • ADC value for each treated hepatic lesion was recorded.

  • The standard of reference in our study, surgery was not the suitable choice for treatment of our cases, and hence, it was hard to obtain histopathology report for any of the patients in addition to biopsy sampling errors existence owing to technical difficulties, so we depended on the LI-RADS v2018 major and ancillary features were used to evaluate post TACE treatment response. So, our standard of reference was:

  • LR-TR viable category (residual/ recurrent HCC) (Figs. 1 and 4): For treated lesions with non-rim peripheral APHE and/or delayed washout in DCE MRI follow-up imaging or sustained lipidol droplets accumulation in the hyper-vascular treated lesion on the hepatic arteriography with another TACE procedure

  • LR-TR non-viable (resolved lesions) (Figs. 2 and 3): Treated hepatic lesions with no pathological arterial enhancement or with TACE-specific expected enhancement

  • LR-TR non-evaluable category: For cases with image degradation due to motion artifacts

  • LR-TR equivocal: Atypical enhancement not expected for treatment-specific expected post contrast enhancement pattern and also not meeting criteria for viability

  • Diffusion restriction was also treated as a sign of residual/recurrence detection and promotes reader confidence hand in hand with positive dynamic imaging findings (Fig. 4).

Fig. 1
figure1

A 66-year-old male patient having HCC underwent TACE ablation for one focal lesion involving right hepatic lobe segment VIII. a Pre-TACE CT-scan in the arterial phase showing intense enhancement. b Wash-out in delayed phase. c Follow-up with CT-scan showing no definite enhancement in the arterial phase. d No definite wash-out in delayed phase. e Yet the patient had high AFP level, so DCE MRI was done showing bright signals in T2. f Relative hypo-intense signals in T1 WIs. g Restricted diffusion in DWI at 800 b value. h Corresponding dark signals in ADC mapping series. i ADC value = 0.91 × 10−3 s/mm2. j Iso-intense signals in pre-contrast phase of LAVA. k Arterial enhancement in late arterial phase. l Wash out of the contrast in the porto-venous. m Delayed phase. n Being confirmed in subtraction images throughout arterial, o porto-venous, and p delayed phases. Final diagnosis: LR-TR viable 2.9 mm, (pretreatment, LR-5, 28 mm)

Fig. 2
figure2

1st follow-up after 1 month for a 69-year-old male patient having HCC underwent TACE ablation for one focal lesion involving right hepatic lobe segment V. a Heterogeneous signals (predominantly bright) in T2 WIs. b Heterogeneous signals (predominantly iso-intense with hyper-intense and hypo-intense foci) in T1 WIs. c Restricted diffusion in DWI at 800 b value. d Corresponding dark signals in ADC mapping series. e ADC value = 1.07 × 10−3 s/mm2. f Arterial, g porto-venous, and h delayed phases. Small area of progressive enhancement along the postero-medial portion of the hepatic observation representing granulation tissue (expected post TACE response). Final diagnosis: LR-TR non-Viable

Fig. 3
figure3

2nd follow-up after 3 months for a 69-year-old male patient having HCC underwent TACE ablation for one focal lesion involving right hepatic lobe segment V. a Heterogeneous signals (predominantly bright) in T2 WIs. b Restricted diffusion in DWI at 800 b value. c Corresponding dark signals in ADC mapping series. d ADC value = 1.36 × 10−3 s/mm2 increased ADC value in comparison to the 1st follow-up. e Late arterial, f porto-venous, and g delayed phases. h Late arterial subtraction images. Small area of progressive enhancement along the posterior portion of the hepatic observation representing granulation tissue (expected post TACE response). Final diagnosis: LR-TR non-viable

Fig. 4
figure4

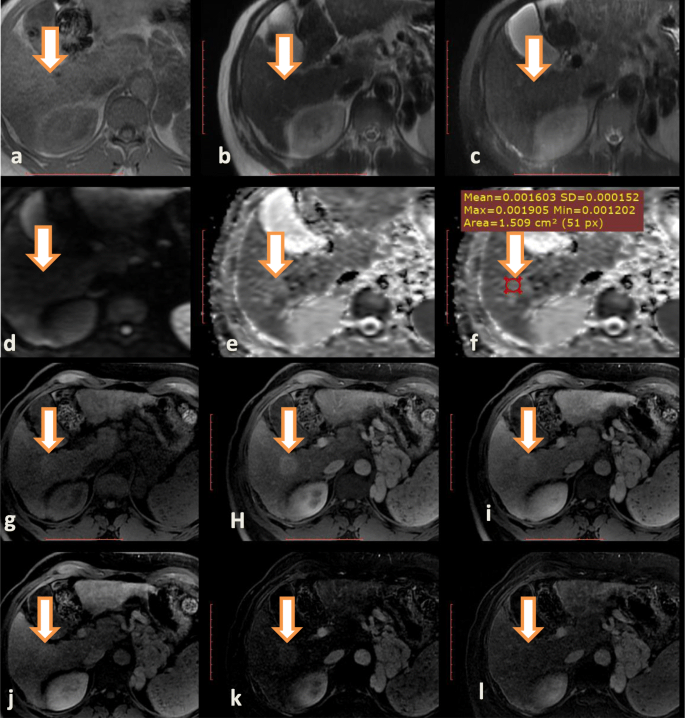

1st follow-up DCE MRI with DWI after 1 month for a 55-year-old male patient with chronic viral hepatitis C diagnosed as HCC involving right hepatic lobe segment VI underwent TACE ablation with still elevated AFP level. a Treated lesion showed faint high in T1 WIs. b Faint high signals T2 WIs. c Faint high signals STIR WIs. d Facilitated diffusion in DWI at 800 b value. e Corresponding bright signals in ADC mapping series. f ADC value = 1.60 × 10− 3 s/mm2. g Faint high signal in pre-contrast LAVA sequence. h Non-rim APHE is seen in late arterial phase. i Porto-venous phase showing faint wash-out. j Faint wash-out in delayed phase. k Non-rim APHE is confirmed in late arterial phase with subtraction. l Faint wash-out is confirmed in delayed phase with subtraction. Final diagnosis: LR-TR viable 27 mm

Statistical analysis

  • Data were coded and entered using the statistical package SPSS (Statistical Package for the Social Sciences) version 25 and were summarized using mean, standard deviation, median, minimum and maximum in quantitative data, and frequency (count) and relative frequency (percentage) for categorical data. Standard diagnostic indices including sensitivity, specificity, positive predictive value (PPV), negative predictive value (NPV), and diagnostic efficacy were calculated [10].

  • ROC curve was built with area under the curve analysis obtained to detect best cutoff value of ADC measurement for detection of viability.

  • Comparisons between quantitative variables were done using the non-parametric Mann-Whitney test [11]. For comparing categorical data, chi-square (χ2) test was performed.

  • Exact test was used instead when the expected frequency is less than 5 [12]. P value less than 0.05 was considered as statistically significant.

Results

This study was prospectively carried on 30 patients (2 females and 28 males) with 41 treated lesions; the mean age for all patients was 62.63 years (age range, 49–72 years) as shown in Table 1.

Table 1 The demographic data of 40 treated observations

Nineteen from the 40 HCC treated lesions showed radiological features suggestive of LR-TR viable post treatment response while on the other hand 21 treated lesions were considered as LR-TR non-viable due to proper tumoral embolization. Our study included one case categorized as non-evaluable due to image motion artifacts, and on follow-up, it turns up to be viable lesion as shown in Fig. 5.

Fig. 5
figure5

Distribution of observations into LR-TR viable, LR-TR non-viable, and LR-TR non-evaluable groups

Non-viable treated hepatic lesions’ size ranged from 1 to 4.5 cm, and viable treated lesions’ size ranged between 1.2 and 7.3 cm in maximum diameter.

The mean and standard deviation of LR-TR viable and LR-TR non-viable groups are illustrated in Table 2.

Table 2 Diameter in cm (40 treated observations)

Among 40 treated lesions in our study, 45% of lesions showed heterogeneous T2 signal intensity and 61% of the treated hepatic lesions showed heterogeneous T1 signal intensity making the evaluation of HCC post TACE response depending on pre-contrast sequences signal intensity a matter of disagreement.

Table 3 shows how the lack of APHE represents good post TACE response in 95.2% of LR-TR non-viable category (i.e., true negative) in DCE MRI study, while APHE with/or delayed washout represents tumoral viability in 100% of the LR-TR viable category (i.e., true positive) in DCE MRI study. We had no false-negative results among LR-TR viable category.

Table 3 Correlating DCE MRI results to the final diagnosis in the studied group

Table 4 shows how facilitated lesions on DWI represent excellent therapeutic response of 90.48% of LR-TR non-viable lesions (i.e., true negative), while around 47.4% of the LR-TR viable lesions lack diffusion restriction (i.e., false negative) (Fig. 6). On the other hand, 52.6% of the LR-TR viable lesions showed restricted diffusion (i.e., true positive), while around 9.52% of the LR-TR non-viable lesions showed restricted diffusion (i.e., false positive).

Table 4 Correlating diffusion MRI results to the final diagnosis in the studied group
Fig. 6
figure6

Different indices of the DCE MRI and DWI

Statistical analysis showed that DCE MRI had 100% level of sensitivity, specificity of 95.24%, PPV of 95.00%, and NPV of 100% with an overall agreement of 97.50%. While on the other hand, DWI has 52.63% level of sensitivity, specificity of 90.48%, PPV of 83.33%, PPV of 67.86%, and NPV of 72.50%.

The difference between the LR-TR viable post TACE response and LR-TR non-viable groups ADC values was statistically significant with a P value of < 0.001.

The ROC curve obtained by plot at different cut off values is shown in Fig. 7. The best cutoff value that maximizes sensitivity and specificity is 1.35. At this ADC value, the sensitivity is 78.9% and specificity is 85.7%. A statistical software showed that the area under the curve is C = 0.861 with SE = 0.064 and 95% CI from 0.735 to 0.987.

Fig. 7
figure7

Results of receiver operating curves for ADC values in distinguishing non-viable and viable treat lesions groups

According to Table 5, DCE MRI had a sensitivity value of 100%, and a specificity of ROC curve showed that ADC variable is a good indicator to differentiate tumoral viability for HCC from perilesional pseudo- or non-viable treated lesions.

Table 5 Roc curve analysis revealed that ADC value was a significant discriminant factor in predicting non-viable from viable treat lesions groups (p value < 0.001) with AUC 0.861 and 95% confidence interval (0.735–0.987)

Discussion

We carried out our study for assessment of the value of DCE MRI and DWI in evaluation of post treatment response for TACE as a treatment option for HCC via LI-RADS v2018 diagnostic algorithmic approach (Table 6).

Table 6 Different indices of the dynamic MRI and the DWI

DCE MRI examination has a crucial role in assessment of HCC viability following TACE via bypassing the interference of accumulated iodized oil as non-contrast conventional MRI sequences show morphological and fluid content changes as well as fibrosis, while dynamic study clearly show the perfusional criteria of treated lesion [5].

Ebeed et al. [5] and Afifi et al. [13] showed that treated lesions exhibit hyperintensity on conventional T1 WIs and hypo-intensity on conventional T2-WIs images with T2 hyperintensity in cases of viability. Hyper-intense signals on T2 WIs not only represent tumoral viability but also could be seen in case of lesional hemorrhage, inflammation, or cystic necrosis [5, 13]. Among our 41 post TACE hepatic lesions included in our study, about 61% of lesions demonstrate heterogenous signals in T1 WIs and 46% in T2 WIs that make a conflict issue during evaluation of post treatment response after TACE depending on conventional MRI signal intensity on non-contrast basis only.

Through our study, we had higher sensitivity for DCE MRI compared to other researches done by Ebeed et al. [5], Osama et al. [14], Yu et al. [15], and Goshima et al. [16]; this occurs because in all other researches, inappropriate breath holding led to motion artifacts with subsequent false-negative interpretation by the viewer; however, in our study, we had one case that was categorized as LR-TR non-evaluable and follow-up showed that it is viable; therefore, there are no definite false-negative cases in our study [5, 14,15,16]. We also had one false-positive case due to misinterpretation of a peri-lesional arterioportal enhancement.

Afifi et al. [13] stated that the increase in false-positive findings originated from perilesional parenchymal insults that showed sustaining hyperintensity on DWI with increasing b factors. They demonstrated that hypercellularity intermingled with a fibrotic component in the inflammatory granulation tissue could restrict water diffusion [13].

In the experiences of Ebeed et al. [5] and Osama et al. [14], liquefactive breaking down and intra-lesional necrosis are recognized to be the reason of hyper-intensity in DWI images of post therapeutic breaking down of viable lesions [5, 14].

In our study, two false-positive lesions out of 40 lesions were misdiagnosed on diffusion-weighted imaging. We considered that false-positive findings in our study is likely originating from post treatment hemorrhage or liquefactive tumoral necrosis that causes lack of diffusion facilitation.

Tantawy and Mohamed [17] demonstrated the difference in ADC values in HCC lesions in studies done before and following TACE application. The mean ADC for the lesions before TACE was 1.27 ± 0.25 × 10−3 s/mm2 and increased following treatment in responding lesions to reach 1.57 ± 0.22 × 10−3 s/mm2 with a statistically significant difference (P = 0.002) [17].

In our study, the difference between ADC variables between the viable and non-viable groups was statistically significant with P value < 0.001. The best cutoff that sensitivity and specificity values are maximized at is 1.35. At this ADC value, the sensitivity is 78% and specificity is 85%. We found from the ROC that ADC variable is a good indicator to differentiate tumoral viability of HCC from expected post treatment findings seen in non-viable lesions.

Studies done by Ebeed et al. [5], Tantawy and Mohamed [17], proved that ADC mapping series values increased in non-viable lesions after TACE than in viable lesions [5, 17].

Realistically speaking, to demonstrate post TACE response whether viable or not is more important than measuring ADC value before and following TACE. In the experience of Yu et al. [15], ADC value was used to depict the peripheral tumoral recurrence for HCC from pseudo- or benign expected peri-lesional findings. His study demonstrate results that were not with statistically significant differences; ADC values differed broadly for the non-viable lesions and deeply overlapped with the residual tumoral lesions, and thus, establishing cutoff points was impossible [15].

Our results are equivalent with those of Ebeed et al. [5], Osama et al. [14], and Goshima et al .[16] showing that DCE MRI is to be predominant to DWI in assessing post TACE treatment response and DWI is not continuously a solid indicator of HCC post treatment viability in comparison to DCE MRI [5, 14, 16]. As in our study, DCE MRI had a sensitivity of 100%, a specificity of 95.25%, a positive predictive value of 95%, a negative predictive value of 100%, and overall agreement of 97.5% while DWI statistics values are 52.63%, 90.48%, 83.33%, 67.86%, and 72.5% respectively.

Yousef et al. [18] and our study agreed that DWI has some privileges in comparison to dynamic MRI study. For instance, contrast agent administration is contra-indicated, and for a relatively shorter time examination. Also, it is simple to repeat the technique, allowing close follow-up throughout and following treatment. Furthermore, less time is consumed in post-processing for DWI images in comparison to DCE MR imaging. Finally, DWI is beneficial in cases of in-homogeneity that may occur within tumors, where it permits easy evaluation of the whole tumor [18].

In our study, we concluded that diffusion-weighted imaging is of great value in case of contra-indication to contrast administration. However, it cannot completely substitute for DCE MRI study assessment, and interpretation should always be made in conjunction with conventional sequences and dynamic study to avoid errors.

We faced in our study few limitations. As for example, obtaining proven histopathology reports in patients who carried out TACE was difficult because our patients were not proper candidates for lesion resection or liver transplantation.

Another limitation in our study was the relatively small-sized sample diminishing the statistical analysis power. Small-sized sample could be attributed to the strict inclusion and exclusion criteria carried out for this research.

Also, we faced in DWI few technical difficulties in few treated lesions located along the upper portions of superior hepatic segments close to the diaphragmatic copula which are very sensitive to respiratory motion as well as pulsatile artifacts arising from the heart leading to relatively poor signal-to-noise ratio as well as degradation in spatial resolution. And during measuring ADC mapping values, we faced partial volume averaging effects and inevitable image noise leading to calculation errors. We tried to overcome these difficulties by placing the smallest possible ROI and having multiple measurements. So, we recommend more future studies with powerful magnetic gradient systems and new technical improvements to upgrade the sensitivity of DWI as well as image quality.

As a result, dynamic MRI with subtracted images should be used together with DWI for optimum image interpretation in assessment of HCC viability post TACE.

Our study supports the follow-up post treatment algorithm suggested by LI-RADS v2018 to rule out false-negative results caused by motion artifacts.

Conclusions

Our study showed that DCE MRI has 100% level of sensitivity via application of LI-RADS v2018 diagnostic algorithmic approach while DWI alone has 52.63% level of sensitivity, yet it can enhance the diagnostic confidence of DCE MRI for post treatment response viability detection.
