Role of fetal echocardiography in morphologic and functional assessment of fetal heart in diabetic mothers
Egyptian Journal of Radiology and Nuclear Medicine volume 51, Article number: 84 (2020)
Diabetes mellitus (DM) is the commonest medical disorder faced during pregnancy and it includes type I, type II, and gestational diabetes. It may predispose to various complications including fetus malformation, macrosomia, spontaneous abortion, stillbirth, neonatal death, and intrauterine growth retardation. Hypertrophic cardiomyopathy (HCM) is one of the common anomalies depicted with diabetes. Fetal cardiac function analysis might provide important information on the hemodynamic status and cardiac adaptation to different perinatal complications.
The mean septal thickness in the diabetic group was 0.7163 ± 0.1746 cm and 0.4989 ± 0.08068 cm in the control group. The mean myocardial thickness of the right ventricular free wall in the diabetic group was 0.6532 ± 0.13792 cm and 0.4874 ± 0.07482 cm in the control group. The mean myocardial thickness of the left ventricular free wall in the diabetic group was 0.6437 ± 0.13421 cm and 0.4737 ± 0.07573 cm in the control group. The mean value of myocardial performance index (Tie Index) in the diabetic group was 0.6232 ± 0.15606 and 0.4626 ± 0.04357 in the control group.
From our study, we can conclude that prenatal complete echocardiographic study should be mandatory in fetuses of diabetic mothers due to high risk of congenital heart defects and onset of hypertrophic cardiomyopathy with fetal cardiac function impairment in the third trimester.
Early diagnosis of congenital heart defects as well as evidence of hypertrophic cardiomyopathy and fetal cardiac function impairment that occurs in fetuses of maternal diabetes will definitely guide prompt postnatal therapy and care for those neonates.
Diabetes mellitus is the commonest medical disorder faced during pregnancy and it includes type I, type II, and gestational diabetes. It may predispose to various complications including fetus malformation, macrosomia, spontaneous abortion, stillbirth, neonatal death, and intrauterine growth retardation . Risk of congenital anomalies is increased in diabetic mothers’ infants with estimation to be between 2.5% and 12% with over representation of congenital heart defects .
Hypertrophic cardiomyopathy (HCM) is one of the common congenital anomalies depicted with diabetes mellitus (DM), thus requires high index of suspicion as the specific management may vary; for example, inotropic agents or digoxin which may be used in heart failure associated with structural heart defects are contraindicated if hypertrophic cardiomyopathy is present . The ventricular interventricular septum is preferentially affected, but both right and left ventricular free walls may also be involved, predominantly the left. Manifestations of myocardial hypertrophy are often subtle; however, the hypertrophy can be detected by standard fetal echocardiography, usually by comparing septal thickness with control cases .
In diabetic mothers’ infants, it is suggested that HCM arise from the effects of excess in insulin level. However the mechanisms by which insulin causes ventricular hypertrophy has not yet been explained, but the heart is a main target for insulin, and expression of functional insulin receptors by the cardiomyocyte is comparable with that of other insulin sensitive cells . Thus, it is suggested that increase in fetal insulin level can trigger hyperplasia and hypertrophy of myocardial cells. This hypertrophy mainly affects the interventricular septum and can occur despite tight glycemic control .
Gestational diabetes mellitus (GDM) is defined as carbohydrate intolerance recognized for the first time during pregnancy and usually resolves after delivery. The outcome of gestational diabetes is good especially with controlled blood glucose levels. However, GDM increases the risk of a number of fetal adverse outcomes. Fetuses of diabetic mothers are prone to fetal hyperglycemia and hyperinsulinism secondary to maternal hyperglycemia .
Despite the recognition of fetal myocardial hypertrophy, there is still controversy about its effect on global cardiac function . However, there are reported cases of severe perinatal cardiac dysfunction and fetal deaths .
Fetal cardiac function analysis may provide an important information on the hemodynamic status and on the cardiovascular adaptation for different perinatal adverse effects .
A Doppler-derived index of the right and left ventricular myocardial performance combining systolic and diastolic time intervals was described in the literature by Tei et al. 1995  .The Tei Index (TI) has been described to be a non-invasive , useful, Doppler-derived myocardial performance index that acts as a combined index of global myocardial function. By integrating only time intervals, the index is less dependent on precise imaging or anatomy. Moreover, the TI is independent of both ventricular geometry and heart rate. The TI is defined as the summation of the iso-volumic contraction time (ICT) and the iso-volumic relaxation time (IRT) divided by the ejection time (ET)  .
The objective of this study is to assess the impact of maternal pre-gestational diabetes whether type I or type II and gestational one on fetal cardiac morphology and function.
This study is approved by our institutional review board.
A prospective study included 40 metabolically controlled diabetic pregnant ladies and 60 normal non-diabetic pregnant ones (control group) between 28 and 40 weeks gestation dated by LMP. Full history was collected from all ladies including age, parity, and history of drug intake or any associated medical disorders. Fasting blood sugar analysis results are obtained from all cases to differentiate between diabetic and control cases. Fetal biometry was performed for all cases, including measurements of bi-parietal and occipito-frontal diameters, head circumference, abdominal circumference and femur length. Doppler examination of umbilical , middle cerebral arteries and ductus venosus was also done.
Cases with any other associated medical disorders were excluded from the study.
Cases of structural abnormalities including different fetal systems apart from fetal heart as well as cases of fetal growth restriction (IUGR) were excluded from our study.
Cases of severe polyhydramnios or multiple gestations were excluded from the study.
A complete standardized fetal echocardiogram was performed for all diabetic pregnant ladies for full structural assessment. The control group underwent just basic and extended basic fetal cardiac examination according to (ISUOG guidelines, 2013) .
Measurement of the end diastolic IVS (interventricular septal thickness) and myocardial free walls in lateral sub-costal view in some cases and apical or basal four chamber view in other cases (depending on fetal position at the time of scan) just inferior to atrio-ventricular valves were performed for all cases.
Doppler waveform for the left Mod-MPI (modified myocardial performance index) according to Hernandez et al. (2012)  was performed. The pulsed Doppler sample volume was placed on inner wall of the ventricular septum above the mitral valve and below the aortic valve in the four chamber view with a basal or an apical projection allowing simultaneous inflow and outflow display from the left ventricle. Then, time periods for the left Mod-MPI were measured:
ICT was measured from the mitral valve closure click to the opening of the aortic valve click.
IRT was measured from the aortic valve closure click to the opening of the mitral valve click.
ET was measured from the opening to the closure of the aortic valve click.
The statistical analysis was carried out using SPSS software package version 17.0 (SPSS Inc., Chicago, IL, USA). Obstetric characteristics were presented as mean + standard deviation. The Tie Index, RV wall thickness, LV wall thickness and IVS thickness obtained from the fetuses were plotted against gestational age and the correlation coefficients were determined by using Pearson’s correlation. The normal values of these variables were presented as 5th, 50th, and 95th percentile ranks. P value < 0.05 was considered statistically significant. Normograms and percentile fitted curves were obtained.
From 40 diabetic cases examined in our study, 38 was applicable to our study regarding functional assessment using tie index and assessment of septal and myocardial free wall hypertrophy. One of our cases appeared to have a structural heart defect known as visceral heterotaxy syndrome (left isomerism) and the other was diagnosed to have tetralogy of Fallot.
From our statistical results, we found the following:
We found that the mean interventricular septal thickness (IVST) in the diabetics patients group was 0.7163 ± 0.1746 cm and 0.4989 ± 0.08068 cm in the control group (Fig. 1). A significant statistical difference was found regarding the septal thickness between diabetics group and normal group (P < 0.05).

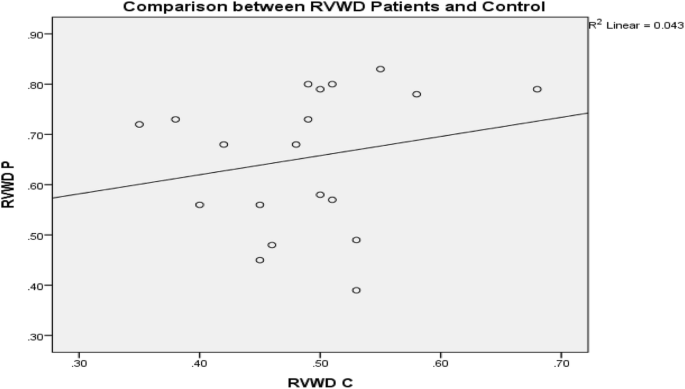

We found that the mean myocardial thickness of the right ventricular free wall (RVWT) in the diabetic group was 0.6532 ± 0.13792 cm and 0.4874 ± 0.07482 cm in the control group (Fig. 2). A significant statistical difference was found regarding the right ventricular free wall myocardial thickness between diabetic group and control group (P < 0.05).
We found that the mean myocardial thickness of the left ventricular free wall (LVWT) in the diabetics group was 0.6437 ± 0.13421 cm and 0.4737 ± 0.07573 cm in the control group (Fig. 3). A significant statistical difference was found regarding the left ventricular free wall myocardial thickness between diabetics group and control group (P < 0.05).
We found that the mean myocardial performance index (Tei Index) value in the diabetics group was 0.6232 ± 0.15606 and 0.4626 ± 0.04357 in the control group (Fig. 4). A significant statistical difference was found regarding the myocardial performance index between diabetic group and control group (P < 0.05).
The estimated fetal weight and feto-placental Doppler study did not significantly differ between the diabetics and the control groups.
We aimed in our study to assess the effect of maternal pre-gestational and gestational diabetes on fetal cardiac morphology and function for which complete fetal echocardiogram was performed in every case to rule out any structural defects. Measurement of ventricular myocardial free walls and interventricular septal thickness was done as a tool for evaluation of cardiac hypertrophic cardiomyopathy that occurs in fetuses and neonates of diabetic mothers. Doppler-derived modified myocardial performance index (Mod-MPI) was used to assess global overall systolic and diastolic function to display whether impairment of fetal cardiac function occurred or not.
The study included 40 diabetic pregnant women and 60 control cases. Both groups were within a comparable gestational age (between 28 and 40 weeks gestation).
A significant difference was found regarding the septal thickness between diabetic group and normal group (P < 0.05). These results are in concordance with results of previous studies.
Joana et al. (2018)  demonstrated that fetuses of diabetic mothers had a significantly thicker interventricular septum compared with control subjects (median, 4.25 mm [interquartile range (IQR), 3.87–4.50 mm] vs 3.67 mm [IQR, 3.40–3.93 mm), P < .001)
Garcia-Flores et al. (2011)  reported that the septal thickness was increased in fetuses of diabetic mothers compared with the control group with statistical significant difference (P < 0.001) despite being comparative study between cases of controlled gestational diabetes (cases of increased HbA1c values above 6.5% were excluded) and normal ones. It was found that 66.6% (16/24) of the diabetic pregnancies were above the 95th percentile for the IVS thickness in the control group, which was estimated at 3.51 mm; however, measurements of IVS thickness in both groups were in normal ranges in this study.
Prefumo et al. (2005)  reported cases of marked fetal myocardial hypertrophy associated with signs of myocardial insufficiency in fetuses of diabetic mothers.
Balli et al. (2014)  showed that the mean septal thickness at 36 weeks gestation was 0.452 ± 0.49 cm in group of maternal diabetes compared to 0.38 ± 1.77 cm in the control group with a significant statistical difference (P < 0.001). In this study, despite being statistically different, no pathological IVS hypertrophy was found. However, evidence of diastolic dysfunction in the study group was found by application of different parameters for assessing diastolic dysfunction.
This study has shown that maternal diabetes was associated with a significantly increased thickness of all cardiac walls (Figs. 6 and 7) compared with normal pregnancies (Fig. 5), confirming in part the results of previous studies done by Jaeggi et al. 2001 . Penney et al. (2003)  focused on cases with pre-existing diabetes, but Zielinsky, 2009  applied his study on population with gestational diabetes mellitus. Both of them reported significant difference in myocardial-free walls and interventricular septal thickness between both studies and control groups.
In a series of neonates and infants, the cardiomyopathy (CM) was noticed in about 2–7%, but probably during the fetal life the prevalence is higher reaching 6–11%. The high intrauterine loss, occurring in almost one third of affected fetuses, most likely explains these differences .
Still, authors can find some cases with septal hypertrophy, which are not symptomatic postnatally. Although most symptoms of cardiomyopathy may spontaneously regress within few weeks, sometimes, overt congestive heart failure develops, tachycardia, tachypnea, gallop rhythm, and hepatomegaly .
In our study, the mean septal and myocardial free wall thickness was statistically significant compared to the control group with above 95th percentile mean value of tie index denoting evidence of hypertrophic cardiomyopathy with impairment of left ventricular function.
It was not possible in this study, to expect, whether theses fetuses would be symptomatic or not by the ultrasound and Doppler criteria. Postnatal evaluation by a specialized neonatologist and a cardiologist is recommended.
Some studies suggest that gestational diabetes can be a risk factor for congenital heart defects, but there are still controversies about the extent of such association .
In our study, the incidence of congenital heart defects among study cases represents 5% of the total number of cases with diabetes. Previous studies showed an 8.5% incidence of cardiac malformations in fetuses of diabetic pregnancies . Our study was restricted to the limited patients’ number involved in our study; however, if a large number of diabetic patients could be included, incidence might become different.
In our study, we also aimed to assess the effect of maternal diabetes on fetal myocardial function using the Modified myocardial performance index (MPI).
MPI is a global indicator of cardiac function. Increased in MPI indicates globally impaired ventricular function in maternal diabetes during the intermediate and late pregnancy periods . Hernandez-Andrade et al.(2012)  defined age-adjusted reference values for the left ventricular Mod-MPI in normal fetuses at 19–39 weeks gestation and calculated the 5th, 50th, and 95th percentiles for the Mod-MPI as well as its components (ICT, ET, and IRT). It was found that in normal fetuses, the Mod-MPI did not exceed 0.43 at any gestation (at a fetal heart rate of 140 bpm: median 0.45 range 0.36–0.54). Another more recent study revealed the normal value of MPI is about 0.51 ± 0.12 . These values are in close agreement with our results for the control group, but are much lower than those in the study group indicating reduced left ventricular wall compliance in fetuses of diabetic mothers with subsequent impairment of fetal overall cardiac function.
Our study showed a statistically significant (P < 0.001) higher overall Mod-MPI in the study group as a whole (median 0.61, range 0.39–0.83) compared to the control group (median 0.47, range 0.32–0.62).
From our study, we can conclude that prenatal complete echocardiographic study should be mandatory due to high risk of congenital heart defects and onset of hypertrophic cardiomyopathy with impairment of fetal cardiac function in fetuses of diabetic mothers in the third trimester.
Early diagnosis of congenital heart defects, impairment of fetal cardiac function as well as evidence of hypertrophic cardiomyopathy that occurs in fetuses of maternal diabetes will definitely guide prompt postnatal therapy and care for those neonates.
