Systemic sclerosis: correlation between lung abnormalities on high-resolution computed tomography (HRCT) and pulmonary function tests (PFTs)
Egyptian Journal of Radiology and Nuclear Medicine volume 51, Article number: 98 (2020)
Systemic sclerosis is a connective tissue disease that affects multiple systems and causes fibrosis of the skin and internal organs. There are two ways in which the lungs can be involved in patients with systemic sclerosis, either isolated pulmonary hypertension or interstitial lung fibrosis. The purpose of this study is to correlate the high resolution CT findings with pulmonary function tests in patients with systemic sclerosis to evaluate the severity of lung changes.
Significant inverse correlations were found between the maximal extent radiological score, maximal severity radiological score as well as total (global) radiological score on one hand and the pulmonary function tests on the other hand
The combination of high resolution CT and pulmonary function tests are recommended for better assessment of the extent and severity of systemic sclerosis associated interstitial lung disease.
Systemic sclerosis (SSc) is a connective tissue disease that affects multiple systems and causes fibrosis of the skin and internal organs. Its etiology till now is unknown. This disease causes widespread damage to small and large blood vessels .
There are two ways in which the lungs can be involved in patients with systemic sclerosis, either isolated pulmonary hypertension or interstitial lung fibrosis. Lung affection is common and is probably the main cause of mortality in scleroderma patients .
Interstitial lung disease in systemic sclerosis (SSc) patients is common in both forms of the disease (diffuse cutaneous and limited cutaneous). The disease is diagnosed at an advanced stage most of the time and this is probably due to the insidious onset of the disease accompanied by subtle clinical symptoms; at that point, the lung has become extensively fibrosed .
High-resolution computed tomography (HRCT) plays a major part in diagnosing interstitial lung disease in SSc patients. Its benefit lies more in assessing the extent of the disease .
Generally non-specific interstitial pneumonia (NSIP) is the commonest pattern detected in systemic sclerosis patients with more ground glass opacities than coarse reticulation detected. Usual interstitial pneumonia (UIP) can also be present [4, 5].
In clinical practice, pulmonary function tests (PFTs) are vital for assessing interstitial lung disease in scleroderma patients. Forced vital capacity is considered a core outcome measure. However, they are not without limitations .
Patients with abnormal pulmonary function tests (spirometry) results may show normal high-resolution computed tomography findings .
Over the span of the past two decades, various systems for examining and quantifying interstitial lung disease in systemic sclerosis have been developed. Scoring methods utilize clinical information to characterize and quantify the disease, determine the progression of the disease and its response to therapy. (One of these methods uses semi-quantitative scoring which is developed in order to supply a more accurate assessment regarding interstitial lung disease abnormalities [1, 6].
Aim of the work
The aim of this study is to correlate the HRCT findings with pulmonary function tests in patients with systemic sclerosis to evaluate the severity of lung changes.
Thirty patients diagnosed with progressive systemic sclerosis were enrolled in this cross-sectional study during the period from October 2017 to December 2018.
They were referred to the radiology department to do HRCT from the rheumatology, chest, internal medicine, and dermatology departments, as well as, the outpatient clinic of rheumatology.
Patients were also sent to the pulmonary function unit–chest department to do pulmonary function tests.
Patients diagnosed with SSc older than 18 years regardless the gender presenting with chest symptoms and/or previous radiological findings suggestive of interstitial lung affection.
Patients with mixed connective tissue diseases (MCTD).
Patients unable to hold full inspiration during the exam.
Full history taking
General and chest clinical examination
Routine laboratory investigations and sputum analysis when needed.
The scans were performed using a Somatom, Emotion Siemens, 16-MDCT scanner.
Patients were scanned in supine position during full inspiration. No intravenous contrast administered.
The scout was taken in supine position, 130 kV, 25 mA during holding breath in full inspiration.
Scans were obtained during full inspiration in supine position using the following parameters; 130 kV, 78 mAs, 5 mm beam collimation, 1.25 pitch, 0 gantry tilt and the FOV depending on patient’s size. Total exposure time was 8–10 s. The scans covered the whole thorax from root of the neck to below diaphragm.
Following acquisition, the acquired images were transferred to dedicated post-processing workstation and volumetric measurements were obtained by applying the multiplanar reformation function at slice thickness of 5 mm.
Complementary mediastinal images were taken.
The scans were examined by 3 radiologists of 20, 10, and 3 years of experience. The reported parenchymal findings were documented and coded. Each patient was given a maximal extent, maximal severity and global scores guided by Warrick’s semi-quantitative scoring method used by Warrick et al. , Orlandi l et al. , Afeltra et al. , Camiciottoli et al. , Yiannopoulos et al ., Bellia et al. , Savarino et al. , and Daoussis D et al.  (Table 2).
Warrick’s semi-quantitative scoring method depends on 5 HRCT abnormalities; ground-glass opacities, irregular pleural margin, septal or subpleural lines, honeycombing, and subpleural cyst.
Concerning the severity, it depends on the mere presence of abnormalities regardless of how many bronchopulmonary segments. Each finding was assigned a grade then they were added to get a maximal severity score. The highest score that can be assigned to one case is 15 if all abnormalities are present.
While the extent score is calculated according to the total number of bronchopulmonary segments involved by each abnormality. The maximal extent score is calculated by adding the grade for each abnormality with maximal score of 15 if every abnormality is present in more than 9 bronchopulmonary segments.
Both scores combined to obtain the global score.
The global score = maximal severity score + maximal extent score. The maximum score for any case is 30.
Pulmonary function tests
All patients performed PFTs using Master Screen PFT pro Care fusion Germany 234 GmbH in the pulmonary function unit–Chest Department.
Each patient performed a standard forced vital capacity maneuver (FVC), inspiring fully to total lung capacity (TLC), then exhaling as rapidly and forcibly as possible to residual volume (RV) and to complete the loop. Then, he/she inspires as rapidly as possible from the maximal expiratory level back to maximal inspiration.
Volume is plotted on the horizontal X axis, and flow is plotted on the vertical Y axis .
Statistical methods and data analysis
Data was entered on the computer using “Microsoft Office Excel Software” program (2010) for windows.
Data was then transferred to the Statistical Package of Social Science Software program, version 23 (IBM SPSS Statistics for Windows, Version 23.0. Armonk, NY: IBM Corp.) to be statistically analyzed.
Data presented using range, mean, standard deviation, median and interquartile range for quantitative variables and frequency and percentage for qualitative ones.
Pearson correlation coefficients calculated to assess the association between extent, severity and global scores with different pulmonary functions. P values less than 0.05 were considered statistically significant. Figures were used to illustrate some information.
Thirty patients diagnosed with systemic sclerosis were included in our study; 28 females and 2 males. Their age range from 22 to 60 years old with mean age of 41.4 ± 11 SD.
All patients had clinical symptoms suggestive of interstitial lung disease. Dyspnea was the primary chest complaint seen in 96.7% of cases (Table 3).
Warrick’s semi-quantitative scoring method depends on 5 HRCT abnormalities; ground-glass opacities, irregular pleural margin, septal or subpleural lines, honeycombing and subpleural cysts (Figs. 1, 2, 3, and 4).
Global score guided by Warrick scoring system: 28
Global score guided by Warrick scoring system: 27
Global score guided by Warrick scoring system: 26
Global score guided by Warrick scoring system: 25

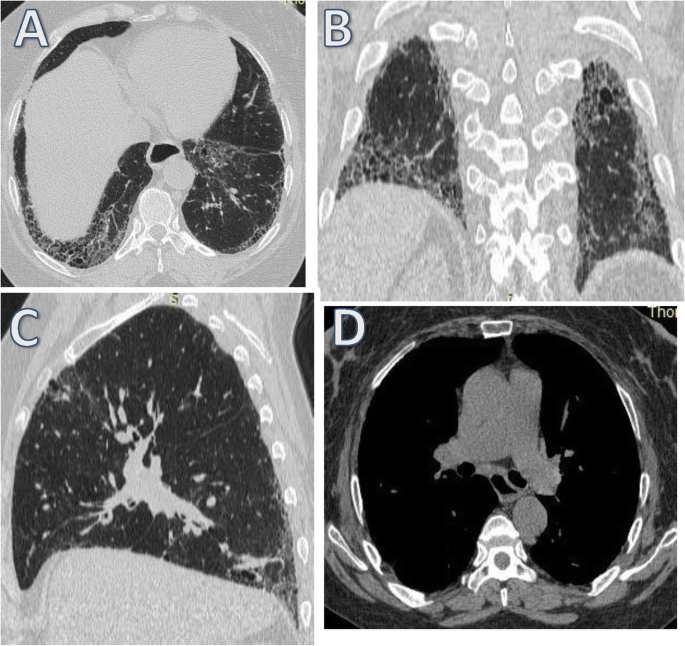

HRCT fibrotic parenchymal abnormalities considered in the semi-quantitative method of Warrick’s scoring system are demonstrated in chart (Fig. 5). Ground-glass opacification was the most common findings seen in 93.3% of the cases followed by septal/subpleural lines seen in 60% of cases.
After analyzing the HRCT images guided by the semi-quantitative method of Warrick’s scoring system, maximal extent, maximal severity, and maximal global scores of fibrosis were calculated for each patient (Tables 4 and 5).
Results of the extent and severity of ILD showed that ground glass opacification is the most common finding in our patients with 56% of patients showing more than 9 bronchopulmonary segments involvement ( score 3), followed by septal-subpleural lines with 30% of patients showing (score 3).
The total Warrick score of the patients involved in our study was 11.5 ± 8.1 [mean ± standard deviation (SD)].
SD standard deviation, IQR interquartile range (range between 25th and 75th percentiles)
Different forms of interstitial lung disease (ILD) were detected in twenty patients (66.6%). Numbers and percentages of different types of ILD are shown in Table 6.
Other findings in the HRCT scans are demonstrated in chart (Fig. 6).
Dilated pulmonary artery (2.9 cm or more) was noted in 40% of patients suggesting the possibility of pulmonary arterial hypertension.
Pulmonary function tests (PFTs) findings
All patients underwent pulmonary function testing (spirometry), with emphasis on forced vital capacity (FVC), forced expiratory volume in 1 s (FEV1) and FEV1%FVC (Table 7).

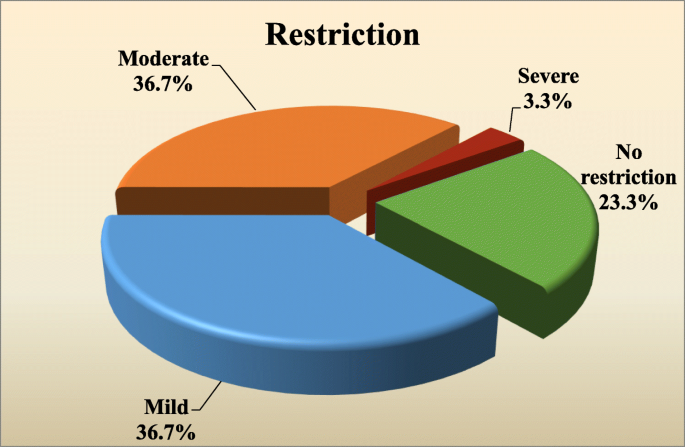

According to PFT (spirometry) values, the majority of the patients in the study showed mild restriction (36.7%) and moderate restriction (36.7%) equally (Fig. 7), while 33.3% of patients showed airway obstruction (mild, moderate or severe (Fig. 8).
Correlations between HRCT scores and PFTs
Significant inverse correlations were found between the maximal extent radiological score and lung-function (spirometry) parameters [predicted FVC: r = − 0.540, p = 0.002; predicted forced expiratory volume in 1 s (FEV1): r = − 0.525, p = 0.003; best forced expiratory volume in 1 s (FEV1): r = − 0.430, p = 0.018 (Table 8, Fig. 9).
There was no significant correlation between the maximal extent score and the rest of the PFT (spirometry) parameters.
Significant inverse correlations were found between the maximal severity radiological score and lung-function (spirometry) parameters [predicted FVC: r = − 0.421, p = 0.020; predicted forced expiratory volume in 1 s (FEV1): r = − 0.398, p = 0.029; best FEV1 % FVC: r = − 0.366, p = 0.046; percentage B/P of FEV1 % FVC: r = − 0.373, p = 0.042 (Table 9, Fig. 10).
There was no significant correlation between the maximal severity score and the rest of the PFT (spirometry) parameters.
Significant inverse correlations were found between the total (global) radiological score and lung-function (spirometry) parameters [predicted FVC: r = − 0.486, p = 0.006; predicted forced expiratory volume in 1 s (FEV1): r = − 0.466, p = 0.009; best of (FEV1 % FVC): r = – 0.364, p = 0.048; percentage B/P of FEV1%FVC: r = – 0.368, p=0.045 (Table 10, Fig. 11).
There was no significant correlation between the global score and the rest of the PFT (spirometry) parameters.
Systemic sclerosis (SSc) is a connective tissue disease affecting multiple organs within the human body, especially the lungs. It is defined by dysfunction of the endothelium of blood vessels leading to vasculopathy of small vessels and a disturbance in the fibroblastic function ending in exaggerated collagen formation and fibrosis of the skin and internal organs .
The commonest causes of morbidity and mortality in patients suffering from SSc are interstitial lung disease (ILD) and pulmonary hypertension [4, 17]. ILD is a frequent pulmonary manifestation of SSc . Roughly forty percent of patients suffering from SSc have some degree of ILD .
This study involved reviewing the HRCT scans of 30 patients which were referred to radiology department kasr Al-Aini due to their chronic chest complaint. All patients were known cases of SSc presenting with dyspnea and cough.
This study involved 30 patients; 28 females and 2 males which were in agreement with the study done by Bellia et al.  that involved 31 patients; 30 females and 1 male.
Twenty patients in our study (66.6%) manifest some form of ILD which is consistent with Tardella et al. . Different forms of ILD were detected in the form of either NSIP in 13 (65%) of the patients, UIP 5 (25%) of patients, and 2 patients (10%) had ILD in the form of lymphocytic interstitial pneumonitis (LIP) which were very close to the results produced by Wells , stating that NSIP was found in 78%, UIP was found in 8% of the patients and also in agreement with the study done by Zompatori et al.  where 14 out 16 cases with ILD exhibited an NSIP pattern, while only 2 showed a UIP pattern; therefore, establishing NSIP as the commonest ILD pattern in SSc.
The most common abnormalities indicative of fibrosis reported on HRCT in this study were ground glass opacification (93.3%) followed by septal/subpleural lines (60%), honeycombing (33.3%), irregular pleural margins (33.3%), and subpleural cysts (30%). These results are close to the study done by Hafez et al.  which showed ground glass opacification in (83.3%) followed by septal/subpleural lines in (56.7%), honeycombing in (43.3%) bronchiolectasis in (23.3%) of the patients. Our results were also in agreement with the study done by Shah et al.  which shows ground glass as the leading abnormality in SSc present in 66% of their patients. while a study done by De Oliveira Jezler et al.  yielded different results showing bronchiolectasis as the most common HRCT abnormality found in (83.3%) of patients followed by honeycombing (80%), ground-glass opacity (66.7%), and septal/subpleural lines (20%).
Bronchiolectasis was found in 11 (36.6%) of the patients in our study which was not in agreement with the study done by Pontana et al. , as their study showed bronchiolectasis in 27 (49%) of their patients. This could be due to the fact that their study involved more patients (55) than ours.
This study showed traction bronchiectasis in 6 (20%) of the patients which was consistent with studies by Tillie-Leblond et al.  and by Burt et al.  being seen in 7 (22%) out of 32 patients and in 7 (10%) out of 90 patients, respectively. Although according to Ferguson et al. , traction bronchiectasis is considered to be one of the predominant abnormalities found on HRCT scans.
This study showed that 12 (40%) of the patients exhibited a pulmonary artery diameter more than 2.9 cm on HRCT suggestive of pulmonary arterial hypertension which was in agreement with Capobianco et al.  who stated that 10 (33%) of SSc patients had a dilated pulmonary artery. However, our study was not consistent with another study done by Zompatori et al.  which showed that 41 (95%) of the studied patients exhibited a pulmonary artery diameter > 2.9 cm. This dilatation could be considered primary as a result of pulmonary vascular abnormalities unrelated to SSc or it could be a secondary cause due to SSc-ILD.
Mediastinal lymph nodes were found in 23 (76.7%) patients which was not consistent with the study done by Tumsatan et al.  that showed mediastinal lymphadenopathy in 56.7% of the patients and this could be due to the discrepancy in the number of patients.
This study showed 2 (6.6%) patients with pleural effusion which agreed with the study done by Tillie-Leblond et al.  which showed that 3 (9.3%) of patients showed pleural effusion. Also, 7 (23.3%) of our patients showed pericardial effusion and this was close to the study done by Meune et al.  which showed pericardial effusion in 16 (30%) of their patients.
Esophageal dilatation is commonly detected in individuals with SSc on HRCT scans. It was stated by Leipsic et al.  that a patulous esophagus is often observed in 58 to 80% of individuals suffering from SSc and that this finding suggests a diagnosis of SSc. This was consistent with our study which revealed dilated esophagus in 76.7% of patients.
This study was done to determine the importance of HRCT in diagnosing and defining the type and degree of anatomical destruction brought on by systemic sclerosis. To determine the degree of lung fibrosis caused by SSc, the Warrick semi-quantitative scoring system was utilized.
A significant inverse correlation of moderate strength between the Warrick score and predicted FEV1 (r = − 0.466, p = 0.009) was shown being consistent with the study done by Bellia et al.  which showed (r = − 0.36, p = 0.05) and Ooi et al.  which showed (r = − 0.43, p = 0.008), also with the study done by Zompatori et al.  which showed p = 0.01.
This study showed also a significant inverse correlation of moderate strength between the Warrick score and FVC (r = − 0.486, p = 0.006) which was similar to the study done by Ooi et al.  which yielded results in the form of (r = − 0.43, p = 0.008). Our results were also similar to the study done by Yilmaz et al.  which showed significant correlations between the Warrick score and FVC.
This study also showed a significant inverse correlation between the Warrick score and FEV1%FVC (r = − 0.36, p = 0.048); however, there are no available studies to corroborate these findings.
In this study, there was no significant correlation between the Warrick score (global score) and FVC%; however, a study done by Cakmak et al.  yielded different results, as they managed to establish a negative correlation between the Warrick score and FVC% (r = − 0.28, p = 0.026). This could be due to the smaller number of patients in our study in comparison to theirs.
We were not able to correlate the rest of the pulmonary function components with the Warrick HRCT scoring system which includes TLC and DLCO in addition to the spirometry values present in our study due to limited availability regarding these particular tests at our institute.
This study showed a significant inverse correlation between the HRCT Warrick scoring system and spirometric indices (FVC, FEV1, and FEV1%FVC).
The combination of HRCT and PFTs (spirometry) testing are recommended for better assessment of the extent and severity of SSc-ILD.
