Ultrasound-guided injection of platelet-rich plasma (PRP) in rotator cuff tendinopathy: effect on patients’ symptoms and supraspinatus tendon thickness
Egyptian Journal of Radiology and Nuclear Medicine volume 51, Article number: 111 (2020)
Rotator cuff tendinopathy is considered a major cause of shoulder pain and disability that is increasing substantially with age affecting more than half of the general population by the age of 60 years. This study aims to assess the effect of ultrasound-guided injection of platelet-rich plasma on patient symptoms and supraspinatus tendon thickness in cases of rotator cuff tendinopathy.
This was a single-arm interventional study conducted on 30 patients with age ranging between 27 and 54 years old. Following US-guided injection of PRP, patients were evaluated clinically using the Shoulder Pain and Disability Index (SPADI) scoring system and radiologically using ultrasonographic supraspinatus tendon thickness measurements at 4, 8, 12, and 24 weeks. Our study showed remarkably noticeable changes when comparing the pre-injection and post-injection SPADI scoring system. There is highly statistically significant pain and disability score and percentage improvement, yet on the other hand, the radiological improvement shows no statistically significant difference found between baseline tendon thickness and its follow-up at 4, 8, and 12 weeks while only there was a statistically significant decrease in tendon thickness found at 24 weeks with P value = 0.043.
The ultrasound-guided PRP injection for supraspinatus tendinopathy cases is a safe, cheap, and easily prepared outpatient procedure which showed competitive, promising, and well-proved results when compared to other modality outcomes such as conventional surgeries, arthroscopic procedures, and physiotherapy.
Rotator cuff tendinopathy has been considered a major cause of shoulder pain and disability that is increasing substantially with age affecting more than half of the general population by the age of 60 years .
Being responsible for 85% of the cases, rotator cuff tendinopathy is considered the most common cause of shoulder pain and disability .
The supraspinatus muscle is the most commonly injured in rotator cuff tendinopathy, and most of the time, it is accompanied with another rotator cuff muscle tendinopathy .
The main risk factors for such cases include overweight, old age, repetitive lifting, or overhead activities .
Shoulder ultrasound plays a major role in the diagnosis of rotator cuff tendinopathy having the advantages of being readily available, highly sensitive, relatively inexpensive, and non-invasive. However, it has the disadvantages of being operator dependent and requiring standardized scanning technique .
The management of rotator cuff tendinopathy nowadays includes oral drugs (like NSAIDs), local injections with corticosteroids, and physical therapy or lastly surgical repair depending on the type and extent of the injury, yet it is associated with a high risk of infection and damage to surrounding nerves and blood vessels with up to 6 months of recovery period .
Recently, there are numerous well-documented studies about using blood and its products to facilitate the healing course and augmenting musculoskeletal repair .
Platelet-rich plasma (PRP) is a whole blood product containing great concentrations of platelets that release different kinds of growth mediators with restorative properties. These platelet-derived growth factors include transforming growth factor (TGF-B), which is concentrated in collagen synthesis, and vascular endothelial growth factor (VEGF), which aids to induce endothelial cell multiplying and migration and stimulates cell mitosis .
Despite the increased use of PRP in the management of different MSK disorders, only few studies have searched the value of PRP injection in cases of rotator cuff tendinopathy .
This study aims to assess the effect of ultrasound-guided injection of platelet-rich plasma (PRP) on patient symptoms and supraspinatus tendon thickness in cases of rotator cuff tendinopathy.
This was a single-arm interventional study conducted in the period between October 2018 and September 2019; 30 patients were included in the study ranging from 27 to 54 years old (Fig. 1).
Patients complaining of shoulder pain with the following criteria:
Diagnosed with rotator cuff tendinopathy (supraspinatus tendinosis) by musculoskeletal ultrasound
Symptoms have been continuous for more than 3 months and failed conservative treatment of at least 4 weeks of formal medical and physical therapy
Prior surgery to the injured shoulder
Full-thickness rotator cuff tear
Current treatment with anticoagulation
Steroid injection in the past 6 months in the injured shoulder
Prior PRP treatment to the injured shoulder
Bleeding disorders or preoperative platelet count less than 50,000
Presence of another disease that may cause shoulder pain and dysfunction as rheumatoid arthritis
The whole procedures are explained in detail to the patients, and they received detailed written information which explains the entire procedure and any possible risks that may happen (informed consent).
A centrifuge machine to obtain the platelet-rich plasma
An ultrasound machine with superficial probe 10 Hz
Syringes 3 cm, 10 cm, and 20 cm
Ten-centimeter sterile test tubes
Citrate dextrose anticoagulant
Lidocaine 2% (local anesthetic)
Patients were subjected to the following:
Full history taking including gender, age, right-sided or left-sided dominance, affected shoulder, history of occupation requiring shoulder overuse and night pain, history of bleeding disorder, history of prior surgeries or steroid injections
Full clinical examination
Shoulder ultrasound examination
Explaining the whole procedure including the steps, outcomes, and complications
Written consents were taken from the patients according to ethical committee considerations
Patients are evaluated clinically using the Shoulder Pain and Disability Index (SPADI) scoring system and radiologically using ultrasonographic supraspinatus tendon thickness measurements in each visit
Patients who have scheduled an injection should stop all anti-inflammatory medications for 1 week prior to injection. Patients should be prepared to take it easy for about 2–3 days after the injection.
Preparation of platelet-rich plasma (PRP)
PRP was prepared using standard techniques. Patient blood was collected under aseptic conditions in acid citrate dextrose tubes. An antecubital blood draw of 20 ml was done. This blood was put in a centrifuge at 2000 rotation per minute (soft spin). The whole blood is separated into three layers. The supernatant layer of plasma and buffy coat were separated and subjected to centrifugation at 3000 rotation per minute (hard spin). In the final end product, the upper two thirds of the tube will be containing platelet-poor plasma which is removed, and the lower one third will be PRP enhanced with a superficial buffy coat which will be used for injection .
Technique of the procedure
Each participant underwent a single injection of PRP. The procedure starts with a diagnostic ultrasound to detect the site of the subacromion bursa. Then the patient is positioned in a sitting position, and the site of injection is decided (Fig. 2). Under aseptic conditions, sterile surgical gloves, probe cover, sterile gel, and betadine were used to sterilize the site of injection and probe surface. Three milliliters of local anesthesia is given at the injection site subcutaneously. Using a 22-gauge spinal needle, 5–7 ml of the PRP product was injected at the subacromion bursa of the affected site, and under ultrasound guidance (Fig. 3).
After injection, the patient’s arms were supported with a simple sling for 48 h. Patients were requested to mobilize the shoulder at the earliest.
Aftercare following PRP injection
Participants were advised to use relative rest including 2 days off work.
Patients should not take anti-inflammatory medications for the next 2 weeks.
Slowly advance activities of daily living progressively over 2 weeks and return to activity as tolerated.
Pain in the area of injection is common. Pain pills in the form of paracetamol pills are provided for this. It usually resolves in the first few days.
A follow-up post-procedure exam will be scheduled after about 4, 8, 12, and 24 weeks.
If the patient feels any of the following symptoms, immediately, he must contact our department: prolonged redness, swelling, fevers, and chills.
We use two types of measures which are the Shoulder Pain and Disability Index (SPADI) score and the ultrasound measure of the supraspinatus tendon. The SPADI score is a questionnaire answered by the patient to assess the severity of pain and on doing some ordinary everyday tasks and how difficult they are done on a scale of 0–10. Then results are calculated to get scores ready to be compared with after treatment (Fig. 4) .
For the supraspinatus tendon thickness measurement, the arm was placed into the modified crass position that is the palm of the hand on the iliac crest with the elbow directed posteriorly. On-screen calipers were used to measure between the echogenic tendon boundaries at a point 20 mm medial to the insertional site with the mean of these measures used for analysis. The mean average tendon thickness in the adult is about 6.6 mm.
This study was conducted on 30 cases with age ranged from 27 to 54 years and with mean ± SD of 39.8 ± 9.1 years. They were 10 females (33.3%) and 20 males (66.7%). The majority of the cases (20 cases) had right-sided affection, 18 of which were right-sided dominant, and the other (10 cases) cases were left-sided affected, 6 of them were left-sided dominant.
SPADI score (Table 1)
For the whole study group members, an exploratory analysis of SPADI scores was done prior to the procedure and then at 4, 8, 12, and 24 weeks after the injection. Data of 30 patients were analyzed. The total scoring difference between pre-injection and post-injection shows that there was a statistically significant decrease in the SPADI score at the different points of follow-up (P < 0.01) (Fig. 5).

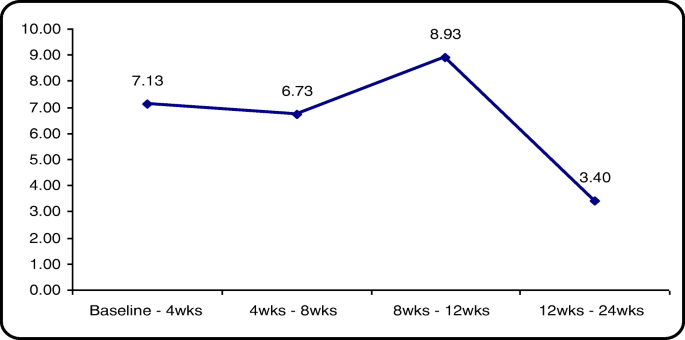

Based on the previous results, a statistically significant improvement of the total scores and their percentages should be concluded. They showed a remarkable drop from a mean value ± SD of 98.87 ± 8.70 (88–116) (baseline values) to 72.67 ± 4.91 (67–82) after 24 weeks (post-injection), completing its descending way. The P value of < 0.001 suggested high statistical significance. However, the maximum mean difference between the four points of follow-up is noted throughout the duration between 8 and 12 weeks post-injection which was 85.00 ± 6.35 at 8 weeks and 76.07 ± 5.70 at 12 weeks post-injection.
Tendon thickness (Table 2)
The previous table shows that there was no statistically significant difference found between baseline tendon thickness and its follow-up at 4, 8, and 12 weeks while only there was a statistically significant decrease in tendon thickness found at 24 weeks with P value = 0.043 (Fig. 6).
The previous graph shows that the radiological changes as regards the tendon thickness appear only at the last follow-up visit after 24 weeks. So, clinical improvement precedes the radiological improvement.
There were no adverse events or unexpected side effects as regards the PRP injection except for the tolerable pain. Twenty-four cases reported that they were completely satisfied with care, yet the other 6 cases were slightly satisfied.
Immediate post-treatment pain was recorded. The clinical impression was that pain as a result of the injection was modest and spontaneously resolved in 2 to 3 days.
Rotator cuff injuries are responsible for approximately 85% of cases of shoulder pain and disability .
It has been hypothesized that improving angiogenesis and augmenting tissue remodeling by inducing the release of fundamental growth factors (GFs) such as vascular endothelial growth factor (VEGF-B) via PRP administration can positively affect healing process . The theory supporting the use of PRP in treating various musculoskeletal conditions is based on the concept of reparative formation. In this context, platelets play an essential role in the healing process through the normal secretion of GFs and recruitment of reparative cells .
Our study showed remarkably noticeable change when comparing the pre-injection and post-injection SPADI scoring system at 4, 8, 12, and 24 weeks. There is highly statistically significant pain and disability score improvement, yet on the other hand, the radiological improvement showed no statistically significant difference found between baseline tendon thickness and its follow-up at 4, 8, and 12 weeks while only there was a statistically significant decrease in tendon thickness found at 24 weeks with P value = 0.043.
There are few studies that suggested the efficacy of ultrasound-guided PRP injection on rotator cuff tendinopathy. One study closely resembled ours . Also, other studies explored the use of PRP injection in augmentation to arthroscopic rotator cuff repair with intra-operative PRP injection .
Some studies also compared between PRP injection and physiotherapy in the treatment of chronic supraspinatus muscle partial tear .
Regarding the side effects of the procedure; our study—similar to the Sengodan group study—showed that the most common side effect was post-injection pain which was modest and spontaneously resolved in 2 to 3 days. There were no other specific side effects regarding PRP injections .
Mautner et al. stated that PRP injections almost carry no risk of acquiring a transmitted blood-borne infection or causing any anaphylactic reaction .
Randelli et al. stated that all his patients had reduction in pain, functional improvement, with no adverse effect when using PRP for the augmentation of arthroscopy in the treatment of cuff repairs. This was shown by the improvement in the constant score at 12 weeks following the repair .
Saltzman et al. concluded that there is an improvement in pain and reduction in the rehabilitation period in cases where PRP augmentation was done intra-operatively during arthroscopy for patients with rotator cuff tear. When PRP is used to augment rotator cuff repair, it resulted in decreased re-tear rates, early going back to day-to-day activity, and improvement in pain .
IIhanli et al. compared between PRP therapy and physiotherapy in the treatment of supraspinatus tendinopathy and conclude that PRP therapy is a well-tolerated therapeutic application that showed encouraging clinical results in patients with chronic tendinopathy and may be as effective as physiotherapy .
Parada et al. suggested that surgery, as a classic option for treating these cases, has risks such as infection and damage to surrounding nerves and blood vessels with up to 6 months of recovery period depending on the severity of the injury. Stiffness, weakness, chronic pain, or incomplete healing after surgery can occur .
In a double-blinded randomized control trial, Schwitzguebel et al. stated that PRP injections within interstitial supraspinatus tears did not improve tendon healing or clinical scores compared with saline injections and were associated with more side effects. However, in their study design, a larger patient population consisting of 80 symptomatic patients was included, 2 injections of PRP with 1-month interval were done, and a longer follow-up duration for up to 12 months using magnetic resonance arthrography and multiple pain and disability scoring systems was used .
There are many strong points concerning our study. First, the sample of the patients had the same diagnosis, and everybody received PRP injection. Shoulder functions and pain scores were collected at frequent time points after injection, allowing for an increased likelihood that subtle changes may be noticed. Therefore, the primary hypothesis is accepted. This study succeeded in demonstrating that those patients receiving PRP injections have decreased pain, improved healing properties, and superior functional outcomes.
The limitation of the study was the relatively short duration of follow-up with the need to involve a larger number of patients for a longer follow-up period in future studies to validate our results.
From our practice, although we did not have a recurrence of symptoms in the 24 patients who showed complete satisfaction with the results of a single session of PRP injection all over the 24 weeks of follow-up, we felt that studies should be directed towards more than one injection for the same patient at fixed scheduled dates and longer follow-up duration to assess the maximum efficacy of the PRP injection specially in those patients who were only slightly satisfied with one injection results.
A 52-year-old female patient, right-sided dominant, presented by right shoulder pain of 14–month duration with the inability to fully abduct her right arm.
Dominant or non-dominant shoulder: Dominant.
Medical history: HCV positive.
Surgical history: Irrelevant.
Trauma history: Negative.
By clinical examination: Limitation in almost all shoulder movements mainly above head abduction.
Baseline (SPADI) score was calculated:
For the pain score, 32/50 or 64%
For the disability score, 62/80 or 77.5%
For the total score, 94/130 or 72.3 %
Right shoulder ultrasound examination was done:
The supraspinatus tendon is diffusely thickened with diffuse hypo-echogenicity and indistinct fibrillar pattern suggesting supraspinatus tendinopathy (Fig. 7a):
Her baseline tendon thickness, 6.7 mm (Fig. 7b)
Ultrasound-guided PRP injection procedure was done at another appointment (Fig. 7c)
Assessment of her (SPADI) score after 24 weeks from the procedure date:
For the pain score, 28/50 or 56%
For the disability score, 48/80 or 60%
For the total score, 76/130 or 58.4 %
Assessment of her tendon thickness after 24 weeks from the procedure date, 6.4 mm (Fig. 7d).
The ultrasound-guided PRP injection for supraspinatus tendinopathy cases is a safe, cheap, and easily prepared outpatient procedure which showed competitive, promising, and well-proved results when compared to other modality outcomes such as conventional surgeries, arthroscopic procedures, and physiotherapy. PRP has the potential to heal the muscle-tendon unit of the rotator cuff at the level of degenerative tissues and may be a primary nonsurgical treatment modality for RCT.
We recommend that the future studies should have more concentration on the mechanism of action of PRP on tendinopathy that remains a challenge and deserves ongoing investigation. Furthermore, a long-term follow-up is recommended using ultrasound to assess the changes occurring in the injected tendon following the injection of PRP.
It deserves our attention to its value and efficacy for the sake of the patient as a minimally invasive procedure providing better quality of life.
