Computed tomography examination of the screaming mummy “Unknown-Woman-A”

Abstract

Background

The Royal Cache at Deir el Bahari in Luxor, Egypt, contained the mummy of a princess named Meritamun of uncertain identity, who was consequently designated “Unknown-Woman-A.” The mummy has a widely opened mouth as if screaming, with the unusual posture of her head tilted to the right and partially flexed legs cross at the ankles. We postulated that computed tomography (CT) would help to provide insights on life and death of “Unknown-Woman-A.”

Results

CT findings indicate that “Unknown-Woman-A” died in her fifties (sixth decade of life) and suffered from advanced diffuse atherosclerosis. “Unknown-Woman-A” was well mummified and eviscerated, and her body cavity was filled with resin. The desiccated brain had shifted to the right inside her skull. We presume that “Unknown-Woman-A” died of a sudden and massive myocardial infarction. Death spasm induced her unusual posture, and the contracted body was apparently mummified before relaxing her postmortem position.

Conclusions

This CT study has provided useful information about the mummy designated “Unknown-Woman-A” including her mummification style, underlying advanced cardiovascular atherosclerosis disease, and her possible death circumstances.

Background

In 1881, a Royal Cache was discovered at Deir el Bahari in Thebes (modern Luxor) where the priests of Dynasties Twenty-one and Twenty-two reburied and hid mummified royal members of earlier dynasties to protect from tomb thieves [1]. The mummies were transferred to Cairo Egyptian Museum to be examined by Gaston Maspero, then Head of the Egyptian Antiquities Service. There were two mummies from the Royal Cache, a woman and a man who had their mouths widely opened as if they were screaming. The identity of those two mummies could not be settled so Maspero assigned them letters and named them Unknown-Woman-A and Unknown-Man-E [2]. The latter was recently identified as Pentawere, the 20th Dynasty prince who was executed for conspiring against the life of his father Ramesses III in what is known as the Harem Conspiracy [3].

On June 30th, 1886, Maspero examined “Unknown-Woman-A” and recorded on her wraps inscriptions in hieratic writing saying: “Royal daughter, royal sister Meritamun” [2]. However, the mummy was considered unknown as there were several princesses named Meritamun, e.g., the daughter of Seqenenre Taa II (1558–1553 BC) from the end of the 17th Dynasty, as well as the daughter of Ramesses II (1279–1213 BC) from the 19th Dynasty. In 1902, Grafton Elliot Smith, the professor of anatomy, examined “Unknown-Woman-A” and described her as a roughly embalmed small frame old woman with tilted head to the right side, widely opened mouth, and slightly flexed legs crossed at the ankles [4]. Maspero and Smith considered the facial expression and the posture of “Unknown-Woman-A” as being unusual for the funerary customary and that she might have died in agony [2, 4, 5]. Computed tomography (CT) proved to be a powerful non-invasive tool in investigating mummies [6].

We postulated that CT would help to provide insights on life and death of “Unknown-Woman-A” and to shed more light on this part of Egypt’s history.

Methods

The mummy of “Unknown-Woman-A” is housed in the Cairo Egyptian Museum under the code (CG 61052). On the 9th of March 2020, we transferred the mummy to the computed tomography (CT) scanning machine (Somatom Emotion 6; Siemens Medical Solutions, Malvern, Pennsylvania) installed on a truck in the garden of the Cairo Egyptian Museum. We placed foam blocks under the mummy’s tilted neck and flexed knees to provide support during the scanning.

We used the following CT scanning parameters of the mummy: KV = 130 effective MAS range from 23 to 63, pitch range from 0.83 to 1.8, Field-Of-View (FOV) from 320 to 500, slice thickness from 0.625 to 1.25 mm, and reconstruction from 0.4 to 0.8 mm. FOV selection of a 320 mm and a detector width of 0.625 provided an isotropic voxel and the highest image resolution. We created axial images. We used a separate workstation (Leonardo Workstation, Siemens Medical Solution) to reconstruct two- and three-dimensional CT images. We used different ranges of window widths for soft tissues and bones. We utilized several reconstruction techniques imaging such as maximum intensity projection (MIP), multiplanar reconstruction (MPR), surface shaded display (SSD), and volume rendering technique (VRT). We analyzed the CT images of the mummy to assess the age at death, gender, pathological findings, and mummification using a methodology published before [1].

We correlated CT findings of mummy of “Unknown-Woman-A” with the archaeological data in the literature.

Ethics approval of this study was obtained from The Egyptian Ministry of Antiquities and Tourism Committee.

Results

CT findings of the mummy “Unknown-Woman-A”

Preservation status

The mummy is poorly preserved. There is a big defect in the anterior abdominal wall, likely inflicted postmortem by ancient tomb robbers. There is a gaping left inguinal embalming incision. Right upper limb and left forearm are missing. The toes of left foot are disarticulated, while toes of right foot are missing.

Electronic body measurements and stature

We obtained maximum length measurements of the major long bones. The right femur measures 402 mm, left femur 401 mm, right tibia 338 mm, left tibia 338 mm, right fibula 338, and left fibula 339 mm. Because of the oblique posture of the mummy, it was not possible to obtain vertex to heel measurement. The stature was estimated to be about 151 cm ± 2.5 cm based from the femur length using regression equation derived for ancient female Egyptians [7].

Age at death

We estimated that “Unknown-Woman-A” likely died in her fifties based on the following radiological findings: epiphyseal closure of bones, symphysis pubis surface morphology stage 10 using Todd ten-phase pubic system corresponds to + 50 years of age [8, 9], and dental wear in the maxilla and mandible attrition stage I using Lovejoy system corresponds to 45–55 years of age [10].

Posture and mummification style

Physical inspection shows the mummy’s head and upper torso are tilted to the right side, the mouth is gaping (Fig. 1), and the legs are partly flexed and crossing at the ankles with the left leg above the right (Fig. 2).

Fig. 1

Picture of the head and upper torso of mummy “Unknown-Woman-A.” The picture was taken on March 9th, 2020. It shows widely opened mouth and tilted head of the mummy to the right side

Fig. 2

Picture of the full body of “Unknown-Woman-A.” The picture was taken on March 9th, 2020. The mummy has an odd posture with crossed legs at the ankles is evident

Three-dimensional CT image of the mummy documents the tilted head position (Fig. 3). Two-dimensional CT image shows intactness of the skull base without attempt of brain removal. The desiccated shrunken brain is seen in the CT images shifted to the right side of the cranial cavity. No resin or other embalming materials are seen within the cranial cavity (Fig. 4).

Fig. 3

Three-dimensional CT image of the head of mummy “Unknown-Woman-A.” The head is tilted to the right, and the opened mouth shows extensive teeth attrition, periodontitis, and caries

Fig. 4

Coronal CT image of the head and neck of mummy “Unknown-Woman-A.” The head is tilted to the right, and the desiccated brain is seen shifted to the right side of the cranial cavity. Teeth attrition could be seen through the gaping mouth

Evidence of evisceration through a left flank incision, the abdominal and pelvic cavities are stuffed with packs of variable CT densities denoting linen (− 100 HU) and resin (70 to 120 HU). The heart, trachea, and large vessels are detected in the thorax (Figs. 5 and 6). No amulets or jewelry is seen within the body cavity or on the mummy’s body surface. No subcutaneous packing or artificial eyes are seen.

Fig. 5

Coronal CT image of the torso of “Unknown-Woman-A” shows the mummification style. Evidence of evisceration and embalming material placed within the abdomino-pelvic cavity. Note the mild positional scoliosis of the spine

Fig. 6

Three-dimensional reconstructed CT image in frontal projection of the abdomen and pelvis of “Unknown-Woman-A” shows left inguinal incision. The gaping left inguinal evisceration incision (curved arrow) is well shown. The disrupted anterior abdominal wall (likely inflicted by tomb robbers) reveals embalming material packs (straight arrows) within the body cavity

Pathological findings

Dental diseases

Most of the teeth are carious; the most severely affected are the left first and second lower molars reduced into stumps. Extensive attrition and periodontitis are evident by bone loss between the teeth (Fig. 3). The right upper molar tooth was lost, likely during life, with bone resorption. Several teeth had fallen into the pharynx.

Atherosclerosis

Definite atherosclerotic changes are identified as high-density areas of calcification within the walls of identifiable arteries: right and left carotid bulbs, right and left coronary arteries, abdominal aorta, superior mesenteric artery, celiac artery, bilateral iliac, and femoral and peripheral leg arteries (Figs. 7 and 8).

Fig. 7

Computed tomography images of “Unknown-Woman-A” mummy show advanced diffuse atherosclerosis. Coronal thick slab three-dimensional reconstructed computed tomography image of the torso of mummy “Unknown-Woman-A” shows extensive vascular calcifications (atherosclerosis). The high-density calcification lesions involve the right and left coronary arteries (short straight arrows), celiac artery (short curved arrow), superior mesenteric artery (long curved arrow), and aorto-iliac bifurcation (long straight arrow)

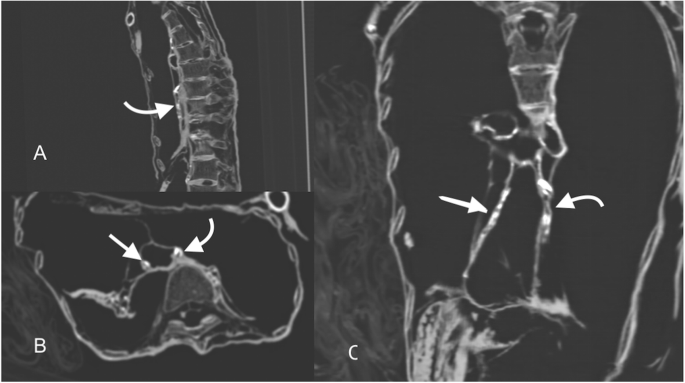

Fig. 8

Coronary atherosclerosis. Compiled CT images of “Unknown-Woman-A” mummy torso in sagittal plane (a), in axial (b), and in coronal plane (c). Presence of high-density calcifications within the course of the right coronary (straight arrow) and left coronary arteries (curved arrows) in multiple planes indicates severe atherosclerosis of the coronary arteries

Other findings

Mild lateral curvature of the dorsal spine with its convexity to the left (scoliosis) and no structural abnormalities of the spine or anomalous vertebrae could be seen (Fig. 5).

Discussion

The CT scan of the mummy of “Unknown-Woman-A” shows that she likely died in her fifties. We estimated her age at death from the CT images of her skeleton using the morphology of the pubis symphysis surface, dental attrition, and bony degeneration [8, 10]. All of the available systems cannot adequately estimate skeletons over age of 50 years [9]. Bony aging depends on several internal and external factors such as nutrition, health, and genetic makeup [11]. When we use bones for aging, we actually estimate the skeletal age rather than the chronological age. This is in concordance with the results of physical examination of the mummy done by Maspero and Smith [2, 4].

When Maspero described “Unknown-Woman-A” as a “distorted mummy,” he was referring to her tilted head and upper trunk to the right side, the widely opened mouth, and her partly flexed legs crossed at the ankles [2]. Because of her posture, Smith failed to obtain direct height measurement for “Unknown-Woman-A,” and he roughly estimated it 147 cm [4]. In this study, we applied the accurate CT measurement of the femoral length in a regression equation derived for ancient female Egyptian [7] and calculated 151 cm as her height. Unknown-Woman-A’s stature is comparable to the height of most of the royal women of the New Kingdom [1].

The distorted appearance of the mummy of “Unknown-Woman-A” is unusual for the royal funerary customs. Normally, the embalmers made all efforts to ensure a life-like appearance of the deceased; they would place the body stretched out to full length with straight legs and secured the mouth closed [1]. The articulation of the jaw to the skull (temporo-mandibular joint), supported by muscles and ligaments, controls the opening of the mouth. When these muscles relax during sleeping or when they decompose after death, the mouth opens. To secure the mouth closed, the embalmers usually bandaged the mandible to the skull [5]. The most striking feature of “Unknown-Woman-A” mummy is her widely opened mouth. Ancient mummies with an opened mouth were occasionally found in Egypt [1]. In fact, the Royal Cache of Deir El Bahari, where “Unknown-Woman-A” was found, hosted another mummy with a widely opened mouth: “Unknown-Man-E” mummy, sometimes described also as “The Screaming Mummy.” Recently, CT and DNA studies identified Unknown-Man-E as Pentawere, the disgraced prince who plotted to murder his father King Ramesses III (1185–1153 BC) in what is known as Harem Conspiracy [3]. According to The Judicial Papyrus in Torino Museum, Pentawere was forced to kill himself. This historical fact may explain why Pentawere received minimal mummification unlike other royals. He was found wrapped in a ritually unclean sheepskin instead of the usual linen [3]. Unlike the usual mummification rituals, the CT study of Pentawere’s mummy revealed that the embalmers did not remove his body organs (evisceration) or place any embalming material within his body cavity [1, 3].

The unusual distorted posture of “Unknown-Woman-A” mummy begs the question as to whether the embalmers out of negligence did not bother to secure the mouth closed and squeezed her body (as to fit her inside a smaller coffin). This CT study showed that unlike Pentawere, the body of “Unknown-Woman-A” was in fact well mummified. The embalmers packed her eviscerated body cavity with expensive materials such as resin and scented sawdust, and they used linen to wrap the body [4]. We thus assume that Unknown-Woman-A’s death circumstances were likely different than in Pentawere’s case.

CT images of the head of mummy “Unknown-Woman-A” confirm an intact base and presence of the shrunken brain inside the skull’s cavity. Therefore, the embalmers did not attempt to excerebrate (remove the brain) of “Unknown-Woman-A.” Similarly, previous X-ray and CT studies confirmed that royals dated to late 17th Dynasty to early 18th Dynasty have not been excerebrated, such as Seqenenre Taa II, Thutmose II, and Thutmose III [6, 12]. The mummy’s brain shrinks towards the most dependent position of the skull. We usually see in CT images the shrunken brain occupying the back of the skulls of mummies lying in the usual straight supine position [1, 6]. In case of mummy of “Unknown-Woman-A” with her tilted head to the right, the desiccated brain is also shifted towards the right side of the cranial cavity (Fig. 3b). We assume in this study that “Unknown-Woman-A” died in this current posture tilted towards the right. The CT scan of the mummy shows mild scoliosis of the dorsal spine. Scoliosis in “Unknown-Woman-A” can possibly be caused by the position of the mummy rather than being structural anomaly, as there are no detectable morphological abnormalities of the spine [1]. “Unknown-Woman-A” must have remained in this postmortem position for some time enough for the desiccating brain to shift towards the most dependent region, namely, the right side.

We also assume that the body posture of “Unknown-Woman-A” at death was preserved by a death spasm. Stiffening of muscles and joints following death is termed rigor mortis; it starts few minutes to several hours postmortem, commencing with the face. Another type of spasm is cadaveric spasm and shows the last action prior to death as the contracted muscles become rigid immediately after death without being able to relax [13]. Relaxation of the contracted muscles occurs postmortem when body decomposition starts [13, 14]. We assume that dead body of “Unknown-Woman-A” might not have been discovered until few hours later, enough to develop postmortem spasm. We assume that the embalmers likely mummified the contracted body of “Unknown-Woman-A” before it decomposed or relaxed thus preserving the posture her body took when she died.

CT scans of mummies can sometimes give clues of the cause of death [1, 3]. CT findings show that “Unknown-Woman-A” had severe diffuse atherosclerosis that involved several arteries. Atherosclerosis is a progressive degenerative disease of the arterial wall characterized by plaques formation that can result in lumen narrowing, occlusion, and embolization. The plaques can be detected as high densities in CT images [15].

Previous CT studies showed atherosclerosis in ancient mummies from different parts of the world: ancient Egypt, ancient Peru, Aleutian Islands, and Ancestral Puebloan of Southwest [16]. The estimated age at death of Unknown-Woman-A mummy is comparable to the median age (42.7.5 ± 10.2 years) of a previously studied group of ancient Egyptian mummies with vascular calcification [17]. The pattern of progression of atherosclerosis across different age groups in ancient Egyptian mummies is similar to modern Egyptians. In both groups, vascular calcification begins at the aorto-iliac artery then involves a decade later to carotid and coronary arteries [17].

“Unknown-Woman-A” had severe atherosclerotic changes that extensively involved the right and left coronary arteries, the right and left carotid, the superior mesenteric artery, the celiac artery, the aorto-iliac, as well as lower limbs arteries. Such extensive coronary artery disease had been reported as a factor in producing mortality. Cardiac diseases, especially coronary artery disease, are the leading cause of sudden death in adults nowadays in several clinical studies [18]. In such condition in modern medicine, clot-busting drugs and coronary angioplasty would have been indicated to prevent or limit damage to the heart muscle [19].

In this study, we assume that “Unknown-Woman-A” had a massive heart infarction resulted in sudden death. An ancient Egyptian medical papyrus, Ebers, describes what seems to be “heart attack” and links it to death: “when you examine a man, who has pains in his stomach, who has pains in his arm and chest on the side of his stomach, wherefore one says: That is the wAD-sickness (heart attack?). Then you should say to that: Death is nearing him” [20].

Maspero, who was the first to unwrap the mummy in 1886, Smith who examined the body in 1902, and more recently Dennis Forbes in 1998, all suspected that the facial expression of “Unknown-Woman-A” indicated that she might have died in agony [2, 4, 21]. Human corpuses in ancient Pompeii, Italy, acted as time capsules and retained their postures when they died due to volcanic eruption in 79 AD [22, 23]. However, other scholars do not believe that a facial expression of a mummy necessarily reflects the emotional status at time of death. According to Aufderheide, several factors might have influenced a mummy’s facial appearance, such as the process of putrefaction, rate of desiccation, and the compressing effect of wrappings [24]. We assume that the mouth opening of “Unknown-Woman-A” mummy was rather due to the normal jaw drop of the dead, but the contracted muscles must have prevented the embalmers from securing her mouth closed. However, future studies experimenting mummification in ancient Egyptian style may help us to understand possible death spasm and gaping mouths in mummies.

The identity of mummy “Unknown-Woman-A” has not been settled yet. We know that she was a royal princess named Meritamun per the inscriptions on the mummy wrappings [2]. However, several New Kingdom princesses carried the name Meritamun, e.g., Seqenenre-Taa-II’s daughter dated to 17th Dynasty and Ramesses II’s daughter dated to 19th Dynasty [4]. Mummification technique developed through the ages of ancient Egypt. The embalmers seemed to experiment with ways to accomplish their goal to preserve the body of the deceased for eternity. Thus, special mummification treatment given to the body seemed to vary in style in different time periods of ancient Egypt [1, 6]. Based on her mummification style, Maspero suggested that “Unknown-Woman-A” was not Meritamun daughter of 19th Dynasty Ramesses II but rather a mummy from an earlier time dating to the Middle Kingdom [2]. Elliot Smith dated her to the New Kingdom [1, 4]. At the time of Maspero and Smith, more than a century ago, there were limitations in using mummification to date Egyptian mummies based only on inspection and on limited forensic examinations [5]. Recent CT studies of Egyptian royal mummies helped us outlining some features of mummification in various periods [1, 6, 25]. Similar to “Unknown-Woman-A,” some royals dated to late 17th to early 18th Dynasty were not excerebrated, e.g., Seqenenre Taa II, Thutmose II, and Thutmose III [1, 6, 12]. However, excerebration was usually seen in mummified royals of the 19th Dynasty such as Ramesses II [1, 6]. This CT study thus suggests that “Unknown-Woman-A” could be Meritamun daughter of 17th Dynasty Seqenenre-Taa-II rather than 19th Dynasty Ramesses II. Future DNA study of “Unknown-Woman-A” and other royal mummies may help us to reveal more information concerning her kinship.

Conclusion

This CT study has provided useful information about the mummy designated “Unknown-Woman-A” including her mummification style, underlying advanced cardiovascular atherosclerosis, and her possible death circumstances.
