Additional diagnostic role of MRI spectroscopy, diffusion and susceptibility imaging in differentiation of CPA masses: our experience with emphasis on schwannomas and meningiomas

Egyptian Journal of Radiology and Nuclear Medicine volume 51, Article number: 137 (2020) Cite this article

Abstract

Background

CPA masses are uncommon lesions and usually have quite distinctive imaging features. Still, diagnosis can be challenging in some cases, carrying a significant impact on the choice of treatment and surgical approach. The purpose of this study was to validate the usefulness of MRI spectroscopy, diffusion, and susceptibility in the characterization of CPA masses with the emphasis on the two commonest lesions: schwannomas and meningiomas.

Results

The study included a total of 27 cases: schwannomas (n = 12), meningiomas (n = 7), epidermoid cysts (n = 2), two chondrosarcomas (n = 2), arachnoid cyst (n = 1), glomus tumor (n = 1), a meningeal metastasis (n = 1), and an endolymphatic sac tumor (n = 1). DWI revealed: eight lesions showed low ADC (<1 × 10−3 mm2/s), 15 lesions with intermediate ADC values (1–1.8 × 10−3 mm2/s), and 4 lesions had high ADC (>1.8 × 10−3 mm2/s.) Meningiomas showed low to intermediate ADC values while schwannomas showed intermediate to high ADC values. A cut-off ADC value of (1 × 10−3 mm2/s) is statistically significant in the differentiation of meningioma from schwannoma. A myoinositol peak was in all 12 schwannomas and single meningioma while 6 meningiomas displayed alanine peak, with a very good statistical significance. Remaining lesions revealed non-specific spectra. SWI made in 18 lesions revealed signal voids in three schwannomas and glomus.

Conclusions

Though MRI features of CPA masses are distinctive in most clinical settings; MRI spectroscopy, diffusion, and susceptibility can provide highly informative additional data in problematic cases. An intermediate to high ADC value plus myoinositol peak and signal voids of micro-bleeds are highly suggestive of schwannomas. This is in contrary to meningiomas displaying low to intermediate ADC and an alanine peak with no micro-bleeds. The less common lesions revealed non-specific data.

Background

CPA tumors represent 5–10% of all intracranial tumors in adults and 1% of intracranial tumors in pediatrics [1,2,3,4,5,6]. They combine diverse pathologies, with extra and intra-axial localization of lesions [7,8,9]. Extra-axial lesions are more common and include vestibular schwannomas, meningiomas, and epidermoid cysts that represent the three most common masses of the CPA. Other extra-axial lesions include arachnoid cysts, fascial nerve, and trigeminal schwannomas. Also, a number of intra-axial lesions exist, though they are rare in incidence, and usually arise as the pedunculated brain stem or intraventricular masses [10, 11].

MRI is considered the imaging modality of choice for evaluating CPA masses owing to its excellent soft-tissue contrast-resolution, multi-planar imaging capability, and absence of beam-hardening artifact, the latest is hindering diagnostic capability of CT due to air-bone interferences [12, 13]. Usually, a conventional MRI examination can be enough to establish an accurate diagnosis. However, there are several ambiguous cases, where MR advanced techniques can provide additional help [12, 13].

The “CISS” or the three-dimensional constructive interference in steady state is a refocused steady-state gradient-echo MRI sequence, which enhances the fluid signal with prolonged T2 relaxation and consequent high sensitivity in the detection of small CPA masses, where they appear as filling defects outlined by CSF [14,15,16,17].

Diffusion-weighted MRI is a non-invasive method that measures the molecular diffusion and Brownian motion of water protons. It is largely used in the evaluation of intracranial and head and neck masses, where differentiation between cellularity can give information about the pathology of the mass. An ADC value is calculated and shows an inverse correlation with tumor cellularity: Hypercellular intracranial tumors exhibit low ADC values while hypocellular tumors exhibit high ADC values [18,19,20,21].

Susceptibility-weighted imaging (SWI) is a technique that utilizes the magnetic property to create useful image contrast. It uses a gradient echo sequence to combine T2*-weighted “magnitude” image with a filtered “phase” image. This combination is made to enhance susceptibility-induced contrast between tissues, and thus can show blooming in tiny blood products or early tiny calcifications [22, 23].

Perfusion-weighed imaging (PWI) is a method that provides information on cerebral physiology at the capillary bed level (microvasculature). The T2* signal “loss” is produced as a paramagnetic agent (e.g., Gadopentetate dimeglumine) passes through the cerebrovascular system because of local magnetic susceptibility. Thus, this technique can differentiate hypovascular from hypervascular masses [24,25,26].

MR spectroscopy (MRS) is considered a non-invasive means for characterization of the tissues according to the phenomenon known as chemical shift, where the MR frequency spectrum is received by nuclei resonating at different frequencies [26,27,28,29,30]. Spectroscopy is largely used in neurological imaging evaluation for both local and diffuse disease. Regarding the CPA masses, MRS can be difficult to be performed because of the adjacent skull and bone artifacts making this technique used mainly in large lesions [31,32,33]. MR spectroscopy has been largely used in the characterization of multiple intra- and extra-axial masses of the neuraxis. For intra-axial lesions, grading of gliomas was made according to variable NAA and choline metabolites, while extra-axial masses show more variable metabolites [34,35,36].

CPA schwannomas and meningiomas are the most common CPA mass lesions and are usually easily differentiated by conventional methods using a number of signs, including signal, enhancement pattern, dural tails, obtuse angle, and intracanalicular extension +/- flaring. However, atypical lesions can exit due to markedly variegated histopathological types [35, 36].

The cranial neuro-advanced MRI techniques can be also applied in the evaluation of CPA masses despite the challenge of multiple air, bone, and fluid interfaces. State-of-art MRI machines applying high spatial resolution with the use of dedicated multi-channel coils can overcome this anatomical challenge [37,38,39].. The aim of this work was to evaluate the usefulness of additional MRI techniques diffusion, SWI, and spectroscopy in the characterization of CPA masses. A special emphasis was made for the two commonest schwannomas and meningiomas.

Methods

Study design and patient selection

The protocol of our prospective study had approval made by the Institutional Review Board (IRB) of our university hospital. Patient approval and informed consent were acquired from all patients in a written form (by the patient or a relative). (A) Inclusion criteria included the following: only the adult population (≥18 years old) with: (a) questionable retro-cochlear pathology as referred to our radiology department by otolaryngology or neuro-surgery physician or (b) with incidental finding of CPA non-vascular mass by routine imaging (CT or MRI). Exclusion criteria included (a) pediatric population (<18 years), (b) non-mass lesions (e.g., vascular loops), and primarily vascular lesions (e.g., aneurysms) were excluded.

Clinical evaluation

All patients included in the study were subjected to [1] full history taking and thorough clinical examination, [2] laboratory investigations namely serum creatinine level, then creatinine clearance was calculated, using “Cockcroft-Gault Equation”, [3] the medical ethics were considered and the study protocol was already approved by the Institutional Review Board (IRB).

MRI imaging evaluation

  1. A)

    All patients are examined on a 1.5 Tesla closed MRI Scanner (Phillips Achieva, Phillips medical system, Best, The Netherlands). This is a 32-channel closed machine using a standard imaging head coil. Conventional MRI sequences included T2WI (axial across whole brain), T2WI (axial and coronal across CPA), T1WI pre- and post-contrast: axial and coronal across CPA, and axial FLAIR across whole brain. T2WI (TR 4045 ms, TE 110 ms, FOV 23 × 18.5 cm, flip angle 90 °, slice thickness 5 mm, and inter-slice gap 1 mm), thin cut T2WI (TR 3360 ms, TE 81 ms, FOV 17 × 15 cm, flip angle 90 °, slice thickness 3 mm, and inter-slice gap 0.3 mm), thin cuts T1WI (TR 500 ms, TE 10 ms, FOV 17 × 15 cm, flip angle 90 °, slice thickness 3 mm and inter-slice gap 0.3 mm), FLAIR (TR 10,000 ms, TE 140 ms, FOV 23 × 23 cm, flip angle 90 °, slice thickness 5 mm and inter-slice gap 1 mm). CISS (TR 1055, TE 235, FOV 13 × 13 cm, flip angle 90 °, slice thickness 1 mm, and inter-slice gap 0.3 mm).

  2. B)

    DWI (TR 2095 ms, TE 90 ms, FOV 23 × 18.5 cm, flip angle 90 °, slice thickness 5 mm and inter-slice gap 1 mm). The diffusion-sensitizing gradients were applied three b-factors and are obtained including 0, 500, and 1000 s/mm2 in the axial plane. ADC maps were automatically reconstructed for all DW images and used for the measurement of ADC values in regions of interest (ROIs) at the center of the lesions. The ADC values were expressed in × 10−3 mm2/s.

  3. C)

    For SWI: These parameters used are TR 52 ms, TE 12 ms, FOV 23 × 23, flip angle 20 °, slice thickness 5 mm and inter-slice gap 1 mm). Two phases are generated: phase and magnitude images. This is followed by a filtering technique of the two images. The SWI is selectively done in lesions revealed by conventional criteria as schwannoma or meningioma.

  1. D)

    For MRS: A single-voxel 1H-MR spectroscopy was performed. A volume of interest (VOI) between 1 cm3 and 8 cm3 was placed on the lesion where the largest possible voxel was positioned within the enhancing solid part of the brain lesion with minimal contamination from the surrounding tissue. Two spectra were acquired from the same VOI for every case at [1] short TE (2000/31) (TR/TE) [2]. Long TE (2000/144). Spectrum analysis was performed using software spectroscopy within the MR scanner. The intensities of the data points of the spectrum between 0 and 4.00 ppm were selected and used as input for the normalization and statistical analysis. MR spectroscopy will be applied for solid non-cystic lesions >1 cm in size.

  1. E)

    For MR perfusion (TR 2300 ms, TE 40 ms, FOV 30 × 30, flip angle 75 °, slice thickness 3.5 mm and slice gap 1 mm). PWI was performed with a first-pass contrast-enhanced T2*W single-shot gradient-echo sequence using a rapid bolus of 0.1 mmol/kg of MRI contrast material (Gadolinium (Gadopentetate dimeglumine with a dose of 0.1 mmol/kg) followed by 20 ml saline flush.). CBV maps, color-coded perfusion maps as well as rCBV values and time-intensity curves were analyzed. The PWI was made only when feasible. It is made as an auxiliary technique and not primarily included in our research target.

Image analysis

The images were interpreted by two experienced senior and junior “head and neck” radiologists, with 25 years and 15 years of experience, respectively. The images are analyzed as detailed below:

On conventional MRI sequence, the lesion was analyzed according to (a) T1 signal as compared to the brain parenchyma (T1 hypo or iso), (b) T2 signal intensity (hypo, iso, hyperintense compared to brain parenchyma or bright=CSF signal), (c) nulling on FLAIR, (d) enhancement pattern graded as (hyper, hypo, or moderate as compared to enhanced muscles) and described as homogenous or heterogeneous), (e) the presence of cystic changes, (f) its extension the IAC +/− flaring, (g) the presence of dural tail, (h) the presence extra-cranial extension.

  1. A)

    On DWI images: the lesion was analyzed according to whether it is hyper, iso, or hypointense to the brain parenchyma, and the ADC are measured by ROI of the solid non-necrotic portion. ADC value was categorized to less than 1 × 10−3/cm2, from 1 to 1.7 × 10−3/cm2 and more than 1.8 × 103/cm2.

  2. B)

    On SWI, the lesions were analyzed according to the presence of intralesional signal voids that signify intralesional hemorrhage or calcifications. The findings are evaluated in filtered images and MIP images to differentiate calcifications and hemorrhages. The filtered phase images are examined on this right-handed machine as follows: The hemorrhages appear low signal while calcification appears of opposite signal intensity (high signal).

  3. C)

    On CISS, the lesions were analyzed according to their relation with the vestibule-cochlear nerve whether (a) encasing, (b) abutting, (c) displacing, or (d) none.

  4. D)

    On MRS, the lesions were mainly analyzed according to the presence of different metabolites.

  5. E)

    On MR perfusion: the lesions were categorized as hypo or hyperperfused on qualitative analyses of generated maps, measuring relative perfusion of the lesion as compared to normal temporal lobe parenchyma (Relative Tumoral blood volume).

Statistical analysis

Data were fed to the computer and analyzed using IBM SPSS software package version 20. The distributions of quantitative variables (ADC-values) were tested for normality using the Kolmogorov-Smirnov test. For abnormally distributed data, Kruskal–Wallis test was used to compare between different groups and Mann-Whitney test was assessed for pair-wise comparisons. The receiver operating characteristic curve (ROC) was plotted to analyze a recommended cutoff, the area under the ROC curve denotes the diagnostic performance of the test. Area more than 50% gives acceptable performance and area about 100% is the best performance for the test. The significance of the obtained results was judged at the 5% level.

Results

This study included 27 cases with CPA masses that were recommended for imaging and/or planned for surgical resection of the tumor during 16 months of prospective work, which started from 1-7-2018 until 30-11-2019. This small sample size is because CAP masses are uncommon. The study included 14 males and 13 females with no sex predominance. The age of studied patients ranged with an age range from 20 to 60 years (with a mean of 40 years) (Table 1).

Table 1 Distribution of the studied cases according to their diagnosis (n = 27)
Full size table

The most common presenting symptom in our study was sensorineural hearing loss (55.5%), followed by headache (29.6%), then tinnitus (7.4%), then neuralgia (3.7%), and facial palsy (3.7%) (Table 2).

Table 2 Distribution of the studied cases according to their complaints (n = 27)
Full size table

All patients had conventional MRI techniques made for them including T1, T2, FLAIR, thin cuts T1 and T2. Also, CISS and DWI were made in all cases. SWI was made in 18 patients (being reserved only for meningiomas and schwannomas). Perfusion (PWI) was made in (made when only feasible and only auxiliary; not a primary technique in our research). MR spectroscopy was made selectively for a total of 22 cases: The twelve schwannomas, the seven meningiomas, the glomus lesion, chondrosarcoma, and endolymphatic sac tumor (thus leaving three cystic lesions, two lesions <1 cm).

Out of our 27 patients, 12 (44.4 %) were diagnosed as schwannomas: vestibular schwannomas (n = 10), trigeminal schwannoma (n = 1), and facial schwannoma (n = 1) {two of the ten vestibular schwannomas were part of NF2-neurofibromatosis type II}, seven (25.9%) were meningiomas, epidermoid cysts (n = 2) and two chondrosarcomas (7.4% for each, one arachnoid cyst (n = 1), glomus tumor (n = 1), meningeal metastasis in leukemia (n = 1), and an endolymphatic sac tumor (n = 1).

All 27 lesions were T1 hypo-to-isointense (apart from hyperintense foci in endolymphatic sac tumor). Seventeen lesions were T2 hyperintense: schwannomas (n = 9), meningiomas (n = 6), endolymphatic sac tumor (n = 1), and glomus tumor (n = 1). Seven lesions were bright on T2WI: schwannomas (n = 2), epidermoid cyst (n = 2), chondrosarcoma (n = 2), arachnoid cyst (n = 1). Two lesions were T2 iso-intense: schwannomas (n = 1) and a meningioma (n = 1). A single meningeal metastasis 6 mm lesion was not appreciated neither on T1WI nor T2W1 (only in post-GAD).

Nineteen lesions were hyper-enhancing: all the seven meningiomas (n = 7), schwannomas (n = 9), chondrosarcoma (n = 1), glomus tumor (n = 1), and the endolymphatic sac tumor (n = 1). Three showed moderate enhancement: a schwannoma (n = 1) and chondrosarcoma (n = 1) and meningeal metastasis. A single schwannoma showed hypo-enhancement. Also, a single schwannoma showed rim enhancement. Seven lesions showed cystic changes in T2 and post-GAD images: schwannomas (n = 5), chondrosarcoma (n = 1), and endolymphatic sac tumor (n = 1). None of the meningiomas showed cystic changes. The three cystic lesions (two epidermoid and arachnoid cysts) showed non-enhancement.

Seventeen cases showed extension into the IAC: schwannomas (n = 10), meningiomas (n = 5), chondrosarcoma (n = 1), and endolymphatic sac tumor (n = 1). Eleven lesions showed flaring of the IAC: all vestibular schwannomas (n = 10) and endolymphatic sac tumor (n = 1). Eleven cases showed “dural tail”: all the seven meningiomas (n = 7), schwannomas (n = 3), and chondrosarcoma (n = 1). Four lesions showed extra-cranial extension: meningiomas (n = 2), chondrosarcoma (n = 1), and glomus tumor (n = 1). Nulling on FLAIR was seen only in the single case of an arachnoid cyst (Table 3).

Table 3 Evaluation of different conventional signs of CPA masses
Full size table

SWI was done for eighteen patients (n = 18), six of them showed “signal voids” within the lesion: four schwannomas (n = 4), glomus tumor (n = 1), and endolymphatic sac tumor (n = 1). None of the meningiomas and remaining lesions showed any signal void.

Out of a total of 27 patients, fourteen lesions were hyperintense, nine were iso-intense, and four were hypointense on DWI. Eight lesions had low/restricted ADC values <1 × 10−3 mm2/s, fifteen lesions had intermediate ADC values between 1 and 1.8 × 10−3 mm2/s and four lesions had high ADC of >1.8 × 10−3 mm2/s (refer to Fig. 1 showing chart representative of different ADC values among different pathologies).

Fig. 1
figure 1

Chart showing the distribution of ADC values among different CPA pathologies

Full size image

Out of seven meningiomas: four had ADC values less than 1 × 10−3 mm2/s and three meningiomas had ADC values between 1 and 1.7 × 10−3 mm2/s. Ten schwannomas had ADC values between 1 and 1.7 × 10−3 mm2/s (nine vestibular and one facial), one VS ADC value less than 1 × 10−3 mm2/s), while the trigeminal schwannoma had high ADC value more than 1.7 × 10−3 mm2/s. The two epidermoid cysts as expected showed restricted ADC values <1 × 10−3 mm2/s. The arachnoid cyst had a high ADC value of 3 × 10−3 mm2/s. The single metastasis was hyperintense on DWI and had ADC value 0.5 × 10−3 mm2/s. The one chondrosarcoma had a high ADC value of 2 × 10−3 mm2/s. The second chondrosarcoma and the glomus tumor had intermediate ADC values between (1 and 1.7 × 10−3 mm2/s). The endolymphatic sac tumor was hypointense on DWI and had ADC value 2.1 × 10−3 mm2/s (Table 4).

Table 4 Evaluation of different conventional signs of CPA masses
Full size table

Out of the 27 patients, six patients had MR perfusion imaging done: Three of which were hypoperfused (two vestibular schwannomas and chondrosarcoma). The other three were hyperperfused (three meningiomas). A hypoperfused curve showed slow upstroke and progressive slope rising above plateau suggestive hypocellular and hypovascular matrix, which retains the contrast. This is in contrast to the hyperperfused curve which shows rapid upstroke followed by T2* recirculation due to susceptibility created by the passage of gadolinium. This is followed by a slow return of the re-circulation curve to the baseline.

Regarding spectroscopic spectral analysis, all the twelve schwannomas (n = 12) and a single meningioma (n = 1) showed myoinositol peak, while six meningiomas (out of total 7) showed alanine peak. A statistical test showed the statistical significance of metabolite markers of underlying lesions. A myoinositol as a diagnostic marker of schwannoma and alanine as a marker diagnostic of meningioma. Chondrosarcoma and a glomus tumor showed non-specific lactate peaks, while endolymphatic tumor-ELT showed a non-readable spectrum, presumably due to contamination by bone marrow fat. Metabolites of intra-axial lesions (e.g., choline) are not stressed in our study (Table 5).

Table 5 Comparison of myo-inositol and alanine peaks on MRS between meningiomas and schwannomas
Full size table

Final diagnosis was made as follows: eight of ten vestibular schwannomas undergone surgical resection, while two cases of bilateral vestibular schwannomas—(NF2) were diagnosed by approved clinico-radiological criteria and genetic testing. Six of seven meningiomas were resected, with the last case reserved for follow-up. Facial schwannoma and trigeminal schwannomas reserved for follow-up. The two epidermoid cysts are resected. The arachnoid cyst is left for follow-up. The glomus jugulare tumor was resected. The two chondrosarcomas and the endolymphatic sac tumor were diagnosed by endoscopic biopsy. The decision for the metastatic case was followed up as part of the leukemia management plan. Follow-up of CPA masses is usually made at 6–12 months according to clinical and radiological criteria for patient status and for tumor type and size.

As the study is emphasizing schwannomas and meningiomas, the findings of both pathologies are detailed: The study included twelve schwannomas (n = 12): Ten are vestibular (n = 10), one facial (n = 1), one trigeminal (n = 1). The ten vestibular schwannomas detailed as (a) eight (80%) hyperintense, 1 (10%) bright, and one (10%) iso-intense on T2WI, (b) eight (80%) were hyper-enhancing after contrast administration: Five (62.5%) showed homogenous enhancement and three (37.5%) showed heterogeneous enhancement. One (10%) vestibular schwannoma was hypo-enhancing and another (10%) showed rim enhancement, (c) four (40%) showed cystic changes, (d) three (30%) were hyperintense in diffusion image, six (60%) iso-intense, one (10%) hypointense, (e) nine (90%) had ADC values between 1 and 1.7 × 10−3 mm2/s and 1 (10%) had ADC value <1 × 10−3 mm2/s, (f) five cases of vestibular schwannomas had SWI signal voids, (g) all cases (n = 10) are encasing the 8th nerve on CISS, (h) all (n = 10) showed myoinositol peak and one showed additional lactate/lipid peak, (i) perfusion performed on 3 cases revealed hypoperfused curve, (j) nine (90%) acoustic schwannomas showed extension into the IAC with flaring, (k) three (30%) showed dural tail after contrast enhancement. Refer to Figs. 2 and 3 showing cases of vestibular schwannomas.

Fig. 2
figure 2

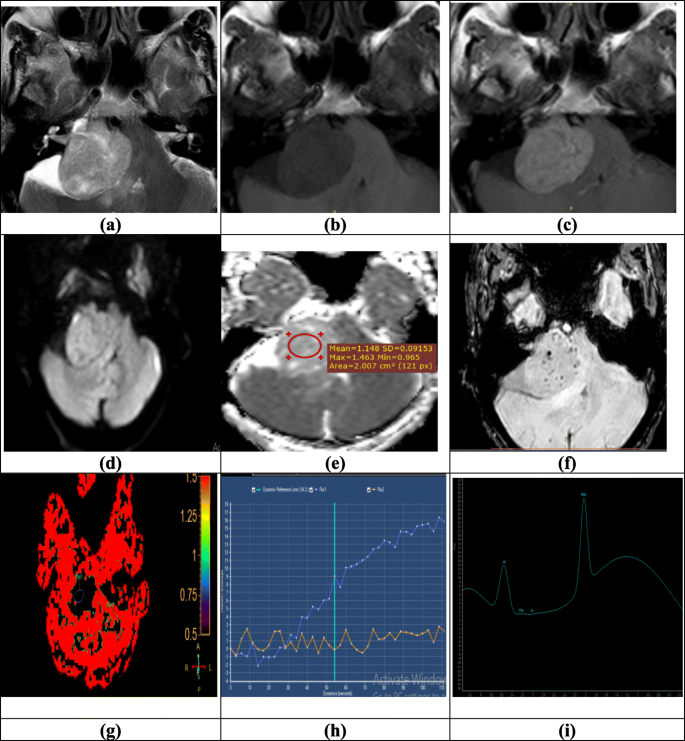

A 60-years-old male presented with right sensorineural hearing loss. A right CPA space-occupying lesion is seen. This is hyperintense on T2WI (a), hypointense on T1WI (b), showing homogenous, solid and moderate post-contrast enhancement on T1WI+C (c), hyperintense on diffusion image (d) showing intermediate ADC value 1.14 × 10−3 mm2/s (e), signal voids on SWI (f), showing hypoperfusion in perfusion map (g) and hypoperfused curve on PWI (h), with myo-inositol peak on MRS (i). The findings were matching with the final diagnosis of the right CPA schwannoma

Full size image
Fig. 3
figure 3

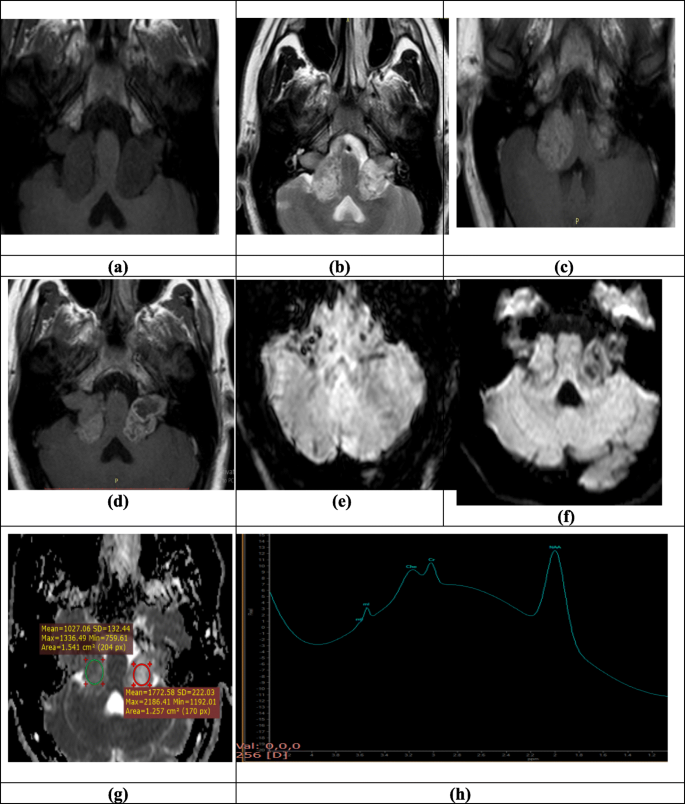

A 21-years-old male patient with a known diagnosis of NF2 came for follow-up. Bilateral CPA space-occupying lesions are seen. They are hypointense on T1WI (a), hyperintense, extending into and widening the IACs on T2WI (b), showing heterogenous post-contrast enhancement on T1WI+C (c, d), showing signal voids of micro-bleeds on SWI (e, f). The right mass shows hyperintense signal in diffusion with ADC value =1.2 × 10−3 mm2. The left is hypointense on DWI with ADC value of 1.5 × 10−3 mm2 (g). They showed myo-inositol peak on MRS. The findings were matching with the final diagnosis of NF2 with bilateral CPA schwannomas

Full size image

Meningiomas (n = 7) showed the following: (a) four (57.2%) were T2 hyperintense and three (42.8%) was iso-intense on T2WI, (b) all the seven (100%) were homogenously hyper-enhancing with no cystic changes, (c) All the seven (100%) were hyperintense on DWI, (d) four (57.2%) had ADC values less than 1 × 10−3 mm2/s and three (42.8%) had ADC value between 1 and 1.7 × 10−3 mm2/s, (e) five cases had SWI done; none of which showed signal voids, (f) four (57.1%) cases were encasing 8th nerve, one (14.3%) showed contact, while one (14.3%) was displacing it. The nerve was not involved with one case (14.3%), (g) six cases (85.7%) showed alanine peak, and a single case showed myoinositol peak, (h) three showed hyperperfused curves, (h) five (71.4%) cases showed extension into the IAC; none showed flaring of the IAC, (i) all the seven (100%) showed dural tail and two (28.6%) showed extra-cranial extension. Refer to Fig. 4 showing imaging features of meningioma.

Fig. 4
figure 4

A 31-years-old female with left CPA space mass lesion. The mass is seen iso-intense on T1WI (a), T2 hyperintense and extending into the IAC without widening (b, c), showing homogenous post-contrast enhancement, with a dural tail on T1WI+C (d), displacing the 8th cranial nerve on CISS (e), hyperintense on DWI (f), low ADC value 0.8 × 10−3 mm2 (g), expressing alanine peak on MRS (h). The T2 hyperintense signal was not usual for meningioma still broad-based appearance and dural base suggested meningioma, with additional support by spectroscopy and diffusion data. Surgical resection revealed meningioma

Full size image

The single case of trigeminal schwannoma showed typical features similar to the vestibular variant (Fig. 5). Also, morphological and functional features of one of two chondrosarcomas and the single paraganglioma are shown in Figs. 6 and 7, respectively.

Fig. 5
figure 5

A 22-years-old male patient with a right CPA mass. This is seen hypointense on T1WI (a), hyperintense with hypointense foci (likely due to hemorrhage) on T2WI (b), showing heterogenous post-contrast enhancement, with T1WI+C (c), extending along and encasing the 5th cranial nerve reaching Meckel’s cave on CISS (d), showing signal voids on SWI (e), hypointense on DWI (f) with high ADC value 2.3 × 10−3 mm2/s (g) showing myo-inositol peak on MRS (h). These findings were matching with the final diagnosis of the right CPA trigeminal schwannoma

Full size image
Fig. 6
figure 6

A 42-years-old male patient presented with a headache. Images revealed a right CPA mass involving the clivus bone on one side (off-axial), iso-intense on T1WI (a), hyperintense on T2WI (b), showing homogenous post-contrast enhancement, on T1WI+C (c), seen hyperintense with hypointense foci on DWI with ADC value 2 × 10−3 mm2/s (d, e), not involving the 8th nerve on CISS (f), showing high choline peak on MRS (g) hypoperfused on MRP map and curve (h, i). These findings were matching with the final diagnosis of right chondrosarcoma

Full size image
Fig. 7
figure 7

A 38-years-old female with left pulsatile tinnitus. A left CPA mass is seen likely an extension from jugular foramen (widened and destroyed on CT). This is iso-intense on T1WI (a), hyperintense on T2WI and showing salt and pepper appearance (b), showing avid post-contrast enhancement on T1WI+C (c), hyperintensity on DWI with ADC value 1.1 × 10−3 mm2/s (d, e), foci of blooming on SWI (f) and high choline and lactate peaks on MRS (g). Conventional imaging findings are typical of the final post-excisional biopsy of the left glomus jugulare tumor. Additional imaging data of spectroscopy septra was non-specific

Full size image

Discussion

CPA masses are usually uncommon lesions. This accounts for the small sample size of our study. Though our study showed no significant sex predominance, it showed some preponderance in the fourth and fifth decades. This agrees with studies made by Sonowal et al. [27] and Haque et al. [39], who reported that the peak incidence of CPA masses to be in the fifth decade. Still, Mersha HB [5], Maaly et al. [8], and Singh et al. [35] reported younger peak incidence in the third and fourth decade [5, 8, 35]. Our study included 14 males and 13 females, with a nearly 1:1 ratio. In agreement with a study by Mersha et al. [5], our study showed no gender predilection. However, it did not agree with Singh et al. [35], who reported female predominance, while Hari et al. [36] reported slight male preponderance. The absence of gender predilection in our study is most probably due to the small sample size.

The most common presenting symptom in our study was sensorineural hearing loss (37.1%). This agreed with most of the reported studies including Shakweer et al. [6], Maaly et al. [8], who reported a sensorineural hearing loss as the most common presenting symptom in CPA masses.

As expected, acoustic schwannoma represented the most common CPA lesion (37%), followed by meningioma (25.9%). This correlated well with most of the prior studies conducted by Shakweer et al. [6], Maaly et al. [8], and Springborg et al. [40]. The third commonest lesions were both epidermoid cyst and chondrosarcoma; the last two mentioned occurred in equal proportions (7.4%). The epidermoid cyst constituted the third commonest in most of the studies, while chondrosarcomas were unexpectedly equal to epidermoid in incidence. Also, our study also included one arachnoid cyst (3.9%), one glomus tumor (3.7%), one metastasis (3.7%), one endolymphatic sac tumor (3.7%), one trigeminal schwannoma (3.7%), and one facial schwannoma (3.7 %).

The most prevalent lesions; schwannomas, counted twelve in number: ten arose from the vestibular nerve, one from the facial nerve, and last one from the trigeminal nerve. The imaging features of vestibular schwannomas are discussed in the following section, while VII and V schwannomas are discussed later with uncommon lesions. Regarding T1 signal of schwannoma: all are hypointense on T1WI. For T2 signal, eight (80%) were hyperintense, one (10%) was bright, and one (10%) was iso-intense on T2WI. This is expected for hypocellular nature and high fluid content that prolongs the relaxation of the lesion in T2 and shortens in T2. Our findings correlated well with Shakweer et al. [6] reported 78.5% of acoustic schwannomas to be hypointense on T1WI. Maaly et al. [8] reported that the majority of acoustic schwannomas were been iso-intense on T1WI (91.7%) and on T2WI (58.3%). On the other hand, Haque et al. [39] reported 84% of acoustic schwannoma to be hyperintense on T2WI.

Following GAD, vestibular schwannomas showed variable patterns of enhancement. Eight vestibular schwannomas (80%) were hyper-enhancing after contrast administration: five (62.5%) homogenous and three (37.5%) showed heterogeneous enhancement. One vestibular schwannoma showed (10%) hypo-enhancement and another one (10%) showed “rim enhancement”. The variable enhancement patterns of acoustic schwannomas correlated with literature reported findings reported by Shakweer et al. [6], Kapoor et al. [38], Haque et al. [39], and Maaly et al. [8], the latest reported acoustic schwannoma to show homogenous hyper-enhancement in approximately 57% of the cases and heterogeneous enhancement in 43% of the cases. Though intracanalicular extension is not specific, statistical significance revealed the sign of flaring to be significant as a marker of VS. Three (30%) acoustic schwannomas showed dural tail after contrast enhancement. On the contrary, all meningiomas (n = 7) showed a dural tail. Still, a statistical significance test revealed dural tail is significantly expressed in meningiomas, versus IAC extension as being a sign of acoustic schwannoma.

In our study, 60% of acoustic schwannomas (n = 10) were iso-intense on diffusion image and 90% of them (n = 9) had ADC values ranging between 1 and 1.7 × 10−3 mm2/s, with a mean value of 1.3 × 10−3 mm2/s. A study by Farhan et al. [41], reported 61% of their cases to be iso-intense on DWI, still having a higher mean ADC value of 1.61 × 10−3 mm2/s, meaning that schwannomas are generally not restricted and instead are mainly diffusive on DWI. Also, a study by Pavlisa et al. [42] reported a mean ADC value of 1.67 × 10−3 mm2/s. The higher ADC of schwannomas is probably related to less cellular areas of the tumor. In larger schwannomas, there is a predominance of the loose textured and cystic areas (Antoni type B), resulting in higher water diffusion [41, 42]. However, in smaller schwannomas, there is a predominance of Antoni type A cells mounting to highly cellular tumors and thus lower ADC values and this may be the cause of low ADC values in some schwannomas. Thus, schwannomas have a wide range of restriction and ADC values; the majority usually show mild restriction and ADC values more than 1 × 10−3 mm2/s [43]. Our measured ADCs values are yet smaller than comparable literature results, likely due to more cellular variants. This variable cellular pathology can also explain for the variegated T2-signals of schwannomas. This can be displayed as iso-intense hyperintense and even bright. Also, variable enhancement pattern is likely also explained by the variable cellular pattern; the higher cellularity correlated is linked to intense contrast enhancement as a result of more tumoral cellular uptake. On the other hand, the hypocellular nature of lesions could lead to lower uptake of interstitial contrast and thus hypo-enhancement, or may paradoxically allow for retention and accumulation of contrast in the loose hypocellular stroma and thus hyper-enhancement of the mass. However, in perfusion (PWI), the intravascular bolus depends on intravascular and not interstitial uptake of the contrast and the generated curves depend on vascular network density. So, schwannomas are expected to show a hypoperfused curve which a slow upstroke and progressive slope rising above plateau [43,44,45]. This hypoperfusion pattern was seen in two of the schwannomas in our study.

The role of CISS was only to evaluate the neural contact of CPA mass with the vestibulocochlear nerve. In our study, all the acoustic schwannomas (100%) were encasing the vestibulocochlear nerve; the latter not identified separately with evidence of neuronal degeneration in one case. Nine (90%) acoustic schwannomas showed extension into the IAC with smooth flaring. The CISS and 3D diffusion with variable B-values show the smallest 6 mm lesion, which was diagnosed as a meningeal leukemic deposit (6 mm).

In SWI images (done in 18 cases), three out of five schwannomas (60%) showed blooming signal voids, which are not calcifications. Saravanan et al. [23] reported SWI-related blooming in all their schwannoma cases and none in meningiomas [23]. A similar study by Mishra et al. [43] reported blooming voids in all schwannomas while a single meningioma showed blooming that proved to be calcifications on CT [43]. The etiopathogenesis of these non-calcified blooming signal voids is yet not clarified, still, the different hypothesis suggests them to be mixed micro-bleed and fibrous stroma. Moreover, these were suggested as the precursor of cystic changes in schwannomas and could be quite differentiating point of the schwannomas. None of the meningiomas in our study revealed signal voids [43].

The second commonest lesion, “meningiomas”, counted seven cases (25.9%). In T2WI, six lesions (85.7%) were unexpectedly hyperintense and one case (14.3%) was iso-intense on T2WI. This finding disagreed with most literature, including made by Shakweer et al. [6] and Maaly et al. [8], who stated that meningiomas were T2-iso-intense in 66.6% and 71.4% of their cases, respectively [6, 8]. Still, our finding agreed with a study by matching Mersha et al. [5], who reported 80% of their cases to be T2 hyperintense. The variability in T2 signal intensities of meningioma is due to their different histologic subtypes (fibroblastic, transitional, syncytial, angio-blastic, or mixed) where each subtype results in different T2 signal intensity. Syncytial and angio-blastic subtypes have hyperintense T2 signal where the remaining types have iso-intense to hypointense T2 signal [25].

Also, all the seven meningiomas (100%) were homogenously hyper-enhancing with no cystic changes. All the seven meningiomas (100%) were hyperintense on DWI. Four (57.2%) had low ADC values less than 1 × 10−3 mm2/s and three (42.8%) had intermediate ADC value between 1 and 1.6 × 10−3 mm2/s. Farhan et al. [41] reported 77.8% of their meningioma case to be iso-intense on DWI, with a low ADC value of 0.97 × 10−3 mm2/s. Similar low to intermediate ADC values were reported by Pavlisa et al. [42], ranging between 0.87 and 1.1 × 10−3 mm2/s.

Comparing ADCs of meningiomas and vestibular schwannomas: Schwannomas had prevalent values in the range of 1–1.7 × 10−3 mm2/s (nine out of ten) with an additional single case of <1 × 10−3 mm2/s. Comparatively, meningiomas displayed more restricted low ADC values, nearly 60% showing ADC <1 × 10−3 mm2/s. These results are in good agreement with those published by Farhan et al. [41] and Pavlisa et al. [42]. Thus, it is obvious that meningiomas almost always restrict with low to intermediate ADC values generally lower than that of schwannomas. Our statistical analytical tests revealed a statistical significance of different ADC values that separate the two pathologies: meningiomas and schwannomas, being lower for the former mentioned. Still, there may be an overlap of both lesions in intermediate ADC values reflected by high cellular schwannomas.

Comparing MRS applied in our study, all acoustic schwannomas (100%) showed myo-inositol peak and one case showed lactate/lipid peak. Shakweer et al. [6] reported that schwannomas showed myo-inositol peak and high choline peak. They also stated the cause of the presence of myoinositol peak in schwannomas is unknown. However, it is likely because myo-inositol exists in schwann cells and is associated with microglial activation and astrogliosis, a feature that is present in schwannoma. The lipid peak that was seen in a schwannoma case may be attributed to intralesional cystic changes or necrosis. However, it is not specific for diagnosing schwannoma. Comparatively, six cases of meningiomas (85.7%) showed alanine peak and one (14.3%) case showed myo-inositol peak. Shakweer et al. [6] also reported that meningiomas showed alanine and glutamate peaks as well as high choline peak and low NAA peak. Gujar et al. [45] reported that meningiomas showed alanine peak, high choline peak, low NAA peak, and sometimes glutamate peak at 2.35 ppm.

The three epidermoid and arachnoid cysts in our study showed typical literature-described features of non-enhancement, with nulling on FLAIR by arachnoid and marked diffusion hyperintensity of epidermoid showing low ADC of 0.6 × 10−3 mm2/s. Still, spectroscopy analysis of our epidermoid was distorted and non-readable, compared to research by Poptani et al. [44], reported some lactate peak in these cystic lesions.

The two cases of chondrosarcomas had osseous epicenters at the petrous apex with intradural extra-axial component pedunculated and secondarily extending into CPA. They showed a bright chondroid matrix on T2WI with avid enhancement. MR perfusion performed on one case was hypoperfused as expected for its matrix. Such conventional and functional data just correlated with findings reported by Kothary et al. [46]. Also, both lesions showed high ADC values of 1.5 × 10−3 mm2/s, which is helpful to differentiate such lesions from off-line chondromas; the latter showing lower values of 1.2 × 10−3 mm2/s, as reported by Muller et al. [47] while chondrosarcoma have a mean higher ADC values up to 2.1 × 10−3 mm2/s. Though Kumaran et al. [48] reported NAA peak in chondrosarcoma, our case revealed non-specific lactate peaks at all. This may be attributable to many to bone/air interfaces degrading spectra.

The glomus jugular lesion pedunculated as CPA mass showed typical salt and pepper appearance with avid enhancement and unexpectedly intermediate ADC of 1.11 × 10−3 mm2/s, questionably due to hemorrhages and fibrosis intervening between the vascular spaces inside the lesion. Aschenbach et al. [49] reported glomus tumors to have a mean ADC value of 1.3 ± 0.2 × 10–3 mm2/s. Spectrum from glomus revealed a high choline/creatine ratio and a lactate peak. Maheshwari et al. [50] who reported a glomus tumor to be a benign tumor with a high choline/creatine ratio. The trigeminal schwannoma showed T2 bright signal and hyper-enhancement with a high ADC value 2.3 × 10−3 mm2/s. The facial schwannoma shows T2 hyperintense signal with an intermediate ADC value of ADC value 1.2 × 10−3 mm2/s, seen continuous with dilated fallopian/VII canal. These were just similar to published literature criteria [51, 52]. A limitation for our study is the small sample size with only a total of 27 patients, 12 schwannomas, and only 7 meningiomas. It is recommended for additional work of a larger patient sample size and with the incorporation of other dedicated techniques (e.g., T* dynamic perfusion).

Conclusions

Though MRI features of CPA masses are distinctive in most clinical settings, MRI spectroscopy, diffusion, and susceptibility can provide highly informative additional data in problematic cases. An intermediate to high ADC value plus myo-inositol peak and signal voids of micro-bleeds are highly suggestive of schwannomas. This is in contrary to meningiomas displaying low to intermediate ADC and an alanine peak with no micro-bleeds. The less common lesions revealed non-specific data.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

CPA:

Cerebello-pontine angle

ADC:

Apparent diffusion coefficient

MRS:

Magnetic resonance spectroscopy

NF2:

Neurofibromatosis

CISS:

Constructive interference in steady state

DWI:

Diffusion-weighted imaging

SWI:

Susceptibility-weighted imaging

MRP:

Magnetic resonance perfusion

IAC:

Internal Auditory canal

EST:

Endolymphatic sac tumor

FOV:

Field of view

CBV:

Cerebral blood volume;

rCBV:

relative cerebral blood volume

FLAIR:

Fluid Attenuated Inversion Recovery

rTBV:

Relative tumoral blood volume

MIP:

Maximum Intensity Projection

VS:

Vestibular schwannomas

CSF:

Cerebrospinal fluid

VOI:

Volume of interest

NAA:

N-Acetyl-cysteine (n = amino-acid)

GAD:

Gadolinium (MR contrast)

ELT:

Endolymphatic tumor
