Role of multi-detector CT in analysis of the greater and lesser palatine foramina
Egyptian Journal of Radiology and Nuclear Medicine volume 51, Article number: 150 (2020)
The objective of this study was to assess variation in number, size, shape, and location of greater and lesser palatine foramina using multiple anatomical landmarks through data obtained from adult head CT scans. CT skulls of 200 adult persons were included in this study. There were 100 males and 100 females, aged from 22 to 65 years old. An e-film DICOM viewer version 2 was applied to estimate morphological parameters and to calculate the linear measurements related to the greater palatine foramen.
On the basis of CT findings, regarding the position of GPF in relation to maxillary molar teeth, the most frequent location was opposite the third maxillary molar (41%). Regarding the dimensions of the GPF, the mean AP diameter was 3.94 ± 1.13 mm on the right side and 4.22 ± 1.21 mm on the left. The mean LM diameter was 2.17 ± 0.59 mm on the right side and 2.28 ± 0.74 mm on the left. It was concluded that the GPF was AP elongated in 90.5% and circular in 9.5% of the examined CT scans. Linear measurements from the center of GPF to surrounding anatomical landmarks were done and showed no statistically significant difference existed between sides, but a statistically highly significant difference existed between males and females.
Proper localization of GPF is important to facilitate therapeutic, local anesthetic, and surgical manipulation in the maxillofacial region. Based on CT findings, we demonstrated that the GPF is most often located opposite the M3 in the majority of the cases. The maxillary molars are the best landmarks for locating the GPF.
The hard palate presents many important features including the greater and lesser palatine foramina. The lesser palatine foramina (LPF) transmit lesser palatine vessels as well as middle and posterior palatine nerves. The greater palatine foramen (GPF) transmits greater palatine nerve and vessels. Greater palatine nerve is a branch of maxillary division of trigeminal nerve supplying mucosa of hard palate, medial wall of maxillary sinus, and posterior aspect of lateral wall of nose . The greater palatine artery originates from descending palatine branch of maxillary artery in the pterygopalatine fossa, passes through the greater palatine canal, and emerges from GPF in palatal aspect of the third maxillary molar, to reach the hard palate . The palatine crest is a prominent bony ridge extending medially from behind GPF .
Locating the greater palatine foramen is of paramount importance for both dentists and oral and maxillofacial surgeons . Furthermore, it is important to determine the location of the GPF for palatal donor tissue and greater palatine nerve block anesthesia. Knowing the exact location of the GPF is essential also for mobilization of the greater palatine artery in closure of oroantral fistula using mucoperiosteal pedicled palatal flaps . It is also reported that stimulation of pterygopalatine ganglion through this foramen is used for diminishing the effects of paralysis in paralytic patients and also in cases of cerebral vasospasmor cluster and migraine headache .
The objective of this study was to assess variation in number, size, shape, and location of greater and lesser palatine foramina using multiple anatomical landmarks through data obtained from adult head CT scans.
CT skulls for examination of the brain or paranasal sinuses of 200 adult persons were included in this study. There were 100 males and 100 females, aged from 22 to 65 years old.
Inclusion criteria: CT skulls for examination of brain or paranasal sinuses of adult persons of both sexes.
Exclusion criteria: radiographs showing pathological changes in the region of maxilla (including developmental and traumatic changes).
This study was approved by the Research Ethics Committee. Written informed consent was obtained from all the study patients before any data or scans were gathered or performed.
A high-speed GE FX CT scanner (GE Healthcare) acquired CT images at exposure 120 kV, 74 mA, 60 mAs; rotation time 0.5; and slice thickness 0.mm.
Patient’s sex and age data were acquired from patient files.
An e-film DICOM viewer version 2, a program for radiograph analysis and measurement, was applied to estimate morphological parameters and to calculate the linear measurements. Images were evaluated in axial, coronal, and sagittal planes.
Number of lesser palatine foramina on both sides.
Presence of palatine crest on both sides.
Location of the GPF in relation to maxillary molar teeth. The location of GPF was described as either opposite the second maxillary molar (M2), between M2 and M3, opposite M3, or behind M3.
The location of the GPF were determined by the following steps:

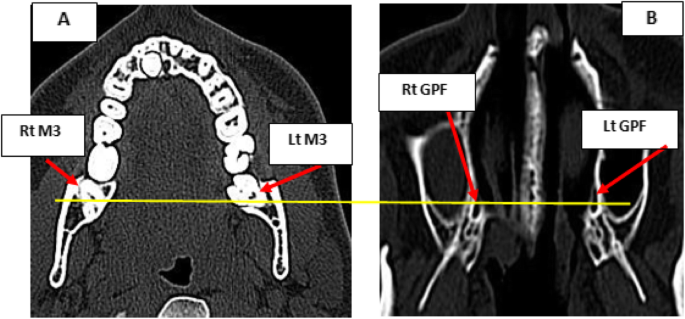

The screen was divided on the e-film viewer into two parts (A and B).
The same axial cuts were retrieved in both parts.
A transverse line passing through the center of GPF in image B was drawn.
Another line parallel to the first one was drawn in image A.
A new depth of axial reconstruction demonstrated an overlap between the previous two lines, thus locating the GPF in relation to maxillary molar teeth.
The dimensions of the GPF were estimated as follows:
The longest anteroposterior (AP) and lateral-medial (LM) dimensions were measured.
The center of GPF was set at the point of intersection of the longest AP and LM dimensions.
The shape (or form) of GPF was determined by dividing AP by LM dimensions:
Values equal to one indicate a circular foramen
Values greater than one indicate an AP elongated foramen
Values less than one indicate a LM elongated foramen
Measurements on CT scans were obtained from the center of GPF to:
Posterior border of hard palate (PBHP) (shortest distance).
Midline maxillary suture (MMS) (shortest perpendicular distance).
Posterior nasal spine (PNS).
Center of incisive fossa (IF).
Center of opposite GPF.
Statistical analysis was performed using statistical package for social sciences (SPSS) version 21.0 (IBM corporation, Somers, NY, USA) statistical software. The frequency of nominal data was done. The association among the different nominal variables regarding side and gender was explored using Chi square (X2) tests.
The quantitative data were expressed as means ± standard deviation (SD). The data were examined by Kolmogorov Smirnov test for normality. Independent t test was performed to compare between the different variables regarding side and gender.
The results were considered significant at p value ≤ 0.05 and highly significant at p value ≤ 0.01.
Location of GPF in relation to maxillary molar teeth
The presence of one GPF on both sides was a constant finding (Fig. 1). The GPF was most frequently located opposite M3 (41%) (Fig. 2). It was found behind M3 in 25.8% (Fig. 3), between M2 and M3 in 23.3%, and opposite M2 in 10% (Fig. 4). Regarding the side, on the right side, the GPF was located opposite M3 in 40%, behind M3 in 26%, between M2 and M3 in 24%, and opposite M2 in 10%. On the left side, it was located opposite M3 in 42%, behind M3 in 25.5%, between M2 and M3 in 22.5%, and opposite M2 in 16%. p value = 0.2 is statistically non-significant using Chi square tests (Table 1).
Regarding the location of GPF in relation to maxillary molars in both males and females, several locations were encountered, opposite M3 in 47.5% of males and 34.5% of females, between M2 and M3 in 27% of males and 19.5% of females, behind M3 in 21.5% of males and 30% of females, and opposite M2 in 4% of males and 16% of females. p value = 0.3 is statistically non-significant using Chi square tests (Table 2).

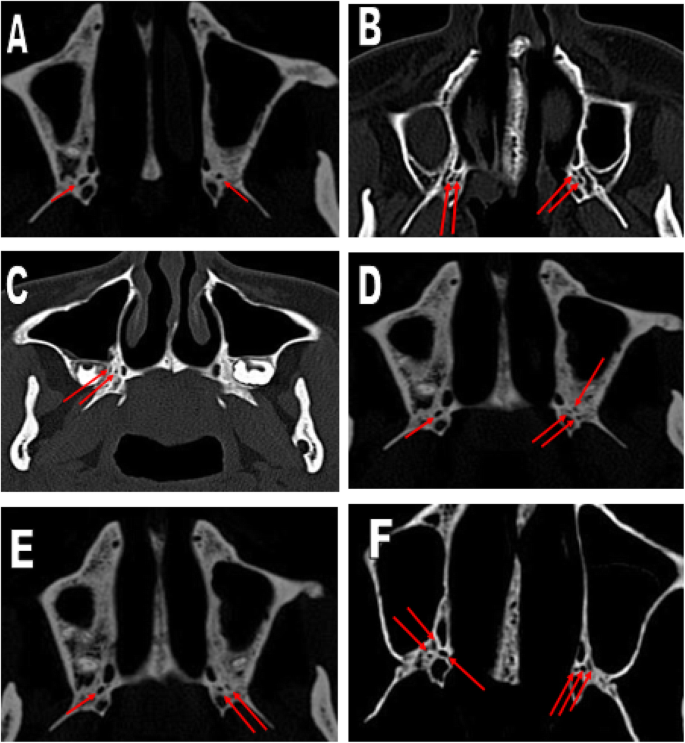

Number of lesser palatine foramina (LPF) (Fig. 5)
The presence of one lesser palatine foramen (LPF) was most frequent (75.5%). Two LPF were observed in 22% and three foramina in 22%. Absent foramina were encountered in 0.5%. Regarding the side, on the right side, one foramen existed in 76%, two foramina in 23%, and three in 1%. On the left side, one foramen existed in 75%, two foramina in 21%, and three in 3%, and absent foramina were encountered in 1%. p value = 0.5 is statistically non-significant using Chi square tests (Table 3).
Regarding the gender, males showed absent LPF in 1%, one foramen in 76%, and two foramina in 23%. Females showed one LPF in 75%, two foramina in 21%, and three foramina in 4% (Table 4).
Presence of palatine crest
The presence of palatine crest has been a constant finding in all examined CT scans (Fig. 1).
The dimensions of the greater palatine foramen (GPF)

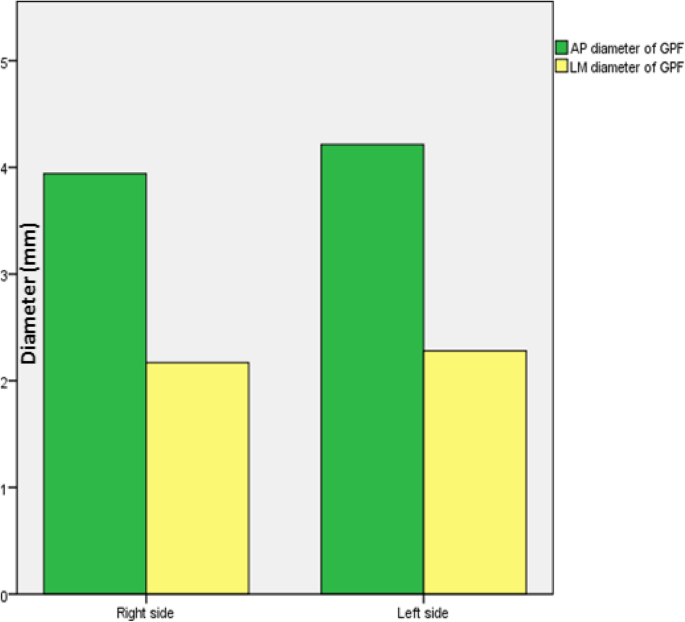

On the right side, the mean AP diameter of GPF was 3.94 ± 1.13 mm, and LM diameter was 2.17 ± 0.59 mm. On the left side, mean AP diameter was 4.22 ± 1.21 mm, and LM diameter was 2.28 ± 0.74 mm (Figs. 6 and 7). p value = 0.02 is statistically significant using independent t test (Table 5).
In males, the mean AP diameter of the GPF was 4.39 ± 1.2 mm, and the mean LM diameter was 2.47 ± 0.70 mm. In females, the mean AP diameter was 3.77 ± 1.07 mm, and the mean LM diameter was 1.98 ± 0.53 mm. P value less than 0.01 is statistically highly significant using independent t test (Table 6).
The GPF was AP elongated in 90.5% and circular in 9.5%. Regarding the side, on the right side, the GPF was AP elongated in 90% and circular in 10%. On the left side, it was AP elongated in 91% and circular in 9%. p value = 0.1 is statistically non-significant using Chi square tests (Table 7 and Fig. 8).
In males, GPF was AP elongated in 94% and circular in 6%. In females, it was AP elongated in 87% and circular in 13%. p value = 0.02 is statistically significant using Chi square tests (Table 8).
Measurements from the center of GPF to surrounding anatomical landmarks

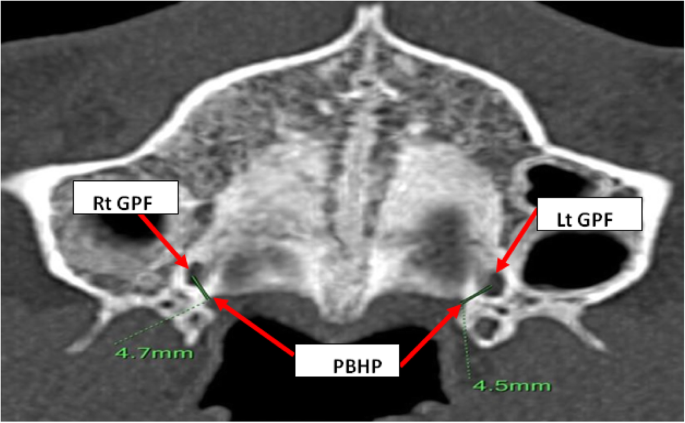

On the right side, the GPF was positioned 3.9 ± 1.21 mm from PBHP (Fig. 9), 14.95 ± 1.3 mm from MMS (Fig. 10), 16.55 ± 1.61 mm from PNS (Fig. 11), and 38.06 ± 3.10 mm from IF (Fig. 12). On the left side, the GPF was positioned 3.93 ± 1.13 mm from PBHP, 14.99 ± 1.24 mm from MMS, 16.48 ± 1.6 mm from PNS, and 37.96 ± 3.17 mm from IF. P value ranges from 0.66 to 0.8 which is statistically non-significant using independent t test (Table 9 and Fig. 13).
The mean distance from the center of GPF to the center of opposite GPF was 30.38 ± 2.36 mm (Fig. 14).
In males, the GPF was positioned 4.22 ± 1.21 mm from PBHP, 15.37 ± 1.21 mm from MMS, 17.13 ± 1.54 mm from PNS, and 38.89 ± 3.28 mm from IF. In females, the GPF was positioned 3.61 ± 1.04 mm from PBHP, 14.57 ± 1.21 mm from MMS, ± 1.42 mm from PNS, and 37.13 ± 2.70 mm from IF. P value less than 0.01 indicates statistically highly significant using independent t test (Table 10).
The mean distance from the center of GPF to the center of opposite GPF was 31.22 ± 2.30 mm in males (Fig. 14) and 29.54 ± 2.12 mm in females. P value less than 0.01 indicates statistically highly significant using independent t test (Table 11).
The hard palate is an essential region of the skull; its gross anatomy and morphological variation have been of interest in several studies. Different clinical problems may require surgical approach to the bony palate such as dentofacial orthopedics, implant-assisted dental reconstruction of oncology patients, maxillary orthodontic protraction, and obvious oral pathology .
Greater palatine canal approach to maxillary nerve block demands a perfect three-dimensional orientation of position, direction, and extent of the canal. The preliminary step is identification of GPF. Utilizing multiple anatomical landmarks to identify the GPF increases the accuracy and minimizes the complications of injecting anesthetic drug . In numerous previous studies using dry adult skulls, there is more emphasis on all the measurements of present study. However, our study, being radiological evaluation, the location of GPF is more accurate than the dry bone studies.
In all examined CT scans, the presence of GPF on both sides was a constant finding. This is consistent with the majority of the surveyed studies [4, 8, 9]. However, discrepancy in the number of GPF has previously been reported by Cagimni et al. . They reported a single GPF in 81%, double GPF in 16%, and triple GPF in 2% of the examined skulls. Multiple GPF transmit greater palatine neurovascular bundle, similar to the single GPF. The presence of multiple GPF is anticipated when the pain is not effectively blocked during anesthesia .
In the present study, the GPF was most frequently located opposite M3 (41%). Other less frequent locations were behind M3 (25.8%), between M2 and M3 (23.2%), and opposite M2 (10%). The same most frequent location (opposite M3) was reported by Shalaby et al.  in their study on Egyptian skulls (84%). Our results also match with Varalakshmi et al.  and Beetge et al.  who stated that GPFs were close to the third maxillary molar in 69.8% and 66.65% of their cases, respectively. Also, this stands in agreement with Tomaszewska et al.  who found GPF most frequently located opposite M3 (74.7%), both in Europe and worldwide. On the other hand, Wang et al.  who conducted their study on Chinese recorded that the most frequent location of GPF was between M2 and M3, while Klosek and Rungruang , in Thais, considered the most frequent location to be opposite M2. Despite numerous studies, there is still no agreement to whether the position of GPF is prone to ethnic variability. The cause of GPF position diversity may be due to the difference in the quality of procedures performed, as well as the way the GPF was related to maxillary molars [10, 11].
Despite differences in the methods of assessment of GPF, the dimensions did not significantly differ among studies. In our study, the mean AP diameter of GPF was 3.94 ± 1.13 mm on the right side and 4.22 ± 1.21 mm on the left, while the mean LM diameter was 2.17 ± 0.59 mm on the right side and 2.28 ± 0.74 mm on the left. The GPF was described as AP elongated in 90.5% and circular in 9.5%. These results are almost close to most prior studies [4, 11]. In the study of Beetge et al. , the mean GPF dimensions were an A-P of 5.22 mm and an L-M of 2.81 mm. Shalaby et al.  measured the mean AP as 4.86 ± 0.9 mm on the right side and 4.78 ± 1.01 mm on the left. The mean LM diameter was 3.02 ± 0.7 mm on the right side and 3.01 ± 0.9 mm on the left side. This minimal discrepancy could be attributed to the fact that measurements in the present study were obtained radiologically unlike Shalaby et al.  who performed it manually on dry skulls.
In this work, it was attempted to locate the GPF in relation to specific surrounding anatomical landmark such as posterior border of hard palate (PBHP), midline maxillary suture (MMS), posterior nasal spine (PNS), and incisive fossa (IF).
The distance between GPF-PBHP holds its importance in successful localization of GPF and prevention of accidental injury to nearby lesser palatine nerves and soft palate. Moreover, this dimension helps in localization of GPF in these cases where the third maxillary molar failed to erupt or is damaged due to any reason .
In the present study, the GPF-PBHP distance was 3.9 ± 1.21 mm on the right side and 3.93 ± 1.13 mm on the left. This is consistent with  where GPF-PBHP distance was recorded as 3.63 ± 1.91 mm on the right side and 3.94 ± 1.97 mm on the left. Shalaby et al.  in their Egyptian study on dry skulls measured the GPF-PBHP distance as 4.39 ± 1.73 mm on the right side and 4.53 ± 1.23 mm on the left. However, Shalaby et al.  took their measurement from the posterior edge of GPF to the point of maximum concavity on PBHP, while in the present study it was taken from the center of GPF to the shortest distance on the posterior border of hard palate.
Linear measurements in the present study showed the mean distance from the center of GPF to MMS as 14.95 ± 1.3 mm on the right side and 14.99 ± 1.24 on the left. These values were close to radiological results of  in which the GPF-MMS distance was estimated as ± 1.45 mm.
In the present study, the mean distance from the center of GPF to PNS was 16.55 ± 1.61 mm on the right side and 16.48 ± 1.6 mm on the left while the distance from the center of GPF to the center of IF was 38.06 ± 3.10 on the right side and 37.96 ± 3.17 on the left. These figures are disparate from the radiological results of Tomaszewska et al. , who estimated the GPF-MMS distance as 34 ± 3 mm on the right side and 34.3 ± 3.1 on the left, though the same methodology was applied in both studies.
Surveying different studies, it could be deduced that variation exits in linear measurements in different population; even interpopulation variation could exist. These differences might be related to ethnic factor  or quality of procedure performed . Aterkar et al.  pointed out that linear measurements from GPF increase in edentulism; therefore, this distance may become variable according to palate width.
In the present study, a statistically significant side difference was found in the dimensions of GPF. Previous radiological studies provided no data regarding this point [8, 11, 19]. Although Shalaby et al.  did not recognize a statistically significant difference between the dimensions of GPF on both sides in their study on dry skulls, radiological data should be considered more accurate in this respect.
In the present study, a statistically highly significant difference in linear measurements from the center of GPF to surrounding anatomical landmarks as well as the dimensions of GPF existed between males and females. This is similar to results of [9, 11, 20]. Male skulls are generally larger than the female ones .
Although Moreira et al.  and Nascimento et al.  observed a statistically significant difference between males and females regarding the distance from GPF to IF, no statistically significant difference existed regarding the distance between right and left GPF.
According to Tomaszewska et al. , position of GPF in relation to surrounding anatomical landmarks could be used in forensic examination to identify a person’s sex. Nascimento et al. , though considering this method valid, simple, reproducible, and inexpensive, recommended using it only when more accurate techniques are not applicable. Although the present study adopts this point view as confirmed by the radiological results, but it would not have been accurate to rely on the general features to govern out gender of skulls without available records.
CT scans revealed one lesser palatine foramen on both sides in 75.5%, two foramina in 22%, three foramina in 2%, and none in 0.5% (two skulls on the left side only). The results presented in the present study are comparable with those by Sushobhana et al. .
In the present study, the palatine crest was a constant finding in all CT scans. However, the percent of the presence of palatine crest was highly variable among previous studies. Jaffar and Hamadah  reported a 67% on both sides, Piagkou et al.  a 57.8% on the right side and 56.3% on the left.
The limitations of our study included the relative small number of patients, and we have not commented on the length of the canal in the present study.
Proper localization of GPF is important to facilitate therapeutic, local anesthetic, and surgical manipulation in the maxillofacial region. By use of multislice CT, we can assess variation in number, size, shape, and location of greater and lesser palatine foramina in relation to multiple anatomical landmarks. The GPF is most often located opposite the M3 in the majority of the cases, and the maxillary molars are the best landmarks for determination of their location.
