Sonopartogram versus conventional partogram for monitoring progress of labor: a prospective observational study

Abstract

Background

Repeated digital vaginal examination during labor may be uncomfortable for women and increases the risk of ascending infection. Transperineal ultrasound can assess fetal head descent, position, and cervical dilatation without these side effects. This study was conducted to evaluate the accuracy of transperineal ultrasound in monitoring labor progress.

Results

The study included 40 primigravida women in labor. Fair correlation was found between the assessment of fetal head station by vaginal examination (VE) and fetal head perineal distance (HPD) by transperineal ultrasound (TPUS) (Kendall’s tau-b (τ) = − 0.299, 95% CI = − 0.479 to − 0.0863, p value = .0063) (Spearman rho = − .3844, p value = .0143; r2 = 0.1478). Strong correlation was found between the cervical dilatation assessed by VE and by TPUS (Pearson’s r = .8601, 95% CI = 0.7493 to 0.9240, p value < .0001, r2 = 0.7396). There is moderate agreement between VE and TPUS as regards the assessment of head position on the face-clock [weighted kappa (κ) = .557, 95% CI = .362 to.753].

Conclusion

Transperineal ultrasound can be used as an alternative to repeated digital examination for assessment of labor progress.

Background

The standard assessment method for labor progress worldwide is by digital vaginal examination (VE), where physicians can assess fetal head descent and position together with cervical effacement and dilatation. Still, assessment of cervical dilatation by VE might be imprecise [1, 2] and alterations in findings might cause distress to women and decrease their confidence in their care providers [3].

Repeated VE increases the risk of ascending infection and chorioamnionitis and shortens the latent period in women with premature rupture of membranes [4]. National Institute for Health and Clinical Excellence (NICE) encouraged conduction of research to decrease frequency of VE during labor [5].

Transperineal ultrasound (TPUS) has been investigated as a complementary tool for management of labor [6]. Studies have demonstrated high reliability of TPUS for assessment of cervical dilatation and fetal head position and station [7,8,9,10]. Authors have suggested using TPUS alone when VE is not desirable as in cases with premature rupture of membranes or preterm labor [11]. TPUS was found to be more accepted and convenient to pregnant females than VE [12].

Conventionally, findings of VE are recorded on the partogram, a printed chart used worldwide for fetal and maternal monitoring during labor [4]. Hassan et al. introduced a novel, ultrasound-based chart, the sonopartogram for assessment of progress of labor and feto-maternal monitoring in desirable cases [11]. In spite of the promising results suggested, this sonopartogram has not been widely accepted.

This study was conducted to evaluate the accuracy of transperineal ultrasound in monitoring labor progress and to validate the use of the sonopartogram.

Methods

This prospective observational study was conducted during the period from December 2018 till October 2019. The study was approved by the institutional Ethical and Research Committee. The study included 40 primigravida women > 18 years old, pregnant at ≥ 37 and < 41 weeks, single intrauterine pregnancy with vertex presentation, and during the active stage of labor (cervix 4–10 cm dilated). An informed written consent was obtained from all participants.

These women received the standard monitoring of labor, where VE was performed every 2 h by the obstetrician who recorded the cervical dilatation (in centimeters) and head station and position and plotted the findings onto conventional partogram together with the other routine parameters included as maternal vital data and fetal heart rate. Fetal head descent (station) was described according to WHO classification as the relationship of the vertex in centimeters above or below the ischial spines (− 5 to + 5) [13]. Measurements were rounded up or down to the nearest whole centimeters, with a measurement at precisely 0.5 being rounded up. Fetal head position was determined based on the position of the posterior fontanel, according to a 12-h clock face, with the measurement rounded up or down to the nearest hour (with 12.00 h representing the occiput anterior position).

TPUS was performed using a curved 2D 4.6 MHz transducer (SONOACE R5) following each VE by another examiner where each examiner was blinded from the data recorded by the other. TPUS was done with the woman lying supine in the lithotomy position. Cervical dilatation was assessed in the sagittal view with the cursor placed on the inner part of the cervical tissue anteriorly and the inner part of the cervical tissue posteriorly (Figs. 1 and 2). Fetal head descent was assessed in a transverse view by measuring the fetal head perineal distance (HPD) in centimeters as the shortest distance between the outer bony limit of the fetal skull and the perineum (Figs. 3, 4, 5 and 6). Fetal head position was defined by using the fetal spine or orbits as a landmark and the occiput as a denominator and was expressed according to a 12-h clock as for the digital VE (Fig. 7). Data obtained by TPUS was recorded on the sonopartogram first introduced by Hassan et al. (Fig. 8) [11].

Fig. 1
figure1

Cervical dilatation measured by TPUS. Cervical dilatation is 64.4 mm measured transperineally in the anteroposterior plane from the inner part of the cervical tissue anteriorly and the inner part of the cervical tissue posteriorly

Fig. 2
figure2

Fully dilated cervix shown by TPUS. TPUS showing no cervical tissue to be measured denoting full cervical dilatation

Fig. 3
figure3

Fetal head perineum distance. HPD is 6.02 cm rounded down to 6 cm measured transperineally in the transverse view from the outer bony limit of the fetal skull to the perineum

Fig. 4
figure4

Fetal head perineum distance (2). HPD is 5.81 cm rounded up to 6 cm measured by TPUS

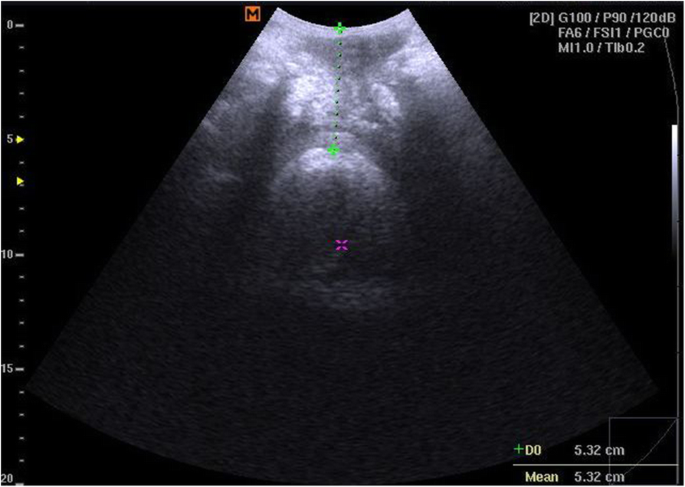

Fig. 5
figure5

Fetal head perineum distance (3). HPD is 5.32 cm rounded down to 5 cm measured by TPUS

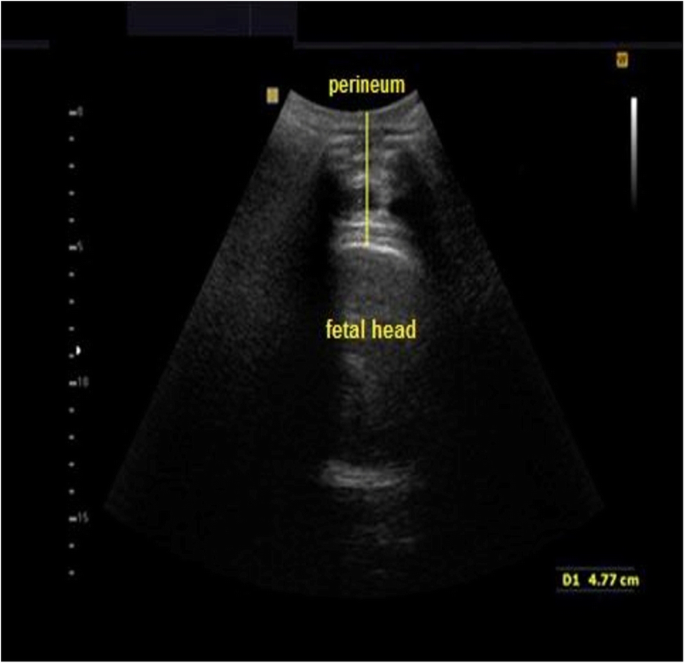

Fig. 6
figure6

Fetal head perineum distance (4). HPD is 4.77 cm rounded up to 5 cm measured by TPUS

Fig. 7
figure7

Fetal head position

Fig. 8
figure8

Sonopartogram. A sample sonopartogram showing fetal head descent, cervical dilatation, and head rotation with explanatory ultrasound images and depiction of the cervical dilatation score [11]

The women received the standard care by the obstetrician where management of labor was based on the digital VE being blinded from the TPUS information. After delivery, the participants were asked which of the two methods of assessment was more satisfactory.

Data was analyzed using Stata® version 14 (StataCorp LLC, College Station, TX, USA) and XLSTAT© version 2014.5.03 (Addinsoft, Inc., Brooklyn, NY, USA). Normally distributed numerical data was presented as mean ± SD and range, and skewed data as median and interquartile range. Categorical data was presented as number and percentage. Correlations were tested non-parametrically using the Spearman rank correlation or Kendall’s rank correlation. Bland-Altman method was used to examine agreement between US and VE as regards the quantification of cervical dilatation and head rotation. The differences between the two methods were plotted (on the Y-axis) against the averages of the two methods (on the X-axis). Horizontal lines were then drawn at the mean difference (bias), and at the limits of agreement, which are defined as the mean difference ± 1.96 times the standard deviation (SD) of the differences. If the differences within mean ± 1.96 SD (i.e., limits of agreement) are not clinically important, the two methods may be used interchangeably [14].

Results

A fair correlation was found between assessment of fetal head station by VE and fetal HPD by TPUS, (Kendall’s tau-b (τ) = − 0.299, 95% CI = − 0.479 to − 0.0863, p value = .0063) (Fig. 9), (Spearman rho = − .3844, p value = .0143; r2 = 0.1478] (Fig. 10). There is very strong correlation between the cervical dilatation assessed by VE and by US (Pearson’s r = .8601, 95% CI = 0.7493 to 0.9240, p value < .0001, r2 = 0.7396). The mean difference between VE and US for assessment of cervical dilatation was 0.65 ± 1.11 cm. The limits of agreement were − 1.52 to 2.82 cm (Fig. 11). The mean difference between VE and US for the assessment of fetal rotation on the face-clock was − 0.65 ± 2.38 h. The limits of agreement were − 5.52 to 3.92 h on face-clock. There is moderate agreement between VE and US as regards the assessment of head position on the face-clock [weighted kappa (κ) = .557, 95% CI = .362 to.753] (Table 1). Women showed significantly more compliance and satisfaction towards TPUS 24/40 (60%) than VE 14/40 (35%), p value = 0.025.

Fig. 9
figure9

Box plot showing relation between fetal head station by VE and fetal HPD by US. Box plot showing the relation between the fetal head station by VE and fetal head-perineum distance by US. The box represents the range from the first quartile to the third quartile (interquartile range). The line inside the box represents the median (second quartile). Error bars represent the minimum and maximum values. Kendall’s tau-b (τ) = − 0.299, 95% CI = − 0.479 to − 0.0863, p value = .0063

Fig. 10
figure10

Scatter plot showing correlation between fetal head station by VE and fetal HPD by US

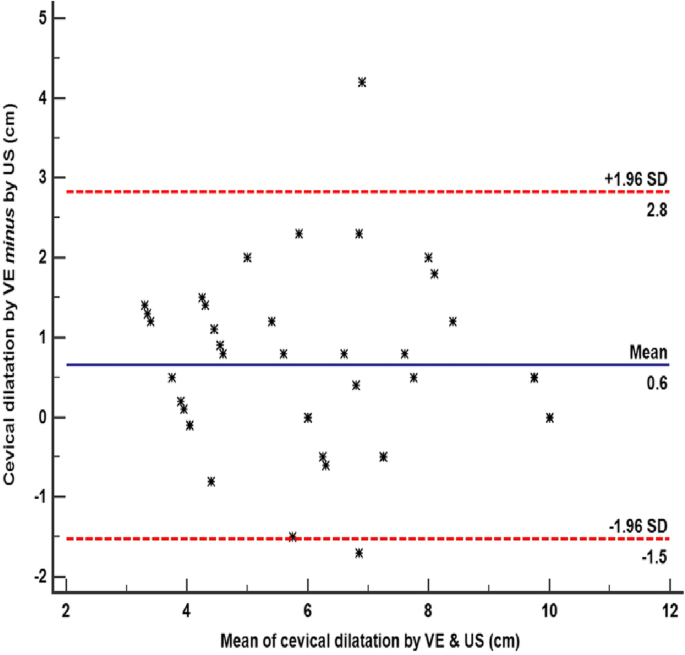

Fig. 11
figure11

Bland-Altman plot for agreement between VE and US as regards the assessment of cervical dilatation

Table 1 Agreement between VE and US as regards the assessment of head position on face-clock

Discussion

Vaginal delivery could be a very distressing condition for many women, especially primigravida; indeed, repeated VE increases the inconvenience to them. This study shows that the use of TPUS for assessment of parameters such as cervical dilatation and fetal head descent and position is comparable to VE and can be used as an alternative especially in selected cases where VE is not desirable as premature rupture of membranes and prolonged labor. There was a very strong correlation between VE and US for the assessment of cervical dilatation. Hassan et al. [11] suggested that VE tends to give larger estimates of cervical dilatation and explained this by the progressive nature of labor where US assessment preceded VE. Still, in this study VE, tends to show slightly larger estimates in spite being done before US examination; this proves the subjective nature of VE in contrast to US assessment which tends to be more objective. VE itself tends to cause overstretching of the cervix. Although estimation of cervical dilatation by US was found to be harder when the cervix is almost fully dilated, still, the mere presence of cervical tissue in US could exclude full cervical dilatation even when estimated so by VE.

Fetal head position showed moderate agreement between VE and US; several previous studies have suggested that US is even more accurate in the assessment of fetal head position than VE which might be altered by the presence of caput and even suggesting that the accuracy of VE did not improve with the increase of cervical dilatation [15,16,17,18,19]. Most of these studies compared fetal head position assessment by VE to trans-abdominal ultrasound. This study shows that assessment of head position by TPUS is feasible and with considerable accuracy.

Fetal head station assessment by TPUS has been studied using different methods of assessment including head-symphysis distance [20], angle of progression [21], and head-perineum distance (HPD) [22, 23]. This study chose the HPD for the easiness of the technique and previous experience with the technique [23]. HPD showed a moderate correlation with VE in the assessment of head station. The assessment of labor progress using TPUS has showed an overall more acceptance of women over repeated VE. The use of the sonopartogram introduced by Hassan et al. [11] allows even complete follow-up of women during labor and with comparable accuracy and convenience to the conventional partogram. The study had several strength points; the blinding of the VE and TPUS assessors decreases the bias of the results and allowed commencement of the study without interfering with the labor management. The choice of HPD might be considered as one of the merits of the study; the easiness of this technique makes this assessment tool easy to learn for most physicians and easy to be applied by almost any ultrasound machine. This study does not only provide an alternative assessment tool for assessing cervical dilatation and fetal head descent, but provide a whole assessment method of the progress of labor together with assessment of maternal and fetal condition using the sonopartogram. Still, the relatively small number of participants might be considered as a limitation to the study.

Conclusion

Assessment of labor progress using transperineal ultrasound and the suggested sonopartogram can be an alternative to the conventional partogram especially when repeated VE is not desirable as in cases with prolonged labor, premature rupture of membranes, or patient non-compliance.
