Abstract

Background

The anterior epitympanic plate (cog) and Köerner’s septum are gaining more importance since the introduction of transcanal mastoidectomy as these anatomical structures are serving landmarks for the attic. Moreover, different morphological types of cog and Köerner’s septum revealed embryological relation to the development of the isthmic membrane; the latter is linked to aeration of the attic and thus affects the pathological development of the cholesteatoma.

Results

A retrospective review of CT images of 86 patients proved by surgical biopsies revealed: 49 cholesteatomas and 37 non-cholesteatomatous CSOM. The type-I “cog” had a higher incidence (n = 40) and was statistically more prevalent in non-cholesteatomatous CSOM (n = 30, 81.1%). Type-II was the second commonest and was statistically more prevalent in cholesteatomatous CSOM (n = 22, 44.9%). Type-III was the third commonest, seen in (n = 18, 20.9%) and was statistically more prevalent in cholesteatomatous CSOM (n = 17, 34.7%). Köerner’s septum was more prevalent in non-cholesteatomatous CSOM (70.3%) with statistical significance (p value = 0.002).

Conclusions

The difference in the distribution of different morphological types of anterior epitympanic plate “cog,” as well as the difference in Köerner’s septum existence amongst cholesteatomatous and non-cholesteatomatous CSOM are suggested as risk factors for the development of cholesteatoma and may predict a cholesteatoma on CT images.

Background

Chronic suppurative otitis media CSOM is defined as a persistence of middle ear inflammation for more than 6 weeks and is characterized by discharging ear via a perforated tympanic membrane. Some ears with CSOM develop cholesteatoma with the creation of an enlarging ectopic sac of stratified strongly keratinized squamous epithelium [1,2,3].

Surgeons and radiologists have made several attempts to classify cholesteatoma [2, 4]. The most widely used classifications are based mainly on either their pathogenesis (congenital or acquired) or on their location in the middle ear cavity in relation to the TM [1, 5]. Recently, the “European Academy of Otology and Neuro-otology” and the “Japanese Otological Society” proposed a new classification system based primarily on extension and complications [4].

Regarding its location, pars flaccida variety is the commonest developing just lateral to the ossicles in the Prüssak’s space (subcomponent of epi-tympanum). Pars tensa variety is much less common and often develops in hidden areas such as facial recess or sinus tympani, thus verifying the need for better assessment [5].. Owing to the fact that the epi-tympanum is considered one of the most frequent sites for primary and recurrent cholesteatoma, a sufficient awareness of the surgery-related details about anatomical construction of the epi-tympanum, the attic, and its adjacent structures is very valuable for the surgeon [6,7,8].

The anterior epitympanic recess (AER) is a small space in front of the malleus head. A coronally oriented bony septum named the anterior attic bony plate or “Cog” partitionates the anterior epitympanic recess-AER from the epi-tympanum proper (attic) [9]. It is considered the medial continuation of the transverse crest, which is projecting from the tegmen tympani [10]. Moreover, this bony structure and related mucosal fold of this space are closely relevant to the anterior ventilation and drainage of the epi-tympanum and mastoid, which therefore can cause inflammation if got obstructed [11, 12]. The development of chronic otitis media is likely related to morphological types of the “cog” to a certain degree. A completely developed cog is linked to the embryological development of an isthmic membrane, which offers a pathway for aeration via anterior and posterior isthmic. On the other side, incomplete forms of cog are linked to a short or absent isthmic membrane with poor attic ventilation and thus more incidence of cholesteatoma. Thus, the type “cog” carries important pathological concerns. Moreover, the AER is increasingly attaining surgical concerns of its proximity to nearby important structures, where it is serving as a landmark to the attic during cholesteatoma surgery [12].

Another anatomical variant, which may affect the epitympanic aeration is the “Köerner’s septum”-(KS), also called the “petro-squamosal lamina.” It represents the persistence of the developmental petro-squamous suture line. Köerner’s septum is viewed in CT images as a dense bony plate found in the mastoid process. This developmental septum, when present, constitutes a junctional line between superficial squamous and deeper petrous portions of mastoid. It may create problems or complications during mastoidectomy if the surgeon was not informed about its prevalence and morphology [13,14,15].

Although middle ear (ME) disease can be evaluated with usual otologic and audiometric examinations, more pertinent questions about disease extension and anatomical variants need to be answered. A cholesteatoma in the “hidden areas” like anterior epitympanic recess and sinus tympani can be missed [5]. Surgeons are also blinded with subtle details of anatomical variations of the temporal bone prior to surgery [14,15,16,17]. Providing excellent spatial resolution, the high-resolution CT scanning offered an indispensable tool in confirmation of disease extension, identification of anatomical details, and detection of asymptomatic complications [5, 8, 9, 18, 19]. As a matter of fact, HRCT provides a clear roadmap for surgeons to plane the appropriate approach, especially for extensive cases and revision or second look surgery [20, 21]. This helped by multiple reformations offered in all planes and even double-oblique reformations. The latter technical merit is provided only by multi-slice (> 16 slices) scanners, in contrary to oligo-slice scanners (16 and less). These multi-slice scanners allow for volume acquisition and reconstruction at only 6 microns slice thickness, with the ability to visualize any structures regardless of its direction due to oblique image reformations [11]. Thus, the cog and KS could be adequately revealed regardless of their orientation.

Mastoidectomy is known to be the classic surgical approaches for the total removal of the disease [14, 15]. The trans-canal endoscopic and microscopic ear surgery approaches offer a new era in the management of limited attic cholesteatoma, providing less invasive surgical technique [21,22,23]. Still, less invasive surgeries are questioning identification of some landmarks; the “Cog” and “KS,” both serving as a guidance route to the attic in both approaches [24, 25]. The aim of this study is to evaluate a statistical relation between the morphological types of the temporal bone anatomical structures, namely the “cog” and “KS” with an evaluation of their incidence in CSOM with or without cholesteatoma. This was done by a retrospective review of multi-slice CT images for both pathology groups and trying to find a relation between the incidence of a certain “cog” type and existence of “KS” with the development of the type of middle ear disease.

Methods

Study description

The protocol of our retrospective study had approval mad by the Institutional Review Board (IRB) of our university hospital. Patient approval or informed consent was not required for the review of images and clinical records. The study followed a retrospective approach for patients referred to our department by ENT surgeons for chronic ME disease (in the duration between April 2019 and February 2020). The HRCT multiplanar reformatted images of temporal bones in 86 patients were retrospectively reviewed.

Inclusion criteria

The study was meant to include only (a) adult patients (≥ 18 years old) with (b) proven surgical results of CSOM following mastoidectomies and with (c) unilateral disease.

Exclusion criteria

The study excluded (a) children (< 18 years old), (b) post-operative, and (c) bilateral cases.

CT imaging technique

All patients were examined using multi-detector row scanner (Somatom sensation-64, Siemens, Germany). Non-contrast and multi-planar images of the temporal bone were acquired in a plane parallel to the orbito-meatal line. The scanning parameters included section-thickness of 0.5 mm, zero slice interval, pitch of 0.85, rotation time of 1 s, matrix of 512 × 512, 130 kV, and 225 mA. Raw data were reconstructed by using a bone algorithm for optimizing visualization of the bony details of the temporal bone. The reconstructed images were displayed on FOV of 20 cm at the window level of 450 and window width 4500 of HU. “Double-oblique” reformatted images are made to assess for additional data on the status of the ossicle and bony walls.

Image analysis

This was done by two radiologists experienced in “Head & Neck” imaging (with 10 and 15 years of experience). CT examinations were reviewed to identify the morphological variations of anterior attic plate (cog), and Köerner’s septum was reported as present or absent. This is detailed as follows.

Identification of types of anterior epitympanic plate-“Cog”

The cog was identified as the posterior boundary of AER in front of malleus head and cochleariformis process. Cogs are classified as types I, II, and III: (a) Type-I: seen as complete thin bony plate crossing at the anterior portion of the attic of the middle ear, dividing the cavity into anterior epi-tympanic recess and attic proper; (b) Type-II: a small bony wedge-shaped bony projection at lateral bony attic wall; and (c) Type-III: non-visualized on CT basis. This pattern of classification was made according to the classification proposed by Lee et al. [21]. The rare event of eroded cog may not be differentiated from this entity, so we preferred to keep the term “non-visualized.” The exclusion of bilateral cases was made for this concern. The type of cog is almost always symmetrical in very individual. So that viewing of the contralateral ear of cog was part of our imaging viewing, refer to Figs. 1 and 2.

Fig. 1
figure1

Cog type-I (a) seen as a thin complete plate as compared to “cog” type-II (b) shown a pyramidal bony projection (colored arrowheads)

Fig. 2
figure2

Type-III-non-visualized: in the absence of opacification (a) and in the presence of opacification (b)

Identification of Köerner’s septum (KS)

KS was identified on the axial image at three points; superior SCC, level of head of the malleus, and level of the sinus tympani. If it is present, it may be complete or incomplete. The Köerner’s septum is identified as most lateral near horizontal and near-complete mastoid septum traced anteriorly to the lateral edge of the aditus, and lateral attic wall. The bony line can be seen in different inward and outward curves and with slight interruptions versus smooth continuity, refer to Figs. 3a, b, 4, 5, 6, 7 and 8. No definite classification for KS was made.

Fig. 3
figure3

Köerner’s septum (colored arrowheads) is shown as a thin bony plate at the lateral most portion of the mastoid cavity, seen slightly interrupted (a) and complete in (b)

Fig. 4
figure4

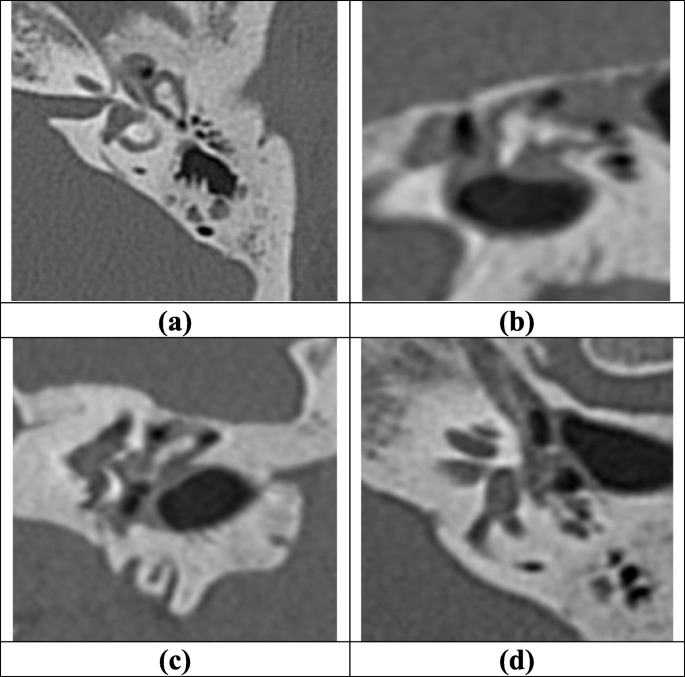

Case 1: A 32-year-old male with non-cholesteatomatous CSOM, showing type-I cog (a) shown as a complete thin bony plate. Reformatted images in (b), (c), and (d) reveal intact ossicular chain; malleus-incus complex in (b) and (c), and stapedial supra-structure in (d)

Fig. 5
figure5

Case 2 A 25-year-old male presented with proven cholesteatomatous CSOM. a Type-II (pyramidal type) is seen as a pyramidal projection at the lateral margin of the attic. The curved multi-planar image in b shows erosion of the lenticular process of the incus. Image c shows the mass effect on the attic and mild aditus widening. Köerner’s septum is not visualized. d Marked tegmental defects

Fig. 6
figure6

Case 3: Type-II in non-cholesteatomatous CSOM. Type-II (pyramidal) is seen in a, and Köerner septum is seen in b, at the lateral margin of the opacified mastoid antrum. Curved multiplanar reformats reveal ossicular–V sign of intact incus body and process (This means the V-shaped appearance of the intact continuous incudo-stapedial junction is most susceptible to erosions). The stapes is well visualized in d with intact incudo-stapedial junction

Fig. 7
figure7

Case 4: A 22-year-old male: Type-III in cholesteatomatous CSOM. Non-visualized bony projection at any level and this is termed as “Absent.” ac Revealed ossicular erosions of the incus and malleus (arrowheads). d Revealed marked mass effect with marked attic walls scalloping and marked aditus widening. Also, an element of “coalescent mastoiditis” is seen, so the Köerner’s septum cannot be evaluated

Fig. 8
figure8

A 45-year-old male patient. Type-I cog in cholesteatomatous CSOM: Type-I is seen as a complete bony plate. The incus body and process show erosions in b and c pointed by an arrowhead in b, matching with post-operative finding of non-cholesteatomatous erosions. The mastoid opacification is seen with failure to identify the Köerner’s septum

Statistical analysis and data interpretation

Data were fed to the computer and analyzed using IBM SPSS software package version 20.0. (Armonk, NY: IBM Corp). Qualitative data were described using the number and percent. Kolomgrov-Smirnov test was used to verify the normality of the distribution of variables. A comparison between the two groups of patients (cholesteatomatous and non-cholesteatomatous) was made for categorical variables were assessed using chi-square test. Mann-Whitney test was used to compare two groups of abnormally distributed quantitative variables. The significance of the obtained results was judged at the 5% level.

Results

The included subjects ranged in their ages from 18 to 86 years old with a mean age of 43.1 ± 17.4. Fifty-nine (68.6%) were males and 27 (31.4%) were females. All patients had a clinical and pathological proof of CSOM either with cholesteatoma in 56.9% or without in 43% of temporal bones. The distribution of demographic data according to the type of CSOM is detailed in Tables 1, 2, and 3.

Table 1 Comparison between the cholesteatoma and non-cholesteatoma according to age and sex
Table 2 Comparison between the cholesteatoma and non-cholesteatoma according to Cog type (I, II and III)
Table 3 Comparison between the cholesteatoma and non-cholesteatoma according to Köerner septum

The CT scans of the 49 (57%) cholesteatomatous CSOM showed variable radiological findings of cholesteatoma: 37 (75.5%) of them had scalloping of middle ear walls, 33 (67.3%) of them had widening of aditus, and all of them showed ossicular erosions. The other 37 (43%) of temporal bones of non-cholesteatomatous CSOM showed less aggressive signs of chronic infection without definite signs of cholesteatoma, apart from three cases with non-cholesteatomatous minor erosions. These radiological findings were confirmed post-operatively following mastoidectomies in all cases. The anterior epitympanic recess (AER) was involved in 79% of the diseased ears with no statistical difference between the two groups of patients (83% versus 73%, respectively).

According to its morphology type, anterior attic plate (cog) was classified into three types: (a) Type I (complete plate type) in 46% of ears (20.4% of cholesteatoma and 81.1% of non-cholesteatoma with p value < 0.001), (b) Type II (pyramidal-like projection) in 32.6% of ears (44.9% of cholesteatoma and 16.2% of non-cholesteatoma with p value < 0.005), and (c) Type III (non-visualized) in 20.9% of ears (34.7% of cholesteatoma and 2.7% of non-cholesteatoma with p value < 0.001). This shows statistical significance in the incidence of mentioned types of “cog” amongst the ME pathology.

Köerner’s septum (KS) was not visualized in 15 (17.4%) of temporal bones (associated coalescent mastoiditis was seen in 4 of them). It was seen as (a) a complete bony septum in 35 (40.7%) of scanned temporal bones and as (b) an incomplete septum in 8 (9.3%) of temporal bones. Its prevalence in patients without cholesteatoma (70.3%) was significantly higher than in those with cholesteatoma (34.7%) with (p value = 0.002). In 32.5%, it could not be perfectly evaluated because of extensive sclerosing mastoid bone as a complication of chronic infection.

Discussion

The anterior epitympanic recess (AER) is frequently involved in chronic infections and represents a common location of the more common pars flaccida growth [8, 25]. The complexity of the anatomical architecture of epi-tympanum necessitates accurate and deep knowledge of the surgeon about the spatial relationships present at this site, thus avoiding misguided procedure and inadvertent injury of vital structures [8, 26, 27]. HRCT has a crucial role in the preoperative detailed anatomical information [9, 28].

A thin bony plate, cog, protruding down from the tegmen tympani was found reaching antero-superior to the malleus head. The height of this bony plate was 1.5 to 3.0 mm, and when complete, it is seen to extend from the facial canal wall to the scutum [29]. The cog is considered a dividing landmark between the anterior and the posterior epitympanic compartments, while the Tensor Tympani mucosal fold (TTF) is subdividing the anterior epitympanic compartment into anterior epitympanic recess (AER) and supra-tubal recess (STR) [10]. Commonly, a vertical type of TTF (mucosal fold) is attached to the cog, and if this TTF is complete, the ventilation to anterior epitympanic recess can be blocked. In that scenario, removal of the cog and TTF can provide a sufficient ventilation route from the Eustachian tube to the epi-tympanum [10, 30]. Otherwise, in the abovementioned case, the only ventilation pathway will be the “isthmus” which is a narrow pathway between the epitympnum and mesotympanum. This “isthmus” or “isthmic ventilation” is provided through anterior and posterior “isthmi” in an isthmic membrane, the development of which is correlated to the development of the anterior epitympanic plate or so-called Sheehy’s cog.

This cog has different morphological variations, which are suggested to carry a good link to the embryological development of the isthmus or isthmic ventilation. A complete thin plate of “cog” is correlated to a more developed isthmic membrane and thus better isthmic ventilation. On the other hand, more incomplete shallow types of cog are associated with shorter isthmus and poor ventilation of epi-tympanum. This shows a good risk for the development of an attic cholesteatoma [31,32,33].

To best of our knowledge, few studies mentioned two different types of cog without correlation to chronic infection predisposition [10, 28]. Also, few studies investigated the radio-anatomical assessment of the KS and its predisposition to middle ear infection [13, 14] A single more recent prior study in oto-laryngology literature proposed a classification of morphological types of “cog” on an oligo-slice CT, which was followed in our study on multi-slice CT (MSCT) [12]. The MSCT offers higher resolution and multi-planar reconstruction of multi-slice allowing reformations in orthogonal and double-oblique orientation. This is expected to provide higher visibility and better identification of types of anatomical variants under study.

In our study, retrospective CT imaging evaluation of diseased 86 temporal bones revealed 49 cholesteatomas and 37 non-cholesteatomatous CSOM. Three morphological variations of cog were noticed. It was a complete plate in 46.5%, pyramidal projection in 32.6%, while it was not visualized in 20.9% of temporal bones. Li et al. [10] had found a cog in all their studied patients with ME disease revealing complete and rudimentary types only. The “complete” type was most commonly seen (89%). Also, Li et al. [10] pointed to the correlation between types of TTF and abnormal anterior epitympanic recess aeration; however, they found no statistical difference between types of cog and types of TTF [10]. On the other hand, El Anwar et al. [28] and Hong et al [31] made their studies on “non-pathologic” temporal bones. They reported that the cog was a constant boundary of the STR and that the “complete cog” was the commonest among the studied group, which was associated with single-cell STR; seen in (79.5%) of temporal bones [28, 31].

Lee et al. [12] assumed that the development of the chronic otitis media is relatively correlated to the type of the anterior attic bony plate. They found that in the simply diseased ears, the incidences were 40%, 44%, and 16% for the plate type, pyramid type, and anterior type, respectively, and in the cholesteatoma ear, 30%, 43%, and 27%, respectively, with a significant statistical difference. This study mad by Lee et al. [12] included normal and diseased ears. They classified cog into thin and long plate type (67%), thick pyramid type (28%), and more anteriorly located type (5%) in normal ears. Lee et al. [12] reported that 5% of completely healthy ears showed non-visualized cog owing to its more horizontal orientation making it hard to be visualized by HRCT. Lee et al. [12] explained the relation between cog morphology and ventilation that the plate type was associated with well-developed supra-tubal recess and better ventilation of the AER. The “pyramidal type” was associated with shallow or nearly absent supra-tubal recess. The “anterior type” was more frequent in cholesteatoma than in non-cholesteatoma with a significant statistical difference owing to association with less ventilation [12].

Our current study adopted the “cog” classification proposed by Lee et al. [12]. In our study, the “pyramid type” was the commonest in patients diagnosed with cholesteatoma (in 45%) followed by anterior type (34.7%), while the plate type was the commonest in patients with non-cholesteatomatous CSOM (in 81.1%) with a significant statistical difference. This finding supports the etio-pathogenesis of cholesteatoma in a hypo-ventilated recess pre-disposed by incomplete types (II and III), in comparison to good ventilation facilitated by complete “cog” and isthmic membrane.

Recognition of another anatomical variant, “Köerner’s septum” before antro-mastoidectomy operations revealed to bear clinico-surgical relevance. During cholesteatoma surgery, a disregarded Köerner’s septum may be mistaken as the medial wall of the mastoid antrum resulting under-exposure of operative filed with high possibility for residual cholesteatoma [13, 14, 32]. Moreover, a prominent KS may be confused for the bony lamina covering of the sigmoid sinus with consequent inadvertent entry into antrum or facial nerve injury [13, 33, 34]. Some authors suggested that the middle portion of the Köerner’s septum is the cog itself, or an extension of it, and it was regarded as having a role in ventilation of the tympanic cavity [34, 35]. Multiple researches revealed that KS might be disrupted in more than one point along its course [13]. In our study, 17.5% of temporal bones revealed non-visualized KS with 4 temporal bones showed coalescent mastoiditis. Köerner’s septum was recognized as a complete septum in 40.7% of our patients and as incomplete septum in 9.3% of cases [33].

In their study, Przewonzy et al. [34] reported Köerner’s septum in 6.5 to 47% of both healthy and diseased ears, while Wojciechowski et al. [35] reported the prevalence of Köerner’s septum as 6.58% of healthy ears, 30.4% in ears with retraction pockets, and 17.4% in simple chronic otitis media without retraction pocket [34, 35]. On the contrary, we found that the prevalence of the KS was 70.3% in patients with simple chronic otitis media and 34.7% in those with cholesteatoma, showing a significant statistical difference for being more prevalent in simple inflammation (p value = 0.002). A significant number of researches confirmed the impact of Köerner’s septum on the predisposition to chronic infection by facilitating blockage of isthmus during inflammation of the middle ear [36,37,38]. Thus, a prominent Köerner’s septum is associated with an increased risk of developing CSOM with or without cholesteatomas.

Preoperative HRCT therefore represents a mandatory guidance to the oto-surgeons. It submits information regarding the spread of disease together with detailed anatomic variations and possible complications to be avoided during surgery. The type of “cog” and Köerner’s septum may be written in the radiology report for CSOM cases [39,40,41]. The main limitation of this study was the absence of a healthy subject group to compare the incidence of cog and KS between them and diseased groups. It was difficult to differentiate rudimentary from eroded “cog” or “KS” as regard CT appearance. However, the incidence or complete erosions are a quite rare event.

Conclusions

We concluded that the morphological variations in the anterior attic plate “cog” had a significant correlation to the prevalence of chronic otitis media and cholesteatoma owing to the fact that changes in cog position and morphology can change attic dimensions and aeration. KS was considered as another important anatomical predisposing factor to chronic infection and cholesteatoma. Therefore, the difference in the distribution of different morphological types of anterior epitympanic plate “cog”, as well as difference in Köerner’s septum amongst cholesteatomatous and non-cholesteatomatous CSOM are suggested as risk factors for the development of cholesteatoma and may predict a cholesteatoma on CT images.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

CSOM:

Chronic suppurative otitis media

AER:

Anterior epitympanic recess

KS:

Köerner’s septum

HRCT:

High-resolution computed tomography

CT:

Computed tomography

TTF:

Tensor tympanic mucosal fold

STR:

Supra-tubal recess

TM:

Tympanic membrane

ME:

Middle ear

MSCT:

Multi-slice computed tomography

References

  1. 1.

    Barath K, Huber AH, Stampfli Z (2011) Neuroradiology of cholesteatomas. Am J Neuroradiol 32:221–229

    CAS  Article  Google Scholar

  2. 2.

    Abdel Razek AA, Ghomim MR, Ashraf B (2015) Computed tomography staging of middle ear cholesteatoma. Pol J Radiol 80:328–333

    Article  Google Scholar

  3. 3.

    Henninger B, Kremser C (2017) Diffusion weighted Imaging for the detection and evaluation of cholesteatoma. World J Radiol 9:217–222

    Article  Google Scholar

  4. 4.

    Linder TE, Shah S, Martha S (2018) Introducing the CHOLE classification and its comparison to the EAONO/JOS consensus classification for cholesteatoma staging. Otol Neuroradiol 40:63–72

    Article  Google Scholar

  5. 5.

    Gulati M, Gupta S, Parkash A (2019) HRCT imaging of acquired cholesteatoma: a pictorial review. Insights into Imaging 10:92–99

    Article  Google Scholar

  6. 6.

    Petrus LV, WM L (1997) The anterior epitympanic recess: CT anatomy and pathology. AJNR 18: 1109-1104

  7. 7.

    Sajjadi H (2017) Endoscopic transcanal modified canal-wall-down mastoidectomy for cholesteatoma. World J Otorhinolaryngol Head Neck Surg 3:153–159

    Article  Google Scholar

  8. 8.

    Wang K, Jiang Y, Zhang Z (2018) Extension of the clinical significance of the cog. ORL 80:1–9

    Article  Google Scholar

  9. 9.

    Marchioni D, Mattioli F, Cobelli M (2009) CT morphological evaluation of the anterior epitympanic recess in patients with attic cholesteatoma. Eur Arch Otorhinolaryngol 266:1183–1189

    Article  Google Scholar

  10. 10.

    Li B, Doan B, Gruhl R (2017) Endoscopic anatomy of the tensor fold and anterior attic. Otolaryngol Head Neck Surg 158:1–6

    Google Scholar

  11. 11.

    Lane J, Lindell P, Witte R, DeLone DR, Driscoll C (2006) Middle and inner ear: improved depiction with multiplanar reconstruction of volumetric CT data. Radio Graphics 26:115–124

    Google Scholar

  12. 12.

    Lee CH, Lee JE, Sang DM (2002) The classification and clinical importance of the anterior attic bony plate on temporal bone CT. Korean J Otolaryngol 45:122–126

    Google Scholar

  13. 13.

    Wojciechoski T, Shadorwa T, Drozd Z (2019) The radio-anatomical assessment of the Korner’s septum. Surg Radiol Anat 41:669–673

    Article  Google Scholar

  14. 14.

    Karaca CT, Toros SZ, Noseri HK (2012) Analysis of anatomic variations in temporal bone by radiology. Int Adv Otol 8:239–243

    Google Scholar

  15. 15.

    Costa SS, Rosito LP, Dornelles C (2008) The contralateral ear in chronic otitis media. Arch Otolaryngol Head Neck Surg 134:290–293

    Article  Google Scholar

  16. 16.

    El-Bahrawy ET, Sorour SS, Badr El-Dine MM (2017) Evaluation of endoscopic surgery for the middle ear cholesteatoma. Zagazig Univ Med J 23:283–300

    Google Scholar

  17. 17.

    Aslan A, Mutlu C, Çelik O (2004) Surgical implications of anatomical landmarks on the lateral surface of the mastoid bone. Surg Radiol Anat 26:263–267

    CAS  Article  Google Scholar

  18. 18.

    Watts S, Flood LM, Clifford K (2000) A systemic approach to interpretation of computed tomography scans prior to surgery of middle ear cholesteatoma. J Laryngol Otol 114:248–253

    CAS  Article  Google Scholar

  19. 19.

    Abselmonaem G, Almolla R, Ali A (2015) The role of HRCT in evaluation of acquired middle ear cholesteatoma otitis prior surgery. Zagazig Univ Med J 21:449–461

    Google Scholar

  20. 20.

    Aljehani M, Alhussini R (2019) The correlation between preoperative findings of high resolution computed tomography (HRCT) and the intraoperative findings of chronic otitis media. Clinical Medicine Insights. Ear. Nose Throat 12:1–5

    Google Scholar

  21. 21.

    Marchioni D, Molteni G, Persutti L (2011) Endoscopic anatomy of the middle ear. Indian J Otolarymgol Head Neck Surg 63:101–113

    Article  Google Scholar

  22. 22.

    Mas-Estelles F, Fernandez MM, Bisquert BC (2012) Contemporary non-echo-planar diffusion- weighted imaging of middle ear cholesteatomas. Radiographics 32:1197–1213

    Article  Google Scholar

  23. 23.

    Olszewska E, Wagner M, Bernal-Sprekelsen M (2004) Etiopathogenesis of cholesteatoma. Eur Arch Otorhinolaryngol 261:6–24

    Article  Google Scholar

  24. 24.

    Rosito LS, Netto LF, Teixeira AR (2016) Classification of cholesteatoma according to growth patterns. JAMA Otolaryngol Head Neck Surg 142:168–172

    Article  Google Scholar

  25. 25.

    Tarabichi M, Marchioni D, Kapadia M (2016) The epitympanum revisited: endoscopic anatomy. Indian J Otolaryngol Head Neck Surg 68:490–495

    Article  Google Scholar

  26. 26.

    Maiu A, Catana I, Hrabagiuo O, Petri M, Cosgare M (2013) Anatomical variants of tympanic compartments and their aeration pathways involved in the pathogenesis of middle ear inflammatory disease. Clujul Medical 86(4):352–356

    Google Scholar

  27. 27.

    Juliano AF (2018) Cross sectional imaging of the ear and temporal bone. Head Neck Pathol 12:302–320

    Article  Google Scholar

  28. 28.

    El-Anwar MW, Eldib DB, Elmalt A (2019) Supratubal recess and sinus tympani: CT analysis of middle ear hidden areas. Egypt J Radiol Nucl Med 50:49

    Article  Google Scholar

  29. 29.

    Hoshino T, Suzuki JI (1978) Anterior attic wall anatomy. Arch Otolaryngol 104:588–590

    CAS  Article  Google Scholar

  30. 30.

    Yamasoba T, Harada T, Nomura Y (1990) Observations of the anterior epitympanic recess in the human temporal bone. Arch Otolaryngol Head Neck Surg 116:566–570

    CAS  Article  Google Scholar

  31. 31.

    Hong J, Chen K, Lyu H (2018) Age-related changes in the morphological relationship between the supratubal recess and the Eustachian tube. Auris Nasus Larynx 45:88–95

    Article  Google Scholar

  32. 32.

    Toros SZ, Karaca CT, Habesoglu TE (2010) Is there a relation between mastoid aeration and Korner’s septum? Eur Arch Otorhinolaryngol 267:1523–1526

    Article  Google Scholar

  33. 33.

    Ozer E, Bayazit YA, Cara C (2004) Korner’s septum (petero-squamosal lamina) and chronic ear disease. Surg Radiol Anat 26:118–121

    CAS  Article  Google Scholar

  34. 34.

    Przewonzy T, Kosiniski A, Markiet K (2019) Korner’s septum (petro-squamosal lamina): the anatomical variant or clinical problem. Folia Morphol (Warsz) 1:1–7

    Google Scholar

  35. 35.

    Wojciechowski T, Skadorwa T, Drożdż A, Ciszek B, Szopiński K (2019) The radioanatomical assessment of the Körner’s septum. Surg Radiol Anat 41(6):669–673

    Article  Google Scholar

  36. 36.

    Puricelli MD, Newby MD, Fishman AJ, Rivera A (2017) The petrosquamous stalactite. Otolaryngol Head Neck Surg 156(3):549–553

    Article  Google Scholar

  37. 37.

    Deekshith RM, Gangadhara-Somayaji KS (2019) Korner’s septum: an uncommon clinical entity. Teaching Imaging 7:134–135

    Google Scholar

  38. 38.

    Cebeci S, Ozbilen MS, Bayramoglu I (2020) Impact of the demographic and aetiological factors and intraoperative findings on post operative outcome in chronic otitis media surgery. Turkish J Med Sci 50:155–162

    Google Scholar

  39. 39.

    Abdel Razek A, Haung BY (2012) Lesions of the petrous apex: classification and findings at CT and MR imaging. Radiographics 32:151–173

    Article  Google Scholar

  40. 40.

    Yu Y, See J, Ng J, Low D, Tan TY, Yuen H (2020) Patterns of middle-ear cholesteatoma and implications for surgical approach. J Laryngol Otol 23:1–5

    Google Scholar

  41. 41.

    Sun Y, Wang E, Yu J, Zhong G, Zhu L, Wang Y, Xun N, Yu H, Zhou W, Xie Z, Zhang K, Fan G, Zhong Y, Xiao H, Kong W (2020) A novel surgery classification for endoscopic approaches to middle ear cholesteatoma. Curr Med Sci 40:9–17

    Article  Google Scholar
