Abstract

Background

Comparing four-dimensional flow against two-dimensional flow measurements in patients with complex flow pattern is still lacking. This study aimed to compare four-dimensional against the two-dimensional flow measurement in patients with bicuspid aortic valve and to test potentials of four-dimensional operator-dependent sources of error.

Results

The two- and four-dimensional flow data sets of sixteen patients with bicuspid aortic valve and eighteen healthy subjects were studied. Flow analyses were performed by two observers blindly. Patients with bicuspid aortic valve mean differences between the two- and four-dimensional measurements in both observers were − 8 and − 4 ml, respectively. Four-dimensional measurements resulted in systematically higher flow values than the two-dimensional flow in bicuspid aortic valve patients. The upper and lower limits of agreement between the two- and four-dimensional measurements by both observers were + 12/− 28 ml and + 14/− 21 ml, respectively. In the healthy volunteers, mean differences between the two- and four-dimensional measurements in both observers were ± 0 and + 1 ml, respectively. The upper and lower limits of agreement between the two- and four-dimensional measurements by both observers were + 21/− 18 ml and + 12/− 13 ml, respectively. Inter-observer variability in four-dimensional flow measurement was 4% mean net forward flow in bicuspid aortic valve patients and 8% in healthy volunteers.

Conclusion

Inter-observer variability in four-dimensional flow assessment is 8% or less which is acceptable for clinical cardiac MRI routine. There is close agreement of two- and four-dimensional flow tools in normal and complex flow pattern. In complex flow pattern, however, four-dimensional flow measurement picks up 4–9% higher flow values. It seems, therefore, that four-dimensional flow is closer to real flow values than two-dimensional flow, which is however to be proven by further studies.

Background

Two-dimensional velocity-encoded cine magnetic resonance imaging flow analysis is an established technique for assessing hemodynamics in cardiovascular magnetic resonance (MRI) [1,2,3] in congenital heart diseases (CHD) [2].

Intraindividual validation of the quantification of four-dimensional flow tool against two-dimensional flow tool was previously performed mostly in normal subjects [4]. Visualization of abnormal flow patterns by four-dimensional flow tool following surgery for complex CHD [5,6,7,8] was previously published as well.

However, the estimation of the four-dimensional operator-dependent source of error during segmentation and post processing is scarcely discussed. Moreover, comparing four-dimensional flow against two-dimensional flow measurements in patients with complex flow pattern is still lacking.

Therefore, the purpose of this study was as follows:

  1. 1.

    To test the four-dimensional operator-dependent sources of error.

  2. 2.

    To test the agreement of four-dimensional against two-dimensional flow measurements in the ascending aorta of patients with bicuspid aortic valve, who present with abnormal helical flow pattern and normal subjects.

Methods

Retrospectively (2012–2013) the quantitative flow in the ascending aorta was analyzed in 16 patients (6 females) with bicuspid aortic valve (BAV) disease and in 18 (7 females) healthy volunteers (HV).

Patients > 7 years, no past congenital heart defect other than BAV, no arterial hypertension, no thorax deformations, a diameter of the ascending aorta < 4.5 cm in adults and < 2.2 cm/m2 in children, no significant aortic valve regurgitation, and a flow velocity through the aortic valve of < 250 cm/s by echocardiography no absolute contraindications to CMR imaging were included. Healthy volunteers were matched to the BAV group by sex and age (± 2 years) to serve as a control group. Individuals who did not meet the aforementioned criteria were excluded.

All subjects were studied on a standard cardiac 1.5 Tesla MRI-scanner, and a standard cardiac 12-channel coil was used for all patients (MAGNETOM Avanto, Siemens Healthcare, Erlangen, Germany). A written informed consent was obtained from all patients. At the beginning of the study, localizers were obtained in three orthogonal slices for registration of the thoracic anatomy in order to plan the following sequences.

Through plane two-dimensional phase contrast velocity encoding flow measurement

Standard through plane two-dimensional phase contrast velocity encoding imaging of the ascending aorta was performed, as previously described [9, 10]. Parameters in the 2D phase contrast velocity encoding imaging were free breathing (typical acquisition times: around 3 min), retrospective ECG gating, and the velocity encoding set to 200 cm/s.

Slice thickness was 5 mm, repetition time 36.7 ms, echo time 3.09 ms, flip angle 30°, averages 3, segmentation 3, rectangular field of view 260 to 330 × 330 mm, matrix 256 × 256. Data were reconstructed to provide 30 magnitude and phase (velocity-mapped) images per cardiac cycle.

The imaged vessel’s region of interest was always positioned at iso-center of the magnet to maximize gradient fidelity. Furthermore, the ECG was continuously observed during acquisition. The running acquisition was always aborted when more than three extra systoles were noted [9, 10].

Flow measurement of the ascending aorta was performed at the level of the pulmonary artery bifurcation. Post processing was done by manual contour delineation using the Argus software tool (Siemens®) by cardiac MRI experts. In all results depicted, aortic flow was defined as net forward aortic flow.

Four-dimensional flow measurement

Quantitative flow measurement of the ascending aorta by the four-dimensional flow sequence was performed using a time-resolved three-dimensional phase-contrast sequence with three-directional velocity encoding as previously described [11]. No contrast agent was used, and respiratory gating was achieved by a respiratory navigator. All data were measured in a sagittal-oblique volume that included the entire thoracic aorta. Velocity encoding Vx, Vy, and Vz set to 200 cm/s similar to the 2D phase contrast velocity encoding.

Assessment of flow was performed using the Fraunhofer-MEVIS flow software (Fraunhofer MEVIS—Institute for Medical Image Computing). Once ROI was fully defined for each time step throughout the cardiac cycle, the acquired data were fully processed for final quantification (Figs. 1 and 2). In all results depicted, aortic flow was defined as net forward aortic flow. Flow measurement of the ascending aorta was performed at the level of the pulmonary artery bifurcation (Fig. 1).

Fig. 1
figure 1

Assessment of aortic 4D-flow, iso-surface images of the aorta (green) are produced. The post processing manual contour delineation was performed at the level of the pulmonary artery bifurcation (cross lines)

Full size image
Fig. 2
figure 2

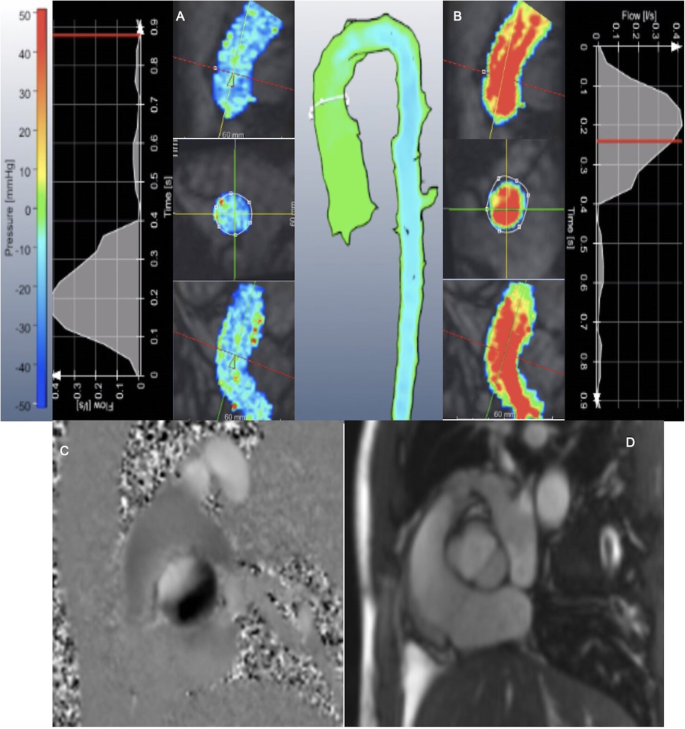

Assessment of flow was performed using the 4D-flow software. Once ROI was fully defined for each time step throughout the cardiac cycle, the acquired data were fully processed for final quantification

Full size image

Interobserver variability

A second investigator, blinded to the first assessment, using the same software tools, performed a second assessment of the flow. Contour drawing in the ascending aorta was performed by two experienced members of the cardiac MRI team (A.K. and K.B.) who were familiar with the Mevis software flow tool. In the four-dimensional flow measurement of the ascending aorta, iso-surface images of the aorta are produced. The post-processing manual contour delineation was performed at the level of the pulmonary artery bifurcation (Fig. 1).

Statistical analysis

Linear regression plots (Fig. 3) were used to describe the correlation (Pearson correlation and coefficient of determination) of net flow within the different techniques (two-dimensional versus four-dimensional phase contrast velocity encoding).

Fig. 3
figure 3

Linear regression correlation: net flow values (ml) in the ascending aorta of both techniques by the two observers are plotted on both X-axis and Y-axis. The X-axis represents the four-dimensional (4D) method of flow analysis while the Y-axis represents the two-dimensional (2D) method of flow analysis in all four graphs. Graphs a and c represent healthy volunteers, b and d represent patients with bicuspid aortic valve (BAV). A line of identity (dashed) y = x is added. The regression line (solid) indicates the offset between the two methods

Full size image

Bland–Altman plots (Fig. 4) were used to describe the agreement of ascending aorta net flow within the different techniques (two- versus four-dimensional phase contrast velocity encoding) as well as the interobserver variability of the four-dimensional net flow.

Fig. 4
figure 4

Bland Altman plots: the Y-axis represents the individual differences of the ascending aorta net flow (ml) measurements by the two methods; two-dimensional (2D) and four-dimensional (4D) flow analysis by the two observers (upper two rows). In the lower row Y-axis represents the individual differences of the interobserver variability of the ascending aorta net flow measurements by the 4D method. X-axis represents the mean. Graphs a, c, and e represent healthy volunteers, and graphs b, d, and f represent patients with bicuspid aortic valve (BAV)

Full size image

The individual percentage difference was defined as the individual difference between two measurements divided by their mean and multiplied by 100.

Differences between two- and four-dimensional flow analyses by each observer and interobserver differences were tested by Student’s t test for paired variables. Statistical significance was set at p < 0.05.

Results

Bicuspid aortic valve group data

A tendency of higher four-dimensional flow values compared to two-dimensional flow values was found by both observers (Fig. 3), which reached statistical significance in observer one (p = 0.007).

The 16 patients with BAV had a median age of 26 years (range 18–44 years) and a regurgitation fraction through the aortic valve median (min-max) of 2% (range 0–7%) using two-dimensional flow analysis and of 1% (range 0–6%) using four-dimensional flow analysis with observer one. In observer two, median regurgitation was 0% (range 0–8%) using four-dimensional flow.

Observer one (Figs. 3 and 4)

Significant difference was found between two- and four-dimensional measurements (p = 0.007). The upper and lower limits of agreement in the bicuspid aortic valve group were 12 ml and − 28 ml, respectively with a mean difference of − 8 ml corresponding to 8% mean net flow.

Observer two (Figs. 3 and 4)

No significant difference was found between two- and four-dimensional measurements (p = 0.102). The upper and lower limits of agreement in the bicuspid aortic valve group were 14 ml and − 21 ml, respectively with a mean difference of − 4 ml corresponding to mean percentage difference of 4%.

Healthy volunteers’ data

One of the healthy subjects was accidently found to have a helical flow pattern despite having a tricuspid aortic valve and no clinical symptoms. He was excluded from further analysis. The remaining 17 subjects had a median age of 25 years (range 8–42 years) and a regurgitation fraction through the aortic valve median (min-max) of 0% (0–3%) using two-dimensional flow analysis and of 0% (0–2%) using four-dimensional flow analysis as recorded by both observers.

Observer one (Figs. 3 and 4)

No significant difference between two- and four-dimensional measurements was found (p = 0.55). The upper and lower limits of agreement between two- and four-dimensional measurements in the healthy volunteers group were 21 ml and − 18 ml respectively with a mean difference of 1 ml corresponding to mean percentage difference of 9%.

Observer two (Figs. 3 and 4)

No significant difference between two- and four-dimensional measurements was found (p = 0.93). The upper and lower limits of agreement in the health volunteer’s group were 12 ml and − 13 ml respectively with a mean difference of 0 ml, corresponding to mean percentage difference of 5%.

Interobserver variability and effect of post processing the four-dimensional net flow (Fig. 4)

No significant difference was found in the four-dimensional measurements between both observers in the healthy volunteers’ group (p = 0.49) as well as in the bicuspid aortic valve group (p = 0.541)

Observer one tended to have bigger four-dimensional values; the upper and lower limits of agreement in healthy volunteers’ group were 14 ml and − 17 ml, respectively, with a mean difference of − 1 ml corresponding 8%. The upper and lower limits of agreement in bicuspid aortic valve group were 19 ml and − 11 ml, respectively, with a mean difference of − 4 ml corresponding to 4% mean net flow.

Discussion

The study showed close agreement between the flow assessment using standard two-dimensional phase contrast velocity encoding through plane flow analysis and four-dimensional flow measurements both in healthy volunteers and in bicuspid aortic valve patients with helical blood flow. In Bland Altman analysis, mean differences between both methods were maximally 9% of the mean net aortic flow. However, there was a tendency for four-dimensional measurements to have slightly higher flow values in complex flow pattern. This tendency reached even statistical significance for bicuspid aortic valve patients by one of the observers.

A similar finding was described by Nordmeyer and colleagues [12], who described higher peak velocities in four-dimensional values in the aortic segment when compared to the corresponding two-dimensional segment, assessed in patients with semilunar valve stenosis. Theoretically, four-dimensional flow tool should be closer to reality than two-dimensional flow measurements because it measures blood flow in all three vectors [13, 14], which should be especially important in the presence of helical flow pattern.

Important factors, which are able to cause differences between two- and four-dimensional flow measurements, and beyond those, the previously mentioned study by Nordmeyer and colleagues [12], are the different iso-centering. We think that iso-centering plays a major role in the assessment of the four-dimensional flow measurements [13]. This effect, however, is not dominant in this study, as both in two- and four-dimensional flow measurements the iso-center was placed in the ascending aorta. It may, however, become more important, when flow measurements from the four-dimensional data set are performed in segments remote from the iso-center.

Many sources of errors of the four-dimensional flow may occur in patients with complex flow pattern [15]. Most of the previous studies had discussed those errors related to the data acquisition during the scanning itself [15]. One of the advantages of four-dimensional flow cardiac MRI is the potentiality of analyzing different planes at any location (Fig. 5) within the acquisition volume retrospectively [14]. However, the variations in segmentation and contouring are additional sources of variance because they are operator dependent during the post processing in the four-dimensional measurements. In clinical practice this may cause variability in the results even in the same institute. The interobserver variability during the post processing of four-dimensional flow in the current study was small and can be neglected in clinical routine. It reached maximally 8% in healthy volunteers and 4% in complex flow by bicuspid aortic valve.

Fig. 5
figure 5

Four-dimensional flow cardiac MRI analyzing different planes within the acquisition volume retrospectively

Full size image

It is therefore paramount within the same institute to standardize the level of contouring and segmentation of the aorta during the post processing of the four-dimensional flow. In the current study, the measurements of the aortic flow were located at the level of the main pulmonary artery.

Previous validation studies in healthy volunteers and in patients with complex vascular pattern showed close correlation between four-dimensional and two-dimensional flow measurements [12, 16]. For instance, the study of Nordmeyer and colleagues [12], however, used a different acquisition and the flow tool software yet did not study interobserver variability in four dimensional measurements.

A very recent study by Ebel et al. [17] compared the 4D flow in the BAV and HV. They studied the stability of the 4D flow across different strength magnetic fields (1.5 Tesla versus 3 Tesla). They found a stable performance of 4D flow MRI at 1.5 T and 3 T regarding flow assessment. Our study compared 2D versus 4D flows as well as tested the source of error in the 4D flow assessment.

Our data support, that four-dimensional flow measurement, which offers a wide spectrum of new applications in congenital heart disease, produces reliable flow measurements. Therefore, it was paramount to discuss other potential sources of error which may occur during post processing and/or data quantification after the scan. This study showed that the operator-dependent error during four-dimensional post-processing is not significant when describing its limitations or when comparing four-dimensional flow to the recently developing computed flow dynamics.

Our study agree with the conclusion of Lewandowski et al. [18]; efforts are required to standardize not only the four-dimensional flow as regard the scanning parameters but also the post processing’s tools and reporting the data after the scan to increase the capacity to successfully convert from theoretical use to clinical practice.

Limitations

The limitation of the study is the small number of included individuals. However, we have put a strict inclusion criterion in order to collect a homogeneous population with only BAV. The inclusion criteria were chosen by cutoff values for BAV and the diameter of the ascending aorta according to the published guidelines [19].

Conclusion

Inter-observer variability in four-dimensional flow assessment is 8% or less which is acceptable for clinical cardiac MRI routine. There is close agreement of two- and four-dimensional flow tools in normal and complex flow pattern. In complex flow pattern, however, four-dimensional flow measurement picks up 4–9% higher flow values. It seems, therefore, that four-dimensional flow is closer to real flow values than two-dimensional flow, which is however to be proven by further studies.

Availability of data and materials

The datasets analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

2D:

Two-dimensional

4D:

Four-dimensional

BAV:

Bicuspid aortic valve

CHD:

Congenital heart disease

HV:

Healthy volunteers

ROI:

Region of interest

ECG:

Electrocardiogram

MRI:

Magnetic resonance imaging

References

  1. Kilner PJ, Gatehouse PD, Firmin DN (2007) Flow measurement by magnetic resonance: a unique asset worth optimising. J Cardiovasc Magn Reson 9:723–728

    Article  PubMed  Google Scholar

  2. Petersen SE, Voigtländer T, Kreitner KF, Kalden P, Wittlinger T, Scharhag J, Horstick G, Becker D, Hommel G, Thelen M, Meyer J (2002) Quantification of shunt volumes in congenital heart diseases using a breath-hold MR phase contrast technique-comparison with oximetry. Int J Cardiovasc Imaging 18:53–60

    Article  PubMed  Google Scholar

  3. Colletti PM (2005) Evaluation of intracardiac shunts with cardiac magnetic resonance. Curr Cardiol Rep 7:52–58

    Article  PubMed  Google Scholar

  4. Brix L, Ringgaard S, Rasmusson A, Sørensen TS and Kim WY (2009). Three-dimensional three component whole heart cardiovascular magnetic resonance velocity mapping: comparison of flow measurements from 3D and 2D acquisitions. J Cardiovasc Magn Reson 20:11:3.

  5. François CJ, Srinivasan S, Schiebler ML, Reeder SB, Niespodzany E, Landgraf BR, Wieben O, Frydrychowicz A (2012). 4D cardiovascular magnetic resonance velocity mapping of alterations of right heart flow patterns and main pulmonary artery hemodynamics in tetralogy of Fallot. J Cardiovasc Magn Reson 7:14:16.

  6. Geiger J, Markl M, Jung B, Grohmann J, Stiller B, Langer M, Arnold R (2011) 4D-MR flow analysis in patients after repair for tetralogy of Fallot. Eur Radiol 21:1651–1657

    CAS  Article  PubMed  Google Scholar

  7. Geiger J, Markl M, Herzer L, Hirtler D, Loeffelbein F, Stiller B, Langer M, Arnold R (2012) Aortic flow patterns in patients with Marfan syndrome assessed by flow-sensitive four-dimensional MRI. J Magn Reson Imaging 35:594–600

    Article  PubMed  Google Scholar

  8. Sundareswaran KS, Haggerty CM, de Zélicourt D, Dasi LP, Pekkan K, Frakes DH, Powell AJ, Kanter KR, Fogel MA, Yoganathan AP (2012) Visualization of flow structures in Fontan patients using 3-dimensional phase contrast magnetic resonance imaging. J Thorac Cardiovasc Surg 143:1108–1116

    Article  PubMed  Google Scholar

  9. Fratz S, Hess J, Schuhbaeck A, Buchner C, Hendrich E, Martinoff S, Stern H (2008). Routine clinical CMR in pediatric and adult congenital heart disease: patients, protocols questions asked and contributions. J Cardiovasc Magn Reson 17:10:46.

  10. Knesewitsch T, Meierhofer C, Rieger H, Rößler J, Frank M, Martinoff S, Hess J, Stern H, Fratz S (2013). Demonstration of value of optimizing ECG triggering for cardiovascular magnetic resonance in patients with congenital heart disease. J Cardiovasc Magn Reson 16:15:3.

  11. Meierhofer C, Schneider EP, Lyko C, Hutter A, Martinoff S, Markl M, Hager A, Hess J, Stern H, Fratz S (2013) Wall shear stress and flow patterns in the ascending aorta in patients with bicuspid aortic valves differ significantly from tricuspid aortic valves: a prospective study. Eur Heart J Cardiovasc Imaging 14:797–804

    Article  PubMed  PubMed Central  Google Scholar

  12. Nordmeyer S, Riesenkampff E, Messroghli D, Kropf S, Nordmeyer J, Berger F, Kuehne T (2013) Four-dimensional velocity-encoded magnetic resonance imaging improves blood flow quantification in patients with complex accelerated flow. J Magn Reson Imaging 37:208–216

    Article  PubMed  Google Scholar

  13. Nordmeyer S, Riesenkampff E, Crelier G, Khasheei A, Schnackenburg B, Berger F, Kuehne T (2010) Flow-sensitive four-dimensional cine magnetic resonance imaging for offline blood flow quantification in multiple vessels: a validation study. Magn Reson Imaging 32:677–683

    Article  Google Scholar

  14. Dyverfeldt P, Bissell M, Barker AJ, Bolger AF, Carlhäll CJ, Ebbers T, Francios CJ, Frydrychowicz A, Geiger J, Giese D, Hope MD, Kilner PJ, Kozerke S, Myerson S, Neubauer S, Wieben O, Markl M (2015). 4D flow cardiovascular magnetic resonance consensus statement. J Cardiovasc Magn Reson 10;17(1):72.

  15. Kamphuis VP, Westenberg JJM, van der Palen RLF, Blom NA, de Roos A, van der Geest R, Elbaz MSM, Roest AAW (2017) Unravelling cardiovascular disease using four dimensional flow cardiovascular magnetic resonance. Int J Cardiovasc Imaging 33(7):1069–1081

    Article  PubMed  Google Scholar

  16. Uribe S, Beerbaum P, Sørensen TS, Rasmusson A, Razavi R, Schaeffter T (2009) Four-dimensional (4D) flow of the whole heart and great vessels using real-time respiratory self-gating. Magn Reson Med 62:984–992

    Article  PubMed  Google Scholar

  17. Ebel S, Dufke J, Köhler B, Preim B, Behrendt B, Riekena B, Jung B, Stehning C, Kropf S, Grothoff M, Gutberlet M (2020). Automated quantitative extraction and analysis of 4D flow patterns in the ascending aorta: an intraindividual comparison at 1.5 T and 3 T. Sci Rep 10, 2949.

  18. Lewandowski AJ, Raman B, Banerjee R, Milanesi M (2017) Novel insights into complex cardiovascular pathologies using 4D flow analysis by cardiovascular magnetic resonance imaging. Curr Pharm Des 23(22):3262–3267

    CAS  Article  PubMed  Google Scholar

  19. Bonow RO (2008). Bicuspid aortic valves and dilated aortas: a critical review of the ACC/AHA practice guidelines recommendations, Am J Cardiol, vol. 102 (pg. 111-114).
