Can mean ADC value and ADC ratio of benign prostate tissue to prostate cancer assist in the prediction of clinically significant prostate cancer within the PI-RADSv2 scoring system?

Abstract

Background

The aim of this study is to investigate whether quantitative DW metrics can provide additive value to the reliable categorization of lesions within existing PI-RADSv2 guidelines. Fifty-eight patients with clinically suspicious prostate cancer who underwent PR examination, PSA serum levels, sextant TRUS-guided biopsies, and bi-parametric MR imaging were included in the study.

Results

Sixty-six lesions were detected by histopathological analysis of surgical specimens. The mean ADC values were significantly lower in tumor than non-tumor tissue. The mean ADC value inversely correlated with Gleason score of tumors with a significant p value < 0.001.Conversely, a positive relationship was found between the ADC ratio (ADC of benign prostatic tissue to prostate cancer) and the pathologic Gleason score with a significant elevation of the ADC ratio along with an increase of the pathologic Gleason score (p < 0.001). ROC curves constructed for the tumor ADC and ADC ratio helped to distinguish pathologically aggressive (Gleason score ≥ 7) from non-aggressive (Gleason score ≤ 6) tumors and to correlate it with PIRADSv2 scoring to predict the presence of clinically significant PCA (PIRADSv2 DW ≥ 4). The ability of the tumor ADC and ADC ratio to predict highly aggressive tumors (GS> 7) was high (AUC for ADC and ADC ratio, 0.946 and 0.897; p = 0.014 and 0.039, respectively). The ADC cut-off value for GS ≥ 7 was < 0.7725 and for GS ≤ 6 was > 0.8620 with sensitivity and specificity 97 and 94%. The cutoff ADC ratio for predicting (GS > 7) was 1.42 and for GS ≤ 6 was > 1.320 with sensitivity and specificity 97 and 92%. By applying this ADC ratio cut-off value the sensitivity and specificity of reader 1 for correct categorization of PIRADSv2 DW > 4 increased from 90 and 68% to 95 and 90% and that of reader 2 increased from 94 and 88% to 97 and 92%, respectively.

Conclusion

Estimation of DW metrics (ADC and ADC ratio between benign prostatic tissue and prostate cancer) allow the non-invasive assessment of biological aggressiveness of prostate cancer and allow reliable application of the PIRADSv2 scoring to determine clinically significant cancer (DW score > 4) which may contribute in planning initial treatment strategies.

Background

Prostate cancer (PCa) is the most common solid malignant neoplasm among men in the USA and Western Europe with a considerably high mortality and morbidity [1]. The diagnosis of prostate cancer traditionally relies on digital rectal examination and estimation of serum prostate-specific antigen (PSA) followed by transrectal ultrasound (TRUS)-guided biopsy [2, 3]. Today with the use of multi-parametric magnetic resonance imaging (mp-MRI), accurate diagnosis and grading of prostatic cancer has become increasingly popular. It includes a combination of T2-weighted, diffusion weighted, and dynamic contrast-enhanced imaging [4, 5].

The Prostate Imaging Reporting and Data System (PI-RADS) classification for prostate MRI was first introduced in 2012 and has been revised and simplified in 2015 and is still evolving [6]. The specific aims of PI-RADS 2 were to establish guidelines for minimum acceptable technical parameters in multi-parametric prostate MRI, to simplify and standardize the terminology and content of mp-MRI reports, and to develop assessment categories that summarize the levels of suspicion or risk of having significant prostatic cancer [7]. In the Prostate Imaging Reporting and Data System (PI-RADS) version 2, a zone-based dominant sequence classification system is used to assign MRI visible lesions a final category from 1 to 5 that represents the like hood of clinically significant lesions [8]. Diffusion weighted imaging (DWI) plays a pivotal role in PIRADSv2, serving as the primary sequence for evaluation of the peripheral zone (PZ) and the secondary sequence for the transition zone (TZ) [9]. A PI-RADSv2 assessment category of DW > 4 implies a clinically significant prostate cancer (CSC), which is pathologically defined as a tumor with a Gleason score of 7 or more. A score of ≥ 4 on DWI becomes a final PI-RADSv2 score of ≥ 4 in the PZ, regardless of the findings on dynamic contrast-enhanced (DCE) imaging [9]. Even for the TZ, DWI enables a final determination of clinically significant cancer (CSC) when the findings of T2-weighted imaging (T2WI) are inconclusive (e.g., a score of 3 on T2WI) [9].The role of dynamic contrast enhancement in routine evaluation of prostate cancer is uncertain. At the present time its value in addition to T2W and diffusion sequence is considered modest. In the PIRADS version 2 suspicious enhancements (focal early enhancement) is considered a minor feature in evaluation [10].

The PI-RADSv2 still has several limitations including its inability to detect small clinically significant cancer (CSC) and the limited inter-reader reproducibility [11, 12]. The inter-reader variability is attributed to the fact that all scoring criteria in this system are subjective and rely on qualitative evaluation [12, 13]. Accordingly quantitative parameters derived from DWI like the apparent diffusion coefficient (ADC), the ADC ratio (ratio between benign prostatic tissue and prostate cancer), and the normalized ADC value (ratio of tumor to non-tumor tissue) have been tested to improve the reproducibility of PI-RADSv2via reducing inter-reader variability [14,15,16,17]. However, quantitative DW metrics have not been widely incorporated into the PI-RADSv2 guidelines, largely over concern that different MRI units may produce different ADC values [18].

In this study, we tried to investigate whether the use of the mean ADC values and ADC ratio can improve interpretation of the lesions and reduce inter-reader disagreement within the PIRADSv2 scoring system of prostate cancer.

Methods

Between January 2017 and July 2019, a total of 58 consecutive patients with newly diagnosed histologically proven prostate cancer (median 64 years; range 45–84) were enrolled in the study. This prospective study was approved by the institutional review board of our institution and written informed consent was obtained from all patients to use their data for research purpose. Inclusion criteria were (1) all patients with elevated PSA values greater than 4 ng/mL who underwent sextant TRUS-guided biopsies. (2) All patients who underwent preoperative bi-parametric MRI of the prostate, (3) all patients surgically treated by radical prostatectomy, (4) pathologic localization of lesions using a 24-sector map. The patients’ age and PSA levels are listed (in Table 1). Exclusion criteria were (1) patients who received anti-androgen treatment, (2) patients having contraindication to MRI, and (3) patients with poor image quality and (4) lesions located outside the peripheral zone.

Table 1 Patient characteristics

MR imaging

MR imaging was performed using a Philips achieva XR 1.5-T system, Baltimore, Netherland, Holland, and a torso XL 16 channels phased array body coil. The examination was done before or at least 3 weeks after transrectal ultrasound-guided biopsy to minimize post biopsy artifacts, and radical prostatectomy was conducted within a median time of 2 months of the MR examination (range 0.5–4). In order to reduce bowel peristalsis, an intramuscular injection of 20 mg of butyl scopolamine was given to the patient before starting the scan. A bi-parametric MR imaging protocol was performed and consisted of multi-planar turbo spinecho T1-weighted images, turbo spin-echo T2-weighted images 3D fast field-echo and echo-planar DWI. Dynamic contrast enhanced MRI was not performed in order to reduce the cost and duration of the study particularly considering its modest role in evaluation of newly diagnosed prostate cancer and its minor contribution in lesion characterization within the PIRDAS version 2 system

The T1-weighted images were acquired in the axial plane primarily to exclude the presence of post biopsy hemorrhage that may mimic or conceal cancer.The T2-weighted turbo spin-echo images in the axial, sagittal, and coronal planes were acquired with the following imaging parameters: TR range/TE range, 2690–3800/80–90; slice thickness, 3 mm; inter-slice gap, 0.3–1 mm; 512 × 304 matrix; field of view (FOV), 180 × 119; number of signals acquired (NSA), 6 ; sensitivity-encoding (SENSE) factor, 2; slice number, 36; and acquisition time of each plane, 6 min. DW images were acquired using the single-shot echo-planar imaging technique. The image plane was axial perpendicular to the long axis of the prostate from base to apex. The scanning parameters were as follows: TR 2740–3000; TE 83–85; slice thickness, 3 mm; inter-slice gap, 1 mm; matrix, 112 × 110; FOV, 20 cm; SENSE factor, 2; and NSA, 6. 1.9–3.0 mm in frequency-encoding direction and1.9 mm in phase-encoding direction;Diffusion-encoding gradients were applied using three b values of 0, 300, and 1000 s/mm2. The acquisition time of DWI was within 3 min. ADC maps were automatically constructed on a pixel by-pixel basis.

Pathologic examination consensus

All surgical specimens were examined by the same two genitourinary pathologists and any disagreement was resolved by consensus. Whole-mount specimens of prostate gland were processed utilizing section thickness of 4–8 mm. Mapping included visual reporting of (1) tumor location, (2) tumor volume, (3) extracapsular extension, and (4) seminal vesicle invasion. The index lesion was defined as the cancer focus showing the largest volume or the one showing extraprostatic extension. The 24-sector map was utilized to record the location of the lesions. According to histopathologic documentation, lesions were classified as clinically significant (Gleason score ≥ 7, including 3 + 4 with prominent but not predominant Gleason 4 component; tumor volume ≥ 0.5 cm3; extraprostatic extension or a combination of these features versus an insignificant PCa based on the modified Epstein criteria; (Gleason score (GS) < 7, tumor volume < 0.5 cm3, and organ-confined PCa [19].

MRI data analysis

Two genitourinary radiologists with 7- and 10-year experience in interpretation of prostate MRI respectively analyzed the MR images independently. Both were blinded to the histopathologic results. Prostate cancer has been identified on MR images on the basis of the following criteria; T2W hypointense nodular foci in the peripheral zone or a very pronounced T2W hypointense sickle-shaped lesion in the transitional zone of the prostate glandthat showed high DWI signal intensity than the rest of the prostate on the highest b value images corresponding to low signal intensity on ADC map images. In the transition zone, the PI-RADS assessment category of a lesion is determined primarily on T2W-images and correlated to DWI/ADC. An equivocal lesion in the transitional zone (PI-RADS category 3) is assigned to PI-RADS category 4 if the DWI corresponds with category 5 (markedly intense greater than 1.5 cm).The lesion remains assigned to PI-RADS category 3 if the DWI corresponds to DWI category 4 (markedly intense but less than 1.5 cm) or a lower category.

The ADC map was sometimes used to identify the lesions not well identified by T2 and DWI. Lesion location was recorded using the pathologic tumor sector map.The DWIs were analyzed for PI-RADSv2 scoring using image viewing software (Sante DICOM Viewer Pro).

The website of the American College of Radiology for PI-RADSv2 (http://www.acr.org/Quality-Safety/Resources/PIRADS) was used as the reference for DWI scoring of PI-RADSv2 [9, 20]. ROIs were drawn manually on the visualized lesion to include as much of the inner aspect of the lesion as possible without contracting the edges. While drawing the ROIs, the neurovascular bundle and urethra were excluded to minimize any error in the calculation of the ADC.A second ROI of similar size was drawn on the same MRI slice in a region contra-lateral to the identified lesion to include benign tissue within the same prostate zone in the same relative location. The ADC value of each lesion was calculated within the same image-viewing software. The ADC ratio of benign prostatic tissue to PCa was estimated for each lesion by the two radiologists independently. The DWI scores of PI-RADSv2 of cancerous lesions were then reported and revised.

Statistical analysis

Data were coded and entered using the statistical package SPSS (Statistical Package for the Social Sciences) version 23. The weighted kappa was evaluated to assess inter-reader agreement in PI-RADSv2 DWI scoring between the two readers.Quantitative data were analyzed using mean, standard deviation, minimum, and maximum values for categorical data. The relationship between the tumor ADC value and ADC ratio with the surgical biopsy Gleason score was analyzed using linear regression model.

ROC curves were constructed with area under curve analysis performed to detect best cut-off value of ADC and ADC ratio for differentiating pathologically aggressive(Gleason score ≥ 7) from non-aggressive (Gleason score ≤ 6) tumors and to correlate it with PIRADSv2. p values less than 0.05 were considered statistically significant.

Results

In the 58 patients enrolled in the study (Table 1), 66 PCa lesions were detected by histopathologic analysis of the surgical specimens. Ninety-one percent (60/66) of the lesions were located in the peripheral zone, and 9% (6/66) were located in the transitional zone. The histopathological type of the diagnosed prostate cancer was adenocarcinoma in all lesions. Eighty-nine percent (59/66) of the lesions were clearly identified on the T2 WI. Localization of the lesions was then confirmed on the DWI sequences.

Histopathological analysis reported 11(16.6%) lesions to have Gleason score (3 + 3), 11(16.6%) to have Gleason score (3 + 4), 14(21%) have Gleason score (4 + 3), 12(18%) had Gleason score (4 + 4), 10(15.2%) had Gleason score (5 + 4), 5(7.5%) had Gleason score (4 + 5), and 3(4.5%) had Gleason score (5 + 5). In the 5 (7.6%) lesions with negative bi-parametric-MRI findings (false negative), the histologic analysis showed a biopsy Gleason score of 3 + 3, indicating a well-differentiated tumor, with two or fewer pathologic cores, each one containing 10% or less malignant cells.

Assessment of inter-reader agreement for PI-RADSv2 DWI score

Among the 66 pathologically detected lesions (Table 2), 54 lesions were clinically significant. Using the PIRADSv2 DW reader 1 detected 91% (50/54) of clinically significant lesions with score overall score of 4 or 5, and 16 lesions with score 2 or 3. Reader 2 detected 94.5% (52/54) of clinically significant lesions and 14 lesions with score 2 or 3 (Table 2). Inter-reader agreement was satisfactory for PI-RADSv2 DWI score 4 or 5 (weighted kappa = 0.678; 95% CI, 0.490–0.882). Reader 1 falsely assigned two benign lesions as prostate carcinoma: one was focal prostatitis, and the second was a nodule of stromal benign prostatic hyperplasia (BPH) and reader 2 falsely reported a small abscess as PCA. There was disagreement for overall PI-RADSv2 DWI score in 6/55(11%) of clinically significant lesions (Figs. 1 and 2).

Table 2 PIRADS2 scoring system using DWI for PZ lesions and T2-weighted for TZ lesions
Fig. 1
figure1

A 67-year-old man with PSA 16 with discordant interpretation in terms of PIRADSv2 DWI score. a Axial T2 showing a moderately hypointense lesion located dorsally in the left peripheral zone of the apex not abutting the capsule. b DWI of b 800 shows a focal area of moderate hyperintensity, measuring 1.1 cm, in left PZ (arrow). CADC map also shows low signal intensity of the lesion with mean ADC value 0.922. The ADC ratio was 1.33. The qualitative DWI score was 4 for reader 1 and 3 for reader 2. Histopathology was Adenocarcinoma GS 3 + 3 = 6; tumor volume = 1.1 cm3; organ-confined)

Fig. 2
figure2

A 70-year-old man with total PSA 35 with discordant interpretation in terms of PIRADSv2 DWI score. a Axial T2 showing bilateral diffuse (non-circumscribed) low signal intensity of the peripheral zone near the apex. b DWI (800) showing bilateral focal bright signal intensity lesions in PZ (not markedly hyperintense). c, d ADC map also shows low signal intensity of the lesions with mean ADC value 0.782. The ADC ratio between benign prostatic tissues was 1.63. The qualitative DWI score was 4 for reader 1 and 3 for reader 2 histopathology was adenocarcinoma GS 4 + 3 = 7)

Quantitative lesion characteristics

The mean ADC values were significantly lower in tumor (Figs. 3, 4, 5, 6, and 7) than non-tumor tissue in the various regions of the gland; in the PZ (0.842 versus 1.138) and in TZ (0.795 versus 1.212) with a significant p value in both regions (Table 3). The mean ADC value of the tumors has a strong positive relationship of multiple R = 0.96 with their Gleason score (Table 4). The mean ADC value of the tumor has a positive relationship of multiple R = 0.86 with Gleason score of different grades of the tumor in the peripheral zone (Table 5).We also found that the mean ADC of Gleason score (4 + 3) and Gleason score (3 + 4) has a very strong positive relationship of multiple R and R2 = 1 (Table 6). Also, a positive relationship (multiple R = 0.87) was found between the ADC ratio and the pathologic Gleason score with a significant elevation of the ADC ratio along with an increase of the pathologic Gleason score (Table 5).

Fig. 3
figure3

A 64-year-old man with total PSA 68 with concordant interpretation in terms of PIRADSv2 DWI score. a Axial T2 of the apex showing right peripheral zone non circumscribed homogenous low signal intensity lesion < 1.5 cm. b DWI of b 800 shows a markedly hyperintense focal lesion in right PZ (arrow). CADC map also shows marked hypointensity of the lesion with mean ADC value 0.803. The qualitative DWI score was 4 for readers 1 and 2. The ADC ratio between benign prostatic tissues was 1.58. Histopathology was adenocarcinoma GS 3 + 4 = 7; tumor volume = 1.5 cm3; organ-confined)

Fig. 4
figure4

A 78-year-old man with total PSA 83 with concordant interpretation in terms of PIRADSv2 DWI score. a, b Axial T2W with a central zone isointense signal intensity lesion that was not well identified on T2W images but protruding into bladder. c DWI (at b value 800) showing marked bright signal intensity of the lesion 1.5 cm. d ADC map image showing marked low signal of the lesion with mean ADC value 0.762. The qualitative DWI score was 4 for readers 1 and 2. The ADC ratio between benign prostatic tissues was 1.67. Histopathology was Adenocarcinoma GS 4 + 4 = 7; tumor volume = 1.2 cm3; organ-confined)

Fig. 5
figure5

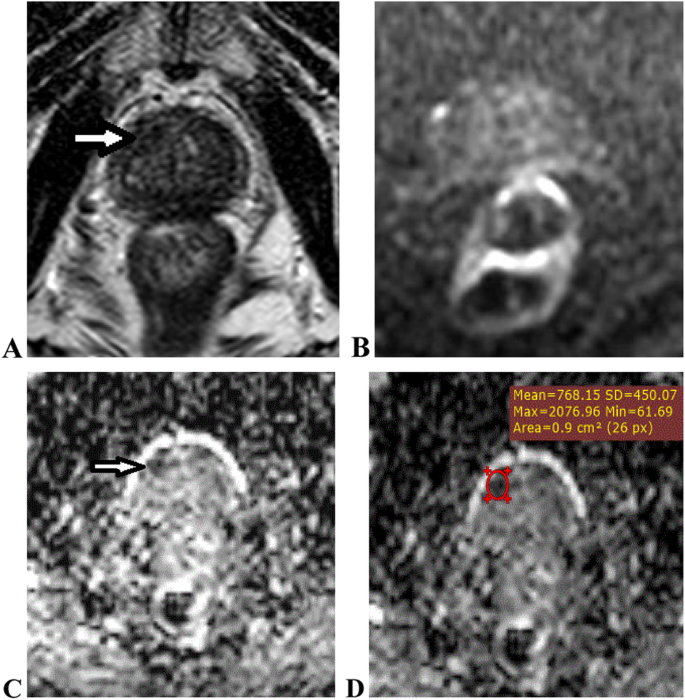

A 76-year-old male patient with total PSA 318with discordant interpretation in terms of PIRADSv2 DWI score. a Axial T2 showing small hardly defined right sided transitional zone slightly low signal intensity lesion. B-DWI (at b value 800) the lesion was not well identified. b, d ADC map images showing mild low signal intensity of the lesion with mean ADC value 0.768. The DWI score was 3 for reader 1 and 3 for reader 2. The ADC ratio between benign prostatic tissues was 1.65. Histopathology was Adenocarcinoma GS 4 + 4 = 6; tumor volume = 0.6 cm3; organ-confined)

Fig. 6
figure6

A 73-year-old male patient with total PSA 169 with concordant interpretation in terms of PIRADSv2 DWI score. a Axial T2 showing left peripheral zone low signal intensity lesion 1.7 cm with wide base abutting the capsule. b DWI (at b value 800) showing marked bright signal intensity of the lesion. c ADC map image showing marked low signal intensity of the lesion with mean ADC value 0.766. The DWI score was 5 for readers 1 and 2. The ADC ratio between benign prostatic tissues was 1.66. Histopathology was adenocarcinoma GS 4 + 4 = 8; tumor volume = 1.6 cm3; organ-confined)

Fig. 7
figure7

A 75-year-old male patient with total PSA 91 with concordant interpretation in terms of PIRADSv2 DWI score. a, b Axial T2 showing bilateral peripheral zone low signal intensity lesions with extra prostatic extension with right neurovascular bundle involvement. c DWI (at b value 600) showing bright signal of the lesions. d, e ADC map images showing marked low signal intensity of the lesions with mean ADC value 0.682. The DWI score was 5 for readers 1 and 2. The ADC ratio between benign prostatic tissues was 1.868. Histopathology was adenocarcinoma GS 5 + 4 = 9; tumor volume = 1.9 cm3; organ-confined)

Table 3 Mean ADC value
Table 4 Demonstrating the mean ADC value and the standard deviation of each Gleason score in the peripheral zone
Table 5 Demonstrating the mean ADC value and the standard deviation of different grades of the tumor in the peripheral zone
Table 6 Demonstrating the difference between the mean ADC value and the standard deviation of Gleason score 3 + 4 and Gleason score 4 + 3

ROC curves drawn for the tumor ADC and ADC ratio were reliable in distinguishing pathologically aggressive (Gleason score ≥ 7) from non-aggressive (Gleason score ≤ 6) tumors and to correlate it with PIRADSv2 scoring to predict the presence of clinically significant PCA (PIRADSv2 DW ≥ 4).The ability of the tumor ADC and ADC ratio to predict highly aggressive tumors (GS > 7) was high (AUC for ADC and ADC ratio, 0.946 and 0.897; p = 0.014 and 0.039, respectively). The ADC cut-off value for GS ≥ 7 was < 0.7725 and for GS ≤ 6 was > 0.8620 with sensitivity and specificity 97% and 94%. The cut-off ADC ratio for predicting (GS > 7) was 1.42 with sensitivity and specificity 97% and 92%.By applying this ADC ratio cut-off value the sensitivity and specificity of reader 1 for correct categorization of PIRADSv2 DW > 4 increased from 90% and 68% to 95% and 90% and that of reader 2 increased from 94% and 88% to 97 and 92% respectively. Inter-reader agreement for quantitative ADC measurement for PI-RADSv2 DWI score 4 or 5 was satisfactory (weighted kappa = 0.718)

T2-weighted imaging increases sensitivity and specificity for detecting PCA. This may be attributed to increased contrast on DWI images compared with conventional imaging [21]. When combined with T2-weighted imaging, the sensitivity and specificity for PC range from 71 to 89% and 61 to 91% respectively, compared with 51–86% and 60–84%, respectively, for T2WI alone [22, 23]. In our study about 12% of the lesions were not well identified by T2 (these lesions were predominantly located in the CZ and TZ) and many of these lesions were better delineated by DW. However, still 7.5% of lesions could not be identified on the DW images. We agreed with the previous results obtained by Tan et al. [24] regarding the limitation of T2 in TZ tumors and limitation of DWI in both TZ tumors and prostatic base tumors. Evaluation of tumors in prostatic base by DWI can be limited by increased cellularity in the normal prostatic base.

The current PIRADSv2 DW recommendations for prostate cancer reporting rely mainly on the subjective evaluation of lesion DW signal intensity. The qualitative scoring of PIRADSv2 is based on the recognition of a difference in restricted diffusion in the prostate gland with utilization of terms such as moderately hypointense and markedly hypointense [9, 10, 12]. Accordingly, the current PIRADSv2 suffers a high degree of inter-reader discrepancy. Agreement among highly experienced readers has been reported to be as low as 51% and between moderately experienced readers as 53% [25, 26]. Inter-reader agreement for PI-RADS may be affected by the variability among readers in manipulating the display conditions [27], the difference in radiologists’ level of experience [28] or familiarity with local imaging protocols [29]. In addition, DWI may underestimate CSC with small tumor volume (i.e., less than 0.5–1.0 cm3) [30, 31]. Furthermore, there may be significant variability in ADC values across vendors or MR protocols [32, 33]. In our study, inter-reader agreement was satisfactory in patients for PI-RADSv2 DWI score ≥ 4 with disagreement in only 11% (6/55) of cases. This could be due to stabilization of the display conditions in the image viewing software, relatively large tumors volume and high percentage of CSC as well as relatively close level of experience of the two readers.

In concordance with previous studies, current study results confirmed that the mean ADC value of prostate cancer lesions is significantly lower than that of the normal prostatic tissue [34,35,36]. However, because tissue diffusivity depends on both biological (patient’s age and body temperature) and technical factors (b value, location, and size of the region of interest), no definite ADC cut-off for tumors has been established to date [34].

Current study results confirmed the inverse relationship between the ADC value and the GS [35,36,37]. Doo et al. [38] evaluated the substantial value of combining DWI with T2-weighted imaging to detect low- (GS, ≤ 6) from intermediate- or high-risk (GS, ≥ 7) prostate cancer. They found that the addition of DWI to T2-weighted imaging improves the accuracy of detecting intermediate- or high-grade prostate cancers, but not for low-grade prostate cancer detection. Similarly Somford et al. [39] and Cornud et al. [40] showed that the relationship between ADC and GS enabled the prediction of high-grade tumor. Oto et al. [17] instead found a substantial overlap between the ADC values of tumors with different GS; however, they concluded that ADC values of tumors with a GS of 6 and those of tumors with a GS of 9 were relatively well separated. The results of current study went more with those of Hambrock et al. [14] and Woodfield et al. [41] in that DWI could achieve a high discriminatory performance in the differentiation between low-, intermediate-, and high-grade cancer. The mean ADC value of low grade (Gleason score, ≤ 6) was 0.919 mm2/s, of intermediate grade (Gleason score 7) was 0.799 and of high grade (Gleason score, ≥ 8) tumors was 0.716 (p value < 0.001).

In a larger study by Nowak et al. [42], they calculated ADC cut-off values for different criteria for maximum values of both sensitivity (90.5%) and specificity (62.5%), ADC values lower than 1.005 × 10_3 mm2/s indicated a GS > 7, for high sensitivity (95.2%) and specificity of 50%, the cut-off ADC value for GS > 7 was 1.052 × 10_3 mm2/s and ADC of > 0.762 × 10_3 mm2/s indicated rather a 3 + 4 type Gleason grade with an AUC of 69.6%, corresponding to a sensitivity and specificity of 77.5% and 64.7% respectively.

In a study by Park et al. [16], they found that the best cutoff ADC ratio for determining a DWI score ≥ 4 was greater than 1.3 for both readers. With the use of this ADC ratio, the rate of inter reader disagreement declined by about half (from 11.8 to 5.9–6.0% in PCa; from 13.8 to 7.0–7.1% in PZ cancer) and the PPV for the presence of CSC was 100%.

In current study, the ROC curve analysis showed that the ability of the tumor ADC and ADC ratio to predict highly aggressive tumors (GS > 7) was high (AUC for ADC and ADC ratio, 0.946 and 0.897; p = 0.014 and 0.039, respectively). The ADC cut-off value for GS ≥ 7 was < 0.7725 and for GS ≤ 6 was > 0.8620 with sensitivity and specificity 97% and 94%. The cut-off ADC ratio for predicting (GS > 7) was 1.42 and for GS ≤ 6 was > 1.320 with sensitivity and specificity 97% and 92%. By applying this ADC ratio cut-off value, the sensitivity and specificity of reader 1 for correct categorization of PIRADSv2 DW > 4 increased from 90% and 68% to 95% and 90% and that of reader 2 increased from 94% and 88% to 97 and 92%, respectively.

Accordingly, the addition of ADC ratio can improve the reliable prediction of clinically significant cancer (DW score ≥ 4) within the PIARDASv2 system. The ADC ratio can be widely applied for several reasons. First, the ADC ratio is simple to measure using the ROI. Second, the ADC ratio is not affected by display conditions (e.g., window width or level). Third, the ADC ratio can be standardized across different MR protocols or vendors, because the ADCs of tumor and non-tumor tissue will change proportionally. Therefore, a universal ADC ratio cut-off may be applicable in the future for discriminating significant from non-significant PCa [16].

Our study has multiple limitations. First, because of the limited sample size, this study has to be considered a preliminary study warranting further verification in a larger patient population. Second, lack of discrimination between the measurements taken in the various anatomic locations of the prostate whether in the peripheral or transitional zones makes this quantitative analysis deficient compared to previous studies which analyzed the DW parameters in each zone separately; however, this was due to the very limited number of lesions within the TZ and CZ. Third, low and intermediate b values were used in our study but according to the previous literatures there is no consensus on the optimal b value for DWI of the prostate. Although studies have been made with high DWI values of (b 2000 s\mm) recent studies showed that the ADC map constructed with high values of (b 2000 s\mm) did not add significant information to differentiate prostate cancer from benign tissue compared to lower values of b [43, 44]. Fourth, the number of low-grade PCa or clinically insignificant PCa was so small which could have interfered with the accuracy of quantitative measurement for discrimination between low and high grade tumors.

Conclusion

In conclusion, the quantitative analysis of diffusion weighted metrics (ADC and ADC ratio between benign prostatic tissues and prostate cancer provide significant additive value to the PIRADSv2 scoring system. Applying threshold values for ADC and ADC ratio yielded excellent interpretation of DW score ≥ 4 and decreased the level of inter-reader disagreement.
