Cases of thyroid cartilage metastasis as abnormal findings seen in prostate cancer patients visualized by 68Ga-PSMA-11 PET/CT

Abstract

Background

68Ga-PSMA-11 PET/CT is increasingly being used worldwide in prostate cancer patients. Accordingly, there is a pressing need for educational resources on the proper interpretation criteria that need to be used, including a deeper understanding on the pitfalls and variants that one can encounter with this new PET/CT imaging modality. 68Ga-PSMA-11 PET/CT provides very accurate staging of disease in prostate cancer, superior to what can be achieved with other standard imaging techniques. It has allowed the recognition of patterns of metastatic disease in prostate cancer that perhaps were not fully determined.

Case presentation

We present three cases of patients with advanced metastatic prostate cancer imaged with 68Ga-PSMA-11 PET/CT in which, in addition to widespread osseous metastatic disease, there is evidence of unknown and unsuspected metastatic disease in the thyroid cartilage.

Conclusion

Although rare and unusual, it is helpful to consider the possibility of prostate carcinoma metastasizing to the thyroid and cricoid cartilage, especially in prostate cancer patients with advanced widespread osseous metastatic disease.

Background

In 2016, there were an estimated 3,110,403 men living with prostate cancer in the USA. Approximately 11.6% of men will be diagnosed with prostate cancer at some point during their lifetime. It is estimated that 191,930 new cases were diagnosed with 33,330 deaths from prostate cancer during 2020 in the USA [1]. Imaging plays an important role in many aspects in the management of this disease [2]. Since prostate-specific membrane antigen (PSMA) is known to be overexpressed in most prostate cancers, several radiolabeled ligands have been and are currently being developed to image and treat prostate cancer, using different isotopes and following the theragnostic approach. By far, the most frequently used PSMA radiopharmaceutical is 68Ga-PSMA-11, which provides highly accurate PET/CT imaging in prostate cancer [3].

The three cases that we present illustrate that due to the high sensitivity of 68Ga-PSMA-11 PET/CT imaging, previously unrecognized metastatic sites can be more easily detected. Cartilage metastases are rare due to the poor vasculature of this tissue. Nevertheless, metastasis to the thyroid cartilage has been previously reported in patients with different neoplastic conditions such as multiple myeloma [4], lung [5], and colon cancer [6]. Metastatic prostate cancer in the thyroid cartilage is also very rare, with—to the best of our knowledge—only five cases being described in the literature. However, at the same time, until 68Ga-PSMA PET/CT imaging has become more routinely available, there were no whole-body imaging modalities sensitive enough to facilitate the detection of disease in the thyroid cartilage, even in present.

Cases presentation

Case 1

A 55-year-old Caucasian gentleman with castrate-resistant prostate cancer was referred to our center for radioligand therapy (RLT). He had radiation therapy for prostate cancer 6 months before and started hormonal therapy 2 months before and the last chemotherapy cycle 1 month before the 68Ga-PSMA-11 PET/CT scan. At the time of the 68Ga-PSMA-11 PET/CT scan, the patient’s PSA was 1000 ng/ml, experiencing bone aches and dysphagia. This case shows, in addition to multiple osseous metastases, a well-defined lesion with intense radiotracer uptake in the right side of the thyroid cartilage most suspicious for a thyroid cartilage metastasis (Fig. 1).

Fig. 1
figure1

68Ga-PSMA-11 PET/CT scan images (CT image above, PET image in the middle, and fused images below) of a 55-year-old man with castrate-resistant metastatic prostate cancer. The PSA at the time of the PET/CT scan was 1000 ng/ml. The axial, sagittal, and coronal images of the neck show a very avid lesion (SUV = 12) in the right side of the thyroid cartilage (arrows). The maximum intensity projection (MIP) whole-body image depicts many other osseous metastatic lesions

Case 2

A 59-year-old Caucasian gentleman was diagnosed in October 2018 with metastatic castrate-resistant poorly differentiated prostate adenocarcinoma. The Gleason score was 5 + 4 = 9. He started chemotherapy in December 2018 receiving 3 cycles, the last one in March 2019. He was also treated with hormonal therapy in November 2018. A 68Ga-PSMA-11 PET/CT scan was performed in March 2019 when the patient’s PSA was 11.1 ng/ml. This case demonstrates the presence of focal uptake of radiotracer on the right side of the thyroid cartilage and multiple osseous metastases scattered throughout the skeleton (Fig. 2). For a few months before the PET/CT scan, the patient complained of painful swallowing.

Fig. 2
figure2

68Ga-PSMA-11 PET/CT scan images (CT image above, PET image in the middle, and fused images below) of a 59-year-old man with castrate-resistant metastatic prostate cancer. The PSA at the time of the scan was 11.1 ng/ml. The axial, sagittal, and coronal images of the neck show a 68Ga-PSMA-11 avid lesion with an SUV = 3 (arrows) in the right side of the thyroid cartilage. The MIP whole-body image depicts other progressive metastatic lesions

Case 3

A 66-year-old Caucasian gentleman with castrate-resistant prostate cancer, Gleason score 4 + 4 = 8, was initially treated with radical prostatectomy followed by radiation therapy a year later. Several years later, he was treated with chemotherapy, with the last cycle taking place 6 months before the 68Ga-PSMA-11 PET/CT scan, which was done as part of the initial work up for enrollment on a clinical trial of RLT. At the time of the PET/CT scan, the patient’s PSA was 973 ng/ml. This case demonstrates the presence of two foci of intense tracer uptake on both sides of the thyroid cartilage, one single focus of disease in the left side of the cricoid cartilage and multiple osseous metastases (Fig. 3).

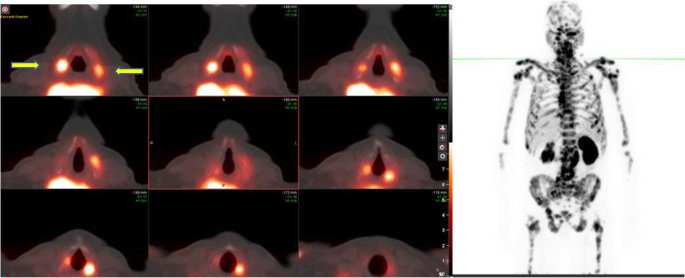

Fig. 3
figure3

68Ga-PSMA-11 PET/CT scan images (fused PET/CT images) of a 66-year-old man with castrate-resistant metastatic prostate cancer. The PSA at the time of the scan was 973 ng/ml. The fused axial images of the neck show very avid lesions at both sides of the thyroid cartilage (yellow arrows) and also on the left side of the cricoid cartilage (white arrow). MIP whole-body image shows multiple osseous metastatic lesions

Discussion

Prostate cancer is considered the most common non-cutaneous cancer in men in the USA. Moreover, it is among the most commonly diagnosed cancers in many developed countries and the second cause of cancer death for men in the USA. Advanced metastatic prostate cancer has a poor prognosis with survival times that ranges from 1 to 3 years. The skeleton is the most common site for prostate cancer spread. More than 80% of men who die from prostate cancer are identified with bone metastases at the time of autopsy. In contrast to many other cancers, prostate cancer predominantly forms osteoblastic metastases. The axial skeleton and proximal long bones are the most common sites of skeletal metastases. The typical routes of prostate cancer spread are hematogenous and lymphatic and by direct infiltration [7].

Thyroid cartilage malignant lesions are very rare; it accounts for 0.07 to 2% of laryngeal cancers with secondary tumors of the thyroid cartilage being extremely rare [6, 8]. Primary lesions of the laryngeal cartilages are also rare, with the most common being chondromas and chondrosarcomas [9, 10].

Conventional computed tomography (CT) and magnetic resonance imaging (MRI) images demonstrate the characteristic appearance of the large primary thyroid cartilage malignant lesions; however, smaller lesions are challenging to detect. High sensitivity and accuracy of the combined PET/CT result from merging anatomic with molecular image information. The molecular information available through PET provides the functional/metabolic characteristics of anatomic abnormalities (sometimes even on normal appearing anatomy) facilitating their characterization as malignant or benign.

Nowadays, available radioligand compounds such as 68Ga-PSMA-11 provide a high sensitivity and fairly specific technique for imaging with PET/CT patients with prostate cancer, with the capability—specially using the newer digital PET/CT scanners—of detecting very small lesions, often times located in anatomical structures that can appear entirely normal on the CT component of the study or even on a MRI scan. Therefore, with 68Ga-PSMA-11 whole-body PET/CT, it is possible to detect small volume disease in otherwise normal appearing organs. Accordingly, this new imaging technique can and does detect disease at unexpected or atypical sites for metastatic spread, further expanding our understanding on the different possible metastatic sites and different unknown pathways of tumor spread. This is the case for the metastatic disease in the thyroid cartilage.

Conclusion

As these three cases show, although rare and unusual, it is important to consider the possibility of prostate carcinoma metastasizing to the thyroid and cricoid cartilage, especially in prostate cancer patients with advanced widespread osseous metastatic disease.
