Value of sonographic pseudogestational sac sign in the diagnosis of Meckel diverticulum in children presenting with bleeding per rectum: a 15-year prospective study
Egyptian Journal of Radiology and Nuclear Medicine volume 52, Article number: 195 (2021)
Meckel diverticulum is the most common congenital abnormality of the gastrointestinal tract. Gastrointestinal bleeding is the most common complication of Meckel diverticulum in the paediatric population; the bleeding mostly occurs in the first 2 years of life. Because the diverticulum is seldom seen in clinical practice, misdiagnosis and delayed diagnosis are not uncommon. CT and nuclear studies are the most used diagnostic tools in clinical practice. However, radiation and sensitivity concerns remain an issue. Ultrasound has been suggested as an alternative diagnostic tool in diagnosing Meckel diverticulum with mixed results. The aim of our study is to assess the value of using a new sonographic sign, the pseudogestational sac sign in diagnosing Meckel diverticulum in children presenting with bleeding per rectum. Ultrasound was performed for all children. Results were correlated with nuclear studies, histopathology and clinical follow-up findings.
Seventy-three children were included in our study. The pseudogestational sac sign was present in 46 (63%) and absent in 27 (37%) cases. Forty-five children were ultimately diagnosed as Meckel diverticulum. The age ranged from 2 months to 9 years with a mean of 2.3 years. The boy-to-girl ratio was 4.6:1 with 60% of children presenting during their first 2 years of life. The ultrasound performance using the pseudogestational sac sign revealed a sensitivity of 91.1%, specificity of 82.1%, positive predictive value of 89.1%, negative predictive value of 85.2%, positive likelihood ratio of 5.1, negative likelihood ratio of 0.11 and accuracy of 87.7%.
The sonographic pseudogestational sac sign is a reliable diagnostic tool for diagnosing Meckel diverticulum in children presenting with bleeding per rectum. The sonographic diagnosis of Meckel diverticulum complies with the international standards of “Image Gently”.
Meckel diverticulum is a congenital intestinal deformity attributable to incomplete embryonic degeneration of the yolk tube. It takes place in approximately 2% of the population. Since Meckel diverticulum has all three layers of the gastrointestinal wall, it is considered a true diverticulum with gastric mucosa being the most common heterotopic tissue .
Despite the fact that Meckel diverticulum is the most common congenital gastrointestinal abnormality, the condition is rarely seen in clinical practice; delayed diagnosis or misdiagnosis is not uncommon adding burdens on children and their parents [2,3,4].
Bleeding per rectum is the most prevalent complication of Meckel diverticulum occurring mostly in the first 2 years of life . The bleeding manifests as dark red stools or considerable amount of bright red stool which can lead to life-threatening haemorrhagic shock and necessitates immediate medical attention [3, 4]. The second most common complication is intestinal obstruction; however, adult population are more prone to experience such complication .
Symptomatic Meckel diverticulum can be diagnosed using a variety of imaging modalities, including conventional radiographs, ultrasound, nuclear studies and CT [7,8,9]. Computed tomography has been reported to be the imaging modality of choice in diagnosing complicated Meckel diverticulum with low sensitivity and at the cost of radiation exposure . In children with severe rectal bleeding, 99mTc pertechnetate scintigraphy has high positive and negative predictive values for detecting inflamed Meckel diverticulum. However, the sensitivity can be affected by the amount of heterotopic gastric tissue, degree of rectal bleeding and haemoglobin levels, as well as inflammatory and oedematous changes within the diverticulum [5, 10,11,12].
Ultrasound has been used to investigate Meckel diverticulum yielding mixed results with a sensitivity ranging from 0 to 93.6% [1, 12]. Other reports used either small sample size, case reports or retrospective study design [6, 9, 13,14,15,16].
The aim of our prospective study is to assess the value of using a new sonographic sign, the pseudogestational sac sign in diagnosing Meckel diverticulum in children presenting with bleeding per rectum with histopathological and clinical follow-up correlation. The pseudogestational sac sign was named due to resemblance of bleeding Meckel diverticulum to early intrauterine or extrauterine gestational sac which appears as blind-ended cystic mass with thick echogenic wall and clear or turbid content (Fig. 1) .
Our prospective single-institution study included all consecutive children under the age of 18 years who were referred to the Radiology Department with clinical suspicion of Meckel diverticulum due to bleeding per rectum from January 2005 to October 2020. The study was approved by the institutional ethics committee. Written informed consent was obtained from the parents of all patients who agreed to take part in the study. The study was reported in compliance with the Standards for Reporting for Diagnostic Accuracy studies (STARD guidelines).
Inclusion criteria included all children with suspected Meckel diverticulum who are willing to perform ultrasound followed by laparoscopy if required. Exclusion criteria included patients with intussusception, patients with imaging features of partial or complete intestinal obstruction, loss of follow-up and lack of informed consent.
All children were initially assessed by x-ray abdomen in supine view as part of our institution protocol for management of children with acute abdomen.
Two senior radiologists who are highly experienced in the field of paediatric imaging performed the ultrasound examinations using (GE Healthcare Logic E9) ultrasound system with high-resolution 9L-D 2–9 MHz broad-spectrum linear probe and ML 6–15 MHz broad-spectrum linear matrix array probe with colour Doppler imaging. In case of unsatisfactory imaging due to thick anterior abdominal wall and older children, C2-9-D 2–9 MHz broad-spectrum convex probe was used.
The children were examined in supine or lateral decubitus views using a warm coupling gel to ensure child comfort and cooperation. No bowel preparation was needed. The diagnosis of Meckel diverticulum was established upon the identification of pseudogestational sac sign within the abdomen which resembles early intrauterine or extrauterine gestational sac appearing as blind-ended cystic mass with thick echogenic wall and clear or turbid contents. The diverticulum is usually hypervascular on colour Doppler and surrounded by inflammatory changes. The longest axial dimensions of the lesion were recorded.
Following ultrasound, 30 patients performed 99m TcO4 Meckel diverticulum nuclear study after intravenous administration of 2–3 mCi of Tc04 with dynamic imaging of the abdomen anteriorly and posteriorly for 1 h followed by static images before and after voiding the urine. Seven patients performed SPECT CT after intravenous administration 74 MBq of Tc04 with dynamic images of the abdomen anteriorly and posteriorly for 1 h followed by static and SPECT CT images. A maximum gap of 1 week separated the ultrasound and nuclear studies.
Confirmed cases of Meckel diverticulum were treated with open or laparoscopic-assisted Meckel diverticulectomy and end-to-end ileal anastomosis. Surgical specimens were sent to the same histopathology laboratory. The pathology report included the size of the diverticulum, wall thickness, presence or absence of heterotopic gastric or pancreatic tissue and presence of complications such as perforations and surrounding inflammatory changes. Conservatively treated children were followed clinically in the outpatient clinic and by ultrasound for a period of 6 months. During follow-up, the resolution of bleeding per rectum or diagnosis of other diseases was considered negative for Meckel diverticulum.
The ultrasound findings were correlated with nuclear studies, operative and histopathology results and in cases with conservative management with clinical and imaging follow-up findings. All the data were collected by the hospital electronic medical records. The sensitivity, specificity, positive and negative predictive values, positive and negative likelihood ratios as well as accuracy of pseudogestational sac sign were calculated using Medcalc Statistical software, version 19.1 (Medcalc Software, Ostend, Belgium).

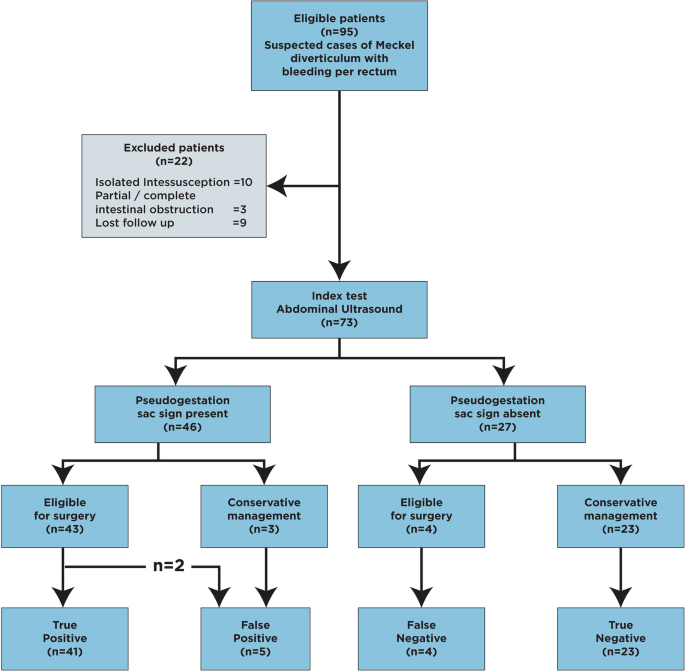

Flowchart of the children in our study is shown in Fig. 2 according to STARD recommendation. Ninety-five patients were initially enrolled in our study. Twenty-two children were excluded due to the presence of intussusception, partial/complete intestinal obstruction and loss of follow-up. Following the exclusion criteria, 73 patients were ultimately included.
The ratio of boys to girls in our series was 3.9:1 with 58 boys and 15 girls. The age ranged from 4 weeks to 12 years with a median of 2.2 years.
The pseudogestational sac sign was identified in 46 cases (63.0%). Forty-three patients were eligible for surgery all of which proved to be Meckel diverticulum by surgery and histopathology except for two cases. One patient was a 6-year-old male with negative laparoscopy finding and subsequent sigmoidoscopy and rectal polypectomy. The second case was a 1-month-old baby girl with suspected Meckel diverticulum within an umbilical hernia who proved by laparoscopy to have isolated umbilical hernia associated with omphalo-mesenteric band. Nuclear study was done for 23 patients and SPECT CT for three patients with a maximum of 1 week interval from the ultrasound all of which turned to be positive except for five patients. Three patients were treated conservatively and followed clinically and ultrasound with improvement in clinical symptoms. Two cases proved to be Henoch–Schonlein purpura. The third patient proved to be ileal duplication cyst. The remaining two patients were operated and proved to be Meckel diverticulum by histopathology despite negative nuclear studies due to high clinical suspicion. The first patient was a 3-year-old male operated two days after negative nuclear study due to typical clinical features with massive bleeding per rectum. Histopathology showed ectopic gastric tissue within the diverticulum (Fig. 3). The second patient was a 9-year-old male who presented by intussusception and operated 6 years after initial ultrasound and negative nuclear study. Repeat ultrasound revealed a large intussusception associated with Meckel diverticulum. Histopathology showed gangrenous diverticulum with ectopic gastric and pancreatic heterotopia (Fig. 4).
The pseudogestational sac sign was absent in 27 patients (37%). Four children were still operated despite negative ultrasound and confirmed to be Meckel diverticulum by laparoscopy and histopathology due to high clinical suspicion, persistent or recurrent bleeding per rectum and positive SPECT CT study. All four patients were wrongly diagnosed as acute appendicitis. The remaining 23 patients were treated conservatively. Seven patients underwent nuclear study before hospital discharge and proved all to be negative. After discharge, all 23 children were monitored clinically and by ultrasound with improvement in clinical symptoms, and no recurrence of bleeding per rectum for 6-month follow-up period and no other diseases diagnosed.
Forty-five patients were ultimately diagnosed with Meckel diverticulum by surgery and histopathology. Table 1 summarizes their clinical, imaging, operative and histopathology features. The age ranged from 2 months to 9 years with a mean of 2.3 years. The boy-to-girl ratio was 4.6:1, with 26 (60%) children presenting in their first 2 years of life. Ectopic gastric mucosa was the most commonly encountered heterotopia on histopathology seen in 36 (80%) of patients. Table 2 summarizes the ultrasound features of the 41 true-positive cases. The largest lesion measured 4.0 × 5.0 cm , while the smallest lesion measured 0.8 × 0.7 cm (Fig. 5). In addition to pseudogestational sac sign, ultrasound characteristics which were strongly associated with Meckel diverticulum in our series were wall thickness ≥ 3 mm, hypervascularity on colour Doppler, surrounding inflammatory changes and enlarged mesenteric lymph nodes (Fig. 6).
Table 3 shows the results of ultrasound examination against the final diagnosis.
The ultrasound performance using the pseudogestational sac sign revealed a sensitivity of 91.1% (95% confidence internal [CI] 78.8–97.5%), specificity of 82.1% (95% CI 63.1–93.9%), positive predictive value of 89.1% (95% CI 78.7–94.8%), negative predictive value of 85.2% (95% CI 67.0–93.7%), positive likelihood ratio of 5.1 (95% CI 2.3–11.4), negative likelihood ratio of 0.11 (95% CI 0.04–0.28) and accuracy of 87.7% (95% CI 77.9–94.2%).
Our results showed that a blind-ended cystic mass with thick echogenic wall clear or turbid content resembling early intrauterine or extrauterine gestational sac giving a pseudogestational sac appearance with surrounding inflammatory changes was highly suggestive of Meckel diverticulum in children presenting with bleeding per rectum . Additional sonographic features supporting the diagnosis in our series were wall thickness ≥ 3 mm, hypervascularity on colour Doppler and enlarged mesenteric lymph nodes as published by previous investigators [1, 2, 6, 13, 14, 18]. As reported by Hu and colleagues, our results showed high sensitivity and accuracy in diagnosing Meckel diverticulum . This was contrasted by one study which reported low sensitivity and accuracy of ultrasound which could be explained by their retrospective study design . A study by Baldisserotto and colleagues also reported low sensitivity of ultrasound which could be due to a small number of children in their series with only ten children meeting their inclusion requirements. However, they concluded that ultrasound may be useful in children with bleeding per rectum and negative nuclear study .
The boys comprised 82.2% of Meckel diverticulum cases in our series similarly observed in other studies [2, 12, 13]. As reported by previous investigators, most of children in our series (60%) presented during the first 2 years of life [1, 2, 12, 13, 19]. The smallest true-positive Meckel diverticulum in our series measured 0.8 × 0.7 cm compared to 1.0 × 0.4 cm in the study by Hu and colleagues . Histopathological evaluation of Meckel’s diverticulum cases in our series showed that gastric mucosa was the most commonly encountered heterotopia seen in 80% of patients similarly reported in previous studies [1, 12, 16, 19, 20].
In out series, all our four false-negative cases were wrongly diagnosed as acute appendicitis (Fig. 7). Similar observation was reported by a study published by Baldisserotto and colleagues which included ten children with age ranging from 1 to 11 years who underwent preoperative ultrasound; six of those patients were misdiagnosed as having acute appendicitis . Both acute appendicitis and Meckel diverticulum appear as blind-ended tubular structures which may explain the confusion. However, high index of suspicion has been given to these cases particularly with their clinical presentation of bleeding per rectum. A search for a normal appendix should also be carried out which can be identified in eight out of ten cases . We misdiagnosed two cases as having Meckel diverticulum which later proved to be Henoch–Schonlein purpura (Fig. 7). Ultrasound can differentiate Meckel diverticulum from allergic purpura by multiple segmental distribution and tendency to involve the proximal small bowel loops . We had one false-positive case which turned out to be ileal duplication cyst (Fig. 7). The presence of ileal duplication cysts at the right iliac fossa may contribute to the confusion. Duplication cysts have no connection to the normal bowel, have a smooth outline and have a characteristic bowel wall signature which can help distinguish the condition from Meckel diverticulum [2, 13, 22].
Thirty-seven children underwent nuclear study in our series with a 92.6% sensitivity and 94.6% accuracy which is higher compared to previous studies [10, 12, 19, 23]. This could be explained by the fact that we only included children with bleeding per rectum in our series most of which had gastric heterotopia which improved the pickup rate. We also had seven patients who performed SPECT CT which has been shown to be more effective in diagnosing cases that would otherwise go undetected using conventional nuclear studies . We had two cases with negative nuclear study who proved later to be Meckel diverticulum by surgery and histopathology. We also had true-positive cases in our series who did not perform nuclear study preoperatively. This illustrate that in the presence of typical clinical features, ultrasound can be considered an alternative sensitive technique in diagnosing Meckel diverticulum in paediatric population when nuclear imaging is not available, inconclusive or inconsistent with the clinical presentation.
The limitation of our study is the high incidence of Meckel diverticulum in our study population due to the way the patients were selected and the setting of the study at a tertiary paediatric and maternity hospital.
The sonographic pseudogestational sac sign is a reliable diagnostic tool for diagnosing Meckel diverticulum in children presenting with bleeding per rectum. The sonographic diagnosis of Meckel diverticulum complies with the international standards of “Image Gently” .
Availability of data and materials
The data sets used and analysed during the current study are available from the corresponding author on reasonable request.
Standards for Reporting Diagnostic Accuracy studies
Srisajjakul S, Prapaisilp P, Bangchokdee S (2016) Many faces of Meckel’s diverticulum and its complications. Jpn J Radiol 34:313–320
Hu Y, Wang X, Jia L, Wang Y, Xin Y (2020) Diagnostic accuracy of high-frequency ultrasound in bleeding Meckel diverticulum in children. Pediatr Radiol 50:833–839
Robinson JR, Correa H, Brinkman AS, Lovvorn HN 3rd (2017) Optimizing surgical resection of the bleeding Meckel diverticulum in children. J Pediatr Surg 52:1610–1615
Blevrakis E, Partalis N, Seremeti C, Sakellaris G (2011) Meckel’s diverticulum in paediatric practice on Crete (Greece): a 10-year review. Afr J Paediatr Surg 8:279–282
Swaniker F, Soldes O, Hirschl RB (1999) The utility of technetium 99m pertechnetate scintigraphy in the evaluation of patients with Meckel’s diverticulum. J Pediatr Surg 34:760–765
Elsayes KM, Menias CO, Harvin HJ, Francis IR (2007) Imaging manifestations of Meckel’s diverticulum. AJR Am J Roentgenol 189:81–88
Lüdtke FE, Mende V, Köhler H, Lepsien G (1989) Incidence and frequency or complications and management of Meckel’s diverticulum. Surg Gynecol Obstet 169:537–542
Kotecha M, Bellah R, Pena AH, Jaimes C, Mattei P (2012) Multimodality imaging manifestations of the Meckel diverticulum in children. Pediatr Radiol 42:95–103
Baldisserotto M, Maffazzoni DR, Dora MD (2003) Sonographic findings of Meckel’s diverticulitis in children. AJR Am J Roentgenol 180:425–428
Irvine I, Doherty A, Hayes R (2017) Bleeding Meckel’s diverticulum: a study of the accuracy of pertechnetate scintigraphy as a diagnostic tool. Eur J Radiol 96:27–30
Rushford MP, Stys SJ, Latchaw LA, Kasales C, Vaccaro T (2004) Prenatal sonographic detection of Meckel diverticulum in utero with postnatal radiologic and surgical confirmation. J Ultrasound Med 23:319–321
Lin XK, Huang XZ, Bao XZ, Zheng N, Xia QZ, Chen CD (2017) Clinical characteristics of Meckel diverticulum in children: a retrospective review of 15-year single-center experience. Medicine (Baltimore) 96:e7760. https://doi.org/10.1097/MD.0000000000007760
Daneman A, Lobo E, Alton DJ, Shuckett B (1998) The value of sonography, CT and air enema for detection of complicated Meckel diverticulum in children with nonspecific clinical presentation. Pediatric Radiol 28:928–932
Baldisserotto M (2004) Color Doppler sonographic findings of inflamed and perforated Meckel diverticulum. J Ultrasound Med 23:843–848
Mostbeck GH, Liskutin J, Dorffner R, Bittmann B, Resinger M (2000) Ultrasonographic diagnosis of a bleeding Meckel’s diverticulum. Pediatr Radiol 30:382
Menezes M, Tareen F, Saeed A, Khan N, Puri P (2008) Symptomatic Meckel’s diverticulum in children: a 16-year review. Pediatr Surg Int 24:575–577
Zevof VN, El-Maadawy SM, Abdelrahman NA, Abdul Rahman D, Mustafawi AR (2017) Value of sonographic pseudogestation sac sign in diagnosing Meckel diverticulum in children presenting with bleeding per rectum: a decade’s experience. ECR 2017 Book of Abstracts. Insights Imaging 8:S293. https://doi.org/10.1007/s13244-017-0546-5
Chang PT, Schooler GR, Lee EY (2015) Diagnostic errors of right lower quadrant pain in children: beyond appendicitis. Abdom Imaging 40:2071–2090
Burjonrappa S, Khaing P (2014) Meckel′s diverticulum and ectopic epithelium: evaluation of a complex relationship. J Indian Assoc Pediatr Surg 19:85–89. https://doi.org/10.4103/0971-9261.129601
Levy AD, Hobbs CM (2004) From the archives of the AFIP. Meckel diverticulum: radiologic features with pathologic correlation. Radiographics 24:565–587
Rioux M (1992) Sonographic detection of the normal and abnormal appendix. AJR Am J Roentgenol 158:773–778
Hwang IK, Namkung S, Kim BS, Kim HC, Lee IS, Hwang WC (2003) Perforated ileal duplication cyst with haemorrhagic pseudocyst formation. Pediatr Radiol 33:489–491
Thurley PD, Halliday KE, Somers JM, Al-Daraji WI, Ilyas M, Broderick NJ (2009) Radiological features of Meckel’s diverticulum and its complications. Clin Radiol 64:109–118
Applegate KE, Frush DP (2017) Image gently: a decade of international collaborations to promote appropriate imaging for children. J Am Coll Radiol 14:956–957
The authors declare that they did not receive funding for this research.
Ethics approval and consent to participate
Dubai Health Authority Research Ethics Committee approval was obtained. Reference number is not applicable. Written informed consent was obtained from the parents of all patients who agreed to take part in this study.
Consent for publication
All patients’ guardians included in this research gave written informed consent to publish the data contained within the study.
The authors declare that they have no competing interests.
