SWI as a promising tool comparable to CT perfusion in evaluation of acute cerebral infarction
Egyptian Journal of Radiology and Nuclear Medicine volume 52, Article number: 250 (2021)
The recent advances in magnetic resonance imaging techniques have improved the assessment of acute stroke. Susceptibility weighted imaging (SWI) has a crucial role in the management plan of cerebral ischemia. This study was aimed to assess the role of susceptibility-weighted imaging in assessment of area at risk (pneumbra) compared to CT perfusion in patients with acute ischemic infraction.
We found the mean aspect score for SWI 4 ± 1.4 and mean aspect for DWI 7.6 ± 1.2; in addition, mean aspect for CTP was 4.6 ± 1.3. Significant difference is noted between the SWI and DWI with significant p value. But there is no significant difference between the SWI and CTP ASPECT scores.
SWI is a promising technique and comparable to CT perfusion is evaluation of penumbra in the settings of acute infarction.
Ischemic stroke is one of the most common of the worldwide diseases with high mortality and disability rates . The key to treating ischemic stroke is saving the ischemic penumbra. For patients with large vascular occlusion after acute cerebral infarction, the shorter the onset time, the less necrotic tissue and the more healthy tissue that can be saved .
However, recent research suggests that the rate of irreversible death of ischemic neurons after stroke is highly variable. This is influenced by a number of factors, such as the location of blood vessels and collateral circulation, which affect the death of ischemic neurons ; therefore, timely assessment of the penumbra tissue is the key to choosing which patients are ideally suited to reperfusion and to enable an accurate prognosis. Perfusion–diffusion mismatch is the first choice in identifying the ischemic penumbra from the infarct core region [4, 5].
Contemporary therapy for acute ischemic stroke is based on the concept of penumbra, which is an area with reduced blood flow but not to such a level that causes irreversible cell membrane failure. Although challenged by several limitations, mismatch between larger abnormal areas on CT perfusion and MR perfusion-weighted imaging (PWI) and smaller restricted areas on diffusion-weighted imaging (DWI) is a widely accepted approach to detecting penumbra [6, 7].
Predicting stroke evolution determines patients with the greatest potential to benefit from thrombolytic therapy, but CT perfusion and PWI require administration of a contrast agent, which is contra-indicated in a variety of clinical conditions, such as renal insufficiency and previous reactions to contrast agents [7,8,9].
Susceptibility-weighted imaging (SWI) is a high-resolution, three-dimensional, gradient-echo T2* MR technique with enhanced sensitivity for paramagnetic substances, such as blood products, iron, and calcifications [10, 11]. SWI has also been used in evaluating trauma, vascular malformations, tumours, as well as cerebrovascular and neurodegenerative diseases . In acute ischemic stroke, severe reduction in cerebral perfusion pressure causes increased deoxy-haemoglobin to oxy-haemoglobin ratio by increasing oxygen extraction fraction (OEF) . SWI can show asymmetric prominent hypo-intense vessels potentially from different concentrations of deoxy-haemoglobin between ischemic and normal brain areas. This potential metabolic information on SWI may help to delineate penumbra without contrast agent administration [7, 14, 15].
It was hypothesized that SWI provides comparable perfusion information as CT perfusion does and the SWI–DWI mismatch represents an alternative tool for evaluating ischaemic penumbra in patients with ischaemic stroke .
Aim of the work
The aim of this study is to assess the role of susceptibility-weighted imaging in assessment of area at risk (penumbra) compared to CT perfusion in patients with acute ischemic infraction.
Study design and population
This is retrospective study was done between December 2018 and June 2020; it included 25 patients (18 males and 7 females, age range was from 30 to 70 years) with a mean age of 60 year), with clinically diagnosed acute stroke. All patient were referred from the neurology department to our department. The examination was done after the approval of ethical committee of our institution.
Inclusion and exclusion criteria
All patients included in this study were diagnosed clinically having acute stroke.
Age older than 18 years.
Stroke symptoms lasting > 1 h.
National Institutes of Health Stroke Scale (NIHSS) score is more than 4.
General contraindications to MRI as the presence of any paramagnetic substances such as pacemakers, metallic clips or claustrophobic patients were excluded from the study. Patients with an NIHSS score less than or equal to 4 were excluded.
CT was performed with a CT HiSpeed 16 slice scanner (GE Medical Systems, Milwaukee, WI) in the hospital emergency department using the nonhelical scanning technique: 120 kV, 300 mA, 1 s scanning time, and 5-mm section thickness.
Magnetic resonance imaging studies were performed with a 1.5-T MR system (Achieva, Philips). All patients underwent examination by our MRI protocol tailored specifically for stroke patients, which included the following fast imaging sequences: axial fast field echo (FFE) T1, axial turbo spin-echo (TSE) T2, FLAIR, and DWI, in addition to the SWI sequence and MRA. Various parameters for the basic MR sequences are listed in Table 1.
CT Perfusion (CTP) images were performed on GE MDCT 16 detectors; the iodinated contrast media passing through the brain were tracked using the time-resolved scans; and serial images (20–40) are taken over the same section of anatomy. The patients must be able to tolerate the examination avoiding motion. Injection rates of 3 to 3.5 mL/s were used. The scan is repeated every second to every 2–3 s for about 40–90 s. Image thickness is relatively wide about 5–10 mm to avoid noise. The data are used to make colour maps representing the changes of brain circulation known as blood flow, blood volume, mean transient time, and time to perfusion peak.
The dose used is 80 kV using low dose for each scan to avoid high cumulative dose .
All images are read by two well qualified radiologist (15 years experience in reading CTP and MRI post-training) in consensus.
The SWI is actually used in our study to evaluate the area at risk (penumbra) mismatch with DWI comparing with CT perfusion images.
The acute infarction was identified in initial DW images as an area of bright signal intensity which appeared dark on the corresponding ADC map. Also affected area shows increased level of deoxy-haemoglobin in draining vessels so they will appear more hypo-intense in SWI and based on the SWI is able to detect the affected area as asymmetrical prominent cortical veins compared with the other normal site (APCV).
To do this, we compare between the SWI and brain perfusion. The Alberta Stroke Program Early CT Score (ASPECTS) was used to assess the extent of the ischemic area described above in the DW, SW, and CTP images.
According to the ASPECTS scoring system, the MCA territory is divided into ten zones: caudate nucleus, lentiform nucleus, internal capsule, insula, M1, M2, and M3 (anterior, middle, and posterior third of the lower MCA territory, respectively), and M4, M5, and M6 (anterior, middle, and posterior third of the higher MCA territory, respectively). To calculate the ASPECTS score in the initial DW, SW, and CTP images for each patient, 1 point was deducted from 10 for each area of restricted diffusion, APCVs, colour change, and hyperintensity in the DW, SW, and CTP images, respectively .
The ischemic area in the cerebral perfusion will result in changes in MTT, TTP, and CBV and CBF. Thus, we evaluate the area at risk by DWI/perfusion mismatch and then will compare DWI/CTP with DWI/SWI using ASPECT for each one.
The results of comparison have four different scenarios
The affected brain tissues should still be viable and are likely to recover after treatment:
Acute infarction in DWI, while both SWI and T2-weighted imaging (T2WI) appear normal. Although MTT is delayed, CBV and CBF still remain normal, and in some cases it is even increased, known as compensatory over-perfusion after acute ischemic stroke.

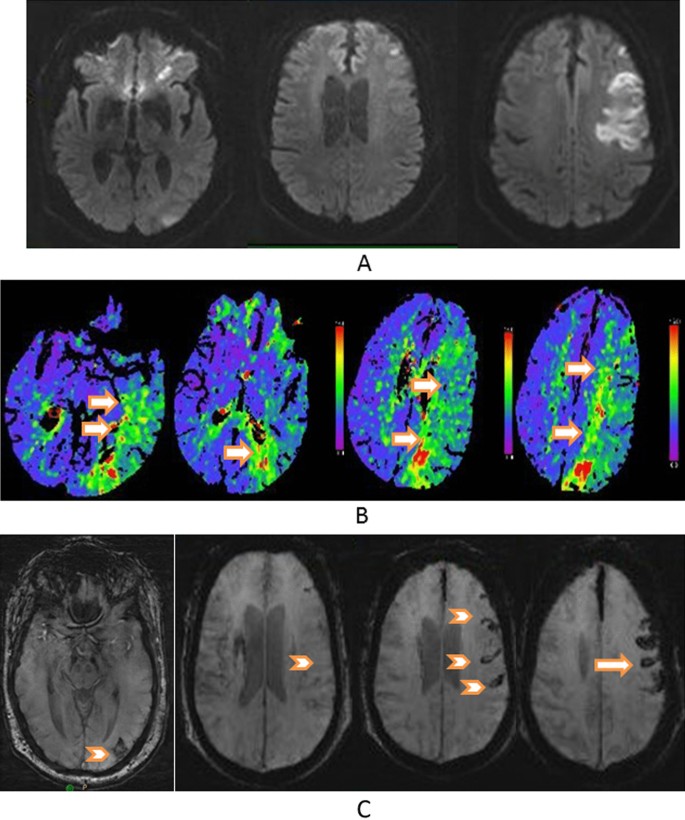

Acute infarctions shown in DWI may show APCV in whole hemisphere on SWI, and the area covered matched the delays seen in MTT and TTP. The CBF slightly decreased, but CBV remained within the normal range this known as compensatory normal perfusion after acute ischemic stroke.
The affected brain tissue is nonfunctioning and necrotic
The acute infarction seen on DWI shows no APCV, and the local MTT and TTP changes combined with affected CBV and CBF. This affected brain tissue likely was compromised already and may well represent nonfunctioning tissue.
The presence of a large lobar hyper-intensity on DWI, but no veins were seen with SWI in the corresponding area along with a consistent region of delayed MTT and TTP that matched a decreased CBV and CBF; this tissue likely exposed to prolonged hypoxia and the tissue became necrotic [9, 16].
Statistical analysis was performed using the SPSS software for Windows v. 20 (SPSS Inc., Chicago, IL). Tests of significance (repeated measures ANOVA, Cochran’s Q tests, Kappa statistics, and ROC Curve analysis) was used. p values less than 0.05 (5%) were considered to be statistically significant. Mean, standard deviation (± SD), and range were used for parametric numerical data, while median and inter-quartile range (IQR) for non-parametric numerical data. While median and inter-quartile range (IQR) and also frequency and percentage for non-parametric numerical data.
In our study, CTP images were done for all patients included in the study (25 patient) in addition to SWI & DWI using ASPECT (Table 2) to assess extension of infarction in CTP, SWI, and DWI without bias, and we found the mean aspect score for SWI 4 ± 1.4 and mean aspect for DWI 7.6 ± 1.2; in addition, mean aspect for CTP was 4.6 ± 1.3. From these results, we found there is significance difference between the SWI and DWI with significant p value. On the other hand, there is no significance difference between the SWI and CTP ASPECT scores (Fig. 1, 2).
All patients with APVS changes had CTP changes so 16 out of 19 patients with CTP had APVS representing 84%, and only 3 has negative APVS. On the other hand, no one with negative CTP had APVS; this proves that there is good correlation between the CTP and APVS with significant p value (Fig. 3).
As regarding ASPECT score in different pulse sequences including SWI, DWI, and perfusion-weighted images, there was no discrepancy between SWI and CTP which show the same number in many patients. On the other hand, the DWI shows discrepancy in its numbers compared to SWI and CTP (Table 3).
There is significance difference between SWI ASPECT and DWI ASPECT scores with significant p value (Table 4).
No significance difference between SWI and CTP ASPECT score with insignificant P value was noted (Table 5).
In total, 19 patients have perfusion–diffusion mismatch representing about 76% compared to 16 patients who have susceptibility–diffusion mismatch representing 64% with no significant difference p value (Table 6).
Only 16 out of 19 patients who have perfusion changes show APVS in SWI and the remaining patients 6 have negative APVS proving there is correlation between the CTP changes and APVS with significant p value (Table 6).
SWI has been increasingly shown to be a useful non-contrast enhanced imaging sequence in the evaluation of acute stroke. One of the most important recent applications of SWI is imaging stroke. It is well known that reliable detection of the ischemic penumbra has a significant impact on treatment and management, especially for acute stroke patients. SWI could be a powerful tool for better detection of the ischemic penumbra .
In acute stroke with arterial vessel occlusion, SWI-like sequences may depict clot-related susceptibility changes known as the susceptibility. The SWI plays an important role is detection the area at risk depending on evaluation the asymmetrical prominent vessel sign .
In our study, SWI was done for 25 patients and we found that 16 patients had APVS in their images representing 64% compared to 9 patients who had negative images. These results are in agree with (Chen et al. 2015) who did his study on 22 patients and found that APVS was detected in 15 patient representing about 68% and 7 patients had negative APVS. They stated that the APVS on SWI is a signature of salvageable ischemic tissue that will become infarcted if blood perfusion cannot be established in time .
Luo et al. (2015) reported that the APVS occurred in 11 (61%) of 18 patients with cerebral infarction on SWI. Their findings showed that a finding of APVS on SWI was significantly associated with the occurrence of damaged vessels or the presence of thrombus in the affected vessels .
SWI such as APVS was associated with damaged vessels or the presence of thrombi in the affected vessels. SWI could thus provide information on the status of blood vessels in patients with acute cerebral infarction in addition to that provided by other currently used imaging methods .
(Chen et al. 2015) study results showed out of 15 patients with positive APVS 9 of them had arterial occlusion proving that there is great correlation between the APVS and arterial occlusion .
In our study, we also found that caudate nucleus was the least affected area; we only found 1 patients had APVS in the caudate nucleus representing about 4%; on the other hand, 15 case showed APVS in M3, 4, 5; thus, they were the most affected areas compared to the deep structures.
These results are in agree with (Chen et al. 2015) who did his study on 22 patients and found that about 9 patients had APVS in the same areas like our study M3, 4, 5 but with lower percentage, and they agree with our study as regarding the least affected area which was caudate nucleus, which can be explained by the admixed venous flow in the thalamostriate vein, which drains not only these structures, but also the thalamus .
Jiang et al. 2021 stated that the occurrence rate of APVS was 67.9% in patients with anterior circulation infarct. Most previous studies on APVS have focused on anterior circulation stroke .
All patients with APVS changes had CTP changes so 16 out of 19 patients with CTP had APVS representing 84%, and only 3 has negative APVS. On the other hand; no one with negative CTP had APVS; there was good correlation between the CTP and APVS with significant p value.
In our study, we used ASPECT to read the CTP, SWI, and DWI to be able to detect the affected areas more easily without bias and we found the mean ASPECT score for SWI 4 ± 1.4 and mean aspect for DWI 7.6 ± 1.2; in addition, mean aspect for CTP was 4.6 ± 1.3. From these results, we found there is significance difference between the SWI and DWI with significant P value. On the other hand, there is no significance difference between the SWI and CTP ASPECT scores.
These results are consistent with research done by Wang et al. (2017) and Wu et al. (2017) who found that there is no significance difference between the SWI and CTP ASPECT scores, but on the other hand there is significance difference between the SWI and DWI ASPECT scores [22, 23].
In our study, only 16 patients with positive APVS showing SWI/ DWI mismatch representing 64% and 9 patients (36%) showed negative APVS with no definite mismatch. On the other hand, 19 patients showed prolonged MTT in CTP representing 76% and 6 patients have negative results representing 24%. After statistical analysis, there is no significant difference between the SWI/DWI mismatch and CTP/DWI mismatch.
Wang RY 2021  concluded that The MTT is very sensitive to measuring the ischemia state of brain tissue, and it has been used to define the ischemia scope. Several research types have also proved that the increase in oxygen extraction fraction (OEF) is related to the extension of MTT. Since the SWI is sensitive to the change of OEF of deoxy-haemoglobin, SWI can provide a similar metabolic capability to MTT. Furthermore, an SWI-DWI mismatch and a DWI-PWI (MTT) mismatch have similar abilities .
Wang et al. 2017 study included 47 patients and they found that only 16 patients had APVS and 19 patients had positive perfusion finding with SWI/DWI mismatch that is correlated with CTP/DWI mismatch with no significant difference between the SWI and CTP in detection of area at risk which is in agreement with our research
A study done by Liu et al. 2016 showed that SWI/DWI is positively correlated with PWI/DWI and PWI-DWI mismatch volumes; their results indicated that SWI-DWI mismatch has the ability to detect penumbra .
Wang RY 2021 who did their research on 52 patients found that 32 patients have DWI-SWI mismatches; they stated that by contrasting the DWI-SWI mismatch with the DWI-PWI mismatch in evaluating the ischemic penumbra and found that a DWI-SWI mismatch has a similar ability as a DWI-PWI to detect the ischemic penumbra, which indicates that SWI can be used to forecast the ischemic penumbra of patients with acute ischemic cerebral stroke; they concluded also that increased and thickened venous shadows in the SWI sequence of the hypoperfusion area compared with the contralateral .
In addition, Luo et al. 2015 found that DWI-SWI mismatch was positively correlated with the DWI-MTT mismatches. These findings suggested that similar to the DWI-MTT mismatch, the DWI-SWI mismatch could reflect the size of ischemic penumbra in patients with cerebral infarction .
However, Verma et al. found that although SWI is helpful in detecting tissue at risk, it cannot replace PWI. The reason might be that MTT detects more ill-perfused areas than SWI, especially in good collateralized subjects [26, 27].
SWI is a technique that is contrast independent, consuming less time, and can be considered as an alternative to CT Perfusion valuable in detecting penumbra and help to rapidly directing patients indicated for thrombolytic therapy.
SWI is a promising technique and comparable to CT perfusion is evaluation of penumbra in the settings of acute infarction.
