Prevalence of different breast lesions in women of southern Punjab, Pakistan, characterized on high-resolution ultrasound and mammography



The aim of the study is to characterize the breast lesions on high-resolution Ultrasound and digital mammography to find the patterns and prevalence of different breast lesions in different age groups of our population.


This prospective study was conducted at a breast care clinic of a tertiary care hospital from Jan 2018 to Dec 2019. Patients with breast-related complaints were enrolled. Patients under the 35 years of age were evaluated on High-Resolution Ultrasound (HR-USG) and those over 35 years of age on digital Mammography. Any lesion on digital mammography was characterized on HR-USG. Fine Needle Aspiration (FNAC) and Trucut biopsy was done where pathological correlation required. Data of all enrolled patients were recorded and analyzed. Patients with known cases of carcinoma breast on follow-up were excluded from the study. Total 6850 patients enrolled in our breast care clinic during study period. 5111 were above the age of 35 years while 1739 were under the age of 35 years. No lesion could be found in 3915 patients and were reported normal. 2935 patients were found to have different breast lesions. The frequency of different lesions was different in both age groups. The overall frequency of lesions was as malignancy 16.2%, benign lesions including Fibroadenoma, simple cysts, Lipoma and Galactocele 16%, inflammatory lesions including abscess 7.86% and Duct Ectasia 2.75%.


In developing countries where mass screening programs are deficient, Breast Care clinics in tertiary care hospitals have a noteworthy role in early detection of breast cancer and other breast lesions.


Increasing awareness for breast cancer being the most common cancer in women worldwide [1] with a high mortality rate is the reason for the increasing number of patients reporting to breast care clinics for any breast-related symptoms [2]. Mastalgia, breast lump, nipple discharge and focal pain are common presenting complaints. Established and genuine workup is required for early diagnosis and treatment [3, 4]. Patients are evaluated by clinical examination that alone has limited value for detection of breast lesions, so evaluation on radiological imaging is mandatory for patients with breast-related symptoms [5]. Triple assessment by a combination of clinical evaluation, imaging and FNAC is established, management of breast lesions [6, 7].

Digital Mammography is the modality of choice for patients above the age of 35 years. It has an accepted role in screening of breast cancer and evaluation of clinically apparent breast lesions [8]. But its diagnostic and screening value is dependent on tissue density of breasts, being low sensitivity for dense breast [3, 9]. Patients below the age of 35 years are evaluated on Sonomammography/HR-USG that also allows the characterization of lesions detected on digital mammography [9,10,11]. USG of breast gains value in patients with dense breast tissue where digital mammography has poor sensitivity [9, 12]. Moreover, its sensitivity for detection of lesions is not impeded by tissue density [5]. Under usual working conditions solid lesion of up to 5 mm and cystic lesion of up to 3 mm size can be detected on HR-USG [11, 13, 14]. But literature shows reporting of solid lesion less than 5 mm [15].

Lesions are assigned grades 0–6 according to latest Breast Imaging Reporting and Data System (BIRADS) lexicon descriptors 2013, a standard system for reporting breast lesion on imaging defined by American college of Radiology (ACR), as inconclusive, benign, probably benign, probably malignant, malignant and biopsy proven, respectively [16]. Further evaluation by FNAC and biopsy may be needed for pathological correlation.

In developing countries like ours, there is no mass screening programs for early detection of breast cancer that has a fundamental role to fight against the high mortality rate of breast cancer due to late presentation. Breast care clinics have been established in few public sector organizations with the provision of imaging modalities to facilitate the early diagnosis of different breast lesions in symptomatic patients. Breast care clinic, where the study was conducted, is the only established clinic in the public sector of our region; it is equipped with latest imaging modalities of digital mammography, HR-USG and facilities for USG-guided FNAC and Trucut biopsy and are providing the services to the women of our population.


This prospective study was conducted at the breast imaging section of the Radiology department of a tertiary care hospital providing the services for evaluation of patients referred from primary and secondary healthcare centers with different breast-related symptoms. Total 6850 patients presented in two years from Jan 2018 to Dec 2019 with different presenting complaints including Mastalgia, nipple discharge, lump, focal pain, inverted nipple. As no patient’s personal data were involved for publication, so no patient consent was required. All patients were primarily evaluated on clinical history and examination. Mammography was performed on a digital mammography machine without tomosynthesis in patients with age more than 35 years of age. HR-USG with 7–10 MHz transducer was done in younger patients of less than 35 years and also in patients over 35 years with positive findings on digital mammography to characterize the lesion. On HR-USG, lesions were characterized with size, echogenicity in comparison with surrounding tissue, margins, calcifications, fluid movement in lesion and vascularity on Doppler flow. USG-guided FNAC and Trucut biopsies were done in cases where pathological correlation required.


Total 6850 patients enrolled in our breast care clinic were divided into two groups, one below the 35 years of age and second above the age of 35 years. 1739 patients were enrolled in group 1 and 5111 in group 2. No lesion could be found in 3915 patients and were reported normal. Different breast lesions were found in 2935 patients. Pattern of different lesions was different in both age groups (Fig. 1 showing percentages of different breast lesions in patients with age < 30 years and Fig. 2 showing percentages of different breast lesions in patients with age > 30 years). A summary of different lesions in total patients is given in Table 1. Frequency of different lesions in specific age group in comparison with total patients is shown in Tables 2 and 3.

Fig. 1
figure 1

Percentages of different breast lesions in patients with age < 30 years

Fig. 2
figure 2

Percentages of different breast lesions in patients with age > 30 years

Table 1 Overall prevalence of different breast lesions in all ages
Table 2 Frequency of lesions in patients > 30 years of age
Table 3 Frequency of lesions in patients < 30 years of age

Different lesions were having different frequencies in both age groups. 3915 (57.19%) of total patients were found normal and reported as BIRADS 1. Overall, malignancy was found to be the most frequent lesion that constituted 16.2% of total and 15.35% in older age groups. Fibroadenoma was seen in 611 patients. Cysts were seen in 332 patients. 53 patients turned out to have Galactocele. Lipoma was seen in 80 patients. Intraductal papilloma was seen in 16 patients. 536 lesions were diagnosed as inflammatory lesions on aspiration of pus or inflammatory cells on cytology. 356 were labeled as breast abscess. Duct Ectasia was seen in 194 patients. Phyllodes tumor was diagnosed in 12 patients.


Malignant lesions on digital Mammography show irregular, speculated and dense opacities with or without microcalcifications those on HR-USG appear ill defined irregular, ragged, microlobulated and hypoechoic masses with posterior shadowing and may show 1–3 mm calcifications [17]. Most of malignant lesions show different patterns of central, tortuous and penetrating vascularity on Doppler Flow. Malignancy is confirmed on histopathology of Trucut biopsies. We opted for Trucut biopsy in all lesions with irregular or micro lobulated margins (Fig. 3).

Fig. 3
figure 3

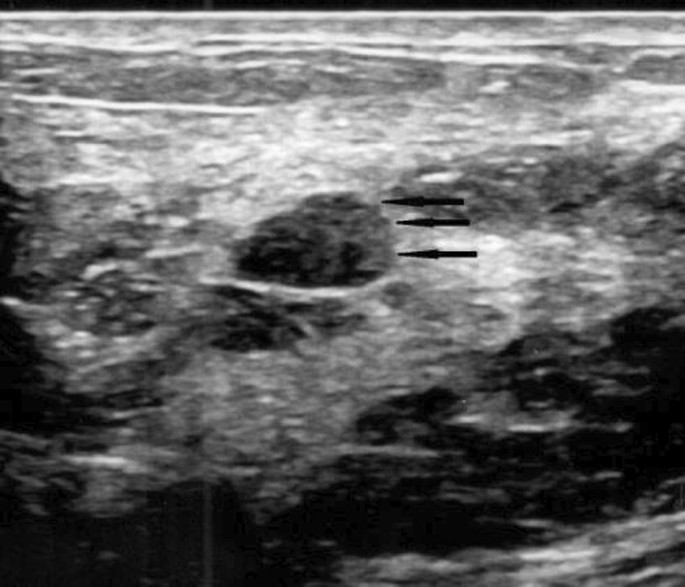

Lesion that appeared as well defined opacity on digital mammography, revealed microlobulated margins (Black arrows) on HR USG and was let out invasive Ductal carcinoma on Trucut biopsy in a patient of 38 years of age

Phyllodes tumor shows features of benign tumor with well-defined regular margins but larger in size with history of rapid growth and may show cystic areas and moderate vascularity on Doppler scan (not shown).

Benign lesions have more or less same incidence in both age groups with Fibroadenoma being the most common benign lesion in the younger age group and cysts in older age groups. Fibroadenoma is common in younger women and is characterized on HR-USG as well defined with smooth margins usually hypoechoic, parallel to skin surface and wider than taller mass which may show posterior enhancement or macrocalcifications. Higher risk of transformation in breast cancer is seen in complex Fibroadenomas those might appear as lobulated, might show calcifications or cystic changes. These patients are put on close follow-up for any change in size or shape so might be further evaluated by Pathological correlation [18, 19]. Our study elaborated the commensurate frequency of benign lesions in both age groups. Fibroadenoma was the most common benign lesion in our patients of all age groups.

Cysts are common in older age groups. Cysts may appear simple or complex on HR-USG. Simple cysts appear as well defined thin walled anechoic lesion and does not show vascularity while complex cyst might show thick or irregular wall, mural nodularity, internal echoes or intracystic solid component [11]. Complex cysts may show malignancy on histopathology so should be evaluated on aspiration cytology or biopsy of solid component or cyst wall (not shown).

Lipoma appears on HR-USG as well defined, superficially located in subcutaneous tissue, and is usually isoechoic but can appear Hyperechoic or Hypoechoic as well [20]. Our study showed Lipoma was one of the common benign lesions after Fibroadenoma seen in all age groups (not shown).

Galactocele is common finding in lactating mothers or in mothers who have recently stopped lactations. Blockage of milk duct is the main cause of Galactocele. Our patients presented with lumps during lactation. These on HR-USG appear as large commonly loculated or even complex cysts with moving echoes in it. Aspiration of milk confirms it (not shown).

Intraductal papilloma usually appears as well-defined echogenic lesions with smooth margins with in dilated duct or tubular cystic lesions. The common location for it is retroareolar region. The most of the patients presenting with nipple discharge or palpable retroareolar lump turn out to be intraductal papilloma or carcinoma [21]. On USG it is difficult to differentiate between papilloma and carcinoma. It is only confirmed on FNAC or Biopsy (Fig. 4).

Fig. 4
figure 4

Multiple dilated duct with echogenic solid areas in retroareolar region, later proved to be intraductal papillomas on cytology in a patient of 46 years of age

Inflammatory lesion is common in lactating women. Acute abscess present with fever, painful lump with skin redness and edema. Inflammatory lesion on Mammography is challenging for a Radiologist to differentiate from malignant lesion and appears as ill-defined irregular/speculated dense opacity (Fig. 5). Its findings on mammography mimic those of suspicious or malignant lesion and are only differentiated on HR-USG that shows ill-defined large, complex, irregular cystic or heterogeneous lesion that may show fluid movement in it (Fig. 6). Aspiration of pus or FNAC/Trucut biopsy confirms inflammatory lesion.

Fig. 5
figure 5

Mammogram showing ill-defined irregular opacity in right breast (black arrows) with overlying skin thickening (yellow arrow) labeled as BIRADS 5. HR USG revealed ill-defined irregular heterogeneous lesion that was divulged as inflammatory lesion on Trucut biopsy in a patient of 42 years of age

Fig. 6
figure 6

Abscess with irregular thick walled cystic lesion with echoes in it, on aspiration frank pus was aspirated in a young patient of 26 years of age with history of recent termination of breast feeding

Duct Ectasia is a benign condition seen most commonly in perimenopause age that occurs when a milk duct widens with thickening of its walls. This can cause the blockage of duct leading to fluid build-up. Common presentation is nipple discharge or lumpy feeling. HR USG reveals dilated ducts that are usually multiductal and bilateral [22].


Mass screening programs have proven pivotal role in early detection of breast cancer, but in developing countries where this service is not available, breast care clinics in tertiary care hospitals well equipped with imaging modalities play a significant role in fighting against breast cancer. So, it is recommended for developing countries that breast care clinics should be established at least in all tertiary care hospitals with trained and dedicated staff.
