Role of diffusion-weighted MRI in evaluation of pediatric musculoskeletal soft tissue masses
Egyptian Journal of Radiology and Nuclear Medicine volume 52, Article number: 263 (2021)
In pediatric patients, soft tissue masses encompass a wide heterogeneous group of benign and malignant lesions. MRI is a powerful diagnostic tool in the workup of soft tissue tumors in children, and it helps in characterization of lesion and evaluation of the extent of the lesion. However, conventional MRI techniques are not specific in differentiating benign from malignant lesions. So to improve characterization of tumors, DWI was added to MRI techniques as it increases sensitivity and specificity by detecting the micro-diffusion changes of water into intra- and extracellular spaces. The aim of this work was to highlight the diagnostic value of DWI in detection and characterization of different musculoskeletal soft tissue masses in pediatrics.
There was a statistically significant difference regarding the mean ADC value of benign and malignant masses (P value = 0.001*). The mean ADC value for all benign masses (n = 41) was 1.495 ± 0.55 SD × 10–3 mm2/s, while the mean ADC value for all malignant masses (n = 21) was 0.449 ± 0.27 SD × 10–3 mm2/s. The cutoff ADC value between benign and malignant masses was 0.88 × 10–3 mm2/s. This cutoff ADC value has sensitivity of 100.0%, specificity of 92.3%, PPV of 66.7%, NPV of 100.0% and diagnostic accuracy of 93.3%.
In pediatric patients, DWI is an innovative valuable noninvasive imaging technique for characterization of musculoskeletal soft tissue masses and discrimination between benign and malignant masses.
Soft tissue masses and osseous lesions are commonly encountered in pediatric patients. Musculoskeletal soft tissue masses encompass a wide heterogeneous group of benign and malignant lesions that developed from connective tissue other than bone. Although benign in most cases, a significant proportion of pediatric musculoskeletal soft tissue masses constitutes malignant tumors . Patients who have a soft tissue tumor or tumor-like mass usually presented with non-specific clinical findings such as soft tissue swelling or pain. In many cases, a detailed history and physical examination are sufficient to make a diagnosis, but in circumstances when the diagnosis is uncertain, imaging can be very helpful to characterize the mass .
MRI is a powerful diagnostic tool in the workup of soft tissue tumors in children due to its high spatial and contrast resolution . However, there is often an overlap in the MRI appearance of benign and malignant soft tissue tumors, resulting in decreasing the diagnostic confidence. The specificity of conventional MRI in differentiating benign from malignant soft tissue tumors was variable among previous studies, presumably because benign and malignant soft tissue tumors may share the same morphologic features regarding the size, margin, location, signal intensities and contrast enhancement [4, 5].
So to improve characterization of tumors, DWI was added to MRI techniques as it increases sensitivity and specificity by detecting the micro-diffusion changes of water into intra- and extracellular spaces . DWI is a non-enhanced functional MRI technique that reflects differences in the Brownian motion of water caused by variations in tissue microstructure. The apparent diffusion coefficient (ADC) is a quantitative measure of Brownian motion: Low ADC values reflect highly cellular microenvironment in which diffusion is limited by an abundance of cell membranes, whereas high ADC values are observed in cellular regions that allow free diffusion of water molecules. Thus, DWI offers quantitative functional assessment of cellularity at the molecular level, with the potential to help differentiate between benign and malignant lesions [6, 7].
DWI was considered an innovative imaging technique for characterization of musculoskeletal lesions which is particularly suitable for pediatric patients and is expected to aid in decision making to perform or postpone biopsy with higher diagnostic confidence. Also, it has particular value to avoid invasive diagnostic procedures in benign pathologies . Several previous studies [6, 9,10,11] evaluated the role of DWI in assessment of soft tissue tumors; to the best of our knowledge, this study is the first to examine musculoskeletal soft tissue masses (benign masses as hemangioma, lymphangioma and Baker’s cyst and malignant masses as rhabdomyosarcoma, lymphoma and Ewing sarcoma) in pediatric population using DWI specifically.
Aim of the work
The purpose of this study was to highlight the diagnostic value of diffusion-weighted imaging (DWI) in detection, delineation and characterization of different musculoskeletal soft tissue masses in pediatric population.
Patient’s demographic data
This prospective study was approved by our institutional ethics committee, and subjects agreed to participate and publicate images in this study with a written consent obtained from their guardians. This study was performed during the period from December 2019 till June 2021. It included 62 pediatric patients, 37 females (59.7%) and 25 males (40.3%), and their age ranged from 2 to 16 years (mean ± SD = 5.39 ± 5.31 SD). According to the results of histopathological examinations, we had 41 benign lesions and 21 malignant lesions.
Inclusion criteria are as follows: pediatric patients clinically suspected to have musculoskeletal soft tissue masses.
Exclusion criteria are as follows: uncooperative patients or those who had contraindications to magnetic resonance imaging as patients with cochlear implants or prosthetic valve, patients who received chemotherapy or radiotherapy prior to the MRI study and patients who underwent total excision of the tumor or excisional biopsy prior to the MRI study.
MRI examinations were performed for all patients using a 1.5-T MRI unit (Acheiva; Philips Medical Systems, Best, Netherlands). Throughout the examination, most of cases were in supine position using a body phased-array coil, a standard head and neck coil, flexed coil or different surface coils according to patient’s size and examined portion. Before DWI, all patients had routine pulse sequences for conventional non-contrast T1-weighted fast spin-echo images, T2-WI, STIR or fat sat MRI images which were obtained in different planes.
The predetermined examination protocol was applied to all patients that included the following:
T1WI (TR/TE = 400–700/14–30, FOV 20–35) and T2WI (TR/TE = 2800–4500/80–120, FOV 20–35) in axial, coronal and /or sagittal planes, slice thickness ranging from 4 to 10 mm, interslice gap of 2–3 mm, the matrix for all sequences till 512 * 512.
At least one fat-saturated sequence or short inversion recovery (STIR) sequence (TR/TE = 4000–5600/18–40, FOV 20–35).
The mean time of conventional MR examination was approximately 15–20 min.
DWI was obtained in the axial plane by using a non-breath-hold single-shot spin-echo EPI sequence using different image parameters considering (repetition time, echo time, number of signals acquired, percent phase, field of view, slice thickness, gap, flip angle, echo-train length and matrix) according to site and size of each mass, e.g., shoulder mass parameters (TR/TE = 692/69, flip angle 90°, slice thickness 6 mm, gap 0.6 mm., FOV 22, EPI factor 25). The b-values used in this study were 0, 400 and 800 s/mm2. The mean time of the DW examination for each patient was approximately 3–5 min.
ADC maps were automatically generated by the MRI software on the basis of the images obtained. On ADC maps, regions of interest (ROI) were manually positioned and placed over the most homogenous portion of solid and cystic parts of the musculoskeletal soft tissue masses to determine the ADC value, and then, all values were automatically calculated and expressed by × 10−3mm2/s.
The representative value used in data and statistical analysis was the mean value.
Image analysis DWI analysis included qualitative and quantitative analysis.
It refers to the visual assessment of the signal intensity of the masses. The masses were classified into masses with low signal and masses with high signal in comparison with the signal intensity of adjacent skeletal muscles. The mass signal on DWI was correlated with the corresponding signal on the automatically generated ADC maps.
Masses with free diffusion showed low signal on DWI and high signal on ADC map, while restricted diffusion was seen as high signal on high b value (800) DWI and low signal on corresponding ADC map. Masses with T2 shine through effect showed high signal in both DWIs and ADC maps.
ADC values were calculated from the ADC maps. For calculating the mean ADC value of the solid part of a mass, a ROI was drawn on the ADC map and placed on the solid area of the mass, apart from any necrotic areas in mixed masses. Concerning homogenous appearing masses, a circular ROI (1–2) cm was placed on the center of the mass mostly or measuring three ADC values then the mean ADC value was calculated.
Standard of reference:
Our MRI results were compared with histopathological results after biopsy (Tru-cut biopsy from solid masses and fine needle aspiration cytology (FNAC) from cystic masses), and then, diagnostic specificity and sensitivity were estimated by statistical analysis.
Statistical analysis and data interpretation
Data were fed to the computer and analyzed using IBM SPSS Corp., Released 2013, IBM SPSS Statistics for Windows, version 22.0, Armonk, NY: IBM Corp. Qualitative data were described using number and percent. Quantitative data were described using median (minimum and maximum) for nonparametric data and mean and standard deviation for parametric data after testing normality using Shapiro–Wilk test. Significance of the obtained results was judged at the 0.05 level. The diagnostic performance of a test or the accuracy of a test to discriminate diseased cases from non-diseased cases was evaluated using receiver operating characteristic (ROC) curve analysis. Sensitivity and specificity were detected from the curve, and PPV, NPV and accuracy were calculated through cross-tabulation.

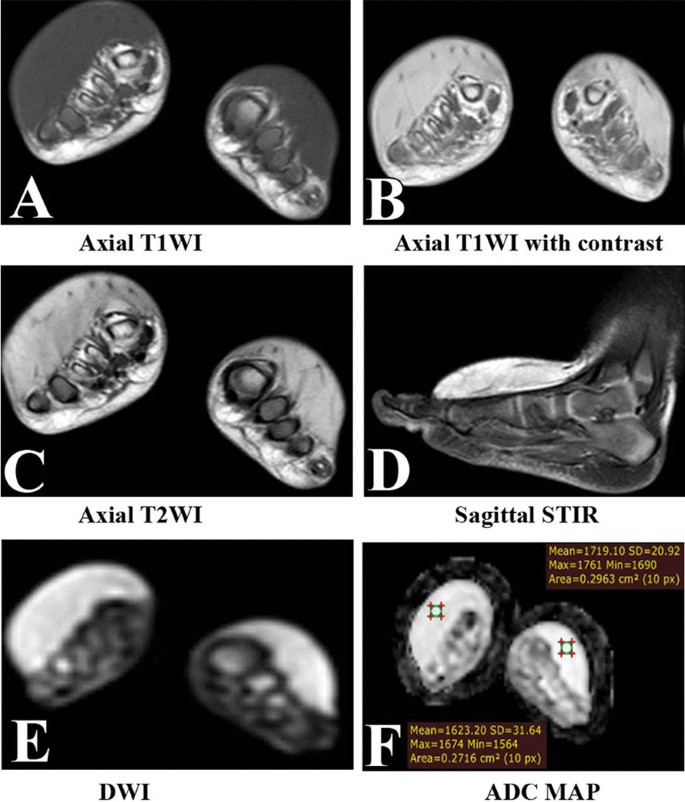

This study included 62 pediatric patients, 37 females (59.7%) and 25 males (40.3%), and their age ranged from 2 to 16 years (mean ± SD = 5.39 ± 5.31 SD). According to the results of histopathological examinations, we had 41 benign lesions and 21 malignant lesions, and out of the 41 benign lesions, we had 9 cases with lipoma, 8 cases with congenital hemangioma (Fig. 1), 5 cases with lymphangioma (Fig. 2), 4 cases with Baker’s cyst, 4 cases with fibroma, 2 cases with vascular malformation, 6 cases with abscess, 2 cases with pigmented villonodular synovitis (Fig. 3) and 1 case with lipoblastoma. Out of the 21 malignant lesions, we had 8 cases with rhabdomyosarcoma, 7 cases with Ewing sarcoma and 6 cases with lymphoma.
In this study, 53.3% of cases show free diffusion in DWI with high signal in ADC map, while 46.7% of cases show restricted diffusion in DWI with low signal recorded in ADC map as shown in Table 1.
Regarding the measured ADC values, there was a statistically significant difference between benign and malignant masses (P value = 0.001*). Out of the 62 cases, the mean ADC value for all benign masses (n = 41) was 1.495 ± 0.55 SD × 10–3 mm2/s, which was significantly higher than the mean ADC value for all malignant masses (n = 21) that was 0.449 ± 0.27 SD × 10–3 mm2/s as shown in Table 2.
According to ADC values distribution, the highest recorded mean ADC was that of Baker’s cyst (2.6440 ± 0.10889 SD) × 10–3 mm2/s followed by that of lymphangioma (2.2100 ± 0.03960 SD) × 10–3 mm2/s, while the least recorded mean ADC value was that of the malignant cases in the study which were rhabdomyosarcoma (0.4498 ± 0.27050 SD) × 10–3 mm2/s with a statistically significant difference (P < 0.001*) as shown in Fig. 4 and Table 3.
In this study, ROC curve analysis of the mean ADC in benign versus malignant masses yielded a confidence interval (CI) of 95% and area under curve (AUC) of 0.981 × 10–3 mm2/s. The cutoff point for all mean ADC value was 0.88 × 10–3 mm2/s with a high statistically significant difference between benign and malignant masses (P ≤ 0.001*), sensitivity of 100.0%, specificity of 92.3%, PPV of 66.7%, NPV of 100.0% and overall diagnostic accuracy of 93.3% as shown in Fig. 5 and Table 4.
A wide spectrum of entities may give rise to musculoskeletal soft tissue masses in pediatrics, including neoplastic and non-neoplastic masses. MRI plays a significant role in characterization of soft tissue tumors, yet conventional techniques lack specificity for proper differentiation between benign and malignant masses . DWI is a noninvasive method for investigation of tumor histology and used effectively for differentiation between benign and malignant masses .
In this study, there was a statistically significant difference between the mean ADC value of benign and malignant masses (P = 0.001*), and the mean ADC value for benign masses was 1.495 ± 0.55 SD × 10−3 mm2/s versus (0.449 ± 0.27 SD) × 10−3 mm2/s for the malignant masses. This is in agreement with previous studies, and one study stated that the mean ADC value of benign masses was 2.31 ± 1.29 × 10−3 mm2/s versus 0.90 ± 0.70 × 10–3 mm2/s for malignant masses (P < 0.001) . Other studies reported that there was a statistically significant difference between the mean ADC value of benign and malignant soft tissue tumors (P < 0.05) [5, 14].
The reported significant difference in our study also matched with that in the study of Zou et al.  that showed a significant decrease in the mean ADC value of patients with malignant soft tissue tumors in comparison with the ADC values obtained in patients with benign soft tissue tumors (P < 0.001). Their reported mean ADC value of benign soft tissue tumors was 1.73 × 10–3 mm2/s, while the mean ADC value of malignant soft tissue tumors was 0.8 × 10–3 mm2/s. Also our results matched with the previous study where the reported mean ADC value for malignant soft tissue tumors was 0.90 ± 0.32 × 10–3 mm2/s with a statistically significant difference between benign and malignant masses (P < 0.001) . The same significant difference between benign and malignant soft tissue tumors was also recorded in the previous study (P < 0.0001) . Other study showed that malignant rhabdomyosarcoma had a characteristically low ADC value of 0.71 ± 0.15 × 10−3 mm2/s with a statistically significant difference between benign and malignant masses (P < 0.05) . Another study stated that there was a statistically significant difference between the mean ADC value of benign and malignant masses (P < 0.001) (mean ± SD, 1.43 ± 0.56 × 10−3 mm2/s for benign masses versus 0.74 ± 0.18 × 10−3 mm2/s for malignant masses) .
Among benign masses, as they are composed primarily of free water, we found that the highest mean ADC value recorded was that of Baker’s cyst cases (2.6440 ± 0.109 SD) × 10−3 mm2/s. This is in agreement with results of other study  in which the mean ADC value of benign cystic masses was the highest among benign cases (2.61 ± 0.35) × 10−3 mm2/s. Also our results are in agreement with Khedr et al.'s  where the highest ADC value among benign cases was recorded in cases of ganglion cyst (2.8 ± 0.23) × 10−3 mm2/s and cystic neurofibroma (2.5 ± 0.04) × 10−3 mm2/s. It was reported that in cases in which a cyst is suspected, ADC mapping could prove a useful complement to anatomic imaging. It has been found that the use of a mean ADC value greater than (2.5 × 10−3 mm2/s) yielded a sensitivity of 80% and a specificity of 100% in the diagnosis of benign cystic lesions, indicating that no soft tissue neoplasms are missed with DWI and ADC mapping .
Many previous studies reported that not all benign soft tissue tumors have a large extracellular space and not all malignant soft tissue tumors are more cellular than benign tumors . In our study, there was an overlap in the recorded mean ADC values between some benign and malignant masses. The pediatric patients with benign masses demonstrating restricted diffusion like malignancy were patients with abscess (mean ADC value = 0.6810 ± 0.11314 × 10–3 mm2/s) and patients with PVNS (mean ADC value = 1.0580 × 10–3 mm2/s). Our results matched with the previous study where the mean ADC value for soft tissue abscess was 0.877 × 10–3 mm2/s. This could be explained by the high viscosity pus within abscesses that contains inflammatory cells, cellular debris, bacteria and proteins slowing water diffusion .
In addition, several theories are plausible for low ADC values in PVNS. The presence of hemosiderin and other blood products in these masses likely affects the ADC measurements. Even if great care was taken to avoid sampling of clearly hemorrhagic components, it is possible that microscopic areas of hemorrhagic products were present also in the sampled pixels and affected ADC values . Other potential reasons for low ADC measurements in PVNS include the nature of intralesional matrix or presence of hypercellular components, nodulated and villose proliferation of the synovium with thickened synovial rinds of hemosiderin-laden tissue [9, 22].
A large number of studies have yielded conflicting results and have found different cutoff ADC values between benign and malignant masses although the most discriminating ADC value appears to be near (1 × 10–3 mm2/s). The reason of this conflicting result in previous studies can be explained by the variations in histopathological types of neoplasms, differences in DWI techniques used (equipment, b values and DWI sequences). However, all previous studies confirmed the fact that aggressive tumor usually records a very low ADC .
Regarding the ROC analysis in this study, the cutoff point for the mean ADC value was 0.88 × 10–3 mm2/s with sensitivity of 100.0%, specificity of 92.3% and diagnostic accuracy of 93.3%. This recorded cutoff point was lower than that of previous study  in which the cutoff value was 1.235 × 10–3 mm2/s; however, our study recorded higher sensitivity, specificity and accuracy in comparison with their results that were 73% sensitivity, 91.7% specificity and 80.3% overall accuracy. Other study reported that malignant tumors tend to exhibit a lower mean ADC value than that of benign soft tissue tumors and proposed using a threshold mean ADC value of 1.34 × 10−3 mm2/s . The ROC analysis in another study  yielded nearly the same area under curve AUC that was 0.89 × 10−3mm2/s and a fairly close cutoff value for mean ADC which was ≤ 1.03 × 10–3 mm2/s, but with relatively lower sensitivity (90%) and specificity (91%) than those of our study.
The limitations of this study were that the number of pediatric patients especially those with malignant tumors was limited in this study. We did not perform a histogram analysis or calculate perfusion effects. At last, we did not obtain inter-observer variations of measurement of ADC values.
In pediatric patients, DWI (with quantitative ADC mapping) is an innovative valuable noninvasive imaging technique for characterization of musculoskeletal soft tissue masses and discrimination between benign and malignant masses. It is particularly suitable for the inconclusive cases of pediatric population without urgent need for invasive diagnostic procedures.
Availability of data and material
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
Magnetic resonance imaging
Apparent diffusion coefficient
Short inversion recovery
Echo planner imaging
Field of view
Region of interest
Fine needle aspiration cytology
Receiver operating characteristic
Positive predictive value
Negative predictive value
Area under curve
Pigmented villonodular synovitis
