Value of susceptibility weighted imaging (SWI) in assessment of intra-arterial thrombus in patients with acute ischemic stroke

Abstract

Background

Ischemic stroke is a major cause of death and disability. Thrombolytic therapy is a standard treatment stroke nowadays for ischemic strokes up to 4.5 h from start of symptoms. Although arterial occlusion can be detected by digital subtraction angiography (DSA), magnetic resonance angiography (MRA), and computed tomography angiography (CTA), the question about thrombus composition and formation times still might not be replied. The use of susceptibility weighted imaging (SWI) for detecting thrombus in acute ischemic stroke is getting to be a strongly investigated field. SWI can show the thrombus as a hypointense susceptibility vessel sign (SVS) in the affected area.

Results

Ninety-seven of our patients showed thrombus in MRA study. M1 segment was the most affected MCA segment representing about 57.6%. SWI detected intra-arterial thrombus in 122 patients compared to 97 patients detected by MRA (P = 0.0002). All patients had positive susceptibility sign. 88.8% of patients with positive thrombus in SWI had solitary thrombus, and 11.2% has multiple thrombi; on the other hand, MRA fails to detect any distant thrombi. 81% of patients with abnormally prominent vessel sign (APVS) showed parenchymal changes in these areas. On the other hand, deep structures, namely caudate nucleus, internal capsule and lentiform nucleus, are the least affected areas. All patients with abnormally prominent vessel sign showed arterial occlusion, and only 9 patients with no APVS showed arterial occlusion (P = 0.0001).

Conclusion

SWI plays an important role in the detection of peripheral thrombi in patients with acute ischemic stroke. Both SWI and MRA might complement each other for visual detection of occluded vessel. We recommend implementation of SWI into routine acute stroke MRI protocols.

Background

Ischemic stroke is a major cause of death and disability, and thrombolytic therapy is the only proven treatment for those patients within 3 or 4 h of symptom onset [1]. It has been proposed that the nature of the thrombus may affect recanalization, and red thrombus can be readily recanalized after thrombolytic therapy. [2,3,4]. Also, the site and size of thrombus could influence the treatment strategy [5, 6]. Although intra-vascular thrombus can be detected by the means of digital subtraction angiography (DSA), magnetic resonance angiography (MRA), and computed tomography angiography (CTA), questions about thrombus composition and time of formation could not yet be answered [6,7,8,9,10,11]. Susceptibility weighted imaging (SWI) is a magnetic resonance imaging (MRI) technique that enhances image contrast by using the susceptibility differences between tissues. The strength of SWI is in its ability to identify hemorrhage, calcium and nonheme iron by virtue of its susceptibility artifact. Susceptibility weighted imaging (SWI) has become a key MR sequence in pediatric neuroimaging. The use of susceptibility weighted imaging (SWI) in the visualization of thrombi in acute ischemic stroke has become of major interest [12,13,14]. In SWI, intravascular thrombus manifests as an abnormal dark signal known as a susceptibility vessel sign (SVS), with the classic appearance as a thick vessel containing dark signal. SVS indicates an increase in locally elevated deoxyhemoglobin from trapped red blood cells (erythrocytes) in blocked vessels. [4, 13, 15]. The presence of SVS promotes acute or subacute thrombus [16, 17] SVS can provide useful information about the site, multiplicity and structure of thrombus [18, 19]. SVS means arterial occlusion [20] and resolves upon arterial recanalization [14, 21]. Using the fact that thrombus synthesis is different and only the acute phase of thrombus can show SVS on SWI, we hypothesized that susceptibility not only reflects the structure of thrombus but also its time of formation also.

The aim of the current study is to assess the value of susceptibility weighted imaging in assessment of intra-arterial thrombus in correlation with MRA and diffusion weighted imaging in patients with acute ischemic infarction (Figs. 1, 2, 3, 4).

Fig. 1
figure 1

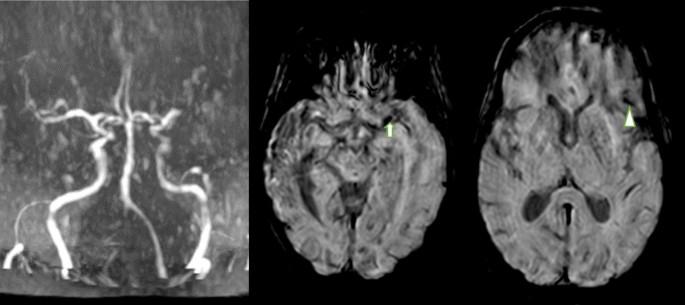

An 61-year-old woman. MRA a shows abrupt interruption of left MCA at the level of M1 segment, SWI b, c shows two susceptibility vessel sign along M1 (white arrow) and M3 (arrow head) segments of left MCA representing two thrombi

Fig. 2
figure 2

An 52-year-old man, MRA a reveals normal filling of cerebra vessels at both sides, SWI b shows two susceptibility vessel sign at M1 and M2 segments of right MCA

Fig. 3
figure 3

An 56-year-old male. DWI a shows no definite abnormality, SWI b, c revealed asymmetrical susceptibility vessel sign in the form prominent cortical veins (arrow head) on the left cerebral hemisphere along (M1–M6) representing an area at risk

Fig. 4
figure 4

An 62-year-old male. SWI a, b shows abnormally prominent vessel signs, diffusing weighted images c, d shows acute left cerebral infarction

Methods

Study design and population

This retrospective study included 150 patients diagnosed as diagnosed stroke (age range from 30 to 70 years, mean 39.5 ± 10.4 years); study was approved by the Ethic Committee in our institution and was conducted in the time period from August 2019 to April 2021. All patients were referred during the first 24 h from the onset (mean time about 18 h).

Inclusion and exclusion criteria

Inclusion criteria

  • Acute stroke.

  • Stroke lasting > 1 h.

Exclusion criteria

General contraindications to MRI such as presence of any paramagnetic substances and claustrophobic patients.

MRI technique

Magnetic resonance imaging studies were performed on 1.5-T system magnet (Aera, Siemens Heath care, Siemens AG, Munchen, Germany). All patients underwent MRI scan using the following imaging sequences: axial fast field echo (FFE) T1, axial turbo spin-echo (TSE) T2, FLAIR, and DWI, in addition to the SWI sequence and MRA.

The SWI sequence was obtained with the following parameters: TR = 34 ms; TE = 24 ms; flip angle = 15°, slice thickness = 0.5 mm with 240 slices per slab, voxel size = 1.1 × 1.1 × 0.5 mm and matrix size = 208 × 173. The acquisition time was 7 min, 57 s. Post-processing included minimum intensity projection (minIP) images with 10 mm thickness to assess the venous collaterals and maximum intensity projection (MIP) to assess the cerebral vessels.

Image interpretation

Images were reviewed by a radiologist with 10-year experience in neuroradiology and was blinded to clinical data. Intra-arterial thrombus was detected using susceptibility vessel sign (SVS) which appeared as an abnormal low signal intensity within the artery which appeared larger than the size of vessel in contralateral side. The thrombus can be detected during the first week of attack and can be measured in the slice showing longest SVS sign. Findings were compared with MRA.

Statistical analysis

Statistical analysis was performed using the SPSS software for Windows v. 20 (SPSS Inc., Chicago, IL). For tests of significance (repeated measures ANOVA, Cochran’s Q tests, Kappa statistics and ROC curve analysis), P-values less than 0.05 (5%) were considered to be statistically significant.

Results

Ninety-seven of patients showed thrombus in MRA. M1 segment was the most affected MCA segment representing about 57.6%. M5 segment was the least affected segment. SWI detected intra-arterial thrombus in 122 patients compared to 97 patients detected by MRA (P = 0.0002). All patients had positive susceptibility sign (Table 1).

Table 1 SWI versus MRA in detection intra-arterial thrombus

88.8% of patients with positive thrombus in SWI had solitary thrombus, and 11.2% has multiple thrombi; on the other hand, MRA fails to detect any distant thrombi (Table 2).

Table 2 SWI versus MRA in detection multiple intra-arterial thrombi

M4, M5 and M6 were the most affected segments; 81% of patients with abnormally prominent vessel sign (APVS) showed parenchymal changes in these areas. On the other hand, deep structures, namely caudate nucleus, internal capsule and lentiform nucleus, are the least affected areas. All patients with abnormally prominent vessel sign showed arterial occlusion, and only 9 patients with no APVS show arterial occlusion (P = 0.0001) (Table 3).

Table 3 Prominent vessel sign and arterial occlusions

A total of 102 of our patients showed mismatch between SWI and DWI representing about 68%, and 48 patients have negative mismatch representing 32% (Table 4).

Table 4 SWI/DWI mismatch (penumbra)

Discussion

SWI plays an important role in acute cerebral ischemia by detecting the area at risk and area of hemorrhagic transformation; in addition, SWI has an important role in assessment of intra-arterial thrombus regarding the site, length of the thrombus and number of the thrombi depending upon the susceptibility vessel sign, on SWI and GRE T2* sequences; this sign is detected by its hypointensity within the lumen of the occluded artery which appears larger in diameter compared to the contralateral normal vessel.

Susceptibility weighted imaging (SWI), an increasingly used MR sequence in recent years with a high sensitivity effect, can better detect vascular anomalies such as the DVA and has been shown to be more sensitive than conventional T2* sequence in the detection of vascular structures [10]. SWI can demonstrate the whole vascular structure well and typically has a low signal intensity due to the blood oxygen level-dependent (BOLD) effect in the dilated medullary and draining veins [22]. Compared to T2 * gradient echo (GRE), SWI has high sensitivity and good contrast resolution for detection of thromboembolism in the anterior and posterior circulations [23]. During the pioneering era of CT, it was shown that the hyperdense middle cerebral artery (MCA) and insular points represent the presence of thromboembolism; However, the reliability of these signs depends on the Hounsfield attenuation of thromboembolism, which is influenced by fibrin content [23]. A major disadvantage of non-contrast TOF angiography is its insensitivity toward slow flow or slow in-plane flow.

60% of patients in the current study showed left cerebral ischemia; in contrast to this, various articles exhibited different findings to our study.

In the current study, M1 segment was the most affected middle cerebral artery segment in MRA, 33 patients showed thrombus in left M1, and 12 patients showed thrombus in right M1 segment representing about 60% of all patients detected in MRA. On the other hand in a study done by park M-G et al. [27], M5 segment was the least affected segment in MRA and SWI since no patients showed thrombus in MRA. Zheng et al. [24] studied 56 patients with acute and subacute infractions and found that 39 of their patients had thrombus in M1 segment representing 55% of all patients; in addition, they found that M3 segment of middle cerebral artery was the least affected segment in MRA representing about 1.4%; they also found that M2 segment was the most affected segment developing thrombosis representing about 75% of patient followed by M3 segment. In contrast, the M1 was the least affected segment representing 25% keeping in mind that 67% of patients has multiple thrombi. Darwish et al. [25] studied 24 patients with MCA infraction in the 1st 24 h and found that M5 segment was the most affected segment and caudate nucleus was the least affected one. In the current study, SVS was not detected in 35 patients with ischemic stroke, this may be attributed to spontaneous recanalization of the thrombus, and in these patients, the thrombus size was to small and peripherally located and was beyond the level of detection. In a study done by Allibert R and his colleagues, they concluded that SWI is more sensitive than GRE in the visualization of occluded intracranial arteries during the acute phase of ischemic stroke [13]. In the current study, SWI was found to be more useful than MRA in defining the location of the thrombus and in determining its burden in the M1 segment, although a recent study has shown that the thrombus burden on SWI does not affect the success of endovascular recanalization therapy [28]. In our study we used SWI in the detection of multiple thrombi; compared with MRA, we found that 12 of 115 patients who had SVS in SWI had multiple thrombi; however, no one shows any distal thrombus in MRA. This may be attributed to decreased flow distally in the vessels due to proximal thrombus since the MRA depends on blood flow in the vessels, and also recanalization and small thrombus size may play a role in detecting these thrombi in MRA. Thus, SWI has high capability to detect the multiple thrombi compared to MRA with significant p value. In the current study and upon reviewing diffusion images, we found that 102 patients with DWI /SWI mismatch, and 68% of them developed infarction growth in follow up studies. In patients with no DWI/ SWI mismatch, no one of them developed infarction growth. All patients with positive mismatch had asymmetrical prominent vessel sign in SWI. These results are in agreement with El Nouby et al. [26] who studied 20 patients; 12 of them had asymmetrical prominent vessel sign matching DWI; on follow-up only 11 patients showed infarction growth with significant correlation the asymmetrical prominent vessel sign with infarction growth; these results also are in agreement with studies done by Chandrasekharan et al. [29] and Hung-Wen Kao et al. [30].

In a study done by Wang et al. [31], they found that a DWI-SWI mismatch has a similar ability as a DWI-PWI to detect the ischemic penumbra, which indicates that SWI can be used to forecast the ischemic penumbra of patients with acute ischemic cerebral stroke.

Limitations

Absent gold standard is a limitation for the current study; we depended on correlation with patient clinical data, diffusion and follow-up studies which confirmed the SWI findings.

Conclusions

SWI is more sensitive than TOF angiography for detecting peripheral thrombi in patients with acute ischemic stroke. Both techniques might complement each other for visual detection of the occluded vessel. We recommend implementation of SWI into routine acute stroke MRI protocols.
