Role of MRI special diffusion weighted imaging/diffusion tensor imaging techniques in the assessment of perianal fistula activity

Abstract

Background

Pre-operative MRI examination is currently considered as an evolving tool for assessment of perianal fistula types, extensions, and complications to achieve proper treatment plan. Proper assessment of fistula activity can also have a major contributing role to the treatment plan, through deciding the type of prescribed medications, proper surgical approach as well as the proper operative intervention timing. Reviewing literature, only few studies have mentioned the importance of diffusion tensor imaging (DTI) sequences in diagnosing perianal fistula activity, yet many studies have discussed the perianal fistula activity assessment using other diffusion weighted imaging (DWI) sequences. In the present study, the main objective was to prove the MRI quantitative DTI sequences’ ability of diagnosing perianal fistulae inflammatory activity.

Results

This study was a prospective analysis in which fistular activity was confirmed by intra-operative findings (considered as the standard reference). The cases included in the study were divided into two groups, based on their surgical findings, positive inflammatory and negative inflammatory groups. Both groups were pre-operatively assessed using MRI imaging and additionally used diffusion weighted and tensor imaging (DWI and DTI) sequences by special post-processing quantitative assessment of DTI FA and ADC values. There was significant statistical difference between the mean ADC value of the PIA and NIA groups in the track, edema, ipsilateral and contralateral sphincter areas with P values (P = 0.000, 0.000, 0.002 and 0.000 respectively). There was also significant difference between the mean FA value of the PIA and NIA groups in the track, edema, ipsilateral and contralateral sphincter areas with P values (P = 0.000, 0.000, 0.000 and 0.008 respectively).

Conclusion

This study results revealed that FA are relatively lower in positive inflammatory activity lesions than in negative inflammatory activity lesions while the ADC values were relatively higher in positive inflammatory activity lesions than in negative inflammatory activity lesions and the differences were statistically significant having a fundamental role in the assessment of perianal fistula activity especially at the track area being of highest sensitivity and specificity. Unlike conventional MRI sequences which revealed only high specificity being a good negative modality.

Background

Perianal fistula is an inflammatory process that primarily affects the anal canal and its surroundings, it can cause significant morbidity and, in many cases, could require multiple operative interventions due to its high incidence of recurrence [1]. However, magnetic resonance (MR) imaging can help more precise anatomical identification of the fistula and its relations to the anal canal, the anal sphincter complex, and to the pelvic floor structures and the plane of the levator ani muscle, this also helps detection of secondary fistulas or abscesses [1]. Proper fistular activity assessment can be of major role contributing to the treatment plan, by choosing the number of administered drugs, deciding the proper surgical approach and also choosing the proper operative intervention timing [2].

Reviewing literature, only few studies have mentioned the importance of diffusion-weighted imaging (DWI) and diffusion tensor imaging (DTI) sequences in diagnosing anal fistulas and perianal abscesses [3] yet many studies have discussed the perianal fistular activity [4].

In the current study we aimed to evaluate the feasibility of detection of perianal fistula activity by analysis and quantitative assessment of the DTI (FA and ADC) values.

Methodology

This study was a prospective analysis study, approved by the ethics committee at our institute and was conducted during the period from December 2018 to December 2020.

Fistular activity was confirmed by intra-operative findings (considered as the standard reference) by differentiating the cases into two groups (positive and negative inflammatory groups) based on the presence of necrotic tissues, pus and other inflammatory products.

Patient characteristics

Sixty-two patients were included in this study (Fig. 1), fifty-five (88.7%) were males and seven (11.3%) were females with age ranging from twenty-three to sixty-nine with mean ± SD of 38.74 ± 10.51. Their age ranged from 23 to 69 years (mean age 38.74 ± 10.51).

Fig. 1
figure 1

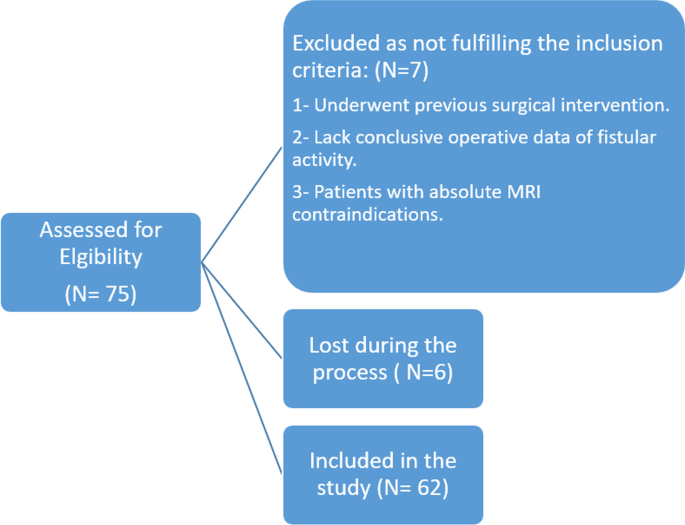

Flow chart of included patients

The forementioned patients were referred to the radiology department by surgery outpatient clinic requesting preoperative MRI assessment. Based on the surgery conclusions and clinical evaluation (performed by two surgeons of 4 years -resident- and 8–10 years’ experience -senior registrar/consultant-).

Different types of fistulae were diagnosed, thirty-three of the cases were of inter-sphincteric type (fifteen active and 18 inactive) seventeen were of the trans-sphincteric type (twelve active and 5 inactive) and twelve cases were of the extra-sphincteric type (five active and 7 inactive).

All the referred patients were operated upon by senior surgeon (consultant) with 8–10 years’ experience—who were blinded as regards the MRI DWI/DTI findings—and stated in their feedback that patients with inter-sphincteric fistulae were operated upon by simple fistulotomy (Lay open) technique while trans-sphincteric and extra-sphincteric cases were operated upon by sphincter preserving techniques mainly fistulectomy (coring) and repair of the sphincter if needed.

These patients were divided accordingly into two groups: the positive inflammation activity (PIA) group -being thirty-two (51.6%)-with thirty males and two females- and the negative inflammation activity (NIA) group -being thirty (48.4%)- with twenty-five males and five females.

Inclusion criteria

Patients proved to have perianal fistulae that require preoperative assessment.

Exclusion criteria

These involved patients that underwent previous surgical intervention, patients who lack conclusive operative data of fistular activity, patients with absolute MRI contraindications as having pacemakers or intracranial aneurysmal clips as well as claustrophobic patients.

MR imaging

MRI was performed using 1.5 Tesla magnet scanner by two devices (Intera and Achieva, Philips medical system). All patients were examined in the supine position using a surface coil, Subjects were required to empty their bladders before the examinations. No sedation was used.

The MRI imaging protocol included the following sequences:

Turbo spin echo (TSE) T1-weighted imaging (T1WI): axial; TR/TE, 600/10 ms; field of view (FOV), 200 × 200 mm2; matrix, 400 × 400; slice thickness, 5 mm; and number of slices, 20. TSE T2-weighted imaging (T2WI): axial, sagittal and coronal; TR/TE, 1560/80 ms; FOV, 200 × 200 mm2; matrix, 400 × 400; slice thickness, 5 mm; and number of slices, 20. Short T1 inversion recovery imaging (STIRWI): axial, sagittal and coronal; 200–300 ms; matrix, 236 × 147 mm2; slice thickness, 5 mm; and number of slices, 20. DWI and DTI (spin echo-echo-planar imaging, SE-EPI): axial; TR/TE, 3250/48 ms; FOV, 200 × 200 mm2; matrix, 80 × 80 with a 112 × 112 reconstructed matrix; slice thickness, 5 mm; number of slices, 20; 32 diffusion-weighed directions; NSA, 1; b = 0.400 s/mm2. Other b values acquisition was done in some cases with b = 400, 600 and 1000 s/mm2. Respiratory triggering was used for better resolution.

Post processing and image analysis were conducted as follows and qualitative as well as quantitative analysis of the MR images were conducted as a double-blinded analysis by two radiologists one with 5 years (R.E.) experience and the other with 15 years (H.A.) experience.

Qualitative analysis

Restricted diffusion was determined by visualization of abnormal bright signal intensity that became enhanced with increasing b values at “Diffusion weighted” (DW) images. The ADC map presented intermediate/low signal intensity (SI) that corresponded to the abnormality. The DTI images were fused with T2/STIR WI to allow the assessment of the anatomical details.

Quantitative analysis

The ADC values were measured manually by applying ROI on the DTI (b = 0) fused images on the largest suspected area, and overlaid on FA and ADC maps, and the average value was obtained by measuring 3 times. In addition, the lesions were divided into 4 ROIs (i.e., the fistula area, edema area, ipsilateral affected sphincter area and distant normal-appearing contralateral sphincter area).

Statistical analysis

All statistical analyses were conducted with the Statistical Package for Medical Statistics (Medcalc15.8, Ostend, Belgium; https://www.medcalc.org). All the FA, ADC values are presented with mean ± standard deviation (x ± s). The FA and ADC values of each area were calculated and analyzed with single-factor analysis of variance (ANOVA). The DTI values of each group were statistically calculated with independent samples t tests. The cut-off values for the ADC and FA measurements in evaluating the activity of the lesions were obtained by receiver operating characteristic (ROC) curve analysis, as were the sensitivity and specificity. In all tests, P < 0.05 represented statistically significant differences.

Sample size.

Epi-calc 2000 was used to calculate the sample size of this cross-sectional study. Assuming 80% power, 0.05 level of significance, 20% null hypothesis value and estimated proportion of 38%.

Sample size = 43.

Results

DTI quantitative analysis

Analysis of the diffusion tensor images and their correlation with the clinical condition was conducted using double blinded analysis by two radiologists with inter-observer variability of 0.6.

In positive inflammatory activity group (Fig. 2), the DTI assessment revealed relatively lower FA and higher ADC values than in negative inflammatory activity group (Fig. 3), with the FA in the PIA group measured 0.12–0.41, 0.11–0.85, 0.18–0.93 and 0.23–0.94 in the track area, edema area, ipsilateral and contralateral sphincter areas, respectively. While in the NIA group FA measured 0.33–0.94, 0.26–0.99, 0.22–1 and 0.39–1 in the track area, edema area, ipsilateral and contralateral sphincter areas, respectively.

Fig. 2
figure 2

a axial T2 WI, b axial STIR WI, c coronal STIR WI for an inter-sphincteric track of bright signal in T2 and STIR WI extending from 4 to 8 O’clock surrounding the internal sphincter. axial DTI/T2 fused images with ROI (FA and ADC) values placed in the inter-sphincteric track (d), ipsilateral and contralateral sphincters (e) and surrounding edema (f) with FA values 0.313, 0.778, 0.810 and 0.341 and ADC values 1.146, 0.656 and 0.703, 1.492 × 103 mm2/s, respectively. The FA and ADC values are relatively low indicating active inflammatory condition

Fig. 3
figure 3

a axial T2 WI, b STIR WI and c coronal STIR WI for a linear inter-sphincteric track of intermediate/high signal in T2/STIR WI touching the internal sphincter at 4–5 O’ clock. Axial DTI/T2 fused images with ROI (FA and ADC) values placed in d the inter-sphincteric track, e ipsilateral and contralateral sphincters and f surrounding edema area with FA values 0.852, 0.778, and 0.833 and 0.723 with ADC values 0.188,0.553, 0.278 and 0.711 × 103 mm2/s, respectively. The FA and ADC values are relatively high indicating inactive inflammatory condition

Similar findings were detected regarding the ADC values (× 10−3 mm2/s) which were higher at the PIA group as the ADC in the track area, edema area, ipsilateral and contralateral sphincter areas measured 0.5–2.66, 0.28–2.19, 0.22–1.8 and 0.19–2.12, respectively, and in the NIA, it measured 0.1–1.62, 0.02–2.05, 0.03–1.98 and 0.02–1.73. respectively.

There were statistically significant differences in the DTI (FA and ADC) values of the fistula area, edema area, ipsilateral and contralateral sphincter areas with P values for FA 0.000, 0.000, 0.000 and 0.032, while for the ADC were 0.000, 0.000, 0.001 and 0.007, respectively.

ROC curve analysis for FA measures (Fig. 4) to differentiate active conditions, considering cut off values for FA (Table 1) showed sensitivity and specificity for the track area reaching 100%, while that for the edema area reaching 79% and 84%, respectively.

Fig. 4
figure 4

ROC curve analysis for FA measures to differentiate active conditions

Table 1 ROC curve analysis for FA measures

ROC curve analysis for ADC measures (Fig. 5) to differentiate active conditions fixing the cut off values for ADC (Table 2) showed sensitivity for the track and ipsilateral sphincter areas reaching 89.7%, while for the contralateral sphincter and edema areas reaching more than 96% and 86%, respectively.

Fig. 5
figure 5

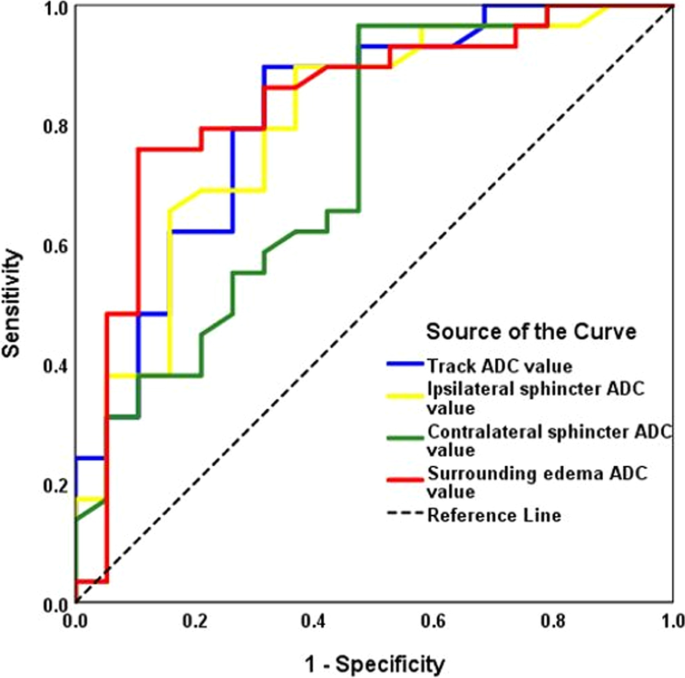

ROC curve analysis for ADC measures to differentiate active conditions

Table 2 ROC curve analysis for ADC measures

The analyzed FA and ADC cut off values were presented as mentioned in Tables 1, 2.

Fistula type correlation with inflammatory activity

Fistula type correlation with clinical activity condition showed no relevance with specific fistula type (Fig. 6), with P-values ranging from 0.066 and 0.443.

Fig. 6
figure 6

a Coronal STIR WI, b axial DTI/T2 fused images with ROI (FA and ADC) placed in the trans-sphincteric showing high track FA (0.505) and ADC values (1.070) indicating inactive condition with c coronal STIR WI, d axial DTI/T2 fused images with ROI (FA and ADC) placed in the saddle trans-sphincteric track from 4 to 7 O’clock showing low track FA (0.191) and ADC values (1.839) indicating active condition

Conventional MRI correlation with inflammatory activity

Correlation between conventional MRI findings with clinical activity condition revealed statistical significance with P-value of 0.022 as well as 90% specificity with less than 35% sensitivity, which implies being good negative modality to exclude active inflammatory conditions but with weakness regarding proving them.

After adding the ADC value to the conventional MRI assessment, the sensitivity increased to 62% and specificity increased to 74.7% when adding the FA values assessment, sensitivity increased to 67.2% and specificity increased to 95%, while adding both elevated the sensitivity of MRI assessment to 74.7%.

DWI/ADC map qualitative correlation with inflammatory activity

Yet, correlation of the diffusion weighted images and ADC maps (qualitative) findings with the clinical condition showed no statistical significance regarding the activity, with most of the tracks (54 cases) showed bright signal on DWI, yet with a large proportion (39 cases) of them showing also bright ADC map appearance (not true diffusion restriction) (Figs. 7, 8).

Fig. 7
figure 7

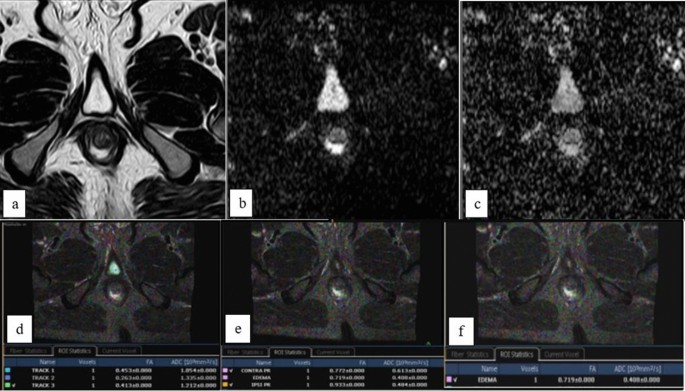

a axial T2WI, b DWI and c ADC maps for an inter-sphincteric track surrounding the sphincter from 6 to 9 O’ clock with internal opening breaching the internal sphincter at 7–8 O’ clock and showing high T2WI SI bright DWI signal with still high ADC signal (not true restriction) in spite of being clinically and DTI active with low FA and ADC values as shown in axial DTI/T2 fused images with ROI (FA and ADC) values placed in d the inter-sphincteric track, e ipsilateral and contralateral sphincters and f surrounding edema area with FA values 0.413, 0.933, and 0.772 and 0.719 with ADC values 1.212, 0.484, 0.613 and 0.408 × 103 mm2/s, respectively

Fig. 8
figure 8

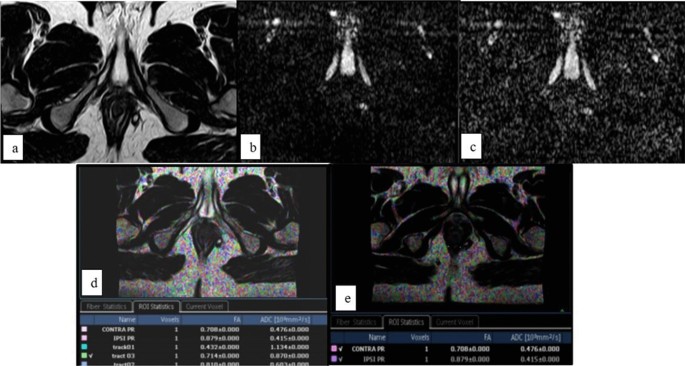

a axial T2WI, b DWI and c ADC maps for a trans-sphincteric track breaching the sphincter at 3 O’ clock showing bright T2, DWI WI and ADC map signal indicating absence of true diffusion restriction with being clinically inactive with high FA and ADC values as shown in axial DTI/T2 fused images with ROI (FA and ADC) values placed in the trans-sphincteric track (d), ipsilateral and contralateral sphincters e with FA values 0.714, 0.879, and 0.708 and ADC values 0.870, 0.415 and 0.476 × 103 mm2/s, respectively

Discussion

The recent introduction of diffusion tensor imaging (DTI) in assessment of fistulae activity condition has been growing recently and showing promising results. By the means of quantitative ADC and FA assessment, DTI sequences helped in differentiating inflammatory conditions depending on the different directions and behavior of the disturbed normal Brownian movement of the water molecules.

In this study quantitative DTI accuracy in inflammatory condition assessment when compared to clinical/surgical data, conventional MRI assessment as well as diffusion weighted imaging, it revealed much higher accuracy in the inflammatory activity detection with the FA and ADC reaching 100% and 89.7% sensitivity for the track area.

These results were found consistent with Wang et al. [5] who found that FA values are relatively lower in the PIA cases than in NIA and the differences were statistically significant with P values (FA) 0.009, 0.004 values for the track and edema areas in Yu Wang study compared to P-values 0.000 and 0.000 in our study. While for the ADC values in the fistula area in our study revealed higher values in PIA compared to lower values in Wang et al. [5] with still statistically significant differences with the P value (ADC) 0.004 in Wang et al. study compared to P value 0.000 in our study [5]. In addition, our study also concluded higher statistically significant ADC values in the edema area, ipsilateral sphincter as well as the contralateral sphincter with P values 0.000, 0.001 and 0.007, respectively.

Our study also assessed the role of conventional MRI in detecting the inflammatory activity and was found to be of high specificity (90%) but lacking good sensitivity (34.4%) and so being good negative only. This was much improved when adding the DTI ADC value to the assessment it increased to 62% and when adding the DTI FA values assessment, it increased to 67.2%, while adding both elevated the sensitivity of MRI assessment to 74.7%. While the specificity was 79.25% when adding DTI (ADC) and increased to 95% when adding DTI (FA).

These results agreed with the results reported by Algazzar et al. who studied Preoperative MRI of perianal fistula evaluation and its impact on surgical outcome and found out that MRI is valuable and accurate for preoperative investigation for perianal fistula evaluation. They also found that preoperative MRI could predict the severity of perianal disease with sensitivity, specificity, and accuracy rates of 75%, 92%, and 84.6%, respectively. Diffusion-weighted magnetic resonance imaging (DWI) provided high sensitivity and accuracy with 100% specificity for fistula visualization and highest sensitivity, specificity, and accuracy for detection of cavities > 3 mm in diameter. They also found that DWI provided the highest specificity rate on ROC curve analysis among the three MRI pulse sequences (DWI, STIR, and T1 post-contrast). And so, they concluded that DW-MRI is a valuable sequence in diagnosing fistulas yet is more informative when added to other sequences as STIR in their study and FA and ADC values in ours, to be effective in detecting fistulas activity [6].

We also found that qualitative assessment of the different signals of the tracks in DWI and ADC maps in positive and negative inflammatory activity groups was found statistically insignificant (P value 0.263 and 1.0) in detecting perianal fistula activity, being indifferent in both conditions agreeing with Mohsen et al. [7], who concluded that perianal fistulas without abscesses had variable visibility scores and it was not significantly different between positive and negative inflammatory groups with P value 0.45. They concluded that the ADC values for perianal fistulas was 1.39 ± 0.4 × 10−3 mm2/s, while for abscesses, it was 0.8 ± 0.66 × 100−3 mm2/s, with significant difference between both entities (P = 0.001). There was no significant difference between PIA and NIA groups regarding the ADC value of perianal fistulas (PIA 1.3 ± 0.5 × 10−3 mm2/s and NIA 1.43 ± 0.4 × 10−3 mm2/s, P = 0.45) [7].

They also concluded that DWI had a good performance in the evaluation of perianal inflammatory disease. However, combined DWI and T2W evaluation had better performance which was not significantly different from combined T2W and post-contrast images [7].

These results were also in concordance with Baik et al. [8], who concluded that DWI (qualitative not quantitative) had comparable diagnostic performance to T2 WI with no special added value (P value 0.0039) except for one reader out of 28.

Conclusions

This study results revealed that FA are relatively lower in positive inflammatory activity lesions than in negative inflammatory activity lesions while the ADC values were relatively higher in positive inflammatory activity lesions than in negative inflammatory activity lesions and the differences were statistically significant having a fundamental role in the assessment of perianal fistula activity especially at the track area being of highest sensitivity and specificity. Unlike conventional MRI sequences which revealed only high specificity being a good negative modality.

Study limitations

We admit that our study had many limitations, such as relatively small sample size. Second the study included more male patients with that sex ratio imbalance could have affected the results, which also represented that the incidence of the perianal fistulas is higher in males than in females. Third, in order to insure not to lengthen the examination time we chose multiple b-values for some of the cases not all of them, but in the future, we recommend acquiring more b-values for all patients to obtain more accurate results.
