Role of shear wave elastography in assessment of chronic allograft nephropathy

Abstract

Background

The principal cause of renal graft loss after the first year is chronic allograft nephropathy which is represented histologically by tubulo-interstitial fibrosis. Its early diagnosis and treatment are crucial to prevent late graft failure. Ultrasound is unequivocally the first-line imaging modality for the evaluation of renal transplants in the immediate postoperative period and for long-term follow-up. Ultrasound shear wave elastography is an imaging technique based on estimation of the elastic properties of tissues.

Elastography is performed in the same clinical setting with conventional B-mode ultrasonography. Tissue elasticity is displayed as an absolute number and color-coded real-time estimation. So, it can be used in screening and diagnosing chronic allograft nephropathy. However, the accurate diagnosis and prognosis of renal parenchymal complications still relies on tissue biopsy. Many studies have proved the high specificity of ultrasound elastography in decreasing the number of unnecessary biopsies.

Results

In our study, we included 36 patients with biopsy-proven chronic allograft nephropathy. All patients had a B-mode ultrasound examination and followed by ultrasound shear wave elastography in the same session. The results were compared to the histopathological results.

Time since transplantation was directly correlated with mean renal stiffness, revealing that with longer time of transplantation renal stiffness and interstitial fibrosis and tubular atrophy (IF/TA) percentage increased with r = 0.72, 0.90 and p value < 0.001.

Antero-posterior (AP) diameter of the renal graft was significantly correlated with mean renal stiffness as the larger the AP diameter, the higher the mean kidney stiffness with r = 0.47, 0.73 and p value 0.001.

Sensitivity analysis showed that US shear wave elastography through mean kidney stiffness can significantly predict moderate Banff score of renal fibrosis using cutoff value 28.67 kPa with sensitivity 87.5%, specificity 90%, AUC 0.91 and p value < 0.001.

Conclusion

Shear wave elastography (SWE) may be useful for the prediction of fibrosis in renal transplant patients, especially in the case of moderate Banff score, where the accuracy reached 87.5% using a cutoff value 28.67 kPa.

We conclude that US SWE can be of great help during the regular follow-up of renal transplant patients. It can act as a screening tool to identify patients with stiffness values that suggest moderate tubulo-interstitial fibrosis, so eventually helping in the early diagnosis, management and help in selecting patients who are candidate for biopsy and in avoiding the repeated unnecessary biopsies for others.

Background

The observation of acute graft rejections has decreased during the last two decades by the introduction of more effective immunosuppressive therapy. Long-term renal graft survival, however, has not improved in the same way. The pathophysiology of late graft failure after the first year is still unexplained, and several confluent immunologic and non-immunologic variables are most likely implicated [1].

Unfortunately, a rise in serum creatinine is a late sign for renal graft impairment, and it is frequently detected at a later stage of fibrosis, when the damage becomes permanent [2]. Only after the loss of 60% of renal function, a significant shift in serum creatinine level can be detected [3].

Currently, renal biopsy is the gold standard of diagnosis of graft dysfunction. Protocol biopsies are done on schedule, usually during the first year after transplantation, to closely monitor and early identify any pathological alterations in the absence of clinical events. While renal biopsy is of a great benefit, it is not preferred due to its invasiveness and high cost. Also, it can result in complications such as infections and bleeding [4].

As a result, noninvasive imaging approaches have attracted a lot of attention and research, with the potential to replace or at least reduce the use of biopsy in identifying graft dysfunction [4].

Being a very easy to perform, affordable, and non-nephrotoxic imaging modality, ultrasound is commonly utilized for the early assessment of renal graft function in the postoperative phase as well as for long-term follow-up [5].

Recently, ultrasound elastography, which evaluates the viscoelastic properties of tissue in various organs, was developed to detect parenchymal alterations [6]. For renal stiffness evaluation, several studies using different elastography techniques, such as real-time and shear wave-based elastography (SWE), have been established [7].

SWE technique estimates the speed of shear waves to provide a quantitative estimate of tissue elasticity by generating shear waves at a focal point in the tissue, where the velocity of the wave provides an estimate of tissue stiffness [7, 8]. Because of the benefits of SWE and B-mode imaging guiding, this technique can give a more precise evaluation of tissue stiffness [9].

SWE works on the basis of a radiation force generated into tissues by focused ultrasonic beams and a very high frame rate US imaging sequence capable of capturing the propagation of resultant shear waves in real time [10, 11].

The US system captures the generated shear waves, to capture them in sufficient details, frame rates of a few thousand images per second are required. This ultrafast imaging technique captures raw data at a high frame rate of up to 5000 frames per second [12].

The shear wave speed is then calculated across a specific region of interest (ROI). The tissue stiffness is calculated using the shear wave speed [9, 10, 12].

The mean value of KS is calculated and expressed in kilopascals (kPa) and considered indicative of fibrosis (Figs. 1 and 2).

Fig. 1
figure 1

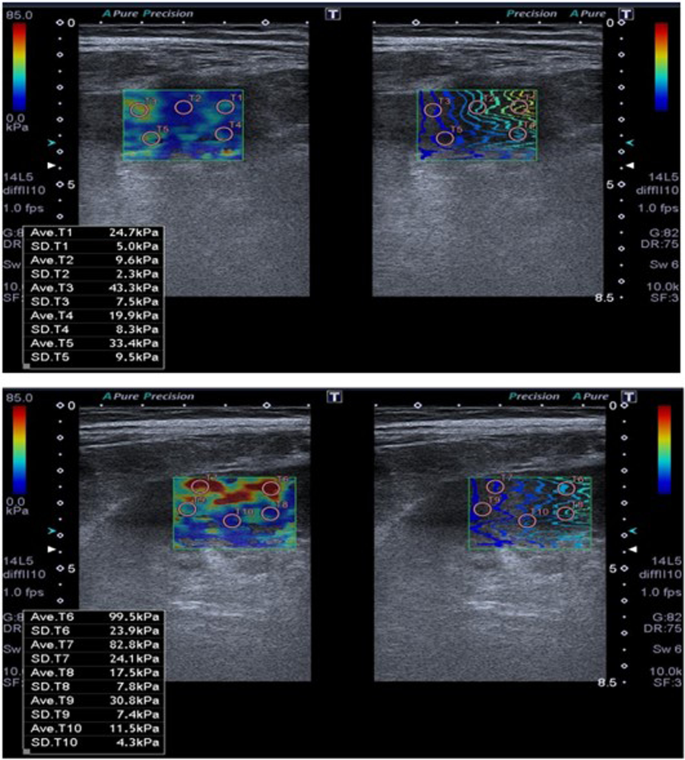

Shear wave elastography stiffness values in kPa in case of chronic allograft nephropathy. Legend: Mean stiffness value of the transplanted kidney 37.3 kPa. Pathology revealed moderate interstitial fibrosis and tubular atrophy (IFTA grade II, 35%)

Fig. 2
figure 2

Shear wave elastography stiffness values in kPa in case of chronic allograft nephropathy. Legend: Mean stiffness value of the transplanted kidney 23.44 kPa. Pathology revealed mild interstitial fibrosis and tubular atrophy (IFTA Grade I, 10%)

E = 3ρ Vs2, where E is Young’s modulus (kPa), ρ is tissue density (kg/m3), and Vs indicates shear wave velocity (m/s) [11, 13, 14]. In order to calculate Young’s modulus, SWE uses for referencing the density of water (1000 kg/m3). The elasticity is represented by a color-coded image displayed on a B-mode image, where the stiffer tissues are shown in red and softer tissues are shown in blue (Fig. 1) [9, 12].

A low speed denotes a soft medium, whereas a high speed denotes a stiff medium.

The aim of our study is to find a correlation between the renal allograft parenchymal stiffness through ultrasound shear wave elastography and the histopathological changes described in patients with biopsy-proven chronic allograft nephropathy (CAN).

Methods

All patients wrote a prior consent of inclusion in the study. All patients were subjected to full history taking, clinical examination, laboratory investigation, and graft evaluation using a conventional ultrasound examination and shear wave elastography examination.

Selection of the patients

Inclusion criteria

Recipients of living donor renal transplants of any sex and age-group above 18 years old, with diagnosis of chronic allograft nephropathy as evidenced by histopathological findings.

Exclusion criteria

Age range: below 18 years old, time less than 3 months out from transplant surgery, presence of perinephric fluid collections, hydronephrosis, renal cysts, or other parenchymal disease.

Technique of supersonic shear wave elastography

Ultrasound of the graft and SWE examinations were done using TOSHIBA Aplio 500 machine. Initially, B-mode ultrasound examination was performed for renal allograft with (6C1) curvilinear probe and then shear wave elastographic examination using (14L5) linear probe.

Patients were examined in the supine position. The transducer was covered with ultrasound gel and placed on the skin in a stable position for about 3 s, perpendicularly to better minimize the compression artifact, as shear wave elastography relies on the automatic generation and analysis of shear waves.

Elasticity was then qualitatively assessed using color-coded image superimposed on a B-mode image. At the same time, kidney stiffness (KS) was quantitatively measured; the mean KS value in the region of interest (ROI), as well as the standard deviation (SD) of the measured elasticity, was displayed on the screen and expressed in kilopascals (KPa).

When the cineloop was stable showing parallel lines or parallel circles, we froze the image. Ten measurements of KS using a pre-determined circular regions of interest (ROI = 5 mm) were placed at the nearest region from the skin with a well-represented renal parenchyma.

The mean value of KS was calculated and expressed in kilopascals (kPa) and considered indicative of fibrosis. The information was quantified either as shear wave velocity or as Young’s modulus value expressed in kilopascal (kPa).

The statistical methods

Data were coded and entered using the Statistical Package for the Social Sciences (SPSS) version 26 (IBM Corp., Armonk, NY, USA). Data were summarized using mean, standard deviation, median, minimum, and maximum in quantitative data and using frequency (count) and relative frequency (percentage) for categorical data. Comparisons between quantitative variables were made using the nonparametric Mann–Whitney test. For comparing categorical data, chi-square test was performed. Exact test was used instead when the expected frequency is less than 5. Correlations between quantitative variables were done using Spearman correlation coefficient. ROC curve was constructed with area under curve analysis performed to detect best cutoff value of elastography for detection of fibrosis. p values less than 0.05 were considered as statistically significant.

Results

Thirty-six renal transplant recipients with biopsy-proven chronic allograft nephropathy histological findings, after at least 3 months since transplantation, were recruited. The study was conducted from February 2021 to August 2021.

Renal allografts were biopsied by US-guided interventional procedures by true cut needle biopsy (via 18-gauge automated biopsy device).

Chronic pathological findings (IF/TA) were then interpreted and categorized based on Banff classification. Grade I: Mild interstitial fibrosis (6–25% of cortical area) and mild tubular atrophy (≤ 25% of the area of the cortical tubules). Grade II: Moderate interstitial fibrosis (26–50% of cortical area) and moderate tubular atrophy (26–50% of the area of the cortical tubules). Grade III: Severe interstitial fibrosis (< 50% of cortical area) and severe tubular atrophy (< 50% of the area of the cortical tubules).

Renal allografts mean stiffness value was correlated with the histopathological findings (Table 1). On the basis of the histological examinations of the 36 patients who underwent biopsy, there were 20 patients with mild chronic interstitial fibrosis and tubular atrophy (IF/TA) (55.6%) and 16 patients with moderate–severe chronic IF/TA (44.4%).

Table 1 Clinical, laboratory and ultrasound characteristics of 36 patients with histological samples and stiffness measurements

IF/TA percentage was significantly higher among patients with moderate–severe Banff score when compared to patients with mild Banff score, with p value < 0.001.

IF/TA percentage was positively correlated with mean kidney stiffness with r = 0.57 and p value 0.013, which refer to the higher the stiffness of the renal transplant, the higher the IF/TA percentage (Fig. 3).

Fig. 3
figure 3

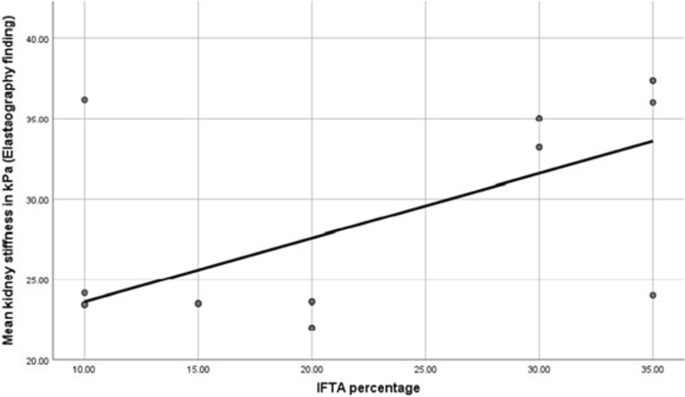

Scatter plot showing the correlation between IF/TA percentage and mean renal stiffness in kPa

Time since transplantation was directly correlated with mean renal stiffness, revealing that with longer time of transplantation renal stiffness and IF/TA percentage increased with r = 0.72, 0.90 and p value < 0.001 (Fig. 4).

Fig. 4
figure 4

Scatter plot showing the correlation between mean renal stiffness in and time since transplantation

The graft antero-posterior diameter was significantly correlated with mean renal stiffness as the larger the AP dimension, the higher the mean kidney stiffness with r = 0.47, 0.73 and p value 0.001 (Fig. 5).

Fig. 5
figure 5

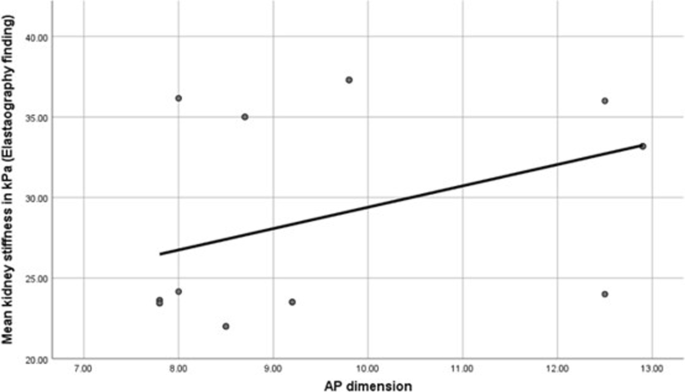

Scatter plot showing the correlation between mean renal stiffness and antero-posterior diameter

Sensitivity analysis showed that US shear wave elastography through mean kidney stiffness can significantly predict moderate Banff score of renal fibrosis (IF/TA) using cutoff value 28.67 kPa with sensitivity 87.5%, specificity 90%, AUC 0.91, and p value < 0.001.

Discussion

Chronic allograft nephropathy (CAN) is the most common cause of graft failure beyond the first year after renal transplantation and is highly prevalent in renal transplant recipients, with moderate to severe chronic allograft nephropathy [15].

The accurate diagnosis and early treatment of CAN are important for renal allograft salvage. Histologically, CAN is defined by interstitial fibrosis and tubular atrophy (IF/TA) which is further categorized according to Banff scoring system into three grades based to severity (1 = mild, 2 = moderate, and 3 = severe) [2].

Renal biopsy is the gold standard for diagnosis. However, biopsy cannot always be performed, for both anatomical and coagulation-related issues; moreover, major complications have to be always considered; therefore, new noninvasive methods have to be developed to obtain new data on the cause of graft dysfunction [16].

Elastography has emerged as a new technique that uses an intrinsic tissue property, the elasticity of which is the capacity to deform and to return to the initial shape when a stress is applied [16].

Supersonic shear wave elastography (SWE) has been documented to be strongly correlated with grade of fibrosis, providing an assessment of the tissue's stiffness [8, 17].

In our study, IF/TA percentage was positively correlated with SWE mean kidney stiffness with r = 0.57 and p value 0.013, which means that as renal parenchymal stiffness increases, the percentage of interstitial fibrosis and tubular atrophy (IF/TA) also increases.

Our results were consistent with the results reported by Chiocchini et al. and Yang et al. who stated that when the histological features of the Banff classification were categorized (mild vs moderate/severe), renal stiffness was higher in the presence of moderate/severe injury rather than in mild injury for interstitial fibrosis and tubular atrophy [2, 18].

Our results revealed that the time since transplantation was directly correlated with IF/TA percentage and mean renal stiffness, revealing that the longer the time since transplantation, the more stiffness, and the higher IF/TA percentage of the renal allograft with r = 0.72, 0.90 and p value 0.001, < 0.001, respectively, which is consistent with studies conducted on a similar group of patients highlighting that longer time since transplantation (> 12 months) had higher IF/TA percentage and renal stiffness [2, 20].

In the current study, the antero-posterior diameter of the renal graft was significantly correlated with IF/TA percentage and mean kidney stiffness, as the greater the antero-posterior diameter, the higher IF/TA percentage and mean kidney stiffness with r = 0.47, 0.73 and p value 0.048 and 0.001, respectively. This correlation was not evident in the study conducted by Yang et al. that included 82 patients with renal transplantation with p value > 0.05 [18].

In our study, sensitivity analysis showed that SWE mean kidney stiffness can significantly predict grade II Banff score with moderate renal fibrosis (IF/TA) using cutoff 28.67 kPa with sensitivity 87.5%, specificity 90%, AUC 0.91, and p value < 0.001.

Our results were consistent with a Chinese study conducted on 31 patients who showed renal dysfunction post-renal transplantation. Their results revealed that using cutoff 29.01 kPa significantly predicted grade 2–3 Banff score with moderate–severe renal fibrosis with sensitivity 93.5%, specificity 91.7%, and AUC 0.97 [18].

Our results also found that SWE mean kidney stiffness was able to distinguish between the grade I and grade II Banff score with mild-to-moderate interstitial fibrosis and tubular atrophy. However, we could not effectively differentiate between the grade II and grade III groups with moderate-to-severe IF/TA, probably due to insufficient number of patients with grade III Banff score. These results were consistent with the results reported by López Novoa et al. (19).

We did not have a patient group of grade III Banff score with severe interstitial fibrosis and tubular atrophy. This factor was likely the result of the fact that these patients were detected by serological results and had clinical deterioration compatible with graft failure, therefore precluding the need for biopsy.

Conclusion

Shear wave elastography may be useful for the prediction of fibrosis in renal transplant patients, especially in the case of moderate Banff score, when the accuracy reaches 87.5% using a cutoff value 28.67 kPa.

At this time, US shear wave elastography cannot replace renal biopsy, as it is still under investigation, and a standard technique for performing examinations should be established.

However, we think that US shear wave elastography (SWE) can be of great help during the regular follow-up of renal transplant patients. It can act as a screening tool to identify patients with stiffness values that suggest moderate tubulo-interstitial fibrosis, so eventually helping in the early diagnosis and management and help in selecting patients who are candidate for biopsy and in avoiding the repeated unnecessary biopsies for others.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

AR:

Acute rejection

CAN:

Chronic allograft nephropathy

Fig:

Figure

IF/TA:

Interstitial fibrosis and tubular atrophy

kPa:

Kilopascals

KS:

Kidney stiffness

ROI:

Region of interest

SWE:

Shear wave elastography

UE:

Ultrasound elastography

US:

Ultrasound
