Comparison between diffusion-weighted magnetic resonance and positron-emission tomography in the evaluation of treated lymphomas with mediastinal involvement

Egyptian Journal of Radiology and Nuclear Medicine volume 53, Article number: 149 (2022) Cite this article

Abstract

Background

The persistence of residual tissue after treatment is frequent in patients with mediastinal lymphomas and it is often characterized by 18F-Flurodeoxyglucose Positron Emission Tomography (18F-FDG PET) uptake. This study aims to investigate the usefulness of diffusion-weighted whole-body imaging with background body signal suppression (DWIBS) sequence in residual tissues of treated mediastinal lymphomas and to compare it with 18F-FDG PET-CT.

Results

We included 21 patients with mediastinal Hodgkin and non-Hodgkin lymphomas who showed residual masses on PET-CT imaging at end of treatment and underwent DWIBS-Magnetic Resonance Imaging (MRI). SUVmax and Apparent Diffusion Coefficient (ADC) values of residual masses were assessed quantitatively, including measurement of mean ADC. 15 patients showed radiotracer uptake at 18F-FDG PET-CT, among them only 3 had positive DWIBS-MRI with low ADC values (median value: 0.90 mm2/s). The mediastinal biopsy in these 3 “double positive” patients confirmed pathological residual tissue. All the patients with positive 18F-FDG PET-CT but negative DWIBS-MRI (n = 18) with high ADC values (median value: 2.05 mm2/s) were confirmed negative by biopsy.

Conclusions

DWIBS-MRI examination combined with ADC measurement allowed to discriminate pathological and non-pathological residual tissue in patients with treated mediastinal lymphoma. These preliminary results seem to pave the way for a leading role of the MRI which could be a useful alternative to the 18F-FDG PET/CT.

Background

The mediastinum is involved approximately in 60% of systemic Hodgkin Lymphomas (HL) and in 20% of Non-Hodgkin Lymphomas (NHL) [1,2,3,4,5,6]; on the other hand, primary mediastinal lymphoma (PML) is quite rare (only 5–10% of the cases) with a prevalence of NHL (65%) type [2, 3, 5].

Computed Tomography (CT) is commonly used for the initial staging in lymphomas, although the current Lugano Classification recommends the use 18F-Flurodeoxyglucose Positron Emission Tomography with Computed Tomography (18F-FDG PET-CT) for staging and response assessment in 18F-FDG-avid lymphomas, whereas the use of CT is indicated only for the 18F-FDG non-avid indolent NHL subtypes [7,8,9].

Standard treatment is strictly related to the histological subtype and usually includes systemic chemotherapy with or without radiotherapy consolidation depending on the extent of the disease [10, 11]. The persistence of mediastinal residual tissue after treatment is not infrequent and it is often characterized by 18F-FDG uptake [12], ranging from 25 to 100% [13].

The persistent high metabolism in treated residual masses is mainly related to inflammatory changes and necrosis induced by treatments [14,15,16]; in case of radiotherapy, metabolic alterations may persist up to 3–4 months, precluding a precise determination as to the neoplastic nature of the residual tissue [17]. Moreover, the presence of mediastinal structures, as thymic hyperplasia or thymic regrowth following chemotherapy in young adults, can easily confuse the residual neoplastic tissue evaluation [16, 18].

The detection of residual disease in anterior mediastinal lymphomas is a pivotal issue because it has important therapeutic implications. To now, mediastinal biopsy remains the gold standard to establish definitive diagnosis [7, 8, 16, 18]. However, biopsies are reported to have low diagnostic accuracy due to the heterogeneity of the residual tissue after treatment composed of inflamed and fibrotic tissue [19]. Moreover, a mediastinal biopsy is an invasive procedure that requires general anaesthesia and is associated with significant risk due to the often small mass size and the proximity to anatomical structures such as the heart and great vessels.

To improve post-treatment response assessment, other instrumental investigations, such as diffusion weighted magnetic resonance imaging (DW-MRI), may be added. Actually, DW-MRI is a promising radiation-free technique for staging and following-up many types of neoplasms including lymphomas [20,21,22,23,24].

Diffusion-weighted whole-body imaging with background body signal suppression (DWIBS) is a DWI technique that can be used for the whole body evaluation producing PET-like images [25]. Over the past few years, DWIBS has revealed great potential in oncologic radiology and proved to be a radiation-free alternative to 18F-FDG PET-CT [25,26,27,28].

The aim of this study is to assess the role of DWIBS-MRI compared to 18F-FDG PET-CT in the definition/evaluation of residual tissue in treated mediastinal lymphomas to avoid/reduce the need of diagnostic biopsy.

Methods

Study design and patient enrolment

Inclusion criteria were patients with age of 18 years or more, diagnosed with mediastinal involvement of HL or NHL showing residual tissue at 18F-FDG PET-CT after treatment (chemotherapy or chemotherapy with radiotherapy). The response assessment in PET (positive or negative) was carried out visually and quantitatively. The patients were classified in responder and not-responder according to Deauville Score (DS).

All participants underwent DWIBS-MRI examination, performed within a short time from 18F-FDG PET-CT, with a median of 10 days (95% CI, 8–13 days). In patients treated also with radiotherapy the acquisition of imaging studies were performed four months after the end of treatment to minimize the impact of confounding factors such as inflammatory changes.

All patients gave a written informed consent to undergo 18F-FDG PET.CT and DWIBS-MRI examination.

Exclusion criteria were absolute contraindications to MRI examination and to gadolinium-based contrast agent administration in accordance with European Society of Urogenital Radiology (ESUR) guidelines.

In all cases with suspicious mediastinal active disease a biopsy was planned to assess tissue composition.

The hospital ethics committee approved this study.

Magnetic resonance imaging protocol

All the patients underwent MRI after 18F-FDG PET-CT. All MRI examinations were performed using a 1.5T scanner (Intera, Philips Medical System, Best, The Netherlands) equipped with a 12-channel phased-array body coil.

The MRI protocol included: T2 Turbo Spin Echo (T2 TSE) on the axial plane (acquisition matrix 320 × 282, repetition time/echo time (TR/TE) 500 ms/100 ms, slice thickness: 5 mm); T2 TSE with Spectral Presaturation Inversion Recovery (SPIR) on the axial plane (acquisition matrix 320 × 282, repetition time/echo time (TR/TE) 500 ms/100 ms, slice thickness: 5 mm); T1 Dual Fast Field Echo (dual FFE) on the axial plane (acquisition matrix 280 × 280, TR/TE 205 ms/2.3 ms, slice thickness: 5 mm; flip angle 75°). DWI was performed with DWIBS technique using an echo planar imaging (EPI) during free breathing with the following parameters: TR/TE 5423 ms/80 ms, slice thickness: 4 mm, voxel size 3.5 × 3.5 mm2. Two different b values (b = 0 and 800 s/mm2) were used, with all diffusion-sensitizing gradients applied in three orthogonal directions to obtain trace-weighted images. Each of the listed sequences was equipped with parallel acquisition technique (sensitivity encoding, SENSE), which is responsible for reaching an increased spatial resolution and decrease acquisition time.

During the administration of gadolinium-based contrast agent, dynamic axial and coronal mDIXON sequences were acquired (acquisition matrix 220 × 223, TR/TE 5 ms/0 ms, slice thickness 4 mm, flip angle 15°). Total MRI examination time was approximately 15 min.

ADC analyses

The Apparent Diffusion Coefficient (ADC) maps were obtained using a commercial software package (IntelliSpace Portal 9.0 clinical applications MR Diffusion, Philips) including DWIBS with two different b values (b = 0 and 800 s/mm2). A region of interest (ROI) was manually defined by two radiologists in consensus with > 5 years of experience in MRI. 3D Slicer Software [29] was used for images visualization and for tumor segmentation. The two radiologists didn’t have access to other examinations, or original reports and didn’t know the PET-CT results.

PET imaging protocol

18F-FDG PET-CT was performed, from the vertex to the upper thigh, using a 64-row multidetector PET/CT system (Biograph True Point 64; Siemens), with a trans-axial field of view (FOV) of 605 mm (axial FOV, 216 mm), a PET sensitivity of 7.6 cps/kBq and a trans-axial PET resolution of 4 to 5 mm (full width at half maximum). Patients fasted for 5 h before imaging; the glucose cut-off level was 150 mg/dL. PET was performed 50–60 min after a weight-dependent intravenous administration of 18F FDG (target dose, 300 MBq; individual dose, 270–340 MBq), with 3 min/position read, four iterations for 21 subsets, a 5 mm thick slice and one 168 × 168 matrix, using the TrueX reconstruction algorithm. The portal venous phase of contrast-enhanced CT was obtained after intravenous injection of 100 mL of organo-iodinated contrast medium at a rate of 2 mL/s; the tube voltage was 120 kV, tube current of 230 mA, collimation of 64 × 0.6 mm, a slice thickness of 3 mm with an increment of 2 mm and a 512 × 512 matrix.

Maximum standardized uptake analysis

Maximum standardized uptake value (SUVmax, g/mL) was calculated using the standard formula.

SUV = tissue uptake/(injected FDG dose/patient weight), as proposed by Weber et al. [30], on a dedicated workstation (advantage workstation 4.4. GE medical systems) for all the PET/CT examinations, by one experienced nuclear medicine physician. A volume of interest (VOI) was drawn on fused PET/CT images including the residual mediastinal pathologic tissue around the slice that showed the highest uptake of 18F-FDG. When necessary, co-registered CT images were used for a correct VOI placement.

Statistical analysis

The variables were reported as absolute frequencies and percentages for categorical variables and median and 95% CI for continuous variables. The difference among groups was evaluated applying univariate analysis by nonparametric test (Fisher’s exact test in case of categorical variables, Mann–Whitney U test in case of continuous variables).

Two boxplots were used to show, respectively, the ADC and the SUV values during the follow-up evaluation.

Spearman’s Ranked Correlation test was used to investigate the correlation between two parameters (SUVmax and ADC). Correlation coefficients are considered to represent a small effect from 0.1 to 0.3, a medium effect from 0.3 to 0.5, and a large effect if greater than 0.5 [31].

A p-value < 0.05 was considered statistical significative.

All analyses were performed using MATLAB software version 9.7.0, release 2019b (MathWorks, Natick, MA, USA).

Results

21 consecutive patients diagnosed with HL and NHL were enrolled in this study (from June 2017 until May 2021) with a median follow-up of 18 months (12–47 months). The patients were 8 males and 13 females, with a median age of 36 years (range: 25–47). According to World Health Organization (WHO) classification 12 patients were diagnosed with HL and 9 with NHL, with the last including 8 primary mediastinal B-cell lymphomas (PMBL) and 1 Diffuse Large B-Cell Lymphoma not otherwise specified (DLBCLnos). The patients’ clinical and demographic characteristics are reported in Table 1.

Table 1 Patients’ clinical and demographic characteristics
Full size table

The Ann Arbor Classification staging at onset of disease showed 3 patients with an extra-nodal localization 18 patients received chemotherapy plus radiotherapy and 3 patients received only chemotherapy.

The measurement of post therapy-residual mass showed only 2 patients with a residual mediastinal bulky mass (patient 1 and patient 21).

All 21 patients were divided into two groups for each imaging technique: PET/CT-positive (n = 15, 71.4%) and PET/CT-negative (n = 6, 28.6%) patients; MRI-positive (n = 3, 14.3%) and MRI-negative (n = 18, 85.7%) patients (Table 2). A statistically significant difference between the two groups of each imaging technique was found (p < 0.001).

Table 2 Summary results of instrumental methods examined (PET/CT and MRI)
Full size table

We used a cut-off of DS 3 and 4, which corresponds to the background uptake in the liver, to distinguish between negative and positive PET/CT scan [32].

We applied an ADC cut-off value of 1.21 × 10−3 mm2/s, that was reported to increase specificity for residual nodal disease detection by nearly 30% compared to visual inspection by Littooij et al. [33].

SUVmax values derived from PET-CT and ADC values derived from DWIBS sequences are illustrated in Table 3. In the PET-positive group, SUVmax values of the residual tissues were significantly higher compared to PET-negative one (p = 0.001). In the MRI-positive group, ADC values were significantly lower compared to MRI-negative patients (p = 0.008). Box plots of SUVmax and ADC are showed in Fig. 1.

Table 3 SUVmax and ADC values
Full size table
Fig. 1
figure 1

Box and whisker plots of SUVmax values derived from PET and ADC values derived from DWIBS. The red plus sign is the outlier. The results are reported in Table 3

Full size image

The Spearman’s Ranked Correlation between SUVmax and ADC was not statistically significant (rho = − 0.289, p = 0.204) (Fig. 2).

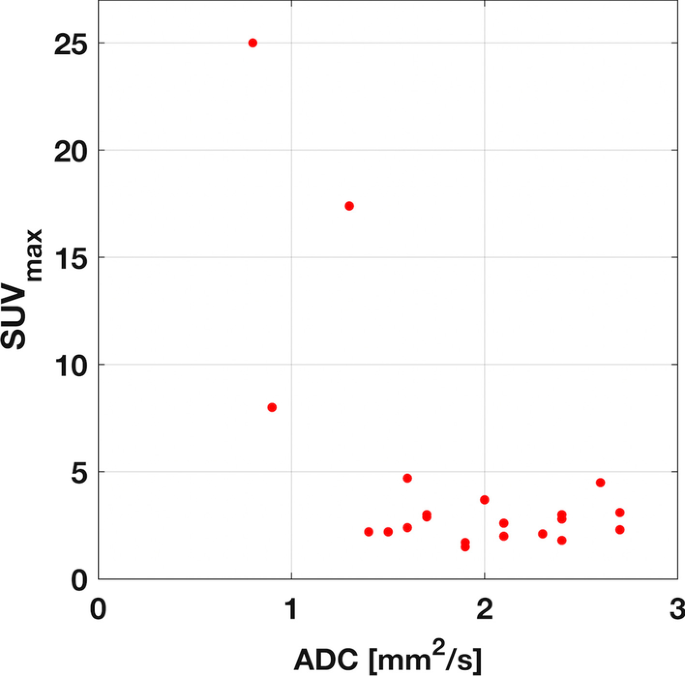

Fig. 2
figure 2

Correlation plot between SUVmax and ADC values. The y-axis represents the SUVmax values, and the x-axis represents the ADC values for all patients

Full size image

Among the 15 PET/CT-positive patients (DS 4-5), 3 of them (n. 14, 19, 21) were also considered MRI-positive (PET+/MRI+ and all 3 had high SUVmax values (8; 17.4; 25) and low ADC values (0.9; 1.2; 0.8) with a median value of 0.90 mm2/s (Fig. 3): due to the high radiological suspicion of residual disease these 3 patients underwent to mediastinal biopsy for histological confirmation. All mediastinal biopsies were positive for active disease.

Fig. 3
figure 3

30-years-old female affected by HL with anterior mediastinal residual mass after therapeutic treatment. MRI showed a tissue with inhomogeneous signal intensity on T2-weighted images a and low values on apparent diffusion coefficient (ADC) map, related to hypercellularity (ADC: 1.3 × 10–3 mm2/s) (b). 18F-FDG- PET/CT showed an avid anterior mediastinal mass (SUVmax: 17.4) (c). Active residual disease was confirmed by histopathological evaluation

Full size image

The 12 remaining PET/CT-positive and MRI-negative (PET+/MRI−) patients and were confirmed negative by biopsy (Fig. 4).

Fig. 4
figure 4

25-years-old female affected by HL with anterior mediastinal residual mass after therapeutic treatment. T2-weighted images showed an hyperintense tissue a which presented also a mild hyperintensity on apparent diffusion coefficient (ADC) map (ADC: 1.6 × 10–3 mm2/s) (b). 18F-FDG- PET/CT showed moderately increased metabolic activity (SUVmax: 4.7) (c). Biopsy demonstrated no disease progression

Full size image

The 6 patients with negative PET/CT (DS 1-3) had also negative MRI (PET-/MRI-), with high ADC values (median value of 2.05 mm2/s) and underwent a clinical/laboratoristic follow-up. With a median follow-up of 18 months, none of the 18 MRI-negative patients presented any evidence of disease recurrence.

We analysed for each patient the signal enhancement curves in specific ROI but no significant correlation with ADC values was found.

Discussion

The present pilot study focused on the ability of MRI with DWIBS sequence to assess disease activity in residual tissue of treated mediastinal lymphomas.

Specifically, our study focused on differentiating pathological from non-pathological residual tissue using quantitative measurements of ADC values, with the aim to reduce unnecessary invasive biopsy. Nowadays, mediastinal biopsy is still requested to establish disease presence in patients with suspicious metabolic activity of residual masses on 18F-FDG PET-CT examination [7, 8].

Our results showed that high ADC values had a significant association with the absence of residual disease in patients with mediastinal lymphoma after treatment. High ADC values on DWIBS-MRI have been reported in all the 18 patients that were confirmed negative for residual disease; in these patients’ median ADC values was 2.05 mm2/s. At the same time, 18F-FDG PET/CT showed mild persistent metabolic activity in 12 of these 18 cases (Table 3). These results showed that ADC measurement has a good capacity to detect the absence of disease in residual tissues in this group of patients, according with other studies [33, 34].

On the other hand, residual pathological tissues, confirmed at histology after mediastinal biopsy, were characterized by very high SUVmax at 18F-FDG PET/CT and low ADC values (≤ 1.2 mm2/s).

In recent years, several studies have confirmed the ability of DWI to detect and distinguish malignancies from benign tissue, showing that ADC values are inversely correlated with cell density: for this reason DWI has been proposed for diagnosis, staging and evaluation of therapeutic response of various malignancies, including lymphomas [34,35,36,37,38,39,40,41].

Mayerhoefer and colleagues [24] reported that DW-MRI may be a useful alternative technique to 18F-FDG PET/CT for treatment response assessment in patients with lymphoma allowing for highly reliable identification of complete or partial remission, stable and progressive disease. Moreover, DW-MRI might have some advantages over 18F-FDG PET-CT as the latter suffers from a high number of false-positive after therapy primarily caused by inflammatory changes [14, 15, 42,43,44].

However, incongruent findings on DWI evaluation of residual tissue have been reported when visual DWI analysis was used; a better and more homogenous correlation between ADC values and residual disease was found when quantitative ADC evaluations were performed [33]. In this regard, Littooij et al. [33] investigated the diagnostic performance of whole-body DW-MRI, including ADC measurements, for the detection of residual disease in various types of treated lymphoma with different localizations. They showed that ADC could be a valuable adjunct for the discrimination between pathological and non-pathological residual lesions.

The introduction of DWIBS techniques has increased the diagnostic capabilities of MRI. DWIBS is an EPI pulse sequence offering heavy diffusion weighting and enhanced Short TI Inversion Recovery (STIR) with fat suppression using free-breathing with the result of reduced scan times, less DWI-specific (like magnetic susceptibility) and movement artifacts with good quality examinations [25, 45]. These features are especially important to study anatomic regions that are affected by respiration movement artefact, such as the mediastinum. In recent years an increasing number of studies has been published showing that DWIBS can be a valid radiation-free alternative to 18F-FDG PET/CT technique for treatment response assessment in lymphoma and it can be useful to prevent radiation long-term side-effects especially in young patients [27, 28, 33, 34].

To our knowledge, only a previous study focused on the role of DW-MRI in the evaluation of the specific group of mediastinal lymphomas, asserting that DWI is a valid and promising technique for the diagnosis and therapy response assessments in these patients [46]. This trial included only two cases with a residual mediastinal mass after treatment, and unlike our study it did not evaluate the tissue metabolic activity by 18F-FDG PET/CT [46].

In our study, 15 of 21 patients showed uptake on 18F-FDG PET/CT examination; however only 3 of them were considered “MRI-positive” (PET+/MRI+ with low ADC values and the biopsy confirmed the presence of pathological residual tissue. The remaining 12 cases had high ADC values and were considered MRI-negative (PET+/MRI−); these patients were confirmed negative by biopsy and thereby considered as false-positive cases at 18F-FDG PET/CT.

Our results are in accord with those found in a recent review reporting a proportion of false-positive results ranging from 7.7 to 90.5% among all biopsied FDG-avid lymphoma at 18F-FDG PET-CT performed during or after completion of treatment [15]; therapy-induced inflammatory changes are considered the mainly responsible of these results [15, 16].

According to Novo et al. [13], a DS of 3 and 4 may be ambiguous and unreliable in predicting persistent disease in mediastinal residual mass after therapy, as 50% of biopsies that they performed in these cases were negative.

According to Giraudo et al. [47], we did not find statistical significant correlation between ADC and SUV values.

Our MRI protocol included also dynamic post-contrast sequences. We analysed for each patient the signal-intensity time curves in specific ROI but no significant correlations with ADC values were found. Although DCE-MRI is not necessary it can be a valuable adjunct to give more information about tissue vascularization, helping to differentiate between residual or recurrent tumour and post-treatment changes (e.g., fibrosis).

Our study has some limitations. First, a main limitation is represented by the small number of enrolled patients: however, we feel that this limitation could be partially overtaken by the relative group homogeneity. As matter of fact, most of the other studies that evaluated the same techniques enrolled patients affected by several types of lymphoma with different localizations.

In addition, a limitation is related to the lack of a pre-treatment MRI, which could have been useful to compare the tissue ADC value before and after treatment considering the different features of “inflammatory” background on the histopathological examination of each lymphoma.

Conclusions

The results of our study show that DWIBS-MRI can be a valid free-radiation alternative to 18F-FDG PET/CT for therapy response assessment in mediastinal lymphomas with residual tissues, since a significant association was found between high ADC values and inactive residual tissues. Thereby DWIBS-MRI can be a promising technique to overcome 18F-FDG PET-CT limitations. Larger studies are needed to establish the role of DWIBS-MRI in this group of patients.
