Role of cardiovascular computed tomography parameters and lungs findings in predicting severe COVID-19 patients: a single-centre retrospective study
Egyptian Journal of Radiology and Nuclear Medicine volume 53, Article number: 222 (2022)
During the coronavirus disease 2019 (COVID-19) pandemic, most patients experienced various respiratory and cardiovascular problems, and their health suddenly deteriorated despite active treatment. Many parameters have been used to assess patient health status. However, few have considered chest computed tomography (CCT) and lung findings to predict patient outcomes. This single-centre retrospective observational study was conducted between December 2020 and March 2021 at the European Gaza Hospital to predict the mortality of COVID-19 patients based on their CCT parameters and lung involvement scores.
A total of 152 patients with severe respiratory symptoms were admitted during the study period, of which 93 (61.2%) improved and 59 (38.8%) died. Deceased patients showed a significantly higher right pulmonary diameter, cardiothoracic ratio, and ground glass with crazy paving opacity (p < 0.05). A cardiothoracic ratio ≥ 0.49 was associated with significantly higher mortality risk (p < 0.05) and a fourfold higher hazard ratio (p < 0.05) compared to < 0.49.
Assessing cardiac indices on CCT could provide prognostic information and guide physicians in patient management and risk stratification.
The 2019 coronavirus disease (COVID-19) pandemic has negatively influenced the cardiovascular system of patients and posed challenges to the global cardiovascular community . About 40% of COVID‐19 deaths are due to cardiovascular involvement , potentially reflecting direct or indirect effects such as myocardial injury, myocarditis, acute coronary syndrome, cardiac arrhythmias, heart failure, cardiogenic shock [3, 4], and pulmonary hypertension . The disease severity and survival rates could be associated with demographic and clinical variables, including age, sex, and comorbidities such as cardiovascular conditions [6,7,8,9]. For example, cardiovascular risks such as myocarditis, acute myocardial infarction, and sudden onset of heart failure were noted in previous influenza epidemics, with a substantial increase in morbidity and mortality [10, 11].
There is currently a dearth of research on COVID-19 infection in patients with pulmonary hypertension and cardiovascular index, resulting in poor evidence-based guidance to manage this specific patient population and reliably predict their clinical course . In addition, further research is needed to investigate the cardiovascular parameters as predictors of morbidity and mortality.
The dilatation of the main pulmonary artery is a sign of increasing pulmonary pressure, most often due to increased pulmonary artery resistance. Consequently, a pulmonary artery-to-ascending aorta (PA/AA) diameter ratio of > 1 raises suspicion of pulmonary hypertension [13,14,15,16] and is associated with an unfavourable prognosis in patients with respiratory diseases [17, 18]. Chest computed tomography (CCT) has high sensitivity and clinical value in COVID-19 diagnosis [19,20,21,22]. Many cardiovascular parameters could be assessed with CCT, including the cardiothoracic ratio (CTR), referring to cardiomegaly , PA/AA ratio, and inferior vena cava (IVC) dimensions. In addition, CCT helps to assess the severity of lung involvement via calculating the total lung score in all zones (upper, middle, and lower), with higher scores associated with more severe COVID-19 disease [24, 25]. The clinical utility of cardiovascular parameters and lung involvement scores could be important in providing prognostic information and facilitating risk stratification among COVID-19 patients. Therefore, this study predicts the mortality of COVID-19 patients based on CCT cardiovascular parameters and lung involvement scores.
Study design, sample, and population
This retrospective observational study included 152 non-vaccinated COVID-19 patients admitted at the European Gaza Hospital in the Gaza Strip, Palestine. CCT data were collected between December 2020 and March 2021 during their hospitalization.
Patient inclusion criteria were: aged ≥ 18 years, confirmed COVID-19 infection, and availability of non-contrast CCT data.
Patient exclusion criteria were a history of pulmonary emboli or oxygen-dependent chronic obstructive pulmonary disease and poor CT image quality due to respiration or cardiac motion or metallic artefacts.
Image acquisition and analysis
CCT imaging was acquired for each COVID-19 patient using a Philips-Brilliance 64-slice CT Scanner in the supine position during end-inspiration. The CCT protocol used included scanning parameters such as a 1.5-s scan time, 0.60 mm × 64-detector array, a pitch of 1, table speed of 50 mm/rotation, 200 mAs, 120 kVp, and 5 mm slice thickness. A 1 mm reconstruction interval was used for sagittal and coronal image reconstruction.
CCT data were extracted from the Digital Imaging and Communications in Medicine network system. Two expert consultant radiologists with at least 10 years of experience independently interpreted the images, and a final decision was reached by consensus. In cases of disagreement, the opinion of a third arbitrator consultant radiologist was taken. The images were viewed in axial, sagittal, and coronal planes.
The radiological findings were defined as ground-glass opacification (GGO), consolidation, reticular, crazy-paving pattern, and mixed involvement patterns. Other associated features were observed, including pleural and pericardial effusion, pneumothorax, airway thickening/dilatation, pulmonary vessel dilatation, air bronchogram, traction bronchiectasis, and lymph nodes > 1 cm. The lung opacity distribution was divided into peripheral, central, and peripheral with central. Similarly, lung opacity locations were defined as the upper, middle, and lower lung zones.
Abnormal lung opacities in CCT images were scored by assessing all zonal lung involvements. Independently, each lung consists of three zones: the upper zone, which is located above the carina; the middle zone, which is located between the carina and the inferior pulmonary vein; and the lower zone, which is located below the inferior pulmonary vein. The percentage of severity scores for each lung involvement was calculated via the next classification (score 0: no involvement/normal lung zone; score 1: < 25%; score 2: 26–50%; score 3: 51–75%; score 4: > 75%). The overall lung score (maximum score = 24) was calculated by summing the scores of all three zones [9, 26, 27].

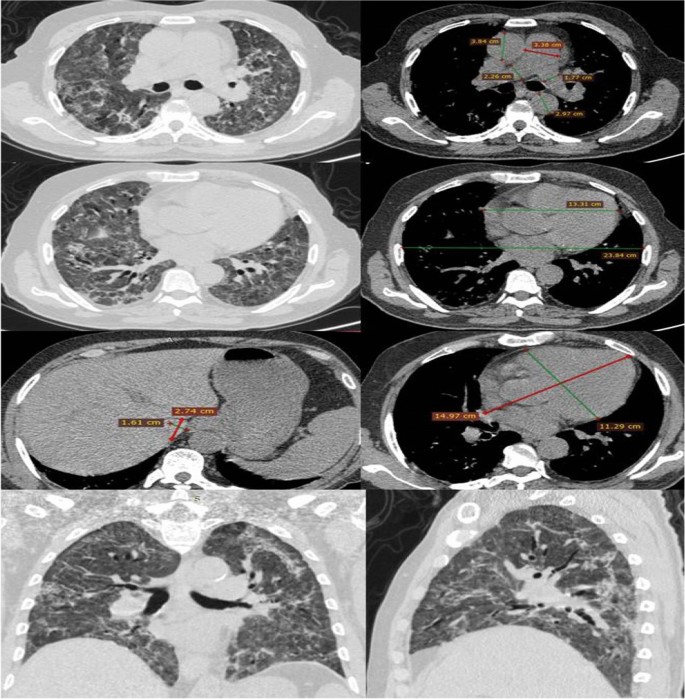

Cardiovascular parameters were assessed by measuring the vessel’s diameter through CCT axial images with mediastinal windows. In addition, we focused on measurements of the main, right, and left pulmonary artery diameters, ascending and descending aorta, and PA/AA ratio. The PA/AA diameter ratio was measured at the main pulmonary trunk bifurcation level (Fig. 1A). Pulmonary trunk enlargement was defined as a PA/AA > 1 to identify patients at increased risk for exacerbations, with a higher ratio correlating with higher pulmonary artery pressure . Then, heart width and thoracic interval diameters were measured to calculate the CTR. CTR was measured through axial images, typically at the diaphragmatic apex level and defined as the greatest transverse cardiac diameter from outer to outer myocardium divided by the greatest transverse thoracic diameter from inner to the inner chest wall (Fig. 1B) . Normal CTR measurements are between 0.42 and 0.49. A CTR < 0.42 is usually considered pathologic, while a CTR ≥ 0.49 is considered a sign of cardiomegaly . Additionally, the long and short axes of the heart were measured at the heart apex level (Fig. 1C) , and the long/short axis ratio was calculated. In addition, the transverse and anterior–posterior diameter of the inferior vena cava (IVC) was measured below the diaphragm, and the transverse to anterior–posterior (Tran/AP) ratio was calculated (Fig. 1D) [31, 32]. Measuring transverse diameter helps in better for elucidating the anatomical structure of blood vessel diameter [9, 33, 34]. Determining the maximal diameter of vessels from edge to edge is straightforward [9, 34]. Using only one axis at the level of pulmonary bifurcation to serve as a constant landmark in all cases.
Data were analysed using the Statistical Package of Social Sciences (SPSS; v.25). After the homogenous normality test, the parametric variables with descriptive statistics were used as frequencies, percentages, and mean ± standard deviation (SD). Independent sample t, Chi-square, and Fisher’s Exact tests were used to compare groups. A Cox regression survival analysis was performed to investigate the potential predictors of mortality. A binary logistic regression analysis was performed to identify the mortality odds ratio. A p-value of less than 0.05 was considered statistically significant.
Clinical and laboratory data characteristics
The 152 patients were divided into two groups: recovered (n = 93) and deceased (n = 59). The mean age in the recovered group (58.7 ± 15.38) was lower than in the deceased group (64.19 ± 12.17). Severe illnesses were significantly more frequent in the recovered group (n = 83; 89.2%), while critical conditions were significantly more frequent in the deceased group (n = 51; 86.4%).
The recovered group had more frequent ischemic heart disease and hypertension and lower interstitial lung disease and morbid obesity compared to the deceased group. Laboratory findings showed lower D-dimer, ferritin, and urea levels in the recovered group than in the decreased group. The clinical characteristics and laboratory data are summarized in Table 1.
Association between CCT findings and patient outcome
The relationship between CCT radiological findings and the two outcome groups is reported in Table 2. The GGO and crazy paving opacity patterns were more frequent in the deceased group than in the recovered group (p = 0.001 and p = 0.0001, respectively). Consolidation, sup-plural line, reticular and nodular opacities patterns did not differ significantly between groups.
CCT-specific radiological COVID-19 signs of vascular dilatation around lesions, airway wall thickness, interstitial septa thickness, bronchiectasis, and honeycombing were more frequent in the deceased group compared to the recovered group (p < 0.0001, p = 0.001, p = 0.046, p = 0.0001, and p = 0.0002, respectively).
Both central perihilar and central and peripheral sites were significantly increased in the deceased group compared to the recovered group (p = 0.005 and p = 3.00 × 10−5, respectively). While unilateral lung involvement was significantly increased in the recovered group (p = 0.043), bilateral lung involvement was significantly increased in the deceased group (p = 0.023). The main pulmonary branch, ascending aorta, descending aorta, and coronary artery calcification did not differ significantly between groups.
Association between cardiovascular CCT-parameters and patient outcome
The right pulmonary diameter was significantly increased in the deceased group compared to the recovered group (p = 0.001). The PA/AA ratio showed a nonsignificant increase in the deceased group compared to the recovered group. In addition, heart width diameter (p = 0.0001) and CTR (p = 0.001) were significantly increased in the deceased group (14.12 ± 2.51 cm and 0.60 ± 0.1, respectively) compared to the recovered group (12.64 ± 1.8 cm and 0.54 ± 0.11, respectively; Table 3).
In contrast, the long and short axis heart measurements and their ratio did not differ significantly between groups. Similarly, the transverse IVC diameter, anteroposterior IVC diameter, and transverse/anteroposterior IVC ratio did not differ significantly between groups (Fig. 2).
Odds and hazard ratios of death based on lungs involvement scores and cardiovascular CCT-parameters
Our results show the effects of lung involvement scores and cardiovascular CCT parameters on COVID-19 mortality (Table 4). Lung involvement scores in the right upper, middle, and lower zones and total right scores were significantly increased in the decreased group compared to the recovered group (p = 0.0001 in all comparisons). Similarly, the left upper, middle, and lower zones and total left scores were significantly increased in the deceased group compared to the recovered group (p = 0.0001 in all comparisons).
In addition, lung involvement scores in the right upper, middle, and lower zones and total right scores were significantly associated with the hazard ratio (HRs) for death (p = 0.002, p = 0.0001, p = 0.001, and p = 0.0001, respectively). Moreover, the left upper, middle, and lower zones and total left scores were significantly associated with the HR for death (p = 0.001, p = 0.0001, p = 0.0001, and p = 0.0001, respectively). Overall, both lung scores had significantly increased odds ratio (p = 0.0001) and HR (p = 0.0001) for death.
In the recovered group, 83 patients (89.2%) had PA/A < 1 and 10 patients (10.8%) who PA/A > 1. In contrast, in the deceased group, 52 patients (88.1%) patients had PA/A < 1 and 7 patients (11.9%) had PA/A > 1. Logistic and Cox regression models did not show a PA/A ratio > 1 to be a predictor of death from COVID-19.
In the recovered group, 23 patients (24.7%) had a CTR < 0.49 and 70 patients (75.3%) had a CTR ≥ 0.49. In contrast, in the deceased group, 2 patients (3.4%) had a CTR < 0.49 and 57 patients (96.6%) had a CTR ≥ 0.49. The logistic and Cox regression models identified CTR ≥ 0.49 as a predictor of death from COVID-19 (Table 4).
Based on the CTR analysis, the odds ratio for death with a CTR ≥ 0.49 was 9.8-fold higher than with a CTR < 0.49. In addition, a CTR ≥ 0.49 was a significant predictor of the HR for death, which was 4.4-fold higher with a CTR ≥ 0.49 than a CTR < 0.49. The cumulative HR for the pulmonary-aorta and cardiothoracic ratios is illustrated in Fig. 3.
This study adds to the body of knowledge about the prediction of the mortality of COVID-19 patients based on CCT and lung involvement. Our findings show that CCT provides prognostic information that can guide patient management and risk stratification. The CTR was significantly higher in severely hospitalized COVID-19 patients and an independent predictor of COVID-19 mortality. The PA/AA ratio and IVC dimensions were not found to be predictive of COVID-19 patient mortality.
Increased CTR has been associated with a higher risk of adverse cardiovascular events . Our study found that increased cardiomegaly (CTR ≥ 0.49) is frequent in hospitalized COVID-19 patients and strongly predicts their mortality. This finding is similar to a previous study that reported increased CTRs in 76% of patients who eventually died . Our results also indicated that enlarged main pulmonary trunk diameter has high specificity and positive predictive value for the diagnosis of pulmonary hypertension and increased mortality risk. An Italian study reported that an enlarged main pulmonary artery diameter (≥ 31 mm) on the admitting CCT is an independent predictor of mortality in COVID-19 patients . However, another study reported no significant relationship between right and left pulmonary artery diameter and mortality among COVID 19 patients .
A PA/AA ratio > 1 has previously been proposed as a biomarker for pulmonary hypertension . Some studies have shown pulmonary embolism, including microembolism, to be one of the causes of severe COVID-19 cases [39, 40]. There has been inconsistency among studies on the increase in PA/AA ratio as a predictor of mortality. In this study, we did not find a significant increase in the odds ratio of COVID-19 mortality in patients with a PA/AA ratio > 1. This finding is similar to another study  that found a PA/AA ratio > 1 associated with substantial lung involvement but a nonsignificant increase in the risk of death. In addition, a recent study found that increased pulmonary artery diameter in admitted COVID-19 patients was associated with death .
IVC dimensions have been previously suggested as helpful predictive markers of cardiac events and survival [42,43,44,45]. However, we could not find an increased risk of death in patients with dilated IVC or an increased long/short heart axis ratio. This finding is supported by another study  that reported no increased death among patients with dilated IVC. Moreover, the increase in lung involvement scores on CCT has been associated with the clinical severity and prognosis of COVID-19 patients [46, 47]. Our findings support this since greater lung involvement leads to a significant increase in the odds and risk of death from COVID-19. In addition, deceased patients had much greater involvement in all three zones (upper, middle, and lower), with the middle zone being the most involved with the highest odds ratio for death. We attributed this to its closeness to the main bronchus branches, which have the largest infection burden.
Our use of a cross-sectional design is one limitation of this study, making it difficult to confirm the accuracy of our results. Further comparative research, such as matched control studies, is needed to confirm and extend our findings.
Our findings indicate that the CTR is significantly higher in hospitalized patients with severe COVID-19 and is an independent predictor of COVID-19 mortality. Moreover, they suggest that assessing cardiac indices on CCT could provide prognostic information that can guide physicians in patient management and risk stratification.
Availability of data and materials
The datasets used and/or analysed during the current study are available from the first and corresponding authors on reasonable request.
2019 Coronavirus disease
Pulmonary artery diameter, pulmonary artery-to-ascending aorta
Inferior vena cava
Reverse transcriptase-polymerase chain reaction
Alasnag M et al (2021) Role of cardiovascular computed tomography in acute coronary syndromes during the COVID-19 pandemic-single center snapshot study. Front Cardiovasc Med 8:665735
Guan W-J et al (2020) Clinical characteristics of coronavirus disease 2019 in China. N Engl J Med 382(18):1708–1720
Murthy S, Gomersall CD, Fowler RA (2020) Care for critically ill patients with COVID-19. JAMA 323(15):1499–1500
Ruan Q et al (2020) Clinical predictors of mortality due to COVID-19 based on an analysis of data of 150 patients from Wuhan China. Intensive Care Med 46(5):846–848
Ryan JJ et al (2020) Care of patients with pulmonary arterial hypertension during the coronavirus (COVID-19) pandemic. Pulm Circ 10(2):2045894020920153
Wu JT et al (2020) Estimating clinical severity of COVID-19 from the transmission dynamics in Wuhan China. Nat Med 26(4):506–510
Tan L et al (2020) Lymphopenia predicts disease severity of COVID-19: a descriptive and predictive study. Signal Transduct Target Therapy 5(1):1–3
Terpos E et al (2020) Hematological findings and complications of COVID-19. Am J Hematol 95(7):834–847
Eslami V et al (2021) The association of CT-measured cardiac indices with lung involvement and clinical outcome in patients with COVID-19. Acad Radiol 28(1):8–17
Nguyen JL et al (2016) Seasonal influenza infections and cardiovascular disease mortality. JAMA Cardiol 1(3):274–281
Goha A et al (2020) COVID-19 and the heart: an update for clinicians. Clin Cardiol 43(11):1216–1222
Belge C et al (2020) COVID-19 in pulmonary arterial hypertension and chronic thromboembolic pulmonary hypertension: a reference centre survey. ERJ Open Res 6(4):00520–02020
Galiè N et al (2016) 2015 ESC/ERS guidelines for the diagnosis and treatment of pulmonary hypertension: the joint task force for the diagnosis and treatment of pulmonary hypertension of the European Society of Cardiology (ESC) and the European Respiratory Society (ERS): endorsed by: Association for European Paediatric and Congenital Cardiology (AEPC) International Society for Heart and Lung Transplantation (ISHLT). Eur Heart J 37(1):67–119
Haimovici JBA et al (1997) Relationship between pulmonary artery diameter at computed tomography and pulmonary artery pressures at right-sided heart catheterization. Acad Radiol 4(5):327–334
Ng CS, Wells AU, Padley SP (1999) A CT sign of chronic pulmonary arterial hypertension: the ratio of main pulmonary artery to aortic diameter. J Thorac Imaging 14(4):270–278
Kuriyama K et al (1984) CT-determined pulmonary artery diameters in predicting pulmonary hypertension. Investig Radiol 19(1):16–22
Wells JM et al (2016) Pulmonary artery enlargement is associated with cardiac injury during severe exacerbations of COPD. Chest 149(5):1197–1204
Zouk AN et al (2020) Pulmonary artery enlargement is associated with pulmonary hypertension and decreased survival in severe cystic fibrosis: a cohort study. PLoS ONE 15(2):e0229173
Rao Bollineni V et al (2021) The role of CT imaging for management of COVID-19 in epidemic area: early experience from a University Hospital. Insights Imaging 12(1):1–5
Alawneh KZ et al (2021) The utility of brain CT scan modality in the management of dizziness at the emergency department: a retrospective single-center study. Annals Med Surg 64:102220
Oglat AA et al (2021) Fabrication and characterization of epoxy resin-added Rhizophora spp. particleboards as phantom materials for computer tomography (CT) applications. J Adhesion 98(8):1097–1114
Ali Dheyab M et al (2020) Rapid sonochemically-assisted synthesis of highly stable gold nanoparticles as computed tomography contrast agents. Appl Sci 10(20):7020
Wingate-Samuels L, Javaid J, Chambers J (2013) Echocardiography is not indicated for an enlarged cardiothoracic ratio. Br J Cardiol 20(149):50
Lippi G et al (2020) Assessment of immune response to SARS-CoV-2 with fully automated MAGLUMI 2019-nCoV IgG and IgM chemiluminescence immunoassays. Clin Chem Lab Med (CCLM) 58(7):1156–1159
Pan C et al (2020) Lung recruitability in COVID-19–associated acute respiratory distress syndrome: a single-center observational study. Am J Respir Crit Care Med 201(10):1294–1297
Moutchia J et al (2020) Clinical laboratory parameters associated with severe or critical novel coronavirus disease 2019 (COVID-19): a systematic review and meta-analysis. PLoS ONE 15(10):e0239802
Abrishami A et al (2020) Clinical and radiologic characteristics of COVID-19 in patients with CKD. Iran J Kidney Dis 14(4):267–277
Truong QA et al (2012) Reference values for normal pulmonary artery dimensions by noncontrast cardiac computed tomography: the Framingham Heart Study. Circ: Cardiovasc Imaging 5(1):147–154
Gollub MJ et al (2012) Shall we report cardiomegaly at routine computed tomography of the chest? J Comput Assist Tomogr 36(1):67–71
Hazirolan T et al (2007) Comparison of short and long axis methods in cardiac MR imaging and echocardiography for left ventricular function. Diagn Interv Radiol 13(1):33
Elbagir S et al (2018) Evaluation of the normal inferior vena cava diameters in Sudanese’s by multidetector computed tomography. J Pharm Biol Sci 13(4):29–34
Li Y et al (2013) The flatness index of inferior vena cava is useful in predicting hypovolemic shock in severe multiple-injury patients. J Emerg Med 45(6):872–878
Li Y et al (2020) A quantitative study of the dimensional change of Inferior vena cava on computed tomography during acute hemorrhage shock in swine. J Invest Surg 33(8):691–698
Smillie RP et al (2015) Imaging evaluation of the inferior vena cava. Radiographics 35(2):578–592
Okute Y et al (2017) Cardiothoracic ratio as a predictor of cardiovascular events in a cohort of hemodialysis patients. J Atheroscler Thromb 24(4):412–421
Esposito A et al (2021) Chest CT–derived pulmonary artery enlargement at the admission predicts overall survival in COVID-19 patients: insight from 1461 consecutive patients in Italy. Eur Radiol 31(6):4031–4041
Yildiz M et al (2021) Evaluation of the relationship between COVID-19 pneumonia severity and pulmonary artery diameter measurement. Herz 46(1):56–62
Iyer AS et al (2014) CT scan-measured pulmonary artery to aorta ratio and echocardiography for detecting pulmonary hypertension in severe COPD. Chest 145(4):824–832
Magro C et al (2020) Complement associated microvascular injury and thrombosis in the pathogenesis of severe COVID-19 infection: a report of five cases. Transl Res 220:1–13
Hayama H et al (2020) Association of plain computed tomography-determined pulmonary artery-to-aorta ratio with clinical severity of coronavirus disease 2019. Pulm Circ 10(4):2045894020969492
Spagnolo P et al (2020) CT-derived pulmonary vascular metrics and clinical outcome in COVID-19 patients. Quant Imaging Med Surg 10(6):1325
Miller JB et al (2012) Inferior vena cava assessment in the bedside diagnosis of acute heart failure. Am J Emerg Med 30(5):778–783
Nath J, Vacek JL, Heidenreich PA (2006) A dilated inferior vena cava is a marker of poor survival. Am Heart J 151(3):730–735
Milanese G et al (2019) Quantification of epicardial fat with cardiac CT angiography and association with cardiovascular risk factors in symptomatic patients: from the ALTER-BIO (Alternative Cardiovascular Bio-Imaging markers) registry. Diagn Interv Radiol 25(1):35
Kiraz K et al (2016) Epicardial fat thickness is associated with severity of disease in patients with chronic obstructive pulmonary disease. Eur Rev Med Pharmacol Sci 20(21):4508–4515
Colombi D et al (2020) Well-aerated lung on admitting chest CT to predict adverse outcome in COVID-19 pneumonia. Radiology 296(2):E86–E96
Wynants L et al (2020) Prediction models for diagnosis and prognosis of covid-19: systematic review and critical appraisal. BMJ 369:m1328
No funding was obtained for this study.
Ethics approval and consent to participate
This study was approved by the institution’s ethical committee (Helsinki Committee of The Palestinian Health Research Council-Institutional Research Board) (ethical committee reference number: PHRC/HC/767/20) and by the Directorate General of Human Resources Development-Ministry of Health (reference number: 571112). It was also received administrative approval from the Palestinian-Turkish Friendship Hospital. Written informed consent was obtained from participants during the admission to hospital after informed them that their information and CT findings will be used for future studies considering their anonymous of personal information.
Consent for publication
All patients included in this research gave written informed consent to publish the data contained within this study.
The authors declare that they have no competing interests.
