Spontaneous pregnancy rate after fallopian tube recanalization for unilateral obstruction with a patent contralateral tube



Infertility is a common sociomedical problem worldwide, affecting up to 15% of couples. Tubal obstruction is currently one of the most important causes of female infertility. This study was designed to determine the spontaneous pregnancy rate in patients undergoing unilateral transcervical fallopian tube recanalization, performed by an interventional radiologist, for proximal fallopian tube obstruction with a patent contralateral tube. The secondary objective was to analyze pregnancy rates in relation to the type and duration of infertility, patient age, and body mass index.


Thirty-eight patients with unilateral tube obstruction were included in this study. Transcervical fallopian tube recanalization was successfully performed in all cohorts. At the one-year follow-up; 13 women (34.2%) had become pregnant, nine (23.7%) delivered healthy babies, and four (10.5%) had miscarriages. The time interval between the application of the technique and spontaneous pregnancy was 1–12 months, with a mean of approximately 4 months. Multivariate analysis showed a significantly higher pregnancy rate in young (< 35 years), nonobese (BMI < 30 kg/m2) females with a history of primary infertility for < 5 years. Minor complications were noted in 27 patients (71%). No major complications were noted.


Our study showed that transcervical fallopian tube recanalization of proximal fallopian tube obstruction with a patent contralateral tube increased the spontaneous pregnancy rate in cases of tubal factor infertility. Moreover, transcervical fallopian tube recanalization is recommended as a first-line treatment for women with unilateral proximal fallopian tube obstruction and a patent contralateral tube owing to the low risks associated.


Infertility is defined as the inability to conceive after 1–2 years of unprotected sexual intercourse. Approximately 10–15% of couples may experience problems conceiving. Infertility can result from a wide variety of etiologies [1]. Female factors account for 40% of cases of infertility [2]. Further, in 20–25% of all cases, infertility is caused by tubal factors, including bilateral proximal fallopian tube blockage, bilateral partial fallopian tube blockage, unilateral tube blockage, unilateral or bilateral hydrosalpinx, tubal scarring, or damage [2, 3]. These abnormalities are often caused by pelvic inflammatory disease (PID), endometriosis, congenital malformations, or adhesions after pelvic surgery [4, 5].

Tubal obstruction can occur anywhere along the tube length and can be partial or complete. Proximal tube blockage prevents spermatocytes from reaching the fertilization area distally, whereas distal tubal pathology stops ovum movement [6].

A hysterosalpingogram (HSG) is commonly used for initial screening for tubal patency and the presence of any tubal abnormality, as it is a noninvasive and inexpensive work-up [7]. An HSG is radiographic examination involving dye, wherein contrast is instilled via the cervix and into the uterus [6]. Patent tubes allow contrast to easily flow through and spill out into the peritoneum. However, patent tubes are not guaranteed to function normally; the lining inside the tube can be damaged [4], which may cause difficulties in conception, even if the tubes are patent. In such cases where conception occurs, there is an increased risk of ectopic pregnancy [8]. If abnormalities are detected on an HSG or if the findings are inconclusive, laparoscopy is used to definitively diagnose and treat tubal disease [9]. HSGs are associated with a false positive rate for diagnosis of tubal blockage of 50%, along with specificity and sensitivity rates of 83% and 65%, respectively, for tubal patency [10, 11].

Approximately 10–25% of tube diseases worldwide occur due to proximal tubal obstruction [4, 12]. Recent developments in the field of assisted reproduction have led to renewed interest in managing proximal tube pathologies under fluoroscopic guidance, which is a nonsurgical approach that may increase the chance of spontaneous pregnancy [13]. Transcervical fallopian tube recanalization (T-FTR) is an established procedure that potentially provides enhanced diagnosis and treatment [14].

T-FTR is a low-risk procedure mainly used to release tubal blockage. It is useful as an initial approach for managing proximal tubal obstruction, and for confirming tubal patency, potentially reducing the need for further invasive interventions [15]. The T-FTR technical success rate for catheterization of the proximal tube is 85–95% [4].

T-FTR is performed to release proximal tubal obstruction using the Seldinger wire technique [16, 17]. Based on an initial HSG, patients with tubal obstruction are indicated for this procedure, which is performed at around day 10 of the menstrual cycle (follicular phase) [18].

This study aimed to determine the efficacy and conception rate of unilateral T-FTR for proximal fallopian tube obstruction (PFTO) with a patent contralateral tube. Secondarily, the study aimed to analyze pregnancy rates in relation to the type and duration of infertility, patient age, and body mass index.


This retrospective, observational study included women with infertility presenting to the Interventional Radiology Department of the Jordan University of Science and Technology in Jordan. Unilateral proximal fallopian tube blockage was confirmed using an HSG. T-FTR was performed according to the institutional protocol, and hystosalpingographic abnormalities and the outcomes and complications of T-FTR were recorded. This study was approved by the local institutional review board (IRB).


Patients who were referred from an infertility clinic between February 2012 and January 2018 after the diagnosis of proximal tubal obstruction with a contralateral patent tube as the only apparent cause of infertility were considered for inclusion.

The inclusion criteria for this study were: two HSGs showing proximal tubal obstruction and a contralateral patent tube confirmed evidence of ovulation, and partner’s test results indicating healthy sperm. Exclusion criteria were active uterine bleeding or recent curettage, PID, allergy to contrast media, and male-related infertility factors.

Procedure for T-FTR

All T-FTR procedures were performed as outpatient procedures in the Radiology department. Recanalization was performed with patients in the lithotomy position under conscious sedation. Foam padding beneath the pelvis allowed for easy manipulation of the metal speculum.

Following sterile preparation and draping, a metal retractor was gently inserted intravaginally to visualize and stabilize the cervix. An intrauterine access balloon catheter was used to inject nonionic, water-soluble contrast (ISOVIST300; Bayer Schering Pharma AG, Berlin, Germany) into the endometrial cavity. Routine HSG was first performed as a part of the T-FTR procedure to evaluate the uterus and fallopian tubes.

If one of the fallopian tubes could not be visualized, selective salpingography was performed. A catheter was placed in the tubal ostia, and a guidewire was passed through the catheter and directed toward the cornual region. The guidewire was then inserted deep into the obstructed tube until it coiled into the peritoneal cavity. Selective salpingography was repeated to confirm tubal patency. The T-FTR endpoint was tubal patency with free intraperitoneal contrast spillage.

Statistical analyses

Data were analyzed using the Statistical Package for the Social Sciences (SPSS) software version 17 (SPSS Inc., Chicago, IL, USA). Pearson’s Chi-squared test was used to compare the T-FTR pregnancy rates. Multivariate logistic regression analysis was used to determine the predictors of successful conception after T-FTR for women aged < 35 and > 35 years. Statistical significance was set at P < 0.05.


Thirty-eight patients with primary or secondary infertility who had undergone HSG and unilateral fallopian tube blockage were identified (Figs. 1, 2, 3). The baseline characteristics and T-FTR conception rates of the patients are presented in Table 1. Most of the participants were < 35 years old (55.3%) and were obese, with a body mass index (BMI) of > 30 kg/m2 (71.1%). Most participants had primary infertility (60.5%), whereas only 39.5% suffered from secondary infertility. Additionally, 68.4% suffered from infertility for less than 5 years. It also shows that 65.8% had right tubal blockage. The conception rates were 21.1% for patients with primary infertility, and 13.1% for secondary infertility.

Fig. 1
figure 1

Hysterosalpingogram before and after FTR for a 28-year-old patient. A Hysterosalpingogram showing left tubal patency and proximal right tubal obstruction. B Right tube recanalization using catheter-wire technique. C Selective right salpingogram following recanalization showing patent tube with free peritoneal spillage. FTR fallopian tube recanalization

Fig. 2
figure 2

Unilateral right tubal obstruction in a 23-year-old patient with primary infertility. a Before FTR procedure, b after FTR with patent bilateral tubes, FTR fallopian tube recanalization

Fig. 3
figure 3

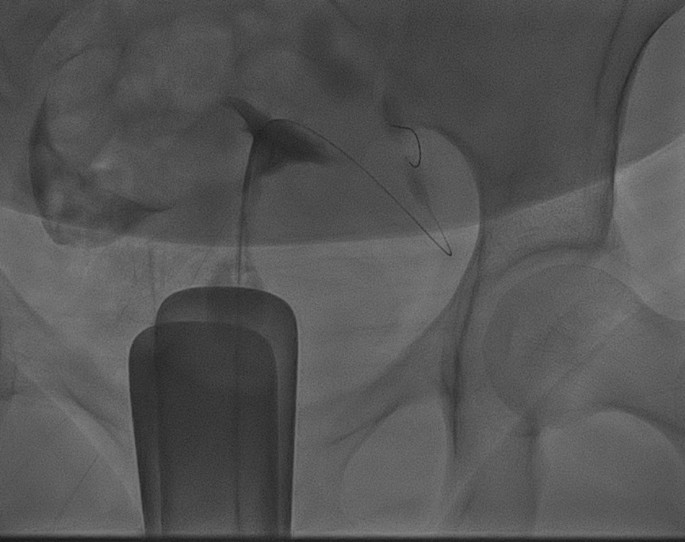

Twenty-five-year-old patient with secondary infertility unilateral left proximal tubal obstructions were recanalized by the wire

Table 1 Transcervical fallopian tube recanalization (T-FTR) conception rates

All the recanalization procedures were successful. Postprocedural mild pelvic cramping and vaginal spotting were observed. However, all patients went home on the same day as the procedure was performed. No serious complications (tubal perforation or active pelvic bleeding) were reported.

At the 1-year follow-up, 13 patients were observed to have been able to conceive (34.2%): nine patients had healthy deliveries (23.7%), and four had miscarriages (10.5%). The conception rates were shown to be better among young (21.1%), nonobese patients (23.7%), primary infertility (21.1%), and infertility for < 5 years (26.3%).

As shown in Table 2, patients were stratified by age; multivariate logistic regression analysis revealed that BMI, infertility type, and duration were considerably associated with conception in patients aged < 35 years. The most common complaints after the procedure were mild cramping, lower abdominal pain (71%), and mild vaginal spotting (51%). These symptoms usually occur due to the passage of the contrast medium into the peritoneum, or due to the insertion and manipulation of the guidewire.

Table 2 Transcervical fallopian tube recanalization (T-FTR) conception rates based on age

None of our patients had infections, as all procedures were performed under sterile conditions. Additionally, postprocedural antibiotic courses (oral doxycycline and metronidazole) were prescribed. Major complications such as fallopian tube perforation or continuous bleeding were not observed. Table 3 summarizes the complications reported following the procedure; most patients reported mild pelvic discomfort (71%) and vaginal spotting (51%). Perforation, major continuous bleeding, and infection were not observed (0%). The time interval between the application of the technique and spontaneous pregnancy was 1–12 months (mean, 4 months).

Table 3 Complications of transcervical fallopian tube recanalization


The best treatment for infertility depends on several factors, the most important of which are recanalization success rate, severity of tube injury, ovarian reserve, patient age, and male fertility [19]. Patient preference, religious beliefs, cost and insurance issues, and time off work may also be considered of essence in infertility treatment [10].

Our study aimed to evaluate the conception rate in patients undergoing unilateral transcervical fallopian tube recanalization (T-FTR) for PFTO with a patent contralateral tube. To the best of our knowledge, only one published study has concluded that T-FTR is an appropriate treatment for unilateral PFTO and patent contralateral tube. Hayashi et al. studied 11 patients undergoing T-FTR with a technical success rate and pregnancy rate of 100% and 55%, respectively [20].

Our study was conducted to address the same issue with a larger sample size, with comparable technical success (100%), and pregnancy rates (34.2%). All women in this study had documentation of unilateral proximal tube blockage and a patent contralateral tube based on at least two HSGs.

Most cases of in vitro fertilization (IVF) and embryo transfer, which bypass blocked tubes without the need for repair, can be managed at fertility clinics. Recent data have shown that “the take-home baby rate” for IVF is higher than that for surgical intervention [12]. Furthermore, the incidence of ectopic pregnancy is considerably higher after tubal surgery than after IVF. Consequently, IVF has become the treatment of choice for most cases of tubal factor infertility, especially for couples with other fertility factors (i.e., age or male factors) [21]. However, IVF is invasive, expensive, and time-consuming, and involves hormonal manipulation that may be associated with health risks for women [13, 22].

Uemura et al. divided 515 women with infertility into two groups based on HSG findings. The pregnancy rate in patients with a normal HSG was 42.3%, whereas that in patients with unilateral tube occlusion was 38.8%. The difference between the two groups was not statistically significant. The authors concluded that assisted reproductive treatment should not be provided as the primary treatment route, allowing for natural fertilization [22].

The use of FTR to manage PFTO is gaining popularity, with recent developments in the field of assisted reproduction renewing interest in fluoroscopy-guided proximal tube pathology management. Fertility clinics should be aware that FTR is a low-cost, fast, low-risk procedure and an effective treatment option for such cases [23].

Most patients undergoing T-FTR are concerned about radiation risk and the development of cancer or genetic defects. Papaioannou et al. reviewed 366 cases of selective salpingography to calculate the median effective doses for various combinations of procedures. Radiation doses ranged from 0.087 mSv for unilateral selective salpingography to 0.271 mSv for bilateral salpingography. The study concluded that the overall risks associated with radiation doses observed in selective salpingography (T-FTR) were low [24].

Previous studies have reported the safety and usefulness of tubal recanalization. A meta-analysis of studies in patients undergoing FTR for bilateral tube blockage showed an 85–95% success rate in overcoming the obstruction, leading to a conception rate of 50% [4, 7]. Al-Omari et al. reviewed 62 cases of blockage of one or both fallopian tubes. The conception rate was 41% within one year of T-FTR [23]. Recanalization was successful in all patients (100%) because these procedures were performed by an experienced interventional radiologist, and water-soluble contrast medium was used to lower the risk of lymphatic or vascular intravasation [6].

These findings showed that a patent contralateral tube can be functionally abnormal or have an organic disease that prevents natural fertilization and that an occluded tube can function well once recanalized [20]. Furthermore, no ectopic pregnancy was reported in the two studies, mainly owing to recent refinement of recanalization equipment, techniques, and instruments. These results establish a reasonable rationale for considering T-FTR as a relevant candidate for treatment of tube infertility.

While the risk of ectopic pregnancy is higher in patients who have undergone T-FTR, this is believed to be primarily due to underlying tubal abnormalities rather than the procedure itself. Thus, T-FTR can be therapeutically beneficial as a safe and effective approach in patients with unilateral obstruction of the proximal fallopian tube with a patent contralateral tube, before attempting other treatments for proximal tubal obstruction and after excluding other infertility factors [25].

Our study evaluated the conception rate after T-FTR in relation to several variables that have the potential to affect pregnancy, including patient age, infertility type, duration of infertility, and BMI. There was a significant association between the pregnancy rate and examined variables. Spontaneous pregnancy rates were higher in patients with primary infertility compared to those with secondary infertility (60.5% vs. 39.5%). In addition, spontaneous pregnancy rates were higher in patients with a short (< 5 years) history of infertility, compared to those with a longer (> 5 years) history (68.4% vs. 31.6%). A longer duration of infertility may indicate long-term tubal inflammation, which may damage the tube mucosa and cilia [10]. BMI was observed to be another factor related to the success of conception. Conception rates were higher in patients without obesity (BMI < 30) than with obesity (23.7% vs. 10.5%). The correlation between obesity and infertility has been well-documented in other studies [26, 27].

Bivariate analysis showed that pregnancy rates varied according to the examined parameters. Interestingly, these variations were not statistically significant, probably due to the small sample size or the presence of confounding factors within the same patient. Therefore, a multivariate analysis was performed. The most significant variable affecting pregnancy rate was age. Female fertility peaked at 25 years and subsequently declined, with a major fall after the age of 35 [28]. Additionally, infertility type and duration, along with BMI, were notably associated with higher conception rates in patients aged < 35 years. The increase in spontaneous pregnancy rate after the procedure in all groups may theoretically have resulted from endometrial injury caused by instrumentation of the uterus, as any injury to the endometrium may induce growth of new endometrial cells, which can increase the chances of pregnancy [29].

The limitations of this study include a lack of randomization and recruitment of a relatively small sample size, which may have confounded the findings. To obtain more conclusive results, further studies are required to validate the results of this procedure.


Our study demonstrated the benefit of unilateral T-FTR in the presence of a patent contralateral tube as a safe and effective treatment option. Another important finding of our study was that in such cases, a patent contralateral tube may have a functional obstruction preventing pregnancy that requires early intervention.

Multivariate analysis indicated that young (< 35 years), nonobese (BMI < 30) patients with a relatively short history of primary infertility (< 5 years) had a higher chance of conception following T-FTR.

Thus, we recommend that T-FTR be performed in patients with infertility due to a unilateral tube blockage, after excluding other causes of infertility, as it is a noninvasive option to treat female tubal factor infertility. Infertility clinicians can liaise with interventional radiologists to discuss offering this type of treatment for eligible patients. Future randomized controlled trials with larger sample sizes are required for more robust results.

Availability of data and materials

All data and materials are available.



Transcervical fallopian tube recanalization


Proximal fallopian tube obstruction


Body mass index




Pelvic inflammatory disease


In vitro fertilization


  1. Shaw W, Padubidri V, Daftary S et al (2015) Shaw’s Textbook of Gynecology, 16th edn. Reed Elsevier India Private Limited, India

    Google Scholar

  2. Berek J (2019) Berek & Novak’s Gynecology, 16th edn. Lippincott Williams & Wilkins

    Google Scholar

  3. Tan J, Tannus S, Taskin O et al (2019) The effect of unilateral tubal block diagnosed by hysterosalpingogram on clinical pregnancy rate in intrauterine insemination cycles: systematic review and meta-analysis. BJOG 126:227–235

    Article  PubMed  CAS  Google Scholar

  4. Lyons RA, Saridogan E, Djahanbakhch O (2006) The reproductive significance of human Fallopian tube cilia. Hum Reprod Update 12:363–372

    Article  PubMed  CAS  Google Scholar

  5. Jitchanwichai A, Soonthornpun K (2019) Effect of premedication hyoscine-n-butylbromide before hysterosalpingography for diagnosis of proximal tubal obstruction in infertile women: a randomized double-blind controlled trial. J Minim Invasive Gynecol 26:110–116

    Article  PubMed  Google Scholar

  6. Practice Committee of the American Society for Reproductive Medicine (2006) Optimal evaluation of the infertile female. Fertil Steril 86:S264–S267

    Article  Google Scholar

  7. De Silva PM, Chu JJ, Gallos ID et al (2017) Fallopian tube catheterization in the treatment of proximal tubal obstruction: a systematic review and meta-analysis. Hum Reprod 32:836–852

    PubMed  Google Scholar

  8. Lazer T, Meltzer S, Saar-Ryss B et al (2016) The place of selective hysterosalpingography and tubal canalization among sub-fertile patients diagnosed with proximal tubal occlusion. Arch Gynecol Obstet 293:1107–1111

    Article  PubMed  CAS  Google Scholar

  9. Weston M, Soyer P, Barral M et al (2020) Role of interventional procedures in obstetrics and gynecology. Radiol Clin N Am 58:445–462

    Article  PubMed  Google Scholar

  10. Das S, Nardo LG, Seif MW (2007) Proximal tubal disease: the place for tubal cannulation. Reprod Biomed Online 15:383–388

    Article  PubMed  Google Scholar

  11. Gao YB, Yan JH, Yang YD et al (2019) Diagnostic value of transvaginal four-dimensional hysterosalpingo-contrast sonography combined with recanalization in patients with tubal infertility. Niger J Clin Pract 22:46–50

    PubMed  CAS  Google Scholar

  12. Practice Committee of the American Society for Reproductive Medicine (2012) Committee opinion: role of tubal surgery in the era of assisted reproductive technology. Fertil Steril 97:539–545

    Article  Google Scholar

  13. Al-Omari MH, Obeidat N, Elheis M et al (2018) Factors affecting pregnancy rate following fallopian tube recanalization in women with proximal fallopian tube obstruction. J Clin Med 7:110

    Article  PubMed Central  Google Scholar

  14. Tanaka A, Tanaka I, Yamaguchi T et al (2017) Development of a new tubal recanalization method using the combination of hysteroscope and laparoscope in the treatment of obstructed fallopian tubes. Gynecol Minim Invasive Ther 6:226–227

    Article  PubMed  PubMed Central  Google Scholar

  15. Ikechebelu JI, Eleje GU, Bhamare P et al (2018) Fertility outcomes following laparoscopy-assisted hysteroscopic fallopian tube cannulation: a preliminary study. Obstet Gynecol Int 2018:7060459

    Article  PubMed  PubMed Central  Google Scholar

  16. Vardhana PA, Silberzweig JE, Guarnaccia M et al (2009) Hysterosalpingography with selective salpingography. J Reprod Med 54:126–132

    PubMed  Google Scholar

  17. Dwivedi M, Pal R, Jain M et al (2005) Efficacy of Fallopian tube catheterization for treatment of infertility. Indian J Radiol Imaging 15:521–523

    Article  Google Scholar

  18. Liu J, Bardawil E, Lin Q et al (2018) Transvaginal natural orifice transluminal endoscopic surgery tubal reanastomosis: a novel route for tubal surgery. Fertil Steril 110:182

    Article  PubMed  Google Scholar

  19. Sun N, Wei L, Chen D et al (2017) Clinical observation of fallopian tube obstruction recanalization by ozone. Pak J Med Sci 33:290–294

    Article  PubMed  PubMed Central  Google Scholar

  20. Schippert C, Hille U, Bassler C et al (2010) Organ-preserving and reconstructive microsurgery of the fallopian tubes in tubal infertility: Still an alternative to in vitro fertilization (IVF). J Reconstr Microsurg 26:317–323

    Article  PubMed  Google Scholar

  21. Uemura R, Yokota Y, Yokota M et al (2014) Do women with unilateral fallopian tube blockage need assisted reproductive technology treatment as the primary treatment option? Fertil Steril 102:302

    Article  Google Scholar

  22. Al-Omari M, Al-Mnayyis A, Obeidat N et al (2014) Fallopian tube recanalisation using dedicated radiographic tubal assessment set in angiography suite. J Med Imaging Radiat Oncol 58:415–421

    PubMed  Google Scholar

  23. Papaioannou S, Afnan M, Girling AJ et al (2002) The learning curve of selective salpingography and tubal catheterization. Fertil Steril 77:1049–1052

    Article  PubMed  Google Scholar

  24. Hayashi M, Hoshimoto K, Ohkura T (2003) Successful conception following Fallopian tube recanalization in infertile patients with a unilateral proximally occluded tube and a contralateral patent tube. Hum Reprod 18:96–99

    Article  PubMed  Google Scholar

  25. Omidiji OA, Toyobo OO, Adegbola O et al (2019) Hysterosalpingographic findings in infertility—What has changed over the years? Afr Health Sci 19:1866–1874

    Article  PubMed  PubMed Central  Google Scholar

  26. Tayyem RM, Atkinson JM, Martin CR (2014) Development and validation of a new bariatric-specific health-related quality of life instrument “bariatric and obesity-specific survey (BOSS).” J Postgrad Med 60:357–361

    Article  PubMed  CAS  Google Scholar

  27. Tayyem R, Ali A, Atkinson J et al (2011) Analysis of health-related quality-of-life instruments measuring the impact of bariatric surgery: systematic review of the instruments used and their content validity. Patient 4:73–87

    Article  PubMed  Google Scholar

  28. Waheed KB, Albassam MA, AlShamrani AG et al (2019) Hysterosalpingographic findings in primary and secondary infertility patients. Saudi Med J 40:1067–1071

    Article  PubMed  PubMed Central  Google Scholar

  29. Wadhwa L, Mishra M (2018) Therapeutic efficacy of endometrial scratching in repeated controlled ovarian stimulation (COS) failure cycles. J Hum Reprod Sci 11:59–71

    Article  PubMed  PubMed Central  Google Scholar
