Anterior cruciate ligament (ACL) injury: correlation with MRI morphometry

Egyptian Journal of Radiology and Nuclear Medicine volume 54, Article number: 130 (2023) Cite this article

Abstract

Background

This study aims to investigate the association between bony morphological features and ACL injury and to identify potential risk factors for the identification and prevention of ACL injuries. The study used knee MRIs to examine the distal femoral and proximal tibia morphology of 500 patients aged 19–50, including 250 cases with an injured ACL and 250 controls with a non-injured ACL. Previous literature has shown that ACL injuries are a common occurrence in sports and can have serious long-term consequences. Several risk factors have been identified, including anatomical variations in the bony structures of the knee. However, the relationship between bony morphology and ACL injury is not well understood, and there is a need to investigate the potential role of these factors in the identification and prevention of ACL injuries. This study was necessary because of the high incidence of ACL injuries and the potential long-term consequences, such as osteoarthritis, associated with this injury. By identifying potential risk factors, such as bony morphological features, it may be possible to develop targeted prevention strategies to reduce the incidence of ACL injuries. The study also adds to the existing literature by providing new insights into the relationship between bony morphology and ACL injury, and by identifying specific parameters that can be used to predict ACL injury.

Results

There was a significant difference in bony morphology between ACL-injured and non-injured patients. The most convincing parameters of femur and tibia were notch width index (NWI), medial tibial plateau depth (MTPD), and lateral tibial plateau slope (LTPS). A significantly smaller intercondylar notch was seen in the injured patients (mean 17.25 mm) than in controls (mean 18.41 mm) (p < 0.001, unpaired t test). The findings indicate that among all the features assessed, the medial tibial plateau depth (MTPD) stands out as the most statistically significant with an odds ratio of 2.4, and it demonstrates a substantial association.

Conclusions

ACL-injured patients have a narrower NWI, shallower MTPD, and steeper LTPS, which appear to be associated with ACL injury. Identifying the cut-off values for these parameters can help predict ACL injury.

Background

Anterior cruciate ligament (ACL) is the most injured ligament in the knee; ACL injuries occur frequently in both athletes and non-athletes. In the USA, the prevalence of ACL injury is 1 in 3000, and approximately 250,000 injuries occur every year [1]. A significant number of studies have been carried out to identify the predisposing factors of ACL injuries of which age, sex, and anatomical factors are notable [2,3,4,5]. Studies have shown that female adolescents participating in jumping/landing sports are at a substantially higher risk of ACL injury compared to their male counterparts, with a fourfold to sixfold increased risk [6, 7]. The passage of the Educational Assistance Act, Title IX, led to a significant increase in female participation in high school sports, increasing nearly ninefold from 0.3 million to 2.8 million. However, this increase in participation has also resulted in a rise in ACL injuries among female athletes. Significant disparity exists in understanding risk factors; however, three major factors, namely anatomical, hormonal, and neuromuscular hold ground in this gender disparity [8]. Thigh length, height, and femoral NW variations can also predispose to ACL injury as shown in various studies [2].

Recent studies have highlighted a growing body of evidence indicating that abnormal biomechanics in the lower limbs during injury-prone movements, such as jump sports, deceleration, lateral pivoting, and landing sports, may be a contributing factor to ACL injuries in females [8,9,10,11]. The most effective imaging technique for assessing knee and ACL injuries is magnetic resonance imaging (MRI), which has been demonstrated to have high sensitivity and specificity [12]. Although several studies have emphasized the importance of a narrow NW, typically observed in females, in relation to ACL injury, there is still no unanimous agreement on this theory, as some studies have presented conflicting results [13,14,15,16].

The purpose of this study was to evaluate multiple bony morphological features observed on MRI in patients with and without ACL injury. The objectives were achieved by measuring anatomic variables of proximal tibia and distal femur and assessing these parameters to determine whether they are risk factors for ACL injury.

Methods

This is a retrospective, unmatched case–control, single-centre study conducted on 500 patients, consisting of 250 with ACL injury and 250 controls who underwent MRI of the knee between January 2018 and January 2022. The sample size of study was calculated from expected proportions and assumed odds ratio from similar studies from past. Non-injured ACL patients were defined as having intact posterolateral and anteromedial bundles with normal signal. The ACL-injured patients were defined as having discontinuity of fibres resulting in partial or complete tear. ACL injury at all sites such as mid substance, femoral, and tibial attachments including avulsion injuries was included. Traumatic patients with significantly displaced fractures that limited accurate measurements were excluded. Unfortunately, surgical or arthroscopic correlation was not performed to confirm final diagnosis. Patients included were aged between 19 and 50 years to ensure skeletal maturation and to avoid degenerative changes that may be common in the non-included age group.

The study group was divided into 2 groups wherein the first group consisted of 250 individuals diagnosed with ACL injuries including non-traumatic (please refer definition of ACL injury as mentioned above) on MRI knee scans. The other group (controls) consisted of 250 individuals who were not found to have any ACL injury on MRI. Post-operative, degenerative, inflammatory, infective, or haemophilic arthritic and traumatic patients with displaced or depressed fractures causing difficulty in bony measurements were deliberately excluded from study as these conditions affect normal anatomic configuration and true measurements of the parameters.

Patient demographics and clinical history were compiled from the electronic patient records of the hospital. This study protocol was approved by the Scientific and Ethical Committee of the Institute. Informed consent was obtained from all individual participants included in study. The confidentiality was strictly maintained regarding all personal details of the participants and information related to the study.

All the patients included in the study underwent a standard MRI knee scan on a 1.5 T Siemens Avanto or a 3 T Vida Scanner. MRI protocol adequacy to diagnose ACL injury was audited, modified/rectified to standard before starting study. All images were acquired, while patient was in supine position with knee flexed to a 10-degree angle. Axial, coronal, and sagittal planes of T1 and proton density fat-saturated (PDFS) sequences were used to diagnose ACL injury and to measure bony parameters. Picture archiving and communication system imaging software was used to retrieve MRI images and assess the various morphometric parameters using built-in measurement tools. Diagnosis of ACL injury on MRI and bony measurements was strictly done by one radiologist to avoid interobserver variability and bias arising from it.

To evaluate the femoral measurements, coronal and axial PDFS sequences were used. The bicondylar width and NW were calculated at the level of popliteal groove on the coronal PDFS (Fig. 1a). NWI was determined by dividing the notch width by the bicondylar width at the same level. Notch entrance width was calculated on the axial PDFS at the level of femoral epicondyles (Fig. 1b). For tibial measurements, sagittal reconstructed images of T1 were used. The posterior tibial slopes (MTPS and LTPS) were calculated (Fig. 2A). A longitudinal axis was first created at the mediolateral centre of the medial tibial plateau in the sagittal plane. A tangent was then drawn on this image to the tibial plateau, connecting the peak anterior and posterior cortical edges. The slope of the line, which extended through these two points, represented the MTPS and was measured relative to the axis perpendicular to the longitudinal axis of the tibia. Similarly, the LTPS was derived. Tibial axis was generated with double circle method. Finally, the MTPD measurement was calculated by drawing a line that connected the peak anterior and posterior points of the medial plateau to a line drawn tangentially to the deepest point of the medial plateau and measuring the maximum vertical distance between the two parallel lines (Fig. 2B).

Fig. 1
figure 1

Distal femoral measurements. a Coronal—notch width (red), bicondylar width (blue). b Axial—notch entrance width (orange)

Full size image
Fig. 2
figure 2

A Tibial measurements—a Double circle method to determine true tibial longitudinal axis(green). b Calculated lateral tibial plateau inclination angle (red) perpendicular to longitudinal axis. B Tibial measurements—a medial tibial inclination angle (red) perpendicular to tibial longitudinal axis(green) and b medial tibial plateau depth (blue)

Full size image

Data analysis was done using the SPSS (Statistical Package for the Social Science) Version 28 for windows. Continuous imaging metrics were compared using independent sample t test. Chi-square test was used to compare the difference of qualitative/categorical variables in 2 groups. Data were not normally distributed as determined by the Shapiro–Wilk test, and therefore, nonparametric Mann–Whitney U test was used to ascertain the statistical significance between cases and controls. A logistic regression was performed with injury/no injury (i.e. cases and controls as the outcome variable). The independent variables with a p value < 0.1 in univariate analysis were entered in the model, and univariate odds ratio was calculated by drawing receiver operative characteristics curves (ROCs).

Results

This study looked at 250 people with injured ACLs and compared their bone structure to that of 250 people with healthy ACLs. The two groups were not matched in terms of age and gender, but both were predominantly male (Table 1). The study found several differences between the bone structures of the two groups (Table 2). It is important to note that the relationship of absolute measurements with injury has been examined without reference to overall patient size or weight, except for the consideration of sex differences. The notch width index (NWI) is perhaps the only measure in this study that takes into account the size of the individual.

Table 1 Distribution of patients based on gender with majority was males in both groups
Full size table
Table 2 Comparisons of knee morphometry parameters between cases (ACL injured) and controls (ACL non-injured)
Full size table

First, the injured ACL group had a significantly smaller intercondylar notch width (mean 17.25 mm vs. 18.41 mm, p < 0.001) as well as a significantly smaller notch width index (mean 0.25 mm vs. 0.27 mm, p < 0.001) compared to the healthy group. In contrast, the injured ACL group had a significantly larger combined femoral condylar width (mean 51.02 mm vs. 49.43 mm, p < 0.001) compared to the healthy group. There were no significant differences at notch entrance width.

In terms of tibial parameters, the study found that MTPD was significantly shallower in the injured ACL group compared to the healthy group (mean 2.46 mm vs. 2.76 mm, p < 0.001). LTPS was significantly steeper in the injured ACL group compared to the healthy group (mean 6.05 degrees vs. 5.0 degrees, p < 0.001). There were no significant differences at MTPS.

There exist significant bony differences between males and females, with females typically exhibiting smaller bony parameters when compared to males (Table 3a). A logistic regression model (Table 3b) was used to calculate the odds ratio with regard to bony parameters. If the odds ratio for ACL injury is greater than 1 and the lower and upper confidence intervals are also greater than 1, then we can conclude that there is a statistically significant association between a higher notch width and an increased likelihood of ACL injury. Specifically, there is a 1.24-fold increase in the odds of ACL injury associated with smaller notch width and a 1.74-fold increase in odds for ACL injury associated with a shallower MPTD.

Table 3 a: Basic gender-based bony morphologic differences between ACL injured and non-injured, b: Logistic regression association between MRI knee measurements and association of ACL injury; c:Measurements of medial and lateral posterior tibial slopes, medial plateau depth, notch width, bicondylar width, notch width index, femur condylar width, and notch entrance
Full size table

The study also used box plots (Fig. 3) and area under the curve (AUC)–receiver operating characteristics (ROC) curves (Figs. 4, 5, 6, 7) to determine thresholds for significant parameters. An ROC curve was generated using the sensitivity and specificity values for the outcome of ACL injury (yes/no). Using Medcalc software, the curve was plotted with sensitivity on the y-axis and 100—specificity on the x-axis. The cut-off value for a particular imaging parameter was calculated based on its sensitivity and specificity for diagnosing the presence of ACL injury. Area under the ROC curve (AUC) is a measure of how well a parameter can distinguish between the two groups, with an AUC of 1.0 indicating perfect discrimination and 0.5 indicating chance discrimination.

Fig. 3
figure 3

Box plot data presentation showing striking differences between injured and non-injured ACL for various bony parameters from top NW, NWI, MTPD, and LTPS

Full size image

For NW, the AUC was 0.64, which is considered a moderate level of discrimination. The cut-off value for NW was 16.4 mm, and at this value, the sensitivity was 41.2% (meaning that 41.2% of ACL-injured patients had NW values above the cut-off) and the specificity was 84.8% (meaning that 84.8% of non-injured patients had NW values below the cut-off) (Fig. 4 and Table 4). Similar results were found for NWI (AUC of 0.69) and LTPS (AUC of 0.66), with cut-off values of 0.26 and 6.7 degrees, respectively (Figs. 5, 6 and Tables 5, 6). MTPD had an AUC of 0.61, which is considered poor discrimination. The cut-off value for MTPD was 2.83 mm, with a sensitivity of 78.4% and a specificity of 44.4% (Fig. 7 and Table 7).

Fig. 4
figure 4

Receiver operating characteristic curve for notch width parameter with high specificity as represented in table (aDeLong et al. 1988; bBinomial exact)

Full size image
Table 4 Receiver operating characteristic curve for notch width parameter with high specificity as represented in table
Full size table
Fig. 5
figure 5

Receiver operating characteristic curve for notch width index parameter with high sensitivity as represented in table (aDeLong et al. 1988; b Binomial exact)

Full size image
Table 5 Receiver operating characteristic curve for notch width index parameter with high sensitivity as represented in table
Full size table
Fig. 6
figure 6

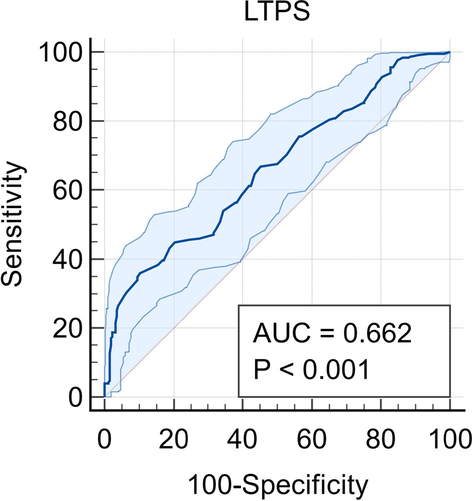

Receiver operating characteristic curve for LTPS parameter with high specificity as represented in table (aDeLong et al., 1988; bBinomial exact)

Full size image
Table 6 Receiver operating characteristic curve for LTPS parameter with high specificity as represented in table
Full size table
Fig. 7
figure 7

Receiver operating characteristic curve for MTPD parameter with high sensitivity as represented in table (aDeLong et al. 1988; b Binomial exact)

Full size image
Table 7 Receiver operating characteristic curve for MTPD parameter with high sensitivity as represented in table
Full size table

Overall, the study found that NW, NWI, MTPD, and LTPS were the most promising parameters for distinguishing between ACL-injured and non-injured patients and suggests that certain bone structure differences may be associated with an increased risk of ACL injury, particularly in females. The findings indicate that among all the features assessed, the medial tibial plateau depth (MTPD) stands out as the most statistically significant. With an odds ratio of 2.4, it demonstrates a substantial association.

However, further research is needed to confirm these findings and determine how these bone structure differences may contribute to ACL injury risk.

Discussion

Anterior cruciate ligament (ACL) injuries are the most common outcome of knee injuries [17], and the development of preventative methods to avoid them has become a matter of prime importance. The risk of early osteoarthrosis and the added effects on quality of life make these injuries particularly concerning for athletes, as they may have serious consequences on their career [18].

Numerous studies have investigated the underlying anatomical determinants of ACL injury using various imaging techniques. Anderson et al. used computed tomography data to compare and investigate bone morphology between ACL-injured and non-injured patients and found differences in certain morphological variables between men and women [15, 19]. Similarly, other studies have utilized MRI scans and radiography to identify risk factors for ACL injury [20,21,22]. Domzalski et al. found that a narrower intercondylar notch was correlated with a higher probability of ACL rupture in a young population [23, 24]. Park et al. identified NW and medial condyle width as important risk factors for ACL injuries in men, while notch width, medial-to-lateral ratio, and notch width index showed greater significance in women [25, 26]. A meta-analysis by Zeng et al. found that having a smaller notch width index increases the risk of ACL injury [27]. A study by Bayer S et al. talks about the knee morphological risk factors of ACL injury [28] and another by Iriuchisima T et al. talks about the influence of the variance in width between the tibial spine and femoral intercondylar notch on the occurrence of ACL injury [29]. A recent meta-analysis by Renato Andrade et al. found that notch morphology such as smaller NWI and increased tibial slopes put the individual at higher risk of injuring the ACL [30].

In our study, we examined bony morphology differences between ACL-injured and non-injured patients using MRI scans. We found that smaller NW and NWI were risk factors for ACL injury. Women with smaller NW were found to be at higher risk compared to men. Our results were consistent with those of previous studies [24, 25, 27].

Another anatomical factor that has been linked to ACL injury is tibial slope. O'Malley et al. found a considerable connection between a higher posterior tibial slope and ACL injury [31], and Webb et al. discovered that an increased tibial slope increased the risk of ACL injury following ACL reconstruction [32]. However, the relationship between ACL damage and tibial slope has been the subject of much debate and research [32, 33]. Dare et al. found that lateral tibial slope was strongly linked to a higher incidence of ACL injuries in paediatric and teenage patients [34]. Although some studies have found a correlation between ACL injury and tibial slope, the results have been inconsistent and debatable [34, 35].

From a biomechanical perspective, an increased tibial slope may provide more translational force, which could lead to an increase in the tibia’s anterior motion. It is well established that the ACL plays a significant role in limiting anterior tibial mobility. As a result, an increased tibial slope may cause an increase in ACL tension or possibly an ACL rupture [36, 37]. In our study, we found that MTPD and LTPS were significant risk factors for ACL injury, and we established cut-off values for potential risk factors. Although our study did not find significant differences in medial tibial plateau slope between cases and controls, we did find high specificity of LTPS and high sensitivity of MTPD for ACL injury.

In conclusion, the development of preventative methods to avoid ACL injuries is essential for athletes and individuals who engage in activities that may put them at risk of knee injuries. Anatomical factors such as NW, NWI, and tibial slope have been identified as significant risk factors for ACL injury. Future research should focus on developing preventative measures that take these risk factors into account to reduce the incidence of ACL injuries in at-risk population.

This study, much like the recent study conducted by Ashwini T et al. [38], has identified a correlation between narrow femoral intercondylar notch, low notch index, shallow medial tibial plateau, and steep posterior tibial slopes with ACL injury within the studied population. Specifically, a narrow intercondylar notch (< 16 mm), low NI (< 0.26), shallow MTPD (< 2.8 mm), and steep tibial slopes (LTPS 6.3 degrees) were found to be factors that predispose individuals to ACL injury. MRI scans that show these characteristics may suggest a higher risk of ACL injury and prompt the need for strategic modifications in biomechanical movement or training to help prevent injury. This information can be valuable to orthopaedic doctors when counselling patients, implementing preventive measures, and adjusting post-operative rehabilitation protocols.

There are certain limitations to our study that should be noted. First, the ACL injury diagnosis was not confirmed using arthroscopy or surgery. Furthermore, our study only included a mature skeleton population and did not examine adolescents, which may be an important consideration when generalizing our findings to the wider population. Lastly, while the thickness of the individual bundle is an important parameter, our study only focused on bony morphology.

Conclusions

This study provides evidence that bony morphological features, specifically NWI, MTPD, and LTPS, are associated with ACL injury and can be used for the identification and prevention of ACL injuries. The results suggest that individuals with a narrower NWI, shallower MTPD, and steeper LTPS are at increased risk of ACL injury.

The findings of this study have important implications for the field of sports medicine and orthopaedics. Identifying individuals at higher risk of ACL injury based on their bony morphology could help with targeted prevention strategies such as modifying training programs, using braces or other protective equipment, and recommending surgical interventions. The study by Mather, Richard C. et al. [39] underscores the economic burden associated with ACL tears and highlights the importance of prioritizing injury prevention and effective treatment approaches to minimize both individual and societal costs. Furthermore, understanding the relationship between bony morphology and ACL injury may help guide surgical interventions and post-operative rehabilitation to prevent re-injury and optimize outcomes.

This study adds to the existing literature by providing new insights into the relationship between bony morphology and ACL injury and identifying specific parameters that can be used to predict ACL injury. The findings of this study have the potential to improve clinical decision-making and ultimately lead to better outcomes for individuals at risk of ACL injury.
