MRI of Endometriosis: Single institute experience including MRI classification and Laparoscopic correlation with ENZIAN classification
Egyptian Journal of Radiology and Nuclear Medicine volume 54, Article number: 188 (2023)
Endometriosis is a chronic gynecological condition affecting women of reproductive age and may cause pelvic pain and infertility. MRI is the best imaging technique for mapping and preoperative staging of endometriosis as it provides a tool for the assessment of deep infiltrating endometriosis. The aim of this study was to evaluate the role of magnetic resonance imaging (MRI) in detection and characterization of endometriosis in correlation between it and the laparoscopic findings according to ENZIAN classification.
We assessed 100 patients by MRI dedicated pelvis protocol for endometriosis with an assessment of the ovaries, uterus, uterosacral ligaments (USL), broad ligaments, and round ligaments, cul-de-sac, rectosigmoid colon, bladder, ureters, and rectovaginal septum. All these patients are submitted for laparoscopy, and then, data from both investigations were correlated.
MRI provided a road map for surgeons before laparoscopy. The sensitivity of MRI was 87.5% in small deep infiltrating endometriosis (DIE) (grade A1) and 100% in large DIE (A2). MRI detected 82.3% of uterosacral ligament involvement, specificity 80%. Detection rate in rectal involvement was 71.4%, specificity 75%. There was 100% sensitivity and specificity in adenomyosis and urinary bladder endometriosis.
Preoperative detection of endometriotic lesions is recommended using a dedicated MRI endometriosis protocol to choose the surgical approach and for proper multidisciplinary teamwork planning.
Endometriosis is defined as presence of ectopic endometrial glands and stroma outside the normal uterine tissue. It is an estrogen-based condition, and it is a common cause of pelvic pain, dyspareunia, dysmenorrhea, infertility and sometimes can be asymptomatic, affecting approximately 10% of premenopausal women. Symptoms usually depend on the site and the depth of the infiltration and whether the endometriosis is complicated by adhesions .
The main and typical localizations of endometriosis are: ovarian endometrioma, retrocervical endometriosis, deep bowel endometriosis, urinary bladder endometriosis and abdominal wall endometriosis .
Radiologists should be familiar with the various imaging manifestations of that disease as preoperative mapping of disease extension is important to decide whether surgical intervention is indicated, and if so, for proper preoperative planning.
Magnetic resonance (MR) imaging has been recently widely used for the detection and characterization of pelvic endometriosis and has established its effectiveness .
It must be remembered that benign endometriomas, like many pelvic malignancies, may exhibit restricted diffusion. Although women with endometriosis are at risk for developing clear cell and endometrioid epithelial ovarian cancers (i.e. endometriosis-associated ovarian cancers), imaging findings such as enhancing mural nodules should be confirmed before the diagnosis of ovarian malignancy is offered. The presence of dilated fallopian tube, especially hematosalpinx, is often associated with pelvic endometriosis .
In superficial endometriosis—also known as Sampson's syndrome—superficial plaques are scattered across the peritoneum, ovaries, and uterine ligaments.
Deep infiltrating endometriosis—also known as Cullen’s syndrome—can involve the pelvic ligaments, anterior rectosigmoid colon, bladder, uterus, and cul-de-sac, as well as surgical scars; the lesions often have poorly defined margins and T2 signal hypo-intensity as a result of fibrosis. The presence of sub-centimetric foci with T2 hyperintensity representing ectopic endometrial glands within these infiltrating fibrotic masses may help establish the diagnosis .
T1-weighted fat-suppressed pulse sequences are recommended for all MR examinations of the female pelvis because such sequence facilitates the detection of small endometriomas and aids in their differentiation from mature cystic teratomas .
Our work aimed to evaluate the role of magnetic resonance imaging (MRI) in detection and characterization of endometriosis in correlation between it and the laparoscopic findings according to ENZIAN classification.
The study was conducted during the period from July 2020 till July 2022. Out of 200 scanned patients, only 100 patients were selected in this retrospective single-institution study, and the included patients underwent dynamic ultrasound followed by MRI endometriosis protocol then laparoscopy.
Inclusion criteria were patient in child bearing period with clinical diagnosis of endometriosis who could do the MRI (not claustrophobic, not pregnant, and has no renal impairment), and patients who did laparoscopic correlation.
Exclusion criteria included patients who did not perform laparoscopy or failed to complete MRI study, due to renal function impairment or claustrophobia or MRI incompatible prosthesis implementation.
The study was approved by the Institutional Ethics Committee, approval number 23–2020. No consent was obtained from patients due to the nature of the study.
Patient aged 27 to 42 years, MRI was performed anytime during the month after 4–6 h fasting, and enema was administered 2–3 h before the examination. Urinary bladder was moderately-filled; the examination finished in 35 to 40 min with no complication.
A dedicated MRI protocol was applied using 1.5 Tesla superconducting unit (Signa LX, GE Healthcare) and high-resolution phased array coils.
The protocol sequences and parameters included: T1WI in axial and sagittal planes, T2WI in axial, sagittal and coronal plane FOV 38, 32, and 32 mm, respectively, axial T2 with fat suppression, coronal T2WI of the abdomen including the kidneys interslice gap 0.5 mm, section thickness 5 mm, axial DWI 5 mm slice thickness and interslice gap 1 mm, b-value 1000, fat-suppressed T1-weighted 3D gradient-echo LAVA sequence in three planes 3.4 mm slice thickness. Intravenous (IV) gadopentetate contrast (70–80 ml) was administrated followed by repetition of the LAVA in three planes.
ENZIAN classification for deep endometriosis is based on pelvic three compartments classification (A—vagina, rectovaginal space (RVS); B—uterosacral ligaments (USL)/cardinal ligaments/pelvic sidewall; and C—rectum) as well as the urinary bladder (FB), the ureters (FU), and other extragenital lesions (FO).
The extent (size) of endometriosis is represented by the numbers 1, 2, and 3 in compartments P, O, T, A, B, and C.
Pelvic endometriotic nodules DIE was mentioned (A) with location and size description.

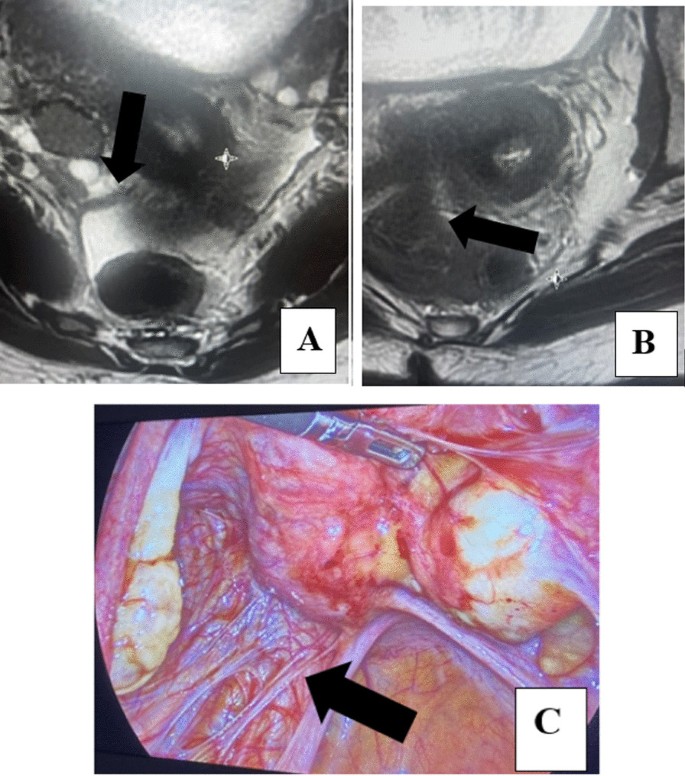

Uterosacral ligaments on both sides (B0 and B1) were measured, and any thickening was reported.
Rectosigmoid involvement (C) was mentioned with detailed localization in relation to the anal verge, and size was mentioned.
The presence of adenomyosis (FA) was reported as present or absent.
The presence of urinary bladder wall thickening (FU) was reported and the size measurement.
Patients underwent laparoscopic surgery by the same surgical team within a period not exceeding two months from the MRI examination, and otherwise, MRI was repeated.
ENZIAN classification was done based on laparoscopic findings.
MRI and laparoscopic correlation (Table 1)
Data of MRI ENZIAN classification including A, B, and C were reported and compared to the corresponding laparoscopic ENZIAN classification.
Statistical evaluation was performed using the SPSS (version 20.0; SPSS Inc., Chicago, IL, USA) software. Fisher’s exact or chi-square test was performed for categorical data, and the Kruskal–Wallis test was performed for continuous variables.
Surgical results were accepted as standard, and preoperative MRI findings were compared.
Sensitivity and specificity scores were calculated.
Regarding ENZIAN classification in MRI, A0 was reported in 1 patient (1%), A1 was reported in 70 patients (70%) (Fig. 2), and A2 was reported in 2 patients (2%). B0 was reported in 30 patients (30%), and B1 was reported in 70 patients (70%) (Figs. 2, 3 and 4). C0 was reported in 50 patients (50%), and C1 was reported in 50 patients (50%) (Figs. 3 and 4). FA was reported in 90 patients (90%), and FU was reported in 20 patients (20%).
Regarding ENZIAN classification in laparoscopy, A0 was reported in none (0%), A1 was reported in 80 patients (80%) and A2 was reported in 2 patients (2%). B0 was reported in 15 patients (15%), and B1 was reported in 85 patients (85%). C0 was reported in 30 patients (30%), and C1 was reported in 70 patients (70%). FA was reported in 80 patients (80%), and FU was reported in 20 patients (20%) (Table 2).
Regarding detection of DIE, the sensitivity of MRI was 87.5% in small DIE (grade A1) while the detection rate was 100% in large DIE (A2). MRI detected 82.3% of uterosacral ligament involvement, specificity 80%. Detection rate in rectal involvement was 71.4%, specificity 75%. There was 100% sensitivity and specificity in adenomyosis and urinary bladder endometriosis.
Regarding pelvic compartments, MRI showed same rate of detection like laparoscopy in cases of DIE of the anterior compartment with sensitivity of 100%. For the middle compartment, MRI showed sensitivity of 90% in detecting DIE in correlation with laparoscopy. Regarding the posterior compartment, MRI showed sensitivity of 68.3% compared to laparoscopy.
Finally, regarding the size of DIE, MRI detection rate compared to laparoscopy was higher in bigger lesions; the sensitivity of MRI in detecting A1 lesions was 87.5%, while MRI sensitivity in detecting A2 lesions was 100%.
Endometriosis is a chronic multifocal gynecologic disease that commonly affects females of reproductive age and may cause pelvic pain and infertility. The etiology of endometriosis is unknown . The disease is characterized by the growth of functional ectopic endometrial glands outside the uterus.
In this study, MRI and laparoscopic scores showed significant concordance regarding compartments A, B, O, and C, which was compatible as well with previous studies using ENZIAN classification.
Regarding ENZIAN classification in MRI, our results demonstrated 73% sensitivity and specificity of MRI in evaluation of compartment A, while a study done by Burla et al.  demonstrated 100% MRI sensitivity and specificity in compartment A lesions.
Regarding detection of DIE, the sensitivity of MRI was 87.5% in small DIE (grade A1), while the detection rate was 100% in large DIE (A2), in comparison with a study done by Bazot et al.  and found that diagnostic values of MRI for DIE are quite high: sensitivity, 90%; specificity, 91%; positive predictive value (PPV), 92%; negative predictive value (NPV), 89%; and accuracy, 90%, while pelvic MRI has a reported sensitivity of 90.3% for the detection of DIE in a study performed by Siegelman et al. .
Hottat et al. reported MRI sensitivity of 96.3% and NPV of 93.3% in endometriosis and DIE detection .
Medeiros et al.  recently published one meta-analysis on the diagnostic efficiency of pelvic MRIs in the diagnosis of deep endometriosis. Such meta-analysis reviews 20 studies published comparing the findings from high field MRIs (1.0–3.0T) to surgical findings (laparoscopic or open) and histology as a reference pattern. MRI studies showed 83 percent sensitivity and 90 percent specificity in the diagnosis of injuries due to endometriosis. The location that showed the highest sensitivity was the pouch of Douglas (sensitivity = 89 percent, specificity = 94 percent), while in the anterior compartment, the MRI sensitivity was lower (bladder sensitivity = 64 percent, specificity = 98 percent). This may be due to the fact that since the posterior compartment is the most common location of deep endometriosis, the MRI is more precise tool for its detection.
Sensitivity and negative predictive values of MRI confirmed by surgery were 95.2% and 91.7% (lesions in the vaginal/rectovaginal space), 78.4% and 56% (uterosacral ligaments), 91.4% and 89.7% (rectum/sigmoid colon), 57.1% and 94.1% (myometrium), 85.7% and 98.3% (bladder) in a study performed by Laurin et al. , while in our study, the sensitivity of MRI was 87.5% in small DIE (grade A1), while the detection rate was 100% in large DIE (A2). MRI detected 82.3% of uterosacral ligament involvement, specificity 80%. Detection rate in rectal involvement was 71.4%, specificity 75%. There was 100% sensitivity and specificity in adenomyosis and urinary bladder endometriosis.
Di Paola et al.  compared preoperative MRI findings with intraoperative laparoscopic results by means of the ENZIAN score and found an overall correlation of 95%, with a sensitivity of 94%. In this study, the values are almost similar values specially in compartment A with the highest value of the preoperative MRI-based ENZIAN score could be confirmed.
Aysun et al.  found that MRI has higher sensitivity and specificity in showing the lesions of the compartments O (ovarian lesions), A (rectovaginal septum and posterior vaginal fornix), and B (uterosacral ligaments and parametrium) (100–100%, 100–100%, and 97–100%, respectively, p < 0.001) compared to the other compartments. The lowest sensitivity, specificity, accuracy, and PPV of the MRI were found in compartment P (14%, 76%, 70%, and 7%, respectively).
Our study agreed with Keckstein et al.,  that the correlation between preoperative imaging and surgical staging using ENZIAN classification allows for a consistent and clear classification of endometriosis.
In this study, the diagnosis of endometriosis was based on the laparoscopic findings, and then the histopathologic results as a second-line confirmation.
Limitations of this study are its retrospective study approach with a limited patients number as well as limitations of patients compliance to MRI and single institute study and also having single radiologist for image reading lacks inter-reader interpretation.
Further prospective studies in a multicentric setting with consistent diagnostic protocols will be required.
Advances in noninvasive multiparametric imaging modalities are of special importance as diagnostic standard value of endometriosis with systematic diagnostic approach for better preoperative planning that will lead to a reduction of recurrent or non-indicated interventions.
MRI highly correlates with the ENZIAN score and has 95% accuracy in the detection and localization of endometriosis, with specially 100% detection accuracy in the anterior compartment in concordance with laparoscopic findings.
In conclusion, MRI is a valuable diagnostic tool for endometriosis, enabling a better pre-laparoscopic planning, allowing to for proper preoperative detection and better laparoscopic and clinical outcome.
The ENZIAN score detected by MRI is well correlated with the laparoscopic findings.
The ENZIAN score may be used as an anatomical mapping and valuable communication language between the radiologists and the referring gynecologists.
