Hepatocellular carcinoma vascularization: CT angiography variations identifying arteries feeding the tumour
Egyptian Journal of Radiology and Nuclear Medicine volume 54, Article number: 183 (2023)
Hepatic arterial anatomy is important in performing many surgical and endovascular procedures. Familiarity with variations in the hepatic arterial anatomy is essential to achieving adequate embolization. In some patients, in addition to anatomic variations of the hepatic arteries, different extrahepatic collateral arteries may provide partial or total vascular supply to hepatocellular carcinoma (HCC), which makes transcatheter arterial chemoembolization (TACE) technically challenging. We aim to evaluate the different feeding vessels of HCC using multi-detector computed tomography angiography (MDCTA) as a pre-procedural step before planning suitable management.
One hundred patients with 150 focal HCC lesions were involved in our study. The anatomy of the blood supply and the morphological characteristics of HCC, including the size, location, and history of previous hepatitis, were quantitatively assessed and statistically analysed. The number of patients who had classic hepatic arterial supply for the HCC lesions in our study was 54 (54%). The number of patients with additional extrahepatic supply is 26, while the number of patients with anatomical vascular variants is 20. Among these 26 patients with extrahepatic (parasitic) blood supply, six patients were supplied by the right inferior phrenic artery, four patients were supplied by the right internal mammary artery, and two patients were supplied by each other type of extrahepatic feeder, which are the left inferior phrenic artery, left internal mammary artery, left gastric artery, cystic artery, right lumbar artery, direct branch from the aorta, omental arteries, right renal artery, and LHA from the LGA. Twelve of the 20 patients with anatomical vascular variants had replaced RHA from the SMA; four patients had replaced LHA from the LGA; two patients had replaced RHA from the GDA; and two patients had replaced CHA from the SMA. Only 50 cases of CT findings were correlated with the data from the interventional procedures of these patients.
Because of the differences in HCC blood supply between typical, parasitic, and anatomical vascular variants, MDCTA has significant clinical significance prior to TACE and any interventional procedure.
Hepatocellular carcinoma (HCC) is the most common primary cancer of the liver. It is the second-leading cause of cancer deaths worldwide . Liver transplantation, radical excision, and tumour ablation are considered curative alternatives for treating patients with HCC. TACE is an important therapeutic alternative for unresectable HCC .
Previous studies have found that perihepatic arteries such as the internal mammary artery (IMA), intercostal artery (ICA), inferior phrenic artery (IPA), gastric artery (GA), superior mesenteric artery (SMA), gastroduodenal artery (GDA), cystic artery (CA), renal artery (RA), and also the lumbar artery (LA) may supply HCC lesions [3,4,5,6,7,8,9].
The anatomical variances of HA are quite common, most frequently due to the separate origination of the right and left HA and the presence of accessory HA. Thus, TACE might be incomplete; failure to identify such anatomical variations preoperatively may render TACE unsuccessful and/or even cause complications. So, it is necessary to evaluate the origin, course, and distribution of the hepatic arterial tree before the therapy . Before beginning treatment, interventional radiologists should have adequate mapping for the feeding arteries of HCC, including hepatic artery variants as well as accessory and parasitic perihepatic arteries .
Digital subtraction angiography (DSA) is the main imaging method for detecting feeding arteries in HCC, including HA and ectopic blood supply. Its application is limited due to its invasiveness, cost, and inability to identify all possible blood vessels during the examination . MDCTA, including multi-planar reconstruction (MPR), curved planar reconstruction (CPR), maximum intensity projection (MIP), and volume rendering (VR), is considered a noninvasive technique alternative to DSA for displaying hepatic and perihepatic vessels and determining the tumour-feeding vessels before TACE .
For effective treatment of HCC, it is important to inject the chemoembolized material into the artery or arteries that supply the tumour(s). These arteries should be identified by imaging in the pre-treatment assessment. It is critical to understand common hepatic arterial anatomy and variants, as well as to identify any extrahepatic branches that have vascularized the tumour .
Many previous studies showed that MDCTA could identify most of the tumour-feeding vessels. MDCTA was also suggested to be conducted for any tumours to locate the feeding vessel before chemoembolization. Few studies, however, have confirmed whether the morphological features of HCC (size, site, and location) and the therapeutic history can influence the formation of ectopic supply.
The aim of this study is to report the different arteries that may vascularize HCC. We try to determine whether the morphological features of HCC and the therapeutic history could affect the occurrence of ectopic feeding arteries. These arteries must be anticipated, recognized, and reported on sectional imaging in the pre-treatment assessment and catheterized during chemoembolization. This will help to reduce the radiation exposure dose while also allowing the surgeon or radiologist to be aware of anatomy and variation, saving time and effort, and preventing complications.
The study was a prospective study. It was approved by our university hospital's ethical committee. It included HCC patients who underwent an abdominal CT angiography (CTA) scan from April 2020 to April 2021 at the department of radiology. Informed, written consent was obtained from all patients. The number of these individuals was 100 (68 men and 32 women, age range 36–86, with a median age of 61 years). Thirty patients had previous chemoembolization with a residual or recurrent active lesion. HCC was proven either with the pathological analysis of the biopsy specimen or with a combination of clinical, laboratory, and radiological data. Diagnostic criteria for the non-invasive diagnosis of the HCC were that the lesion showed early arterial enhancement with early contrast wash-out combined with cirrhosis and an AFP level above 500 ng/ml. Inclusion criteria: patient confirmed to have HCC larger than 3 cm (except for residual lesions after previous intervention); whatever the site and the number of lesions, they did not exceed 3 focal lesions. Patients with severe ascites, metastatic HCC, allergy to iodinated intravenous contrast agents, impaired renal function (defined as serum creatine greater than 1.5 mg/dL), pregnancy, and an inability to undergo CT due to hemodynamic instability were excluded.
All patients were subjected to full history taking regarding previous intervention by chemoembolization. Laboratory studies included all the routine laboratory workups with stress on the levels of creatine, blood urea nitrogen, and alpha-fetoprotein CTA examination.
All patients were instructed to fast for 6–8 h prior to the examination. They were asked to continue adequate simple fluid intake for up to 3 h prior to the examination to ensure adequate hydration and provide negative contrast in the oesophagus and stomach. Patients were taught how to hold their breath during examinations when requested. Patients were positioned supine on the CT table. A 18–20-gauge catheter was placed into a superficial vein within the antecubital fossa, forearm, or dorsum of the hand. A catheter was placed into the superficial vein within the antecubital fossa, forearm, or dorsum of the hand. The injected arm was placed at the patient’s side to eliminate kinking of the subclavian vein at the thoracic inlet during injection, and the other arm was placed above the patient’s head.
All MDCT angiograms were performed on a 32-channel MDCT scanner (Siemens, Germany). Immediately prior to scanning, 500–1000 ml of plain water were administered orally to all patients. Water was used as a negative contrast agent to distend the stomach and improve visualization of the gastric wall and intestine. All patients underwent cranio-caudal scanning in the supine position during a single breath hold. The scanning area was from pulmonary hilum level to iliac crest level. CT was performed initially without contrast medium. A non-enhanced sequence was performed with a collimation of 6 mm for the localization of subsequent sequences. With the use of a power injector, 80–110 ml of nonionic contrast media heated to 37 °C were injected at a rate of 5 ml/s. The arterial phase started 4 s after the attenuation in the descending aorta reached 100 HU, which took about 10 s. The scan starts from the dome of the liver to its caudal end and takes 7 s. The portal venous phase started 7 s after the end of the arterial phase, and the scan range started from the dome and covered all the abdomen and pelvis in 15 s. Delayed scans start 5 min after the end of the portal venous phase and cover the same range as the portal venous phase. Narrow collimation is used (6 mm) to provide detailed resolution with fewer artefacts on the reformation images, as shown in Table 1.
Image processing and interpretation
CT images produced during the arterial phase were sent to the workstation DICOM viewer for post-processing and analysis in order to fulfil the study's objectives. Images from the arterial phase were studied. The imaging analysis was based on the original images as well as the three-dimensional (3D) post-processing images [maximum intensity projections and shaded surface display] (MIP and SSD), as well as multiplanar reformation (MPR), for a quick overview of the vascular morphology, and volume renderings for the final evaluation and documentation. Three radiologists with more than 10 years’ experience in abdominal angiography reviewed the sequences and wrote reports in consensus. The anatomical findings were classified as normal, anatomical vascular variant, and extrahepatic blood supply. The frequency of various anomalies was calculated. The findings of CT angiographic data sets were compared with interventional procedures in only 50 cases, which served as the standard of reference.
The data were fed to the computer and analysed using IBM SPSS software package version 20.0. (Armonk, NY: IBM Corp.) Qualitative data were described using numbers and percents. Quantitative data were described using range (minimum and maximum), mean, standard deviation, and median. The difference between extrahepatic and vascular variants with different tumour sizes was assessed using Chi-square rest, with statistical significance set at < P 0.05.
Our prospective study included 150 HCCs from 100 patients; demographic data were grouped in Table 2, and all the patients were grouped according to size, site, and location. The total number of examined tumours is 150; the number of tumours restricted to one segment is 120 (70.36%), while the number of tumours involving two segments is 30 (17.64%), and only 20 tumours involving three segments (12%) Table 2.
The number of patients who had classic hepatic arterial supply for the HCC lesions is 54 (52.94%), while only two patients (1.96%) had atypical post-celiac artery compression neovascularization. The number of patients with extrahepatic supply is 26 (25.49%), and the number of patients with anatomical vascular variants is 20 (19.61%), due to two patients having both anatomical vascular variants and parasitic blood supply.
The total number of patients with additional extrahepatic (parasitic) blood supply is 26, while the number of extrahepatic arteries is 28 because two of the patients had dual parasitic blood supply for the same tumour (the tumour was supplied by the right inferior phrenic artery and by a direct branch from the aorta) as in Table 3.
The tumours supplied by the right inferior phrenic artery were located at segments VII/VIII and segment I (subdiaphragmatic location). The tumours supplied by the right internal mammary artery were located in segment IV. The tumours supplied by the cystic artery were located in segment V. The tumour supplied by a direct branch from the aorta, was located at segment VII. The tumors supplied by the right lumbar arteries and the right renal arteries were located at segment VI. Tumours supplied by the left gastric artery were found in segment III, those supplied by the left inferior phrenic artery and left internal mammary artery in segment II, and those supplied by the omental arteries in segment IV, as shown in Table 4.
The total number of patients with ectopic blood supply was 26; the number of tumours with ectopic arteries have size less than 5 cm was 6/26 (23%) and the number of tumours with ectopic arteries greater than 5 cm was 20/26 (77%) with a significant P value < 0.05 compared to the size of HCC lesions supplied by normal hepatic arteries.

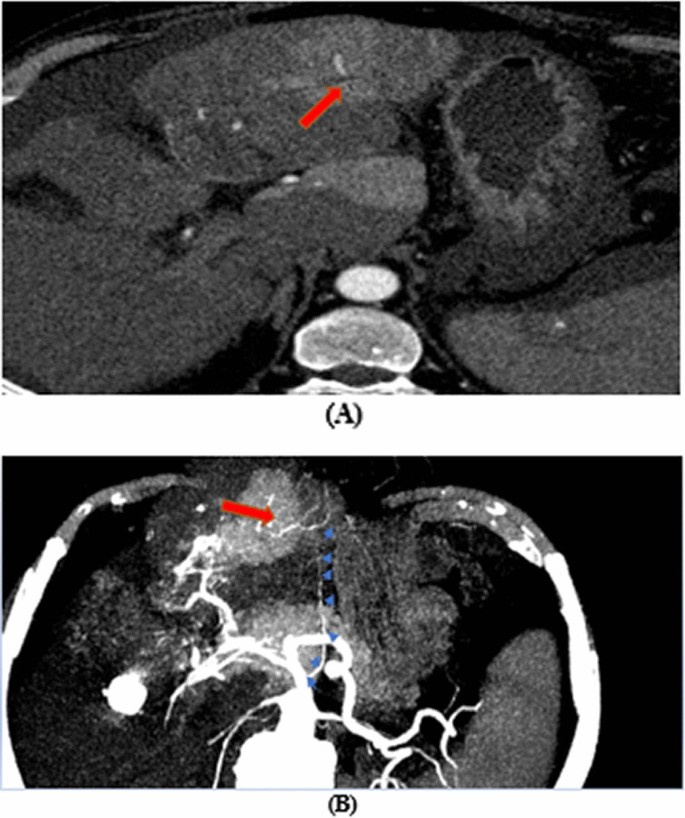

The number of patients who had replaced RHA from the SMA is 12 (12%), and only two patients (2%) had replaced CHA from the SMA. The number of patients who have replaced LHA from the LGA is four (4%), while only two (2%) have replaced RHA from the GDA. Thirty cases had a previous history of chemoembolization with residual or recurrent disease, with 10 cases due to improper or inadequate chemoembolization and 20 cases with additional extrahepatic supply (15 cases with subcapsular locations and larger sizes than 5 cm). The CT findings were correlated with the data from the interventional procedures of only 50 patients, and all the CT findings were seen as similar to those in the intervention procedure (Figs. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10).
Understanding differences in hepatic arterial anatomy is essential for successful embolization. In some patients, besides anatomic variations of the hepatic arteries, various extrahepatic collateral (EHC) arteries may provide a partial or total vascular supply to HCC; these variations in specific situations make TACE technically challenging, with the development of micro-catheters in recent years facilitating intervention from small blood vessels .
To successfully perform TACE, interventional radiologists should have adequate mapping of the feeding arteries of HCC, including hepatic artery variants as well as accessory and parasitic perihepatic arteries, before treatment [13, 14].
Our study results were matched with those of Hefaiedh et al. , Tangkijvanich et al. , Walter et al. , Shaker et al. , and Kirchner et al. , who studied the variation in vascular supply of HCC patients as regarded to age incidence and sex prominence, as well as their relations to HBV and HCV, lobe prominence, and the number of HCC lesions, either solitary or multiple lesions.
our study, we found that the right lobe of the liver was more frequently occupied by focal lesions (56%), and the majority of tumours were restricted to one or two liver segments (70.36%). This data was consistent with Shaker et al.  and Kirchner et al. .
The majority of patients (52.94%) had classic hepatic arterial supply. 19.61% of patients had anatomical vascular variations, compared to 25.49% of patients who had additional extrahepatic supply. According to Yuen MF et al. , 69.2% of all lesions were fed only by HA, and 30.8% were fed by ectopic arteries, either with or without HA. Only one patient (1.96%) in our study had atypical supply after celiac artery compression, which was consistent with the findings of Lee et al. .
In our study, the right inferior phrenic artery, left inferior phrenic artery, right internal mammary artery, cystic artery, left gastric artery, direct from the aorta, lumbar artery, omental arteries, and the right renal artery all contribute to the supply of HCCs, similar to what was found by Moustafa et al. , Kim et al. , Miyayama et al. , and Ishikawa et al. .
One patient in the current study was supplied by the right renal artery, which accounts for 7.69% of patients and is located at segment VI. Another study conducted by Lee et al.  found that the right renal artery accounts for 3.5–12.0% of the EHC arterial blood supply to HCC. Ishikawa et al.  also stated that the superior capsular artery is reported to have an important role in providing these feeders.
In our study, the lesion that was supplied by the cystic artery was located at segment V. This finding is consistent with that of Moustafa et al. , who reported that the cystic artery can provide parasitic feeders to HCC located adjacent to the gall bladder fossa, and this occurs more frequently when the hepatic artery is attenuated owing to prior TACE procedures. It can also provide an EHC arterial supply to HCC located in other portions of the right hepatic lobe and in the medial segment of the left hepatic lobe.
We reported that one patient with hepatocellular carcinoma at segment VII was supplied by the inferior phrenic artery as well as a direct branch from the aorta (dual extrahepatic supply); this finding had not previously been reported.
In the present study, segments VII, VIII, and I were the sites of the tumours supplied by the inferior phrenic artery. A study by Moustafa et al.  revealed that the interventional radiologist should be highly suspicious that the right IPA is an EHC artery if the hepatic lesion is in close proximity to the right hemi-diaphragm or is situated in liver segment VII and if the HCC lesions in the caudate lobe receive 88% of their EHC arterial blood supply from the right IPA [27, 28].
In the current study, the majority of HCC supplied by ectopic arteries is larger than 5 cm and accounts for 77% of total patients with additional ectopic blood supply. This is consistent with Wang et al. , who found that most of the ectopic blood supply in HCC formed among the tumours, with the sizes ranging from 5 to 10 cm in diameter. Another study conducted by Chung et al.  stated that 63% of tumours over 6 cm in size and 3% of tumours under 4 cm in size are vascularized by extrahepatic arteries. Yuen MF et al.  stated that with the increased size of HCC, HA would be insufficient to supply nutrition for the tumour, especially when HA was blocked by interventional radiology. The peri-hepatic artery would participate in the blood supply for HCC due to the anatomical basis of ectopic blood supply.
As regarded the hepatic artery variants, our study reported that 12 patients (12%) had replaced the RHA from the superior mesenteric artery and only two patients (2%) had replaced the CHA from the SMA. This was consistent with the findings of Gruttadauria et al. , who discovered that the replaced or accessory RHA from the SMA was the most commonly encountered variant, accounting for 15% of the population. Only four patients in this study received LHA from the LGA, accounting for 4%. This contradicts the findings of Gruttadauria et al. , who discovered that the replaced or accessory LHA arising from the LGA was the second most common variant, occurring in 12% of cases.
Our study also demonstrated that the subcapsular location of the lesion should be considered when looking for extrahepatic supply, as the subcapsular location in both hepatic lobes was statistically significant P value < 0.05 compared to the HCC with normal arterial supply, and we found a significant number of previously chemoembolized HCC showed activity, which could be due to improper mapping prior to embolization to diagnose extrahepatic supply.
Our study had some limitations, as only 50 cases were correlated with the data of the interventional procedures because DICOM was not available for the intervention procedure, some patients who were prepared for TACE didn’t have CTA DICOM, and some patients who had HCC on tri-phasic CT refused diagnostic angiography.
MDCTA can provide effective information about the blood supply of HCC. The formation and patterns of the blood supply for HCC were closely related to tumour size and the superficial anatomic location of tumours; these findings would be helpful for the pre-TACE preparation of patients with HCC. We concluded that it is mandatory to do CTA as a preparation step for TACE that is good for detection of HCC blood supply, prevents recurrence after TACE, and gives a good prognosis. Another benefit noted in our study was that pre-TACE CTA provided a good plan for the intervention radiologists, which reduced and saved more time and, accordingly, reduced patients' radiation exposure.
