Neuroimaging in uncontrolled hyperglycemia: a case series and literature review

Abstract

Background

There are wide-ranging differential diagnoses for the myriad of neurological symptoms associated with non-ketotic hyperglycemia. Similarly, various secondary complications of diabetic ketoacidosis present with nonspecific clinical symptoms. These are inadvertently misdiagnosed as epilepsies and strokes with associated hyperglycemia. Direct association between these nonspecific symptoms and hyperglycemia has been proved by demonstrating their resolution with correction of the latter. This case series portrays the spectrum of few rare neuroimaging findings of uncontrolled hyperglycemia, which helps in proper and prompt diagnoses.

Case presentation

Five diabetic patients with uncontrolled hyperglycemia were observed. Striatal hyperdensity on computed tomography or striatal T1 hyperintensity on magnetic resonance imaging was observed in three patients who presented with movement disorders. The abnormality was bilateral in one case. These observations were consistent with hyperglycemia-induced hemichorea–hemiballismus syndrome. In another patient who had presented with focal seizures, magnetic resonance imaging revealed subcortical T2/FLAIR hypointensity in bilateral occipital regions, which has been described to be characteristic for non-ketotic hyperglycemia-related seizures. Yet another patient who had been treated for diabetic ketoacidosis had developed bilateral lower-limb weakness. In correlation with a background of rapid correction of hyponatremia, magnetic resonance imaging revealed symmetric areas of altered signal intensity in the bilateral perirolandic region showing an open ring pattern of diffusion restriction, suggesting extrapontine myelinolysis.

Conclusions

In all the cases, the clinical differentials were wide. Neuroimaging was mandatory in establishing hyperglycemia as the underlying cause for the movement disorders and seizures. Also, neuroimaging aided in timely identification of extra-pontine myelinolysis, which might have prevented further central pontine involvement in the patient with diabetic ketoacidosis.

Background

Hyperosmolar hyperglycemic state (HHS) and diabetic ketoacidosis (DKA) are the most severe acute complications of diabetes mellitus. Secondary complications of DKA and HHS include cerebral edema, cerebral infarction, cortical venous thrombosis, osmotic demyelination and others. These have non-specific symptoms, most commonly presenting as deterioration of prior clinical status.

Uncontrolled non-ketotic hyperglycemia (NKH) without significant serum osmolality derangement can present with a myriad of symptoms such as seizures, focal neurological deficit, movement disorders, hyperthermia and vestibular dysfunction. These are inadvertently misdiagnosed as epilepsies and strokes with associated hyperglycemia. Many researchers have proved the direct association between these non-specific symptoms and hyperglycemia by demonstrating their reversal with targeted therapy. Regarding the secondary complications of DKA-, HHS- and NKH-induced neurological symptoms, imaging using computed tomography (CT) and magnetic resonance imaging (MRI) plays a significant role to help with proper and prompt diagnoses. Neuroimaging also excludes other major treatable causes.

Case presentation

Case 1

A 52-year-old male, with uncontrolled diabetes mellitus, had repeated episodes of abnormal movements of the left upper and lower limb for a period of two months. Clinically, the movement abnormality was diagnosed as chorea. On admission, glycated hemoglobin (HbA1c) was elevated (9.4%, normal range 4–5.6%). Blood examination was negative for ketone bodies. Non-contrast computed tomography (NCCT) of the brain (Fig. 1) demonstrated hyperdense right putamen and right caudate nucleus with age-related diffuse cerebral atrophy. A chronic lacunar infarct was incidentally noted in the left external capsule. Based on the imaging and clinical findings, a final diagnosis of hyperglycemia-induced hemichorea–hemiballismus (HCHB) syndrome was made.

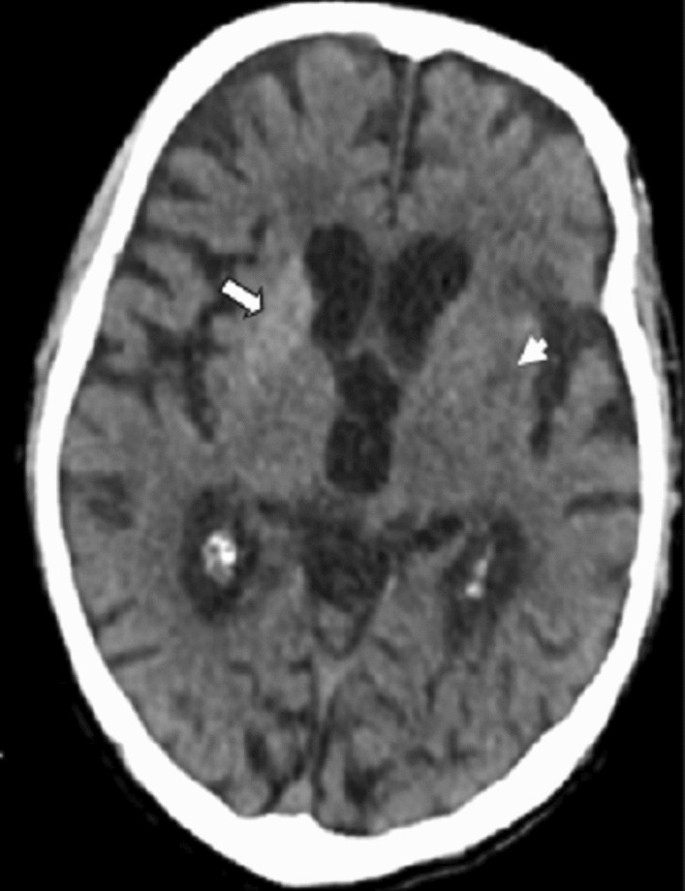

Fig. 1

Axial NCCT image of brain in a 52-year-old male with hyperglycemia-induced HCHB syndrome showing right putaminal and caudate nucleus hyperdensity (long arrow). A left external capsule lacunar infarct was also noted (short arrow)

Case 2

A 78-year-old male with diabetes mellitus presented with left upper-limb ballism. In spite of being on oral hypoglycemic agents, he had a high blood glucose level of 450 mg/dl (normal range 70–140 mg/dl) on admission. Urine and blood ketones were negative. HbA1c was elevated (9.5%, normal range 4–5.6%). Serum osmolality was normal (295 mOsm/kg, normal range 275 to 295 mOsm/kg) on admission. MRI (Fig. 2) revealed characteristic T1 hyperintensity involving the contralateral (right) putamen. After a three-month follow-up, there was persistence of ballism movements despite achieving glycemic control. A final diagnosis of hyperglycemia-induced HCHB syndrome was made based on the findings observed.

Fig. 2

Axial fast spin echo T1 weighted (T1W) MR image of brain in a 78-year-old male with HCHB syndrome showing hyperintensity involving the right putamen (long arrow). The short arrow points to a left chronic insular infarct

Case 3

A 69-year-old male with diabetes mellitus presented with bilateral chorea for a period of two weeks. On admission HbA1c was elevated (9.0%, normal range 4–5.6%) and blood glucose was elevated (390 mg/dl, normal range 70–140 mg/dl). Urine ketones were negative. MRI brain (Fig. 3) revealed characteristic T1 hyperintensity involving the bilateral putamen. Based on the imaging and clinical findings, hyperglycemia-induced HCHB syndrome was diagnosed.

Fig. 3

Axial fast spin echo T1W MR image (a) and axial T2 weighted (T2W) MR image (b) of brain in a 69-year-old male with hyperglycemia-induced HCHB syndrome. a Bilateral putaminal T1 hyperintensity (long arrows). b Peripheral T2 hyperintensity with central T2 hypo intensity (short arrows) involving the bilateral putamen

Case 4

A 46-year-old male with uncontrolled diabetes mellitus presented with complaints of multiple episodes of facial, right upper-limb spasmodic and jerking movements for a day. On admission, blood glucose was very high (530 mg/dl, normal range 70–140 mg/dl) and ketones were negative. HbA1c levels were also elevated (10.9%, normal range 4–5.6%). Serum osmolality was normal at 295 mOsm/kg (normal range 275–295 mOsm/kg). MRI (Fig. 4a, b) revealed asymmetric subcortical T2/FLAIR hypointensity with overlying gyral hyperintensity in the bilateral occipital regions. On susceptibility weighted imaging (SWI), subtle blooming was seen in the hypointense subcortical regions. The observed findings pointed to a final diagnosis of NKH-related seizures.

Fig. 4

Coronal FLAIR MR image (a) and axial T2W MR image (b) of brain in a 46-year-old male with NKH-related seizures. a Bilateral occipital subcortical hypointensity (long arrow) and gyral hyperintensity (short arrow). b Similar signal alteration in the respective regions

Case 5

A 25-year-old female with type I diabetes mellitus presented with altered sensorium and episodes of generalized tonic clonic seizure. On examination, the patient showed kussmaul breathing and had altered sensorium with a Glasgow Coma Scale (GCS) of E4V1M6. Laboratory investigations showed an elevated blood glucose level (632 mg/dL, normal range 70–140 mg/dl). Also elevated HbA1c (11.3%, normal range 4–5.6%), blood urea (53 mg/dl, normal range 5–20 mg/dl) and serum creatinine (1.5 mg/dL, normal range 0.6–1.1 mg/dL) were observed. Metabolic acidosis was confirmed on arterial blood gas examination. Serum sodium level was low (119 mmol/L, normal range 135–145 mmol/L). Initially, serum potassium level was normal (5 mmol/L, normal range 3.5–5.5 mmol/L). Rehydration with 0.9% saline and insulin infusion was immediately started at 0.1 U/kg/h. Unprecedented increase in sodium levels to 139 mmol/L was observed during the first day of treatment with drop in glucose levels by 320 mg/dl. A decrease in potassium levels to 2.6 mmol /L was also observed.

After the first day, the sensorium did not improve effectively and the GCS remained low (E4V2M6). Rehydration was continued with isotonic 5% glucose solution (100 ml/h) and insulin infusion at 0.1 U/kg/h. At the end of second day of therapy, glucose levels were normalized (140 mg/dl) and sodium levels had increased (147 mmol/L). However, the patient’s sensorium only started slowly improving after 36 h of admission (E4V4M6). After complete sensorium improvement at the end of second day, the patient became conscious and fully oriented. However, sudden onset bilateral lower-limb weakness and paresthesia was observed. Prolonged alteration of sensorium and bilateral lower-limb weakness despite the correction of the underlying hyperglycemia led to the suspicion of secondary complications of DKA such as cerebral edema, infarct, dural sinus thrombosis and the rare osmotic demyelination syndrome (ODS).

MRI (Fig. 5a) revealed symmetric well-defined T2 hyperintense areas with concentric inner hypo/hyperintensity in the subcortical and deep white matter of bilateral perirolandic region. DWI (Fig. 5b) showed mild diffusion restriction in the involved areas with an open-ring-like configuration toward the gray matter. No enhancement/blooming was seen.

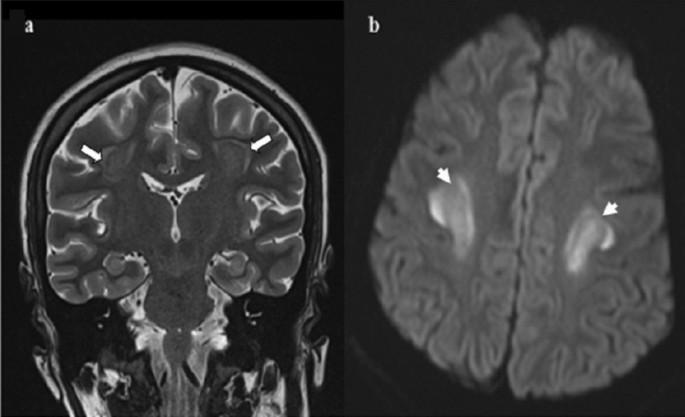

Fig. 5

Coronal T2W MR image (a) and axial DW image (b) of brain in a 25-year-old female with extra-pontine myelinolysis (post-DKA correction). a Symmetric altered signal intensity involving the white matter of bilateral perirolandic region (long arrows). b Open-ring-like diffusion restriction in the involved areas (short arrows)

After 10 days, a follow-up MRI (Fig. 6) was done for case 5, which showed minimal increase in size and T2 signal intensity (Fig. 6a) of the involved areas with normalization of ADC values. MR spectroscopy with intermediate time of echo (TE) 135 ms (Fig. 6b) revealed an elevated choline peak and choline/creatinine ratio suggesting an increased cell-turnover.

Fig. 6

Follow-up axial fast spin echo T2W MR image (a) of brain in a 25-year-old female with extra-pontine myelinolysis (post-DKA correction) shows subtle increase in the size and T2 signal intensity (long arrows) of the involved areas. MR spectroscopy (b) reveals an elevated choline peak (short arrow)

There was no hypoxic insult in this case ruling out hypoxic ischemic encephalopathy as a differential. The lesions and symptoms were also not explained by ischemia or edema. In view of raise of serum sodium above the normal limits, the possibility of extrapontine myelinolysis was the most likely. Even after one month of follow-up, the patient had residual bilateral lower-limb weakness (Power—3/5), which did not improve further with therapy.

Discussion

Glucose forms the main source of energy for the neurons of the brain. Though the adult brain makes only 2% of the total body weight, it utilizes around 20% of the total energy derived from glucose [1]. In patients with diabetes mellitus, disturbances in glucose homeostasis occur resulting in severe alteration of normal brain function. Among the two main types of DM, type 1 is predominantly seen in children and young adults where the beta cells responsible for insulin production are destroyed by altered immune function, whereas in type 2 there is an age-related impairment in secretory function of beta cells [2, 3]. Several other types have been described, which are beyond the scope of this article.

HHS and DKA are the most severe acute complications of diabetes mellitus. Though DKA is usually seen in type 1 diabetic patients, it can also result in type 2 patients with conditions of extreme stress. HHS is usually seen in older patients with type 2 DM and an inadequately hydrated status. HHS and DKA can overlap and usually present with alteration of consciousness. Other typical clinical and laboratory findings usually help to clinch the primary diagnosis easily [4]. Secondary complications of DKA and HHS include cerebral edema, cerebral infarction, cortical venous thrombosis, osmotic demyelination and others. These have non-specific symptoms, most commonly presenting as deterioration of prior clinical status.

Uncontrolled NKH can present with a myriad of symptoms such as seizures, focal neurological deficit, movement disorders, hyperthermia and vestibular dysfunction [5]. These are inadvertently misdiagnosed as epilepsies and strokes with associated hyperglycemia. Many researchers have proved the direct association between these non-specific symptoms and hyperglycemia by demonstrating their reversal with targeted therapy [6]. Regarding the secondary complications of DKA-, HHS- and NKH-induced neurological symptoms, imaging using computed tomography (CT) and MRI plays a significant role to help with the proper diagnoses. Neuroimaging also excludes other major treatable causes.

As per previous literature, disappearance of signal abnormality with glycemic control has been observed in many patients [7]. In keeping with the clinical counterpart of this, complete resolution of symptoms was seen in the two patients (case 1 and 3) with symptoms of chorea. Follow-up on imaging could not be done for the reported cases with HCHB. Sites commonly involved include putamen, caudate nucleus, globus pallidus and anterior limb of internal capsule, in the same order of frequency. T1 hyperintense basal ganglia are not specific for NKH and can be observed in other conditions including chronic hepatic encephalopathy, post-cardiac arrest encephalopathy, hypoglycemic coma, and mild focal ischemia. Owing to its resolution following therapy, petechial hemorrhages rather than post ischemic calcifications, have been postulated to be the cause underlying the signal abnormality [7, 8]. Manganese and iron deposition have been found in other causes such as chronic hepatic encephalopathy and neurodegenerative disorders. Cases with bilateral putamina lesions with bilateral, unilateral and no movement disorder each in different patients have been described by various authors [7, 8]. In keeping with this, bilateral movement disorder and bilateral putamina lesions were observed in case 3.

Seizures in diabetic patients occur mostly due to hypoglycemia, DKA or hyperosmolar coma. Reports in literature have shown NKH in itself to present as seizures [9]. Apart from the usual post-ictal changes in MRI such as gyral hyperintensity and diffusion restriction [10], specific MRI findings of NKH have also been reported. Subcortical T2 hypointensity with other associated features such as overlying cortical T2 hyperintensity, focal cortical enhancement and bilateral T2 striatal hyperintensity have been observed in such patients. In keeping with this, MR imaging helped to confirm NKH as the underlying cause for the focal seizures in case 4. Unfortunately, this patient was lost to follow-up and repeat MRI was not done. As per literature, the subcortical hypointensity has resolved after the control of hyperglycemia in most cases. In few patients, the overlying cortical T2 hyperintensity had progressed to gliosis appearing as interval FLAIR hyperintensity [11]. The history of hyperglycemia and electroencephalogram (EEG) findings helped in excluding other mimicking conditions such as hypoxic insult, meningitis and moyamoya disease [12]. The cause of such hypointensity was presumed to be due to mineral deposition and ischemia, with blooming on gradient echo (GRE) sequences supporting the former as was observed in case 4 [13,14,15].

Neuroimaging helps to differentiate the secondary complications of DKA. In case 5, increase in sodium levels of more than 18 mEq over 48 h along with associated hypokalemia raised the suspicion of ODS clinically [16, 17]. MRI helped in revealing the symmetric lesions involving the subcortical and deep white matter of bilateral perirolandic region. Spastic quadriplegia has been observed in many cases of ODS. However, paraplegia observed in this case is very uncommon in ODS. This can be explained by the atypical perirolandic location rather than the usual pontine involvement of central pontine myelinolysis (CPM) [18]. Extrapontine sites of ODS occur most commonly in the basal ganglia and thalamus [19].

Cortico-subcortical location of extrapontine ODS is being increasingly described in the literature [20]. Typically, the lesions have been described to be oriented parallel to the long axis of the gyri and surrounded on three sides by its crown and sides. A thin rim of spared white matter has also been demonstrated between the lesions and the cortical gray matter. This location has been explained by the convergence of neural fibers at a subcortical location where all the myelinotoxic factors from the vascular rich gray matter reach the white matter [21]. Cortical involvement has been observed to be a multifactorial response to associated hypoxia, ischemia and other factors along with osmotic disturbances [22, 23]. The subcortical involvement has been suspected to be more specific for ODS [24, 25]. In keeping with this, the symmetric subcortical lesions and thin rim of spared white matter in case 5 showed a characteristic pattern for ODS. The deep white matter involvement, however, has not been described in the literature to the best of our knowledge.

Also, demyelinating conditions are the most common cause for ring lesions in DWI as has been observed in case 5 [26]. In a case study on ODS, serial MR spectroscopy had revealed an increased choline peak irrespective of the phase of the disease [27], whereas in case of stroke, only chronic infarcts (> 14 days) showed a mild increase in choline peak [28]. An elevated choline peak during the subacute phase of the pathology in this case ruled out the possibility of infarction, in keeping with the above studies. Though there are several reports of cortical and subcortical involvement in extrapontine myelinolysis (EPM) [25], case 5 is unique in that there is deep white matter involvement as well. It has been stated that the extrapontine changes temporally precede the central pontine changes [29,30,31]. Absence of further pontine or basal ganglia involvement even in the follow-up MRI was another unique feature of this case. It is presumed that the timely normalization of the rate of osmolality shift prevented further pontine involvement. Confirmation of diagnosis by histopathology was not available due to patient’s concerns regarding post-procedural neurological complications.

Conclusions

Neuroimaging aids in identifying the basal ganglia abnormalities of hyperglycemia-induced hemichorea, hemiballismus syndrome. Similarly, imaging also helps in demonstrating the typical subcortical hypointensity caused by non-ketotic hyperglycemia-related seizures. By knowing these typical imaging patterns, hyperglycemia can be ascertained to be the sole causative agent. Thereby, inadvertent misdiagnosis of seizures and strokes having mere association with hyperglycemia can be avoided. In rare scenarios of osmotic demyelination secondary to correction of diabetic ketoacidosis, extra-pontine involvement identified at imaging may help in timely correction of the osmolality shift preventing further central pontine involvement. Further research on a broader perspective will be required to explain the pathogenesis of this rare presentation of osmotic demyelination syndrome.
