The effects of anatomical location and distance from dental implants on the quality and quantity of metal artifacts in cone beam computed tomography scans: a cross-sectional study



Artifacts in cone beam computed tomography (CBCT) images can cause disruptions in diagnosis and treatment. Multiple factors influence the artifacts, including the quality and technology of devices, positions, patient-related factors, device settings, and bone density. Besides, anatomical area and distance from the implant affect the artifacts. This study aimed to investigate the effects of anatomical location and distance from the implant on the quality and quantity of artifacts.


A total of 200 CBCT images of patients with titanium implants and prostheses in the anterior and posterior regions of the maxilla and mandible were evaluated in this study. Four areas were assessed for each implant in three apical, middle, and cervical regions with distances of 3 mm, 4 mm, and 5 mm from the implant. Besides, the impact of adjacent implants on the artifacts was investigated. An ANOVA test with post hoc Bonferroni correction was used to analyze variable differences between subgroups.


The differences were statistically significant, except for the difference between the posterior areas of the upper and lower jaws. A comparison of different areas revealed that most artifacts were related to the anterior maxilla, followed by anterior mandibular regions. The results of covariance analysis indicated that region and location had independent effects on the amount of artifacts.


Artifacts are more frequent in the anterior region compared to the posterior site. They are also more frequent in the maxilla than the mandible and cervical areas close to the implant than the middle and apical regions.


The first cone beam computed tomography (CBCT) apparatus was the NewTom 9000 (Quantitative Radiology, Verona, Italy), designed in 1998 for maxillofacial imaging [1]. Since then, there has been rapid progress in generating CBCT units for imaging the maxillofacial area. In dentistry, CBCT yields 3D images that are more useful than conventional tomography due to more straightforward image acquisition and lower radiation doses [2,3,4]. A tomography scan is performed using a cone-shaped X-ray beam emission in a 360-degree rotation; the complete structure volume can be captured. The images are reconstructed in a computer system bi-dimensionally, three-dimensionally, and volumetrically [5].

Effective dental implant rehabilitation requires postoperative assessment and accurate preoperative surgical planning. In implantology, linear assessments of height and depth increase immunity and provide novel opportunities in oral rehabilitation. CBCT facilitates the remaining bone quantification and the precise localization of anatomical structures [6]. Although CBCT images have several advantages, they also have some limitations, including the formation of image artifacts, which is their most common disadvantage [7]. Generally, an image artifact represents a structure near an image, which is produced based on reconstruction data and does not correspond to the actual features of the evaluated object [8, 9]. It is known that gray-level non-uniformities result in artifact generation in reconstructed CBCT images, which can simulate obscure results similar to pathologies [7].

Artifacts have different origins, associated with variations between the physical features of an object and its attenuation coefficient delivered by the detector, besides the CBCT unit limitations, such as features of the mathematical algorithm in retroprojections used for image reconstruction. Also, object positioning and composition in the field of view (FOV) can disrupt this process [10, 11]. Moreover, patients may cause artifacts because of the presence of materials in the examination region and movements during image acquisition. On the contrary, reconstruction artifacts are related to errors in the reconstruction of obtained sections [12, 13].

For a better understanding, artifacts are divided based on factors related to their origin. The primary artifacts include motion artifacts, helical artifacts, ring artifacts, artifacts produced by highly dense materials, scatter artifacts, beam-hardening artifacts, scattering artifacts, pseudo-enhancement, noise artifacts, metal artifacts, extinction artifacts, and cone beam effect artifacts [7, 12]. Images are susceptible to artifacts in the presence of metals, such as dental implants and metallic restorations in the scanning region. Occasionally, metal artifacts result in unusable images. It has been reported that beam-hardening artifacts, streaking artifacts, and band-like radiolucent areas are the most common artifacts surrounding the implants, possibly affected by the implant material, distance, evaluated sites, bone type, FOV size, CBCT type, kilovoltage peak (kVp), milliamperage (mA), and voxel size [6].

Several studies have investigated the factors mentioned above that can contribute to forming artifacts in CBCT images [9, 14,15,16]. However, previous studies demonstrated some limitations, and their reporting was inconclusive. For example, the study by Machado et al. [11] sought to quantitatively assess metal artifacts from implants in various maxillomandibular locations using CBCT images. However, their study included implants of different lengths and diameters, which could have affected the results. Another study by Farhangnia et al. [14], which only included mandibular implants, fell short of thoroughly evaluating all anatomical locations of implants placed within jaws. Therefore, the current study aimed to assess the quantity and quality of metal artifacts in CBCT images produced by similar dental implants in the anterior and posterior regions of the maxilla and mandible. The null hypothesis was that the location of the placed implants would significantly affect the generation of artifacts.


This cross-sectional study was performed at the School of Dentistry of Islamic Azad University, Tehran, Iran. Our institutional research ethics committee approved this study (No.: IR.IAU.DENTAL.REC.1399.090), and all participants’ written informed consent was obtained. This study examined the CBCT images of patients with titanium implants and prostheses in different areas of the maxilla and mandible (anterior and posterior areas). All images were analyzed in four implant locations within the jaws and at three different sections of each implant. Besides, the effect of “adjacent implants” on the artifacts was evaluated.

The sample size was calculated based on previous studies [11] and the number of study variables. The required sample size was calculated using the following formula \(n = \frac{{\left( {Z_{\alpha } + Z_{\beta } } \right)^{2} P\left( {1 - P} \right)}}{{e^{2} }}\), in which e is the level of precision, P is the desired proportion in the population, and Z is the value corresponding to the area under the standard normal curve. Therefore, considering α = 5%, β = 10%, (Z = 3.24), P = 80%, and e = 10%, the minimum sample size was 168 implants (42 implants in each group).

Patients who were referred to the respective faculty of the university from September 2021 to September 2022 for a new dental implant surgery and already had other dental implants placed in their jaw were the candidates to participate in this study. Four study groups were considered in this investigation: Group 1: patients who had implants in the anterior maxilla; Group 2: patients who had implants in the posterior maxilla; Group 3: patients who had implants in the anterior mandible; and Group 4: patients who had implants in the posterior mandible. The anterior implants referred to implants in the canine and incisor teeth, and the posterior implants referred to implants in the premolars and posterior area [11, 17, 18]. The sampling was conducted using the convenience sampling method until the sample size reached 50 implants in each group (n total = 200 implants).

CBCT images were acquired using a Kodak 9500 3D CBCT system (Carestream Health, Rochester, NY) and based on an established acquisition protocol [19]: voxel size, 0.180 mm3; mA, 10 mA; voltage, 90 kVp; grayscale, 16 bits; exposure time, 11 s, and FOV, 10 × 10 cm2. The scan parameters and protocol adhered to the radiation protection principle of justification [20]. All patients wore a lead apron to protect the body trunk. Inclusion criteria comprised (1) partially edentulous patients, (2) of any sex and (3) age (above 18 years old), (4) having bone-level dental implants, all from the same brand, model, and dimension, (5) in any maxillary or mandibular regions (6) loaded with prosthetic restorations (all with titanium abutments and cemented porcelain-fused-to-metal restorations) at the time of examination. The exclusion criteria were as follows: (1) zygomatic implants, (2) implants without restorations, (3) implants in an area that received bone grafts previously, (4) implants adjacent to endodontically treated teeth (with/without metallic intracanal posts), or (5) adjacent to teeth restored with amalgam fillings or prosthetic crowns.

The acquired images were analyzed using the OnDemand 3D Dental software (Cybermed, Seoul, Korea) and reported as maximum/minimum values and mean ± standard deviation (SD). The CBCT images were then divided into three subgroups. (I) Based on implant positioning: isolated or adjacent to other implants. The adjacent implants included implants with a maximum inter-implant distance of 5 mm [11]. (II) Based on the cross section along the implant length, which included each image’s apical, middle, and cervical regions. The axial images were reconstructed for each implant in the apical, middle, and cervical cross sections, and they were examined for the grayscale value (GSV) (Fig. 1a–d). The apical section represents an area that enables the examiner to assess the entire diameter of the implant. In contrast, the cervical area represents an area where the examiner can view the whole diameter of the implant before the prosthetic connection. For each implant, the middle section was midway between the apical and cervical images. (III) Based on the distance from the implants’ platform: the GSV was assessed around each implant in the apical, middle, and cervical areas at three distances of 3 mm, 4 mm, and 5 mm from the implant platform (Fig. 2). The entire grouping is graphically represented in Fig. 3. The region of interest (ROI) was drawn as circles with a center congruent with the implant center and a radius placed at 3-, 4-, and 5-mm distances from the implant platform, using the ROI tool of the OnDemand software in the three cross sections of the implants mentioned above. This region covered the entire implant area and the surrounding bone. Following the technique presented by Pauwels et al. [19], the artifacts found in each chosen ROI were counted. A histogram tool was used to determine the maximum and minimum gray values, which were used to estimate the actual standard deviation (SD), carried out in Microsoft Excel (ver. 2010, Windows 10, Microsoft, USA). As a constant value, the maximum theoretical standard deviation depends on the scanner type. The images created using the CBCT scanner utilized in the present investigation are of a 16-bit scale (65,536 Gy values). Given the same value, the maximum theoretical standard deviation, which corresponds to half the gray values of a 16-bit image, was determined (32,768 values). Based on the study by Pauwels et al. [19], the quantification of artifacts can be defined as actual standard deviation/theoretical maximum standard deviation × 100. As a result, the actual standard deviation was transformed into a percentage of the maximum theoretical standard deviation, in which higher percentages are rendered as artifacts with more prominence. To assess the method’s reproducibility, all scans were reviewed by two oral and maxillofacial radiologists twice, separated by two weeks.

Fig. 1
figure 1

Grayscale value at the a cervical region (d-blue line; the most cervical zone that permitted a view of the implant’s whole diameter directly below the prosthetic connection), at the b middle region (d-yellow line; the area in the center of the previously chosen cervical and apical parts for each specific implant), and at the c apical region (d-red line; the most apical cross section that enabled visualization of the total implant diameter) of a four-millimeter diameter implant with a peri-implant perimeter having 12 mm diameter (at a 4 mm distance from the implant platform; green circle)

Fig. 2
figure 2

Three distances, 3-, 4-, and 5-mm from the implant platform, were used to evaluate the grayscale value around each implant at the apical, middle, and cervical sections

Fig. 3
figure 3

A graphical illustration demonstrating the main study groups and subgroups

The mean values of artifacts were compared between the groups using the ANOVA test. The Bonferroni test was also used for pairwise comparisons between the subgroups. To lower the possibility of a false positive, statisticians employ the Bonferroni test, which is an adjustment to ensure that data would not falsely appear as statistically significant. ANCOVA was also applied to evaluate the independent effects of implant position and region on the amount of artifacts. The level of statistical significance was set at 0.05. The Wilcoxon signed-rank test was also performed to assess paired nonparametric data regarding adjacency to the implant. The intra- and inter-class correlation coefficients (ICC) were computed to evaluate the intra-observer and inter-observer agreements.


This study examined 200 CBCT scans from 200 patients with 200 placed implants further classified into four main groups based on the placed area in the maxilla or mandible (n each group = 50) and into subgroups II (n = 3; apical, middle, cervical) and III (n = 3; distances: 3, 4, and 5 mm); therefore, in total, 1800 radiographic assessments (200 total × 3 subgroup II × 3 subgroup III) were performed in this study. Also, 450 samples (50 in each leading group × 3 subgroup II × 3 subgroup III) were evaluated regarding anterior or posterior locations within jaws. The mean values of artifacts in each group are presented in Table 1. The highest and lowest mean ± SD amount of artifacts (gray value) were observed in the cervical region at 3 mm (4773.224 ± 1428.128) and in the apical region at 5 mm (1832.190 ± 694.467), respectively.

Table 1 Mean ± SD of GSV in 36 groups based on the position/area

As shown in Table 2, a comparison of different conditions based on the Bonferroni test indicated that the observed differences for various distances were statistically significant, suggesting the impact of distance from the implant on the artifacts. The significant differences are shown in Table 2.

Table 2 Comparison of different sectional regions (apical, middle, cervical) and their relationships

To determine the region’s impact, the apical, middle, and cervical areas were compared at different distances and categorized based on their 95% confidence intervals (CIs), as shown in Fig. 4.

Fig. 4
figure 4

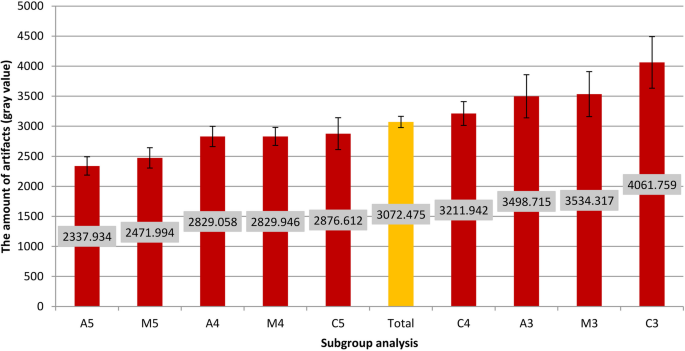

Artifact value at a confidence interval of 95% (A: Apical; M: Middle; C: Coronal; 3: 3 mm from the implant; 4: 4 mm from the implant; 5: 5 mm from the implant)

As shown in Table 3, most artifacts were found in the maxilla, followed by the anterior region of the mandible. The highest and lowest mean ± SD amount of artifacts (gray value) based on maxillomandibular locations were observed in the anterior maxilla, 3720.090 ± 1515.5030, and the posterior maxilla, 2612.258 ± 2833.5081. According to Fig. 5, the results of the Bonferroni test at 95% CIs indicated significant differences between all evaluated regions except for the posterior areas of the jaws. In other words, posterior samples showed fewer artifacts; the maxilla had more artifacts among anterior samples. The analysis of covariance showed that area (cervical, middle, and apical) and position (anterior vs. posterior and upper vs. lower jaw) had independent effects on the amount of artifacts (F = 16.9 and F = 36.5, respectively; P < 0.0001 for both).

Table 3 Average artifacts in different areas of both jaws
Fig. 5
figure 5

A comparative chart of the average values of artifacts in different areas (Ant anterior, Post posterior, Max maxillary, Mand mandible)

There were 20 specimens of adjacent implants in this study. The analysis of mean artifacts related to adjacent implants showed that the mean value of pairs was not significantly different. As the mean distribution of data was not normal in one of the groups, the Wilcoxon signed-rank test was applied, which indicated the same results (P = 0.71). Moreover, the correlation of sample means was very weak in the adjacent implants (r = 0.27, P = 0.24). Therefore, the amount of artifacts was related to location, although it was not significantly affected by the presence of adjacent implants. As shown in Table 4, the mean values of adjacent pairs were not significantly different. In our study, the intra- and inter-observer agreements were 96% and 92%, respectively. These results demonstrated both high and excellent inter- and intra-examiner reliability.

Table 4 Mean values of adjacent pairs


The current study was performed to quantitatively and qualitatively evaluate metal artifacts in the anterior and posterior areas of the maxilla and mandible generated by dental implants in CBCT images. Based on the results of data analysis in the present study, the null hypothesis was accepted. There were more artifacts at a 3-mm distance from implants compared to 4-mm and 5-mm distances in all anatomical locations (cervical, middle, and apical areas). In other words, maintaining distance from metal implants can reduce the artifacts’ rate and the mean gray value. Also, artifacts were more frequent in the anterior and upper jaw than in the posterior and lower jaw areas. The results of the ANCOVA test showed that the orientation and location of metal implants independently affected the rate of artifacts (P < 0.0001). A comparison of nine positions revealed that the highest rate of artifacts was related to the cervical position, while the apical and middle areas showed similar rates of artifacts. The pairwise comparison of different positions revealed that these differences were primarily significant. Overall, the anterior part of the upper jaw accounted for the highest rate of artifacts, followed by the anterior part of the lower jaw. On the other hand, the posterior areas of the upper and lower jaws were comparable, without any significant differences.

In a study in 2018, Machado et al. [11] conducted an experiment using the same methodology as the present study. They analyzed CBCT images to quantitatively compare metal artifacts caused by implants in various maxillomandibular areas (anterior maxilla, posterior maxilla, anterior mandible, and posterior mandible). Similar to our findings, the anterior areas generated most artifacts compared to the posterior regions. The cervical region was most affected by artifacts, and there was no discernible difference in the quantity of generated artifacts between solitary and neighboring implants. However, in contrast to our results, the rate of artifacts was higher in the mandible compared to the maxilla; various factors, such as differences in the device brand and variable FOVs and mAs, may explain this difference. Similar to our findings, Oliveira et al. [21] reported that the amount of artifacts varied depending on the position of the implant, with the highest rate observed in the anterior regions. These findings suggest that the GSV may vary based on the position and location of the implants. Variabilities in the density and thickness of the maxilla and mandible can justify the differences in the number of artifacts. Evidence suggests similar objects in different anatomical positions can have different grayscale values in CBCT images [8]. It has been shown that a single object may have different CT values in different anatomical positions, with the highest and lowest values reported in the anterior and posterior maxillary areas, respectively [8]. Moreover, Valizadeh et al. revealed that an object’s position influenced the GSV of tomographic images. Comparable to the findings of this investigation, the highest rate of artifacts was attributed to the cervical one-third, probably due to prosthetic components on the implant. It is worth mentioning that titanium has a lower atomic number than metals used to fabricate prosthetic crowns, such as cobalt-chromium crowns. A higher atomic number is associated with more artifacts. Therefore, the presence of a prosthesis and titanium abutments can explain the increase in the rate of artifacts in the cervical area [22]. The quantity of metal artifacts produced by dental implants positioned in various anatomical regions within the mandible on CBCT scans was also measured by Farhangnia et al. [14]. Despite the fact that they were limited to examining mandibular scans, they discovered that metal artifacts had a more significant impact on the anterior than the posterior mandibular regions. They also found that the cervical portions produced more artifacts than the apical zone, consistent with our findings.

In agreement with the current study’s findings, Vahdani et al. reported a higher contrast-to-noise ratio in the maxilla than the mandible; this difference between jaws could be attributed to variable laboratory and patient-related factors [23]. More artifact production occurs when X-rays pass through the maxilla or mandible in specific areas because they interact with the surrounding bone, teeth, and dental implants on a single plane [16]. The effect of the exomass, or the entire craniofacial area inside and outside the FOV, is another theory that could account for this variance in artifacts relative to anatomical position. Although a sizable portion of the patient’s tissue attenuates X-rays, it is excluded from the resultant image [10, 18, 19, 21]. Gray value measurements in the mandible and maxilla are also impacted by nearby anatomical features, such as the spinal column and skull [18, 24].

A greater gray value range, or increased artifact creation, was anticipated between neighboring implants since metallic substances attenuate X-ray radiation more effectively than soft tissues and bones [25]. Nevertheless, no discernible variation was seen in the amount of artifacts surrounding solitary implants compared to those surrounding adjacent ones. This outcome could be explained by the narrow ROI specified to assess the artifacts; therefore, neighboring implants had little to no impact.

Besides, Benic et al. [10] assessed the effect of distance from the buccal surface of the implants (0.5, 1, and 2 mm) on the amount of artifacts and reported consistent results with the present study. As the distance increased, the artifact intensity was shown to significantly decrease. Fontenele et al. [9] evaluated the magnitude of artifacts generated from zirconium and titanium implants at various distances and examined their effects on the quality of CBCT images. The quantity and magnitude of artifacts in CBCT are more noticeable in areas near the implant; these findings agree with the current results. These findings indicate that increased distance from the implant decreased the artifacts’ rate and the average gray value. Several other studies have investigated the relationship between distance from the implant and the rate of artifacts caused by metal implants. In line with our findings, other studies [26, 27] have also confirmed that artifacts occurred at the highest rate in the closest locations to the implant. In contrast, increasing the distance from the implant reduced the rate of artifacts. Implants generally contain metal elements in their structure with different absorption and scattering properties relative to the surrounding bone tissue, which explains the increase in the rate of artifacts and the average gray value [28].

An image artifact cannot be observed in a tomography image of an object; however, it may occur near the image generated by the reconstruction data. Artifact formation in CBCT images can be a detrimental factor in the processes of diagnosis and examination; numerous factors can influence this phenomenon. These artifacts can be intrinsic, depending on the device’s quality, technology, and physical features [29], or can be related to image acquisition setting and exposure parameters, affecting the rate of artifacts [6]. Available methodologies and technologies are evolving to decrease the amount of these artifacts. It has been reported that a smaller FOV and the application of a metal artifact reduction (MAR) tool could reduce the occurrence of metal artifacts [15, 30]. The direction and tilt of the jaw are among other factors that influence the amount of artifacts; changing the jaw direction and tilt by almost 15 degrees could increase the images’ quality and decrease the artifacts’ rate and the duration and dose of exposure [16]. Future in vitro research must thus be developed to account for these factors when evaluating the artifacts produced by implants. Furthermore, research linking the degree of artifacts with diagnostic accuracy is necessary to determine the true degree of interference these undesired images cause in clinical practice.


According to the results of the present study, the magnitude and quantity of artifacts in CBCT images are affected by the anatomical location in both jaws and distance from dental implants. Artifacts were more pronounced and abundant in the upper jaw, anterior areas, and regions closer to the implant. Significantly, the anterior maxilla showed the highest rate of peri-implant artifacts, followed by the anterior mandible, while the posterior maxilla and posterior mandible indicated no significant differences. Also, the adjacent implants did not significantly influence the amount of artifacts.
