T2 mapping post acute myocardial infarction: a novel technique in assessing myocardial edema

Egyptian Journal of Radiology and Nuclear Medicine volume 55, Article number: 174 (2024) Cite this article

Abstract

Objective

Cardiovascular magnetic resonance (CMR) is considered the gold standard imaging modality for assessing myocardial infarction lesions, offering precise myocardial tissue characterization. Elevated transverse relaxation time (T2) serves as a specific indicator of increased myocardial water content, thus becoming a valuable index for myocardial edema. However, conventional T2-weighted CMR sequence exhibits several limitations, primarily providing qualitative information. In contrast, recently developed quantitative T2 mapping techniques overcome these limitations, enabling a more reliable assessment of myocardial edema. These techniques offer the advantage of diagnosing and monitoring myocardial injury without the necessity of contrast agents. Our study aims to add to a growing literature demonstrating the efficacy of quantitative T2 mapping technique to detect and quantify regions of myocardial edema post-myocardial infarction.

Result

Native T1 and T2 mapping accurately identified myocardial edema in all patients enrolled in the study. Notably, native T1 and T2 values exhibited a significant elevation in the infarcted myocardium compared to the remote myocardium (for T1: 1295.50 ± 87.65 vs. 1074.95 ± 92.86 ms, respectively; and for T2: 74.63 ± 6.51 vs. 52.53 ± 6.26 ms, respectively; p < 0.0001 for both). Microvascular obstruction was observed in 12 out of 20 patients, affecting one or more myocardial segments within the infarct areas. Among this subgroup, regions with a microvascular obstruction within the infarct zone displayed lower T1 and T2 values compared to areas of infarction without microvascular obstruction (for T1: 1115.05 ± 64.70 vs. 1295.50 ± 87.65 ms, respectively; and for T2: 53.65 ± 3.56 vs. 74.63 ± 6.51 ms, respectively; p < 0.0001 for both). Additionally, we provided reference values for myocardial T1 and T2 specific to our facility’s 1.5 Tesla CMR system, applicable to both infarct and remote myocardium.

Conclusion

Parametric T1 and T2 mapping techniques can detect and quantify myocardial edema resulting from myocardial infarction. The presence of microvascular obstruction that results from revascularization injury affects both T1 and T2 values. This information can be used and has broad clinical implications for diagnosis and guiding or monitoring the treatment of myocardial infarction.

Background

Acute myocardial infarction (AMI) is one of the leading causes of mortality and morbidity worldwide [1]. Following AMI, patients’ prognosis depends on various factors, including infarct size, percentage of salvaged myocardium post-reperfusion, microvasculature status within the infarct zone, and residual left ventricular (LV) function [2].While early restoration of blood flow to the ischemic myocardium is pivotal in limiting infarct size and reducing the risk of future heart failure and mortality, it paradoxically induces reperfusion injury, marked by microvascular lesions, inflammation, and edema, all of which contribute to adverse left ventricular remodeling and patient outcomes [3,4,5,6,7]. Conventional CMR techniques, including T2-weighted and post contrast T1-weighted sequences, can detect myocardial infarction and edematous areas [8]. However, these techniques offer qualitative rather than quantitative data, limiting their utility in follow-up examinations or comparative analyses among other subjects [9]. Moreover, problems inherent to T2-weighted CMR images such as surface coil intensity variations, high subendocardial signal from stagnant blood, and susceptibility to motion artifacts, have limited its widespread clinical acceptance for detecting myocardial edema [10]. Recent advancements in T1 and T2 parametric mapping techniques have demonstrated the ability to overcome these limitations, providing rapid, reproducible, and gadolinium-free acquisitions [7]. These techniques directly measure T1 and T2 relaxation times of tissues on a pixel-by-pixel basis, reflecting myocardial water content and injury severity [8, 9, 11,12,13,14]. Importantly, the values derived from T1 and T2 mapping techniques have prognostic significance through providing quantitative data on tissue characteristics that enable clinicians to assess therapeutic efficacy and tailor management strategies accordingly [11]. Despite their clinical promise, challenges in standardization persist, with mapping methods being site and vendor-specific, thereby hindering their integration into clinical decision-making and multicenter studies [15, 16]. Consequently, the need for establishing local reference values for T1 and T2 mapping specific to each imaging facility is emphasized [16]. Our study aims to evaluate the efficacy of these mapping techniques in detecting myocardial edema post-AMI thereby contributing to improved patient care.

Methods

Study population

The study prospectively enrolled twenty Patients with acute myocardial infarction (AMI), as defined by established diagnostic criteria [17], who presented to the Emergency Department (ED) and treated with primary percutaneous coronary intervention (P-PCI) in the Cardiology Department of Ain Shams University Hospital in the interval between June 2020 and December 2023. Medical history, clinical and electrocardiographic findings, as well as serological markers were recorded at admission. Patients with hemodynamic instability, a history of previous myocardial infarction or cardiomyopathy, as well as those with contraindications to CMR (e.g., non-MRI-compatible cardiac devices, aneurysmal clips, and cochlear implants) or MRI contrast, were excluded from the study. All patients provided written informed consent to participate in this study.

CMR acquisition

CMR imaging was conducted on all patients utilizing a 1.5 T Philips machine (Philips Achieva—XR Medical systems, Best, Netherlands), utilizing a dedicated phased array cardiac receiver coil.

CMR protocol

The CMR imaging protocol included the following sequences: Left ventricular (LV) cine imaging, T2-weighted short tau inversion recovery (T2W STIR), native T1 mapping, T2 mapping, and late gadolinium enhancement (LGE). All short-axis images were aligned with the cine short-axis slice position. T2W STIR, T1 mapping, and T2 mapping sequences were performed before administering gadolinium contrast. These sequences were obtained at basal, mid-ventricular, and apical short-axis levels, and were precisely aligned with the same plane as the short-axis cine images.

Cine imaging

Balanced steady-state free precession (bSSFP) cine images were acquired in both the four-chamber view and a stack of short-axis (SAX) slices covering the ventricles. Imaging parameters were repetition time (TR) of 2.8 ms, echo time (TE) of 1.38 ms, voxel size of 176 × 133, flip angle (FA) of 60°, field of view (FOV) of 350 × 286 mm2, slice thickness of 8 mm, sensitivity encoding (SENSE) factor = 2, and acquisition of 30 cardiac phases.

T2-weighted STIR imaging sequence

Edema-sensitive black-blood T2-weighted magnetic resonance (MR) imaging was conducted on the end-diastolic left ventricular short axes, employing a fat-suppression short tau inversion recovery (STIR) sequence. Imaging parameters were TR of 1600 ms (equivalent to two R-R intervals); TE of 90 ms; voxel size of 1.36 × 1.36 × 10 mm3; and a FA of 90°.

Native T1 mapping

T1 mapping data were acquired using the balanced steady-state free precession (SSFP)-based modified look-locker inversion recovery (MOLLI) technique [18]. The MOLLI scheme employed was a 3-beat (3s) 5-beat pattern, consisting of three acquisitions after the first inversion pulse, followed by two 3-heartbeat pauses and a third inversion for the last five acquisitions [19, 20]. The imaging parameters were as follows: TR of 2.2 ms, TE of 1.02 ms, voxel size of 2 × 2 × 10 mm3, FA of 35°, FOV of 380 × 256 mm2, slice thickness of 10 mm, and SENSE factor = 2.

T2 mapping

T2 mapping data were acquired using a navigator-gated black blood-prepared gradient spin-echo sequence (GraSE) [20]. The imaging parameters were set as follows: TR of 1 heartbeat, 9 echoes, TE of 12 ms, echo spacing (∆TE) of 6.2 ms, voxel size of 2 × 2 × 10 mm3, FA of 90°, echo planar imaging (EPI) factor of 3, FOV of 380 × 380 mm2, slice thickness of 8 mm, and SENSE factor = 2.

Late gadolinium enhancement

LGE imaging was conducted 10 min post-injection of a bolus containing 0.1 mmol/kg of gadoterate meglumine (Dotarem). Utilizing a three-dimensional phase-sensitive inversion-recovery gradient-echo T1 sequence (PSIR) after adjusting the inversion time to nullify normal myocardium. Images were acquired in the same planes as the bSSFP cine images, with the following imaging parameters: TR of 5.50 ms, TE of 2.40 ms, voxel size of 1.36 × 1.36 × 8 mm3, and a flip angle of 15°.

Image analysis

Dedicated software (Philips IntelliSpace Portal workstation, version 8.0) was used for analysis and post-processing. Two experienced cardiac imaging radiologists independently evaluated all images. In the case of disagreement, a third radiologist would be asked to independently evaluate the images to reach a consensus.

Evaluation of left ventricular function

Cine images in the short-axis (SAX), 2-chamber and 4-chamber views were assessed for wall motion abnormalities. Left ventricular ejection fraction (LVEF) was automatically calculated after manually contouring the epicardial and endocardial borders of the left ventricle during end-systolic and end-diastolic phases in SAX. T2W-STIR and LGE images were qualitatively assessed for the presence of edema.

T1 and T2 mapping

The left ventricular myocardium was delineated by manually contouring the endocardial and epicardial borders, ensuring the exclusion of blood or epicardial fat. The inner trabeculated muscle layer was also omitted. These contours were copied to other images and adjusted accordingly. The final contours were transferred to a color map as illustrated in Figure 1. The myocardial region of interest (ROI) was semi-automatically segmented into a 16-segment bull’s-eye plot following the American Heart Association (AHA) model: 6 basal, 6 mid-ventricular, and 4 apical segments [21]. The edematous myocardial segments were identified as regions within the left ventricle exhibiting hyperintensity on T2W STIR images and enhancement on late gadolinium images. The threshold used for signal intensity indicating myocardial edema was 2 standard deviations above the mean intensity of a reference region of interest (ROI) placed in remote unaffected myocardium (180° from the affected zone and lacks the visible evidence of infarction such as edema, enhancement, or wall motion abnormalities on cine images) [22, 23]. Microvascular obstruction (MVO) was characterized by the presence of a dark zone within an area of gadolinium enhancement. To quantify T1 and T2 values in regions of MVO, T1 and T2 map images were matched with the corresponding late gadolinium enhancement (LGE) images by slice position. Measurements were then conducted on the T1 and T2 maps within the regions of interest as determined by LGE [24]. In total, 320 segments were analyzed across the 20 patients and classified into three categories: normal segments, infarct segments without microvascular obstruction (MVO), and infarct segments with MVO. Results were averaged and compared for each segmental level (i.e. basal, mid-ventricular, and apical slices). Additionally, overall average T1 and T2 values were calculated for each segmental level.

Fig. 1
figure 1

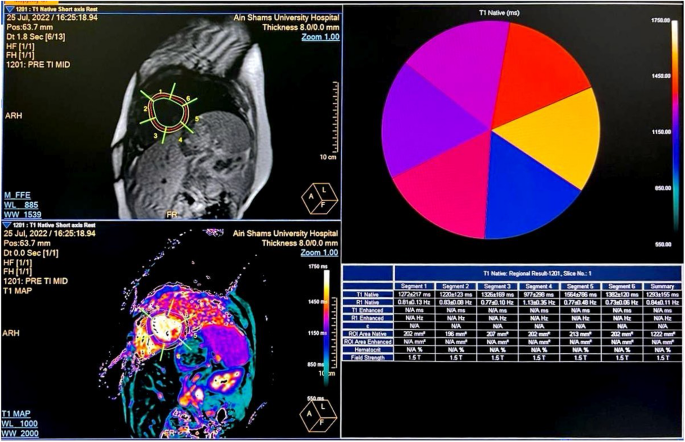

Demonstration of contouring and semi-automatic segmentation of the left ventricular myocardium in the mid-ventricular slice of T1 map images. On the left side, segmentation according to the AHA 16-segment model is shown. The right side shows a table displaying the measured T1 values for each myocardial segment of that slice

Full size image

Statistical analysis

Statistical analysis was conducted using the Statistical Package for the Social Sciences (SPSS) version 23. Categorical data are presented as numbers and percentages, while continuous variables are expressed as mean ± SD or median (interquartile range), as appropriate. Student’s t-test and one-way analysis of variance (ANOVA), with Bonferroni’s post-hoc test, were employed for comparing two and more than two normally distributed variables, respectively. All values are reported as mean ± SD and statistical significance was set at a p-value of less than 0.05.

Results

Study population

The age of the 20 enrolled patients ranged from 39 to 62 years, with a mean age of 51.50 ± 9.02 years. Among the patients, 13 were males and 7 were females. Regarding cardiovascular risk factors, 16 patients (80%) had hypertension, 12 patients (60%) had diabetes mellitus, 13 patients (65%) were smokers, and 11 patients (55%) had a positive family history of coronary artery disease in a first-degree relative. None of the patients had a history of any cardiac events before the current admission. The left anterior descending artery was the most affected, observed in 60% of patients, followed by the left circumflex artery (25%) and the right coronary artery (15%). The time from admission to CMR acquisition was 24–72 h.

CMR findings

Left ventricular function

All patients exhibited decreased overall left ventricular systolic function, with a mean left ventricular ejection fraction of 48% (range: 38–59%)

T1 and T2 mapping

Native T1 and T2 mapping images were able to identify myocardial edema and differentiate infarct from remote myocardium in 100% of the patients. The results of quantitative native T1 and T2 mapping are shown in Table 1. The average native T1 measured in infarct areas was 1115.38 ± 137.72 ms, 1161.25 ± 123.72 ms, and 1225.71 ± 134.05 ms in the basal, mid-ventricular, and apical segments, respectively. The average T2 measured in infarct areas was 59.88 ± 11.56 ms, 57.15 ± 12.52 ms, and 68.00 ± 10.17 in the same respective segments.

Table 1 Average native T1 values of infarct areas in basal, mid-ventricular, and apical segments
Full size table

Effect of microvascular obstruction (MVO) on native T1 and T2 values

Overall, evidence of microvascular obstruction (MVO) was observed in 12 out of the 20 patients. As illustrated in Table 2, The average native T1 value measured in normal myocardium, infarct areas without microvascular obstruction (MVO), and infarct areas with MVO was 1074.95 ± 92.86 ms, 1295.50 ± 87.65 ms, and 1115.05 ± 64.70 ms, respectively, and the average T2 value measured in the same respective areas was 52.53 ± 6.26 ms, 74.63 ± 6.51 ms, and 53.65 ± 3.56 ms. Both native T1 and T2 values were significantly higher in infarct areas without MVO compared to normal myocardium and infarct areas with MVO (p < 0.001). However, no statistical significance was observed between native T1 and T2 values of normal myocardium, and infarct areas with MVO (p = 0.095 for T1 and p = 0.427 for T2). Table 3 presents average native T1 and T2 values after additional stratification based on the ventricular segmental levels (i.e. basal, mid-ventricular, and apical).Across all segmental levels, native T1 and T2 values were significantly higher in infarct areas without microvascular obstruction (MVO) compared to normal myocardium, and infarct areas with MVO (p < 0.001 for all segmental levels), and no statistical significance was observed between native T1 and T2 values of normal myocardium, and infarct areas with MVO for basal, mid-ventricular, and apical segmental (p = 0.115, p = 0.255, and p = 0.956 for T1; p = 0.430, p = 0.148, and p = 0.861 for T2, respectively).The average T1 and T2 mapping values in normal myocardium, infarct myocardium without MVO, and infarct myocardium with MVO, respectively across the basal, mid-ventricular, and apical segments are displayed on a clustered bar chart in Figures 2 and 3.

Table 2 Average native T1 and T2 values in normal segments, infarct segments without MVO, and infarct segments with MVO
Full size table
Table 3 Average T1 and T2 values in the normal segments, infarct segments without MVO, and infarct segments with MVO, stratified by LV segmental level (basal, mid-ventricular, and apical)
Full size table
Fig. 2
figure 2

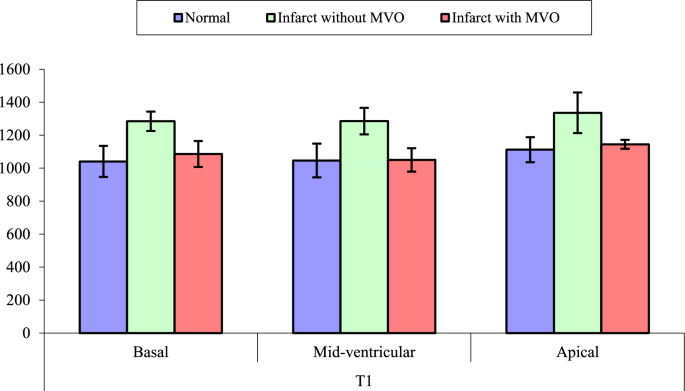

Clustered bar chart displaying the average native T1 values in the basal, mid-ventricular, and apical segments in normal myocardium, infarct myocardium without MVO, and infarct myocardium with MVO, respectively

Full size image
Fig. 3
figure 3

Clustered bar chart displaying the average T2 values in the basal, midventricular, and apical segments in normal myocardium, infarct myocardium without MVO, and infarct myocardium with MVO, respectively

Full size image

In this illustrative case from our study, a 52-year-old male presented with acute myocardial infarction (AMI) affecting the left circumflex artery (LCX) territory. Following admission, the patient underwent coronary angiography and percutaneous coronary intervention (P-PCI) in the culprit artery. Cardiac MRI was performed 36 h after admission, revealing a calculated ejection fraction of 51%. The CMR images are displayed in three short-axis (SAX) slices, namely basal, mid-ventricular, and apical, as shown in Table 4.

Table 4 T2-weighted STIR (T2W-STIR), late gadolinium enhancement (LGE), T1 maps, and T2 maps images in basal, mid-ventricular, and apical segments
Full size table

In another case, a 61-year-old male presented with an acute myocardial infarction (AMI) involving the left anterior descending (LAD) artery territory. The patient underwent coronary angiography followed by percutaneous coronary intervention (PCI) and stent placement in the affected artery. Cardiac MRI was performed 24 h after admission, revealing an ejection fraction (EF) of 48%. The CMR images are displayed in three short-axis (SAX) slices: basal, mid-ventricular, and apical, as detailed in Table 5.

Table 5 T2-weighted STIR (T2W-STIR), late gadolinium enhancement (LGE), T1 maps, and T2 maps (displayed according to the 16-segment model) images in basal, mid-ventricular, and apical segments of Case (1)
Full size table

Discussion

The key findings of our study are 1. Native T1 and T2 mapping accurately identified post-infarction myocardial edema in all patients. 2. The most important finding is that infarct myocardial segments can be quantitively differentiated from remote myocardium by their significantly higher native T1 and T2 values. 3. The average native T1 and T2 values of areas of microvascular obstruction were lower than those of the infarct myocardium and not significantly different from those of the remote myocardium.

In our study, native T1 and T2 mapping techniques successfully detected myocardial edema in 100% of the patients, consistent with previous research [7, 25,26,27]. In contrast, a study by Tessa et al. [14] reported lower rates of edema detection, possibly due to differences in imaging timing and patient selection. Our imaging was mostly conducted 1–3 days after admission, while Tessa et al. performed imaging within the first 24 h. Given the dynamic nature of myocardial edema in the first week after AMI, results may vary between early and later imaging acquisitions [28]. Additionally, our patients underwent imaging after coronary angiography, potentially influencing edema severity. This distinction is important, as reperfusion injuries post-angiography could worsen myocardial edema [28]. Finally, unlike our study, Tessa et al. did not exclude patients with a history of myocardial infarction.

Quantification of native T1 and T2 maps

Early studies reported a linear correlation between myocardial free water content in myocardial infarction areas and T2 relaxation time prolongation [29]. However, discrepancies in native T1 and T2 relaxation times arise due to variations in field strength, CMR vendors, acquisition methods, and post-processing analysis, limiting their clinical utility and comparability between centers [30]. To address this, the Society for Cardiovascular Magnetic Resonance (SCMR) and the European Association of Cardiology Imaging (EACVI) recommend establishing local reference ranges of native T1 and T2 using standardized protocols [31]. Standardizing the methods for measuring T1 and T2 values will help improve data consistency and comparability. Determining cut-off values for native T1 and T2 to distinguish infarcted myocardium from healthy tissue has been extensively studied, with most studies indicating high accuracy using three [32] and two [26] standard deviations above the mean values of normal myocardium. In our study, the average T1 within the infarct zone was 1295.50 ± 87.65 ms, compared to 1074.95 ± 92.86 ms in remote myocardium, and the average T2 within the infarct zone was 74.63 ± 6.51 ms, compared to 52.53 ± 6.26 ms in remote myocardium. Similar values have been reported in other studies [14, 33, 34]. While the mean differences between infarcted and non-infarcted segments may seem relatively small in absolute terms (221 ms for native T1 and 22 ms for T2), there was little overlap in values between ischemic and non-ischemic regions due to a narrow distribution around the mean, aligning with findings from other studies [25, 35]. However, Montant et al. [36] reported no overlap of T2 values in infarct zones with those in remote myocardium or healthy controls.

Previous studies often reported native T1 and T2 values averaged across all myocardial segments or only for the mid-ventricular slice, which may overlook focal deviations in T1 and T2 values. While von Knobelsdorff-Brenkenhoff et al. [37] reported segment-specific values in normal patients, our study is, to our knowledge, the first to extend this analysis to both normal and post-infarction injured myocardium. Although our study didn’t intend to directly compare native T1 and T2 values among basal, midventricular, and apical segments of normal and infarcted myocardium, we observed consistently higher native T1 and T2 values in apical segments compared to basal and mid-ventricular segments, in agreement with findings from other studies [11, 37, 38]. However, the underlying reasons for these differences remain uncertain. They could result from true biological variations between apical and more basal myocardial segments, motion artifacts in apical segments, or partial volume effects due to the curvature of the left ventricle, where blood signal might be included in the voxels of apical segments [39]. Due to these uncertainties, some studies have chosen to exclude apical segments from their analyses [40, 41]. However, we attempted to mitigate this potential bias by meticulously contouring the myocardium to exclude the endocardial portion and the epicardial fat, and by using the highest possible isotropic spatial resolution. Nonetheless, further studies are warranted for further validation.

Effect of microvascular obstruction on native T1 and T2 values

Reperfusion therapy is the most effective strategy to preserve ischemic myocardium in acute myocardial infarction [33]. However, paradoxically it can also lead to reperfusion injury, characterized by microvascular obstruction (no-reflow) and intramyocardial hemorrhage. These complications are associated with poor functional recovery and adverse left ventricular remodeling [6, 12]. In a subset of patients within our study, we observed that the mean native T1 and T2 values of microvascular obstruction (MVO) were lower than those of infarct myocardium but not significantly different from those of remote myocardium. This observed “pseudo normalization” of T1 and T2 values within areas corresponding to MVO in late gadolinium enhancement (LGE) images is consistent with findings from previous studies [8, 12, 26, 42,43,44].

Edema is a key feature of ischemia-reperfusion injury, reflecting the inflammatory state of infarcted myocardial tissues [13]. Intramyocardial hemorrhage, a crucial histological finding of reperfusion injury, occurs when red blood cells extravasate through damaged endothelial walls after reperfusion [27]. This hemorrhage, often found in the infarct core, is closely associated with microvascular obstruction [25, 45]. Hemoglobin from extravasated red blood cells undergoes oxidative changes, producing paramagnetic substances like deoxyhemoglobin, methemoglobin, ferritin, and hemosiderin, which shorten native T1 and T2 values in areas of microvascular obstruction. Additionally, reduced water content in these areas further contributes to shorter relaxation times [27]. Microvascular obstruction (MVO) strongly correlates with increased infarct size in severe myocardial infarctions and predicts impaired functional recovery, remodeling, and higher incidence of major adverse cardiac events (MACE) [44]. Also, Elevated T1 and T2 values are associated with more severe myocardial injury and less functional improvement [46]. However, interpreting native T1 and T2 measurements in recently reperfused acute myocardial infarction (AMI) can be complicated by magnetic susceptibility effects from hemorrhage in MVO areas [44]. For instance, Dall’armellina et al. explained the rise in native T1 values in severe myocardial infarctions but did not account for the presence or absence of MVO. Similarly, Carrick et al. [47] proposed that decreased native T1 values in the infarct core, associated with worse outcomes, were likely influenced by haemorrhage, yet they did not specifically analyse native T1 maps of the haemorrhagic MI core. Alkhalil et al. [48] acknowledged limitations in their study, where native T1 mapping analysis was solely based on the average of voxel derived T1 values, irrespective of the presence of MVO, potentially diminishing the ability to assess acute myocardial injury severity. However, they noted that this simplified approach avoided extensive post-processing. Furthermore, in these studies, native T1 and T2 relaxation times were averaged for the entire myocardium, potentially offsetting the lower values in the infarct cores of patients with MVO, as the MI border zone often exhibits higher T1 and T2 values [44]. Hence, it’s crucial, aligning with other research, to acknowledge and document the presence of MVO and hemorrhage when analyzing myocardial segments post-infarction using native T1 and T2 mapping techniques [47]. This approach can improve the precision and reliability of native T1 and T2 measurements for evaluating myocardial injury severity and guiding clinical management decisions.

Study limitations

We acknowledge the following limitations: Firstly, the sample size was small, potentially affecting the correction for confounding factors influencing native T1 and T2 values, although the mapping consistently identified myocardial injury areas. Secondly, exclusion of high-risk patients might limit generalizability. Thirdly, the absence of gold standard for assessing myocardial edema/infarction challenged the study validation. Histological validation would have provided insight into the precise mechanisms underlying the observed changes in relaxation times. Fourthly, the measured T1 and T2 values are susceptible to various influences, including the sequence used, magnetic field strength, and CMR hardware and software parameters, among others. Careful consideration of these factors is essential during data interpretation [49]. The selection of the region of interest (ROI) for normal myocardium reference was drawn in remote myocardium. While some studies found no discrepancies in T2 values between the remote myocardium of acute myocardial infarction (AMI) patients and healthy controls [25], others reported elevated native T1 and T2 mapping values in AMI patients’ remote myocardium [50, 51]. The underlying reasons for these discrepancies remain unclear, but proposed mechanisms include inflammatory responses triggered by coronary artery occlusion and reperfusion, leading to edema in the remote myocardium. Additionally, vasodilation of arteries supplying the remote myocardium in response to increased oxygen consumption might influence native T1 and T2 values [51]. Lastly, limitations related to left ventricular coverage in the study are acknowledged, with three 2D slices used. This approach aimed to balance comprehensive ventricular coverage with minimizing examination duration, especially in acute patients, following prior studies [7, 14, 25, 32, 52, 53]. Future advancements allowing full 3D coverage of the LV would improve sensitivity and reduce the risk of missing subtle pathological findings.

Conclusions

Parametric native T1 and T2 mapping techniques can detect and quantify myocardial edema arising from myocardial infarction. Moreover, they effectively assess microvascular obstruction resulting from revascularization injury. This knowledge holds significant clinical significance, profoundly impacting the diagnosis, guidance, and monitoring of myocardial infarction treatments.

Clinical implementation

Both native T1 imaging and T2 mapping yield comparable quantitative results for assessing injured myocardium following acute myocardial infarction, without requiring the use of contrast agents.

Availability of data and materials

The datasets analyzed during the current study is available from the corresponding author on reasonable request.
