Role of diffusion MR imaging (DWI) and three-dimensional ultrasound (3DUS) in the assessment of placental insufficiency in the gestational hypertension

Egyptian Journal of Radiology and Nuclear Medicine volume 50, Article number: 50 (2019) Cite this article

Abstract

Background

DWI is a non-invasive MR modality that is not contrast-based. In the current study, we aimed to evaluate DWI in correlation with 3DUS in the detection of placental insufficiency in high-risk pregnancies complicated with hypertension.

This prospective analysis included 80 pregnancies; 40 hypertensive and 40 controls, gestational age ranged from 22 to 34 weeks. All cases had undergone 3DUS aided by power Doppler scanning and DWI. There is no given contrast. Data were correlated to histopathology.

Results

Doppler US showed a significant relation between RI of the right uterine artery of cases and control (P = 0.014). There was also a positive correlation between the presence of the diastolic notch and RI value. The mean ADC value in the controls was 1.87 ± 0.26 mm2/s, while in hypertensive was 1.36 ± 0.09 mm2/s. In DWI images, there was a significant difference between patients with normal and those with abnormal placental signals (P value = 0.047). Also, there was a significant difference between the measurement of placental volume by MRI and US among cases and controls (P values ≤0.001 and 0.017, respectively).

Conclusion

Diffusion-weighted imaging can detect early subtle findings and signs of placental dysfunction more than detected with 3DUS, so it can add to the diagnostic accuracy of US in imaging of pregnancies at high risk of placental insufficiency.

Background

Placental insufficiency is a process that causes a progressive deterioration in the placental function and may cause preeclampsia in hypertensive pregnant females [1]. Preeclampsia is a major contributor to maternal mortality and a leading cause of perinatal mortality and morbidity [2].

Ultrasound is the first choice modality in the case of placental evaluation [3]. With the aid of three-dimensional 3D ultrasound, it became accessible to calculate the placental volume [4].

Pregnancies with increased vascular impedance on the placental, fetal, and maternal sides can be detected by Doppler examinations of both uterine and the umbilical arteries [5].

The multi-planar capabilities and the improved tissue contrast presented by magnetic resonance (MR) imaging make it a considerable imaging modality for the assessment of the placenta [3]. Also, fast MR sequences allow accurate volumetry of the uteroplacental unit [6].

Diffusion-weighted MR imaging is a non-invasive modality as the ultrasound; moreover, unlike ultrasound, it is a non-operator dependent that provides a wide field of view and multiplanar soft tissue discrimination.

The current work is a pioneer investigation using 3D ultrasound in correlation with MR imaging in the assessment of placental insufficiency not just regarding ischemic changes but also in view of the whole placental volume.

So we aimed by this work to find out if diffusion-weighted imaging can replace/add to the 3D pelvis ultrasound and Doppler in the diagnosis of placental insufficiency in high-risk pregnancies complicated with hypertension.

Methods

The study is a prospective randomized study that was reviewed by the ethics committee of the Obstetrics and Gynecology and the Radiology Departments and was approved by the review board that is related to our university. Patients included gave informed consent to use their data in research work.

The sample size included 80 cases:

  1. a)

    Control sample (n = 40) was free from any medical disorder by history and clinical examination.

  2. b)

    Inclusion criteria for the included patients (n = 40): Pregnant patients were at high risk for placental insufficiency regarding their clinical history of either one or all of the following: (1) History of gestational hypertension (i.e., two consecutive reading of high blood pressure of 140/90 mmHg or more taken at least 6 h apart and was continued for more than 4 days in beyond 20 weeks pregnancy), (2) previous history of preeclampsia, (3) previous history of recurrent abortions, and (4) previous history of intra-uterine fetal death (IUFD) and placental abruption.

Exclusion criteria:

  1. a)

    Diagnosed cases of preeclampsia (i.e., cases confirmed of gestational hypertension and established proteinuria beyond 22 weeks of pregnancy.

  2. b)

    Contraindication to perform MR imaging as implanted otologic devices with strong magnetic property, cochlear implants… etc.

Both groups (control and cases) were examined between 22 and 34 weeks of gestation. They were referred from the Obstetrics and Gynecology Department, after being examined by 3D ultrasound to the Radiology Department to do the MR imaging studies in the duration from January 2016 to May 2018 with time interval between both examinations ± 7 days.

We used an ultrasound machine equipped with a 5.0–7.0-MHz transabdominal probe and a combination of 3D and power/color Doppler technology (Voluson Pro 700 General Electric, New York City, USA).

Ultrasound was performed by experienced radiologist and obstetrician of 25 years and 15 years of experience, respectively.

All included patients were examined by the following:

  1. a)

    Ultrasound

  • Routine two-dimensional (2D) ultrasound

  • Three-dimensional (3D) power/color Doppler for velocimetry of the (i) umbilical artery (RI and PI) and (ii) uterine artery (mean of both uterine RI and PI)

  • Placental volume (cm3) was assessed using a 3D “virtual organ computer-aided analysis” (VOCAL) imaging technique.

  1. b)

    MR imaging

Non-contrast-based MR imaging was performed to detect early signs of placental insufficiency and consequently confirms or excludes preeclampsia in the included cases.

The used MR machine was (1.5 Tesla magnet) Philips scanners (Achieva and Intera, Amsterdam, Netherland) at the Radiology Department.

The patient scanned in the supine position using a pelvic phased-array “Torso” coil.

The maternal pelvis was scanned using the following protocol:

  1. a)

    T2-weighted pulse sequence spin-echo (SE): TE 80 ms, TR 489 s in the axial, sagittal, and coronal planes using matrix 256 × 192 and flip angle = 90.

  2. b)

    Spoiled gradient (T1-TFE): TE 5 ms, TR 15 ms, flip angle = 15 in the axial plane.

Sequences (1) and (2) were performed with respiratory triggering to control maternal and fetal motion artifacts.

  1. c)

    Diffusion-weighted MR imaging (DWI), which was scanned with no need to hold breath and b values used were 500, 700, and 850 s/mm2. Diffusion-weighted images were acquired in sagittal and transverse planes in three gradient-encoding directions sufficient to estimate the trace of the average diffusivity.

Post processing ADC maps were performed, and ADC values were automatically calculated by drawing region of interest (ROI) on the areas seen in the placenta of abnormal signal (i.e., the persistent bright signal on the DWI). ADC value was usually expressed in (× 10−3) square millimeters per second.

For all the aforementioned sequences, slice thickness = 3–5 mm with 1 mm gap and FOV = 370–400 mm.

Total scanning time was 25 min.

MR images were analyzed by two experienced radiologists in pelvic MR imaging of 25 and 20 years of experience that were not aware of the findings of the ultrasound.

Data collection was done by a radiologist (5 years of experience) who is a candidate of medical doctorate.

MR images were analyzed for the following:

  1. a)

    Increased placental thickness and hypertrophy

  2. b)

    Signal intensity of the placenta and the presence of focal abnormal signal in the placental tissue: (a) bright signal on T1WI and heterogeneous bright/bright on T2WI that suggest vascular spaces and (b) heterogeneous bright on T2 and low signal T1WI to locate ischemic areas.

  3. c)

    Areas of bright signal on T2WI in correlation with focal areas of restriction on the DWI.

  4. d)

    ADC values measured on the reconstructed ADC maps for the areas of persistent increase of bright signal that was previously located on the DW images.

  5. e)

    Calculation of the placental volume: Manual tracing of the outline of the placenta was performed in all scanned slices of T2WI sequence (range: 20–58 slices) followed by auto-calculation of the placental volume on an Advantage Workstation (4.1 service) of the used MR devices.

Suggestions for placental insufficiency by the used modalities (3D ultrasound and MR imaging) were correlated with the post partum histopathology of the placenta.

Also, the reference in the assessed placental volume was the post delivery/abortion placental volume.

The statistical methods in establishing the results

Data were statistically described in terms of mean ± standard deviation (± SD), median and range, or frequencies (number of cases) and percentages when appropriate. Comparison of numerical variables between the study groups was done using Student t test for independent samples, chi-square test, Mann-Whitney test, Wilcoxon signed rank test, Roc curve, and kappa agreement. Accuracy was represented using the terms sensitivity, specificity, and overall accuracy. P values less than 0.05 was considered statistically significant. All statistical calculations were done using computer programs SPSS (Statistical Package for the Social Science; SPSS Inc., Chicago, IL, USA) version 15 for Microsoft Windows.

Results

The patient’s mean age among the case group was 27.9 + 4.19, and among the control group was 28.9 + 5.65. The obstetric code among the included pregnant females was stated in Table 1.

Table 1 Obstetric code among groups
Full size table

Placental location was a fundal anterior in 65% of the hypertension case group (n = 26) and fundal posterior in 35% (n = 14).

Preeclampsia developed in 17.5% (n = 7/40) of the hypertensive pregnant patients and had performed preterm labor.

Doppler findings

In placental insufficiency, abnormal high RI present either in the right or left uterine artery.

So, we performed a Doppler assessment for the right uterine artery in the cases that showed high RI (> 0.7) of the right uterine artery in 75% of the hypertensive cases, and in the remaining 25%, high RI was noted at the left uterine artery. There was a significant relation between the right uterine artery RI (mean) of both the cases and control groups as P value was 0.014.

There was a positive correlation between the RI of the right and the left uterine arteries (P value = 0.001) and at the same time between the RI of the left uterine artery and the umbilical artery (P value = < 0.001) among the group of the hypertensive cases.

The RI values of the uterine arteries and the umbilical artery are documented in Table 2.

Table 2 Analysis of the RI of the right, the left uterine, and the umbilical arteries in the included cases
Full size table

Doppler examination revealed bilateral diastolic notch in both uterine arteries and umbilical artery in about 7.5% (n = 3/40) of the hypertensive pregnant females (Fig. 1) and 2.5% (n = 1/40) of these cases showed a unilateral notch. None of the control and 90% (n = 36/40) of the hypertensive cases showed diastolic notch (Fig. 2). There was a positive correlation between the presence of diastolic notch and the RI value as the calculated P value was significant (0.012).

Fig. 1
figure1

Pregnant female, 18 years old. The patient has hypertension with pregnancy on Aldomet and Aspocid. Her obstetric code was G1P0. The patient did not remember her 1st day of LMP by ultrasound, and her gestational age was 22 weeks + 1day. a Doppler examination of both uterine arteries showed bilateral diastolic notches with RI of the right uterine artery 0.7 and the left uterine artery 0.69. Doppler of the umbilical artery showed RI 0.91. b 3D ultrasound measured the volume of the placenta (74.42 cm3). c From the right to left, (i) axial T2-weighted image showed a heterogeneous low signal of the placenta, (ii) sagittal DWI at b 850, and (iii) ADC map: bright signal in DWI and low signal in ADC map (arrows) and low ADC value (1.35) suggestive of placental infarctions. d Placental volume measurement by MRI (190.67 cm3). Comments: The patient had gestational hypertension. Both 3D ultrasound and MR showed features of placental insufficiency and small volume. The patient developed preeclampsia and had preterm labor

Full size image
Fig. 2
figure2

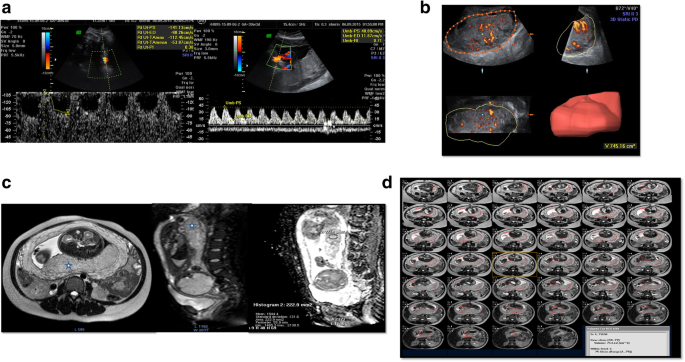

Pregnant female, 19 years old. She did not have any medical problems with her pregnancy. Her obstetric code was G1P0. Gestational age: 30 weeks + 3 days. a Doppler examination of the uterine and umbilical arteries showed normal RI. b Volume assessment of the placenta by 3D ultrasound: 745. 16 cm3.c From right to left, (i) axial T2-weighted image, (ii) sagittal DWI at b 850, and (iii) ADC map that showed average thickness and homogenous texture of the placenta with no abnormal signal noted. ADC value equals 1.84 × 10–3 mm2/s. d Volume measurement of the placenta by MRI (752.12 cm3). Comments: Both 3D ultrasound and MR showed normal findings and comparable volume measurement of the placenta. She had normal vaginal delivery and average-weighted viable fetus

Full size image

Findings at the MRI examination of the placenta

Qualitative assessment of T2 and diffusion-weighted images was demonstrated in Table 3.

Table 3 Demonstrated MR findings at T2- and diffusion-weighted imaging in the included hypertensive pregnant patients
Full size table

About 15% of the hypertensive pregnant females had focal abnormal areas in their placenta of heterogeneous bright T2 signal.

In the diffusion-weighted images, 30% of the hypertensive cases showed areas of restricted diffusion (presumed infarction) in the placenta (Fig. 1).

There was a positive correlation and a significant relation between the positive findings of ischemia in the T2-weighted and diffusion-weighted images among the hypertensive pregnant females as the P value was significant (0.002). Also, there was a significant difference between patients with the normal placenta and those showed abnormal placental signal in the diffusion images as P value was significant (0.047) (Figs. 1 and 3). These data may suggest that diffusion-weighted imaging of the placenta is very useful for detection of ischemic changes in pregnant hypertensive patients.

Fig. 3
figure3

Pregnant female, 27 years old. The patient has hypertension with pregnancy on Aldomet. No history of preeclampsia. Her obstetric code was G4P1 + 2. Gestational age: 25 weeks + 5 days. a Doppler examination of both uterine and umbilical arteries showed normal RI of the examined arteries, a normal wave of the uterine artery, and no notch. b Placental volume measurement by 3D ultrasound (503.84 cm3). c From right to left, (i) axial T2-weighted image, (ii) sagittal DWI at b 850, and (iii) ADC map that showed average placenta thickness and normal homogenous pattern. ADC value equals 1.87 × 10–3 mm2/s. d Placental volume measurement by MRI (607.74 cm3). Comments: The patient had gestational hypertension but 3D ultrasound and MR showed features of a normal placenta. MRI was more accurate in the assessment of the placental volume. She had a cesarean section with normal averaged weight fetus

Full size image

ADC maps were performed and we measured of the ADC values for the abnormal focal areas of restricted diffusion in the hypertensive cases as well as the normal-appearing placental tissue in both the hypertensive cases and the control.

The mean ADC value in the control was 1.87 × 10−3 mm2/s.

The mean ADC value plotted for the normal placental tissue in the hypertensive cases was 1.81 × 10−3 mm2/s versus 1.36 × 10− 3 mm2/s in the focal areas of ischemic changes (i.e., infractions).

We found that there was a significant correlation between the mean ADC value of both the hypertensive cases and the control (P value = 0.040) and between the mean ADC value among hypertensive cases with normal placentae and those with placental ischemic changes (P value = < 0.001).

ROC curve for the placental ischemia was significantly different (P = < 0.001) between the studied groups. The area under the curve (AUC) distinguished between the hypertensive cases and the control. AUC of the hypertensive pregnant cases was significantly high (1.00 = 100%). A cut-off ADC value of 1.46 × 10−3 mm2/s achieved a sensitivity of 91% and specificity of 100%. Sensitivity value increased to 100% when a mean ADC value of 1.59 × 10−3 mm2/s was used.

There was a significant agreement between the results of both the 3D US and the diffusion-weighed imaging in the hypertensive pregnant cases group as P value was 0.006 and kappa value was 0.318 (Table 4).

Table 4 Diffusion in correlation with ultrasound in hypertensive cases
Full size table

Measurement of the placental volume in the hypertensive pregnant females

Placental volume among hypertensive patients by both modalities

The mean placental volume by US = 374.11 + 251.52 with median (IQR) 329.02 (162.66–596.75).

The mean of placental volume by MRI = 500.5 + 223.12 with median (IQR) 507.08 (311.22–721.85).

Placental volume among the control groups by both modalities

The mean of placental volume by MRI = 574.23 + 259.29 with median (IQR) 646.21 (321.54–808.37).

The mean of placental volume by US = 444.22 + 285.08 with median (IQR) 329.93 (210.81–729.38).

The sensitivity, specificity, and accuracy of the 3D ultrasound were 73%, 91%, and 99%, while the MR imaging supported by the DWI were 100%, 99%, and 99%, respectively, in their ability to assess ischemic changes of the placentae and predict placental insufficiency in cases of gestational hypertension.

There was a positive correlation between the measurement of the placental volume by both US and MRI as P value was significant (< 0.001) and (0.008), respectively.

Discussion

The most dangerous situation any female could experience during pregnancy is the preeclampsia syndrome whether it presents as an individual symptom or as newly developed on top of chronic hypertension [7].

For many years, ultrasound aided with the Doppler study is the first and sometimes the sole method of evaluation of the placenta. To date, pathologies of the placenta have not been considered a routine indication of MR imaging [8].

Our study included 80 pregnant women, 40 of them presented with gestational hypertension but not diagnosed of preeclampsia yet and another 40 cases were control ones who were free from any medical disorders by history and clinical examination.

The patient’s mean age among the case group was 27.9 + 4.19 and among the control group was 28.9 + 5.65. Both groups were examined between 22 and 34 weeks of gestation by both 3D ultrasound and MRI examinations with a time interval of 7 days between both examinations.

In this study, we evaluated placental function in the second-trimester pregnancy in view of (1) assessment of the uterine and the umbilical arteries by Doppler ultrasound. (2) Evaluation of the signal intensity of the placenta by diffusion MR imaging and measuring the ADC values of the focal areas of abnormal signal. (3) Measuring placental volume by MRI and 3D ultrasound.

During our analysis, we agreed with Derwig et al. [9] who stated that uterine artery resistance index (RI) value was a useful diagnostic tool in assessment of vascular abnormalities in hypertensive pregnancies (Fig. 1) as we found a significant relation (P value 0.014) between the right uterine artery RI (mean) of both the hypertensive cases and the control. We performed Doppler examination of the uterine artery where 7.5% of the included hypertensive patients showed bilateral diastolic notch and elevated RI of both the uterine arteries while the remaining 2.5% had a unilateral notch and elevated RI was noticed in the left uterine artery. The aforementioned findings are important criteria in the assessment of hypertensive patients with suspected placental insufficiency as was justified by the positive correlation (significant P value of 0.012) that was detected between the presence of diastolic notch and RI value.

Our results matched with Coleman et al. [10], they reported that the higher RI cut-off value (≥ 0.7) or the presence of notching at the Doppler test enabled to identify pregnant women at high risk of placental insufficiency.

The presence of a diastolic notch was reported to be a better predictor of pre-eclampsia than an elevated RI or systolic/diastolic ratio, with positive predictive values up to 31% [10].

In the current work, when we performed the qualitative assessment for the MR imaging of the placenta, abnormal heterogeneous bright signal was noted in the T2WIs that was corresponded to areas of restricted diffusion in the diffusion-weighted images in 15% of the included hypertensive pregnant cases. Such areas represented placental ischemic changes. These findings agreed with those of Himoto et al. [11] who reported that placentae with impaired function show decreased signal compared to normal placentas. They also explained that the degree of low signal might depend on the decrease of placental circulation and the degree of compensatory alteration.

Derwig et al. [9] reported that T2 relaxation of the placenta during the second trimester is shorter in hypertensive pregnancies and that it correlates with our findings.

In DWI, areas of necrosis, infarction, or fibrosis that may be seen in the insufficient placenta result in altered diffusion [12]. Also, such sequence can be used to create an apparent diffusion coefficient (ADC) map that identifies and quantifies areas of accelerated and restricted diffusion. Therefore, in the pathologic placenta, DWI and ADC mapping had the potential to quantify early changes in diffusion even in the absence of abnormal findings on US/conventional MRI [12].

Our work showed a significant difference between patients with normal and those with an abnormal placental signal in the diffusion-weighted images (P = 0.047).

In diffusion-weighted images, our study showed that 30% of the hypertensive patients displayed areas of restricted diffusion (in the form of persistent bright signal) in their placenta, compared to only 15% seen on the T2WI sequence as mentioned earlier.

There were a positive correlation and a significant relationship between the T2WI and the DWI among the included hypertensive pregnant females (P = 0.002).

We noticed that measured ADC values of the placental parenchyma were significantly lower in the placentae with ischemic changes in the hypertensive pregnant cases when compared with those of normal pregnancies. The mean ADC value in the control was (1.87 ± 0.26 mm2/s) while in patients with placental ischemic changes, the mean ADC value was (1.36 ± 0.09 mm2/s).

Our results agreed with other studies as Siauve et al. [13] who reported that ADC value was significantly lower in placentae of fetuses with growth retardation when compared with normal ones. They stated that the most promising parameters appear to be the mean ADC value in the placenta which was in normal pregnancy—which according to them—1.77 ± 0.19 × 10−3 mm2/s, while in placentas with insufficient function, the mean ADC value was decreased, 1.46 ± 0.1 × 10–3 mm2/s.

Also, Manganaro et al. [14] studied fetal MRIs of 145 pregnant women with gestational age range 19–40 weeks. ADC values calculated on the DWI images obtained had a range from 1 to 2.4 × 10−3 mm2/s.

In our analysis, the area under the curve (AUC) of the hypertensive patients was significantly high (1.00 = 100%). The maximum sensitivity and specificity was achieved (sensitivity 91% and specificity 100%) with ADC value of 1.46 × 10−3 mm2/s. A higher sensitivity of 100% was noted with a mean ADC value of 1.59 × 10−3 mm2/s.

A retrospective study of DW imaging of the placenta in growth-restricted and non-growth restricted fetuses showed low measurements of ADC values of the placenta in the growth-restricted fetuses [12]. In our work, the addition of DWI to the 3D ultrasound assessment of the placenta showed increased sensitivity to detect placental insufficiency from 73 to 100%, increased accuracy of diagnosis from 91 to 99%, and sustained specificity of 99%.

We found significant agreement between the results of both 3D US with Doppler application and DW MR imaging in hypertensive pregnant cases as P value was significant (0.006) and kappa value was 0.318.

Our results agreed with Bonel et al. [15] which stated that Doppler US may be insensitive to detect early placental dysfunction. Also, Messerschmidt et al. [8] mentioned that a significant placental vascular disease that remains below the threshold of detection by Doppler assessment of the uterine and umbilical arteries can be predicted by MR imaging.

It is impossible to image the whole placenta by ultrasound which interferes in the accurate measurements of placental size. The measurement by ultrasound is likely to be affected by maternal habitus, amniotic fluid volume, fetal position, multiple gestation, and gestational age. In contrast, MRI has a wide field of view and is not affected by variables as amniotic fluid volume or maternal habitus [16].

Several investigators were concerned about measuring the placental volume using 3D ultrasound to predict infants who could be small for gestational age [17,18,19]. Also, for the same purpose, the placental volume was assessed by MRI [16]. These studies concluded that pregnancies complicated by fetal growth restriction are associated with placental insufficiency and reduced placental volume.

To our knowledge, the measurement of the placental volume by 3D US and MR has not been used before to assess the risk of placental insufficiency.

In our study, MR imaging presented more accurate measurements of the placental volume than ultrasound in 70 patients (87.5%). We measured the surface area of the placenta in each taken slice, and with the aid of advanced workstation, we calculated the total placental volume. We found a positive correlation between the measurements of placental volume by both 3D US and MRI in the control and hypertensive cases, respectively. The MRI values were the ones closer to the post delivery real placental volume (Figs. 1 and 3). There was a significant difference between the measurements of the placental volume by both modalities as P values were 0.001 and 0.017, respectively.

In our study, diffusion MR imaging revealed that 30% had placental ischemic changes (n = 12/40) and out of them, 17.5% developed preeclampsia (n = 7) and preterm labor. This could be attributed to the different clinical condition of each patient, the medical treatment received, and the capability of the fetoplacental unit to compensate.

Again, here, we agreed with Bonel et al. [15] who reported that DWI showed signs of placental ischemia not obtained with US. However, one must be aware that not all abnormalities detected at diffusion-weighted imaging indicate growth restriction; it is possible that the fetoplacental unit will partially compensate for placental insufficiency.

The strength of the study was the inclusion of pregnant patients with a high level of adverse outcome, especially that gestational hypertension is uncommon representative of the obstetric population.

Conclusion

Diffusion-weighted MR imaging and 3D ultrasound both can be used individually or in combination as screening tests for placental insufficiency that may accompany pregnancy conditions with induced hypertension. Moreover, DWI can detect early changes and signs of placental insufficiency supported by the wide field of view and multislice scanning required for accurate measurement of the placental volume.
