Role of shear wave sono-elastography (SWE) in characterization of hepatic focal lesions

Mahmoud Abdel-Latif¹,
Nehad Fouda¹,
Osama Abdel-Gawad Shiha¹ &
Amira Ali Rizk¹

Egyptian Journal of Radiology and Nuclear Medicine volume 51, Article number: 68 (2020) Cite this article

184 Accesses
Metrics details

Abstract

Background

Focal liver lesions are considered a major problem during abdominal examinations. Shear wave sono-elastography (SWE) has been demonstrated to be helpful in assessment of liver fibrosis degree.

The purpose of this study was to evaluate the role of SWE in characterization of benign and malignant hepatic focal lesions.

Results

Seventy-five (75) patients with variable focal liver lesions (52 malignant and 23 benign) were analyzed by SWE. The stiffness values of surrounding hepatic parenchyma were also measured as a reference for readings of the focal lesion stiffness values. Final diagnosis was achieved by core needle biopsy (in 1 benign and 38 malignant cases) and contrast enhanced CT and MRI (in all cases).

Cholangiocarcinoma (CCC) was the stiffest malignant lesion with median stiffness value (35.9 kPa). Focal nodular hyperplasia (FNH) was the stiffest benign lesion (26.7 kPa).

The median stiffness value of malignant focal lesions (20.22 kPa) was significantly higher than that of benign focal lesions (10.68 kPa) (P value < 0.001).

ROC curve of SWE median stiffness values for differentiation of benign from malignant hepatic focal lesions had AUC = 0.834, and using cut of value 14.165 kPa, yielding 98.1% sensitivity, 78.3% specificity, and 92% accuracy.

Conclusion

SWE has high accuracy in differentiating benign form malignant liver focal lesions with promising results in individual characterization of some malignant (HCC and CCC) and benign hepatic focal lesion (FNH from other benign lesions).

Background

Focal liver lesions (FLLs) are considered a major problem during abdominal examinations. Liver cancer represents the second leading cause of mortality in men and the sixth cause in women worldwide [1]. FLLs are classified as benign or malignant. Benign hepatic lesions can be either solid or cystic, within these types; the subtypes include hemangioma (the most common), hepatic adenoma, focal nodular hyperplasia, focal fatty change, bile duct cysts, and hydatid cysts [2, 3]. Malignant hepatic focal lesions can be either primary or secondary (metastases). The commonest primary malignant liver neoplasm is hepatocellular carcinoma (HCC) and the second most common neoplasm is cholangiocarcinoma. There are other rare liver neoplasms as angiosarcomas and hepatoblastomas [4].

Several diagnostic imaging modalities can be used to detect and characterize FLLs as ultrasound, color Doppler, magnetic resonance imaging (MRI), computed tomography (CT), and positron emission tomography (PET). More invasive techniques include angiography (seldom used) and percutaneous biopsy [5].

Ultrasound is a first-line modality for examination of the liver because it is low in cost, convenient to use, and does not expose the patient to radiation. In CT examination, intravenous iodinated contrast media are routinely used that improve detection of FLLs. CT limitations are exposure to a high radiation dose and contrast media are contraindicated in patients with a history of anaphylaxis and renal failure. MRI in comparison to CT lacks exposure to ionizing radiation and contrast agents of MRI can be used in patients who have allergies to iodinated contrast agents. The main drawbacks of MRI include high cost and the long examination time [6].

Core needle liver biopsy has been considered the gold standard tool for differentiating malignant from benign lesions. However, it is an invasive procedure, and may have life-threatening complications as pain, risks of morbidity and mortality and also, biopsy diagnostic value is limited by sampling variability [7,8,9,10].

Ultrasound elastography is a new imaging technique that allows a noninvasive estimation and imaging of tissue elasticity distribution within biological tissues using conventional real-time ultrasound equipment with modified software [11].

Shear wave sono-elastography (SWE) is a novel elastographic technique that has been suspected to be an alternative, easy, rapid, and noninvasive technique that is increasingly being used to assess liver elasticity [12]. It gives a local assessment at point of interest of an organ in kilopascals (kPa). The major advantages of SWE are the reproducibility, operator independency, higher spatial resolution, and the ability to establish a quantitative evaluation of stiffness values without manual compression artifacts [13]. SWE technique generates shear waves at a focal point in the tissue, where the velocity of the wave provides an estimate of tissue stiffness [14, 15].

SWE has been demonstrated to be helpful in assessment of liver fibrosis degree [16] and may be used as an adjunct to conventional ultrasound in differentiation and characterization of hepatic focal lesions [12, 17].

Aim of the work

The aim of this study is to evaluate the role of shear wave sono-elastography (SWE) in characterization of benign and malignant hepatic focal lesions.

Methods

This prospective study was carried out during the period from March 2017 to March 2019. It included patients with single or multiple hepatic focal lesions greater than 1 cm in diameter, diagnosed by any of different imaging modalities, who agreed to join the study according to the ethical considerations. Patients with focal lesion size smaller than the size of the smallest sampling box (1 × 1 cm), patients who were unable to hold their breath as required, those with previous interference to hepatic focal lesions, pregnant, obese, and those patients with bad general condition were excluded.

The study included ninety-one (91) cases with 114 variable hepatic focal lesions. Patients with multiple hepatic focal lesions, the largest or the most conspicuous one was chosen only as a representative lesion in compliance with the study of Qiang et al. [18]. Sixteen (16) cases were excluded from the statistical analysis because of failure of SWE acquisitions (6 cases of left liver lobe focal lesions and cases of right liver lobe focal lesions more than 6 cm in depth from skin (N = 10) in compliance with the Gerber et al. study) [19].

So the current study final statistical analysis cases included 75 patients (42 males and 33 females), their age ranged from 19 to 67 years with mean age of 50.13 years.

Patients were subjected to the following:

1. Ultrasonography: This study was done by using the ultrasound machine: LOGIQ E9 (GE Healthcare) with convex transducer (C1-6-D 3.5 MHZ). All cases were subjected to B-mode abdominal ultrasonography examination followed by shear wave elastography of the hepatic focal lesions and the surrounding liver parenchyma.

All the examinations were performed by consensus by 2 independent radiologists (M.A.L. and N.F.). They had more than 20 and 25 years’ experiences in ultrasonic scanning. Both were blinded to the final pathologic results and other investigation done for the patients.

B-mode abdominal ultrasonography examination

Patient was lying in supine position. At first, a baseline B-mode liver ultrasound was performed to obtain each focal lesion criteria (location, echogenicity, maximum diameter, boundary, associated ascites, and the depth from the skin).

Shear wave elastography examination technique

Patient was lying in supine position with the right arm in maximum abduction. A liver area free of visible bile ducts or vessels was selected. The built-in ROI of the system was placed inside the lesion, and the image was displayed on a semi-transparent color map of tissue stiffness, ranging from dark blue indicating the lowest stiffness, to dark red indicating the highest stiffness.

The surrounding hepatic parenchyma stiffness values were also measured to give a direct reference for shear wave elastography readings of the focal lesion stiffness values.

The patients were asked to perform a short breath hold, to ensure that cardiac- and respiration-related tissue motion was minimum. Three consecutive shear wave elastography acquisitions were performed for the lesion and the surrounding parenchyma, then the average stiffness value of the three readings (kPa) was calculated. Finally, measurements and images were recorded

2. Contrast enhanced computed tomography (CE-CT): All patients (75) were subjected to post-contrast triphasic CT study using 128 multi-detector Philips CT with the following parameters: KV, 120; MA, 200–250; slice thickness, 10 mm; and FOV, 400 mm (scanning from the lung bases to the iliac crest and should include the whole liver).

After digital scout view, a pre-contrast axial scan was first obtained. Then triphasic CT scanning of the liver was performed as patients were given IV non-ionic contrast of 1.5 mg/kg with overall dose of 100–150 mL via a power injector at 2–3 mL/s. Then liver was scanned in arterial (after 10–30 s), portal (after 60–90 s), and equilibrium or delayed (after 2–5 min) phases.

3. Contrast enhanced magnetic resonance imaging (CE-MRI): All cases were examined by post-contrast triphasic MRI study using 1.5 T machine (Philips-Ingenia 1.5) with the following parameters: T1WI (TR, 500 ms; TE, 50 ms; slice thickness, 5 mm; and FOV, 400 × 300 mm). T2WI (TR, 1250 ms; TE, 80 ms; slice thickness, 5 mm; and FOV, 400 × 300 mm. Dynamic post-contrast study (TR, 3.5 ms; TE, 1.5 ms; slice thickness, 2 mm; and FOV, 400 × 300 mm) with one pre-contrast and 3 post-contrast series, after pre-contrast study, a bolus of Gd-DTPA in a dose of 0.2 mmol/kg was injected using an automated injector at a rate of 3–5 ml/s, liver was scanned in arterial after 20–30 s, portal after 60–65 s, and equilibrium phase after 2–5 min. Also, DWI (TR, 1885 ms; TE, 62 ms; slice thickness, 5 mm; and FOV, 400 × 300 mm), in-phase and out-phase T1WI (TR, 4.6 ms; TE, 2.3–4.3 ms; slice thickness, 5 mm; and FOV, 400 × 300 mm) and heavy T2WI (TR, 10,000; TE, 260 ms) were done if needed.

4. Core Needle Biopsy: Thirty-nine (39 cases, 38 malignant and 1 benign) underwent core needle biopsy of hepatic focal lesions.

An ultrasound guided liver biopsy was performed, obtaining 2–3 histological tissue samples of about 20 mm in length using an 18-G biopsy needle.

The final diagnosis of benign hepatic focal lesions (hemangioma, focal nodular hyperplasia, focal fatty infiltration…etc.) was made by the agreement of the three imaging techniques (US, triphasic CT, and triphasic MRI). In case of persistent diagnostic uncertainty (in 1 case of FNH), liver biopsy was done.

The diagnosis of HCC: provided there was liver cirrhosis, the guidelines of the American Association Society of Liver Disease (AASLD, 2005) was followed for diagnosis (in 14 HCC cases). In all other malignant lesions, (in 7 cases of atypical HCC, 21 metastases, 6 lymphomas, and 4 cases of cholangiocarcinoma) biopsy was taken.

All CT and MRI examinations were interpreted by a specialized radiologist (O.A.SH.) with 15 years’ experience in CT and MRI liver imaging.

Statistical analysis

The data from B-mode abdominal ultrasound studies and shear wave elastography value results were transferred to statistical package for social science (SPSS) program, version 20, on Microsoft windows for statistical analysis. Quantitative data were summarized by mean and standard deviation (SD) and median (minimum-maximum). Qualitative data were summarized by frequency and percent. Receiver operator characteristic (ROC) curve was used to determine diagnostic accuracy of test. Sensitivity and specificity for certain cutoff point was selected according to highest sensitivity and specificity.

For all above mentioned statistical tests done, the threshold of significance is fixed at 5% level (P value).

The results were considered:

• Non-significant when the probability of error is more than 5% (P > 0.05)

• Significant when the probability of error is less than 5% (P < 0.05)

• Highly significant when the probability of error is less than 0.1% (P < 0.001). The smaller the P value obtained, the more significant are the results.

Results

The final number included 75 liver focal lesions (42 males and 33 females); their age range from 19 to 67 years with mean age of 50.13 years.

The study group is subdivided into two subgroups, malignant and benign hepatic focal lesions.

The percent distribution of the 75 focal lesions were the following: (a) 52 malignant focal lesions counting as hepatocellular carcinoma (N = 21) (28%), metastasis (N = 21) {2 GIST, 2 bronchogenic carcinoma, 7 breast cancer, 6 colon cancer, 2 prostatic carcinoma, and 2 ovarian carcinoma} (28%), cholangiocarcinoma (N = 4) (5.3%), and lymphoma (N = 6) (8%). (b) 23 benign focal lesions counting as simple cyst (N = 2) (2.7%), hemangioma (N = 6) (8%), hydatid cyst (N = 3) (4%), focal nodular hyperplasia (N = 5) (6.7%), focal fat infiltration (N = 4) (5.3%), and abscess (N = 3) (4%) (Table 5).

Fifty-two (52) patients (32 males and 20 females) had malignant hepatic focal lesions with mean age 52.9 years. Twenty-three (23) patients (10 males and 13 females) had benign hepatic focal lesions with mean age 43.8 years.

Malignant hepatic focal lesions (52): all cases were diagnosed by contrast enhanced CT study (CE-CT) and by contrast enhanced MRI study (CE-MRI), in addition, 38 cases were diagnosed by biopsy (Table 1).

Table 1 Diagnosis methods among the studied groups

Full size table

Benign hepatic focal lesions (23): all patients were diagnosed by contrast enhanced CT study (CE-CT) and by contrast enhanced MRI (CE-MRI). One (1) case of FNH was diagnosed by biopsy (Table 1).

Malignant focal lesion median size was 5.30 (range from 2.90 to 12.0). Benign focal lesion median size was 6.70 (2.90–18.1) (Table 2).

Table 2 Lesion characteristics among the studied groups

Full size table

Twelve (12) malignant focal lesions were associated with ascites. None of the benign focal lesions had associated ascites. The data is summarized in Table 2.

Color-coded elastogram of the 52 malignant hepatic focal lesions: 46 lesions (21 hepatocellular carcinoma, 21 metastasis, and 4 cholangiocarcinoma) showed mixed color with red foci and 6 lesions showed yellow green color (6 lymphomas) (Table 3).

Table 3 SWE color characteristics of benign and malignant hepatic focal lesions

Full size table

Color-coded elastogram of 23 benign hepatic focal lesions: 12 lesions (6 hemangioma, 2 hydatid, and 4 focal fatty infiltration) showed faint blue color, 4 lesions showed yellow green color (3 abscess and 1 hydatid), 5 lesions showed mixed color with red foci (5 focal nodular hyperplasia), and 2 lesions were colorless (2 simple cyst) (Table 3).

There was statistical significant difference of color characteristics between malignant and benign hepatic focal lesions (P value < 0.001) (Table 3).

The median stiffness value of malignant focal lesions (20.22 kPa) was significantly higher compared with that of benign focal lesions (10.68 kPa) with P value < 0.001. The median stiffness value of the liver parenchyma in cases of malignant lesions (7.86 kPa) was higher compared with that of the liver parenchyma in cases of benign lesions (5.97 kPa) with a statistical significance P value = 0.002. The median lesion/parenchyma stiffness ratio of malignant focal lesions was 2.69 and the median lesion/parenchyma stiffness ratio of benign focal lesions was 1.97 with no statistical difference (Table 4).

Table 4 Median stiffness value of benign and malignant lesions, the liver parenchyma and median lesion/parenchymal stiffness ratio

Full size table

Regarding the benign focal lesions (Figs. 1, 2, and 3): focal nodular hyperplasia was the stiffest with median stiffness value was 26.7 kPa and the surrounding liver parenchyma median stiffness value was 6.64 with significant P value = (0.009), abscess median stiffness value was 12.67 and the surrounding liver parenchymal stiffness value was 5.97 with relative significant P value = (0.05), hemangioma median stiffness value was 10.5 and the surrounding liver parenchyma median stiffness value was 5.84 with significant P value ≤ 0.004, focal fatty infiltration median stiffness value was 10.3 and the surrounding liver parenchyma median stiffness value was 5.57 with significant P value = (0.021), hydatid cyst median stiffness value was 8.79 and the surrounding liver parenchyma median stiffness value was 5.77 with relative significant P value = (0.05), and finally simple cyst did not exhibit any stiffness value (Table 5).

Table 5 Shear wave elastography median (min-max) stiffness values (kPa) of different categories of benign and malignant hepatic focal lesions, and the surrounding liver parenchyma

Full size table

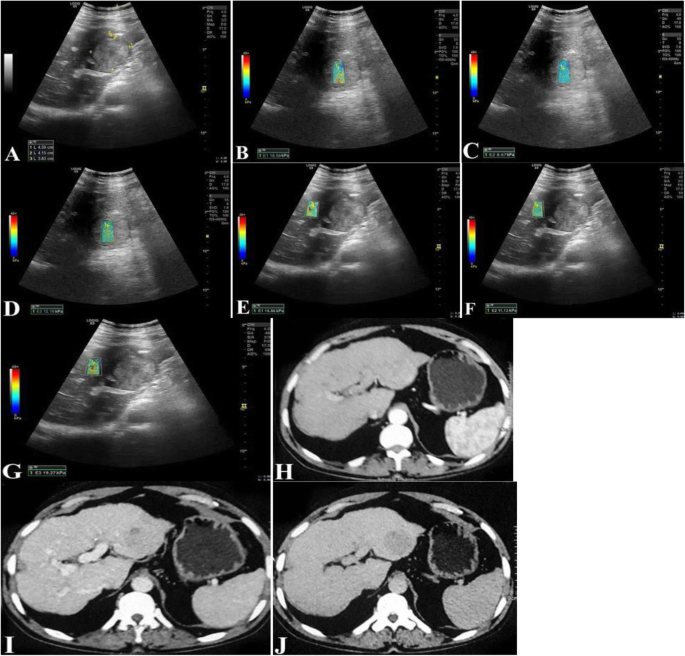

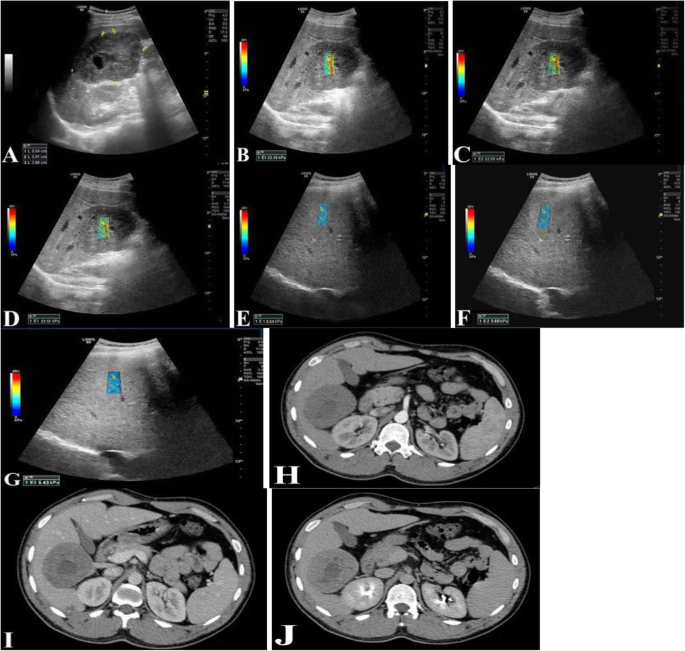

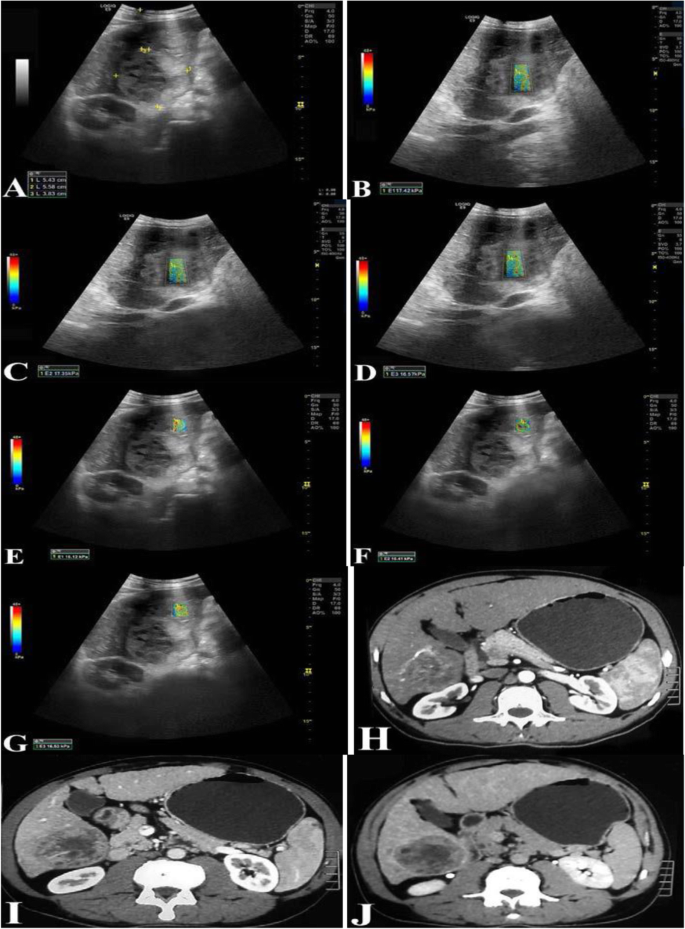

As regard the malignant focal lesions (Figs. 4, 5, 6, and 7): cholangiocarcinoma was the stiffest with median stiffness value was 35.9 and the surrounding liver parenchyma median stiffness value was 7.9 with significant statistical difference P value = 0.021, metastasis median stiffness value was 25.5 and the surrounding parenchyma median stiffness value was 5.7 with significant P value ≤ 0.001, hepatocellular carcinoma median stiffness value was 17.6 and the surrounding liver parenchyma median stiffness value was 13.2 with significant P value ≤ 0.001, and finally lymphoma median stiffness value was 14.5 and the surrounding liver parenchymal stiffness value was 5.8 with significant (P value = 0.004) (Table 5).

Receiver operating characteristic (ROC) curve for the diagnostic accuracy of SWE median stiffness values for differentiation of benign from malignant hepatic focal lesions had AUC = 0.834, and using cutoff value 14.165 kPa, yielding 98.1% sensitivity, 78.3% specificity, and 92% accuracy (Table 6).

Table 6 Diagnostic accuracy of SWE stiffness values for differentiation of benign from malignant hepatic focal lesions based on ROC curve

Full size table

Discussion

Only few pilot studies have evaluated the recent diagnostic imaging system (SWE) for stiffness investigation of focal liver lesions [19].

This study included 75 patients of variable hepatic focal lesions (42 males and 33 females), their age ranged from 19 to 67 years with mean age of 50.13 years. All cases were evaluated by means of B-mode abdominal ultrasound and shear wave sono-elastography, and finally diagnosed by core needle biopsy (39 cases), CE-CT, and CE-MRI (75 cases).

In the current study, the median size of benign focal lesions was 6.7 cm and of malignant focal lesions was 5.3 cm. There was no statistical significance between the lesion size and its nature whether benign or malignant and in turn its stiffness in kPa. This matches with Guibal et al. [17] and Choong et al. [20] who stated that there was no statistical correlation observed between the size of lesions and lesion stiffness value.

Regarding the color-coded elastogram, 46 malignant lesions (88.5%) had mixed color with red foci, while only the 5 benign FNH cases (21.7%) had red foci. There was a statistically significant difference between benign and malignant focal lesions as regard the color-coded elastogram with P value < 0.001, and this matches with the study of Guibal et al. [17] and Park et al. [21] who stated that in the technique setting, dark blue color is indicative of the lowest stiffness and dark red is indicative of the highest stiffness.

Among the benign focal lesions, focal nodular hyperplasia was the stiffest with median stiffness value (26.7 kPa).

The median stiffness value of FNH was (26.7 kPa), while that of hemangioma was (10.5 kPa). These results are in agreement with Guibal et al. [17] who reported that SWE mean stiffness value was for FNH 33 ± 14 kPa, and for the hemangiomas 13.8 ± 5.5, also with Park et al. [21] study results that included that the mean stiffness value for hemangiomas 12.91 ± 9.42 and for FNH 27.02 ± 4.14, while these results do not cope with Gerber et al. [19] who concluded that there was no significant difference could be observed in elasticity values between the different benign FLLs as hemangioma median stiffness value was 16.35 (5.4–71.9) kPa and FNH median stiffness value was 16.55 (2.1–69.7) kPa.

These studies of Guibal et al. [17], Qiang et al. [18], Gerber et al. [19], and Park et al. [21] described that hemangioma had elevated stiffness value in comparison with the surrounding hepatic parenchyma as in Park et al. study [21] hemangioma mean stiffness value was 12.91 ± 9.42, while parenchymal mean stiffness value was 5.5 ± 2.8, as well as in Gerber et al study [19] hemangioma median stiffness value was 16.35 kPa, while parenchymal median stiffness value was 8.5 kPa, and the results of the current study had similar observations as the median stiffness value of hemangioma was 10.5 kPa, the surrounding hepatic parenchymal median stiffness value was 5.84 kPa with statistically significant P value ≤ 0.004.

Kim et al. [22] explained these results by that hemangiomas histologically composed of large blood-filled endothelial-lined spaces separated by fibrous septa, vascular thrombi likely responsible for the high stiffness values.

In the current study, abscess (3 cases) showed elevated stiffness value as median stiffness value was 12.67 kPa, and the surrounding liver parenchyma median stiffness value was 5.97, and this is in agreement with Park et al. [21] as abscess (3 cases) mean stiffness value was 22.13 ± 5.14 and the surrounding liver parenchyma mean stiffness value was 5.77 ± 1.25.

Guibal et al. [17] and Park et al. [21] found that FNH include components significantly higher than other benign hepatic lesions in stiffness. Yu and Wilson [23] added that these elevations in stiffness likely matched to fibrous septations, which results due to central scar formation, and this copes with the results of the current study as FNH was the stiffest benign lesion.

Park et al. [21] fond that SWE mean stiffness values for focal fatty sparing 15.15 ± 11.38, for hematomas 31.05 ± 1.34, and for fibrosis 6.5, Gerber et al. [19] study also included 1 case of adenoma with median stiffness value 8.9, and Guibal et al. [17] mentioned that mean SWE values for focal fatty sparing 6.6 ± 0.3, for scars 53.7 ± 4.7, and for adenomas 9.4 ± 4.3. Guibal et al. [17] explained that adenoma stiffness values were elevated compared with surrounding parenchyma as adenoma are composed of large hepatocytes supported by a weak framework of collagen and they are deficient in biliary canaliculi. Unfortunately, this current study did not include any cases of these categories.

Among the malignant focal lesions: cholangiocarcinoma was the stiffest with median stiffness value (35.9 kPa).

In the current study, the stiffest lesion of all types of focal lesions (benign and malignant) was cholangiocarcinomas (35.9 kPa) and showed more stiffness values comparing with other malignant focal lesions, and this matches with Guibal et al. [17] and Gerber et al. [19] who reported that cholangiocarcinomas were the stiffest malignant FLLs.

Sirica et al. [24] and Okamoto et al. [25] explained these results by the fact that cholangiocarcinoma in histology has a considerable fibrotic component, which is also a significant portion of their malignant progression. Heide et al. [26] added that this fibrotic component is likely resulting in the high stiffness present in cholangiocarcinoma.

Guibal et al. [17] stated that none of the cholangiocarcinomas (56.9 ± 25.6) exhibited a stiffness value like the FNHs (33 ± 14.7) and this copes with the current study results as regard cholangiocarcinoma median stiffness value (35.9 kPa) and FNH (26.7 kPa).

The median stiffness value of HCC (17.6 kPa) was lower than that of metastasis (25.5 kPa) and cholangiocarcinoma (35.9 kPa) and was higher than the median stiffness value of all benign hepatic lesions (10.68 kPa) and lower than the stiffness value of FNH (26.7), and this is in agreement with Guibal et al. [17], Kim et al. [22], and Frulio et al. [27] who reported that generally hepatocellular carcinoma was harder than all benign focal lesions but softer than benign focal lesions that showed high stiffness values such as focal nodular hyperplasia.

Guibal et al. [17] reported that SWE mean stiffness values (in kPa) were for HCCs 14.86 ± 10, for metastasis 28.8 ± 16, and for cholangiocarcinomas 56.9 ± 25.6 kPa with the difference in tissue elasticity between cholangiocarcinoma and HCC statistically significant (P 00.0004). However, Choong et al. [20] stated that the elasticity values of HCC (51.45 ± 14.96 kPa) were statistically non-significant from the values of metastatic lesions (49.89 ± 13.82 kPa).

In this study, HCC (N = 21 cases); 2 cases of HCC showed stiffness value (15.27, 15.1) less than liver parenchyma (18.2, 17.8); however, 19 cases of HCC showed stiffness value more than liver parenchyma. Also, the study of Guibal et al. [17] included 25 cases of HCC; 6 cases showed stiffness value less than liver parenchyma, but 19 cases showed stiffness value more than liver parenchyma.

This is explained by Guibal et al. [17] and Gallotti et al. [28] who reported that HCCs in cirrhotic livers may exhibit a relatively softer values when compared with the stiff surrounding parenchyma. However, some cases of HCC showed stiffness value more than liver parenchyma by the fact that their patients likely had less degree of cirrhosis.

Gerber et al. [19] reported that the median stiffness of all FLLs [28.6 kPa] was significantly higher than that of the surrounding liver [9.9 kPa] (P < 0.0001), whereas the surrounding liver in patients with HCC showed the highest stiffness with (P < 0.0001) in comparison to the surrounding liver of further subgroups, and this matches with the current study results as the median stiffness of all FLLs [18.37 kPa] was significantly higher than that of the surrounding liver median stiffness value [6.47 kPa] (P < 0.001), whereas the surrounding liver in patients with HCC showed the highest median stiffness of 13.2 kPa (P < 0.001) in comparison to the surrounding liver parenchyma of further subgroups.

Guibal et al. [17] and Gerber et al. [19] stated that sometimes cholangiocarcinoma may exhibit similar enhancement criteria in CT and MRI as hepatocellular carcinomas, so discrimination between cholangiocarcinomas and hepatocellular carcinoma can be difficult in these situations, and in Guibal et al. [17], there was a significant difference found between the elasticity of HCCs and CCCs (P 00.0004). These distinct differences in SWE could aid in the differentiation of HCCs and cholangiocarcinomas. Gerber et al. [19] concluded that the use of SWE can aid in the differentiation of HCCs and CCC as the median stiffness of CCC was 70.7, and there was a significant difference in stiffness compared to HCC median stiffness value (44.8).

The current study showed similar observations as cholangiocarcinoma median stiffness value (35.9) was much higher than that of hepatocellular carcinoma (17.6).

In this study, the elasticity values of metastases varied widely depending on the primary tumor type. Colo-rectal metastases (6 cases) median stiffness value (22.54 kPa) was lower than breast cancer metastases (7 cases) median stiffness value (26.25 kPa), this is in agreement with Guibal et al. [17] who reported that mean stiffness value of metastases from carcinoid tumors (30.7 kPa) was higher than metastases from gastro-intestinal tract adenocarcinomas (21.8 kPa).

Lymphoma showed elevated median stiffness value 14.5 kPa comparing to the surrounding liver parenchyma 5.8 kPa, and this matches with Park et al. [21], as lymphoma mean stiffness value was 31.9 kPa, while the surrounding liver parenchyma mean stiffness value was 8.7 kPa.

The lesion to parenchyma stiffness ratio may be of a clinical value in patient with liver fibrosis as, in the current study: HCC lesion/parenchyma stiffness ratio was (1.37) lower than cholangiocarcinoma lesion/parenchyma stiffness ratio (4.6), and also lower than metastasis lesion/parenchyma stiffness ratio (4.2). This was attributed to fibrosis in the surrounding hepatic parenchyma. These results coping with Park et al. [21] and De-Wall et al. [29] who reported that regarding stiffness ratio of FLL to adjacent liver parenchyma, HCC showed lower ratio than all of other malignant FLLs except combined HCC-CCC and showed similar ratio value compared with benign FLLs. This may be attributed to the liver cirrhosis background in most patients with HCC.

In this study, the median benign focal lesion stiffness value (10.68 kPa) was significantly lower than that of malignant focal lesions (20.22 kPa) with a statistical significance P value < 0.001. This matches with Guibal et al. [17] who reported that the mean value for the benign focal lesions was 18.53 ± 13.5 kPa and for the malignant focal lesions was 26.9 ± 18.8 kPa with statistical significance P value = 00.01, and matches also with Park et al. [21] who reported that the malignant focal lesion mean stiffness value was 60.41 ± 47.81 kPa, while that of benign focal lesions was 22.05 ± 17.24 kPa with statistical significance P value = 0.0001. Also, this is in agreement with Gerber et al. [19] results who reported that the benign focal lesion median stiffness value was 16.4 and the malignant focal lesion median stiffness value was 36 with statistically significant P value < 0.0001.

These studies of Guibal et al. [17], Gerber et al. [19], Park et al. [21], Brunel et al. [30], Ferraioli et al. [31], and Xie et al. [32] added that the main role of the technique was to differentiate between adenoma and FNH in benign category and between HCC and cholangiocarcinoma in malignant category as the usual radiological imaging modalities may have overlap and conflict in diagnosis between some cases of these categories.

The results of the current study showed that cholangiocarcinoma median stiffness value (35.9) was much higher than that of hepatocellular carcinoma (17.6). Unfortunately, the current study did not include adenoma cases to differentiate between it and FNH, unlike Guibal et al. [17] study results that included (10 adenoma cases) with mean stiffness value 9.4 ± 4.3 kPa and (16 FNH cases) with mean stiffness value 33 ± −14.7 kPa, and Brunel et al. [30] study that included (57 FNH and 19 adenoma) with mean elasticity value 46.99 ± 31.15 kPa for FNH and 12.08 ± 10.68 kPa for adenoma.

In this study, the receiver operating characteristic (ROC) curve of SWE stiffness values for differentiation of benign from malignant hepatic focal lesions had AUC = 0.834 and using cutoff value 14.165 kPa, yielding 98.1% sensitivity, 78.3% specificity, and 92% accuracy; however, in the study of Park et al. [21], the (ROC) curve showed that using a cutoff value of 30.8 kPa with AUC 0.79, yielding 70.6% sensitivity and 82.4% specificity. This difference in sensitivity may be attributed that there was a sample size difference between the current study (75 lesions) and Park et al. [21] study (136 lesions).

The current study had some limitations

1-Relatively small sample size (75 cases)

2-Failure of SWE acquisitions in left liver lobe focal lesions because of excess tissue movement due to cardiac and respiratory motion and failure in right liver lobe focal lesions with depth greater than 6 cm from the skin because of the lesion location beyond the penetration limits of shear waves. These are the same limitations encountered in conventional ultrasound as mentioned by Guibal et al. [17] and Park et al. [21]. This point needs further assessment.

3-This study is missing some categories (e.g., adenoma and focal fatty sparing) or containing small number of some other categories (e.g., hydatid cyst (3 cases), abscess (3), focal fatty infiltration (4), cholangiocarcinoma (4), and FNH (5)).

Recommendations

Further large scale research is needed to assess the use of shear wave sono-elastography to help in differentiation between malignant and benign hepatic focal lesions.

Conclusion

Although SWE is a recent technique, which needs more evaluation and several researches are needed to assess its use as an alternative to liver biopsy and other radiological imaging techniques, its initial results are promising as described in the current study. Shear wave elastography is a useful technique with high sensitivity and accuracy in differentiating benign form malignant liver focal lesions as the results demonstrated that malignant lesion stiffness values were higher comparable to the benign lesions values.

The technique shows promising results in individual characterization of some malignant (HCC and CCC) and benign hepatic focal lesion (FNH from other benign lesions) (for further research).

Availability of data and materials

Authors can confirm that all relevant data are included in the article and/or its supplementary information files.

Abbreviations

FLLs:: Focal liver lesions
MRI:: Magnetic resonance imaging
CT:: Computed tomography
PET:: Positron emission tomography
SWE:: Shear wave sono-elastography
N:: Number
CE-CT:: Contrast enhanced computed tomography
CE-MRI:: Contrast enhanced magnetic resonance imaging
ROI:: Region of interest
CT:: Computed tomography
MRI:: Magnetic resonance imaging
SPSS:: Statistical package for social science
SD:: Standard deviation
ROC curve:: Receiver operator characteristics curve
AUC:: Area under the curve
P value:: Probability value
GIST:: Gatstro-intestinal stromal tumor
FNH:: Focal nodular hyperplasia
HCC:: Hepatocellular carcinoma
CCC:: Cholangiocarcinoma
e.g.:: For example
