PET/CT in restaging, prognosis, and recurrence in patients with malignant melanoma

Abstract

Background

Cutaneous malignant melanoma (CMM) is a highly aggressive tumor with high tendency of return despite complete surgical removal. It has a high risk of dissemination to regional lymph nodes and visceral organs. The prognosis is highly dependent on lymph node involvement and distant metastases. Positron Emission Tomography with Computed Tomography (PET/CT) is a valuable non-invasive tool for the diagnosis and staging of patients with MM. The purpose of the present study was to evaluate the role of integrated (PET/CT) in staging, restaging, prognosis, and prediction of recurrence in patients with malignant melanoma.

Results

Fifty malignant melanoma patients with age ranged from 28 to74 years (mean age 55.94 + 13.40 years) were 28 males (mean age 56.71 + 12.82) and 22 females (mean age 54.95 + 14.34). All our patients were histopathologically proven to have malignant melanoma. Twenty-one patients came for initial staging by 18F-FDG PET/CT. Their findings were compared with the reference standards and showed the sensitivity of 93.33%, specificity of 60%, and accuracy of 85.71% for primary staging. 18F-FDG PET/CT scan in 11 clinical suspicion patients of relapse after treatment showed the sensitivity of 100%, specificity of 66.66%, positive predictive value of 88.88%; negative predictive value of 100%; and accuracy of 90.90%. FDG-PET/CT of whole body scan in 18 cases of stage IV melanoma showed sensitivity of 100%, specificity of 66.66%, and overall accuracy of 94.44% for detection of distant metastases. SUVmean and SUVmax in all studied groups were significantly higher in true positive more than true negative or false-positive patients diagnosed by PET/CT with high sensitivity (82.88–100%).

Conclusion

PET/CT imaging enhanced diagnostic performance in detection of the primary malignancy, in follow-up of high-risk patients and patients with suspected or known local or distant recurrence, and in restaging of patients with known distant metastatic disease to assess tumor response.

Background

Melanoma, also known as malignant melanoma (MM), is a type of cancer that develops from the pigment-containing cells known as melanocytes. Melanomas typically occur in the skin but may rarely occur in the mouth, intestines, or eye [1].

Melanoma is an aggressive tumor with early tendency to metastasis to regional lymph nodes followed by distant metastasis. Although almost all organs can be involved, the most frequent target sites are the liver, bone, and brain. Despite recent advances in the understanding of oncogenic mechanisms and therapeutic interventions, the median survival in patients with metastatic disease does not go beyond 12 months [2].

Staging system for cutaneous melanoma is based on data from The American Joint Committee on Cancer (AJCC) which based on Tumor Nodal Metastases (TNM); stages include I, II, III, and IV. This staging was last revised in 2009 [3].

MM’s mortality rate varies greatly depending on the stage of the disease at diagnosis. In the early stages of MM, the 5-year survival rates are quite high, 97 and 92% for stages IA and IB, respectively. This survival rate, however, falls drastically in the later stages of MM to between 10 and 30% for stage IV patients [4].

High mortality rate in terminal stages required early detection of initial stages, so effective treatment applied. MM tended to occur at any organ far from the primary one, so regional imaging was not effective in mapping of distribution of disease. Risk of post-operative recurrence and distant metastasis is seen in around one third of cases, with lack of unity of postoperative imaging tool [5].

PET/CT is a technique used to reduce false-positive findings by combining two imaging modalities. It combines the advantages of the metabolic imaging and anatomic localization in one session. PET/CT with its inherent whole-body capability is arguably the best imaging option to search for melanoma metastases with the potential to change treatment plan in as high as 49% [6].

It was found that among sonography, CT, PET, and PET/CT, PET/CT had the highest sensitivity (86%) and specificity (91%) for detecting metastases as deep soft tissue, lymph node, and visceral metastases [7].

In advanced stages of MM (i.e., III–IV), FDG-PET/CT can be of great value by locating distant metastases, thereby influencing treatment decisions [8,9,10].

The main indication of PET/CT in cutaneous melanoma is to detect recurrence or to restage disease following the detection of recurrence, particularly in patients with high-risk melanoma who are candidates for resection with curative intent. As patients therapy that showed no responce could be changed, saving the patients from ineffective therapy and associated toxicities. There is still lack of agreement on the indications of post-therapy follow-up scans by PET/CT for MM patients.

The objective of this work is to evaluate the role of integrated Positron Emission Tomography/Computed Tomography (PET/CT) in staging, restaging, prognosis, and prediction of recurrence in patients with malignant melanoma.

Methods

Patient’s population

This prospective interventional study was carried out following the approval of the Research Ethical Committee, from November 2017 to September 2019, on fifty (50) patients, age range 28–74 years with blood glucose levels below 150 mg/dL, histopathologically proven to have malignant melanoma. The exclusion criteria were patients who were unable to remain supine for 30 min and those who were unable to put his or her arms overhead and patients with uncontrolled hyperglycemia (blood glucose level > 250 mg/dL), and pregnant patients were excluded from our study. Also, patients with vital sign instability, severe diabetes, severe illness, active infection renal disease who had serum creatinine level above 2.0 mg/dL were excluded from our study as in Fig. 1.

Fig. 1
figure 1

A flowchart of the detection method in whole-body PET/CT images

Informed written consent was obtained from all participants prior to use of PET/CT after full explanation of the benefits and risks of the procedure given to Research Ethical Committee. The patients’ medical records were reviewed for the basic information comprising age and sex as well as primary tumor characteristics (location, histological type, ulceration, TNM stage, and FDG-PET/CT findings).

Methods

Examined patients were categorized into 3 groups according to various referable causes: G1, including 21 patients for initial staging; G2, 11 patients with clinical suspicion of relapse; and G3, 18 patients in stage IV for suspicion and detection of metastatic deposits.

Preparation

The patient was asked to fast for 6 h prior to the scan. All metallic items were removed from the patient, including dentures, pants with zipper, bra, belts, and bracelets. An 18-gauge cannula was inserted in the patient’s anti-cubital fossa for administration of 18F-FDG.

Patients were instructed to avoid caffeinated or alcoholic beverages and avoid any kind of strenuous activity; only water was allowed to prior to the examination and following the injection of the radioisotope to avoid physiologic muscle uptake of FDG.

For the diabetic patients, good control of blood glucose is essential because the uptake of FDG into cells is competitively inhibited by glucose, as they use a common transport mechanism (glucose transporters [GLUT]) for facilitated transport into both normal and tumor cells.

Serum glucose was routinely measured prior to 18F-FDG injection, and it should be below 150 mg/dL. Diabetic patients should not have regular insulin administered subcutaneously within 4 h from FDG administration.

Oral contrast media was used for all patients to distend the bowel wall and help to distinguish between bowl loops and any lymph nodes or masses in the abdomen and pelvic region.

The 18F-FDG was injected into the patient either in a dosage of 0.14 mCu/kg or as prescribed by the physician. The patient waited for 45 to 60 min after FDG administration. This period is referred to as the uptake phase and is the necessary amount of time for the FDG to be adequately bio-distributed and transported into the patient’s cells.

Patients were asked to rest in a quiet room, devoid of distractions, and they were also asked to keep their movements, including talking, at an absolute minimum. This minimizes physiologic uptake of FDG into skeletal muscle, which can confound interpretation of the scan.

PET/CT image interpretation

Multi-slices CT images were performed immediately preceding the acquisition of PET emission data. The patients were asked for quiet breathing to avoid motion artifacts and to match co-registration of CT and PET images in the area of the diaphragm.

The images were displayed in the axial, coronal, and sagittal planes. We assessed the images by both visual inspection and quantitative analysis of the area of abnormal uptake that was done followed by measuring of SUVmax by putting the region of interest (ROI). PET-CT images were evaluated regarding the primary tumor and the presence of lymph nodes and distant metastases. Patients were staged using 7th edition of the TNM staging system.

Statistical analysis

All the PET/CT finding results recorded and analysis using mean, standard deviation, minimum, median, and maximum in quantitative data by using count (frequency) and relative frequency (percentage) for analysis the data. Correlations between quantitative variables were done using chi-square test, sensitivity, specificity, and accuracy with positive predictive values, and negative predictive values were calculated; P values less than 0.05 were considered significant. The calculations were done by using a statistical software package (SPSS for Windows, SPSS Inc, Chicago, IL).

Results

Fifty MM patients with age ranged from 28 to 74 years (mean age 55.94 + 13.40 years) were eligible for this study. They were 28 males (mean age 56.71 + 12.82) and 22 females (mean age 54.95 + 14.34). All our patients were histopathologically proven to have malignant melanoma and demonstrated blood glucose levels below 150 mg/dL.

The most common age for MM ranged between 66 and 74 years. Furthermore, our results revealed that males are more affected than females with MM, in which 28 (56%) of our patients were males and 22 patients (44%) were females.

The most common site for the primary melanoma was on the head/neck (36%), followed by the trunk (30%), followed by the lower extremities (16%), and upper extremities (14%). The common histological type is nodular (84%), followed by acral lentiginous (10%), and finally superficial spreading (6%).

The AJCC stage at initial diagnosis of 50 MM patients was as follows: no patients had stage I disease, 11 patients (22%) had stage II disease, 21 patients (42%) had stage III disease, and 18 patients (36%) had stage IV disease (Table 1).

Table 1 The staging of patients with the TNM system and AJCC stage

Twenty-one (G1) out of 50 MM patients in our study had done 18F-FDG PET/CT imaging for initial staging. Their findings were compared with the reference standards (clinical examination, histopathology, and imaging CT). 18F-FDG PET/CT was true positive (TP) in 15, true negative (TN) in 3, false positive (FP) in 2, and false negative (FN) in 1 patient. PET/CT showed the sensitivity of 93.75%, specificity of 60%, and accuracy of 84.21% for detection of MM (Table 2).

Table 2 Sensitivity (Sens), specificity (Spec), accuracy, PPV, and NPV of PET/CT in initial staging in 21 malignant melanoma cases

The diagnostic values of PET/CT, SUVmean, and SUVmax in G1, n = 21 patients, of MM are shown in Table 3. SUVmean and SUVmax in all the 21 patients of initial staging were significantly higher in true positive than true negative or false-positive patients diagnosed by PET/CT.

Table 3 The diagnostic value of SUVmean and SUVmax for initial staging in G1, n = 21 malignant melanoma cases

An example for primary staging was a male patient aged 61 years, who complain of multiple left chest wall pigmented skin lesions proved to be malignant melanoma, nodular type, after surgical excision of one of them. Patient came for primary staging by PET/CT (Figs. 2, 3, and 4).

Fig. 2
figure 2

1 Axial CT, PET, and PET/CT with MIP images showing FDG avid left anterior chest wall skin and subcutaneous lesions. 2 Axial PET/CT showing FDG avid left rib osteolytic lesion (ribs). 3 Axial PET/CT showing encysted hydro-thorax with peripheral activity of visceral and parietal pleura (lungs). 4 Axial, sagittal, and coronal PET/CT showing free other organs except for the skin, chest wall, and pleural FDG avid lesions

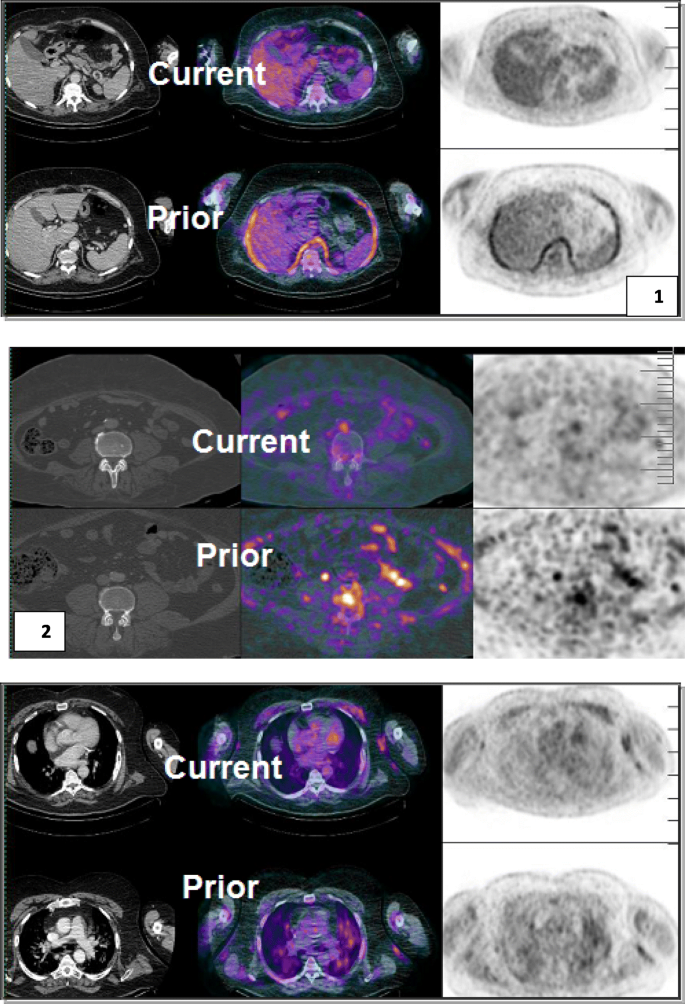

Fig. 3
figure 3

1 Axial CT, PET, and PET/CT images showing regression of FDG avid chest wall lesions except for left anterior chest wall lesion (skin and subcutaneous tissue). 2 Axial CT, PET, and PET/CT images showing metabolic regression of FDG avid osseous lesions, involving sternum, vertebrae, pelvic bones, and femora. 3 Axial CT, PET, and PET/CT images showing metabolic regression of reticulonodular lung infiltration. Left chest wall skin nodular thickening at the operative bed with increased metabolic activity (locoregional recurrence)

Fig. 4
figure 4

1 Axial CT, PET, and PET/CT images showing newly developed FDG avid anterior chest wall lesion. Metabolic and morphologic progression of the lesion seen in the left postro-lateral lower chest wall. 2 Axial CT, PET, and PET/CT images showing progression in size of anterior abdominal wall lesion. 3 Axial CT, PET, and PET/CT images showing progression in size of right scapular lesion. 4 PET image showing peritoneal, hepatic, nodal, bone, and skin metastatic lesions

Our retrospective study evaluated besides the initial staging of primary tumor the utility of 18F-FDG PET/CT in detecting the recurrence in patients with malignant melanoma after primary surgical treatment. 18F-FDG PET/CT findings in G2, n = 11 patients, with suspicious of recurrent locoregional disease were true positive in 8 (72.72%) locoregional disease, true negative in 3 (18.18%), false positive in 1 (9.09%) patient, and false negative in 0 (0%) patients. PET/CT showed the sensitivity of 100%, specificity of 66.66%, positive predictive value of 88.88%, and negative predictive value of 100%, for detection of recurrent disease in melanoma patients (Table 4).

Table 4 Sensitivity (Sen), specificity (Spec), accuracy, PPV, and NPV of PET/CT in detection of recurrent disease in G2, n = 11 melanoma patients

The metabolic activity was assessed by standardized uptake value (SUV) in G2, n = 11, patients with suspicious of recurrent locoregional disease. Table 5 showed that both SUVmean and SUVmax were significantly higher in true positive than true negative or false-positive patients diagnosed by PET/CT (Fig. 3 1–3).

Table 5 The diagnostic value of SUVmean and SUVmax in 11 patients of suspicion of recurrent locoregional disease

An example for suspicious of recurrent locoregional disease was a 70-year-old male patient with history of surgically removed left chest wall melanoma received chemo- and radiotherapy. Patient came for restaging after suspicious locoregional recurrence (Fig. 3 1–3).

G3, n = 18 patients, with clinically evident stage IV melanoma underwent whole body FDG-PET/CT scans for follow-up and detection of metastatic disease after surgical excision of primary tumor and/or chemotherapy and radiotherapy. Their results were compared with reference standards. Fifteen patients out of 18 cases examined by PET/CT had variable extent of metastatic lesions showing either single or multiple metastatic lesions in different organs (lung, liver, bone, nodal, brain, or combination of more than one lesion) (Table 6).

Table 6 Distribution of metastases in different organs (n = 15)

The whole body FDG-PET/CT scans showed among 18 examined cases 15 true positive, 1 true negative, 2 false positive, and none false-negative scans for the detection of melanoma metastases, with sensitivity 100%, specificity 66.66%, overall accuracy 94.44%, positive predictive value 93.75%, and negative predictive value 100% (Table 7).

Table 7 Sensitivity, specificity, accuracy, PPV, and NPV of PET/CT in detection of distant metastasis of G3, n = 18 melanoma patients

The mean and max metabolic activity was assessed by standardized uptake value (SUV) in all 18 patients of follow-up suspicion of distant metastases. Table 8 showed that both SUVmean and SUVmax were significantly higher in true positive than true negative or false-positive patients diagnosed by PET/CT and in cases of multiple metastases.

Table 8 The diagnostic value of SUVmean and SUVmax for G3, n = 18 patients of suspicion of distant metastases

An example for metastatic melanoma was a 64-year-old male patient with history of metastatic melanoma, under follow-up after 6 months of chemotherapy (Fig. 4 1–4).

Follow-up study (stage IV) demonstrates as follows:

  • Newly developed hypermetabolic soft tissue, peritoneal, lymph nodal, and right diaphragmatic crus deposits.

  • Morphologic progression despite of metabolic regression of the osseous and left renal metastatic deposits as described.

  • Metabolic regression with no size change of the hepatic deposit.

Six out of 18 recurrent and metastatic MM patients died within 24 months. The dead patients were aged above 50 years, primary site of tumor located in the head and neck (3 patients), trunk (2 patients), and one in lower extremities. The tumor was of nodular type (5 patients) and acral lentiginous (1 patient). Five patients had multiple metastases in more than one site.

The overall survival (OS) of MM patients depend on age, the site, histological type, stage of tumor, recurrence, the number of metastases as well as SUVmax which represent prognostic factors.

Thus, melanoma specific survival (MSS) of MM patient with multiple metastasis was associated with a significantly shorter MSS than the single metastatic nodule (24.2 ± 2.6 vs 38.8 ± 7.8 months, P = 0.01). SUVmax > 2.9 was a significant prognostic factor for shorter MSS (23.4 ± 3.5 vs 44.2 ± 4.6 months, P ≤ 0.01). Survival analysis after combining both multiple metastases and SUVmax > 2.9 demonstrated significantly shorter MSS (Table 9).

Table 9 Melanoma-specific survival of patients with metastases and maximum standardized uptake value

During the follow-up of the survived MM cases with metastatic disease (9 cases) to evaluate their treatment response after surgical excision and/or chemotherapy and radiotherapy, we found that four cases of distant metastases after 6 months showed regression of lesions size and its SUVmax, while the rest shows progression in lesions size and its SUVmax.

Discussion

The purpose of this study was to assess the value of PET/CT for diagnosis, restaging, and follow-up of MM patients with curative intend. It was analyzed through a retrospective design. It aimed to develop a medical algorithm for PET in regular follow-up programs of CMM.

CMM staging is required for appropriate treatment decision-making. Autopsies of patients with known CMM revealed a higher frequency of metastases than regularly clinically reported, indicating that clinical evaluation and conventional imaging techniques (chest radiography, ultrasonography, computed tomography [CT], and magnetic resonance [MR] imaging) lead to underestimation of disease extent. Conventional imaging techniques will only reveal metastases when they are morphologically different from normal tissue in terms of size or structure [3, 11].

The present study revealed that malignant melanoma is much more common in males (n = 28.56%) than females (n = 22.44%) with mean age 55.94 + 13.04 years. The great number of cases was between 66 and 74 years more in males (9 cases) than females (8 cases). This is in harmony with the previous findings of Malik et al. [12], who showed during studying 54 patients that the clinical risk factors for malignancy are related to age and the mean age of their studied patients was 51.3 + 16.4 years. Previously, Frary et al. [13] showed during studying of 46 cases of MM that males were more common than females (26 males “56.53%” and 20 “43.47%” females), similar to our present findings.

The male sex predilection of skin cancer in Egypt could be explained by the fact that men represent the main workforce (outdoor work) with more risk for ultra violet exposure (predisposing factor of melanoma) than women as had previously mentioned by Hussein [14].

The primary sites for MM in our study were the head and neck (face) (36%), trunk (30%), extremities (30%), and groin (4%). This is in harmony with the previous findings of Daniesen et al. [15], who showed during studying 167 cases that the primary sites for MM were the head and neck (35.3%), trunk (32%), and extremities (33%).

The present study showed that the vast majority of the patients had nodular melanoma (84%) followed by acral lentiginous melanoma (10%) then finally superficial spreading (6%). This was in harmony with the previous findings of Hussein [14] who found that compared to Western societies, melanomas among Egyptians differ in being: (1) rare neoplasms, (2) have a definite male sex predilection with older age incidence, and (3) of nodular growth pattern.

As in all cancers, accurate initial staging is essential for developing the appropriate treatment strategy. 18F-FDG PET/CT findings of G1, 21 patients, in our study for initial staging were compared with the reference standards and showed the sensitivity of 93.33%, specificity of 60%, and accuracy of 85.71% for primary staging.

SUVmean and SUVmax in all the 21 patients of initial staging were significantly higher in true positive more than true negative or false-positive patients diagnosed by PET/CT with high sensitivity 82.88%.

The two false-positive cases in our study were one inflamed epidermal cyst and the other had popliteal neurinoma. Our findings were similar to Essler et al. [16], who detected two false-positive patients, one had a popliteal neurinoma, and the other false-positive patient had a chromic lymphatic leukemia. The false-negative patient in our study had brain focal lesion which could not be detected due to the high physiological glucose metabolism in the brain. Such findings supported the previous finding of Essler et al. [16], who detected false-negative results in two patients of brain metastases. This may be explained by brain hyperthermia. Hyperthermia might alter the follow-up of patient by ET–CT. We can overcome this problem by newly cooling system used practically in the brain cooling named by a zero-heat-flux Spot On sensor [17].

All G1 patients, n = 21, had surgical excision of lesions at primary sites, and 12 patients who had high SUVmax also received either chemotherapy or combination of chemotherapy and radiotherapy in addition to the surgical treatment according to level of metabolic activity. Our findings were nearly similar to those of Malik et al. [12], who found that in 54 patients that all of them had surgical excision of lesions at primary sites and 10 patients also received either chemotherapy or combination of chemotherapy and radiotherapy in addition to the surgical treatment.

18F-FDG PET/CT scan was done in the present study for 11 clinical suspicion patients of relapse after treatment (G2) and showed the sensitivity of 100%, specificity of 66.66%, positive predictive value 88.88%; negative predictive value 100%; and accuracy of 90.90%.

The reported maximum value (SUVmax) was 22, while the recorded minimum value was 6.26. SUVmax in all the suspicion patients of relapse was above 2.9 in recurrent cases with high sensitivity of 100%. Our findings coincided with those of Malik et al. [12], who showed the sensitivity, specificity, positive predictive value, and negative predictive value of 91.2%, 80%, 88.6%, and 84.2%, respectively, for detection of recurrence. They recorded SUVmax above 2.7 in all their examined recurrent and metastatic cases.

Whole body PET-CT was done in the present study for G3, n = 18, case come with stage IV melanoma for detection of metastasis and show sensitivity of 100%, specificity of 66.66%, and overall accuracy of 94.44%. SUVmax was above 2.9 ranging from 22.4 to 34.6 in patients with distant metastasis. Our finding coincided with those of Holder et al. [18] who showed that PET is sensitive, 94.2%, and very specific, 83.3%, for identifying malignant melanoma; also, Akcali et al. [19] showed that PET is efficient in detecting melanoma with a high overall specificity of 92%, sensitivity of 91%, and accuracy of 92%. The false-positive results in our metastatic group (G3) were due to increased accumulation of FDG in some benign processes as inflammation or infection as had been previously detected by Long and Smith [20].

A number of study had suggested that for early stage of MM (I–II), PET-CT was of limited diagnostic value, due to its low sensitivity in detecting microscopic lymphatic disease. It had been posted that in danced stage of MM (III–IV) can be of great value by locating distant metastasis, thereby influencing treatment decision and informing prognosis [21].

Six of our 18 MM (G3) died within 24 months; the dead patients were aged above 50 years, primary site of tumor located in the head and neck. All six patients were stage IV and had distant metastases. Five of the patients had multiple metastases; this finding matched with Robinson and Roenigk [22] who showed that the old age was more affected which could be as a result of weakening of the immune system.

In our wok, we found that the overall survival (OS) of MM depended on the age, site, histological type, stage of tumor, number of metastasis as well as the SUVmax which present prognostic factor. This is similar to the finding of de Vries et al. [23].

Thus, melanoma specific survival (MSS) of MM patients with multiple metastasis was associated with a significantly shorter MSS than in the single metastatic nodule as shown in our results 24.2 ± 2.6 vs 38.8 ± 7.8 months, P = 0.01. In the present study, SUVmax ≥ 2.9 was a significant prognostic factor for shorter MSS (23.4 ± 3.5 vs 44.2 ± 4.6 months, P = 0.01). We found that survival analysis after combining both multiple metastasis and SUVmax ≥ 2.9 demonstrated significantly shorter MSS; this is matched with Malik et al. [12].

We found that five of our dead patients had multiple metastases. This was similar to the findings of Essler et al. [16] who compared the melanoma associated mortality risk of patients with different numbers of metastases.

From the forgoing, PET/CT scanning has high sensitivity and specificity for detecting late stages as III and IV metastatic melanomas. The CT component of PET/CT helps to establish the correct anatomical location of the lesions and to differentiate between physiological and non-physiological 18F-FDG uptake, thus facilitating appropriate interpretation of the PET scan and decreasing the numbers of false-positive and false-negative results.

Therefore, the main indication of PET/CT in cutaneous melanoma is to detect recurrence or to restage disease following the detection of recurrence, particularly in patients with high-risk melanoma who are candidates for resection with curative intent. As patients therapy that showed no responce could be changed, saving the patients from ineffective therapy and associated toxicities and costs.

When patients are being considered for surgical resection of isolated distant metastatic lesions, FDG-PET/CT imaging is used to accurately assess disease extent. Additional lesions identified on FDG-PET/CT imaging make surgical resection unwarranted.

Advanced melanoma carries a poor prognosis, mandating development of new therapies. FDG-PET/CT imaging can provide an early indicator of response to therapy for melanoma patient.

Malignant melanoma patients need continuous follow-up by PET/CT which enhanced diagnostic performance in detection of the primary malignancy, in follow-up of high-risk patients and patients with suspected or known local or distant recurrence, and in restaging of patients with known distant metastatic disease to assess tumor response; thus, it is highly recommended to be imaging of choice especially in follow-up or postoperative. If PET/CT will be adding to routine follow-up program of CMM patients, it would be strongly helpful if the radiation could be restricted to an absolute minimum. New dosimetry studies performed with phantoms of identical characteristics, using thermoluminescent dosimeters (TLDs) placed in regions close to the region where this study conducted, and identified lower dose values [24]

This study had many limitations: the nature of study as a retrospective, small number size of studied patients in each group, and high dose of radiation; we should use low-dose radiation CT if follow-up done as a protocol, high cost of PET-CT epically in developing countries.

One of most important limitation of the study did not identify the patients needed, and the other excluded from follow-up by PET-CT and did not identify the time schedule of follow-up; surveillance part of study is also needed to be extended over large number of patients.

Conclusion

FDG-PET/CT imaging improved accuracy of in staging over other imaging methods that provides important prognostic information and has a significant impact on management and follow-up of patients with melanoma. SUVmax could be used as a prognostic factor for tumor response or progress as the higher SUVmax demonstrated especially at metastatic lesion was correlated significantly with shorter melanoma-specific survival rate. Further studies are highly recommend aiming to implant FDG-PET/CT in routine follow-up for certain cases of MM patients.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

CMM:

Cutaneous malignant melanoma

PET/CT:

Positron Emission Tomography with Computed Tomography

PET:

Positron Emission Tomography

MM:

Malignant melanoma

AJCC:

American Joint Committee on Cancer

TNM:

Tumor nodal metastases

FDG:

F-18-fluordeoxyglucose

GLUT:

Glucose transporters

SUV:

Standardized uptake value

TP:

True +ve

FN:

False −ve

TN:

True −ve

FP:

False +ve

PPV:

Positive predictive value

NPV:

Negative predictive value

(*):

Significant

χ2:

Chi-square test

FE:

Fisher Exact

P :

P value for comparing between the two studied groups

Sen:

Sensitivity

Spec:

Specificity

OS:

The overall survival

MSS:

Melanoma specific survival

CT:

Computed tomography

MR:

Magnetic resonance imaging

References

  1. Kanavy HE, Gerstenblith MR (2011) Ultraviolet radiation and melanoma. Semin Cutan Med Surg 30(4):222–228. https://doi.org/10.1016/j.sder.2011.08.003

    CAS  Article  PubMed  Google Scholar

  2. Tas F (2012) Metastatic behavior in melanoma: timing, pattern, survival, and influencing factors. J Oncol 647684:9. https://doi.org/10.1155/2012/647684

    Article  Google Scholar

  3. Balch CM, Gershenwald JE, Soong SJ et al (2009) Final version of 2009 AJCC melanoma staging and classification. J Clin Oncol 27(36):6199–6206. https://doi.org/10.1200/JCO.2009.23.4799

    Article  PubMed  PubMed Central  Google Scholar

  4. Sandru A, Voinea S, Panaitescu E, Blidaru A (2014) Survival rates of patients with metastatic malignant melanoma. J Med Life 7(4):572–576 PMCID: PMC4316142.PMID: 25713625

    CAS  PubMed  PubMed Central  Google Scholar

  5. Dharmender M, Ashwani S, Bhagwant RM et al (2019) Role of 18F-fluorodeoxyglucose positron emission tomography/computed tomography in restaging and prognosis of recurrent melanoma after curative surgery. World J Nucl Med 18:176–182 PMCID: PMC6476242PMID: 31040750

    Article  Google Scholar

  6. Hess S, Blomberg BA, Zhu HJ et al (2014) The pivotal role of FDG-PET/CT in modern medicine. Acad Radiol 21(2):232–249. https://doi.org/10.1016/j.acra.2013.11.002

    Article  PubMed  Google Scholar

  7. Krug B, Crott R, Lonneux M, Baurain JF et al (2008) Role of PET in the initial staging of cutaneous malignant melanoma: systematic review. Radiology 249:836–844

    Article  Google Scholar

  8. Perng P, Marcus C, Rathan M (2015) 18F-FDG PET/CT and melanoma: staging, immune modulation and mutation-targeted therapy assessment, and prognosis. AJR 205:259–270. https://doi.org/10.2214/AJR.14.13575

    Article  PubMed  Google Scholar

  9. Petersen H, Holdgaard PC, Madsen PH et al (2016) FDG PET/CT in cancer: comparison of actual use with literature-based recommendations. Eur J Nucl Med Mol Imaging 43(4):695–706. https://doi.org/10.1007/s00259-015-3217-0

    Article  PubMed  Google Scholar

  10. Mena E, Taghipour M, Sheikhbahaei S, Mirpour S, Xiao J, Subramaniam RM et al (2016) 18F-FDG PET/CT and melanoma: value of fourth and subsequent posttherapy follow-up scans for patient management. Clin Nucl Med 41:e403–e409. https://doi.org/10.1097/RLU.0000000000001275

    Article  PubMed  Google Scholar

  11. Patnana M, Bronstein Y, Bedi DG, et al (2011) Multimethod imaging, staging, and spectrum of manifestations of metastatic melanoma. Clin Radiol 66:224–36. https://doi.org/10.1016/j.crad.2010.10.014.

  12. Malik D, Sood A, Mittal BR, Basher RK et al (2019) Role of 18F-fluorodeoxyglucose positron emission tomography/computed tomography in restaging and prognosis of recurrent melanoma after curative surgery. World J Nucl Med 18:176–182. https://doi.org/10.4103/wjnm.WJNM_37_18

    Article  PubMed  PubMed Central  Google Scholar

  13. Frary EC, Gad D, Bastholt L, Hessl S (2016) The role of FDG-PET/CT in preoperative staging of sentinel lymph node biopsy-positive melanoma patients. EJNMMI Res 6(73). https://doi.org/10.1186/s13550-016-0228-1

  14. Hussein MR (2005) Ultraviolet radiation and skin cancer: molecular mechanisms. J Cutan Pathol 32:191–205. Quoted from : Lanssens S & Ongenae K: Deratological lesions and risk for skin cancer. Acta Clinica Belgica, Volume 66, 2011 - Issue 3.pages 177-185. Published Online: 08 Oct 2014. https://doi.org/10.1111/j.0303-6987.2005.00281.x

    Article  PubMed  Google Scholar

  15. Danielsen M, Højgaard L, Kjær A et al (2014) Positron emission tomography in the follow-up of cutaneous malignant melanoma patients: a systematic review. Am J Nucl Med Mol Imaging 4(1):17–28 PMCID: PMC3867726 PMID: 24380042

    Google Scholar

  16. Essler M, Link A, Belloni B, Mirceva V et al (2011) Prognostic value of [18F]-fluoro-deoxy-glucose PET/CT, S100 or MIA for assessment of cancer-associated mortality in patients with high risk melanoma. PLoS One 6(9):e24632. https://doi.org/10.1371/journal.pone.0024632

    CAS  Article  PubMed  PubMed Central  Google Scholar

  17. Bakhsheshi MF, Ho M, Lynn K (2019) Non-invasive monitoring of brain temperature during rapid selective brain cooling by zero-heat-flux thermometry. Emerg Sci J 3:1. https://doi.org/10.28991/esj-2019-01163

    Article  Google Scholar

  18. Holder WD Jr, White RL Jr, Zuger JH et al (1998) Effectiveness of positron emission tomography for the detection of melanoma metastases. Ann Surg 227(5):764–771. https://doi.org/10.1097/00000658-199805000-00017

    Article  PubMed  PubMed Central  Google Scholar

  19. Akcali C, Zincirkeser S, Zerbagc Y et al (2007) Detection of metastases in patients with cutaneous melanoma using FDG-PET/CT. J Int Med Res 35:547–553. https://doi.org/10.1177/147323000703500415

    CAS  Article  PubMed  Google Scholar

  20. Long NM, Smith CS (2011) Causes and imaging features of false positives and false negatives on 18F-PET/CT in oncologic imaging. Insights Imaging 2(6):679–698. https://doi.org/10.1007/s13244-010-0062-3

    Article  PubMed  PubMed Central  Google Scholar

  21. Candil AO, Rey CR, Carreras Delgado- JL (2012) Malignant melanoma. ISRN Dermatol 2012:308279. https://doi.org/10.5402/2012/308279

    Article  Google Scholar

  22. Robinson JK, Roenigk HH Jr (1980) The big three of skin cancer: basal cell carcinoma, squamous cell carcinoma, and malignant melanoma. J Postgrad Med 67(6). https://doi.org/10.1080/00325481.1980.11715473

  23. Devries M, Speijersm J, Bastiaannete J et al (2011) Long-term follow-up reveals that ulceration and sentinel lymph node status are the strongest predictors for survival in patients with primary cutaneous melanoma. Eur J Surg Oncol (EJSO) 37(8):681–687. https://doi.org/10.1016/j.ejso.2011.05.003

    CAS  Article  Google Scholar

  24. Gómez AML, Santana PC, Mourão AP (2020) Dosimetry study in head and neck of anthropomorphic phantoms in computed tomography scans. Sci Med J 2(1). https://doi.org/10.28991/SciMedJ-2020-0201-6

Download references
