Additive value of magnetic resonance neurography in diagnosis of brachial plexopathy: a cross-section descriptive study



Management of brachial plexopathy requires proper localization of the site and nature of nerve injury. Nerve conduction studies and electrophysiological studies (ED) are crucial when diagnosing brachial neuropathy but these do not determine the actual site of the lesion. Conventional MRI has been used to evaluate the brachial plexus. Still, it carried the disadvantage of the inability to provide multi-planar images that depict the entire length of the neural plexus .It might be difficult to differentiate the brachial plexus nerves from adjacent vascular structures. Magnetic resonance neurography (MRN) is an innovative imaging technique for direct imaging of the spinal nerves. Our study aims to detect the additive role of MRN in the diagnosis of brachial plexopathy over ED. Forty cases of clinically suspected and proved by clinical examination and ED—traumatic (N = 30) and non-traumatic (N = 10)—were included in our study. We compared MRN finding with results of clinical examination and ED.


MRN findings showed that the root was involved in 80% of cases, trunks in 70% of cases affecting the middle trunk in 40% of cases, the middle and posterior cord in 25%, lateral cord in 50%, and terminal branches on 10% of cases. Ten percent of cases were normal according to MRN, and 90% had abnormal findings in the form of preganglionic nerve root avulsion in 30% of cases, mild perineural edema surrounding C6/7 nerve roots in 20%, lower brachial trunk high signal in 10%, complicated with pseudo meningocele in 20%, and with increased shoulder muscle T2 signal intensity with muscle atrophy in 10%. There were minimal differences between clinical examination finding and MRN findings, with very good agreement between electromyography and nerve conduction (p value < 0.05, with sensitivity and specificity values of 94.44% and 100%, respectively).


MRN is important in differentiating different types of nerve injuries, nerve root avulsion, and nerve edema, playing an important role in differentiating the site of nerve injury, both preganglionic or postganglionic and planning for treatment of the cause of nerve injury, either medical or surgical.


The brachial plexus is a network of nerves formed by the ventral branches of the spinal nerves C5–T1 in the posterior triangle of the neck. It is responsible for motor and sensory innervation to the upper extremity [1, 2]. The roots of the brachial plexus are combined to form three trunks, which were divided to form anterior and posterior divisions. At the level of the lateral margin of the first rib, the divisions are combined to form three cords, which give rise to the peripheral nerves of the upper limb in the axilla [3].

Pathology of the brachial plexus varies widely; this is due to similar mechanisms of injury based on age. For example, in neonates, the most common pathology is related to birth trauma. In adolescents and young adults, pathology is often due to high-speed trauma, such as motor vehicle accidents. In adults, neoplasms (intrinsic or extrinsic masses) or post-radiation injury are frequently the cause. Traumatic injuries to the brachial plexus are associated with weakness and paresthesia of the upper extremity on the affected side. A thorough neurologic examination can be performed to localize the injury and to help pinpoint the location of pathology [4, 5].

Conventional magnetic resonance imaging MRI is applied to evaluate the brachial plexus. A combination of fat-suppressed T2-weighted either frequency-selective or short tau inversion recovery [STIR] sequences and T1-weighted MR sequences are used, and the major disadvantage of these sequences is their inability to provide multi-planar or projection images that cover the entire length of the neural plexus. It may be difficult to differentiate the brachial plexus nerves from adjacent vascular structures [6,7,8].

Magnetic resonance neurography (MRN) is an imaging technique that combines MRI with specially designed phased—array surface coils that allow for visualization of the peripheral nerves [9]. The surface coil technology is combined with highly effective fat-suppressed T2-weighted MR pulse sequences to best visualize the nerves among other soft tissues. Compared to conventional MRI techniques, MRN features rapid image acquisition and high resolution capable of showing the small fascicular organization of nerves to detect different types of extraneural and intraneural lesions. It has been increasingly used in assessing lesions affecting peripheral nerves, plexus, and spinal nerve roots [10, 11].

We aim to detect the additive role of MRN in the diagnosis of brachial plexopathy over (ED) using correlation of MRI findings with the clinical and ED for better diagnosis of the cause and injury site to improve management of these cases.


Our retrospective and descriptive cross-section study was carried out on 40 patients who complained of motor weakness or sensory affection and were referred by neurologists, neurosurgeons, or oncologists to our radiodiagnosis department with clinical suspicion of a brachial plexus injury from October 2018 to December 2020. The ethical committee of our institution has approved this study. We were informed of written consent from participants. The inclusion criteria were patients diagnosed with brachial plexopathies either by clinical findings or positive ED findings, including postoperative cases; the exclusion criteria were patients who had a bilateral complaint, postoperative cases, patients who did not have ED study, had any artificial metallic processes, claustrophobia, and patients who had pain due to shoulder joint de-arrangement. All patients in this study were subjected to the following:

  1. 1.

    Detailed history-taking including the personal history, risk factors as hypertension, diabetes mellitus, obesity, drug intake, smoking, and comorbid diseases including renal, hepatic diseases, or collagen disorders. History of trauma, radiotherapy, or operation.

  2. 2.

    Clinical examination: neurological examination, motor, and a sensory evaluation by physician.

  3. 3.

    Investigational studies: electrophysiological studies (ED), including nerve conduction study and electromyography (EMG).

  4. 4.

    Radiological investigation: magnetic resonance neurography (MRN)

MR image acquisition

All patients were examined with a 1.5 Tesla MR system (GE Healthcare, New York, USA). Patients were imaged in the supine position with arms at their sides so that the longitudinal alignment light lies in the midline and the horizontal alignment light passes through the level of the sternoclavicular joints. A neurovascular (NV) phased array coil was used. The time of examination was about 30 min. We advised patients to avoid swallowing as possible during examination. The head entered the scanner first.

MR sequences

Our MRN examination protocol for the evaluation of the brachial plexus (FOVs from C 2 to T 2) was shown in Table 1. Sagittal plane imaging for demonstration of the mid- and distal portions of the brachial plexus, because the nerves are seen in cross-section and their exact relationship to the surrounding vascular and soft tissues structures can be detected. Coronal plane imaging for visualization of the supraclavicular portion of the brachial plexus allow assessment of side-to-side asymmetry. Axial plane imaging allows for assessment of side-to-side asymmetry for evaluation of the long axis of the proximal nerves of the plexus.

Table 1 MRN examination protocol for the evaluation of the brachial plexus (FOVs from C2 to T2)

The following sequences were taken (Table 1): coronal T2 WI, coronal T1 WI, coronal 3D FIESTA, coronal STIR, an axial 2D FIESTA FATSAT, an axial T1, coronal 2D FIESTA FATSAT, sagittal STIR, and an axial 3D FIESTA. The most important sequence that showed the neural anatomical details was 3D FIASTA SSFP (steady-state free precession).

Image processing and analysis

Post-acquisition reconstruction of 3D sequences was done including MPR (multi-planar reconstruction) and MIP (maximum intensity projection). Two radiologists reviewed images of the diseased side with at least 5 years of experience in MRN. The brachial plexus in both sides were evaluated by examining the ganglia, roots, trunks, divisions, and cords giving up to 16 segments for each patient.

Statistical analysis

IBM SPSS statistics (V. 25.0, IBM Corp., USA, 2016) was used for data analysis. The diagnostic validity tests were done including the diagnostic sensitivity, the diagnostic specificity, a +ve predictive value, a −ve predictive value, and the diagnostic accuracy of the test. We used chi-square (χ2) test, Fisher’s exact (FE), and Kappa test (K) to assess a statistically significant difference, with p value < 0.05 considered significant. Mean values were presented ±SDs. We expressed Kappa values in intervals: < 0.2 poor, 0.21–0.4 fair, 0.41–0.60 moderate, 0.61–0.80 good, 0.81–0.99 excellent, and 1 perfect.


This descriptive study involved 40 (22 males (55%) and 18 females (45%)) cases of diagnosed brachial plexus injuries either clinically or by ED studies, and their age ranged from 7 to 60 years with mean age 28.5 ± 16.4 SD. Patients’ complaints were pain in 20 patients (50%), muscle weakness in 12 patients (60%), and tingling in 6 cases (30%). The right-sided lesions were 24 cases (60%) while left-sided lesions were 16 (40%). Time of patients MRI examination from the beginning of complaints was between 2 and 5 months with mean 3.77 months. The causes of brachial plexus injury were traumatic (24 cases) (Figs. 1, 2, 3, and 4) due to nerve trauma either congenital birth trauma or direct trauma (60%), non-traumatic (16 cases) due to disc compression (12 cases (30%)), or neoplastic affection either primary or metastatic (8 cases (20%)). On the basis of clinical examination (sensory and reflexes), 24 patients were normal and 16 patients had diminished sensation, while reflexes were normal in 28 cases and decreased in 12 cases (Table 2). According to ED studies, 4 (10%) cases were normal, 36 (90%) were with abnormal findings either nerve conduction or motor affection as follows: 20 with abnormal nerve conduction, 4 with abnormal motor function, and 20 with both motor and nerve conduction abnormalities as shown in Table 3.

Fig. 1

A 23-year-old male patient represented by post-traumatic hypesthesia over C5 and C6 nerve distribution. The electrodiagnostic study showed injury at the level of roots (root avulsion), preganglionic lesion, and complete degeneration of C4, C5, and C6 nerves. a Axial 3D VIESTA image showed left preganglionic nerve root avulsion with pseudo meningocele formation. b Coronal 3D FIESTA. c Sagittal STIR images showed pseudo meningocele formation opposite to the left C5 and C6 nerve roots with perineural edema surrounding left C7 nerve root. d Coronal 3D FIESTA FAT SAT showed decrease in the muscle bulk on the left shoulder girdle with heterogeneous muscle SI denoting its denervation (arrow)

Fig. 2

A 37-year-old female patient complained of weakness of left upper limb with pain and tingling after sudden dislodgement of central cannula. Electrodiagnostic studies showed evidence of brachial plexus lesion in the form of complete subacute axonal lesion affecting upper, middle trunks (neurotemesis), and partial subacute axonal lesion affecting lower trunk (axonotemesis). MRN revealed a coronal STIR-weighted image and b sagittal reconstruction STIR-weighted image. c, d Axial and coronal 3D FIESTA FAT SAT shows the left brachial plexus with increased thickness with mild perineural edema due to compression with ill-defined intermuscular edema related to the thoracic inlet (arrow)

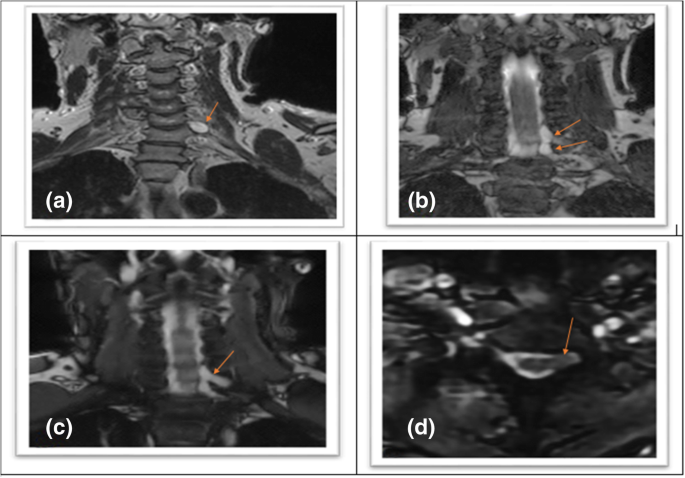

Fig. 3

A 15-year-old male patient had loss of function of the left upper extremity since birth Erb’s paralysis, electrodiagnostic studies suggested post-traumatic injury at the level of roots (root avulsion) at C6 and C7. MRN revealed a coronal T2, b coronal 3D VIESTA, c coronal 2D FIESTA FAT SAT, and d axial 2D VIESTA FAT SAT obtained images show evidence of root avulsion at the level of left C6–7 root (arrow) with CSF sac seen in place likely traumatic meningocele (arrow)

Fig. 4

A 3-year-old female child complained of left Erb’s palsy: electrodiagnostic studies suggested left total complete root avulsion of all roots (C5, C6, C7, C8, and T1). a Coronal 3D FIESTA. c Sagittal STIR showed abnormal left well-defined lobulated lesion opposite to C7 and T1 (pseudo meningocele). b Coronal T2 showed the abnormal high signal at the left lower trunk of the brachial plexus

Table 2 Distribution of the studied cases according to clinical findings
Table 3 Distribution of the studied cases according to electromyography and nerve conduction (n = 40)

According to our MRN finding of brachial plexuses segment affection tabulated in Table 4, we noticed root involved in 80% of cases and trunks in 70% of cases and most of them were the middle trunk, cord affection was found in 40% of cases and involved middle, posterior cord in 25%, lateral cord in 50%, and terminal branches affection in 10% of cases. The most detected abnormalities in the muscles were muscles edema (36 cases (90%)), fatty infiltration (32 cases (80%)), and muscle atrophy (16 cases (40%)).

Table 4 MRN diagnosis of studied cases (n = 40) of brachial plexopathy

MRN diagnosis of 40 studied cases of suspected brachial plexopathy was tabulated in Table 5. This table shows that 10% of cases (4 cases) were normal according to MRN and 90% (36) had abnormal finding in the form of complete avulsion with pseudo meningocele and distal changes in the form of edema of distal trunks and divisions (24), distal muscle affection in 18 cases (18/24), brachial neuritis in the form of nerve thickening and high SI in FIASTA sequences 20% (8 cases), brachial neuritis in the form of nerve thickening and high SI in FIASTA sequences with distal muscle affection 20% (8 cases) as muscle edema (high SI), decrease in the muscle bulk, and muscle atrophy or combination of them. There was a minimal difference between the clinical examination finding and MRN finding regarding involved roots, trunks, cord, and terminal branches.

Table 5 Comparison between MRN and clinical examination finding at different levels of brachial plexuses injury

When MRN findings were compared to the clinical examinations and electrophysiological studies as tabulated in Table 6, there was a good agreement between electromyography, nerve conduction and MRN, MRN sensitivity, and specificity were 94.44% and 100%, respectively.

Table 6 Agreement for electromyography and nerve conduction


MRN is widely being accepted for nerve imaging, as it exhibits high diagnostic performance while inspecting brachial plexus injuries and helps in conducting further analysis of the cause, the site, and the nature of the injury [12]. In our study, we found minimal differences between the clinical examination findings and the MRN findings, and good agreement between electromyography, nerve conduction, and the MRN finding, with a sensitivity of 94.44% and a specificity of 100% (kappa 0.773, P¼ 0.016). Another study by Fisher et al. [13] compared ED with MRN and showed that the ED tests were concordant with the MRN findings in 31 (66.0%) of 47 cases. MRN imaging preceded the ED tests in 21 (44.7%) of 47 cases. Another study by Smith et al. [14] showed that there was a greater correlation between the MRN and physical examination findings (kappa 0.6715, coefficient of correlation 0.7110, P < 0.001) than between the EMG and the physical examination findings (kappa 0.5748, coefficient of correlation 0.5883, P¼ 0.0012). Contrary to our results, Du et al. [15] showed that when MRN was compared with EMG/NCS, MRN was found to give the same information in 29 patients (32%), additional diagnostic information in 41 (45%), less in 15 (17%), and a different diagnosis in 6 (7%). They explained that MRN provided less diagnostic information when no abnormality was shown, or the area of abnormality was not included in the scan (for example, if the brachial plexus was scanned when the lesion was in the distal ulnar nerve). This difference in the findings and correlation between the ED studies and MRN may be attributed to their use of a 3 Tesla MRI machine, while our study used a 1.5 Tesla machine.

In our study, we found that the electrophysiological tests were negative in 4 cases (10%) and positive in 36 (90%) confirming the MRN diagnosis. Our MRN findings regarding the level of detected lesions involved as a proportion of cases were as follows: root 80%, trunks in 70% (mainly the middle trunk), cord affection 40%, involved middle and posterior cord in 25%, lateral cord in 50% and terminal branches affection in 10% of cases. The MRN study of brachial plexuses by Upadhyaya et al., however, revealed the percentage of lesions per case: roots in 88%, trunks in 80%, and cords in 88%. This implies a high incidence of injury in both the proximal and distal plexuses. Yoshida et al. [16] also showed that the nerve root affection was founded in most patients. The distribution of nerve root signal abnormalities and foraminal stenosis showed a significant correlation.

Our study has been claimed that the cause of brachial plexopathy was per number of cases: preganglionic nerve root avulsion (30%), mild perineural edema surrounding C6/7 nerve roots (20%), lower brachial trunk high signal (10%), pseudo meningocele (20%), and with increased shoulder muscle T2 signal intensity with muscle atrophy in 10% of cases.

Upadhyaya et al.s [17] MRN findings suggested root avulsion in 11 patients (44%) with 31 avulsed roots. The percentage of avulsed roots at C5, C6, C7, C8, and T1 levels was 12.9, 29.0, 32.2, 19.3, and 6.4, respectively. In agreement with Gad et al. [12], Vargas et al. [1], and Somashekar et al. [18], most of pervious MRN studies used the traditional MR sequences (T1WI, T2WI, and STAIR). We used new advanced sequences (3 D FIASTA, FIASTA FATSAT), and these sequences did not extend the time of examination by more than 6 min and added significant value as they clarified the neural details from the nearby vessels and improved the visualization of the nerve along the entire pathways. We are hoping to add it to the MRN protocol for examining nerve pathways.

As a result of good agreement between the ED studies and the MRN, we recommended this MRN protocol be used in selective cases such as those with no detectable cause for brachial plexopathy. This could include postoperative patients or suspected tumor invasions that need further localization and determination of the nature of the lesion.

Our study had many limitations since the variations of the types of pathology causing brachial plexopathy result in a small sample size for each group affecting the degree of confidence of the statistical analysis. Histopathological evaluation and nerve biopsy are not common, and all cases should have an ED tests before the MRN examination as it would influence the MRN interpretation. More extensive prospective studies to establish the efficacy of the MRN and to explain the nature of these interesting radiological findings are warranted.

MRN significantly impacts the diagnostic and therapeutic management of patients with brachial plexopathy. It can consequently help the medical team select treatment (conservative or surgical), decide the most appropriate time to operate, and select the surgical technique. It also reduces operative time and thus allows for a better prognosis for these patients.

In most cases, MRN and ED results were agreed, and the combined anatomical and functional information obtained were complementary. MRN is a non-invasive imaging, and it represents a good alternative way for diagnosis in patients who cannot tolerate EMG. The actual utility of MRN will need to be determined.


MRN had an additive value to clinical examination and ED testes in the evaluation and localization of brachial plexus pathology, especially in cases of negative or inconclusive ED tests.
