FDG-PET/CT in predicting aggressiveness of rectal cancer

Abstract

Background

Treatment response varies significantly among rectal cancer patients. Tumor can show complete regression, stationary appearance, or even tumour progression during the treatment. It is also widely known that the rate of local recurrence is variable. Precise risk stratification of tumor aggressiveness is required for better per patient tailored treatment plan and predicting the overall prognosis of rectal cancer patients The aim of this study was to assess different parameters of baseline [18F] fluorodeoxyglucose positron emission tomography/computed tomography [(18F) FDG-PET/CT] as a non-invasive tool in predicting aggressiveness of the rectal cancer.

Results

Overall, 33 patients were included [19 moderately differentiated adenocarcinoma, 10 poorly differentiated adenocarcinoma and 4 mucinous adenocarcinomas (MAC)]. SUV estimates (SUV max, SUV mean) were greater in the moderately adenocarcinoma group (p = 0.003 and p = 0.019, respectively). MTV and TLG values were similar between the three histopathological groups (p = 0.763 and p = 0.701, respectively). There was no correlation between SUVmax of primary tumor and MTV (r = 0.034; p = 0.849). However, SUVmax and TLG were significantly correlated (r = 0.517; p = 0.002). Strong correlation between tumor size and MTV (r = 0.489; p = 0.003), and TLG (r = 0.506; p = 0.003) were observed. No significant association was found between MTV and TLG and the clinical stage of rectal cancer.

Conclusion

Baseline 18F-FDG PET/CT parameters cannot be used alone as a non-invasive diagnostic technique in assessing aggressiveness and prognosis in patients with primary rectal cancer, and further clinical studies are needed before considering the prognostic role of FDG-PET/CT in rectal cancer.

Background

Colorectal cancer [CRC] is the world's third most frequent malignancy and the second leading cause of cancer-related death [1]. Treatment response varies significantly among rectal cancer patients. Tumor can show complete regression, stationary appearance, or even tumour progression during the treatment. It is also widely known that the rate of local recurrence is variable [2, 3].

In this context, precise risk stratification is required for better per patient tailored treatment plan, assessment of tumor aggressiveness and predicting the overall prognosis of rectal cancer patients. Patient age, tumour size, primary tumour localization, lymphovascular invasion, perineural invasion, initial lymph node metastasis, stage, localization of metastasis, and tumour differentiation are well-known predefined clinic-pathological risk factors for aggressive CRC [4].

[18F] fluorodeoxyglucose positron emission tomography/computed tomography [(18F) FDG-PET/CT] is a type of imaging that detects and quantifies metabolic avidity in cancer cells, acting as a surrogate for cellular activity and vitality [5]. FDG accumulation in tumour cells is based on increased glycol-metabolism, and there is strong evidence that FDG uptake in tumour cells is linked to cancer growth rate, aggressiveness, and prognosis [6]. Several 18F-FDG PET/CT parameters, including SUVmax, SUVmean, MTV, and Total Lesion Glycolysis TLG, have been proposed as useful prognostic indicators for many tumors [7, 8]. Volumetric parameters, such as MTV and TLG, are expected to aid in measuring volumetric tumour burden and serve as prognostic factors in malignant disease [9].

Some studies in rectal cancer reported that the MTV and TLG are validated as strong pretreatment prognostic factors for cancer recurrence and cancer-related death [10]. Patients with a high MTV or TLG had a worse clinical outcome than those with a low MTV or TLG. Another study concluded that higher SUVmax is significantly associated with shorter survival in patients with colorectal cancer, and that SUVmax is a useful preoperative prognostic factor in these patients [11]. On the contrary, another study reported that high FDG uptake of primary mass in resectable colorectal cancer does not have a significant relationship with tumor recurrence and disease-free survival [12].

There is insufficient information in these published studies regarding whether the metabolic parameters of rectal cancer lesions are related to conventional risk factors of cancer aggressive behavior (such as high tumor stage, large size, and some histological subtypes). We designed the present study to assess the correlation between the aggressiveness as determined by some conventional risk factors and glucose metabolism as measured by FDG PET/CT in rectal adenocarcinoma.

Methods

Patient population

Thirty-three patients with histologically proven rectal cancer were investigated by FDG-PET/CT between March 2019 and May 2021, prior to the initiation of treatment. Inclusion criteria were biopsy-proven rectal cancer, patients’ age > 18 years, and absence of other concomitant tumors. Exclusion criteria were high serum creatinine level (>1.5 mg/dl) and previous anticancer therapy. The study was performed after approval of the Ethical Committee of Scientific Research, Faculty of Medicine, Ain Shams University. Consent was taken from all patients. Histopathologic subtypes were collected from each patient.

PET/CT

Patients fasted for at least six hours before intravenous administration of radioactive tracer FDG isotope with the dose of 0.06–0.08 mci/kg. Pre-injection blood glucose levels were measured to make sure that they were below 200 mg/dl. During the distribution phase, the patients laid supine in a quiet room. PET/CT study was performed using a dedicated hybrid PET/CT scanner GE medical system [(GE discovery IQ 5 rings) and enhanced helical CT (optima 540 16-slice)]. Combined image acquisition began 60 min after FDG injection. The patient was positioned supine on the table. Single-phase contrast material–enhanced helical CT using a standardized protocol [28–30 mAs; 120 kV; slice thickness 5 mm] was performed following injection of 125 mL of a low osmolarity iodinated contrast medium (Optiray 350) at a rate of 4 mL/sec by using a power injector. A whole-body CT study [neck, chest, abdomen, and pelvis] scanning was obtained. The corresponding PET imaging immediately followed over the same body region without repositioning the patient on the table. Six to seven-bed positions were planned in the three-dimensional acquisition mode for scanning the entire patient with 5–7 min acquisition at each bed position. PET images were acquired with shallow breathing. Attenuation was corrected using the CT images and the images were reconstructed. Delayed PET CT images were needed in some cases if the uptake of the lesion is controversial.

Image analysis

Images were transferred to the offline GE workstation (Advantage window 4.7). Fused images were obtained. Two experienced nuclear medicine physicians with 7 and 5 years’ experience (SM and RS respectively) interpreted PET/CT images and a final consensus was reached for all the patients. The tumor size was the maximum length measured on CT images. Rectal mass was categorized based on location, size, and visual correlation between CT and PET images to differentiate physiologic uptake from pathologic uptake. A lymph node was considered PET-positive if its FDG uptake was higher than blood pool activity or surrounding background tissue. A volumetric region of interest (ROI) around the outline of the primary tumor was placed on the axial 18F-FDG PET/CT images using semi-automatic software. The ROI borders were manually adjusted by visual inspection of the primary tumor to avoid an overlap of adjacent FDG-avid structures. The 18F-FDG uptake of the urinary tract and bladder was excluded. For each 18F-FDG PET/CT study, the SUVmax, SUVmean, MTV, and TLG values of the primary tumor were measured. The PET parameters, including SUVmean, SUVmax, MTV, and TLG were automatically acquired.

Statistical analysis

Analysis of data was done using SPSS (Statistical package for social science) program version 23. To describe the studied sample, quantitative data were presented as median & range. Qualitative data were presented as count & percentage. The Chi square statistic is used for testing relationships between categorical variables. The Wilcoxon signed-rank test is a non-parametric statistical hypothesis test used to compare two related samples, matched samples, or repeated measurements on a single sample to assess whether their population mean ranks differ (i.e. it is a paired difference test). One-Way ANOVA test was used to compare parametric quantitative data between more than two groups. Kruskal–Wallis test was used to compare nonparametric quantitative data between different groups.

Results

Patient and tumor characteristics

Overall, 33 patients, who had sufficient histological information, were included in the study. The median age of the patients was 60 years (range 32–36 years), and 19 of these patients (57.57%) were men. Four patients (12.1%) were classified as MAC, 19 (57.6%) as moderately differentiated adenocarcinoma, and 10 (30.3%) as poorly differentiated adenocarcinoma. All primary rectal tumors could be visually identified on PET/CT images regardless of the histological subtype, resulting in a 0 % false-negative rate. Ten patients (30.3%) had clinical stage IIA disease, six patients (18.2%) had clinical stage III disease, and seventeen patients (51.5%) had clinical stage IV disease (Table 1).

Table 1 Patient and tumor characteristics

18-F FDG PET/CT findings

The median and range values of SUVmax, SUVmean, MTV and TLG values were 17.9 (5.3-53.82), 10.46 (2.7-40.5), 21.5 (3.9-62.5) cm³ and 234.442 (36.9-2521.1) g/ml* xcm³ for the entire group, respectively. There was no correlation between the SUVmax of the primary rectal tumor and MTV (p value was 0.849). Whereas the correlation between SUVmax and TLG was highly significant (p value was 0.002) (Fig. 1).

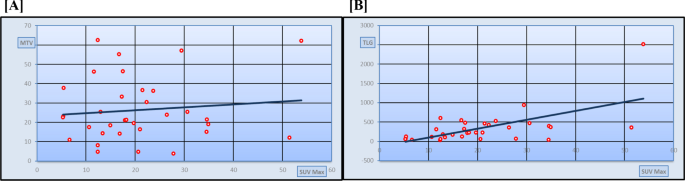

Fig. 1

The correlation between SUVmax and the metabolic parameters

Correlations between FDG-PET/CT parameters and patient/tumor characteristics

The demographic and PET/CT characteristics according to the different histopathological groups are presented in Table 2. Median tumor sizes were similar between the three groups (p = 0.765). Median value of SUVmax of primary tumors of poorly differentiated, moderately differentiated adenocarcinoma, and mucinous adenocarcinoma patients were calculated as 14.55 versus 22.3, and 12.68 respectively. The difference between groups was highly significant (p < 0.01). The median value of SUVmean were statistically greater in the moderately differentiated adenocarcinoma group than poorly differentiated and mucinous adenocarcinoma (13.8 vs. 8.31, and 8.4 respectively). The difference between groups was statistically significant (p < 0.05).

Table 2 Demographic and PET/CT characteristics according to the different histopathological groups

There were no significant differences between MAC, moderately differentiated adenocarcinoma, and poorly differentiated groups as regarding the median values of MTV and TLG (p = 0.763 and p = 0.701, respectively) (Figs. 2, 3, 4 and Table 2).

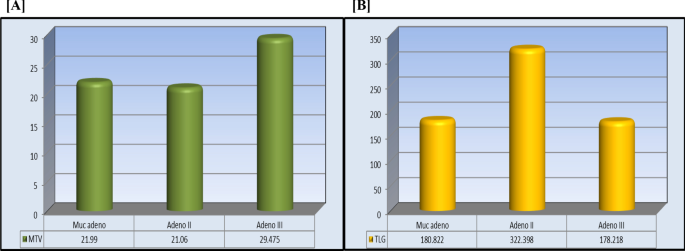

Fig. 2

The correlation between the metabolic parameters and rectal mass histopathological type

Fig. 3

44-year-old male patient with recently diagnosed rectal cancer, histopathological proven adenocarcinoma grade III. Sagittal fused PET/CT of pelvis (a), Axial CT of the pelvis (b), axial PET of the pelvis (c) show irregular polypoidal hypermetabolic mass involving upper rectum [black arrows] with SUVmax of 23.68, MTV of 36.35 cm³, and TLG of 528.89 g/ml* × cm³

Fig. 4

67-year-old male patient with recently diagnosed rectal cancer, histopathological proven adenocarcinoma grade II. Sagittal fused PET/CT of the pelvis (a), Sagittal CT of the pelvis (b), and axial CT (c) show metabolically active focal mural thickening at the lower rectum [thin arrow] achieving SUVmax 22.3, MTV of 30.46 cm³, and TLG of 422.7 g/ml* × cm³. Few small inactive perirectal lymph nodes [thick arrow]

Correlations between FDG-PET/CT parameters and Patient/Tumor Characteristics are detailed in Table 3. No correlation was found between tumor size and SUVmax (p > 0.05). Yet, MTV and TLG were highly correlated with the tumor size (p < 0.01) (Fig. 5 and Table 3). Further, PET parameters were not influenced by rectal tumor origin in the upper, middle, and lower rectum (Table 3).

Table 3 Correlations between metabolic parameters of FDG-PET/CT and patient/tumor characteristics

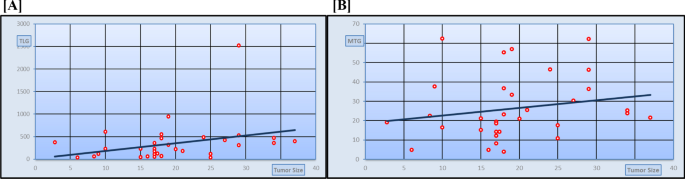

Fig. 5

The correlation between the metabolic parameters and size of the rectal mass

Metabolic characteristics in relation to clinical stage

There was no significant correlation between the PET/CT parameters [SUVmax, SUVmean, MTV, and TLG] and metastatic load [negative, oligo-metastases and multiple metastasis] (p > 0.05) (Table 3). The SUVmax (p = 0.896), SUVmean (p = 0.901), MTV (p = 0.128) and TLG (p = 0.336) values showed no statistical differences between the clinical stages [II, IIIA, and IV] (Table 3).

Discussion

Selection of high-risk patients with cancer rectum is crucial. Imaging tools to assess rectal cancer aggressiveness is still under investigation. The purpose of this study is to evaluate the significance of metabolic parameters measured by baseline PET/CT as a non-invasive tool in predicting aggressiveness of the rectal cancer.

MTV and TLG are volume-based 18F-FDG PET parameters. CT and MRI can also indicate the tumour volume. However due to the uneven shape of malignant tumors, unclear boundaries, and the presence of necrotic component, these modalities may not be reliable [13]. These volume-based 18F-FDG PET parameters may more accurately reflect viable tumour volume and grade of malignancy as MTV and TLG do not only offer volumetric tumour burden but also identify viable tumour region with metabolic information [10]. MTV is a notable prognostic factor in different diseases since it addresses the double attributes of tumor volume and the level of FDG uptake by the tumor [14]. TLG has been proposed as a more accurate parameter because it considers both SUVmean and MTV [15]. A worse prognosis is expected with high MTV and TLG [16,17,18]. Therefore, the incorporation of these metabolic parameters with conventional risk factors (size, histopathological type and the tumor stage) may help to provide more accurate pre-treatment risk stratification in rectal cancer patients than conventional risk factors alone.

In our study, we find no significant association between these metabolic parameters (MTV and TLG) and the clinical stage of rectal cancer. Similar findings were reported in various types of cancer. Studies conducted by Stahl et al. [19] and Kaida et al. [20] found no significant difference in FDG uptake between different tumor stages, including gastric tumor and papillary thyroid carcinoma respectively. On the contrary, Deantonio et al. [21] reported that a higher level of metabolic and volumetric parameters was significantly associated with T4 stage of rectal cancer, which is generally considered a more aggressive disease. This discordance is probably due to the relatively small number of our cases and the minimal heterogeneity regarding the radiological stage.

The present study demonstrates a strong association between the size of the primary rectal tumor and the metabolic FDG parameters [MTV and TLG]. Similarly, Kaymak et al. [22] found positive relation between colorectal tumour diameter with MTV and TLG. We find no significant correlation between PET/CT metabolic parameters [MTV and TLG] and different tumor characteristics [location, stage, and metastatic load].

Determining tumor type is crucial because different tumor types differ in terms of radio-sensitivity, local behavior, and the tendency for regional and systemic metastasis. In addition, the tumor's histological grade is a key predictor of local invasion and systemic metastasis [23].

Our study demonstrates that mucinous and non-mucinous rectal adenocarcinoma [moderate and poorly differentiated adenocarcinoma] have different 18F-FDG uptake in PET/CT imaging. SUV estimates [mean and maximum] were greater in the moderately differentiated group. Several studies investigated different 18- FDG uptake between the histopathological subtypes of the primary rectal tumor. Horvat et al. [24] and Berger et al. [25] concluded that mucinous tumors had low 18-FDG uptake in both PET/CT and PET/MRI. Tumour FDG avidity in PET inversely correlates with the overall amount of mucin, which may result in false-negative cases. On the other hand, Dos Anjos et al. [26] demonstrated that mucinous and non-mucinous rectal cancers had similar 18F-FDG uptake in PET/CT and justifying these results by the solid components of the mucinous tumors, which appeared to be extremely FDG-avid, and may had compensated for the lack of 18F-FDG uptake of the mucinous component.

We find that the different histological subtypes of rectal tumor [MAC, moderately or poorly differentiated adenocarcinoma] show no significant difference regarding the median values of MTV and TLG. Dos Anjos et al. [26] showed that MTV and TLG were higher at the mucinous group than the non-mucinous one and explained these results by larger tumor volumes among this histological subtype. Also, our results disagree with Kaymak et al. [22]. They found significant correlation between tumor differentiation and MTV. The discordance between our results with the previous studies is probably due to a slightly higher incidence of moderately differentiated adenocarcinoma in our patients, the most common histopathological type of rectal tumor.

In contrast to some other tumor types, our study demonstrates that moderately differentiated rectal cancer [grade 2] accumulates FDG more intensely than does poorly differentiated one [grade 3]. Similar results have been reported in tumors other than rectal cancer. Study conducted by Stahl et al. [19] found an inverse relation between gastric tumour FDG uptake and the degree of tumour differentiation (grading). In addition, in a study done by Song et al. [27], moderately differentiated gastro-esophageal cancer had higher metabolic parameters than poorly differentiated lesions. In rectal carcinomas, the degree of tumour differentiation is not a proven prognostic factor and may only be of a predictive value [28]. Therefore, grading may not represent biological aggressiveness in this tumour entity.

There are some limitations of our study. The retrospective nature of the study in a single medical center may have increased the risk of selection bias. Tumor size is measured in CT images yet, measuring tumor size in T2-weighted MRI images is more reliable. The inclusion of small tumors (1–2 cm) in our series may have affected estimation of SUV and MTV values by partial volume effect, as suggested in previous studies [29]. We are unable to link our finding with the patients' progression-free survival or overall survival due to a lack of adequate patient follow-up. The important consideration is the small sample size, and this is due to the high cost of the technique. Future trials with a larger number of patients may be needed to obtain more accurate result.

Conclusion

We conclude that using FDG PET/CT as a baseline investigation in rectal tumor has a limited role in the selection of high-risk patients with aggressive disease who require more intensive treatment and follow-up schedules.
