MR enterography in small bowel diseases, adding multipoint Dixon sequence, is it worth?
Egyptian Journal of Radiology and Nuclear Medicine volume 54, Article number: 87 (2023)
MR enterography (MRE) has been increased in the last decade as a modality of choice in diagnosis and evaluation of small bowel diseases in both children and adults. Lacking ionizing radiation, non-invasiveness, excellent soft tissue resolution, adequate luminal distension of small bowel loops are the advantages of this technique. Acquisition of images was used to be: T2WI, steady-state free precession, and T1WI, fat-suppressed gadolinium contrast-enhanced sequences. Multipoint Dixon sequence was added recently to the routine MR enterography protocol. The current study aimed to evaluate the added value of multipoint Dixon sequence as a valuable modification of MR enterography protocol for better assessment of small bowel lesions as activity of Crohn’s disease, small bowel polyps, fibrotic strictures, with modification of MRE protocol in the future with less time consumption and better radiological evaluation.
The current research was a prospective cross-sectional study. Data were collected prospectively after getting ethical approval from the ethical committee of the faculty of medicine, in our university.
The sample size was 69 adult patients with suspected small bowel lesions, within the period from January 2022 to 30th December 2022. Written informed consent was obtained from all studied cases before the study, who were enrolled in this study. This number was calculated by using MedCalc 19 program by setting alpha error significance of 0.05%, 95% confidence level, and 80% power sample.
This study enrolled 69 patients with recurrent abdominal pain and/or bleeding in stool. The patients’ age ranged from 18 to 50 years, with a mean of 32.6 ± 8.8. There is slightly higher female prevalence. The most common positive imaging findings in the studied patients were mucosal thickening in terms of submucosal fat deposition (36.23% of the MRE examination and 39.13% of the MRE with added Dixon sequence). Adding Dixon sequence yielded significantly higher AUC (97.2% vs. 90.5%, p = 0.047), higher sensitivity (100% vs. 92.16%), specificity (94.4% vs. 88.89%), accuracy (98.55% vs. 91.3%), positive predictive value (98.08% vs. 95.92%), and negative predictive value (100% vs. 80%).
MRE is an excellent imaging modality in the assessment of small bowel diseases without the use of ionizing radiation. Developing MR-based sequences as multi-point Dixon sequence have the potential to improve the ability of MRE to image the subtle changes as Crohn’s accompanying early inflammatory changes and fibrosis, as well as small intestinal polyps. Familiarity with MR enterography is essential for radiologists and gastroenterologists who participate in the clinical management of small intestinal diseases.
Small bowel diseases including inflammatory bowel disease (IBD), as Crohn’s disease (CD), intestinal tumors as lymphoma, polyps are chronic debilitating diseases that currently lack to have a single gold standard . Crohn’s disease is a chronic remitting relapsing disorder that affects the gastrointestinal tract (GIT), particularly at terminal ileal region in the form of ulceration, small polyps, submucosal edema . Owing to occult location of small bowel lesions from both upper and lower GI endoscopic procedures, there are delay of diagnosis, clinical treatment, and worse complications . Conventional contrast-enhanced MRI can detect small intestinal lesions as tumors, submucosal fat infiltration and edema of Crohn’s disease, lipoma, lymphoma. However, small lesions could be missed in conventional MRI .
Lack of ionizing radiation, excellent soft tissue contrast resolution, non-invasiveness, proper intestinal distension by fluid are advantages of MR enterography as a mandatory recent imaging modality in diagnosis of small bowel diseases . Typical MR pulse sequences used in MR enterography include single-shot T2WI, steady-state free precession (SSFP), T1WI, dynamic post-contrast T1WI with FAT SAT, diffusion weighted image (DWI) with high b-value1000sec/mm2, addition of fat suppression using multipoint Dixon sequence . Dixon is a novel MRI sequence based on chemical shift and designed to achieve more uniform fat suppression. It has been increasing popularity as it has some advantages over other fat suppression techniques, namely: more uniform fat suppression and less affected by artifacts, can be combined with a variety of sequence types (e.g., spin echo, gradient echo, and steady-state free procession sequences), can be combined with a variety of weightings (e.g. T1, T2, and proton density), provides images with and without fat suppression from a single acquisition . The Dixon technique exploits the fact that water and fat molecules precess at different rates . Acquiring both in-phase and opposed-phase images simultaneously allows the images to be combined in two ways which result in a total of four sequences: in-phase = (water + fat), opposed-phase = (water − fat), fat only = in-phase − opposed phase = (water + fat) − (water − fat), water only = in-phase + opposed phase = (water + fat) + (water − fat). The water only image can be used as a fat-suppressed image .
The aim of this study was to evaluate the added value of multipoint Dixon sequence as a valuable modification of MR enterography protocol for better assessment of small bowel lesions as activity of Crohn’s disease, small bowel polyps, fibrotic strictures, with modification of MRE protocol in the future with less time consumption (as it replaces 4 sequences) with more uniform fat suppression and better radiological evaluation.
This prospective cross-sectional study was carried out in the period from 1st January 2022 to 30th December 2022 after local ethical committee approval in our institution. Written informed consent was obtained from all studied cases, who were enrolled in this study after explanation of the benefits of the examination. Privacy and confidentiality of all patients’ data were guaranteed. All data provision was monitored and used for scientific purpose only.
A total of 69 patients were referred from the Internal Medicine Department to the Radiodiagnosis Department in our institution, with recurrent attacks of non-specific unexplained abdominal pain and/or blood in stool.
Full general and local abdominal examination was performed by a well-experienced gastroenterologist of 12 years of experience, and stool analysis and blood tests were performed.
Patients who were referred with documented signs, symptoms, physical, and laboratory results that were suspicious for inflammatory bowel disease. Patients with recurrent unexplained nonspecific abdominal pain with/without bloody stool were included in this study, and who had negative ultrasound findings, were also enrolled in this study as suspected small bowel diseases. Pregnant females and children with suspected small intestinal lesions were included in the current study as well, owing to lack of ionizing radiation.
Exclusion criteria include patients with abdominal pain caused by organic lesions that was already diagnosed by ultrasound or computed tomography, patients with end-stage kidney disease (GFR less than 30 ml/min), allergic to MR contrast material, as well as claustrophobic patients, and patients with MR noncompatible metallic devices, cardiac pacemakers, and cochlear implants.
All cases underwent MRI at 1.5 Tesla MRI unit, GE (General Electric) machine (closed magnet). The patient removed metal pins and entered the machine in supine position.
Oral preparation before the procedure
Fasting for about 8–12 h prior to the examination was recommended; low-fiber diet was used for 3–5 days prior to the procedure. Bowel cleansing is performed by enema, laxatives, avoidance of dairy products.
Adequate small bowel distention was very essential for the assessment of bowel wall thickening as well as for mural enhancement. Polyethylene glycol 350 ml over 1300 ml water was preferred for proper bowel distension and meticulous mucosal assessment. Patients were advised to start drinking one hour prior to the examination (250 ml/10 min). No sedation is required. This was just reassurance for the patients.
All patients underwent MR enterography using a 1.5 T MR scanner: GE Signa Explorer, using phased array body coil. They were in a supine position. They were in a supine position with their feet were introduced first. 3-plane localizer: from the xiphisternum to symphysis pubis was done. Injection of I.V. anti-peristaltic agent (20 mg buscopan). Remove all metallic objects like pins, bra, credit cards, etc.
Axial and coronal: T1WI, T2-single-shot fast spin echo sequences (SSFSE) and diffusion-weighted sequences.
I.V. Injection of 10 ml magnevist (0.1 mmol/kg BW)
Coronal 3D T1-weighted gradient echo sequences with fat suppression.
Post-contrast axial 3D T1-weighted gradient echo sequences
Coronal post-contrast fat suppression by Dixon multipoint sequence
5 mm slice thickness and 0.5-mm interval gaps.
The data were reviewed on PACS (picture archiving and communication system). The radiological findings were correlated with clinical data and analyzed by two experienced radiologists with 10,11 years of experience in GIT imaging; the final decision was given by a third experienced consultant of GIT imaging who had 15 years of experience in advanced imaging field who gave his opinion in controversy opinions.
Each patient took a different ID number, and all patient data were blinded.
The SPSS for Windows version 28.0 software package (SPSS Inc, Chicago, IL, USA) was used for statistical data analysis. Categorical variables were described by frequency (number of patients), percentage, and proportion, and quantitative variables were described by using mean, SD, and range. Quantitative data were compared by using the Student t test. p Value less than 0.05 represented a significant difference. ROC curve analysis was used to determine the optimum cut-off values and maximal area under curve (AUC) with evaluation of diagnostic accuracy, sensitivity, specificity, positive and negative predictive values (PPV and NPV, respectively) of standardized MR enterography and adding multi-point Dixon sequence for localization and early assessment of small bowel diseases.
This study included 69 patients with recurrent abdominal pain and/or bleeding in stool. The patients’ age ranged from 18 to 50 years, with a mean of 32.6 ± 8.8. Slightly higher female prevalence was noted (56.5%), and the mean patients' BMI was 29.7 ± 5.4 kg/m2. The patients complain duration ranged from 0.75 to 13 months with a median of 1.25. They experienced the abdominal pain daily (10.14%), 1–3 times weekly (46.38%), 1–3 times monthly (26.09%), or sporadic (17.39%) (Table 1).
MRE and MRE with added Dixon study demonstrated normal study in 27.54% and 24.64% of the patients, respectively. The most common positive imaging findings in the study patients were mucosal thickening in terms of submucosal fat deposition (36.23% of the MRE examination and 39.13% of the MRE with added Dixon examination) and submucosal edema (39.13% of the MRE examination and 43.48% of the MRE with added Dixon examination); similar results were obtained in cases of segmental small bowel dilatation (49.28%), and lymphadenopathy (23.19%) in both techniques as well. Other findings in order of frequency were perienteric edema, fibrofatty proliferation, vascular engorgement, ulcers, sinus tracts, neoplastic lesions, polyps/polypoid mucosal thickening, fat necrosis, and lost jejunal folds as described in Table 2.
According to the final diagnosis based on histopathological diagnosis (in 39 cases) and/or clinical and laboratory follow-up by the gastroenterology consultant (in 30 patients), most of the patients (35 cases; 50.72%) had Crohn’s disease. Other diagnoses were small bowel neoplasms (5.8%, 2 cases of small lipomas, 1 case of adenoma, and 1 case of lymphoma), focal fat infarction (3 cases; 4.35%), celiac disease, small bowel tuberculosis, chronic appendicitis, non-specific peritoneal inflammation (2 cases each; 2.9%), and intestinal polyposis (1 case; 1.45%). No disease was encountered in 18 cases (26.09%). Two cases of false positive Crohn’s disease diagnosis were found in the MRE examination, and one case was found in the MRE with Dixon examination based on false depiction of skipped mucosal ulcers. The endoscopic and laboratory investigations confirmed the disease absence. Four cases of missed diagnosis were experienced with MRE examination. Two of them were diagnosed to be early Crohn’s disease: one case was found to be small mural lipoma and the remaining case was found to be peritoneal focal fatty infarction. All of them were correctly diagnosed by Dixon study as mentioned in Table 3.
The overall diagnostic performance of both studies is presented in Fig. 1 and Table 4. Adding Dixon study yielded significantly higher AUC (97.2% vs. 90.5%, p = 0.047), higher sensitivity (100% vs. 92.16%), specificity (94.4% vs. 88.89%), accuracy (98.55% vs. 91.3%), positive predictive value (98.08% vs. 95.92%), and negative predictive value (100% vs. 80%) (Figs. 2, 3, 4).

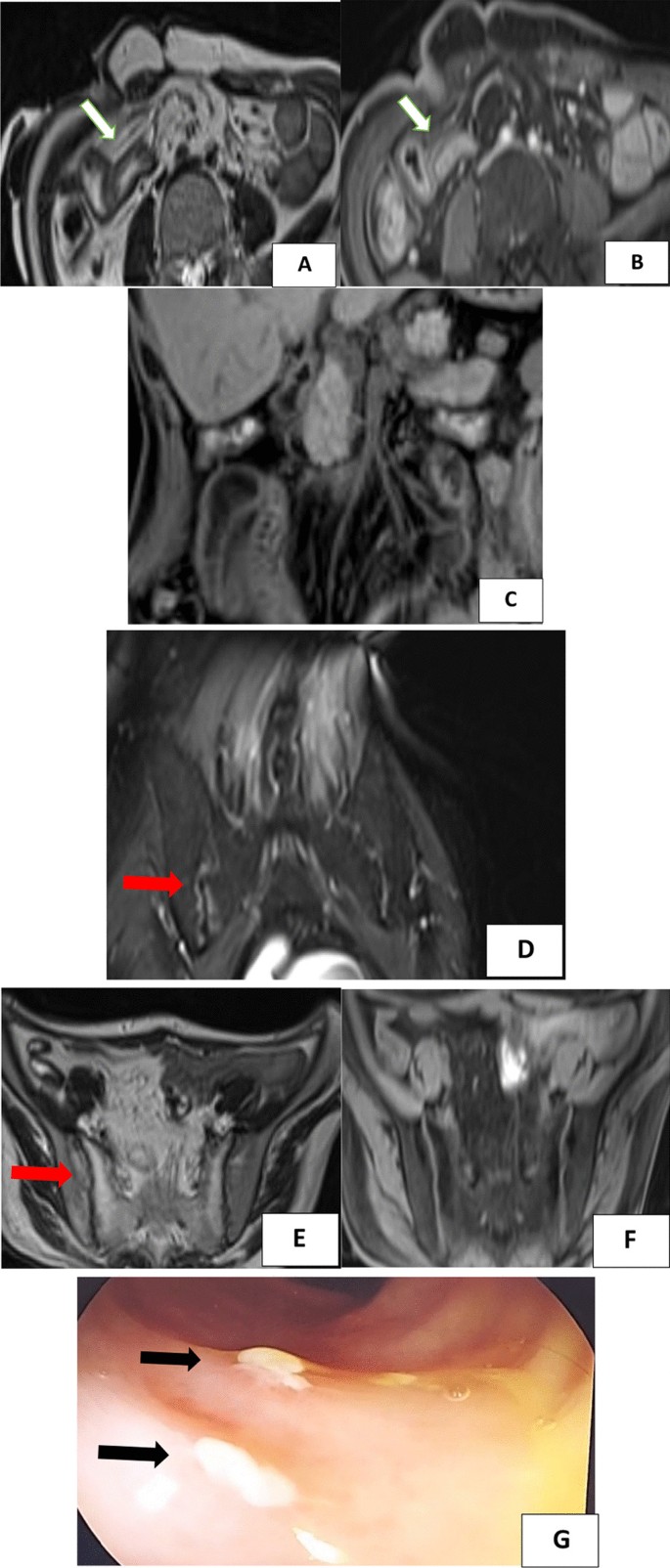

The lack of ionizing radiation, the enhanced tissue contrast that can be obtained by using a variety of pulse sequences, and the capability to perform real-time functional imaging are just a few of the characteristics of magnetic resonance (MR) imaging that make it well suited for imaging the small bowel . When the distension of the loop is suboptimal, MR enterography (MRE), which offers numerous time points during which the small bowel is seen, can be very useful in diagnosing small-bowel disorders, which was a superadded value for diagnostic accuracy of MRE in early diagnosis and assessment of small bowel lesions .
Dixon sequence was first introduced in 1984 as a "simple proton spectroscopic imaging" technique to distinguish between fat and water signal using voxel intensity variations between in- and opposed-phase MR images . This method has developed and been widely used by major MRI vendors during the past forty years .
Recent research has shown that the Dixon approach can be used to examine the fat fraction, analyze joint cartilage, study bone marrow, assess sacroiliitis, and reduce magnetic susceptibility artefacts when metallic implants are present .
To the best of our knowledge, no studies have evaluated the accuracy of the Dixon approach for identifying small intestinal lesions. In order to assess the accuracy of MRE with adding the Dixon approach for the diagnosis and characterization of small bowel disorders, we therefore carried out this prospective study.
In the current study, sixty-nine consecutive patients with clinically suspected small bowel diseases were assessed.
The exact visualization of numerous mural and perienteric imaging characteristics is required for the imaging assessment of small bowel disease on MRE. Overall, MRE was found to be highly sensitive and specific in detecting small bowel disease in this study. This is congruent with the studies of Miao et al. , Koh et al. , and Kavaliauskiene et al. , and the systematic review by Horsthuis et al.  who found that MRE correctly diagnosed a high percentage of patients with small bowel disease. In addition, the study of Masselli et al.  reported MRE performance parameters rates in the diagnosis of small bowel diseases that was close to what was found in this study. They reported accuracy, sensitivity, specificity, positive predictive values, and negative predictive value were 95.3%, 88.9%, 99%, 98%, and 94.1%, respectively.
In order to increase tissue contrast and make it easier to spot lesions, the technique of fat suppression is frequently utilized during abdominal examinations . Fat has a high signal intensity in the majority of MRI sequences. Therefore, it is crucial to use fat suppression in order to improve the visibility of edematous areas. However, because it is difficult to achieve magnetic field homogeneity at the abdomen, it is difficult to get high-quality MRI images of the abdomen with consistent fat suppression .
According to the current study, the Dixon approach greatly improved diagnostic performance and accuracy over MRE alone in the identification of small bowel disorders.
Our results support previous findings that the Dixon technique-related water- and fat-only sequences can enhance tissue characterization and lesion conspicuity. Additionally, the Dixon method's water-only sequences have less sensitivity to magnetic field inhomogeneity and provide fat suppression that is superior to that of other frequency-selective techniques .
In Crohn’s disease, several pathological changes are presented with fat and edema changes, such as submucosal fat deposition and fibrofatty proliferation in chronic cases, and edematous changes of active disease . The superiority of adding Dixon in this study was manifested in correct diagnosis of Crohn’s disease. This is supported by the stated accuracy of fat-only Dixon imaging in distinguishing edema from fat, which is of value in an MR enterography protocol for diagnosis of Crohn’s disease. Also, depiction of fine details such as tiny sinuses or fistulae, shallow ulcers, and minimal nodularity requires precise distinguishing of various fat and fluid signals. This was shown in the current work where some imaging findings were depicted when adding the Dixon method.
A case of early peritoneal fat infarction was missed in MRE and diagnosed in the added Dixon study. In agreement with this study finding, fat necrosis, which occurs in response to any injury, has been reported to be accurately diagnosed by fat-only Dixon .
The remaining case missed in MRE was that of small submucosal lipoma, which was detected in the Dixon study due to higher potentiality of fat depiction in the fat-only Dixon study with confirmation in the fat suppression images .
This study emphasizes the promising performance of adding Dixon to the MRE studies, with higher spatial resolution of the obtained images, allowing better identification of the anatomical structures. The acquisition time is variable, ranging from 16 s to 5 min in the variable available MRI scanners [[(17)]], which is likely a reasonable cost compared to the added benefits of the examination.
Limitations of the study
This work was limited by the small sample size. However, our study according to our knowledge is the first to test the performance of combination of multipoint Dixon sequence to conventional MRE as a fat suppression sequence. Further large-scale studies are recommended.
Adding Dixon technique to MRE examination yielded better and accurate diagnosis of small bowel diseases, with less time consumption. This was particularly eminent in fat-associated pathological processes. The present study supports the value of the new non-invasive MRI sequence in the elaboration of hidden small intestinal pathology.
Continued data collection in a larger sample, longer duration with the ability of multi-points time of assessment is highly recommended to validate these observations.
Multi-centric research studies in different MRI machines of higher Tesla are recommended in the future research field.
Availability of data and materials
The authors confirm that all data supporting the finding of the study are available within the article, and the raw data supporting the findings were generated and available at the corresponding author on request.
Magnetic resonance imaging
- FAT SAT:
Inflammatory bowel diseases
Masselli G, Gualdi G (2012) MR imaging of the small bowel. Radiology 264(2):333–348. https://doi.org/10.1148/radiol.12111658
O’Malley RB, Hansen NJ, Carnell J, Afzali A, Moshiri M (2016) Update on MR enterography: potentials and pitfalls. Curr Radiol Rep 4(8):42
Salari R, Ballard DH, Hoegger MJ, Young D, Shetty AS (2022) Fat-only Dixon: how to use it in body MRI. Abdom Radiol 47(7):2527–2544. https://doi.org/10.1007/s00261-022-03546-w
Pezeshk P, Alian A, Chhabra A (2017) Role of chemical shift and Dixon based techniques in musculoskeletal MR imaging. Eur J Radiol 94:93–100. https://doi.org/10.1016/j.ejrad.2017.06.011
Burakiewicz J, Sinclair CDJ, Fischer D, Walter GA, Kan HE, Hollingsworth KG (2017) Quantifying fat replacement of muscle by quantitative MRI in muscular dystrophy. J Neurol 264:2053–2067
Bredella MA, Losasso C, Moelleken SC, Huegli RW, Genant HK, Tirman PF (2001) Three-point Dixon chemical-shift imaging for evaluating articular cartilage defects in the knee joint on a low-field-strength open magnet. AJR Am J Roentgenol 177:1371–1375
Özgen A (2017) The value of the T2-weighted multipoint Dixon sequence in MRI of sacroiliac joints for the diagnosis of active and chronic sacroiliitis. AJR Am J Roentgenol 208:603–608
Kijowski R, Tuite M, Passov L, Shimakawa A, Yu H, Reeder SB (2008) Cartilage imaging at 3.0T with gradient refocused acquisition in the steady-state (GRASS) and IDEAL fat-water separation. J Magn Reson Imaging 28:167–174
Park EH, Lee KB (2017) Usefulness of black boundary artifact on opposed-phase imaging from turbo spin-echo two-point mDixon MRI for delineation of an arthroscopically confirmed small fracture of the lateral talar dome: a case report. Medicine (Baltimore) 96(52):e9497. https://doi.org/10.1097/MD.0000000000009497
Miao YM, Koh DM, Amin Z, Healy JC, Chinn RJ, Zeegen R, Westaby D (2002) Ultrasound and magnetic resonance imaging assessment of active bowel segments in Crohn’s disease. Clin Radiol 57(10):913–918
Koh DM, Miao Y, Chinn RJ, Amin Z, Zeegen R, Westaby D, Healy JC (2001) MR imaging evaluation of the activity of Crohn’s disease. AJR Am J Roentgenol 177(6):1325–1332
Kavaliauskiene G, Ziech ML, Nio CY, Stoker J (2011) Small bowel MRI in adult patients: not just Crohn’s disease-a tutorial. Insights Imaging 2(5):501–513. https://doi.org/10.1007/s13244-011-0115-2
Horsthuis K, Bipat S, Stokkers PC, Stoker J (2009) Magnetic resonance imaging for evaluation of disease activity in Crohn’s disease: a systematic review. Eur Radiol 19(6):1450–1460
Masselli G, Di Tola M, Casciani E, Polettini E, Laghi F, Monti R, Bernieri MG, Gualdi G (2016) Diagnosis of small-bowel diseases: prospective comparison of multi-detector row CT enterography with MR enterography. Radiology 279(2):420–431
Chang KJ, Kamel IR (2010) Abdominal imaging at 3T: challenges and solutions. Appl Radiol 39(10):22
Manson EN, Inkoom S, Mumuni AN (2022) Impact of magnetic field inhomogeneity on the quality of magnetic resonance images and compensation techniques: a review. RMI 15:43–56
Lins CF, Salmon CEG, Nogueira-Barbosa MH (2021) Applications of the Dixon technique in the evaluation of the musculoskeletal system. Radiol Bras 54:33–42
