Case series of identity: renal lymphangiectasia mistaken for non-functional hydronephrotic kidney
Egyptian Journal of Radiology and Nuclear Medicine volume 54, Article number: 123 (2023)
Renal lymphangiectasia also referred to as renal lymphangiomatosis is a rare, but benign condition is characterized by the ectatic of lymphatic channels and is characterized by ectasia of peripelvic, perirenal and/or intrarenal lymphatic vessels. It can mimic the appearance of hydronephrosis or cystic renal lesions on imaging. As radiologists, to avoid therapeutic misadventure, it becomes critical to make an accurate diagnosis.
The clinical presentation of renal lymphangiectasia is typically asymptomatic, but it can be complicated by infection or bleeding. We report two cases, who presented with loin pain, diagnosed as hydronephrosis on ultrasound, one of whom had a nephrectomy done for a hydronephrotic and non-functioning right kidney.
Hence, this case series brings to light a short review of the literature on renal lymphangiectasia, including its pathophysiology, clinical presentation, imaging findings, complications and differential diagnosis.
Cystic renal lesions are frequently encountered on abdominal imaging studies, and while most of these lesions are benign simple cysts, complex and multifocal cystic renal diseases can also be seen. These conditions can have a wide range of differentials, making accurate diagnosis challenging. It is often mistaken for peripelvic cysts, renal cysts or hydronephrosis . One rare condition that can mimic the appearance of cystic renal lesions is renal lymphangiectasia. The key to accurately diagnosing renal lymphangiectasia is for radiologists to be aware of the imaging findings associated with this condition, which can help guide physicians in making the appropriate treatment decisions.
Renal lymphangiectasia is a very rare benign disorder of the renal lymphatics seen in both children and adults. Less than 50 cases have been reported in the literature till date . It may be unilateral or bilateral, focal or diffuse involvement and has no gender predilection. Overall, the pathophysiology of this condition is not understood. It has been proposed that renal lymphatic vessels and large retroperitoneal lymphatics do not communicate. The differentials of renal lymphangiectasia include other cystic renal diseases such as simple cysts, polycystic kidney disease and cystic nephroma. These two cases illustrate different anatomical presentation patterns, varying from cortical to perihilar to perinephric involvement, and highlight how the diagnostic approach can be incredibly challenging.
A 42-year-old female patient presented with left loin pain for 3-month duration, solitary left kidney, post-right nephrectomy status for hydronephrosis and non-functioning kidney. Physical examination revealed left flank pain and tenderness. Sonography done elsewhere was reported as left hydronephrosis. Laboratory revealed normal renal function tests. Patient was referred to our institute for contrast-enhanced computed tomography (CECT) and further management. CECT was performed on Philips Ingenuity 128-slice CT machine using 75 ml iohexol (300 mg I/ml) (Omnipaque 300) as intravenous contrast media. CT revealed multiple, non-enhancing, thin-walled hypodensities with plain CT attenuation of 9–11 HU in the left renal sinus and along the calyces with no calyceal distortion (Fig. 1). Non-enhancing lesion with similar attenuation values was noted in the aortocaval window at the level of L1–L2 vertebra (Fig. 2). A diagnosis of renal lymphangiectasia was made, and corroborative magnetic resonance imaging (MRI) was performed using a 3 T MRI machine (Ingenia Philips 3 T medical systems, the Netherlands). Ectatic pericalyceal lymphatics were seen as hyperintensities on T2W and T2-SPAIR images (Fig. 2). The patient was managed conservatively.

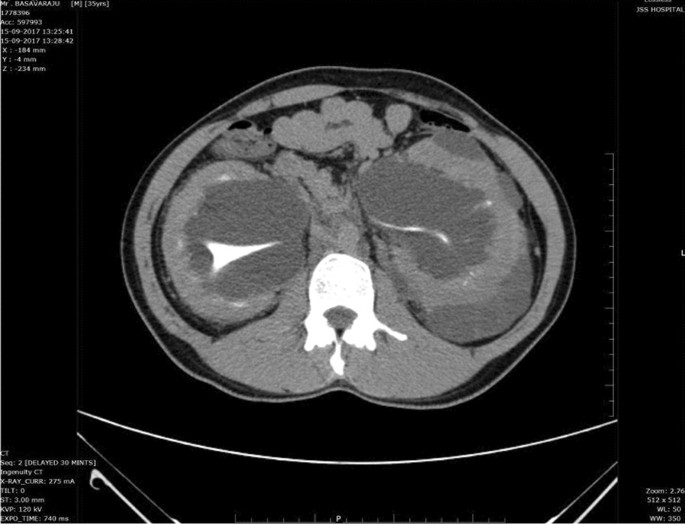

A 35-year-old male patient presented with bilateral loin pain for 6-month duration. Past medical and family history was unremarkable. Physical examination revealed bilateral flank pain and tenderness. Laboratory revealed normal renal function tests. Ultrasonography was performed using Philips iU22 ultrasound machine with 1–5 MHz curvilinear transducer which revealed normal-sized kidneys with preserved corticomedullary differentiation, multiple, anechoic peripelvic and perinephric cystic lesion insinuating into the renal sinuses and splaying the pelvicalyceal system on both sides (Figs. 3, 4). CECT was performed using a Philips Ingenuity 128-slice CT machine using 70 ml iopromide (300 mg I/ml) (Ultravist) as intravenous contrast media. CT revealed multiple, non-enhancing, thin-walled hypodense cystic lesions which appeared to be intercommunicating with attenuation values in the range of 5–10 HU. Striated pyelogram with distortion and splaying of renal pelvis and calyces were noted in the delayed phases. Perinephric component caused scalloping of the renal cortex. (Figs. 5, 6). Renal function was preserved bilaterally with prompt nephrogram and excretion (Fig. 7). A diagnosis of bilateral renal lymphangiectasia was made. Another lesion with similar imaging characteristics was imaged in the mesentery in the left iliac fossa coursing along the distal segment of inferior mesenteric vein. There was marked dilatation of the retroperitoneal lymphatics, encompassing and compressing the IVC at the level of renal vein confluence. Proximal lymphatics were also ectatic, coursing along the paravertebral region to thoracic area in the sections imaged (Fig. 8). Magnetic resonance imaging (MRI) was performed using a 3 T MRI machine (Ingenia Philips 3 T medical systems, the Netherlands). High-resolution, half-Fourier, T2W turbo spin echo (TSE), T1W imaging was performed in the axial and coronal planes. MRI confirmed the CT findings and diagnosis of renal lymphangiectasia. Imperceptible wall, intercommunicating cysts, associated ectasia of retroperitoneal lymphatics, cisterna chyli and thoracic duct were observed on MRI (Figs. 9, 10). The patient was managed conservatively.
With the normal lymphatic drainage of the kidney and its capsule, perinephric tissues intercommunicate through multiple lymphatic trunks within the renal sinus. These lymphatics drain through larger trunks in the renal pedicle to the pericaval, para-aortic and aortocaval lymph nodes . Renal lymphangiectasia is a rare, benign developmental malformation in which the developing lymphatic tissue fails to establish communication with the remainder of the lymphatic system. As a result, abnormal lymphatic channels dilate to form localized or generalized cystic masses. The lesion may involve the renal sinus, renal parenchyma and perirenal fascia. Association with retroperitoneal perivascular lymphatic cysts has also been described .
The prevalence, etiopathogenesis and natural history have not been clearly known. The knowledge about its clinical presentation and imaging findings are derived from isolated case reports. Clinically, the condition may be asymptomatic and often detected incidentally. In symptomatic patients, flank pain is the most frequent complaint as in our case. Few of them may present with palpable abdominal mass, gross or microscopic hematuria, ascites, weight loss and hypertension .
The lymphatic malformation may be limited to the renal parenchyma, which, depending on the extent of involvement, either manifests as a solitary focal lymphangioma or diffuses renal enlargement on imaging . The pathological process may be limited to the renal sinus, which may be usually mistaken for hydronephrosis . The least common variant of retroperitoneal lymphangiectasia affects the entire kidney and retroperitoneal tissues, and is associated with significant enlargement of the kidneys .
On ultrasonography, they appear as multiple, thin-walled fluid-filled cystic collections seen in the perinephric and peripelvic spaces with normal renal parenchyma. The kidneys may be normal in size or enlarged with maintained corticomedullary differentiation. Some of the cases may show increased cortical echogenicity with loss of corticomedullary differentiation due to an increase through transmission of ultrasound by the collections. Ascites may be seen in some cases (Fig. 11).
Unenhanced CT examination reveals the presence of multiple low-attenuation cystic collections (5–10 HU) in the peripelvic and perinephric spaces, but the septations may not be delineated as clearly as in ultrasonography. On post-contrast study, there may be enhancement of the septations and splaying of pelvicalyceal system on delayed images. There is no evidence of cysts in other organs or adjacent local invasion .
MR imaging findings include low T1WI and high T2WI signal intensity of the peripelvic and perinephric cysts. The perirenal cysts may show thin septations. Additionally, the parenchyma may show increased cortical intensity and decreased medullary intensity on T2WI. This feature of corticomedullary reversal and increased medullary signal intensity may be secondary to obstructed intrarenal lymphatics and subsequent edema.
The main differential diagnosis for this condition includes polycystic kidney disease, nephroblastomatosis, multilocular cystic nephroma, urinoma, abscess and bilateral perirenal liposarcomas. Apart from the typical imaging findings and clinical history, laboratory analysis of the aspirated fluid also helps in differentiating lymphangiectasia from urinoma and abscess .
Renal lymphangiectasia is a rare benign condition which is usually asymptomatic and detected incidentally on routine imaging. Knowledge about imaging features of this condition helps in differentiating it from other cystic diseases of the kidney. If typical imaging findings on ultrasonography, CT and MRI are recognized, an accurate diagnosis can be made. In those cases where imaging findings are inconclusive, an image-guided fluid aspiration and laboratory analysis can help to establish the diagnosis and avoid unnecessary surgical procedures .
Availability of data and materials
Datasets generated and analyzed during the current study are available from the corresponding author on reasonable request.
Magnetic resonance imaging
Kidney ureter bladder
Jorge MR, Juan LA, Natalia AS, Melissa UV, Mauricio M (2011) Renal lymphangiectasia: MDCT and MRI findings. Rev Colomb Radiol 22(3):1–8
Dawidek MT, Aquil S, Alogaili R (2020) Renal lymphangiectasia in the transplanted kidney: case series and literature review. Transplantation 104:172–175
Kabalin JN (1992) Surgical anatomy of the genitourinary tract. In: Wals PC, Retik AB, Stamey TA et al (eds) Campbell’s urology, 6th edn. WB Saunders, Philadelphia, p 31
Varela JR, Bargiela A, Requejo I et al (1998) Bilateral renal lymphangiomatosis: US and CT findings. Eur Radiol 8:230–231
Upreti L, Dev A, Kumar PS (2008) Imaging in renal lymphangiectasia: report of two cases and review of literature. Clin Radiol 63:1057–1062
Kim JK, Ahn HJ, Kim K et al (2002) Renal lymphangioma manifested as a solid mass on ultrasonography and computed tomography. J Ultrasound Med 21:203–206
Sarikaya B, Akturk Y, Bekar U et al (2006) Bilateral renal lymphangiomatosis mimicking hydronephrosis: multidetector CT urographic findings. Abdom Imaging 31:732–734
Ratti M, Ammar L, Zennaro F et al (2004) Renal lymphangiectasia. Pediatr Radiol 34:669–670
Pandya VK, Shah MK, Gandhi SP, Patel HV (2016) Bilateral renal lymphangiectasia. J Clin Diagn Res JCDR 10(9):19475.8409
Singh SN, Sundar G, Satishchandra H (2014) An unusual case of bilateral renal lymphangiectasia. S Afr J Radiol 18(1):1–4
No funding was obtained for this study.
Ethics approval and consent to participate
Written consent was obtained and approved.
Consent for publication
Written consent was obtained and approved from participant subjects.
The authors declare that they have no competing interests.
