Role of 18 fluorine-fluorodeoxyglucose positron emission tomography/computed tomography in assessment of neoadjuvant chemotherapy response in breast cancer patients

Abstract

Background

Neoadjuvant chemotherapy (NAC) is a therapeutic option for locally advanced breast cancer and is aiming to reduce tumor volume for breast conservation. Accurate assessment of residual tumor after NAC is a crucial for determining the outcome and survival of the patients. Eighteen fluorine-fluorodeoxyglucose positron emission tomography/computed tomography (¹⁸F-FDG PET/CT) has been recently used as a reliable tool to evaluate response to treatment due to combined morphologic and metabolic information. The aim of this study was to assess the value of ¹⁸F-FDG PET/CT in evaluation of response to NAC in a sample size of recently diagnosed 30 locally advanced breast cancer patients, who were referred for ¹⁸F-FDG PET/CT scanning before and after NAC. The morphologic and metabolic response was evaluated and compared to histopathologic findings.

Results

¹⁸F-FDG PET/CT detected 23 responders and 7 non-responders among the examined 30 breast cancer patients, compared to 20 responders and 10 non-responders detected by CT alone. ¹⁸F-FDG PET/CT showed sensitivity, specificity, positive predictive value, negative predictive value, and accuracy of 95.5%, 75%, 91.3, 85.7, and 90%, respectively, compared to 81.8%, 75%, 90, 60, and 80%, respectively, achieved by CT alone.

Conclusion

¹⁸F-FDG PET/CT is a reliable single whole body imaging tool which can be used in monitoring of NAC response in patients with locally advanced breast cancer showing higher sensitivity and accuracy compared to CT alone.

Background

Breast cancer is the most commonly diagnosed life-threatening cancer in females and the leading cause of cancer death among women [1]. Once diagnosed, the tumor stage has to be determined accurately to choose appropriate therapy and know the prognosis [2]. Neoadjuvant chemotherapy (NAC) is a management option for locally advanced breast cancer. Its goal is to reduce tumor volume for the purpose of breast conservation. Accurate assessment of residual tumor after NAC is a crucial prognostic factor for determining the outcome and survival of the patients [3]. Anatomic response criteria often underestimate the chemotherapeutic effect. Imaging of metabolic pathways serves as an alternative way for visualizing the treatment effects, as metabolic reduction within the tumor often precedes the anatomic response to therapy [4]. Positron emission tomography (PET) with 18 fluorine (¹⁸F) flurodeoxyglucose (FDG) has an important role in oncology, and its role in breast cancer management is evolving [5,6,7,8,9]. It has been used to evaluate the clinical response to NAC in breast cancer patients because metabolic reduction often occurs early in the course of therapy and precedes reduction in size of the tumor. Semi-quantitative assessment of ¹⁸F-FDG uptake has been reported as a strong predictor of pathologic and clinical response. Metabolic reduction detected before and after NAC using PERCIST (PET Response Criteria In Solid Tumor) can provide early information on potential tumor response [4]. The aim of this work was to assess the added value of ¹⁸F-FDG PET/CT scan in evaluation of response to neoadjuvant chemotherapy in locally advanced breast cancer patients before surgery.

Methods

Patients

This prospective study was conducted in the period from March 2017 to October 2019 and included 30 female patients with locally advanced breast cancer (a total of 31 lesions) who were referred to perform baseline pre-treatment and end of therapy ¹⁸F-FDG PET/CT scans (before starting and after completion of NAC). Approval of the institutional review board and written informed consents from all patients was obtained before the start of this study.

Inclusion criteria

Any female patient between 20 and 70 years old with histologically confirmed diagnosis of locally advanced breast carcinoma (Large breast tumors > 5 cm in diameter, cancers that involve the skin of the breast or the underlying muscles of the chest, or cancers that involve multiple local lymph nodes) who did not receive any therapy (including recurrent breast cancer).

Exclusion criteria

Any patient had inflammatory breast cancer, known to have contraindications for radiation (e.g., pregnant females), patients with renal impairment or had high blood glucose levels at the time of the study, and patients underwent any surgical intervention or received radiotherapy as a line of treatment.

Patient preparation

Patients were fasting for a minimum of 6 h before the scan with good hydration. Exercises were avoided for a minimum of 24 h (ideally, 48 h) before the scan. Kidney function tests were reviewed and confirmed to be within normal limit (0.6–1.3 mg/dL) with pre-scanning blood glucose level estimation (accepted between 150 and 200 mg/dL including diabetic patients who were advised to properly control their blood glucose level before examination) and insertion of ante-cubital intravenous cannula.

Technique of 18F-FDG PET/CT scan

The radioactive tracer (¹⁸F-FDG) was injected intravenously in a dose of 0.1 mCi/kg body weight. All patients were kept in a warm temperature room and asked to rest without vigorous activity and void just before imaging. Scanning by a hybrid PET/CT scanner (Ingenuity TF 64 combining a modular, LYSO-based PET component with a 64-channel CT component, Philips Healthcare, Cleveland, OH, USA) was performed 60 min after injection. The patient was positioned supine on the table. Initial single-phase contrast material-enhanced helical CT was performed following injection of 125 mL of a low-osmolarity iodinated contrast medium (Optiray 350) at a rate of 4 mL/s by using a power injector. A whole body CT study (from the head to mid-thigh) scanning was obtained using 110 mA, 110 kV, 0.5 s tube rotation time, and 3.3 mm section thickness. After CT scanning, PET scan covering the same field of view was obtained immediately. Six to seven bed positions are planned in the three-dimensional acquisition mode for scanning the entire patient with 3–5-min acquisition at each bed position. Images were transferred to a dedicated workstation to be reconstructed and displayed in axial, coronal, and sagittal planes. Baseline (pre-treatment) studies were performed within a week prior to the start of NAC, and post-treatment studies were performed 3–4 weeks after completion of NAC.

Image analysis

Images were analyzed by two experienced radiologists having 7 and 10 years of experience in PET/CT imaging with 100% interobserver agreement. Analysis of CT images was done by visual inspection with selection of target lesions and measuring their dimensions. Analysis of PET/CT images was done by visual inspection with quantitative calculation of FDG uptake of the lesions corrected to lean body mass (SUL_peak). They used the PERCIST 1.0 criteria on PET/CT interpretation and the RECIST 1.1 criteria on CT interpretation in both pre- and post-NAC scans for all the studied patient as in Table 1 [10].

Table 1 RECIST 1.1 and PERCIST 1.0 criteria for therapeutic response evaluation [10]

SUV_max was defined as the maximum concentration in the primary tumor (injected dose/body weight). Maximum or average SUV has been used in many studies to quantify tumor FDG uptake, but have specific limitations. Maximum SUVs are sensitive to image noise and overestimate tumor FDG uptake in mildly FDG avid lesions. The goal of SUV_peak is to avoid these limitations. SUV_peak was calculated using a 1.2-cm diameter volume region of interest (VOI) placed on the hottest site of the primary tumor, then normalized to lean body, mass and abbreviated as SUL_peak (SUV_peak × [lean body mass]/[total body mass]). The percentage of change in SUL_peak was calculated using the following equation: (pre-NAC SUL_peak–post-NAC SUL_peak)/pre-NAC SUL_peak × 100. SUL_peak should be 1.5 times or more that of the liver SUL_mean (in a 3-cm diameter spherical ROI on the normal right lobe). In case of diseased liver, mediastinal blood pool SUL_mean can be used as an alternative internal reference in order to bypass the pitfalls of improper dosage and poor preparation [11, 12].

Histological evaluation

A baseline immuno-histochemical characterization was also performed, evaluating the hormone receptor indexes (estrogen receptor ER and progesterone receptor PR). Tumors were then classified into the various molecular subtypes including luminal A, luminal B, triple negative/basal-like, and HER2+ [13].

Histopathologic tumor regression was semi-quantitatively graded by an experienced pathologist (had 10 years of experience) based on the Miller-Payne grading system. Patients were divided into two groups: pathologic responders and non-responders. Patients showing Miller-Payne grades 3, 4, and 5 were categorized as responders, and patients showing grades 1 and 2 were non-responders (Table 2) [14].

Table 2 Miller-Payne grading system for histopathologic response evaluation [14]

Statistical analysis

The collected data were coded, entered, presented, and analyzed by computer using a data base software program, Statistical Package for Social Science (SPSS) version 20. Qualitative data were represented as frequencies and percentages. For quantitative variables, mean, standard deviation (SD), and range were computed. For evaluating quantitative variables in the same group, Wilcoxon signed-rank test was used. Chi-square (X2) test was used to detect relation between different qualitative variables. Spearmen’s correlation (r) was used to correlate tumor size on CT and PET. Sensitivity, specificity, positive predictive value (PPV), negative predictive value (NPV), and accuracy were calculated at 95% CI to measure the validity. The results were considered statistically significant and highly statistical significant when the significant probability (P value) was < 0.05 and < 0.001, respectively.

Results

Of the studied thirty patients, 29 patients had unilateral, and one patient had bilateral primary breast tumors. The patients ranged in age between 36 and 68 years with mean age of 53.57 ± 12.27 years. Seventeen patients (56.7%) were post-menopausal, and thirteen patients (43.3%) were premenopausal. Among the examined thirty patients, 29 patients had nodal metastasis; yet, no any patient had distant metastasis.

According to Tru-cut biopsy, 29 patients were diagnosed with IDC (96.7%), and 1 patient had ILC (3.3%). Regarding histological grade, 18 patients (60%) had GII tumor, and 12 patients (40%) had GIII tumor. Regarding molecular subtypes, 50% of tumors (15 patients) were classified as luminal A subtype, 20% (6 patients) as luminal B, 13.3 % (4 patients) as HER2 + subtype, and 16.7% (5 patients) as the triple negative/basal-like subtype.

On baseline PET CT studies, the size of the primary tumor ranged from 1.6 to 6.6 cm (mean 3.64 ± 1.36), and the SUL_peak ranged from 2.5 to 15 (mean 6.96 ± 3.81). There was statistically positive correlation (P value < 0.05) between pre chemotherapy tumor size on CT and SUL_peak on PET among the studied patients (Fig. 1).

Fig. 1

Correlation between pre-chemotherapy tumor size and SUL_peak among the studied patients

On follow-up PET/CT studies, the size of the primary tumor ranged from 0.0 to 7.6 cm (mean 2.27 ± 1.25), and the SUL_peak ranged from 0.0 to 24.7 (mean 3.43 ± 4.43). There was highly statistical positive correlation (P value < 0.001) between post-chemotherapy tumor size on CT and SUL_peak on PET among the studied patients (Fig. 2).

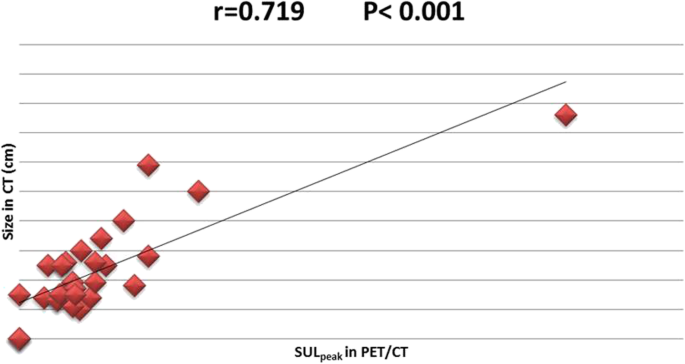

Fig. 2

Correlation between post-chemotherapy tumor size and SUL_peak among the studied patients

Evaluation of treatment response

Twenty patients (66.7%) showed SD (less than 30% decrease in longest tumor diameter) and ten patients (33.3%) showed PR (at least 30% decrease in longest tumor diameter) according to RECIST 1.1. However, based on PERCIST 1.0, five patients (16.7%) showed CMR, eighteen patients (60%) showed PMR (Figs. 3 and 4), four patients (13.3%) showed SMD (Fig. 5) and three patients (10%) showed PMD (Fig. 6).

Fig. 3

48 years old female patient presented with clinically palpable right breast mass biopsy revealed IDC grade III. a Axial CECT image revealed right breast speculated soft tissue mass lesion measuring about 55 × 60 mm that was eliciting dense tracer fixation reaching 13.5 SUL_peak in axial PET (b) and fused PET/CT (c) images. On follow-up after completion of chemotherapy, marked morphologic and metabolic regression of the mass was noted in the form of reduction in size (reaching 10 × 12 mm) in axial CECT image (d) denoting partial response and reduction in SUL_peak (reaching 2.7) in axial PET (e) and fused PET/CT (f) images denoting partial metabolic response

Fig. 4

68 years old female patient presented with right breast lump biopsy revealed invasive duct carcinoma grade II (luminal A subtype). Axial CECT image (a) revealed a rather defined right breast soft tissue mass lesion measuring about 29 × 36 mm at lower inner quadrant that was eliciting increased tracer uptake reaching 5 SUL_peak in axial PET (b) and fused PET/CT (c) images. On follow-up after completion of chemotherapy, morphologic and metabolic regression of the mass was noted in the form of reduction in size (reaching 9 × 16 mm) in axial CECT image (d) denoting partial response and reduction in SUL_peak (reaching 2.1) in axial PET (e) and fused PET/CT (f) images denoting partial metabolic response

Fig. 5

56 years old female patient with history of right breast cancer submitted for MRM followed by chemotherapy presented with left breast cancer (invasive ductal carcinoma, luminal B subtype). Axial CECT and fused PET/CT images (a, b) revealed metabolically active left breast soft tissue mass lesion achieving 3 SUL_peak. On follow-up after completion of chemotherapy, stationary appearance of the left breast mass regarding size and FDG uptake is noted in both axial CECT and fused PET/CT images (c, d) denoting stationary disease and stationary metabolic disease

Fig. 6

56 years old female patient with history of left breast cancer, submitted for MRM followed by chemotherapy and hormonal treatment, presented with focal skin thickening at the operative bed, and histopathologicaly proven to be recurrent neoplasia (IDC basal subtype-tripple negative). Axial CECT and fused PET/CT images (a, b) revealed metabolically active soft tissue mass lesion measuring about 15 × 46 mm and achieving 3.4 SUL_peak. On follow-up after completion of chemotherapy, the lesion shows regression in size (measuring 19 × 29 mm) in axial CECT (c) denotin partial response, yet with progression in FDG uptake (achieving 6.4 SUL_peak) in fused PET/CT image (d) denoting progressive metabolic disease

According to the Miller-Payne system for histopathologic response evaluation, 4 patients (13.3%) showed complete pathologic response (grade 5), 18 patients (60%) showed partial response (grades 3 and 4), and 8 patients (26.7%) had no response (grades 2 and 1).

So, the highest percentage of the studied patients is responder to NAC according to RECIST 1.1, PERCIST 1.0, and histopathology representing 66.7%, 76.7%, and 73.3%, respectively (Table 3, Fig. 7).

Table 3 Tumor response according to RECIST 1.1, PERCIST 1.0, and histopathology

Fig. 7

Distribution of the studied patients according to response to NAC determined by RECIST 1.1, PERCIST 1.0, and histopathology

According to RECIST 1.1, 18 patients were true positive, and 2 were false positive among the 20 responders, while 6 patients were true negative and 4 were false negative among the 10 non-responders. Therefore, the sensitivity, specificity, PPV, NPV, and accuracy of CT based-RECIST 1.1 after NAC were 81.8%, 75%, 90, 60, and 80%, respectively.

According to PERCIST 1.0, 21 patients were true positive, and 2 were false positive among the 23 responders, while 6 patients were true negative and 1 was false negative among the 7 non-responders. Therefore, the sensitivity, specificity, PPV, NPV, and accuracy of PET based-PERCIST 1.0 after NAC were 95.5%, 75%, 91.3, 85.7, and 90%, respectively (with 30% change in SUL_peak as a cutoff point).

Thus, the therapeutic response evaluation based on PET/CT (PERCIST 1.0) showed higher sensitivity, PPV, NPV, and accuracy compared to the response evaluation which was based on CT alone (RECIST 1.1).

FDG uptake after NAC was observed in 1 out of the 4 patients in which pathologic complete response was achieved, and this was considered as false positive result as it was proved to be of inflammatory nature by histopathologic examination with no malignant cells detected. Furthermore, pathologic complete response could not be achieved in 1 out of 5 patients that did not show any abnormal FDG uptake in PET/CT, and this was considered false negative PET result as malignant cells were detected in histopathology.

There was no statistically significant difference between the size or SUL_peak of pre-and post-treatment breast lesions and age, menopausal status, tumor localization, clinical stage, and tumor grade (Tables 4, 5, 6, and 7).

Table 4 Relationship between demographic/histopathologic features and pre-NAC tumor size

Table 5 Relationship between demographic/histopathologic features and post-NAC tumor size

Table 6 Relationship between demographic/histopathologic features and pre-NAC tumor SUL_peak

Table 7 Relationship between demographic / histopathologic features and post-NAC tumor SUL_peak

Discussion

NAC can induce shrinkage of the breast tumor, improving its operability and increasing the rate of conserving breast surgery. However, it is difficult to assess residual neoplasia especially in patients who are well responded to treatment [15].

Therapeutic response was assessed on the basis of change in measurement of tumor size before and after treatment. However, significant advances in structural and functional imaging during the past two decades lead to improvement in evaluation of the treatment response [16]. ¹⁸F-FDG PET/CT can quickly and efficiently assess malignant tumor response to treatment, including breast cancer, by comparing baseline scan prior to and following 1 or 2 cycles of treatment [17,18,19,20,21,22]. It can demonstrate metabolic changes (much earlier than morphological changes in conventional imaging modalities) semi-quantitatively by calculating the SUV_max which indicates the 18F-FDG uptake [23].

Using PET/CT for the identification of responders to treatment for breast cancer has been investigated in several clinical studies. Previous study by Jones el al. reported that PET predicts complete pathologic response, following a single pulse of chemotherapy, with sensitivity 90% and specificity 74% [24].

Other trial by Coudert et al. showed that early PET/CT was used to identify early responders to neoadjuvant therapy following two cycles, and pathological complete responses were noted in 37 (53.6%, 95% CI 41.2-65.7) of the PET-predicted responders and 6 (24.0%, 95% CI 9.4-45.1) of the non-responders [25].

Also, a prospective study conducted by Pahk et al, over 27 patients of locally advanced breast cancer conclude that interim ¹⁸F-FDG PET/CT is a valuable method for predicting early response of neoadjuvant chemotherapy [26].

A study done by Yildirim et al. included 51 of locally advanced breast cancer patients who received NAC and retrospectively analyzed. It revealed that the PET/CT had sensitivity and specificity of 75% and may be useful in predicting the prognosis because none of the patients with a complete response in PET/CT exhibited recurrence. The false positivity was established in 3 out of 15 patients with pCR. Furthermore, out of the 20 patients with a complete response in PET/CT, 12 exhibited true positivity, and 8 exhibited false positivity. There was no significant difference between the mean pretreatment SUV_max values of the patients with or without pCR. There was a significant relationship between the post-treatment SUV_max value and pCR [3].

Although maximum or average SUV has been used in many studies for quantification of tumor FDG uptake, yet, they have specific limitations, and therefore PERCIST criteria used peak SUV (activity concentration in an approximately 1.0 cm volume) corrected for lean body mass (SUL_peak), instead of maximum SUV corrected for body weight, to avoid these limitations [27, 28]. PERCIST criteria quantifies therapeutic response as percent change in SUL_peak of the most intense lesion between the baseline and post-treatment ¹⁸F-FDG PET scans and requires a change greater than 30% to distinguish PMR from SMD and PMD [29].

In the current study, we also correlated our results with the histopathological findings to evaluate accuracy of PET/CT in NAC response monitoring. After neoadjuvant chemotherapy, PET/CT showed 23 responders and 7 non-responders according to the PERCIST 1.0 criteria. Five patients showed complete metabolic response, and eighteen patients showed partial metabolic response (of the 23 responders), while 3 cases showed stable disease and 4 cases showed progressive disease (of the 7 non-responders). Among the 23 responders, 21 were true positive, and 2 were false positive. Among the 7 non-responders, 6 were true negative, and 1 was false negative. Therefore, the sensitivity, specificity, and accuracy of PET/CT for NAC response evaluation were 95.5%, 75%, and 90%, respectively, compared to 81.8%, 75%, and 80%, respectively, achieved by CT alone.

Tateishi et al. also showed that RECIST 1.1 had a sensitivity of 45.5%, specificity of 85.5%, and accuracy of 82.4%, while those values for PERCIST 1.0 were 70.4%, 95.7%, and 90.8%, respectively [4]. However, in another study by Kitajima et al. compared the response classifications RECIST 1.1 and PERCIST 1.0 used to determine pathological response to NAC in breast cancer patients, PERCIST 1.0 showed higher levels of sensitivity and NPV, but lower levels of specificity, PPV, and accuracy when compared to RECIST 1.1 [11].

In several studies, the ¹⁸F-FDG uptake values found to be related to tumor biology in various malignancies. Studies comparing the ¹⁸F-FDG uptake with histopathological parameters in breast cancer showed that the ¹⁸F-FDG uptake values are lower in invasive lobular carcinomas than that in invasive ductal carcinomas. This was attributed to lower intensity of tumor cells in lobular carcinomas, diffuse infiltrative tumor growth patterns, and lower proliferation rates [30]. A comparison could not be made in this study owing to the low number of included patients with invasive lobular carcinoma (one patient).

No significant relationship was observed between the menopausal status of the patient and SUL_peak in our study. Although a study by Groheux et al. revealed that the ¹⁸F-FDG uptake value was 1.3 times higher in pre-menopausal patients, another study by Kim et al revealed that menopausal status and tumor FDG uptake values were independent [30, 31].

The tumor grade is a significant predictive factor in breast carcinomas. A strong positive correlation has been detected between the ¹⁸F-FDG uptake levels and histological grade in a study done by Ekmekcioglu et al. [32]. Although the mean SUL_peak values of patients with a grade III disease was higher in our study ,yet, no relationship between the tumor grade and SUL_peak values was observed, possibly because of the limited number of patients.

The main limitation of our study was the relatively small sample size due to the high cost of the technique. Therefore, a future prospective trial recruiting a larger number of patients will more clearly define the role of PET/CT-based evaluation of treatment response with more accurate results. Furthermore, only primary breast lesions were analyzed to assess tumor response. In addition, follow-up PET/CT was done in this study after finishing the chemotherapy, while many other studies performed serial PET/CT in the beginning of and during chemotherapy, determining the benefits of administering a new chemotherapy regimen versus prolonged administration of the same chemotherapy regimen in non-responders.

Conclusion

¹⁸F-FDG PET/CT is a reliable single whole body imaging tool which can be used in monitoring of NAC response (using PERCIST 1.0) in patients with locally advanced breast cancer showing higher sensitivity and accuracy compared to CT alone (using RECIST 1.1).
