PET/CT implication on bronchogenic carcinoma TNM staging and follow-up using RECIST/PERCIST criteria: a comparative study with CT
Egyptian Journal of Radiology and Nuclear Medicine volume 51, Article number: 16 (2020)
To evaluate the role of PET/CT on bronchogenic carcinoma staging as well as treatment response evaluation on follow-up compared to CT study alone.
A prospective study of 60 patients confirmed histopathologically to have non-small cell bronchogenic carcinoma, 30 of them came for staging (group T) while the rest 30 came for follow-up (group F) to assess therapy response. All patients underwent PET/CT with data analysis done using the eighth edition tumor, nodal, metastatic staging (TNM) staging for group T and RECIST/PERCIST criteria for group F. The CT data alone transferred to a blind radiologist for analysis using the same parameters. The results were collected and compared.
Regarding group T, 12 patients showed different TNM staging between PET/CT and CT alone, 5 cases with different T stagings, 4 cases with different N stagings, and 5 cases with different M stagings. Also, 8 cases showed different surgical stagings. Regarding group F, 9 cases showed a difference between RECIST obtained by CT and PERCIST obtained by PET/CT with most of the cases (6 cases) showed change from partial or stable response to progressive response.
PET/CT has a significant role in TNM staging of bronchogenic carcinoma more at T2 staging due to its ability to differentiate the tumoral mass from the nearby pulmonary reaction. Also, PET/CT makes a difference in tumoral follow-up by its ability to detect the functional changes even before structural changes. Finally, PET/CT is a very important tool in management strategy.
Bronchogenic carcinoma is one of the most common causes of cancer-related mortalities with the rate of incidence reaching about 1.5 million cases per year worldwide .
Bronchogenic carcinoma classified histopathologically into either non-small cell (NSCLC) or small cell type with non-small cell is the commonest representing up to 87% of cases .
Currently, the eighth edition of tumor, nodal, metastatic staging (TNM) staging is the most recent and updated edition for bronchogenic carcinoma staging replacing the known seventh edition since January 2017. TNM staging is a universal staging system for tumor (T), lymph nodes (N), and metastases (M) .
Bronchogenic carcinoma staging is crucial for treatment strategy, planning, and prognosis prediction with radiological imaging play a cornerstone role in staging [4, 5]. Patients with stage I are suitable for lobectomy or pneumonectomy while stage II patients are treated surgically followed by adjuvant chemotherapy. Patients with stage IIIA receive chemotherapy and radiotherapy followed by surgery if downstaging occurred while for patients with stage IIIB or IV, the surgery has no role in their treatment .
CT is the most commonly used radiological modality for tumoral staging due to its availability and rapid scanning with high-resolution images, but it has some limitations in identifying the actual tumoral boundaries separating it from the nearby adjacent non-malignant pulmonary changes such as collapse, atelectasis, or consolidation. Also, the assessment of pleural, pericardial, and mediastinal invasions is difficult to be accurately assessed by CT .
Radiological follow-up of bronchogenic carcinoma to assess therapy response using CT established by using Response Evaluation Criteria In Solid Tumor (RECIST criteria) depending on size change and reduction of the tumoral mass. However, structural changes may occur late after positive biological response, giving a false impression of stationary course. Also, central necrosis or hemorrhage secondary to treatment may cause an increase in the tumor mass size, giving a pseudo-progression result in CT [8, 9].
PET/CT is a radiological modality that can assess the tumoral malignant activity depending on fluorodeoxyglucose (FDG) uptake by the malignant tissue. Hence, it can accurately delineate the tumoral mass separating it from the surrounding non-malignant reaction and detect early biological changes in response to therapy even before the structural changes. Also, PET/CT can detect the activity of pulmonary nodules detected during the interpretation of the CT chest differentiating the benign from malignant one as well as the metastatic changes . The follow-up of bronchogenic carcinoma using PET/CT is done using PET/CT Response Criteria In Solid Tumor (PERCIST criteria) depending on standardized uptake value (SUV uptake) changes by the tumoral mass .
PET/CT offers both structural and functional information about the tumoral mass and malignant activity overall the body and hence can accurately assess the tumor staging and tumor response to therapy .
Our study aimed to assess the role of PET/CT in NSCLC staging and follow-up assessment and to what extent PET/CT can change the tumoral TNM staging and the therapy response degree using PERCIST when compared to CT RECIST. Also, we studied the effects of these changes on the treatment decision and management plane.
This was a prospective study conducted on 60 patients who came to the Radiology Department with pathologically proven NSCLC. The patients came to do PET/CT as requested by the chest/radiotherapy team either for staging (group T) or follow-up (group F). 30 patients were included in each group. The study was conducted over the period from April 2017 to January 2019. Informed written consent was taken from all patients according to the ethical committee regulations. All patients were subjected to PET imaging followed by post-contrast CT in the same session.
All patients with pathologically proven NSCLC with no age or sex predilection.
We excluded any pregnant female for the risk of radiation exposure, patients with high kidney function as a contraindication for CT contrast injection, and patients with high blood glucose levels at the time of the study to avoid FDG misinterpretation. Any patients with a history of allergy were also excluded for fear of complications of contrast allergy.
Serum creatinine was requested before the study and confirmed to be within normal limits for CT contrast injection. Also, the diabetic patients were asked to adequately control their blood glucose level at the period before the date of imaging. Fasting for 6 h before the scan was requested. IV cannula was inserted and better to be inside the antecubital vein at the opposite side to the tumor side. The patients were kept in a controlled warm temperature room to decrease the FDG uptake by the brown fat.
PET/CT machine: Discovery IQ five-ring machine class I IPX0 used with 16 slices of CT, GE (General Electric Company), Milwaukee, Wisconsin, USA, 2016.
Contrast dose: 10–20 mCi were injected 60-90 min before the exam and the patients were asked to rest in a quiet place without vigorous activity and trying to avoid even talking as minimal as they can.
Technique: All patients were placed on a supine position with elevated arms for imaging acquisition starting from the skull base down to the upper thigh level. We started with PET imaging followed by post-contrast CT using the same scan area.
Post-imaging instruction: The patients were asked to drink many amounts of water, avoid contact with children for 24 h, and stop lactation for 24 h.
All images including PET and CT images were transferred to a specific workstation where PET/CT-fused images could be done. Multi-planar reformatted images (MPR) were also done for both PET and CT images. PET/CT images were interpreted via a specialized radiologist in PET/CT fields with at least 5 years’ experience. The CT images alone were transferred to another workstation to be interpreted by another blind radiologist with at least 5 years of CT imaging experience. The following parameters were used for imaging interpretation:
Regarding group (T), we used the eighth TNM staging system .
Regarding group (F), we used PERCIST 1.0 criteria on PET/CT interpretation and RECIST 1.1 criteria on CT interpretation. The tumor size, SUV uptake, and other findings were recorded (Table 1) [12, 13].
Analysis of data
the analysis of data was done using IBM SPSS statistics (V. 24.0, IBM Corp., USA, 2016). Continuous parametric data were presented as mean ± SD and non-parametric data as median (IQR) and categorical data was presented as a number and percentage of patients.
Sixty patients with a histopathological diagnosis of NSCLC were included in our study with the age of the patients ranging from 39 to 72 years old and the mean age was 49 ± 12.5 SD years. 63.3% of the patients were male with 71.7% of all patients showing a positive history of smoking, which is considered one of the most important risk factors for bronchogenic carcinoma.
The TNM staging results in group T patients by CT and PET/CT as well as the surgical staging results are demonstrated in Figs. 1 and 2. Different therapeutic response results obtained in group F patients by CT and PET/CT are demonstrated in Fig. 3.
Regarding TNM staging of group T included 30 patients, 12 patients representing 40% of cases showed different TNM staging results between the PET/CT staging and CT alone staging, and five of them showed different T staging (Figs. 4, 5, and 9) with four of them representing 80% showed downgrade staging (Figs. 4 and 9). Four cases showed different N stagings (Fig. 4) with 100% of them showing upgrade staging. Five cases showed different M stagings (Figs. 5, 6, 7, and 8) with three of them representing 60% showed downgrade staging (Figs. 6 and 8).

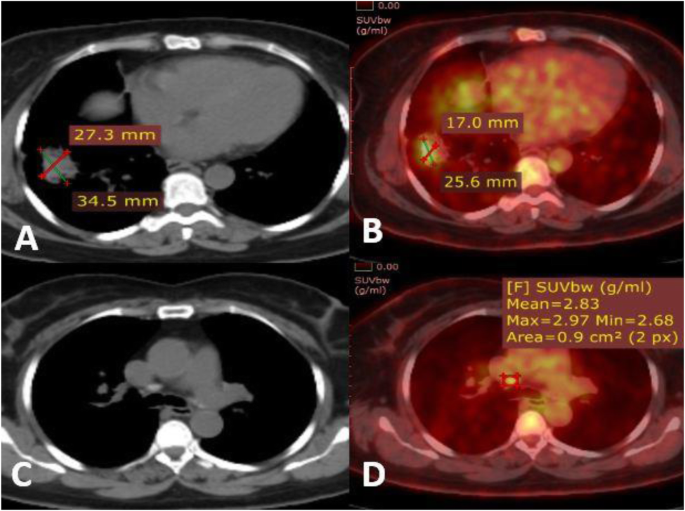

Among the patients with different T stagings, we found two cases out of five (40%) within T2 staging by CT. While in cases with different N stagings, we found two cases out of four between cases with N1 staging by CT (Fig. 4). In patients with different M stagings, three cases showed a change in M staging due to the PET/CT ability to identify the activity of the contralateral pulmonary nodules (Figs. 6 and 8).
Regarding group T surgical staging, eight cases among the 12 cases with different TNM stagings showed a change in surgical staging (four of them showed upgrade surgical staging (Figs. 4, 5, and 7) while the other four showed downgrade surgical staging (Figs. 6 and 8)). The remaining four cases showed no change in surgical staging, although there was a change in TNM staging (Fig. 9). The change of the surgical staging leads to the change in management strategies which occurred in eight patients of group T representing 26.7% of cases (Fig. 10).

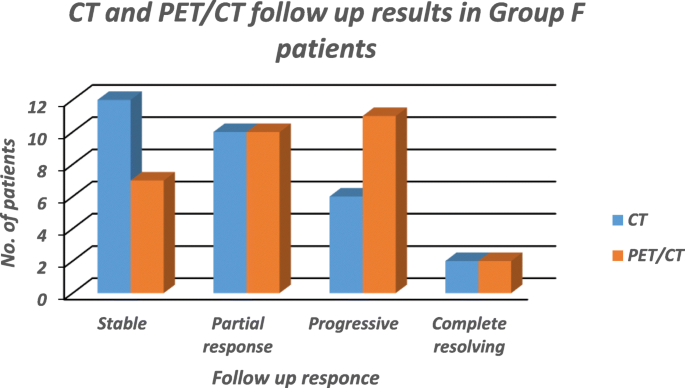

Regarding group F which included 30 patients, nine cases (30%) showed a change in therapeutic response assessment using RECIST/PERCIST criteria, six of them representing 66.67% showed a change from partial or stable response by RECIST criteria to progressive response using PERCIST criteria (Figs. 11, 12 and 13). Two showed change from stable response by RECIST criteria to partial response by PERCIST (Fig. 11). The last one showed change from the progressive response by RECIST to the stable response by PERCIST criteria. The management strategy changed with seven cases of group F representing 23.3% of cases.
Finally, PET/CT results changed the treatment strategies between 14 patients in all study population representing 23.3% of all our patients including both groups.
This study demonstrates the significance of PET/CT uses during the evaluation of cases with non-small cell bronchogenic carcinoma, either during staging or during follow-up to assess the therapeutic response. PET/CT showed a change in the TNM staging in 40% of the studied cases and a change in follow-up response in 30% of the studied cases. Eight cases in group T representing 26.7% and seven cases in group F representing 23.3% showed a change in the management strategy, according to the change in their surgical staging and the change in their treatment response evaluation, respectively.
This is explained by the difference between the two modalities as the CT gives us information about the morphology of the tumor and the morphology of the associated metastatic lesions as well as anatomical details while the PET/CT has the ability to combine both the morphological and the functional activity with the advantage of detection of the functional changes of both the tumoral mass and the associated metastatic lesions.
A lot of researchers studied the impact of PET/CT in bronchogenic carcinoma staging [14,15,16,17,18,19,20,21,22,23]. We used the eight TNM staging system which was already established since early 2017 in controversy to most of the studies used the older seventh edition of TNM staging as in a study done by Chao and Zhang .
Twelve cases out of 30 cases in group T representing 40% of cases showed a change in the TNM staging by PET/CT compared to CT alone, and this is almost close to the results found by Bury et al., Hicks et al., Taus et al., and Zheng et al. who concluded that 34%, 43%, 35%, and 35% of their cases showed change in their TNM staging when assessed by PET/CT [15, 18, 22, 23]. In controversy, Pieterman et al. found 62% of cases with a change in their TNM staging which is higher than our result  while Takeuchi et al. found the change in TNM staging in 28.7% of their cases .
In our study, out of the 12 cases in group T with a change in TNM staging, we found 8 cases representing 26.7% with the change in the TNM staging affected the surgical staging with subsequent changes in treatment strategy. The rest 4 cases showed no change in the surgical staging with no effect on the treatment plan. This is close to the result found by Bury et al. and Hicks et al. who found PET/CT impact on the management of 25% and 35% of their cases [15, 18].
The explanation of the TNM staging difference found between PET/CT compared to CT is summarized in Fig. 7 which highlights the effect of PET/CT in the precise and accurate delineation of the tumoral mass separating it from the surrounding nonmalignant pulmonary reaction, especially in T2 stage, and this is consistent with Chao and Zhang and Steinert [11, 24]. Aydin et al. stated that PET/CT measurements of the tumor size were more compatible with the histopathological size compared to CT, and this will affect the T staging which depends on the tumoral size . Also, Hochhegger et al. studied the ability of PET/CT to differentiate the tumor and post-obstructive pulmonary changes which is considered challenging with T staging .

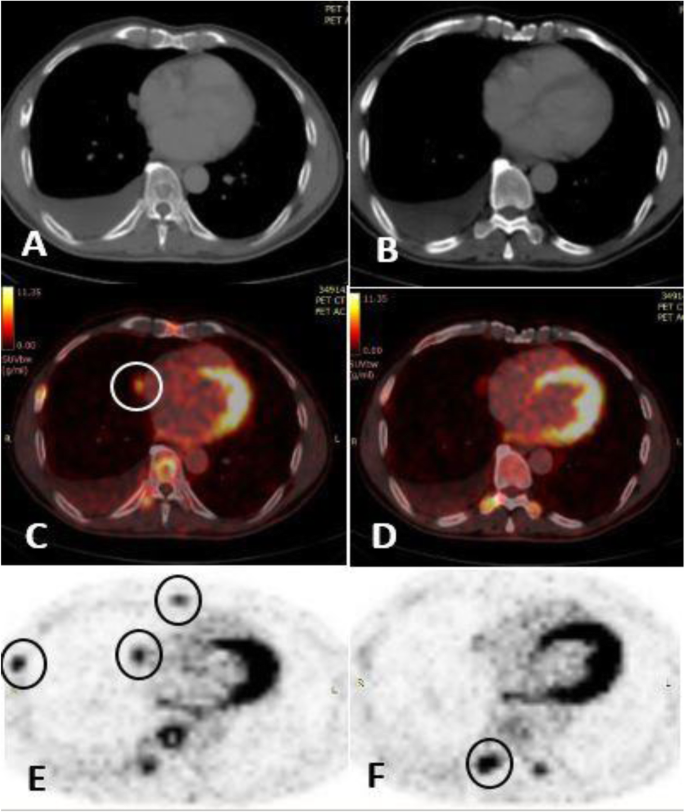

Four cases of our study showed changing in their TNM staging due to the difference in diagnosis of the nature of pulmonary nodules. The ability of PET/CT to differentiate the benign from the malignant nodules affects both T and M staging, and this is consistent with Volpi et al. who discussed the accuracy of PET/CT in differentiating the benign nodules from a malignant one .
PET/CT is a known modality to detect the malignant activity in the mediastinal lymph nodes more accurately compared to the CT which depends only on the nodal size with the accuracy reaching to about 90% in the diagnosis of malignant mediastinal lymphadenopathy [6, 11, 27].
CT depends only on the size of the lymph node during N staging. However, this carries a lot of fallacies as in post obstructive pneumonitis causing false-positive enlargement of the lymph nodes and also, normal-sized lymph nodes may be found to be metastatic on histopathological verification [28, 29]. Valopi et al. stated that patients with negative mediastinal lymph nodes on PET/CT can proceed to their management, according to the rest of T and M staging while the patients with positive nodal lesions may need further assessment via biopsy using mediastinoscopy for accurate histopathological verification avoiding false-positive results .
PET/CT is a known modality to detect the hidden bone marrow infiltrates being more accurate than CT and even bone scan to detect bony metastases, which are a common site for metastases in cases with bronchogenic carcinoma [6, 11, 27, 30]. Ten percent of patients with bronchogenic carcinoma found to have positive distant metastases by PET/CT not detected by CT alone .
On follow-up patients after starting their therapy (group F), we found nine cases (30%) with a change in therapeutic response assessment comparing the PERCIST criteria obtained by PET/CT and RECIST criteria obtained by CT alone, and this affects the treatment strategy and plan for seven cases (23.3%).
Although CT is the modality of choice on follow-up cases of lung cancer to evaluate the therapeutic response with RECIST criteria which is widely accepted and used for assessment, yet it still depends on the tumoral size change which shows some sort of variability between observers especially in irregular and speculated lesions. Also, CT cannot detect the activity changes occurred in response to therapy .
William et al. found a discrepancy between the CT RECIST and the histopathological results among 41% of the studied cases during follow-up after neoadjuvant chemotherapy  which was close to our results. However, in our study, we compared the result of the PET/CT to the CT alone, in controversy to William et al. who compared the PET/CT with the histopathology.
Our results were close to the result of Jimenez-Bonilla et al. and Marcus et al. who found that PET/CT resulted in a change in management between 30.19% and 28.1% of their patients, respectively, who did PET/CT to evaluate the therapeutic response [36, 37]. This was in controversy to Hicks et al. and You et al. who found a change in the management and therapeutic plane between 63.5% and 57% of their patients, respectively, when using PET/CT in the evaluation of therapeutic response [18, 38].
The main limitation of our study was the small sample size due to the high cost of the technique. A multi-centric study will be needed to obtain more accurate results when applied to a larger number of patients.
PET/CT has an important role in changing the staging of bronchogenic carcinoma as well as the judgment about the therapeutic response, which all lead to a significant change in therapeutic and management strategy, and this hopefully will improve the patient’s outcome and prognosis. PET/CT recently became a part of the international guidelines in the diagnosis and the follow-up of cases with bronchogenic carcinoma.
