Diagnostic value of diffusion-weighted MRI using apparent diffusion coefficient (ADC) in evaluation of median nerve in carpal tunnel syndrome
Egyptian Journal of Radiology and Nuclear Medicine volume 54, Article number: 46 (2023)
The diagnosis of carpal tunnel syndrome is based on a combination of clinical history, clinical examination and frequent use of electrodiagnostics as nerve conduction study and electromyography which often do not provide the spatial and anatomical localizing information, especially with small nerves of the extremities. Conventional magnetic resonance imaging can reveal morphological changes in carpal tunnel syndrome patients.
The purpose of our study was to assess the efficacy of diffusion magnetic resonance imaging as a functional imaging in evaluation of median nerve in carpal tunnel syndrome.
Patients and methods
This prospective study included a group of 33 patients with carpal tunnel syndrome diagnosed by both clinical examination and electromyography; 40 writs were examined. A control group of 20 subjects of matched age group were also included. All the participants were subjected to conventional and diffusion magnetic resonance imaging studies.
Median nerve apparent diffusion coefficient values of patients are lower than those of controls. The sensitivity and diagnostic accuracy of diffusion conventional magnetic resonance imaging were 95% and 97.5%, respectively, versus 25% and 62.5% of conventional magnetic resonance imaging. A cut-off apparent diffusion coefficient value ≤ 0.99 obtained at distal radio-ulnar joint level and > 1.07 at pisiform level as well as apparent diffusion coefficient ratio at a cut-off ≤ 0.2 was significantly valid for diagnosing carpal tunnel syndrome.
Diffusion magnetic resonance imaging provides functional evaluation of median nerve in patients with carpal tunnel syndrome.
Carpal tunnel syndrome (CTS) is the most common peripheral neuropathy of the upper limb caused by median nerve (MN) entrapment at the level of the carpal tunnel due to anatomical variation or increased contents such as ganglion cysts, tenosynovitis, hypertrophied tendons and ligaments, and dislocation of wrist bones. Excessive motion of the wrist and hand related to certain occupations is also considered an important factor [1, 2].
Peripheral neuropathy is diagnosed mainly clinically or by electrodiagnostics, but these methods are non-specific and give no information about any structural changes of nerves that may lead to neuropathies .
Conventional magnetic resonance imaging (cMRI) using standard sequences can be used to determine many peripheral nerve disorders. It can reveal morphological changes in CTS patients either causes of median nerve entrapment or changes in the nerve fibers. However, the effect of causative lesions on the nerve is more obvious on functional imaging .
Diffusion-weighted imaging (DWI) is an advanced MRI technicality that facilitates direct imaging of the nerves in most cases as tumors, trauma, and peripheral neuropathies. It depends on the diffusion of water molecules in generating contrast in MR images and mapping of the diffusion process of molecules giving microscopic details about tissue architecture using different parameters as apparent diffusion coefficient (ADC) values of the median nerves in CTS for quantitative assessment .
The aim of this study was to assess the diagnostic performance of diffusion MRI parameters in evaluation of median nerve (MN) in carpal tunnel syndrome (CTS).
The current prospective study included 33 patients diagnosed clinically to have carpal tunnel syndrome in 40 wrists; their ages ranged from 23 to 55 years with a mean of 40.7 ± 7.7 years. They were referred to MRI unit in Radio-diagnosis department from Rheumatology department over a period from September 2021 to October 2022. A control group of 20 individual without median nerve neuropathy were also included. Both groups correspond in terms of age and sex to avert bias.
Approval of Research Ethics Committee (REC) and informed consent were obtained from parents after explanation of the benefits and risks of the procedure. Privacy and confidentiality of all patients' data were guaranteed. All data provision were monitored and used for scientific purpose only.
The inclusion criteria for the patients group were: Symptomatic patients with clinically evident CTS as diagnosed by physicians, they had typical symptoms and signs of CTS such as intermittent (nightly) numbness, tingling, or burning sensations in the thumb, index finger, middle finger, and the lateral half of the ring finger, atrophy of the thenar muscles and positive provocative tests and had pathological nerve conduction tests. As regard the control group, the included subjects were completely asymptomatic and had no symptoms or signs of CTS. No gender predilection.
Exclusion criteria were any contraindications to MRI examination as any metallic prosthesis.
All included individuals were subjected to MRI
1.5 Tesla GE (General Electric) machine (closed magnet).
Full history: personal history, predisposing factors (as repetitive motion or flexion of the hands or wrists, or working with vibrating tools), onset, course, and duration of current symptoms, affected side, past history of previous wrist trauma, presence of predisposing systemic diseases as rheumatoid arthritis, diabetes, thyroid disorders, kidney failure, lymphedema or other neurological disorders, any medications, or previous operations.
Check of all previous radiological examination or investigations.
At Rheumatology Department including nerve conduction studies (NCS) and needle electromyography (EMG).
No specific preparation of the patient before MRI.
The studied subjects were in head first prone position with arm up like (superman/ swimmer's position). The wrist was in small flex coil with using cushions for immobilization. A cushion was used under the chest for extra comfort. The laser beam localizer was centered over the wrist joint.
The following planes were used:
Axial: Perpendicular to wrist joint (across carpal bones), the slice covers from above carpometacarpal joint up to three slices below distal radioulnar joint.
Coronal: Parallel to anterior radial metaphysis at distal radioulnar joint, the slice covers from dorsal to palmar.
Sagittal: Perpendicular to anterior radial metaphysis at distal radioulnar joint, the slice covers from medial to lateral.
The following MRI pulse sequences were included:-
Axial, sagittal, and coronal T1-weighted fast-spin-echo sequence (T1WFSE): TR/TE = 600/30, FOV: 14*14 cm, 3 mm thickness, NEX: 2 and matrix: 320*192.
Axial, sagittal, and coronal T2-weighted fast-spin-echo sequence (T2WFSE): TR/TE = 2500/60, FOV: 14*14 cm, 3 mm thickness, NEX: 2 and matrix: 320*192.
Axial Fat suppressed axial turbo-spin echo (Spectral Attenuated Inversion Recovery) T2-SPAIR: TR/TE = 4498/70, FOV: 14*14 cm, 3 mm thickness, NEX: 2 and matrix: 320*192.
Proton density-weighted spin echo sequence (PD): TR/TE = 2000/30, FOV: 14*14 cm, 3 mm thickness, NEX: 2 and matrix: 320*192.
Short Tau inversion recovery (STIR): TR/TE = 3000/50, FOV: 14*14 cm, 3 mm thickness, NEX: 2 and matrix: 320*192.
Axial diffusion-weighted imaging (DWI):
Diffusion-weighted imaging was performed using different diffusion-sensitizing gradient strengths (denoted by b-values) that are selected by a radiologist (b-value 0, 250, 500 and 1000 s/mm2).
The acquisition parameters were (TR/TE: 6000/80 ms), matrix 120 × 95, FOV as small as possible, slice thickness 4 mm, Interval 2 mm, scan time 3–6 min.
The acquired DW imaging data were post-processed to obtain apparent diffusion coefficient (ADC) map.
The apparent diffusion coefficient (ADC) maps:
An apparent diffusion coefficient map was generated automatically on a pixel-by-pixel or voxel-by-voxel basis using a monoexponential model on the work station.
The ADC values (typically expressed as × 10−3 mm2/s) were calculated in an automated process on the work station.
The MR images of patients and control subjects were analyzed by two radiologists with 21 and 12 years of MRI experience, blinded to the clinical data and laboratory indicators, in a standard clinical Picture Archiving and Diagnostic System workstation, and final decisions reached by consensus are reported.
All conventional MRI sequences were analyzed for assessment of any MN signal intensity changes.
Diffusion-weighted imaging data were analyzed using offline separate work station for assessment of any abnormal signal intensity.
Quantitative analysis was performed to calculate apparent diffusion coefficient (ADC): two regions of interests (ROIs) were placed across the median nerve (at distal radio-ulnar joint (DRUJ) and at the level of pisiform). Apparent diffusion coefficient (ADC) of the average value was obtained.
The data obtained from standard sequences, ADC map were compared in patients and control groups.
Data were coded and entered using the SPSS (Statistical Package for Social Sciences) version 20 for Windows® (IBM SPSS Inc, Chicago, IL, USA).
Data were tested for normal distribution using the Shapiro–Walk test. Qualitative data were expressed as frequencies (count) and relative frequencies (percentages). For comparing categorical data, Chi square test (χ2) was used. Quantitative data were presented as mean ± SD (Standard deviation) and range. For comparing between two independent groups of normally distributed variables (parametric data), Student’s t-test (t) was used. Receiver operation characteristic (ROC) curves were constructed to assess the diagnostic sensitivity, specificity, and accuracy of ADC for CTS. Area under the curve (AUC) was used for evaluation of the diagnostic performance of the test for CTS.
Probability (p value): p value < 0.05 was considered significant.
This prospective study included 2 groups: a patients group of 33 patients with clinically diagnosed CTS and a control group of 20 healthy individuals. The ages of the patients ranged from 23 to 55 years with a mean of 40.7 ± 7.7; most of them were at the age group between 30 and 40 years (45%) and the ages of the control subjects ranged from 32 to 50 years with a mean of 39.3 ± 6.4, with no significant difference (p = 0.624). Sex distribution was comparable in the patients and control groups (p = 0.770), where females constituted 75% of the patients group and 70% of the control group.
After clinical assessment of all the studied patients (n = 33), unilateral affection was found in 26 patients representing 78.8%, and bilateral affection was detected in 7 patients representing 21.2%. The right side was the most frequently affected (84.8%), and the left side was affected in 36.36% of the patients. So, the examined wrists were 40 wrists in the patients group and 20 wrists in the control group.
Concerning frequency of clinical presentation in the studied patients, all of patients (100%) had pain, tingling, and numbness (unilaterally in 26 patients and bilaterally in 7 patients), while weakness of thumb abduction was present in 20 patients (60.6%), and swelling in 11 patients (33.3%). The duration of those symptoms was variable ranging from 2 to 16 months. More than one symptom was found in one patient.
In all the studied patients, nerve conduction study was performed on the affected 40 wrists. It revealed mild CTS in 2 wrists (5%), moderated CTS in 28 wrists (70%), and severe CTS in 10 wrists (25%), whereas all control subjects showed normal nerve conduction study, with a significant difference between 2 groups (p < 0.001) as illustrated in Table 1.
Conventional MRI explored CTS in only 10 wrists (25%). It was helpful in detecting the cause of median nerve affection in most of these cases; a ganglion cyst inside the carpal tunnel in 1 wrist, osteoarthritis in 3 wrists, postoperative fibrous soft tissue band compressing the MN in 2 wrists (Fig. 1) and wrist fracture in 1 wrist. The morphological changes detected was enlarged MN, flattening of MN, increased signal intensity of MN and flexor retinaculum bowing (Figs. 2 and 3).
Other findings in the conventional MRI were as follows; Ganglion cyst in 9 wrists (22.5%), tenosynovitis and joint effusion (17.5%), autoimmune arthritis (7.5%), lipoma (5%), hematoma (2.5%), scapholunate diastasis and osteoarthritis (5%) (Fig. 4), avascular necrosis of lunate (Kienbock disease) (7.5%), triangular fibrocartilage injury (5%), and dorsal intercalated segment instability (DISI) deformity of lunate fracture (2.5%).

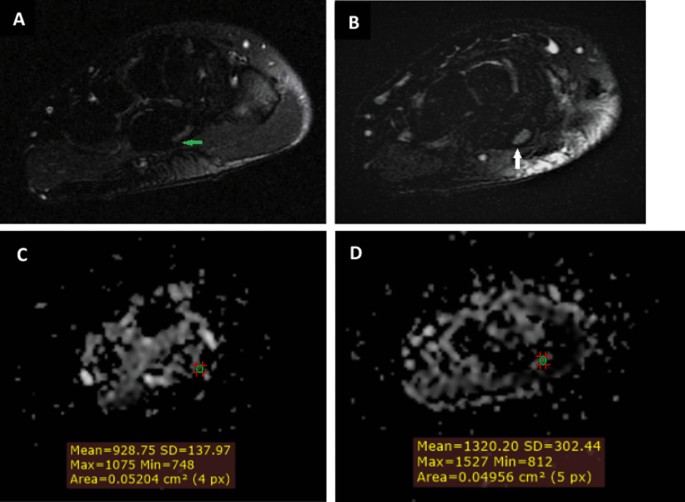

According to diffusion study, diffusion was restricted in median nerve in 28 wrists (70%), while it was free in 12 wrists (30%), with significant difference from control subjects (p < 0.001).
In the patients group, the mean ADC at the level of distal radio-ulnar joint (DRUJ) was significantly lower than that in the control group (0.93 ± 0.11 versus 1.12 ± 0.04, respectively, p < 0.001). At the level of pisiform, the mean ADC was higher in the patients (1.25 ± 0.15) compared to that in the controls (0.92 ± 0.07) with a significant difference (p < 0.001). ADC ratio also showed a significantly lower mean in the patients group than in the control group (0.76 ± 0.16 versus 1.22 ± 0.08, p < 0.001). Comparisons between the patients and control groups according to median nerve ADCs at the level of distal radio-ulnar joint and pisiform and ADC ratio are shown in Table 2.
Carpal tunnel syndrome was diagnosed with DWI MRI in 38 wrists; they were mild CTS (2 wrists; 5.3%), moderate CTS (26 wrists; 68.4%), or severe CTS (10 wrists; 26.3%) when correlated with the nerve conduction study.
So, out of the 40 examined wrists in the patients group, conventional MRI diagnosed 10 wrists (25%), whereas DWI MRI diagnosed 38 wrists (95%) with CTS. Regarding the final outcome of the studied patients depending on nerve conduction studies associated with positive clinical diagnosis which were accepted together as a standard reference, the sensitivity of the conventional MRI was 25% which is much lower than that of the DWI technique (95%), the specificity was 100% for both diagnostic modalities, and the accuracy of diagnosis was 62.5% for the conventional MRI compared to 97.50% and 100% for the DWI MRI and nerve conduction study, respectively, as shown in Table 3.

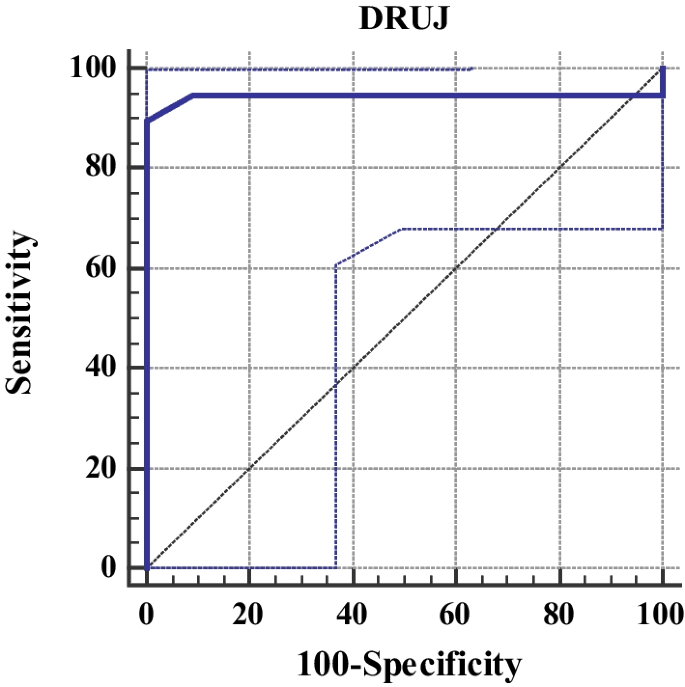

According to the receiver operating characteristics (ROC) curve results for determining the diagnostic accuracy of DW-MRI for the CTS, at a cut-off ≤ 0.99, ADC obtained at DRUJ level was significantly valid for diagnosing CTS with excellent power of discrimination (AUC = 0.28) with 90% sensitivity, 100% specificity, and 93.3% accuracy. Pisiform ADC at a cut-off > 1.07 showed excellent diagnostic performance (AUC = 0.985), with 95% sensitivity, 100% specificity, and 93.3% accuracy. Moreover, ADC ratio at a cut-off ≤ 0.2 was significantly valid for CTS diagnosis with excellent power of discrimination (AUC = 1), 100% sensitivity, 100% specificity, and 100% accuracy as illustrated in Table 4 and Figs. 5, 6, 7.
Pairwise comparison of the AUCs of the three ADCs values revealed non-significant differences (p > 0.05) as shown in Fig. 8.
Carpal tunnel syndrome (CTS) occurs when the median nerve is entrapped at the level of the carpal tunnel. It is important to treat it early to avert its permanent damage; either by conservative treatment in mild stage or surgically in moderate and severe stages .
Diagnosis of CTS is based mainly on clinical evaluation and nerve conduction studies which lack anatomical localization. Also, musculoskeletal ultrasound results are operator dependent and discordant .
Magnetic Resonance Imaging (MRI) can only detect structural changes in CTS patients as median nerve enlargement, flattening, and increased signal intensity, and bowing of flexor retinaculum. However these results are inconstant, non-specific and of low sensitivity .
In contrary, DW-MRI is based on measurement of molecular diffusion along multiple directions in space in order to characterize micro architecture of biologic tissues. Apparent diffusion coefficient (ADC) index is used to quantify water diffusibility .
The aim of this work was to assess the efficacy of diffusion MRI parameters as apparent diffusion coefficient (ADC) in evaluation of median nerve (MN) in carpal tunnel syndrome (CTS).
The current study was conducted on 33 patients (40 wrists) subjected to functional diffusion MRI to assess its diagnostic accuracy in CTS. Most of the patients were at the age group (30–40) years and (40–50) years, this result matches with the fact that CTS is common at ages 45–54 years in females and 75–84 years in males .
Regarding sex distribution, 75% of the studied patients were females. Vo et al.  reported that the most common occupations of CTS patients were farmer, merchant, housewife, and teacher. Most patients were female. This result is also consistent with the observations of Dale et al.  who stated that CTS was predominant in women likely due to different working habits.
Matching our results, Allam et al.  showed that there were 14 females and 6 males in the study group, their mean age was 43.4 ± 2.95 years (range 40–47 years). Also, Wafaie et al.  reported in their study that 83.87% of the studied patients were females and 16.12% of them were males, and their ages ranged between 19 and 84 years with mean age of 46 years and SD of 13.65.
In the present study, we found that after clinical assessment of all the studied patients, the right side was the most frequently affected; unilaterally (63.6%) and in seat of bilateral affection (21.2%). This may be attributed to the frequent use of right hand in daily works.
Zyluk, et al.  reported that CTS is more strongly expressed in the dominant hand. Lewanska, et al.  reported that the studied patients were diagnosed as idiopathic CTS where the right hand was affected in 20.3% of the patients, the left hand in 5.4% of them, and both hands in 74.3% of them.
The median nerve originates from the brachial plexus and is innervated by the C6, C7, C8 and T1 nerve roots, it enters the palm of the hand through the carpal tunnel deep to the flexor retinaculum and gives off a muscular branches to the thenar muscles and the lateral two lumbricals, then terminates by dividing into three common palmar digital nerves, which then divide into the palmar digital branches innervating the skin of the lateral side of the palm, and the palmar side of the index finger, middle finger, and one-half of the ring finger. A pressed median nerve leads to CTS causing wrist pain and problems in grasping and holding matters [14, 15].
All the patients in this study had pain, tingling, and numbness, Hiltunen et al.  also stated that all studied patients had typical CTS symptoms such as pain, numbness and weakness, and abnormally low conduction velocities of median nerve. Klauser et al.  reported that all patients in their study were diagnosed as CTS clinically and by nerve conduction studies (NCS). They had the characteristic clinical symptoms of CTS as localized pain and complaint at the palmar aspect of the hand localized to the medial three and a half fingers with pain aggravation at night-time and associated numbness and tingling.
Nerve conduction studies evaluation for CTS comprises measurement of the conduction velocity across the carpal tunnel, and detection of the amplitude of sensory and motor responses. Mild CTS may not produce any nerve conduction abnormalities. Focal demyelination of the nerve occurs with increased compression resulting in local conduction block and/or slowing of motor and sensory conduction across the wrist. With more compression, the axons of the MN can be damaged, causing reduced amplitudes .
Hiltunen et al.  stated that the degree of the entrapment ranged from mild to severe according to the American Association of Electrodiagnostic Medicine ratings: mild = slowing of sensory conduction velocity (< 50 m/s), moderate = slowing of sensory conduction velocity (< 50 m/s) and delayed motor distal latency (> 4 ms), and severe = absence of sensory response. In their study on 12 patients, 24 wrists were examined: 1 with severe CTS, 9 moderate, 6 mild, 4 previously operated CTS wrists, and 1 healthy wrist. Three of the 24 wrists were not analyzed due to motion artifacts.
In this study, we also classified the examined wrists according to the severity of CTS depending on NCS into mild, moderated, and severe a significant difference between two studied groups (p < 0.001).
There are no clinical or electrophysiological tests that could detect anatomical nerve variation in CTS which is important for operative intervention (115). In our study, cMRI explored CTS in only 25% of the examined wrists by detecting the cause of MN affection as well as the morphological changes in the nerve itself.
Wafaie et al.  reported that MR imaging is also beneficial in demonstrating the cause of nerve compression and identification of space occupying lesions, and they found one patient with intracarpal tunnel ganglion cyst claimed to be the cause of MN entrapment. Chen et al.  also found 2 cases in their study with ganglion cysts causing MN entrapment.
Compared to conventional MRI, diffusion-weighted imaging (DWI) focusing on the intracellular, transcellular and extracellular molecular Brownian motion of water molecules facilitates detection of nerve microstructural and functional changes as in peripheral neuropathies. Tissues with higher cellularity, intact cell membranes, or excessive fluid distension cause decreased Brownian motion, or restricted diffusion and will display high signal, while tissues with decreased cellularity have unrestricted or increased diffusion . In our study, diffusion study revealed restricted diffusion in 70% of the examined wrists with significant difference from control subjects (p < 0.001).
Bulut et al.  reported that there was a statistically significant difference in ADC values between the normal and mild, mild and moderate, and moderate and severe subgroups. There was significant moderate correlation between DWI parameters and CTS grades reflecting the degree of nerve compression in various grades of CTS.
We found that the mean DRJU ADC was significantly lower in the patients than in the controls. At pisiform, the mean ADC was higher in the patients than in the controls with a significant difference (p < 0.001). ADC ratio also was significantly lower in the patients than in controls (p < 0.001).
Allam et al.  illustrated that the mean DRJU ADC was significantly lower in the patients than in the control group (1.043 ± 0.14 versus 1.07 ± 0.04, respectively, p = 0.29). At pisiform, the mean ADC was higher (1.186 ± 0.1) in the patients compared to that in the control (0.982 ± 0.07), with a significant difference (p < 0.001). ADC ratio also showed a significantly lower mean in the patients than that in the control (0.87 ± 0.06 versus 1.1 ± 0.07, p < 0.001).
In a meta-analysis by Wang et al. , it showed that ADC was significantly higher in CTS patients (p = 0.02). Overall sensitivity of ADC-based diagnosis was 82.82%, and specificity was 77.83%. Taşdelen et al.  reported that CTS patients showed no significant difference between ADC measurements.
In Abdel Razek et al.  study, the mean ADC value of the median nerve in patients with CTS was more than that of controls. This may be attributed to free diffusion within the median nerve caused by occurring edema. Guggenberger et al.  reported that there is increased ADC significantly with age (p = 0.001). There was a significant difference in ADC between healthy volunteers and patients with carpal tunnel syndrome (p = 0.001). An ADC threshold of 1.054 × 10−3 mm2/s might be used in the diagnosis of carpal tunnel syndrome.
Regarding the final outcome of the studied patients depending on nerve conduction studies associated with clinical presentation as a standard reference, the sensitivity of the conventional MRI was 25% which was much lower than that of the DWI technique (95%). Also, the accuracy of diagnosis was 62.5% for the conventional MRI compared to 97.50% for the DWI MRI.
Abdel Razek et al. , Kwon et al.  and Brienza et al.  noted a good correlation between ADC value of MN in CTS and nerve conduction study parameters. Yildirim et al.  added that diffusion tensor imaging parameters provide helpful information that complements clinical and electrophysiological assessments for evaluating the efficacy of non-surgical treatment of patients with CTS.
In the present study, we detected a significantly valid DRUJ ADC cut-off ≤ 0.99 for diagnosing CTS with 90% sensitivity. Pisiform ADC at a cut-off > 1.07 showed excellent diagnostic performance with 95% sensitivity. Moreover, ADC ratio at a cut-off ≤ 0.2 was significantly valid for CTS diagnosis with 100% sensitivity.
Allam et al.  reported an increase in the mean ADC value of the MN in CTS patients when moving from proximal to distal locations, in contrast to normal subjects, in whom the reverse occurred, and when dividing proximal value of ADC on distal value to get an ADC ratio, a cutoff value of 1 showed 100% accuracy in diagnosing CTS. They suggested a mean ADC value of 1.08 × 103 mm2/s at the pisiform, as an optimal cutoff value to diagnose CTS with overall accuracy 86.7%. Stein et al.  studied the normative and pathologic diffusion values in CTS using 3 T MRI and found that ADC increased when moving from proximal to distal locations with P = 0.001.
Wafaie et al.  performed ROC curves for diffusion values between both groups to calculate their cut-off values. The threshold for mean focal ADC values was 1.19 × 10−3 mm2/s, and for whole MN ADC were 1.23 × 10−3 mm2/s.
On the other hand, Guggenberger et al.  stated that the threshold for mean focal ADC value was 1.05 × 10−3 mm2/s. In a latter study by Kwon et al. , they documented that the optimal cutoff for ADC was 1.31 × 10−3 mm2/s.
There were several limitations to our study: first, the field strength was only 1.5 T which limits signal-to-noise ratio and thus hinder acquisition of accurate data from smaller nerves. Second, only a small number of subjects were investigated in our study. A further study with a larger number of CTS patients should be conducted in the future. Another limitation was the uncomfortable patient position optimized to assess the median nerve. Finally, the use of peripheral nerve DWI was technically challenging because of susceptibility, chemical shift, and motion artifacts.
This study realized that diffusion-weighted MRI is a beneficial diagnostic tool in assessment of MN in cases of carpal tunnel syndrome when compared to conventional MRI. The increase in ADC value of the MN from proximal to distal locations is the most accurate feature in the diagnosis of CTS.
We recommend increasing the sample size with longer observation, and postoperative follow-up, for further inspecting the significance of diffusion indices in evaluating CTS. Other parameters should be considered, such as signal intensity ratio (SIR) and calculation of maximum cross-sectional area (CSA) for grading of its severity.
Availability of data and materials
The author's confirm that all data supporting the finding of the study are available within the article and the raw data ad data supporting the findings were generated and available at the corresponding author on request.
Apparent diffusion coefficient
Carpal tunnel syndrome
Conventional magnetic resonance imaging
Cross sectional area
Distal radio-ulnar joint
Nerve conduction studies
Region of interest
Signal intensity ratio
Wafaie AM, Afifi LM, Moussa KM et al (2018) Role of diffusion tensor imaging in carpal tunnel syndrome: a case control comparative study to electrophysiological tests and clinical assessment. Egypt J Radiol Nuclear Med 49(4):1068–1075
Allam MFAB, Ibrahiem MA, Allam AFAB (2017) The value of quantitative MRI using 1.5 T magnet in diagnosis of carpal tunnel syndrome. Egypt J Radiol Nuclear Med 48(1):201–206
Bao H, Wang S, Wang G et al (2017) Diffusion-weighted MR neurography of median and ulnar nerves in the wrist and palm. Eur Radiol 27(6):2359–2366
Chhabra A, Madhuranthakam AJ, Andreisek G (2018) Magnetic resonance neurography: current perspectives and literature review. Eur Radiol 28(2):698–707
Yuh EL, Jain Palrecha SJ, Lagemann GM et al (2015) Diffusivity measurements differentiate benign from malignant lesions in patients with peripheral neuropathy or plexopathy. AJNR Am J Neuroradiol 36(1):202–209
Funahasi T, Suzuki T, Hayakawa K et al (2022) Visualization of the morphological changes in the median nerve after carpal tunnel release using three-dimensional magnetic resonance imaging. Eur Radiol 32(5):3016–2023
Vo NQ, Nguyen DD, Hoang NT et al (2023) Magnetic resonance imaging as a first-choice imaging modality in carpal tunnel syndrome: new evidence. Acta Radiol 64(2):675–683
Kumari A, Singh S, Garg A et al (2019) Tingling hand: magnetic resonance imaging of median nerve pathologies within the carpal tunnel. Pol J Radiol 84:e484–e490
Yi J, Jeong HW, Cho HR et al (2021) Prediction of carpal tunnel syndrome using the thenar muscle cross-sectional area by magnetic resonance imaging. Medicine 100(41):e27536
Burton C, Chesterton LS, Davenport G (2014) Diagnosing and managing carpal tunnel syndrome in primary care. Br J Gen Pract 64(622):262–263
Dale AM, Adamson CH, Rempel D et al (2013) Prevalence and incidence of carpal tunnel syndrome in US working populations: pooled analysis of six prospective studies. Scand J Work Environ Health 39(5):495–505
Zyluk A, Dec P, Szlosser Z et al (2020) A comparison of the early outcomes of surgery in patients with unilateral and bilateral carpal tunnel syndrome using standard outcome measures. Hand Surg Rehabil 39(5):402–405
Lewanska M (2020) The bilaterality of idiopathic carpal tunnel syndrome among manual workers. Int J Occup Med Environ Health 33(2):151–161
Li ZM, Marquardt TL, Evans PJ et al (2014) Biomechanical role of the transverse carpal ligament in carpal tunnel compliance. J Wrist Surg 3(4):227–232
Pham M, Bäumer P, Meinck HM et al (2014) Anterior interosseous nerve syndrome: fascicular motor lesions of median nerve trunk. Neurology 82(7):598–606
Hiltunen J, Kirveskari E, Numminen J et al (2012) Pre-and post-operative diffusion tensor imaging of the median nerve in carpal tunnel syndrome. Eur Radiol 22(6):1310–1319
Klauser AS, Abd Ellah M, Kremser C et al (2018) Carpal tunnel syndrome assessment with diffusion tensor imaging: value of fractional anisotropy and apparent diffusion coefficient. Eur Radiol 28(3):1111–1117
Arab AA, Elmaghrabi MM, Eltantawy MH (2018) Carpal tunnel syndrome: evaluation of its provocative clinical tests. Egypt J Neurosurg 33:14
Chen CH, Wu T, Lin WH et al (2012) Unusual causes of carpal tunnel syndrome: space occupying lesions. J Hand Surg Eur 37(1):14–9
Ahlawat S, Fayad LM (2018) Diffusion weighted imaging demystified: the technique and potential clinical applications for soft tissue imaging. Skelet Radiol 47(3):313–328
Bulut HT, Yildirim A, Ekmekci B et al (2014) The diagnostic and grading value of diffusion tensor imaging in patients with carpal tunnel syndrome. Acad Radiol 21(6):767–773
Wang H, Ma J, Zhao L et al (2016) Utility of MRI diffusion tensor imaging in carpal tunnel syndrome: a meta-analysis. Med Sci Monit Int Med J Exp Clin Res 22:736–742
Taşdelen N, Gürses B, Kilickesmez O et al (2012) Diffusion tensor imaging in carpal tunnel syndrome. Diagn Interv Radiol 18(1):60–66
Abdel Razek AA, Shabana AA, El Saeid TO et al (2017) Diffusion tensor imaging of mild-moderate carpal tunnel syndrome: correlation with nerve conduction study and clinical tests. Clin Rheumatol 36(10):2319–2324
Guggenberger R, Markovic D, Eppenberger P et al (2012) Assessment of median nerve with MR neurography by using diffusion-tensor imaging: normative and pathologic diffusion values. Radiology 265(1):194–203
Kwon BC, Koh SH, Hwang SY (2015) Optimal parameters and location for diffusion-tensor imaging in the diagnosis of carpal tunnel syndrome: a prospective matched case-control study. Am J Roentgenol 204(6):1248–1254
Brienza M, Francesco P, Colaiacomo MC et al (2014) 3T diffusion tensor imaging and electroneurography of peripheral nerve: a morphofunctional analysis in carpal tunnel syndrome. J Neuroradiol 41(2):124–130
Yildirim A, Bulut HT, Ekmekci B et al (2014) Use of diffusion tensor imaging for nonsurgical treatments of carpal tunnel syndrome. Muscle Nerve 50(6):950–955
Stein D, Neufeld A, Pasternak O et al (2009) Diffusion tensor imaging of the median nerve in healthy and carpal tunnel syndrome subjects. J Magn Reson Imaging 29(3):657–662
