Predicting pathological response of locally advanced breast cancer to neoadjuvant chemotherapy: comparing the performance of whole body 18F-FDG PETCT versus DCE-MRI of the breast

Abstract

Background

With the expansion of the use of the neoadjuvant chemotherapy(NAC) in locally advanced breast cancer (LABC), both dynamic contrast enhanced magnetic resonance imaging (DCE-MRI) and 18F-fluorodeoxyglucose positron emission tomography (18F-FDG PET CT) are promising methods for assessment of the tumor response during chemotherapy. We aimed to evaluate the diagnostic accuracy of DCE-MRI of breast &18 F-FDG PETCT regarding the assessment of early response to neoadjuvant chemotherapy (NAC) in locally advanced breast cancer patients (LABC) and pathologic complete response (pCR) prediction.

Results

A total of forty LABC patients who had NAC were included in the study. Before and during NAC, PET/CT and DCE-MRI were used. Various morphological and functional criteria were compared and linked with post-operative pathology for both. The MRI sensitivity and specificity in assessing NAC response in conjunction with pathological data were 100% (p = 0.001) and 12.5% (p = 0.18) respectively. The equivalent readings for PET/CT were 94.1% (p = 0.001) and 25% (p = 0.18), respectively, although the estimated total accuracy for both MRI and PETCT was the same measuring 94.1% (p = 0.001) and 25% (p = 0.18) (72%). PETCT had a higher overall accuracy than MRI in assessing the response of axillary lymph nodes (ALN) to NAC (64% and 56%, respectively). Longest diameter of lesion, ADC value, and maximal enhancement in baseline MRI, SUVmax and SUV mean in baseline PETCT were all significant predictors of rCR.

Conclusion

During NAC in the primary breast mass and ALN, DCE-MRI demonstrated a better sensitivity in predicting pCR in LABC patients. Although both MRI and PETCT were equally accurate in detecting pCR of LABC patients to NAC, PETCT was more accurate in detecting pathological response of ALN to NAC.

Background

Over the last few decades, the use of neoadjuvant chemotherapy (NAC) to improve surgical results has increased. It has also been demonstrated that establishing a pathological complete response (pCR) after NAC is associated with a better disease-free survival rate, particularly in her2 enriched and triple negative breast cancer [1].

With the widespread use of NAC in breast cancer treatment, it's more important than before to assess response early and precisely in order to guide future management and forecast pCR [2].

Dynamic contrast-enhanced MRI is a morphological and functional imaging, morphological through (tumour size and cellularity, i.e. shrinkage pattern) and functional changes (through diffusion-weighted images, perfusion MRI, and spectroscopy) [3].

FDG PET/CT is used to assess primary tumour extent and detect metastases in breast cancer patients. It can also provide functional information about tumour metabolism, allowing for earlier identification of response to therapy than the more delayed gross morphological changes seen on conventional imaging [4].

The goal of this study was to compare the diagnostic accuracy of DCE-MRI of the breast and 18 F-FDG PETCT in assessing NAC response in locally advanced breast cancer patients, as well as to analyze their effectiveness as pCR predictors.

Methods

The Radiology, Nuclear Medicine, and Clinical Oncology Departments were collaborated on this prospective study from January 2019 to February 2020. The work was authorized by the institutional review board's Ethical committee. Patients had given their informed consent.

Patients who were going to get NAC were screened. Patients were included in the study if they met the following criteria: female gender, age (18–70 years), and pathologically established primary LABC were also factors to consider (stage II–III). The following criteria were used to exclude people: Patients with recognized contraindications to 18F-FDG-PET/CT&/or DCE-MRI, such as pregnancy and renal insufficiency, should not undergo the procedure, patients who were not candidates for NAC and those who were diagnosed with metastatic breast cancer.

Recent guidelines from the U.S. National Comprehensive Cancer Network describe LABC as AJCC stage III breast cancer; the definition includes breast cancer that fulfils any of the following criteria in the absence of distant metastasis [5]:

  • Tumors more than 5 cm in size with regional lymphadenopathy (N1–3)

  • Tumors of any size with direct extension to the chest wall or skin, or both (including ulcer or satellite nodules), regardless of regional lymphadenopathy

  • Presence of regional lymphadenopathy (clinically fixed or matted axillary lymph nodes, or any of infra-clavicular, supraclavicular, or internal mammary lymphadenopathy) regardless of tumor stage.

Radiological versus pathological response

In our study, our reference of tumoral response was the post-operative pathology. According to the post-operative pathology, tumoral response was classified into complete response (pCR) and incomplete response (non-pCR).

We monitored the response during treatment by two radiological modalities, MRI and PET/CT scan. Therefore, in each modality we assessed the radiological response and classified patients according to the radiological findings into radiological complete response (rCR) and radiological incomplete response (non-rCR). In terms of Breast MRI, the response has been evaluated using RECIST 1.1 criteria. While in PET/CT, the response has been assessed using the PERCIST 1.0 criteria.

We finally correlated the radiological response to the pathological response to evaluate the accuracy of each radiological modality in assessment of tumoral response.

Included patients were subjected to both baseline and interim DCE -MRI of breast and whole body PETCT to evaluate the response and determine the rCR of the tumor and the axillary nodal disease. The diagnostic performance of both modalities were compared and then correlated with post-operative pathology.

Treatment was comprised of anthracyclin-taxane based chemotherapy for 8 cycles. Trastuzumab was added to taxanes in Her2 positive cases.

DCE-MRI

A 1.5-T scanner (Achieva, Philips) with a specialised bilateral breast coil was used for the MRI. Patients were scanned while lying down. Axial sequences in a row Thrive in three dimensions T1-weighted sequences (1.1 × 1.1 × 1.1 mm3 voxels; 90 s acquisition time; TR/TE 4.4/2.3 ms, flip angle 10 mm, FOV 360 mm) were obtained. Initial enhancement (90s after contrast agent injection), late enhancement (450 s after contrast agent injection), maximum intensity projections, and dynamic curves assessment were all done with subtraction images. Diffusion Weighted Images (DWIs) were included in our research, as well as an ADC map.

In DCE-MRI, the longest diameter of: (a) Enhancing lesions in DCE-MRI was measured to assess NAC response using RECIST 1.1 criteria. (b) Bright Lesions in DWIs “Restricted Diffusion”. This equation was used to calculate the relative change in tumour size on MRI (RECIST 1.1) (Table 1).

$$\frac{{{\text{Largest}}\,{\text{diameter}}\,{\text{interim}}\,{\text{MRI}} - {\text{Largest}}\,{\text{diameter}}\,{\text{baseline }}}}{{{\text{MRI}}\,{\text{Largest}}\,{\text{diameter}}\,{\text{baseline}}\,{\text{MRI }}}} \times 100\%$$
Table 1 Criteria for evaluation of response of breast lesions and axillary lymph nodes by DCE-MRI versus PET/CT

The lesion location and a full descriptive study of its enhancement were documented both for MRI pre NAC and post NAC, according to the literature Hobb et al. [6] and the Breast Imaging-Reporting and Data System (BI-RADS) lexicon.

According to El Kassas et al. [7], lesions' ADC values were evaluated, along with all b values (0, 850, 1000). We integrated ADC map views with DCE-MRI at this time to characterize the lesions and measure ADC values in the relevant hypo-intense areas on the ADC map. Each ROI's mean ADC was calculated.

18F-FDG-PET/CT

The European Association of Nuclear Medicine (EANM) procedural guidelines for FDG PET/CT tumour imaging: version 2.07 were used to conduct whole-body 18F-FDG-PET/CT studies [8]. Before imaging, patients were told to fast for at least 4 hours and receive intravenous 18F-FDG injections of 4.62MBq/kg (0.125mCi/kg) up to 555MBq (15mCi). Blood glucose levels should be fewer than 200 mg/dL on the day of the research. The scanner employed in this investigation is the Philips Healthcare Ingenuity TF 64, which combines a modular, LYSO-based design. A qualitative (visual) and quantitative evaluation were carried out. With a thresholding method of 40% of SUV max in the ROI, we estimated several metrics of the primary breast mass.

The metabolic response was assessed by comparing relative changes in the SUVmax, SUV Mean, MTV (Metabolic tumour volume), and TLG (Total lesion glycolysis).

After two cycles of NAC, patients were assessed for response using PET Response Criteria in Solid Tumors (PERCIST) 1.0, which was based on 18F-FDG PET/CT data (Table 1). An equation similar to that employed by Hatt et al. [4] was used to compute the relative change in maximum standardized uptake value (SUVmax).

$${\text{\% SUVmax}} = \frac{{\left[ {\left( {{\text{SUVpre }} - {\text{SUVpost }}} \right)} \right]{ }}}{{\text{SUVpre }}} \times 100\%$$

Patients with NAC underwent surgical treatment, either MRM or BCS. The patients were classified either pathological complete response (pCR) , that defined as either complete absence of tumor cells or presence of only a small number of scattered invasive cells in the breast resection specimen (Fig. 1) or Pathological non-complete response (non-pCR) that defined as any remaining viable residual disease in the breast due to partial tumor response, stable or progressive disease [9] (Fig. 2).

Fig. 1
figure 1

Clinical data: A 33-year-old woman with right breast cancer(T2N1). Histologic findings demonstrated grade II invasive ductal carcinoma (Triple negative). Post -operative pathologic findings revealed dense fibrosis and adenosis with no viable tumor tissue (complete pathological response) that confirmed with lumpectomy(ypT0N0). A The first row figure: (a–c) Breast MR images prior to neoadjuvant chemotherapy demonstrate a 1.6 × 1.2 cm oval circumscribed enhancing mass in the right breast on axial post-contrast (a) images restricted diffusion (b) with an ADC value of 0.5 (c). The second row (d–f) Breast MR images during neoadjuvant chemotherapy demonstrate complete regression in size of the previously noted right breast mass (d), with no evidence of areas of diffusion restriction in DWI and ADC images (e, f). Complete response. “Complete response”. B The first row 18FDG-PET/CT images prior to chemotherapy demonstrate a metabolically active 18FDG avid hyper-dense well defined rounded mass in the right breast on (a)axial CT, (b) axial PET and (c) axial fused PET/CT images (SUVmax = 8.3, SUVmean = 4.7, MTV = 2.4, TLG = 11). The second row (d–f) 18FDG-PET/CT images during chemotherapy demonstrate complete metabolic and anatomic response of the previously detected known right breast mass on (d) axial CT, (e) axial PET and (f) axial fused PET/CT images. “Complete response”

Fig. 2
figure 2

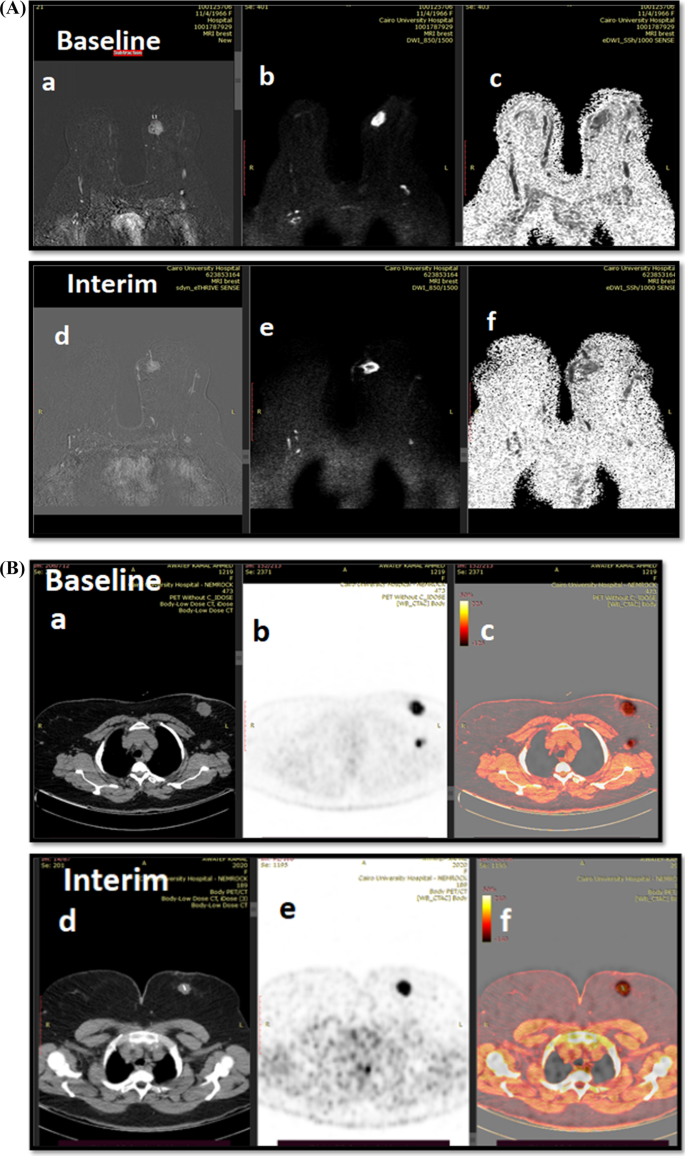

Clinical data: A 48-year-old woman with left breast cancer (T3N1). Histologic findings demonstrated grade II invasive ductal carcinoma (luminal B1). Post-operative pathology revealed IDC grade I with low grade DCIS with partial effect to therapy confirmed with BCS(ypT1N1). A The first row (a–c) Breast MR images prior to neoadjuvant chemotherapy demonstrate a 3 × 2.8 cm irregular microlobulated enhancing mass in the left breast on axial post-contrast (a) images restricted diffusion (b) with an ADC value of 0.9 (c). The second (d–f) Breast MR images during neoadjuvant chemotherapy demonstrate partial regression in size of the previously noted left breast mass with inserted clips seen within, measuring 2.4 × 2.2 cm (d), with still restricted diffusion signal in DWI with ADC value about 1.2 in images (e) (f). Δ dimeter of lesion = 20% regression. “Stable disease”. B The first row is 18FDG-PET/CT images prior to neoadjuvant chemotherapy demonstrate a metabolically active 18FDG avid hyper-dense irregular speculated mass in the left breast on (a) axial CT, (b) axial PET and (c) axial fused PET/CT images (SUVmax = 9.9, SUVmean = 5.7, MTV = 28.8, TLG = 164.1). The second row (d–f) 18FDG-PET/CT images during chemotherapy metabolic progression of such lesion, however anatomic regression noted on (d) axial CT, (e) axial PET and (f) axial fused PET/CT images (SUVmax = 11.5, SUVmean = 6.7, MTV = 5.2, TLG = 34.8, ΔSUVmax = 13.9% progression) “progressive disease”

Statistical methods

The Statistical Package for Social Sciences (SPSS) ver. 25 was used to handle and analyse the data. For independent groups, the Student t-test was used to compare numerical variables that were normally distributed and the Mann-Whitney U test was used to compare numerical variables that were not normally distributed. The Chi square test or Fisher's exact test were used to compare categorical data as needed. Both MRI and PET/CT diagnostic accuracy (sensitivity and specificity) as well as positive and negative predictive values were assessed. A receiver operator characteristic (ROC) analysis was used to establish the diagnostic discrimination for predicting pathologic response by various imaging modalities.

Results

Although forty patients were screened initially, fifteen patients were excluded from the study (Eight were missing interim MRI or PET/CT due to the current COVID pandemic, six patients had bone metastasis on baseline PET/CT and one patient withdrew the consent).

The final analysis included twenty-five cases. The patients' average age at the time of diagnosis was 45.8 years. Only eight of the patients attained pCR, whereas the other seventeen did not achieve pCR in correlation with post-operative pathology.

IDC was found in 24 cases, while ILC was found in only one. Clinical stage IIb was present in 32% of the patients, although clinical stage III was present in 68%. Only over 25% of hormone receptor positive/HER 2 negative (luminal) cases achieved pCR, whereas 44.4% of HER2+ve/triple negative patients achieved pCR.

Twelve of the 25 patients had a modified radical mastectomy, while the other thirteen had breast conservation surgery.

The maximum diameter of the lesion, maximum enhancement percentage, and ADC value were the only parameters that linked with pCR in the baseline MRI before NACT, with p values of 0.027, 0.001, and 0.043, respectively. The lesion was described in interim MRI in the same way as it did in the first MRI, however the only statistically significant parameter was the time to peak of contrast uptake (in seconds), which had a median value of 235.0 sec. The change in tumour size and maximal enhancement regression were the only statistically significant parameters when compared to baseline MRI, with p values of 0.016 and 0.049, respectively. (Table 2).

Table 2 Results of MRI parameters in relation to pathologic response (n = 25)

In MRI, a cut-off initial longest diameter of 4.25 was proposed for discriminating rCR from non-rCR patients. AUC was 77.9. Cut-off values of initial SUVmax, SUV mean, ADC, maximum enhancement were not applicable, although there was a statistical significance as the area under the curve was very small and unreliable (Fig. 5).

The maximum and mean standardized uptake values (SUVmax & SUVmean), MTV, and TLG were assessed at baseline PET/CT. The SUVmax and SUVmean parameters were statistically significant (p values of 0.027 and 0.016, respectively). In relation to pCR, however, none of the PET/CT values at interim PET/CT, nor the computed difference between the two scans, approached statistical significance (Table 3).

Table 3 Results of PET/CT parameters in relation to pathologic response (n = 25)

Comparison of tumor responses; radiologic versus pathologic response

PET CT assessment after two cycles of NACT, using relative reduction in SUVmax parameter (according to PERCIST), revealed 3 patients to be rCR i.e. not traced in images “complete radiological response” and 22 non-rCR. Among 3 rCR (in correlation with post operative pathology) we found that two of them were true negative (TN) (Fig. 1), however only one was false negative (FN). Among 22 non-rCR, 16 were true positive (TP) (Figs. 2, 3) and 6 were false positive (FP) (Fig. 4) (p value=0.016).

Fig. 3
figure 3

Clinical data: A 46-year-old woman with right breast cancer (T3N1). Histologic findings demonstrated grade II invasive ductal carcinoma (luminal B1). Post-operative pathologic findings revealed IDC grade I with low grade DCIS with partial effect to therapy confirmed with BCS(ypT1N1). A The first row is (a–c) Breast MR images prior to neoadjuvant chemotherapy demonstrate a 4.6 × 3.9 cm irregular microlobulated enhancing mass in the left breast on axial post-contrast (a) images restricted diffusion (b) with an ADC value of 0.9 (c). The second row (d–f) Breast MR images during neoadjuvant chemotherapy demonstrate partial regression in size of the previously noted left breast mass, measuring 2.9 × 2.5 cm (d), with still restricted diffusion signal in DWI with ADC value about 1 in images (e, f). Δ diameter of lesion = 37% regression “partial response”. B the first row is 18FDG-PET/CT images prior to neoadjuvant chemotherapy demonstrate a metabolically active 18FDG avid hyper-dense irregular microlobulated mass in the left breast on (a) axial CT, (b) axial PET and (c) axial fused PET/CT images (SUVmax = 5.2, SUVmean = 5.2, MTV = 32, TLG = 166). The second row (d–f) 18FDG-PET/CT images during chemotherapy demonstrate metabolic stability, however anatomic regression in the previously detected known left breast mass on (d) axial CT, (e) axial PET and (f) axial fused PET/CT images (SUVmax = 2.47, SUVmean = 10.26, MTV = 8.5, TLG = 86.7. ΔSUVmax = 54% regression) “partial response”

Fig. 4
figure 4

Clinical data: A 38-year-old woman with left breast cancer (T3N0). Histologic findings demonstrated grade III invasive ductal carcinoma (triple negative). Post-operative pathologic findings revealed complete absence of tumor cells, wide areas of necrosis as well as free surgical margins confirmed with BCS(ypT0N0). A the first row is (a–c) Breast MR images prior to neoadjuvant chemotherapy demonstrate a 5 × 3.9 cm irregular macro-lobulated rim enhancing mass in the left breast on axial post-contrast (a) images restricted diffusion (b) with an ADC value of 0.4 (c).The second row (d–f) Breast MR images during neoadjuvant chemotherapy demonstrate significant regression in size of the previously noted left breast mass, leaving behind linear non mass enhancement, measuring 1.4 × 1.2 cm (d), with still restricted diffusion signal in DWI with ADC value about 0.4 in images (e, f). Δ diameter of lesion = 58% regression “partial response”. B The first row is 18FDG-PET/CT images prior to chemotherapy demonstrate a metabolically active 18FDG avid hyper-dense well circumscribed rounded mass in the left breast on (a) axial CT, (b) axial PET and (c) axial fused PET/CT images (SUVmax = 12.9, SUVmean = 3.8, MTV = 72.6, TLG = 376). The second row (d–f) 18FDG-PET/CT images during chemotherapy demonstrate significant metabolic and anatomic regression in the previously detected left breast mass with clips seen within the mass on (d) axial CT, (e) axial PET and (f) axial fused PET/CT images (SUVmax = 4, SUVmean = 1.6, MTV = 32.4, TLG = 52.4, ΔSUVmax = 68.9% regression) “partial response”

On the other hand, DCE-MRI assessment after two cycles of NACT, using relative reduction in longest dimeter parameter (according to RECIST), revealed one patient to be rCR and 24 were non-rCR. The one rCR is true negative (TN) (Fig. 1), among 24 non-rCR, 7 were false positive (FP) (Fig. 4) and 17 were true positive (TP) (Figs. 2, 3) (p value=0.125).

The response to neo-adjuvant therapy in axillary lymph nodes were assessed by RECIST and PERCIST criteria in MRI and PETCT respectively (Table 1).

The sensitivity and specificity of MRI in assessing ALN response to NAC in association with pathological data were (83% and 50%) respectively, however the corresponding values in PET/CT were (47.4% and 68.4%) respectively. PETCT, on the other hand, was predicted to have a higher overall accuracy than MRI (64% and 56%) respectively (Table 4). MRI was significant in detection axillary lymph nodes in relation to pathological response (p = 0.012) (Table 5).

Table 4 Diagnostic performance of MRI versus PET/CT
Table 5 Comparison of axillary LN status detected by radiologic versus pathologic modalities (n = 25)

Discussion

During Neoadjuvant chemotherapy NAC, accurate assessment of the presence or absence of residual tumors can guide the range of surgical resection, avoiding radical mastectomy and increasing the possibility of breast-conserving surgery. Furthermore, correct assessment may aid the clinician in adjusting the chemotherapy regimen for patients who have a suboptimal response [10].

In this study, regarding the baseline MRI, we found that the longest diameter of the lesion, ADC value and percentage of maximum enhancement were statistically significant in prediction of pathological response (p = 0.027, 0.043 and 0.001 respectively).

Mansour et al [11] also found that the ADC value as a single parameter to predict pCR achieved 78.95% sensitivity, 83.33% specificity and 80.65% total accuracy. The additive role of DWI to conventional DCE-MRI enhanced the diagnostic indices to 89.47% sensitivity, 83.87% total accuracy (compared to 73.68% and 77.42%, respectively, in case of DCE-MRI alone).

While in interim MRI the peak of contrast uptake and change in tumor size (pre-post/post x100) as well as change in maximum enhancement were significant radiological prognostic factors for prediction of pCR (p < 0.05), However change in ADC value was not statically significant (p = 0.932).

Bouzón et al [12] found that MRI can accurately measure tumor response and residual tumor size in breast cancer patients treated with NAC. In their series, evaluation of residual tumor size was more accurate in baseline tumor size ≤ 5 cm lesions, similar to our results. Scheel et al [13]also found that change in size in MRI between pre-NAC and during NAC can be used to guide the implementation of chemotherapy regimens. Minarikova et al. [14] found that the change in tumor size as measured by MRI served as a significant predictor of CR compared to change in ADC values which was similar to our conclusion (Fig. 5).

Fig. 5
figure 5

ROC curve analysis for pathologic response prediction using Max. Diameter by initial MRI (Best cut off value for Max. Diameter by MRI 1 = 4.25 with sensitivity = 70.6% and specificity = 75.0%). The area under the curve is 77.9% (95% confidence interval = 59.8–96.1)

In this study, the positive predictive value of MRI breast (ability to correctly predict the presence of residual disease at final pathologic examination) was found to be 70.8%, however the negative predictive value (ability to correctly predict the absence of disease at final pathologic examination) was found to be only 58.8%. In a meta-analysis of six investigations, Crashaw et al. [15] discovered that MRI has a high positive predictive value (93%). Because the negative predictive value was only moderate (65%), the overall diagnostic accuracy was reduced to (84%).

In terms of PET/CT, the original 18F-FDG-PET/CT upstaged five cases to stage IV disease (advanced disease); it identified previously undiscovered distant metastatic disease in bones, particularly in the axial skeleton, impacting treatment options considerably. This was consistent with level II evidence that supports the use of 18F-FDG PET/CT for initial staging of patients with LABC since it enhanced both regional and systemic staging [16]. SUVmax and SUVmean of the breast mass in the initial pre-therapy scan were the only statistically significant metabolic factors in predicting rCR, with P values of 0.027 and 0.016 respectively, according to semi-quantitative analysis of 18F-FDG-PET CT. However, no other deduced quantitative metabolic parameters were statistically significant in the interim PET scan nor the calculated difference between both scans (a calculated according to the PERCIST).

We calculated MTV and TLG of the primary breast mass with thresholding method of 40% of SUV max in the ROI and they were not significant either in the initial or the interim scans, this could be explained by Hong et al. [17] who stated that MTV and TLG may be two promising metabolic parameters. However, selecting a verified appropriate threshold to delineate the tumour and calculate volume-based factors appears to be difficult, given the various clinical contexts such as lesions size, tumour biology, and background breast activity that can be modified by patient age and hormonal status.

In comparison to pathological data, the pooled sensitivity and specificity of MRI in assessing LABC response to neoadjuvant therapy were 100% (p0.001) and 12.5% (p = 0.18), respectively. The corresponding figures for PET/CT were 94.1% (p0.001) and 25% (p = 0.18), respectively. However, the total accuracy for both MRI and PET/CT was 72%. Breast MR imaging was found to be a sensitive medium for breast cancer identification and an accurate imaging method for assessing tumour response to neoadjuvant therapy by Mariscotti et al. [18]. In patients with breast cancer, Li et al. [19] discovered that MRI had a higher sensitivity and PET/CT had a higher specificity for predicting the pathologic response following NAC, similar to our findings.

Sarhan et al. [20] had evaluated the role of FDG-PET/CT in assessment of response to NAC in breast cancer, they found that the sensitivity, specificity, and accuracy of PET.CT were 95.5%, 75%, and 90%, respective values, the higher specificity and hence the accuracy of the study could be attributed to two essential differences. Firstly, they analyzed PET based-parameters after end of NAC not in the early interim phase as our study: this may raise the awareness of the added value of PET/CT after end of therapy regarding the specificity of the study, to avoid higher incidence of false positive results in interim PET due to associated early therapy related inflammatory changes.

Secondly, Sarhan et al. [20] used SUV values corrected to lean body mass (SUL) which can overcome many shortcomings related to SUV corrected to body weight as it is not affected with changes in patient’s body weight which may be encountered due to effect of therapy [21].

The sensitivity and specificity of MRI in assessing the response of axillary lymph nodes to neoadjuvant therapy in association with pathological data were 83% and 50%, respectively, in the current investigation. The corresponding values for PET/CT were 47.4% and 68.4%, respectively, with p values of (p = 0.625) and (p = 0.146), but the estimated overall accuracy of PET/CT was higher than that of MRI (64%and 56%, respectively), which was similar to Ergul et al. [22] who reported that PET/CT had a higher specificity for detecting axillary nodal involvement than MRI (89%).

The limitations in our study was the limited number of patients that resulting in defect in assessment the different imaging modalities for assessment response to NAC as well as performing subgroup analysis based on receptor subtypes.

Conclusion

We concluded that DCE-MRI and 18 F-FDG-PET CT could play different roles in the evaluation of NAC in LABC patients as;

  • DCE-MRI had a higher sensitivity in predicting the pCR in locally advanced breast cancer after NAC either in the primary breast mass or the axillary lymph nodes (ALN), although there was no difference in overall accuracy in the former, however PET/CT was more accurate in the latter.

  • 18 F-FDG-PET/CT had therapeutic implication by measuring baseline metabolic activity in the primary tumor and ALN and by detecting distant metastatic disease not previously disclosed by conventional imaging modalities.

Availability of data and materials

The corresponding author is responsible for sending the used data and materials upon request.

Abbreviations

ALN:

Axillary lymph nodes

ADC:

Apparent diffusion coefficient

BIRADS:

Breast Imaging-Reporting and Data System

CR:

Complete response

DCE-MRI:

Dynamic contrast enhanced Magnetic resonance imaging

DWI:

Diffusion weighted images

EANM:

European Association of Nuclear Medicine

FDG:

Fluoro-deoxy-glucose

LABC:

Locally advanced breast cancer

MTV:

Metabolic tumor volume

NAC:

Neoadjuvant chemotherapy

Non-pCR:

Pathological incomplete response

Non-rCR:

Radiological incomplete response

NPV:

Negative predictive value

pCR:

Pathological complete response

PD:

Progressive disease

PERCIST:

PET response criteria in solid tumors

PET/CT :

Positron emission tomography/computed tomography

PPV:

Positive predictive value

PR:

Partial response

rCR:

Radiological complete response

RECIST:

Response evaluation criteria in solid tumors

ROI:

Region of interest

SD:

Stable disease

SUV:

Standardized uptake value

SUVMax :

Maximum SUV

TLG:

Total lesion glycolysis

References

  1. Cortazar P, Zhang L, Untch M, Mehta K, Costantino JP, Wolmark N, Bonnefoi H, Cameron D, Gianni L, Valagussa P, Swain SM, Prowell T, Loibl S, Wickerham DL, Bogaerts J, Baselga J, Perou C, Blumenthal G, Blohmer J, Von Minckwitz G (2014) Pathological complete response and long-term clinical benefit in breast cancer: the CTNeoBC pooled analysis. Lancet 384(9938):164–172. https://doi.org/10.1016/S0140-6736(13)62422-8

    Article  PubMed  Google Scholar

  2. Rauch GM, Adrada BE, Kuerer HM, Van La Parra RFD, Leung JWT, Yang WT (2017) Multimodality imaging for evaluating response to neoadjuvant chemotherapy in breast cancer. Am J Roentgenol 208(2):290–299. https://doi.org/10.2214/AJR.16.17223

    Article  Google Scholar

  3. Al-Hilli Z, Boughey JC (2016) The timing of breast and axillary surgery after neoadjuvant chemotherapy for breast cancer. Chin Clin Oncol 5(3):1–11. https://doi.org/10.21037/cco.2016.03.26

    Article  Google Scholar

  4. Hatt M, Groheux D, Martineau A, Espié M, Hindié E, Giacchetti S, De Roquancourt A, Visvikis D, Cheze-Le Rest C (2013) Comparison between 18F-FDG PET image-derived indices for early prediction of response to neoadjuvant chemotherapy in breast cancer. J Nucl Med 54(3):341–349. https://doi.org/10.2967/jnumed.112.108837

    Article  CAS  PubMed  Google Scholar

  5. National Comprehensive Cancer Network (NCCN) (2015) NCCN clinical practice guidelines in oncology: breast cancer. NCCN, Fort Washington

    Google Scholar

  6. Hobbs MM, Taylor DB, Buzynski S, Peake RE (2015) Contrast-enhanced spectral mammography (CESM) and contrast enhanced MRI (CEMRI): patient preferences and tolerance. J Med Imaging Radiat Oncol 59(3):300–305. https://doi.org/10.1111/1754-9485.12296

    Article  PubMed  Google Scholar

  7. El Kassas H, Helal M, Abourabia A, Abd El Razik N, Farahat A, Zedan M (2016) Role of MRI diffusion as an adjunct to contrast enhanced MRI of the breast for the evaluation of breast cancer patients receiving neoadjuvent chemotherapy. Egypt J Radiol Nucl Med 47(4):1721–1732. https://doi.org/10.1016/j.ejrnm.2016.06.003

    Article  Google Scholar

  8. Boellaard R, Delgado-Bolton R, Oyen WJG, Giammarile F, Tatsch K, Eschner W, Verzijlbergen FJ, Barrington SF, Pike LC, Weber WA, Stroobants S, Delbeke D, Donohoe KJ, Holbrook S, Graham MM, Testanera G, Hoekstra OS, Zijlstra J, Visser E, Krause BJ (2015) FDG PET/CT: EANM procedure guidelines for tumour imaging: version 2.0. Eur J Nucl Med Mol Imaging 42(2):328–354. https://doi.org/10.1007/s00259-014-2961-x

    Article  CAS  PubMed  Google Scholar

  9. Chen JH, Feig BA, Hsiang DJ, Butler JA, Mehta RS, Bahri S, Nalcioglu O, Su MY (2009) Impact of MRI-evaluated neoadjuvant chemotherapy response on change of surgical recommendation in breast cancer. Ann Surg 249(3):448–454. https://doi.org/10.1097/SLA.0b013e31819a6e01

    Article  PubMed  Google Scholar

  10. Wang H, Mao X (2020) Evaluation of the efficacy of neoadjuvant chemotherapy for breast cancer. Drug Des Dev Ther 14:2423–2433. https://doi.org/10.2147/DDDT.S253961

    Article  CAS  Google Scholar

  11. Mansour S, Selim A, Kassam L et al (2021) Diffusion-weighted imaging or MR spectroscopy: Which to use for the assessment of the response to chemotherapy in breast cancer patients? Egypt J Radiol Nucl Med 52:190. https://doi.org/10.1186/s43055-021-00574-2

    Article  Google Scholar

  12. Bouzón A, Acea B, Soler R, Iglesias Á, Santiago P, Mosquera J, Calvo L, Seoane-Pillado T, García A (2016) Diagnostic accuracy of MRI to evaluate tumour response and residual tumour size after neoadjuvant chemotherapy in breast cancer patients. Radiol Oncol 50(1):73–79. https://doi.org/10.1515/raon-2016-0007

    Article  CAS  PubMed  PubMed Central  Google Scholar

  13. Scheel JR, Kim E, Partridge SC, Lehman CD, Rosen MA, Bernreuter WK, Pisano ED, Marques HS, Morris EA, Weatherall PT, Polin SM, Newstead GM, Esserman LJ, Schnall MD, Hylton NM (2018) MRI, clinical examination, and mammography for preoperative assessment of residual disease and pathologic complete response after neoadjuvant chemotherapy for breast cancer: ACRIN 6657 trial. Am J Roentgenol 210(6):1376–1385. https://doi.org/10.2214/AJR.17.18323

    Article  Google Scholar

  14. Minarikova L, Bogner W, Pinker K, Valkovič L, Zaric O, Bago-Horvath Z, Bartsch R, Helbich TH, Trattnig S, Gruber S (2017) Investigating the prediction value of multiparametric magnetic resonance imaging at 3 T in response to neoadjuvant chemotherapy in breast cancer. Eur Radiol 27(5):1901–1911. https://doi.org/10.1007/s00330-016-4565-2

    Article  PubMed  Google Scholar

  15. Croshaw R, Shapiro-Wright H, Svensson E, Erb K, Julian T (2011) Accuracy of clinical examination, digital mammogram, ultrasound, and MRI in determining postneoadjuvant pathologic tumor response in operable breast cancer patients. Ann Surg Oncol 18(11):3160–3163. https://doi.org/10.1245/s10434-011-1919-5

    Article  PubMed  Google Scholar

  16. Caresia Aroztegui AP, García Vicente AM, Alvarez Ruiz S, Delgado Bolton RC, Orcajo Rincon J, Garcia Garzon JR, de Arcocha Torres M, Garcia-Velloso MJ (2017) 18F-FDG PET/CT in breast cancer: evidence-based recommendations in initial staging. Tumor Biol 39(10):1–23. https://doi.org/10.1177/1010428317728285

    Article  CAS  Google Scholar

  17. Hong JH, Kim HH, Han EJ, Byun JH, Jang HS, Choi EK, Kang JH, Yoo IR (2016) Total lesion glycolysis using 18F-FDG PET/CT as a prognostic factor for locally advanced esophageal cancer. J Korean Med Sci 31(1):39–46. https://doi.org/10.3346/jkms.2016.31.1.39

    Article  CAS  PubMed  Google Scholar

  18. Mariscotti G, Houssami N, Durando M, Bergamasco L, Campanino PP, Ruggieri C, Regini E, Luparia A, Bussone R, Sapino A, Fonio P, Gandini G (2014) Accuracy of mammography, digital breast tomosynthesis, ultrasound and MR imaging in preoperative assessment of breast cancer. Anticancer Res 34(3):1219–1225

    PubMed  Google Scholar

  19. Li H, Yao L, Jin P, Hu L, Li X, Guo T, Yang K (2018) MRI and PET/CT for evaluation of the pathological response to neoadjuvant chemotherapy in breast cancer: a systematic review and meta-analysis. Breast 40:106–115. https://doi.org/10.1016/j.breast.2018.04.018

    Article  PubMed  Google Scholar

  20. Sarhan EAS, El Gohary MI, El Moneim LA et al (2020) Role of 18 fluorine-fluorodeoxyglucose positron emission tomography/computed tomography in assessment of neoadjuvant chemotherapy response in breast cancer patients. Egypt J Radiol Nucl Med 51:116. https://doi.org/10.1186/s43055-020-00233-y

    Article  Google Scholar

  21. Sarikaya I, Albatineh AN, Sarikaya A (2020) Revisiting weight-normalized SUV and lean-body-mass-normalized SUV in PET studies. J Nucl Med Technol 48(2):163–167. https://doi.org/10.2967/jnmt.119.233353

    Article  PubMed  Google Scholar

  22. Ergul N, Kadioglu H, Yildiz S, Yucel SB, Gucin Z, Erdogan EB, Aydin M, Muslumanoglu M (2015) Assessment of multifocality and axillary nodal involvement in early-stage breast cancer patients using 18F-FDG PET/CT compared to contrast-enhanced and diffusion-weighted magnetic resonance imaging and sentinel node biopsy. Acta Radiol 56(8):917–923. https://doi.org/10.1177/0284185114539786

    Article  PubMed  Google Scholar

  23. Eisenhauer EA, Therasse P, Bogaerts J, Schwartz LH, Sargent D, Ford R, Dancey J, Arbuck S, Gwyther S, Mooney M, Rubinstein L, Shankar L, Dodd L, Kaplan R, Lacombe D, Verweij J (2009) New response evaluation criteria in solid tumours: revised RECIST guideline (version 1.1). Eur J Cancer 45(2):228–247. https://doi.org/10.1016/j.ejca.2008.10.026

    Article  CAS  PubMed  Google Scholar

  24. Wahl RL, Jacene H, Kasamon Y, Lodge MA (2009) From RECIST to PERCIST: evolving considerations for PET response criteria in solid tumors. J Nucl Med 50(Suppl 1):122S-S150. https://doi.org/10.2967/jnumed.108.057307

    Article  CAS  PubMed  Google Scholar
