Delayed myocardial enhancement in children with different types of cardiomyopathy: a diagnostic and prognostic tool

Abstract

Background

The pattern of late gadolinium enhancement (LGE) in cardiomyopathy is quite different in children compared to adults. In addition, the data about LGE imaging in children are still restricted, so the goal was to study the role of cardiac magnetic resonance (CMR) with different techniques, including LGE images in diagnosis and evaluation of different types of cardiomyopathy in children.

Results

In group A (enhancement group), LVEDV 146.2 (144) ml, indexed LVEDV 81.8 (195) ml, LVESV 50 (357) ml, indexed LVESV 47.5 (243) ml, and LVEF 36% (64%), and a major adverse effect was found in 12 out of 15 cases (80%). However, in group B (non-enhancement group), the results were LVEDV 72 (303) ml, indexed LVEDV 75 (318) ml, LVESV 30 (220) ml, indexed LVESV 37.1 (189) ml, and LVEF 45.79% (65%), and a major adverse cardiac effect was found in 2 out of 16 cases (12.5%). The LVEF was lower, and LV volume indices including LVEDV and LVESV were higher in patients with LGE compared to those without LGE with a statistically significant difference (p value = 0.001, p value = 0.003, and p value = 0.005, respectively). Furthermore, it was also found that a major adverse effect occurs with higher incidence in enhancement cases (92%) as compared to non-enhancement cases (12.5%) with a statistically significant difference (p value ≤ 0.001). LGE was found in 15 cases out of 31 cases (48.4%); however, the remaining 13 cases had no contrast study.

Conclusion

Cardiac MRI can be considered as an important non-invasive imaging modality, not only for assessment but also for differentiation between ischemic and non-ischemic cardiomyopathy in the pediatric age group. Using its different techniques allows a better assessment of morphologic and functional parameters in cardiomyopathy. Moreover, the late gadolinium enhancement is regarded as a promising non-invasive tool in the detection and quantification of myocardial scars. That is considered of high importance in diagnosis, categorization, and detection of etiology in most cases of different types of cardiomyopathy, in addition to risk stratification that can be an essential step in patient management.

Background

The pattern of late gadolinium enhancement (LGE) in cardiomyopathy is quite different in children compared to adults. In addition, the data about LGE imaging in children are still restricted, so the goal was to study the role of cardiac magnetic resonance (CMR) with different techniques, including LGE images in diagnosis and evaluation of different types of cardiomyopathy in children.

Introduction

Pediatric cardiomyopathies are considered a diverse group of severe illnesses of the myocardium and are responsible for significant morbidity and mortality rates in children [1]. Cardiovascular magnetic resonance imaging (CMRI) is now regarded as the gold standard imaging modality for non-invasive acquisition and processing of high-resolution temporal images for heart tissue characterization [1]. Also, delayed contrast-enhanced CMR imaging is emerging as a useful modality for detection, characterization, and differentiation of cardiomyopathies [2].

Cardiomyopathy (CM) generally refers to a diverse group of diseases of the heart muscle and are classified according to anatomy and physiology into the following types: hypertrophic cardiomyopathy (HCM), dilated cardiomyopathy (DCM), arrhythmogenic right ventricle cardiomyopathy (ARVC/D), restrictive (RCM), left ventricular non-compaction cardiomyopathy (LVNC), and unclassified cardiomyopathies. It is also classified into ischemic and non-ischemic types, depending on the presence or absence of coronary artery disease [3].

Ischemic CM is defined as a dysfunction of the left ventricle because of chronic lack of oxygen due to coronary artery disease. Delayed enhancement MR images show fibrosis, which appears as high signal intensity in an area of coronary artery distribution. All infarctions start sub-endocardially and may progress to transmural [4]. Non-ischemic CM has a variable etiology, i.e., genetic, toxic, metabolic, infectious, and idiopathic. In non-ischemic myocardial disease, the delayed enhancement usually does not occur in a coronary artery distribution but often in mid-wall or epicardial rather than sub-endocardial or transmural [4].

There are other tissue characters that can be detected by MRI in non-ischemic cardiomyopathy. In primary hemochromatosis, the heart may be variably affected by increased iron deposition. Using T2*(star)-weighted imaging can detect the presence of significant amounts of iron in the heart. In some non-ischemic cardiomyopathies (e.g., myocarditis), edema may be a prominent feature and can be detected by using T2-weighted imaging [3]. Non-ischemic cardiomyopathy presents a significant diagnostic challenge, since initial symptoms are often vague and overlapping with other disease entities. Determination of the underlying cause of cardiomyopathy is essential in deciding further diagnostic and therapeutic options, and ultimately in determining prognosis [3].

Echocardiography, cardiac catheterization, and nuclear scintigraphy have limited roles in evaluation, as the appearances are non-specific [3]. End myocardial biopsy is not sensitive and hindered by sampling error. So CMR is used for accurate evaluation of myocardial morphology, function, perfusion, and tissue damage in a non-invasive way [4].

Patient and method

Patient selection

This retrospective study was carried out between January 2015 and November 2017 in the Diagnostic Radiology Department (Mansoura University Hospital). A total number of 44 patients were included in this study referred by Pediatrician cardiologists in Mansoura University children hospital for further evaluation by cardiac MRI examination. The study involved different types with non-ischemic type (42 cases), including (dilated cardiomyopathy cases (n = 17), HCM (n = 11), LVNC (n = 5), ARVD (n = 2), restrictive cardiomyopathy (n = 1), and infiltrative cardiomyopathy (6 cases)) and ischemic type (only 2 cases) as presented in Fig. 1. Thirteen patients were excluded from our study either due to contrast extravasation or parent refusal. All patients were subjected to history taking, routine laboratory investigations, 2D echocardiography, and cardiac magnetic resonance (CMR). Patients met the eligibility requirements. Patients with glomerular filtration rate < 30 ml/min/1.73 m2 or frequent ventricular arrhythmias, uncontrolled diabetes mellitus, hypersensitivity to contrast media, and uncooperative children were excluded from our study. Patients with contraindications for MRI including (valve prosthesis and pacemakers that are MRI incompatible) were also excluded from the study.

Fig. 1
figure1

Different types and sub-types of cardiomyopathies included in this study

Written consent was taken from all patients and this study was accepted by the IRb committee in the Faculty of Medicine, Mansoura University.

Cardiac magnetic resonance

CMR imaging was performed with a magnetic resonance scanner (Ingenia 1.5 T; Philips, Medical Systems, Best, the Netherlands). A 16-channel torso phased-array receiver coil was used for signal reception. All data acquisition was retrospective ECG gated. Patients were examined in supine position. Children (> 7 years) who could control breathing data were acquired with respiratory gating. Small children (< 7 years) were sedated with 10% chloral hydrate and examined under free-breathing condition.

CMRI acquisition protocol

The scan protocol was carried out in the following order: Scout images (axial, coronal, sagittal) using real-time interactive planning (FOV 450 × 450 mm2), slice thickness 10 mm, acquisition matrix 220 × 176, voxel size 1.6 mm × 1.9 mm × 10 mm, echo/repetition time (TE/TR) shortest, and flip angle 50°. Cine steady-state free precession (SSFP) sequences acquired on the long-axis cardiac planes: four chambers, two chambers, and three chambers (FOV 350 × 350 mm2, slice thickness 6–8 mm, acquisition matrix 220 × 176, voxel size 1.6 mm × 1.9 mm × 10 mm, echo/repetition time (TR/TE) 6.1/3 ms and flip angle 60°), followed by a “stack” of contiguous SSFP cine images, with the same technical parameters, acquired along cardiac short axis, to cover the whole ventricle from base to apex. T2-weighted images acquired in 4-chamber and SA with a triple-inversion recovery fast spin echo sequence to evaluate myocardial edema. Imaging parameters were TR, 1500 ms; TE, 31 ms; FA, 90; FOV, 350–350 mm2; matrix, 196-149; and slice thickness, 8 mm. After 10–15 min of intravenous administration of contrast agent (DOTAREM, Magnevest), at 0.2 mmol/kg, T1-weighted inversion recovery sequences (PSIR-TFE-BH) (FOV 350 × 350 mm2, slice thickness 8–10 mm, acquisition matrix 220 × 176, voxel size 1.6 × 1.9 × 10, TR/TE 6.1 ms/ 3 ms, flip angle 25°, and inversion time (TI) 250–425 ms) were acquired along the same planes of the cine SSFP images, in order to evaluate the presence of LGE. To determine the correct TI, for nulling normal myocardial signal intensity, a Look-Locker sequence was acquired in one short-axis plane. Steady-state free precession cine images and T1 inversion recovery sequence for determining LGE, both were acquired in breath hold.

Left ventricular systolic function

The cine SSFP acquisitions acquired in short axis were transferred to workstation (Philips extended work station (EWS)), after the manual tracing of the endocardial and epicardial contours of the left ventricular wall at end diastole and end systole on the short axis cine images, LV global function was calculated. End-diastolic volume (EDV), end-systolic volume (ESV), and ejection fraction (EF) were calculated for each patient. Subsequently, both EDV and ESV have been indexed for body surface area (BSA). Wall thickness and wall motion abnormality were also assessed.

Analysis and interpretation of late gadolinium enhancement

Segmental enhancement was quantified by the Philips extended workstation (EWS). View in all 17 segments according to the American Heart Association (AHA) classification. The presence of enhancement in each segment was scored by visually assessing the area showing late gadolinium enhancement as compared with the normal LV myocardium in each segment. Images were evaluated for the presence, distribution, pattern, and site of delayed myocardial enhancement.

Echocardiographic assessment

Transthoracic echocardiography was performed by Phillips ultrasound machine with a transducer of 2–4 MHz. Routine short axis, 4- and 2-chamber views were obtained in two to three cardiac cycles for the assessment of ejection fraction, stroke volume, ventricular and atrial dimensions, wall thickness, segmental wall motion at apex, mid cavity, and base of both ventricle. Measurements were calculated by modified Simpson’s rule.

Statistical analysis

Data entry and statistical analyses were performed using SPSS (statistical Package of Social Sciences) version 16.0 (SPSS Inc., Chicago, IL, USA). The appropriate statistical tests were used. Parametric data were expressed in mean ± standard deviation. Non-parametric data were expressed in median, minimum, and maximum. The normality of data was first tested by one-sample K-S test. In addition, independent t test was used to compare means for continuous parametric variables of each two different groups. In addition, Mann-Whitney U test (z) was used to compare non-parametric continuous variables in two different groups. Pearson Chi-square tests were used to compare the categorical variables between both cases and control groups. p value < 0.05 was considered as statistically significant.

Results

Forty-four (44) patients were included in this study. The mean age was 9.8 ± 5.6 (2–18) years. Main demographic data of the overall population are resumed in Table 1. Within the whole population, the mean LVEF was LV end-diastolic indexed volume and other main CMR findings are summarized in Table 2. The study population was divided into two groups: patients with the presence of LGE (group A, 15 patients) and patients with no evidence of significant LGE (Group B, 16 patients) (Tables 3 and 4). The two subgroups were matched for age and sex. In group A (enhancement group), the results were expressed as median (range): LVEDV 146.2 (144) ml, indexed LVEDV 81.8 (195) ml, LVESV 50 (357) ml, indexed LVESV 47.5 (243) ml, and LVEF 36% (64%), and a major adverse effect was found in 12 out of 15 cases (80%). However, in group B (non-enhancement group), the results were LVEDV 72 (303) ml, indexed LVEDV 75 (318) ml, LVESV 30 (220) ml, indexed LVESV 37.1 (189) ml, and LVEF 45.79% (65%), and a major adverse cardiac effect was found in 2 out of 16 cases (12.5%). The LVEF was lower, and LV volume indices including LVEDV and LVESV were higher in patients with LGE compared to those without LGE with a statistically significant difference (p value = 0.001, p value = 0.003, and p value = 0.005, respectively) as presented in Table 5. Furthermore, it was also found that a major adverse effect occurs with higher incidence in enhancement cases (92%) as compared to non-enhancement cases (12.5%) with a statistically significant difference (p value ≤ 0.001) as presented in Table 6. As regards the delayed contrast enhancement finding in the study, LGE was found in 15 cases out of 31 cases (48.4%) (Table 3). However, the remaining 13 cases had no contrast study. The cases with LGE were 13 non-ischemic cases (seven dilated cardiomyopathy, 4 hypertrophic cardiomyopathy, 1 arrhythmogenic right ventricular dysplasia (case number 5), and one infiltrative) and two ischemic cases. With the following regional patterns (Table 4): mid-wall (n = 9 cases) as present in Fig. 4 sub-endocardial extending to epicardial surface (transmural) (n = 4 cases) as presented in Fig. 3, sub-epicardial (n = 2cases), and sub-endocardial (n = 2 cases) as presented in Fig. 3, there was overlapping in total number as two cases show both mid-wall and epicardial enhancement. Bland-Altman plot test for agreement between MRI and echocardiography for measurement of EF was done as presented in Fig. 2.

Table 1 Demographic data of studied group (44 children)
Table 2 Left ventricle parameters of CMR in studied children of different sub-types of cardiomyopathy
Table 3 LGE result in study groups (after exclusion of non-contrast study)
Table 4 Pattern of LGE in study groups
Table 5 Comparison between demographic and functional MRI findings of all studied groups between enhancement and non-enhancement groups using Mann-Whitney test
Table 6 Comparison between the percentage of major adverse effect between enhancement and non-enhancement groups in study
Fig. 2
figure2

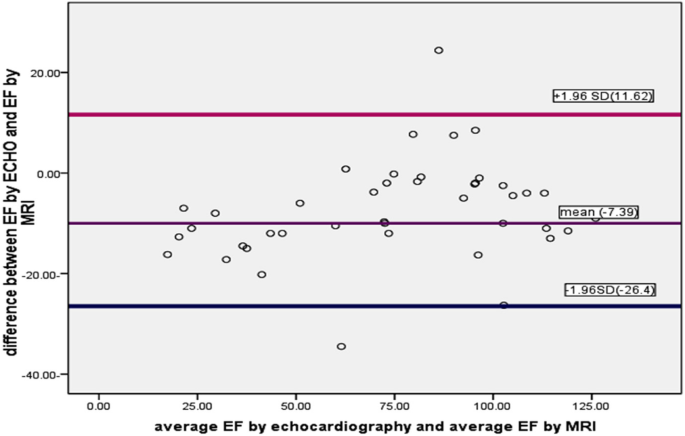

Bland-Altman plot test for agreement between MRI and echocardiography for measurement of EF

Discussion

Pediatric cardiomyopathies caused by different causes either ischemic or non-ischemic and primary (genetic) or secondary (non-genetic). They have diagnostic challenge to clinicians, so it is important to detect the underlying cause as it then leads to improvement of outcome with disease-specific treatment [5].

As reported by Cox et al. [6], the patient population of pediatric cardiomyopathies was divided into 4 types: dilated (53.8%), hypertrophic (34.2%), restrictive (3.2%), and other or mixed (8.9%). And these findings are in approximation with result of our study in which DCM represents 43.1% and was the most common form followed by hypertrophic (25%) and restrictive (2.3%).

Nineteen out of 44 (43.1%) cases were dilated cardiomyopathy. These patients were retrospectively assessed and most of these cases have an idiopathic form (42%) and this agrees with the study conducted by Hong [6], who reported that in pediatric population most cases have idiopathic forms of disease and maybe, in the future, these cases will be found to have genetic or familial causes with subsequent changes in the epidemiology of disease [7].

However, Latus et al. [8] reported that majority of the cases in pediatric population have idiopathic form, the most common known causes are myocarditis (46%) and this with our study results in which among studied dilated cases, we found that myocarditis is the commonest cause of dilation found in seven patients (41%) (Fig. 3).

Fig. 3
figure3

Post myocarditis dilated cardiomyopathy. Sixteen-year-old female patient presented with signs of HF and history of myocarditis 1 year ago. Cine steady-state free precession (SSFP) in short axis (a) and four-chamber (b) views, shows marked dilated LV (EDV = 252 ml and ESV = 199 ml) and reduced EF (21%) that associated with thinning of the wall and global hypokinesia. Late gadolinium enhancement (PSIR) images in short axis (c) and four-chamber (d) view show diffuse transmural enhancement in mid, basal apical segments not following any vascular territory; also, there is diffuse sub-endocardial in basal segments seen in short-axis LGE image (e)

In our study, the cardiac MRI was highly effective in the assessment of ventricular volumes with increased indexed EDV of the left ventricle, reduced EF and global hypokinesia in all cases (100%) of DCM. The left ventricular wall thinning presents only in advanced cases. One of the cases has associated dilated right ventricle. All our previous results in DCM are in agreement with all previous study in literatures by Iacucci et al. [7] and Lehrke et al. [9].

Eleven out of 42 cases (26.2%) in our study, patients were diagnosed as hypertrophic cardiomyopathy (HCM) and represent the second common type in our study, this finding is a close match with a previous study reported by Hong [6] as mentioned before.

In all our cases, diagnosis based on both echo and MRI findings with mean thickness were 13 mm. Ten out of 11 cases showing asymmetric focal left ventricular hypertrophy and only one case with apical form. These findings are in close match with a previous study conducted by Rickers et al. [10], they reported that asymmetric involvement of the inter-ventricular septum is the most common form of the disease, accounting for an estimated 60% to 70% of the cases of HCM and this is in approximation of our finding (90%) in our HCM cases, and these relatively high percentage in our study may be due to our small sample size.

Also, Rickers et al. [10] reported that hypertrophy in this phenotype is typically most evident in the antro-septal myocardium and this is a close match with our study in which asymmetric hypertrophy adjacent to the left ventricular outflow tract including the anterior and infero-septal walls present in more than two thirds (91%) of our patients. However, areas of relative sparing of hypertrophy are also commonly visualized in HCM patients but this finding is not noted in our study.

Systolic anterior motion (SAM) effect is found in 6 out of 10 cases (60%) of focal sigmoid-shaped hypertrophy and this matched with the study that records the presence of SAM in 31–61% of HCM in his study and it is associated with resting LVOTO in 25–50% of cases (based on several series studies) [11,12,13]. And this matched with our finding in which the turbulent jet through the left ventricular outflow track coupled with an eccentric jet of mitral regurgitation, that was highly suggestive of a significant LVOT obstruction which was noted in 7 of our cases (63.6%) (Fig. 4).

Fig. 4
figure4

af Residual HCOM with LVOT obstruction by systolic anterior motion of the mitral valve (SAM) and anomalous papillary muscle: Nine-year-old male patient presented with status post myoctomy with residual HOCM. Cine steady-state free precession (SSFP) in short axis (a, b) views, shows residual focal asymmetrical hypertrophy of antero-septal segment of left ventricle (site of previous myomectomy) with maximum thickness about 20 mm in end diastole image (a) and end systole image (b) with hyper dynamic EF (73%) normal both (EDV = 86.4 ml and ESV = 35.7 ml). Three-chamber view (e) in the same patient shows thickening of the basal ventricular septum causing LVOT narrowing. LV contraction leads to flow acceleration in the narrowed LVOT with visible area of signal void (arrow, e) with subsequent pressure drops cause SAM and leading to mitral regurgitation (MR) (black arrow, e). f Short axis plane in the same patient showing the extra (anomalous) papillary muscle

Three out of these cases with LVOT obstruction showed papillary muscle abnormalities in the form of accessory papillary muscle, bifid muscle with abnormal insertion in to mitral valve leaflet and all three cases showing LVOT obstruction, and these findings are with a previous reported study by Maron and Maron [14] that found resting or provo cable LVOT obstruction in up to 70% of HCM cases and relates it to complex anatomical relationships between the basal septum, LVOT, mitral valve, and papillary muscles (Fig. 4).

Three out of our 11 HCM cases (27.2%) had family history of HCM. And this is a close match with the study conducted by Maron et al. [15] that found eleven (27.5%) of his patients had a family history of HCM at the time of his study. We assessed two cases (sisters to already diagnosed one of study cases) without HCM diagnosis or any clinical suspicion as trial for MRI screening, and LV crypt was seen in two cases together with mild focal asymmetrical hypertrophy in antero-septal segment.

However, we only represent only two cases but this matched with other previously mentioned results by Moon and McKenna [16] that documented screening of the family members of a patient with HCM is important because the first-degree relatives of such a patient have a 50% chance of being a gene carrier; he found a high rate of occurrence of 81% (13 of 16 subjects) in cine MR imaging in HCM mutation carriers who had not yet developed LV hypertrophy. And this may be a point for further research study as a non-invasive technique for screening.

We have diagnosed LVNC in only five cases out of referral eight cases (previously diagnosed by echo) (62.5%). We depend on MRI diagnostic criteria published by a study conducted by Mikolich et al. [17] in which they found 15 of 22 patients (68%) had a diagnosis of LVH on their 2-D echo study, while only 3 had LVH on their cardiac MRI study. Based on these data, patients with LVH on 2-D echo should be considered for a cardiac MRI examination to determine if the increased LV wall thicknesses are truly LVH or an undiagnosed LV non-compaction.

Zuccarino et al. [18] reported that the apical and mid ventricular segments of both the inferior and lateral walls are the most common affected segments in LVNC cases and this with our study results in which all cases had shown region of non-compaction along the lateral wall and sparing septal wall (Fig. 5).

Fig. 5
figure5

ad LVNC and picture of pulmonary hypertension. Three-year-old male patient presented with signs of pulmonary hypertension. Cine steady-state free precession (SSFP) in short axis and four-chamber cine images (a, b). Short axis image in diastole with red line denotes the thickness of the non-compacted myocardium, yellow line denotes the compacted myocardium and prominent trabecular network along the mid anterior, lateral, and inferior left ventricular wall segments with maximum thickness of non-compacted to compacted area in end diastole = 3.6 correlates with LVNC criteria (normal reference > 2.3). Both images (a, b) show dilated left ventricle with global hypokinesia, reduced EF (6.2%). There is marked dilatation of right ventricle which shows reduced ejection fraction (8.2%) associated with global hypokinesia and prominent trabeculation. There is dilated RVOT, pulmonary artery, and its two branches (c, d)

Three of our patient have associated other congenital heart disease, one case has hypoplastic left heart syndrome while another one has PDA and the other ASD and this matches with study conducted by Ichida [19] who described this as a non-isolated form. The remaining two cases have an isolated form and this was different from the study conducted by Zuccarino et al. [18] who reported that the isolated form is the commonest form.

The incidence of ARVD in our study was (4.7%); however, the true incidence of ARVD is unknown and is categorized as a rare disease with estimated prevalence at 1:5000 [2]. We have two cases with ARVD diagnosis. One of them showed a normal-size right ventricle with reduced ejection fraction (30%), regional hypokinesia and dyskinesia with small aneurysmal dilation near RVOT, and no detected fatty infiltration in the right or left ventricle; also, this case demonstrated right atrial dilation secondary to tricuspid regurge; there was subtle patchy enhancement in RVOT. The other case shows fatty infiltration was detected in RVOT with dilated RV and RA with tricuspid regurgitation; however, no detected WMA (Fig. 6).

Fig. 6
figure6

Nine-year old female presented with recurrent attack of arrhythmia. RVOT view (a) show dilated RVOT with upper limit size of right ventricle and systolic dysfunction (reduced EF = 30%). RVOT view (b) shows RV wall thinning showing regional hypokinesia and dyskinesia (arrows). LGE imaging in RVOT (c) and 4-chamber (d) views showing focal strong enhancement is found in RV free wall (arrows in c). The areas of enhancement correspond to the dysfunctional areas on cine imaging (Arrows in b). Normal size and function and signal intensity of myocardium in LV. MRI finding cope with major MRI criteria of ARVD

In a study carried out by Grosse-Wortmann et al. [20], they found that MRI is a useful tool in the diagnostic work-up of ARVC in children and adolescents in contrast to adult due to more subtle degree of WMA in this age group which are not detected by echocardiography but found on MRI. Also, in the pediatric age group, fibrofatty degeneration is found rarely and never without wall motion abnormalities, and this matches with the finding in our two cases.

As regards restrictive cardiomyopathy type, in our study, we have six referral patients with diastolic dysfunction; one of them has restrictive cardiomyopathy and the other five cases are diagnosed as constrictive pericarditis based on clinical, echo, and MRI findings. Although both restrictive cardiomyopathy and constrictive pericarditis are characterized by diastolic dysfunction and impairment of ventricular filling, they have different management and differentiation between them is very important.

In restrictive case, there were small both ventricles with significant decrease in EDV and ESV; however, there were normal EF of both ventricle and marked dilation of both atria associated with dilated IVC and hepatic veins while no pericardial thickening or effusion or pericardial enhancement (Fig. 7).

Fig. 7
figure7

Idiopathic restrictive cardiomyopathy. Two-year-old female presented with signs of right-sided HF and systemic congestion. Cine SSFP 4 chamber views (a) show average-sized both LV and RV with normal thickness of LV myocardium and massive enlargement of both atria with TR, MR seen in a and normal EF of both ventricle. Short axis Black Blood T1 (b) show normal pericardial thickness without enhancement (in f). Normal movement of septum with respiration (arrow) in real-time images short axis (c) and 4-chamber view (d). Dilated IVC with mild right pleural effusion (arrows) seen in image (e). No abnormal signal or abnormal delayed enhancement in short axis and 4-chamber LGE views (f) to suggest scar

While in the other five cases that were diagnosed as constrictive pericarditis, there were also small both ventricles with significant decrease in EDV and ESV and normal EF of both ventricle; however, the main differentiating points were thickened pericardium with no enhancement in chronic cases and enhancement in acute setting and evidence of septal bounce that is more evident with respiration, flattening of the inter-ventricular septum with inspiration, and septum bounces to the right side with expiration.

In all studied referral cases, both morphological and functional parameter of restrictive cardiomyopathy and constrictive cardiomyopathy are similar apart from septal bounce which is diagnostic for constrictive pericarditis and detected on MRI using a real-time imaging sequence in the short-axis plan and thickened enhancing or non-enhancing pericardium and this point is superior assessed by MRI than echo. Our findings are a closer match with study conducted by Rammos et al. [21] that use the respiratory-related ventricular coupling to differentiate patients with constrictive pericarditis and RCM. However, the cases of constrictive pericarditis were excluded from our study and this is the only differentiating point.

Another form of restrictive cardiomyopathy type is the infiltrative form which also enters under secondary causes as previously mentioned in review. In our study, we have six cases; two of them with metabolic storage disease and were presented with diffuse hypertrophy as differential diagnosis to HCM cases while the remaining four cases were cardiomyopathy secondary to iron overload in thalassemia patients.

We add T2*-weighted image in our protocol in examination of patient with thalassemia and we found that myocardial iron deposition was found on gradient-echo images, with lower signal at higher echo time (TE) values and this matched with study conducted by Cozma [22]. He reported that myocardial T2* was shown to be a more reliable indicator of true myocardial iron content as compared to serum ferritin levels or liver iron. Myocardial T2* < 20 ms is significant iron deposition and < 10 ms is advanced iron deposition (Fig. 8).

Fig. 8
figure8

Dilated form of infiltrative cardiomyopathy secondary to iron overload. Ten-year-old male with thalassemia major presented with signs of heart failure. Short axis and long axis in four- and two-chamber cine images (a, b, and c, respectively) showing marked dilation of both ventricles (LVEDV = 121.6 ml and RVEDV = 140 ml) with global hypokinesia and reduced LVEF (20%) and RVEF (39%). Short axis gradient-echo imaging sequence (d) show decreased myocardial signal more in infero-septal segment (circle in d). T2* WI (e) shows myocardial iron overload of heart together with decay curve in excel sheet (f). Both show heavy iron overload in heart and rapid signal loss with (T2* value = 8.8 ms)

In our study, we found that there was an agreement between echocardiography and cardiac MRI examination in evaluation of LVEF as demonstrated by Bland-Altman plot test Fig. 2. Among our 44 patients, the mean EF by echo was 54.4 + 19.7 SD and by cardiac magnetic resonance was 47.2 + 21.6 with a mean difference of 7.3%. SD of bias was 9.7 and the 95% limits of agreement were − 26.4 to 11.6. Our result are quite different from study conducted by Hoffmann et al. [23]. All of them found that mean differences between EF by cardiac magnetic resonance and echocardiography images were below 5%; however, we found that mean difference was 7%.

In our study, there was an overestimation of LVEF by echocardiography compared to CMR with a mean difference of about 7% between the two imaging modalities. As well, our results agreed with Rasha et al. [24] who observed agreement between echocardiography and CMR for estimation of LVEF in 37 patients with left ventricular dysfunction due to ischemic heart disease; the mean EF by CMR and echocardiography was 33.3% and 29% respectively with a mean difference of 4.3%. SD of bias was 6.73 and the 95% limit of agreement was − 8.90 to 7.5m and our result were mean EF by echo was 54.4 and by cardiac magnetic resonance was 47.2 with a mean difference of 7.3%. SD of bias was 9.7 and the 95% limits of agreement were − 26.4 to 11.6 with higher values in our study.

We have relatively high percentage of bias in comparison to all previous reported study, as all these studies were in adults and our study was in children, and need for further agreement that MRI is more accurate than echo in functional cardiac assessment due to relatively different anatomy between adult and children and challenge of echo technique in children.

As regards the delayed contrast enhancement finding in our study, LGE is found in 15 cases out of 31 cases (48.4%); however, the remaining 13 cases have no contrast study due to medical problems, the parent refusing or escape of contrast out of cannula. The enhancing cases were 7 DCM, 4 HCM, 1 ARVD,1 infiltrative cardiomyopathy, and two ischemic cases. The following regional patterns are presented in Table 4: mid-wall (n = 9), sub-endocardial extending to epicardial surface (transmural) (n = 4) (Fig. 3), and sub-epicardial (n = 2), sub-endocardial only (n = 2).

We found that there was correlation between the presence of LGE and MRI LVEF and LV volumes. The LVEF was lower and LV volume indices included (LVEDV, LVESV) were higher in patients with LGE compared with those without LGE with a statistically significant difference (p value = 0.001, p value = 0.003, and p value = 0.005, respectively).

Also, a major adverse effect found in 14 of our cases with higher incidence in enhancement cases (80%) as compared to non-enhancement ones (20%) with a statistically significant difference (p value ≤0.001). So as regards the correlation between enhancement and other variables, we found that adverse cardiac prognosis is associated with the presence of LGE.

These results agree with adult study carried out by Wu et al. [25] that correlates the presence and extent of CMR LGE with a higher risk of adverse cardiac outcomes in patients with non-ischemic cardiomyopathy (NICM) and LVEF 35% and LVEF trended lower and LV volume indexes were higher in those patients with LGE compared with those without LGE. And in correlation with the study also carried out by Assomull et al. [26].

Although we found a significantly higher incidence of adverse cardiac outcomes in NICM patients with positive LGE, the absence of LGE did not exclude the occurrence of adverse effect and we found an adverse effect in two patient (12.5%) without enhancement and this is in agreement with study carried out by Wu et al. (25) that found adverse cardiac effect in three patients of her study cases (9%) without LGE and they explained that not all adverse cardiac effect are caused by fibrosis, but may occur due to other causes such as by bundle branch or inter fasicular re-entry in arrhythmia and others.

From previous results LGE image can be used as clinical tool for suspecting cases with bad clinical out come and aid in management of these cases.

Limitations

The limitations were as follows:

  • Compliance is essential for patients younger than 8 years old and some patients not sedated by oral chloral or refused by parents and may also need to IV sedative or general anesthesia which were problematic.

  • Identification of late enhancement in children may be inadequate due to respiratory or motion artifacts caused by spontaneous breathing under sedation. Also, spatial resolution of the CMR sequence might be too low to identify small areas of local fibrosis in neonates and infants.

  • We depend mainly in our study on correlation with echo finding, clinical data, and laboratory investigation as cardiac biopsy is not available.

Conclusion

Our study included 44 patients with different types of cardiomyopathy, in which, DCM represents the commonest type (43.2%) followed by HCM (25%), and restrictive cardiomyopathy was the one with low incidence (2.3). Also, other types as ARVD, LVNC, infiltrative, and chemotherapy-induced cardiomyopathy (CICM) were represented in variable small percentage.

In our study, there was agreement between both echo and MRI in evaluation of LVEF with echo showing overestimation and MRI was accurate and better evaluating tool. Also, MRI is the method of choice in right ventricular assessment as regards both morphological and functional parameters due to bad quality of image in echo by anterior position of RV behind sternum.

LGE was a common finding (48.4%) and it showed different patterns that differentiate between ischemic and non-ischemic cardiomyopathy types. Also, in non-ischemic types, different patterns of LGE was identified and is useful for detecting the underlying etiology.

We found that there was a correlation between the presence of LGE and left ventricle functional parameter in the form of lower LVEF and increased LVEDV, LVESV in patients with enhancement compared with those without with a statistically significant difference (p value = 0.001, p value = 0.003, and p value = 0.005, respectively).

Furthermore, we also found that major adverse effect occurs with higher incidence in enhancement cases (80%) as compared to non-enhancement (20%) with a statistically significant difference (p value < 0.001).

So, cardiac MRI can be considered an important non-invasive imaging modality not only for assessment but also in differentiation between ischemic and non-ischemic cardiomyopathy in the pediatric age group. Using its different techniques allows a better assessment of morphologic and functional parameters in cardiomyopathy in children.

Moreover, the late gadolinium enhancement is considered a promising non-invasive tool in the detection and quantification of myocardial scars that are considered of high importance in diagnosis, categorization, and detection of etiology in most cases of different types of cardiomyopathy, in addition to risk stratification which can be an important step in patient management.
