B-mode ultrasound, color Doppler, and sonoelastography in differentiation between benign and malignant cervical lymph nodes with special emphasis on sonoelastography

Abstract

Background

Enlarged cervical lymph nodes are the most commonly encountered neck lumps. Ultrasonography is the most extensively used tool for classification of superficial lymph nodes due to its availability and low cost. Ultrasound (US) elastography refers to a non-invasive imaging technique that can describe tissue displacement (i.e., strain) or stiffness in response to a given force.

The aim of this study is to compare between B-mode sonography, color Doppler, and sonoelastography in assessment of enlarged deep cervical lymph nodes.

Results

The prevalence of benign lymph nodes was 26 out of 84 (31%). Lymphomatous lymph nodes were 22/84 (26.2%), while metastatic lymph nodes were 36/84 (42.8%). Color Doppler evaluation of nodal vascular pattern was of high sensitivity (91.7%), specificity (80.8%), and accuracy (88.6%) for differentiating metastatic and benign nodes (P value was < 0.001). There was a significant difference between elasticity scores of benign and malignant lymph nodes (P < 0.001). The most frequent score in the malignant group was 3 (21/27) (77.8%) while the most frequent score in the benign group was 2 (5/11) (45.5%). The mean strain ratio (strain index) for malignant lymph nodes (mean 3.2 ± 0.8) was significantly greater than that for benign lymph nodes (mean 1.1 ± 0.8).

Conclusion

Ultrasound elastography with its high sensitivity and specificity is a helpful improvement in US for the assessment of cervical lymph nodes, in which biopsies should be performed.

Background

Enlarged cervical lymph nodes are the most commonly encountered neck lumps [1]. Various imaging techniques including ultrasonography, computed tomography (CT), and magnetic resonance imaging (MRI) are used to evaluate the possible characteristics of lymph nodes [2]. Ultrasonography is the most extensively used tool for classification of superficial lymph nodes due to its availability and low cost. Ultrasound elastography (UE) is easy, rather cheap, and quick to perform, well tolerated by patients, and offers a strong diagnostic power [3]. Ultrasound (US) elastography refers to a non-invasive imaging technique that can describe tissue displacement (i.e., strain) or stiffness in response to a given force [4, 5]. Elasticity is a mechanical tissue characteristic that prevents tissue displacement under pressure. It varies in different types of tissue (fat, collagen, and so forth) and in the same tissue in different pathological states (inflammatory, malignant) [6]. Stiff tissues tend to deform less and show less strain than compliant tissues in response to the same imparted force [5].

The aim of this study was to compare between B-mode sonography, color Doppler, and sonoelastography in assessment of enlarged cervical lymph nodes with pathological correlation.

Methods

Study was approved by the ethical committee. A written consent was obtained for the current study, and the procedure was explained for each patient. In the current study, the diagnostic accuracy of conventional US, Color Doppler ultrasound, and US elastography, as well as the sensitivity and specificity to diagnose malignant cervical lymph nodes such as those caused by lymphoma and metastasis in addition to benign conditions as TB and non-specific lymphadenitis were analyzed.

This prospective study was conducted on 55 patients, 33 males, and 22 females (age ranged from 9 to 68 years with mean age of about 42 years). Inclusion criteria for the examined 55 patients included patients with clinically enlarged cervical lymph nodes including patients with newly diagnosed head and neck cancer. None of the examined patients had received any specific treatment (chemotherapy or radiotherapy) prior to the examination. Necrotic nodes were excluded.

Imaging procedures and equipment

All patients underwent ultrasound examination, color Doppler scanning and US Elastography using TOSHIBA APLIO 500 ultrasound machine (Toshiba Medical Systems Corporation, Japan) with 8–12 MHz linear probe. Patients were subjected to FNAC, core biopsy, and excisional biopsy according to patient’s condition, followed by histopathological examination.

Imaging analysis and interpretation

Real-time ultrasound

Conventional B-mode

Examination included the entire neck, looking for abnormal cervical lymph nodes and any abnormal masses. The following US features of cervical lymph nodes were analyzed: shape, short-axis diameter, margin, echogenicity echogenic hilum (present or absent), necrosis, calcifications, and matting.

B-mode US criteria for diagnosis included short-axis diameter, shape, border, long-to-short-axis diameter ratio in the longitudinal plane (L/S), hilum, and echogenicity. Short-axis diameter < 8 mm was the criterion as benign and ≥ 8 mm as malignant; regular shape was the criterion as benign and irregular sharp as malignant; regular border was considered as benign and irregular or blurred border as malignant; oval shape (L/S ≥ 2) was considered as benign and round (< 2) as malignant; presence of hilum was considered as benign and absent as malignant; homogeneous echogenicity was considered as benign and heterogeneous echogenicity as malignant.

Color Doppler imaging

Vascularity of each node was seen in color Doppler ultrasound and ranked from I–IV:type I was defined as a hilar or central flow, type II had peripheral flow only, type III had mixed peripheral flow with central flow, and type IV was defined as no visible flow.

US elastography

US elastography was performed using the strain method. The target lesion was manually compressed by the transducer under light repetitive pressure followed by decompression and repeated until a stable image was obtained.

Real-time elastographic and B-mode images simultaneously appeared as a two-panel image, in which the elastogram appears in a region-of interest (ROI) box. The elastography images were obtained with the elasticity color map, superimposed on the B-mode images, and displayed on the left side of a dual-display image while the corresponding B-mode image was on the right in order to maintain continuous real-time visualization. The elastography strain images were displayed on color mapping. The red area was the area with the greatest strain (softest component); green area, average strain (intermediate component); and blue area, no strain (stiffest component).

Image interpretation was done using a well expert head and neck radiologist with a 15-year experience and was blinded to clinical and laboratory data. Strains of lymph node and surrounding muscles were measured on elastogram, and the muscle-to-lymph node ratio (strain ratio/index) was calculated. Strain ratio curves and value were calculated automatically by the machine. Afterwards, elastographic images were given 1–4 elasticity scores based on a study by Ying et al. [7]. Offline post-processing of the acquired elastograms was done using computer software for analysis of pictures called “ImageJ.” It calculated the percentage of blue areas of the elastograms (representing the percentage of stiff tissue).

The US elastography assessment was categorized as probably benign (elasticity scores of 1 with total blue area < 10%, moderately soft (total blue area between 10% and 45%), suspicious for malignancy (elasticity score 3 interpreted as moderately stiff with a total blue area between 46% and 80% and score 4 which were interpreted as stiff nodes with a total blue area > 80%.

Pathologic diagnosis

Fine needle aspiration cytology (FNAC) was used in 12 nodes (3 patients), core needle biopsy (CNB) in 52 nodes (46 patients), and surgical excisional biopsy in 12 nodes (3 patients). In 3 patients (8 lymph nodes), the follow-up after empirical treatment revealed improvement of the enlarged lymph nodes both clinically and radiologically with no recurrence on follow-up and were considered non-specific lymphadenitis.

Statistical analysis of the data

Data were referred to the computer and analyzed using IBM SPSS software package version 20.0. Qualitative data were described using number and percent. Quantitative data were described using range (minimum and maximum), mean, standard deviation, and median. Significance of the obtained results was judged at the 5% level. Chi-square test for categorical variables was used to compare between different groups.

Fisher’s exact or Monte Carlo correction for chi-square when more than 20% of the cells have expected count less than 5, Student’s t test for normally quantitative variables, to compare between two studied groups, and Mann–Whitney test for abnormally quantitative variables, to compare between two studied groups. Agreement of the different predictives with the outcome was used and was expressed in sensitivity, specificity, positive predictive value, negative predictive value, and accuracy. Odd ratio (OR) was used to calculate the ratio of the odds and 95% confidence interval of an event occurring in one risk group to the odds of it occurring in the non-risk group. ROC curve of ES and SR in isolation and combined for prediction of malignancy (Fig. 1).

Fig. 1

ROC curve of ES and SR in isolation and combined for prediction of malignancy

Results

Age range for both benign and malignant patients was 9–68 years; the mean age was higher for malignant cases (58 ± 14.4 years) than for benign cases (15.7 ± 10 years).

According to pathological results, the prevalence of benign lymph nodes was 26 out of 84 (31%), of which 20 LN were non-specific lymphadenitis and TB lymphadenitis was detected in 6 LNs (Figs. 2 and 3). Lymphomatous lymph nodes were detected in 22 nodes (26.2%) (Fig. 4), while metastatic lymph nodes were 36/84 (42.8%) (Fig. 5).

Fig. 2

B-mode US (a) revealed a well-defined, hypoechoic, oval right upper deep cervical lymph node with preserved hilum, L/S ratio was 2.54. Color Doppler (b) revealed central hilar internal vascularity. The split-screen US elastogram (c) of the same lymph node revealed type 1 color pattern, strain ratio value was 1.17. Histopathological evaluation revealed non-specific lymphadenitis

Fig. 3

B-mode US (a) revealed a well-defined hypoechoic left lower deep cervical lymph node with thinned hilum. L/S ratio was 2.5. Color Doppler (b) revealed central hilar vascularity. The split-screen US elastogram (c) revealed type 2 color pattern. Strain ratio value was 3.6. Despite high SR, the final histopathological diagnosis was TB lymphadenitis

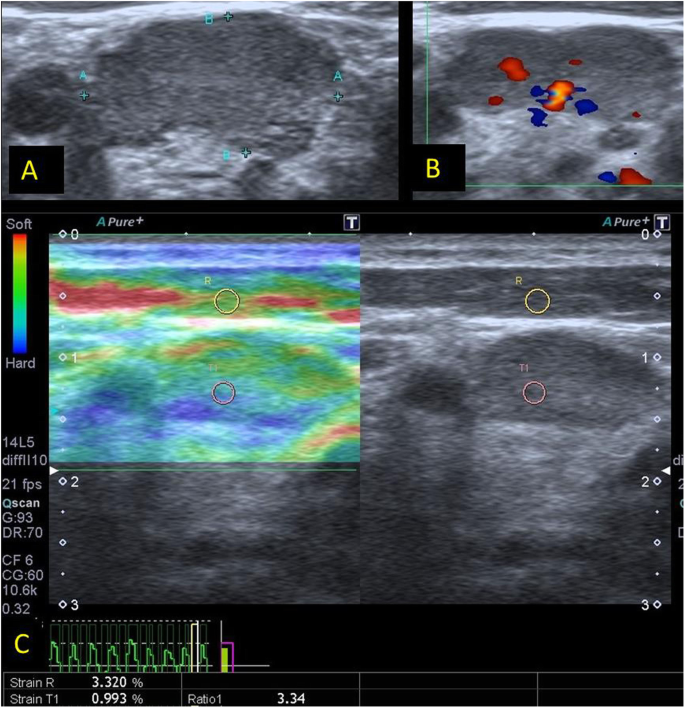

Fig. 4

B-mode US (a) revealed a hypoechoic right lower deep cervical lymph node with irregular outline and lost hilum. L/S ratio was 1.9. Color Doppler (b) revealed a central pattern of internal vascularity. The split-screen US elastogram (c) revealed type 3 color pattern. Strain ratio value was 3.32. The final histopathological diagnosis was nasopharyngeal cancer

Fig. 5

B-mode US (a) revealed a well-defined hyporechoic left lower deep cervical lymph node with bulky cortex and thinned-out hilum. L/S ratio was 2.2. Color Doppler (b) revealed profuse mixed central and peripheral internal vascularity. The split-screen US elastogram (c) revealed type 3 color pattern. Strain ratio value was 4.7. The final histopathological diagnosis was non-Hodgkin lymphoma

Among the 36 metastatic lymph nodes, 11 lymph nodes were secondary to thyroid cancer, followed by nasopharyngeal and laryngeal cancer, each accounting for 9 and 10 lymph nodes, respectively. Also, five lymph nodes were histopathologically diagnosed to be secondary to breast cancer and one lymph node was metastatic from tongue cancer.

According to the B-mode sonographic criteria, the short-axis diameter and ratio between the long-axis/short-axis diameter, both were found to be of no statistical significance (P > 0.05). Echogenic hilum was observed in 72.7% of the benign lymph nodesand in none of the malignant lymph nodes (P < 0.001). Out of the examined benign lymph nodes, 90.9% showed regular margin, while 51.9% of the examined malignant lymph nodes had irregular outlines (Table 1).

Table 1 Relation between the five used B-mode ultrasound criteria and final histopathological diagnosis

According to the Doppler findings, benign lymph nodes showed hilar vascularity in 19/26 lymph nodes and peripheral vascularity in 7/26 lymph nodes. On the other hand, malignant lymph nodes exhibited peripheral vascularity in 33/58 lymph nodes, mixed vascularity in 5 lymph nodes, and avascular pattern in 20/58 lymph nodes.

Color Doppler ultrasonography evaluation of nodal vascular pattern was of high sensitivity (93.4%), specificity (84.7%), and accuracy (89%) for differentiating metastatic and benign nodes. Its P value was < 0.001*.

Qualitative elastographic findings (elasticity score)

There was a significant difference between elasticity scores of benign and malignant lymph nodes (P < 0.001). The most frequent score in the malignant group was 3 (46/58) (79.3%). On the other hand, the most frequent score in the benign group was 2. Patients with scores of 1 and 2 were classified as elastographic-negative, and those with scores 3 and 4 were classified as positive. Fifty-five malignant lymph nodes were elastographic-positive, and 3 were negative (Table 2).

Table 2 Relation between elasticity score and final histopathological diagnosis

Quantitative elastographic findings (strain ratio)

The mean strain ratio (strain index) for malignant lymph nodes (mean 3.3 ± 0.65) was significantly greater than that for benign lymph nodes (mean 1.3 ± 0.75) as shown in Table 3. Out of the 84 examined lymph nodes, 26 nodes (31%) assumed to be benign according strain ratio, 23 of them (88.4%) were benign (true negative) by histopathology, and 3 of them (11.6%) were malignant by histopathology (false negative). Meanwhile, 58 lymph nodes seemed to be malignant according to strain ratio, out of which 55 lymph nodes (49.8%) were confirmed to be malignant by histopathology (true positive) and 3 lymph node were proved to be benign (false positive) (Table 3).

Table 3 Relation between elastographic strain ratio and final histopathological diagnosis

Using a cut-off point of more than 47% for ES and 1.9 for SR, both ES and SR showed excellent discrimination between malignant and benign nodes, area under curve (AUC) showed an excellent test ranged from 0.91, .95, and 0.89 for ES, SR, and both combined, respectively (Tables 4 and 5).

Table 4 Diagnostic performance of elasticity score and strain ratio in isolation and combined

Table 5 Sensitivity, specificity, and accuracy of US, Doppler ES, and SR

Discussion

Lymphadenopathy is one of the common daily clinical encounters, and it holds high clinical significance as it could be a manifestation of a number of pathological entities [1]. A detailed knowledge of the differential diagnosis of localized or generalized lymphadenopathy is important as lymphadenopathy can be caused by serious conditions such as malignancy.

B-mode sonography, color Doppler sonography, and ultrasound elastography were used in our study to differentiate between benign and malignant cervical lymph nodes in the light of clinical data, follow-up, and histopathological results.

Owing to the multiplicity of lymph nodes, the most suspicious nodes were chosen as the clinical concern was whether the nodal masses are benign or malignant. Choosing the most suspicious nodes resulted in 84 lymph node groups in 55 patients. Statistical data showed male predominance as 60% of patients were males and 40% were females.

Histopathological results showed that 69% of the lymph nodes (58 lymph nodes) were malignant. This high percentage of malignant lymph nodes in the current study can be attributed to the selection of the most suspicious lymph nodes because physician were worried about metastatic disease in patients with primary malignancy and about being malignant lymphadenopathy such as lymphoma in patients without known primary. This was also observed by Alam et al. [6] and Shi et al. [8], the studies of whom were conducted on 85 lymph nodes, 62% of which were malignant. However, in some other studies such as that performed by Lyshchik et al. [9], only 43% of the total of 114 examined lymph nodes were found to be malignant.

The B-mode ultrasonographic diagnosis of lymph nodes has been the topic of many studies in the literature [10, 11].

Unlike Teng et al. [12] found that the best B-mode criterion was short-axis diameter with sensitivity of 94% and accuracy of 71.9%, the current study results showed that the best conventional ultrasound criterion was the presence or absence of a hyperechoic hilum. In the current study, we observed a lost hilum in 100% of malignant lymph nodes and 27% of benign nodes. On the other hand, some authors have reported that a hyperechoic hilum can be visualized in up to 51.5% of metastatic nodes [13], regarding short-axis diameter, results showed that it was statistically insignificant in differentiation between benign and malignant cervical lymph nodes, with a P value of 0.315.

In the current study, the shape of lymph nodes was not a sufficient reliable indicator for identifying malignant lymph nodes (P 0.121). In contrast, the observations of Toriyabe et al. [14] and Lyshchik et al. [9] showed that 68% and 82% of benign nodes respectively were oval and 81% and 75% of malignant nodes respectively were round in shape

Normal and reactive nodes were predominantly hypoechoic when compared to the adjacent muscles, however, metastatic nodes from papillary carcinoma of the thyroid are usually hyperechoic. The hyperechogenicity of the lymph nodes is believed to be due to the intra-nodal deposition of thyro-globulin originating from the thyroid primary tumor [15, 16].

Regarding color Doppler US, it has been shown that benign lymph nodes tend to show hilar vascularity (73% of benign lymph nodes). In contrast, malignant lymph nodes had peripheral (56.8%) or mixed (both peripheral and hilar) vascularity (8.6%). In their study, Teng et al. [12] reported sensitivity 67%, specificity 76%, and accuracy 71% for Doppler in differentiating benign and malignant LNs. Also, in Lyshchik et al. [10] had found that specificity of Doppler was higher than its sensitivity recording 99% and 47%, respectively.

Ultrasound elastography corresponds to clinical palpation as a method to assess how stiff lymph nodes are. In general, metastatic lymph nodes are hard and lymph nodes of TB are of tough texture.

Elastography is a technique that uses ultrasound to analyze the stiffness of lymph nodes by measuring the amount of distortion that occurs when the lymph node is subjected to external pressure. The stiffness of the lymph node is closely related to biological characteristics. Malignant lymph nodes often are infiltrated by tumor cells, necrosis, and calcification. Benign lymph nodes, not containing metastatic deposits, have a similar stiffness to normal tissue. According to this theory, malignant lymph nodes are mostly stiffer than benign ones (Bhatia et al. [17]).

Elasticity score is used for the interpretation of elastographic findings [17]. The elasticity scoring system initially proposed by Itoh et al. [18] was useful for comparing breast ultrasound elastographic results, by using five pattern elasticity scores. The four patterns scoring system is the most frequently ES used in detecting lymph nodes abnormalities due to its simplicity [17]. So, we used it in the present study.

Furukawa et al. [19], Iagnocco et al. [20], and Choi et al. [21] carried out studies on lymph nodes and classified the elastographic findings into four patterns. Their results revealed that malignant lymph nodes were found to exhibit patterns 3 and 4 and benign lymph nodes patterns 1 and 2.

Findings observed in the current study were similar to those of Furukawa et al. [19]. Eighty-two percent of benign lymph nodes that we examined were classified as patterns 1 and 2, while 94% of malignant ones were classified as patterns 3 and 4.

Scores 3 and 4 were present in 72.4% and 22.4% of the malignant lymph nodes, respectively, 7.72% and 0% of the benign lymph nodes, respectively. On the other hand, 5.1% (3/58) of the malignant nodes had score 2 (false negative).

Ying et al. [7] concluded that even though elasticity score measurement had a good diagnostic accuracy, it had significant inter-observer variability. Thus, a quantitative method such as strain ratio measurement was needed for analysis of elasticity of the lymph node.

Different cut-off values of strain index were suggested to differentiate between benign and malignant nodes (1.5 and 1.78) [6, 9], while the cut-off value used in Arda et al. [22] was 2.5. In the present study, the cut-off value was 1.9 and after revising the histopathological results, the calculated sensitivity for strain ratio greater than 1.9 was 94.8%, specificity was 88.5%, PPV was 94.8%, NPV was 88.5%, and accuracy was 92.8%. High specificity is the greatest advantage of elastography, which has been found not only in the current study but also in other studies [7, 9, 22, 23]. So, ultrasound elastography can reduce the number of unnecessary biopsy in the diagnosis of metastatic cervical lymph nodes. In a study carried out on 32 enlarged lymph nodes, the authors stated that ultrasound elastography showed sensitivity, specificity, and accuracy of 83.3%, 90%, and 87.5%, respectively [24].

The specificity of ultrasound elastography has varied widely among different reports. Some studies showed high specificity of elastography as in the studies performed by Alam et al. [6] and Hefeda et al. [25] (100% and 95.6%, respectively), who studied the difference between reactive and metastatic lymph nodes. In the current study, sensitivity of elasticity score was 96.4% and sensitivity of strain ratio was 94.8%. Alam et al. [6] reported the highest accuracy for sonoelastography (89%) in agreement with our results that showed 94.4% accuracy for elasticity score and 92.8% accuracy for strain ratio

On the other hand, Lo et al. [23] in a study included 131 patients, found that the elasticity pattern system had sensitivity of 67%, specificity of 57%, positive predictive value of 52%, and negative predictive value of 71%. They concluded that elastography offers no additional value over conventional ultrasound in predicting malignancy in cervical lymph nodes.

The sonoelastography technique is helpful in differentiating reactive from metastatic lymph nodes, but it did not show the ability to distinguish other situations such as TB. Two patients in our study were diagnosed with TB lymphadenitis. The first one took score 3 (false positive), and the second one score 2. So, ultrasound elastography was equivocal in our results in such situations.

The characteristics of TB on ultrasonography are variable according to clinical stage. The appearance of TB on ultrasonography was classified into four types: acute inflammation type, cheesy necrosis type, cold abscess type, and calcification type according to some authors such as Zhao et al. [26]. The differential diagnosis between TB and malignant disease of lymph node is always the diagnostic dilemma of ultrasound and sonoelastography. In a study done by Teng et al. [12], only 5 out of 16 lymph nodes of TB were diagnosed correctly by ultrasound elastography, whereas the whole diagnostic accuracy of elastography was 66% in 89 lymph nodes which were suspected to be malignant.

The current study has some limitations such as the small number of studied nodes. Sonoelastography is a user-dependent technique related to experience of the radiologists. A low-quality elastogram can result in problems in interpretation. A poor-quality elastogram may result from pulsation of neighboring vessels. The shape of the neck may result in sliding motion during compression.

A lot of research is still needed to fully understand the varied appearance of diseases and to standardize its application. It is possible that it will become a part of the routine diagnostic sonographic procedure in the near future.

Conclusion

Ultrasound elastography with its high sensitivity and specificity is a helpful improvement in US for the assessment of cervical lymph nodes, in which biopsies should be performed.
